Muffler SI1

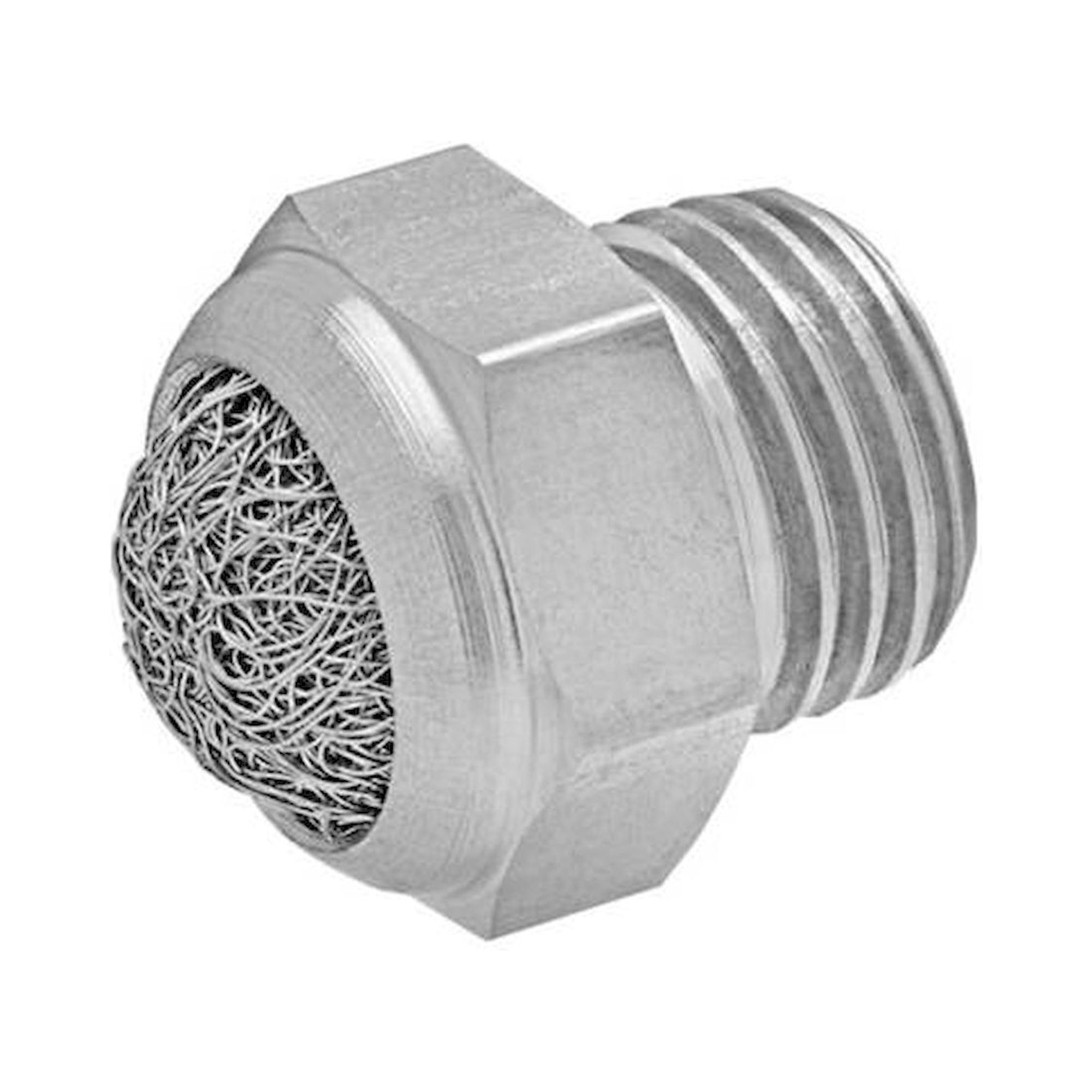

The Aventics Silencer SI1 is available in threaded versions from M5 and G 1/8 to G 1, as well as variants with a hose stub (e.g. G 1/4-5PU, G 3/8-2PU) that allow exhaust air to be routed away from the installation point when noise at the valve location is a concern. The damping material is sintered plastic or sintered bronze depending on the version.
With 70 variants, Series SI1 covers all common exhaust ports in pneumatic directional control valves and valve islands, from M5 (miniature valves) to G 1 (large actuators).
- Net prices plus VAT
Buying guide
How to choose Muffler SI1
What matters when choosing: properties, comparison and typical applications.
Thread versions and special variants
| Version | Thread / connection | Feature |
|---|---|---|

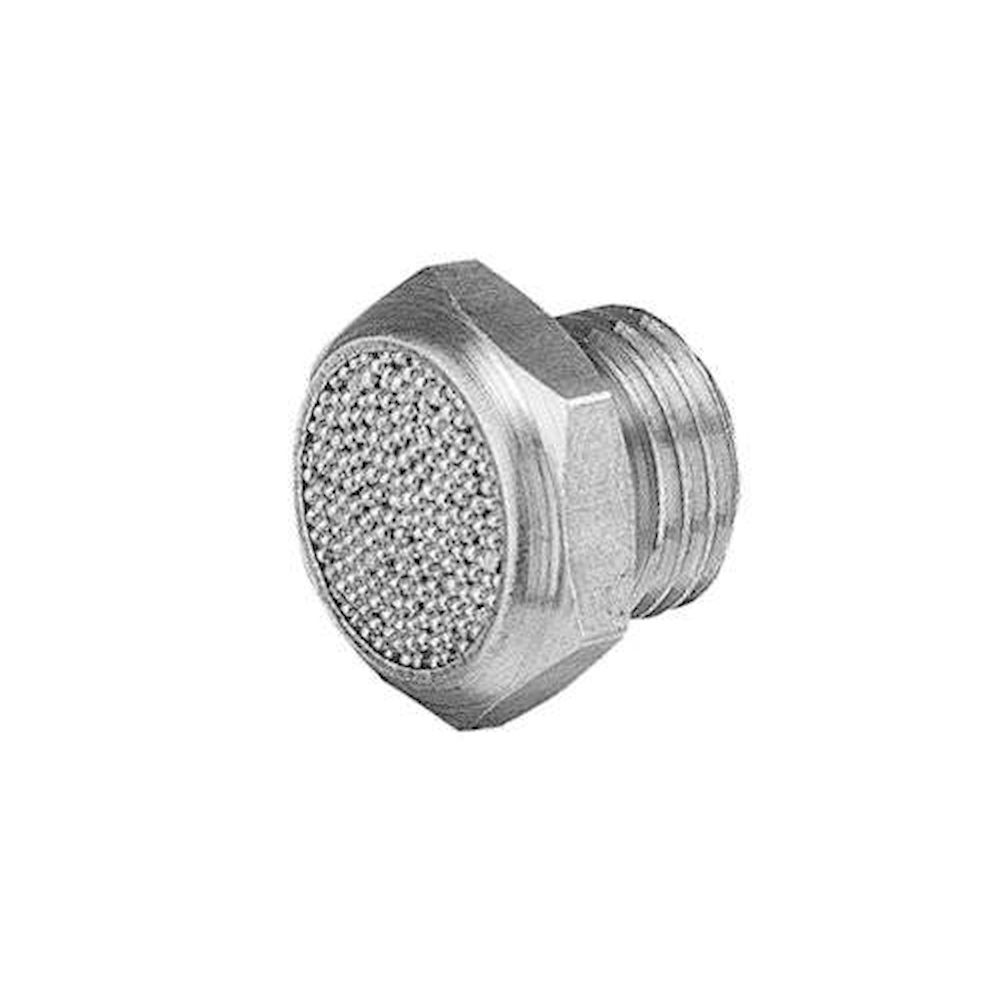

| Standard | M5, G 1/8, G 1/4, G 3/8, G 1/2, G 3/4, G 1 | Direct mounting into valve |
| Compact variant | G 1/8, G 1/4, G 3/8, G 1/2 | Shorter body length |
| With hose stub 5PU | G 1/8, G 1/4 | Exhaust air can be routed away |
| With hose stub 2PU | G 3/8, G 1/2, G 3/4, G 1 | Exhaust air can be routed away |

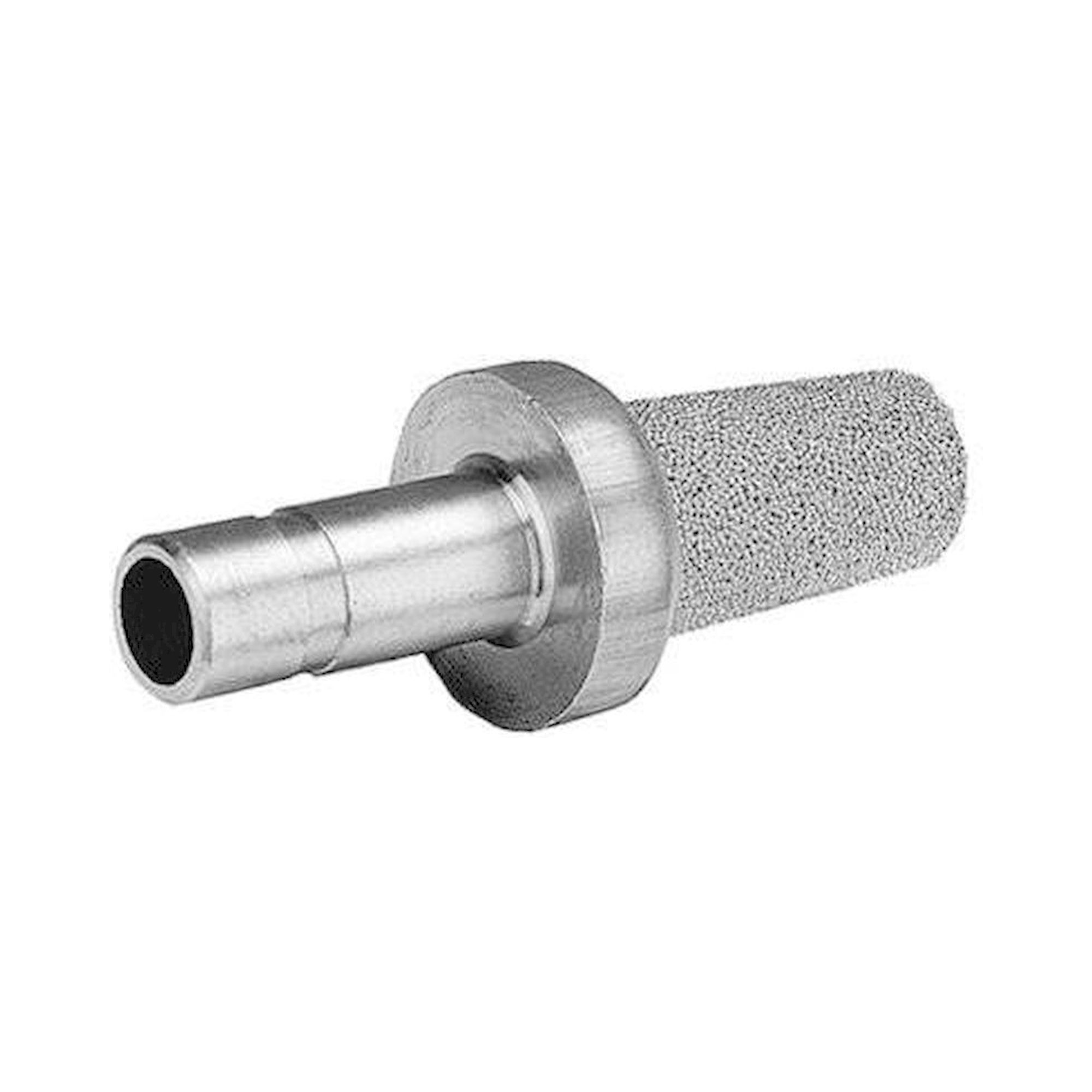

| Push-in version | DA12, DA14 | Direct push-in mounting without thread |
Technical features
Typical applications
Typical applications: Exhaust noise attenuation at directional control valves and valve islands in factory automation, noise reduction at cylinder exhaust ports in assembly systems, controlled exhaust routing in cleanrooms and food facilities via hose stub variants, silencing at safety valves and exhaust blocks, and general workplace noise reduction in line with operational noise regulations.
