Cylinder accessories

Aventics cylinder accessories are precision-engineered supplementary components that enhance pneumatic cylinder performance and functionality across industrial automation systems. These accessories include locking units like the LU6 series for bore sizes 63-125mm, guidance units such as the CG1-H-BB series, industrial shock absorbers SA1-MA with M64 mounting threads, and position sensors SM6-AL with M8 threaded connections. Manufacturing industries including automotive assembly lines, packaging machinery, and material handling systems integrate these accessories to achieve precise motion control, reduce mechanical wear, and ensure reliable cylinder operation in continuous production environments.

Selecting appropriate Aventics cylinder accessories requires matching bore diameter compatibility, with locking units available for 63mm, 100mm, and 125mm cylinder bores, and guidance units designed for 100mm bore applications with stroke lengths ranging from 200mm to 600mm. Operating pressure ratings typically span 1-10 bar depending on component type, while mounting thread specifications include M27x2, M36x2, and M64 configurations for joint heads and shock absorbers. Environmental compatibility demands consideration of temperature ranges from -20°C to +80°C for standard applications, with stainless steel AISI 316 variants available for corrosive environments requiring enhanced chemical resistance and durability.

Aventics cylinder accessories comply with ISO 15552 pneumatic cylinder standards ensuring dimensional compatibility and interchangeability across industrial applications. Components meet DIN EN 61508 functional safety requirements for safety-related control systems, while materials conform to ISO 898 fastener property classifications and DIN EN 10088 stainless steel specifications for corrosion resistance. Electrical components including position sensors adhere to IEC 61131 programmable controller standards and IP67 ingress protection ratings per IEC 60529, ensuring reliable operation in harsh industrial environments with dust and water exposure typical in manufacturing facilities.

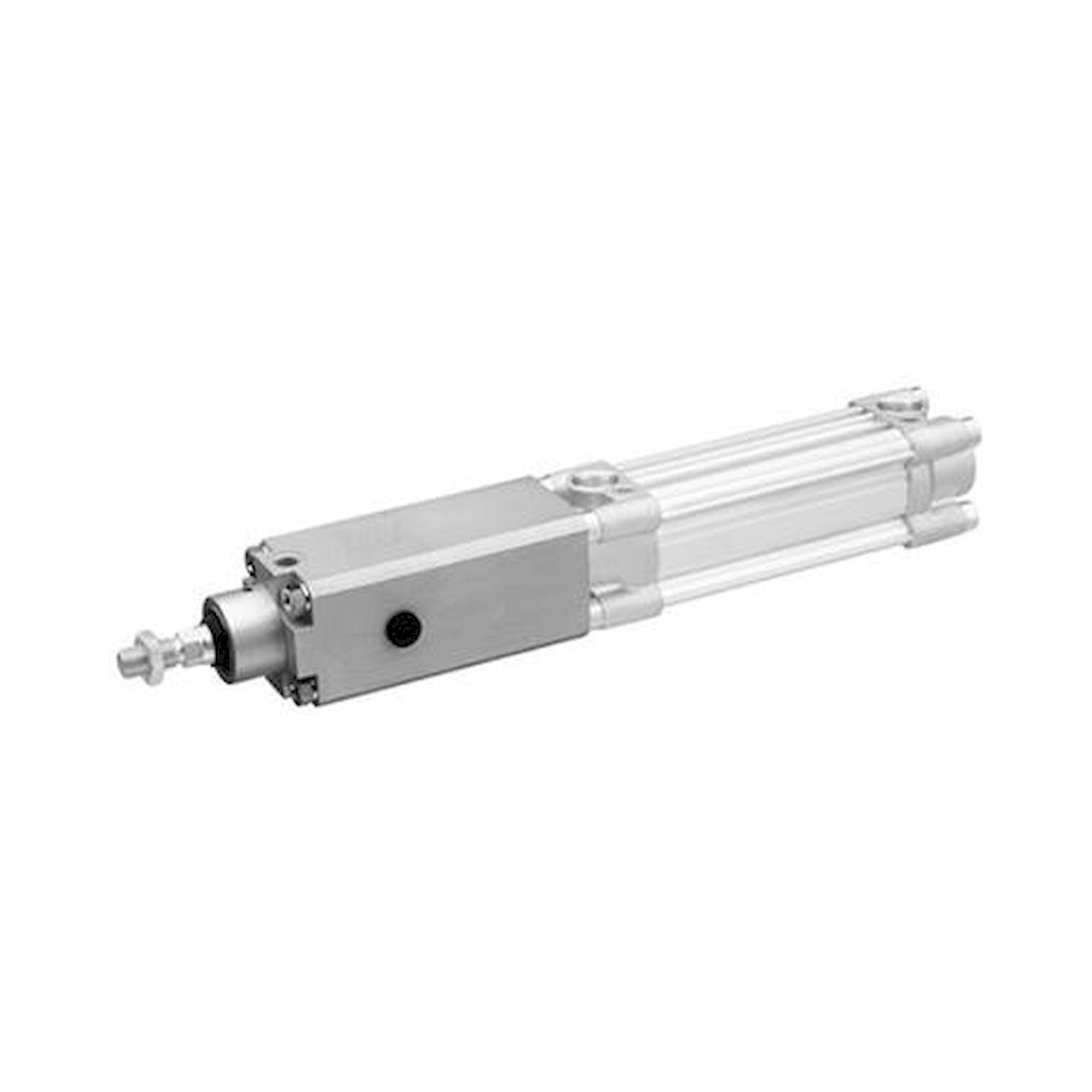

Aventics LU6 locking units provide mechanical cylinder position locking for bore sizes 63mm through 125mm, featuring aluminum construction with anodized finish and designed to prevent cylinder drift under load when pneumatic pressure drops. The CG1-H-BB guidance units serve as external cylinder guides for 100mm bore cylinders, available in stroke lengths from 200mm to 600mm, and prevent rod buckling or misalignment during extended stroke operations. LU6 units integrate directly into the cylinder end cap assembly while CG1-H units mount externally alongside the cylinder body, with guidance units specifically engineered for applications requiring precise linear motion without lateral deflection in heavy-duty manufacturing processes.

Aventics cylinder accessories require specific mounting configurations with locking units LU6 series integrating directly into cylinder end caps through threaded connections, while guidance units CG1-H-BB mount externally using tie-rod assemblies with precise alignment tolerances of ±0.1mm. Joint heads utilize metric threading M27x2 and M36x2 with flanged connections, and industrial shock absorbers SA1-MA feature M64 mounting threads with energy absorption ratings up to 150 Nm-deg. Position sensors SM6-AL require M8x1 threaded installation with 2-wire DC connection for PNP output signals, and all electrical connections must maintain IP67 sealing integrity through proper cable gland installation and connector orientation to prevent moisture ingress during operation.

Aventics cylinder accessories operate reliably within temperature ranges of -20°C to +80°C for standard aluminum components, with stainless steel AISI 316 variants extending service capability in corrosive environments up to +150°C. Position sensors achieve IP67 ingress protection rating ensuring dust-tight and water-resistant operation during high-pressure washdown procedures common in food processing and pharmaceutical applications. Operating pressure specifications range from 1 bar minimum to 10 bar maximum depending on component design, with locking units rated for holding forces up to 2000N and shock absorbers providing energy absorption from 100 to 150 Nm-deg per cycle while maintaining structural integrity throughout rated service life.

Aventics cylinder accessories require quarterly inspection of mounting hardware torque specifications and annual replacement of sealing elements in locking units LU6 series to maintain 2000N holding force capability. Position sensors SM6-AL demand semi-annual verification of switching accuracy within ±0.5mm repeatability tolerance and cable connection integrity inspection to prevent signal degradation. Industrial shock absorbers SA1-MA series require monthly visual inspection for oil leakage and annual replacement after 1 million energy absorption cycles or 24 months of continuous operation, whichever occurs first, while guidance units CG1-H-BB necessitate lubrication point maintenance every 10 million stroke cycles to preserve linear bearing performance and prevent premature wear in high-cycle manufacturing applications.
