Cylinder mountings

Pneumatic cylinder mountings are precision-engineered mechanical interfaces that secure pneumatic cylinders to machine frames, fixtures, or structural components while enabling controlled motion transfer. These mounting systems are essential in automated manufacturing lines, packaging equipment, material handling systems, and assembly machinery where reliable force transmission and accurate positioning are critical. Industries such as automotive manufacturing, food processing, pharmaceuticals, and general automation rely extensively on these components to achieve consistent cycle times and positioning accuracy. The mounting configuration directly influences system performance, vibration isolation, and maintenance accessibility in industrial pneumatic applications.

Selection of Aventics cylinder mountings depends on cylinder bore diameter compatibility, with available sizes including 160mm, 200mm, 250mm, and 320mm bore configurations as seen in the CM1 series offerings. Operating pressure requirements typically range from 2 to 10 bar for standard pneumatic applications, while load capacity must account for both axial thrust forces and side loading conditions. Mounting type selection between clevis mounts, flange mounts, pivot mounts, and bearing blocks determines installation flexibility and force distribution characteristics. Thread specifications M1 and M2 variants provide different connection torque ratings and sealing requirements for specific application demands.

Aventics cylinder mountings comply with ISO 15552 international standard for pneumatic fluid power cylinders, ensuring dimensional interchangeability and performance consistency across global manufacturing systems. This standard specifies mounting dimensions, port configurations, and mechanical interface requirements that enable direct replacement capability between different manufacturers components. The CM1 series mountings incorporate ISO 15552 compliance as indicated in product designations such as CM1-AB6-320-M1-A-ISO15552, guaranteeing compatibility with standard cylinder bore sizes and mounting patterns. Additional compliance with DIN ISO 6431 for cylinder mounting interfaces ensures proper thread specifications and torque requirements for reliable mechanical connections in industrial pneumatic systems.

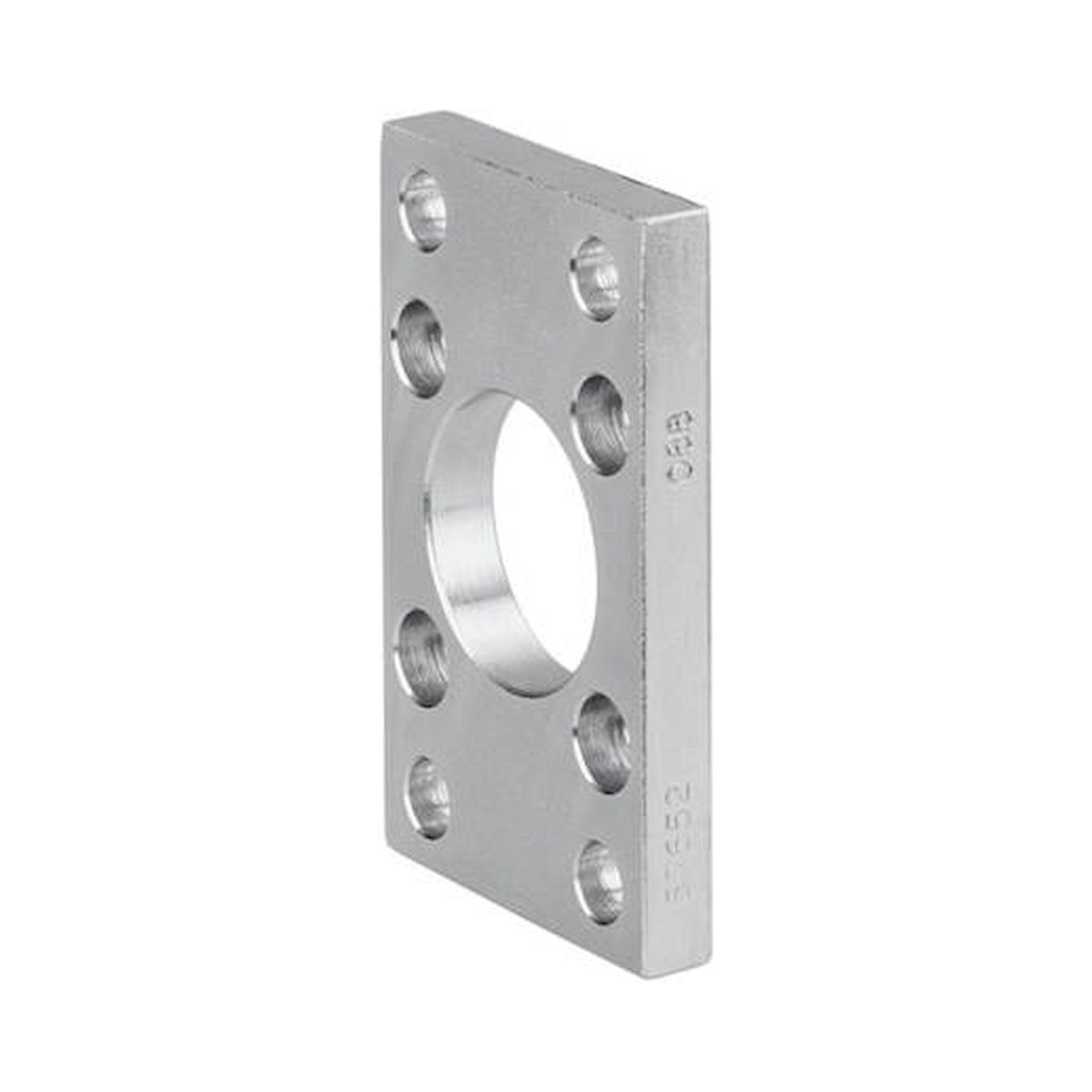

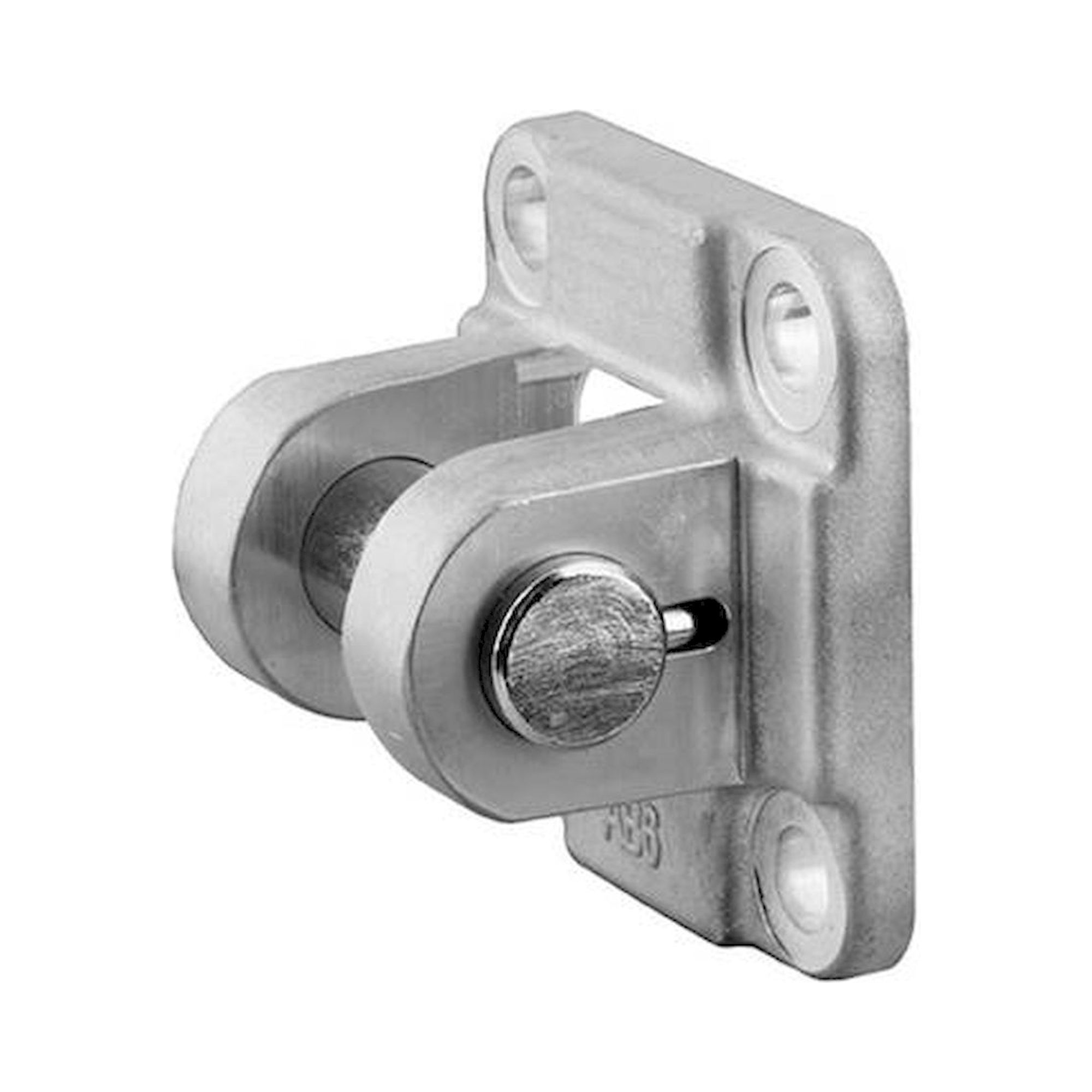

Clevis mounts like the CM1-AB6 and CM1-MP2 series provide fork-style connections that allow angular movement and accommodate misalignment in single-axis applications, making them ideal for linear actuator installations. Flange mounts such as the CM1-MF1 series offer rigid four-bolt mounting patterns that distribute loads evenly across larger surface areas, preferred for high-force applications requiring maximum stability. Pivot mounts including the CM1-MT5 series enable rotational movement around a central axis, essential for oscillating applications and multi-axis positioning systems. Bearing blocks like the CM1-CS7 provide intermediate support for long-stroke cylinders, preventing rod deflection and ensuring smooth operation under varying load conditions.

Aventics cylinder mountings require precise alignment with cylinder centerlines within 0.5mm tolerance to prevent binding and premature wear of sealing elements. Thread connections utilize metric M6 to M16 fasteners depending on mounting size, with specified torque values ranging from 8 to 45 Nm according to ISO 4762 socket head cap screw standards. Port connections accommodate G1/8 to G3/4 thread sizes for compressed air supply, with working pressure ratings up to 10 bar maximum operating pressure. Installation surfaces must provide flatness within 0.1mm per 100mm length and adequate material thickness to withstand mounting bolt loads, typically requiring minimum 8mm steel plate thickness for 250mm bore cylinder applications.

Aventics cylinder mountings operate safely within 2 to 10 bar pressure range with maximum burst pressure ratings of 30 bar, providing adequate safety factors for standard industrial pneumatic systems. Operating temperature range extends from -20°C to +80°C for standard nitrile seal configurations, while temperature-resistant versions accommodate -40°C to +150°C using fluorocarbon sealing materials. Safety factors incorporate 4:1 minimum ratio between ultimate tensile strength and working load limits, ensuring reliable operation under dynamic loading conditions. Material specifications utilize corrosion-resistant aluminum alloy housings with hard-anodized surface treatment achieving minimum 50 HRC hardness, providing extended service life in harsh industrial environments while maintaining dimensional stability.

Aventics cylinder mountings require visual inspection every 1000 operating hours or quarterly intervals to check for wear patterns, loose fasteners, and alignment deviations that could indicate system problems. Mounting bolt torque verification should occur every 6 months using calibrated torque wrenches to ensure specified values between 8-45 Nm depending on fastener size, preventing loosening under vibration conditions. Lubrication points need attention every 2000 operating hours with ISO VG 32 pneumatic oil applied to pivot bearings and sliding surfaces. Expected service life ranges from 2-5 million cycles under normal operating conditions at 6 bar working pressure, with replacement recommended when mounting play exceeds 0.2mm or visible wear scoring appears on bearing surfaces or pivot points.
