Displacement sensors

Aventics displacement sensors are precision magnetostrictive position feedback devices designed for pneumatic cylinder systems, providing continuous position measurement throughout the cylinder stroke. These sensors integrate directly into pneumatic cylinders to enable closed-loop position control in automated manufacturing, automotive assembly lines, packaging machinery, and material handling systems. The SM6-AL series sensors deliver accurate position feedback for applications requiring precise end-position verification, intermediate positioning, and speed control in pneumatic automation systems.

Aventics SM6-AL displacement sensors require selection based on stroke length compatibility, with available variants covering stroke ranges from 467mm to 1007mm as indicated by the part number suffix. The sensors feature M8 threaded connection (M08T designation) and operate with 24V DC supply voltage for industrial automation compatibility. Key selection parameters include the specific stroke length matching your cylinder bore, mounting configuration requirements, and output signal type needed for your control system integration.

Aventics displacement sensors comply with EN 60947-5-2 standards for proximity sensors and position switches in industrial environments, ensuring electromagnetic compatibility according to EN 61000-6-2 for industrial immunity requirements. The sensors meet IEC 61131-2 specifications for programmable controller input compatibility and are designed according to ISO 21287 standards for pneumatic cylinder position sensing applications. ATEX certification may be available for specific variants intended for potentially explosive atmospheres in chemical and petrochemical installations.

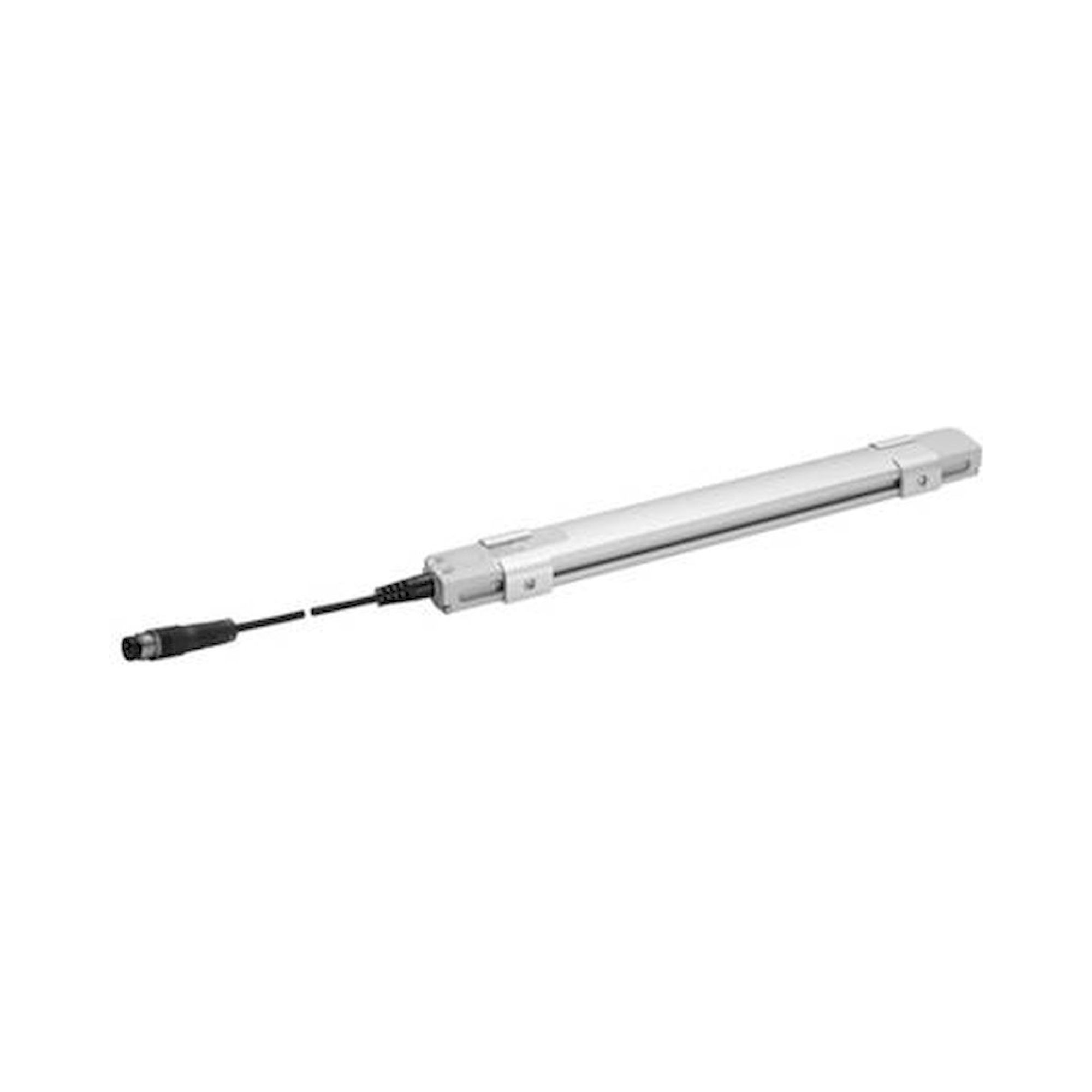

The Aventics SM6-AL sensor series variants differ primarily in their maximum stroke length capacity, ranging from 467mm in the R412010890 model to 1007mm in the R412010905 variant, with intermediate lengths available in precise increments. All variants maintain the same M8 threaded connection interface and 24V DC operating voltage, but stroke length selection must precisely match the pneumatic cylinder bore to ensure accurate position measurement throughout the complete stroke range. The mounting dimensions and electrical connections remain standardized across all SM6-AL variants for simplified system integration.

Aventics SM6-AL displacement sensors require direct mounting into the cylinder end cap with M8 threaded installation and proper electrical connection to 24V DC power supply through the integrated cable assembly. The sensors are compatible with standard pneumatic cylinders featuring magnetostrictive sensing capability and require a minimum 10mm clearance around the sensor body for proper installation access. System integration requires PLC input modules capable of processing the sensor's analog output signal, with connection made through standard M8 connector systems commonly used in industrial automation applications.

Aventics SM6-AL displacement sensors typically operate within -25°C to +70°C ambient temperature range and are rated for IP67 ingress protection, providing complete dust protection and water immersion resistance up to 1 meter depth. The sensors withstand pneumatic system pressures up to 16 bar and feature integrated overvoltage protection for 24V DC supply systems. The robust aluminum housing construction ensures reliable operation in industrial environments with vibration resistance according to IEC 60068-2-6 standards and shock resistance meeting IEC 60068-2-27 specifications.

Aventics displacement sensors require minimal maintenance due to their contactless magnetostrictive measurement principle, with recommended visual inspection every 6 months to verify cable integrity and mounting security. The sensors typically provide 10 million operating cycles service life under normal industrial conditions with ambient temperatures below 60°C and proper electrical supply voltage maintenance. Preventive maintenance includes annual verification of position accuracy using calibrated measurement equipment and checking electrical connections for corrosion or looseness, particularly in high-vibration applications or environments with temperature cycling.
