Piston rod attachments

Pneumatic piston rod attachments are mechanical coupling components that connect pneumatic cylinder piston rods to external loads or mechanisms in industrial automation systems. These components, including spherical joints (Gelenkkopf), clevis joints (Gabelkopf), and compensating couplings (Ausgleichskupplung), enable force transmission while accommodating angular misalignments up to 15 degrees in typical applications. Industries such as automotive manufacturing, packaging machinery, material handling systems, and process automation rely on these attachments for precise linear actuation in assembly lines, pick-and-place operations, and conveyor positioning systems where consistent force transmission and angular flexibility are critical for operational reliability.

Selection of pneumatic piston rod attachments depends on thread specifications, material grade, and load capacity requirements for the specific pneumatic application. Thread sizes range from M10x1.25 to M48x2 as shown in Aventics AP6 series products, with material options including AISI 316 stainless steel for corrosive environments and standard steel with zinc coating for general industrial use. Operating pressure compatibility typically ranges from 1 to 16 bar for standard pneumatic systems, while load capacity varies based on attachment type and size, with spherical joints handling both radial and axial loads up to several kN depending on the cylinder bore diameter and rod diameter combination.

Pneumatic piston rod attachments must comply with ISO 6432 for small cylinders, ISO 15552 for standard cylinders, and DIN EN 61508 for safety-related applications in industrial automation systems. Material specifications follow DIN EN 10088 for stainless steel grades like AISI 316, ensuring corrosion resistance in food processing and pharmaceutical applications. Thread specifications conform to DIN 13 metric standards, while surface treatments comply with DIN EN ISO 4042 for zinc coating protection. Additional certifications may include ATEX compliance for explosive atmosphere applications and FDA approval for food-grade materials when used in direct food contact applications.

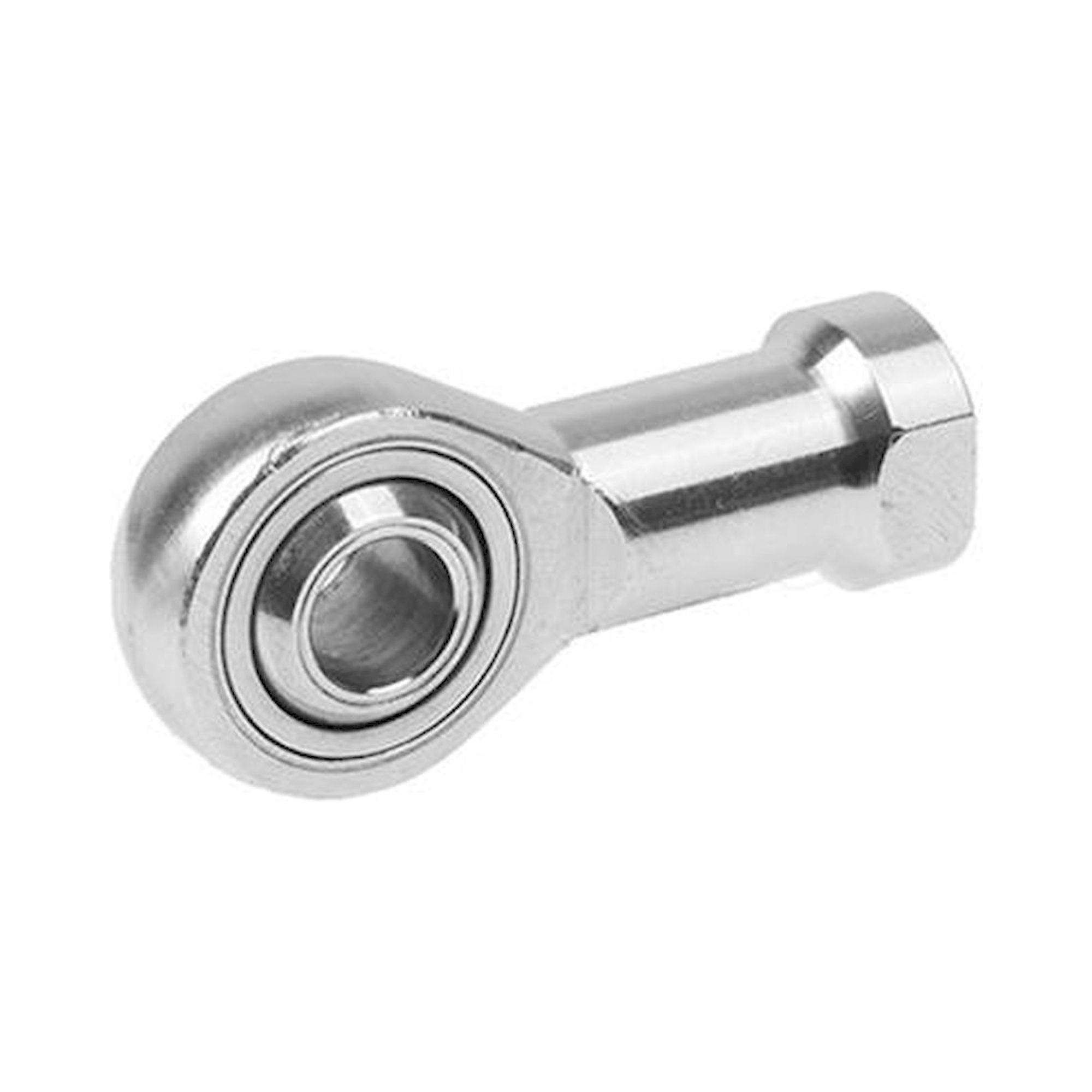

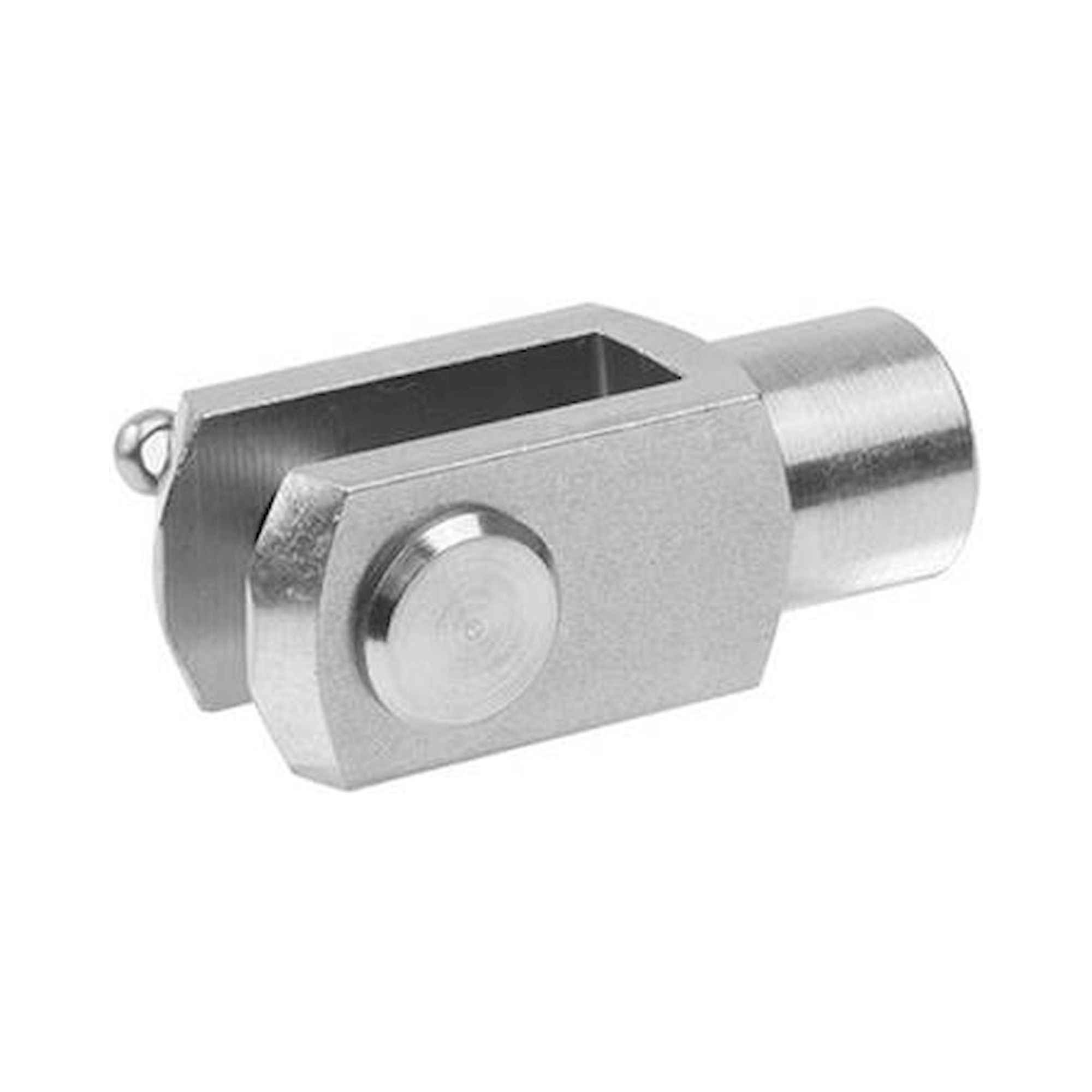

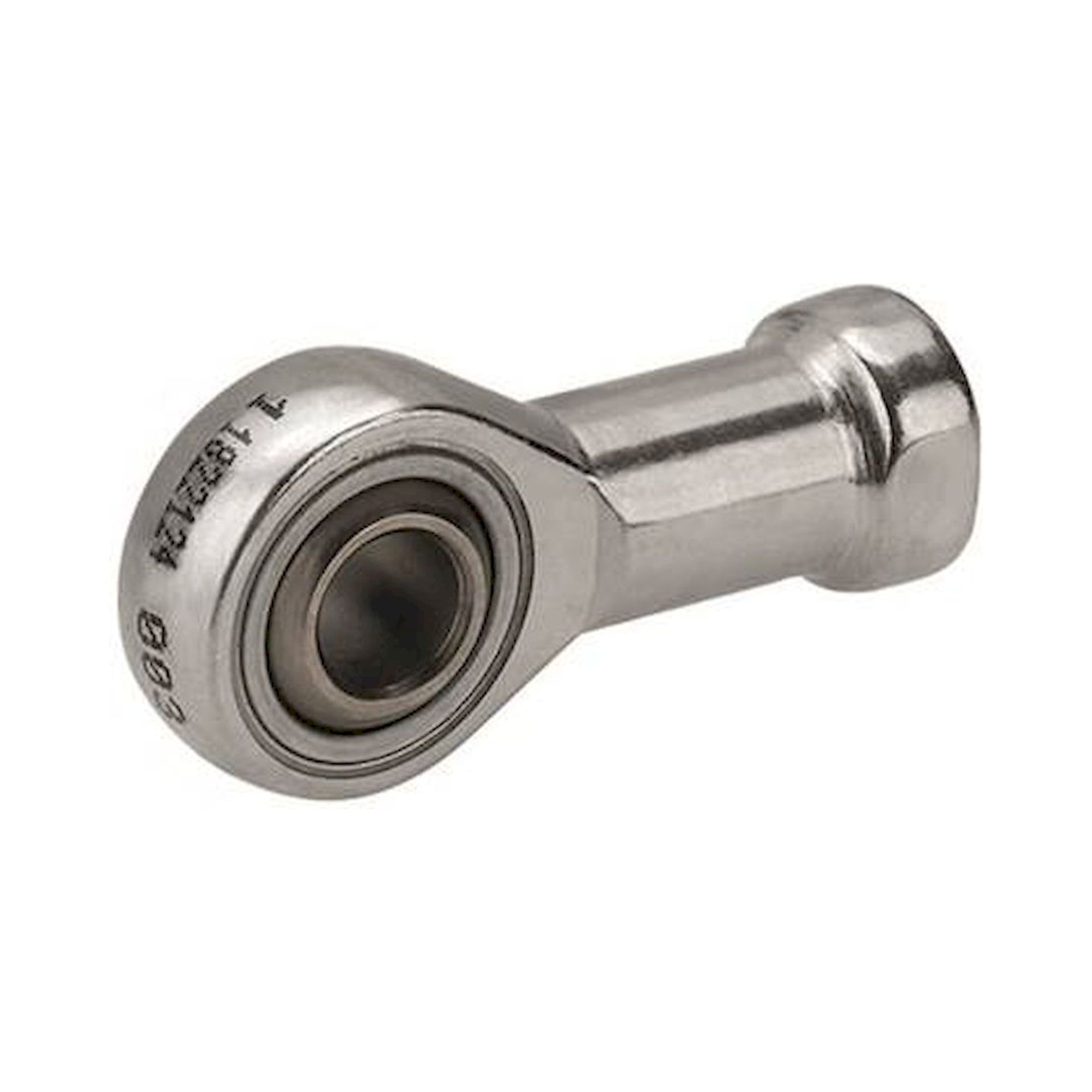

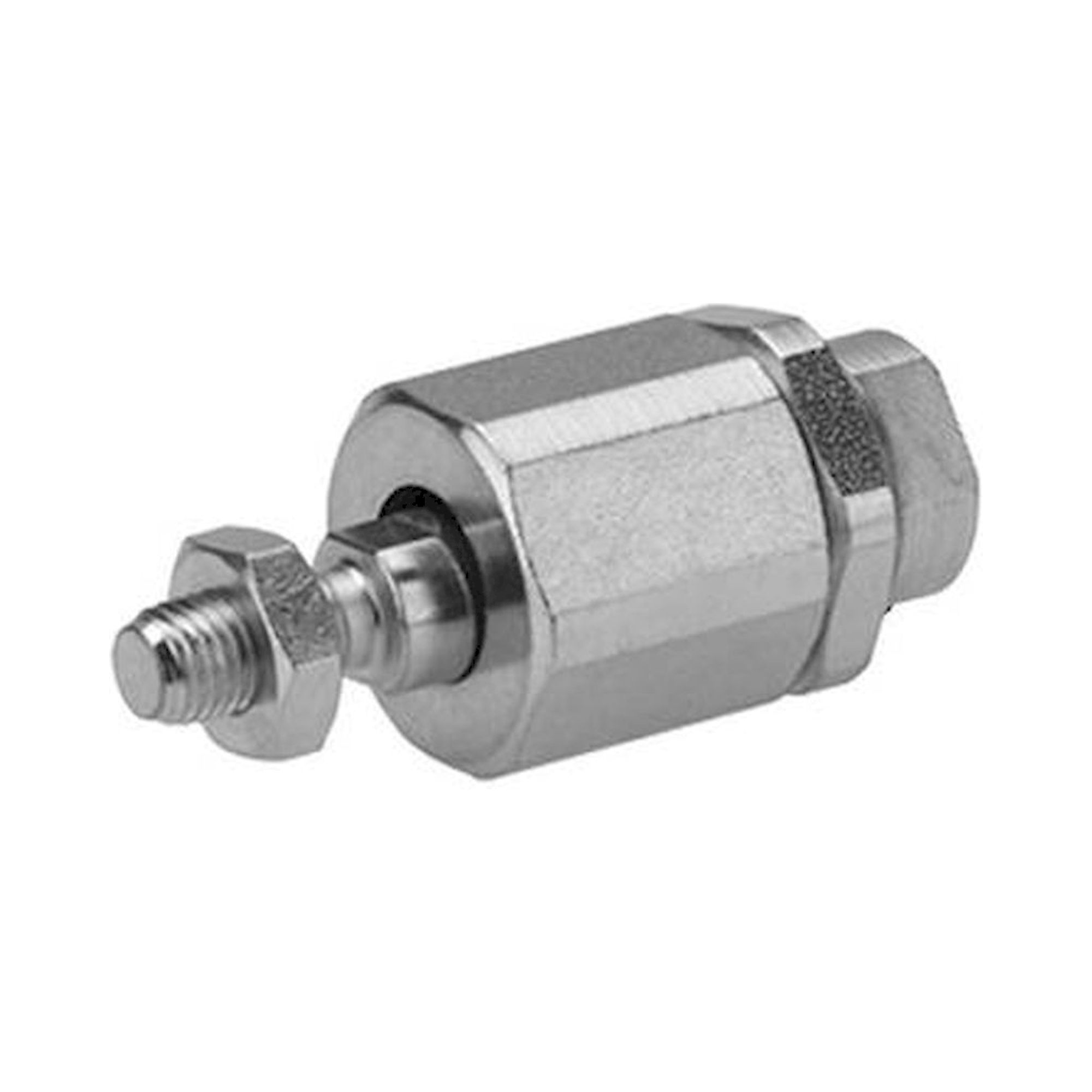

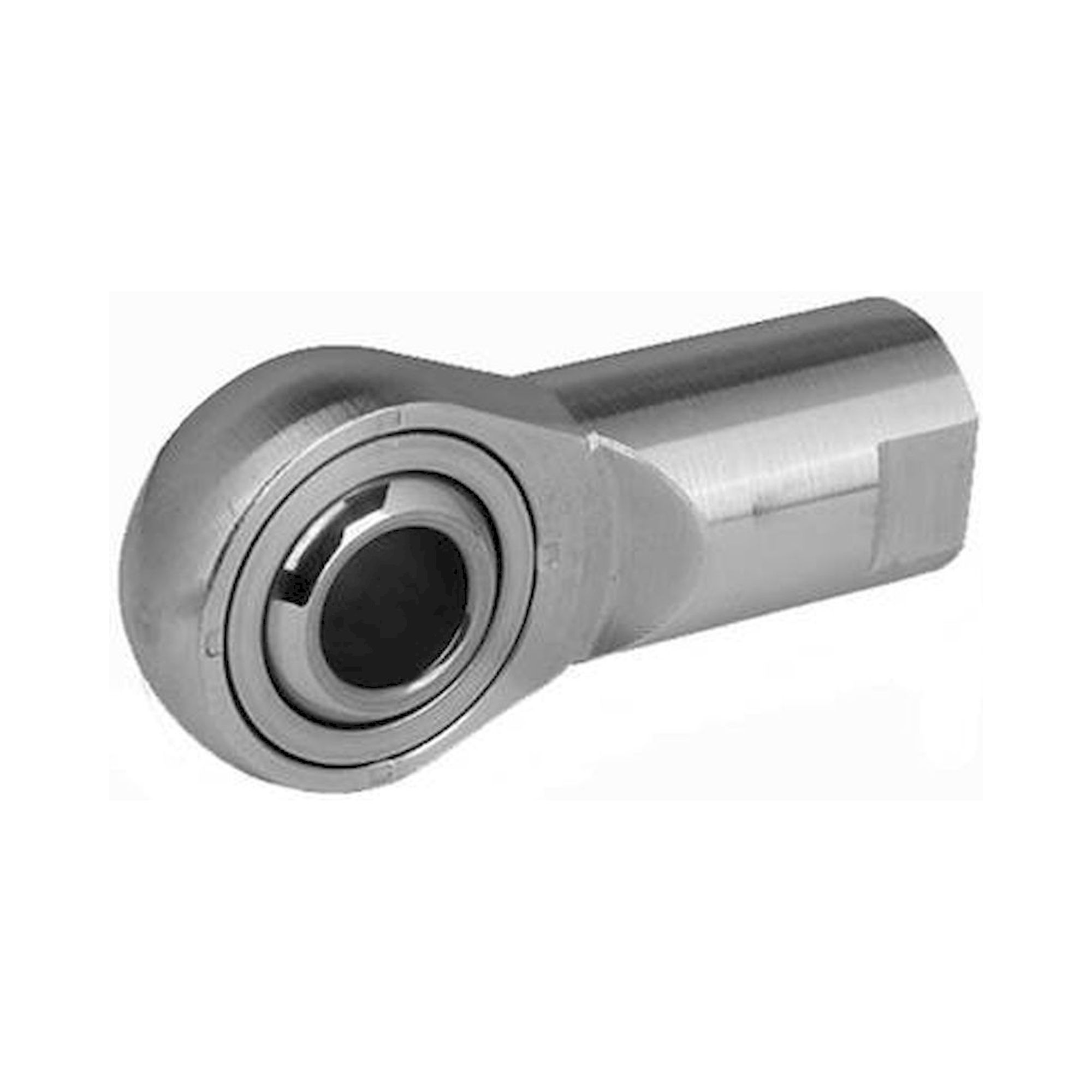

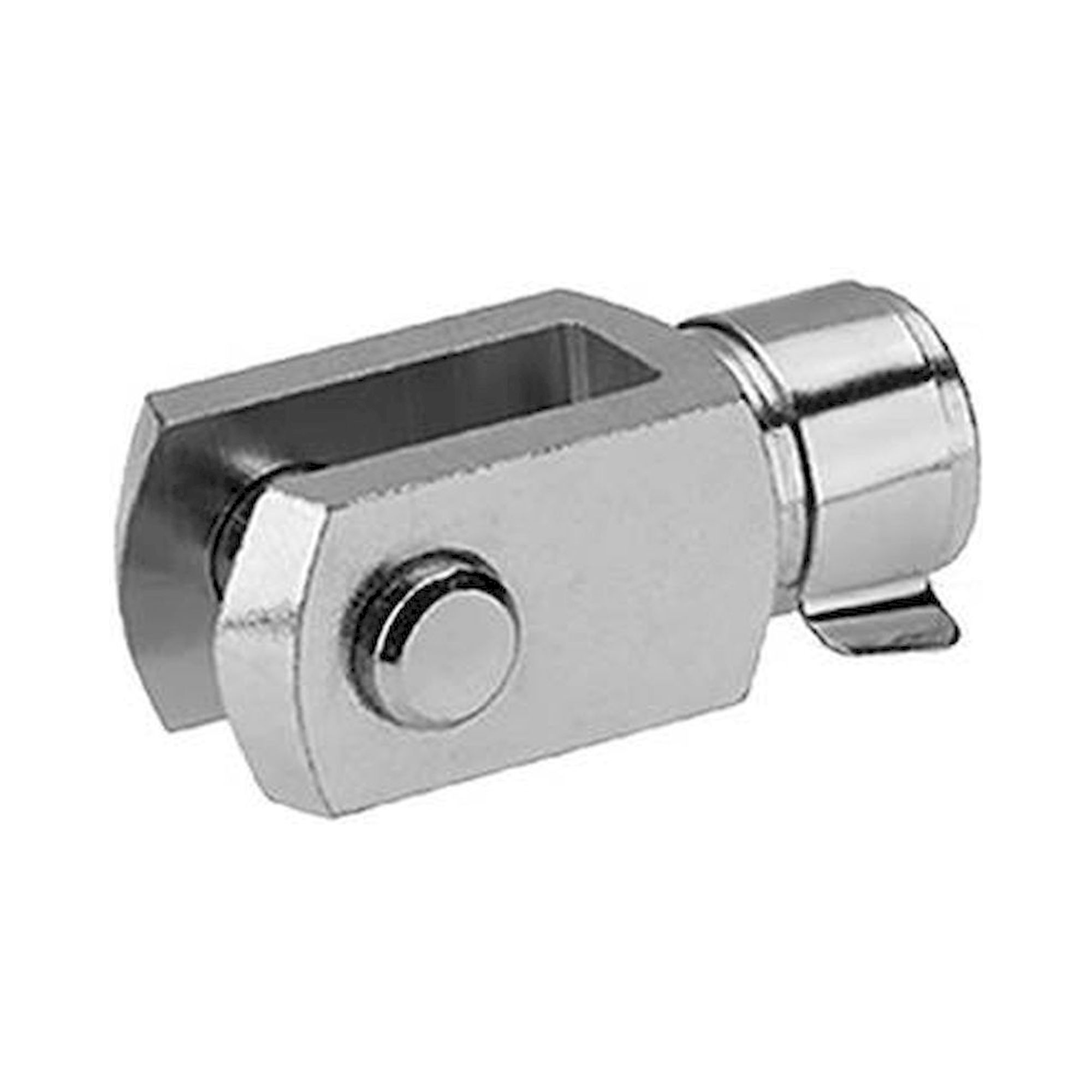

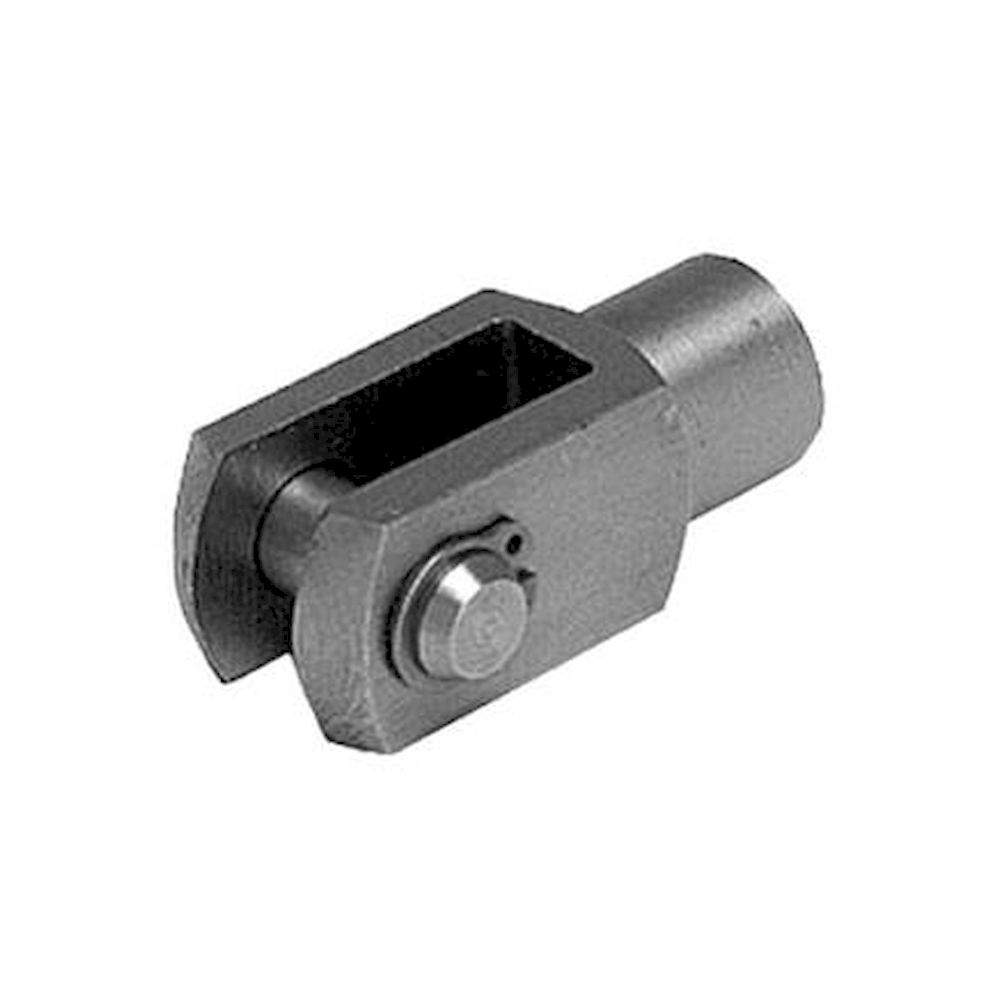

Spherical joints (Gelenkkopf) with flanges like the Aventics AP6 series provide angular movement in all directions up to 15 degrees while transmitting both tension and compression forces through a ball-and-socket design. Clevis joints (Gabelkopf) from the AP2 series offer single-plane angular movement through a fork-and-pin connection, ideal for applications requiring rotation around one axis only. Compensating couplings (Ausgleichskupplung sphärisch) from the PM5 series combine linear misalignment compensation with angular adjustment, accommodating installation tolerances and thermal expansion while maintaining precise force transmission in automated manufacturing systems.

Installation of pneumatic piston rod attachments requires precise thread engagement with minimum 1.5 times the thread diameter engagement depth and proper torque values according to DIN 912 specifications for the specific thread size and material combination. Connection types include direct threaded mounting onto cylinder rod ends with thread sizes from M10x1.25 to M48x2, with some variants requiring additional securing methods such as split pins in clevis applications. System compatibility requires matching the attachment material and coating to the operating environment, with AISI 316 stainless steel recommended for corrosive conditions and standard zinc-coated steel suitable for general industrial applications operating at temperatures from -20°C to +80°C.

Pneumatic piston rod attachments typically operate within temperature ranges of -20°C to +80°C for standard applications, with stainless steel variants like AISI 316 extending service temperatures up to +150°C in specialized industrial processes. Operating pressure ratings accommodate standard pneumatic systems from 1 to 16 bar, with safety factors of 4:1 applied to ultimate tensile strength values for critical applications. Material specifications ensure compatibility with compressed air per ISO 8573 quality classes, while corrosion resistance ratings meet DIN EN ISO 9227 salt spray test requirements for 480 hours minimum exposure without degradation. IP protection ratings vary by design, with sealed spherical joints achieving IP54 protection against dust and water ingress in typical industrial environments.

Pneumatic piston rod attachments require visual inspection every 10,000 operating cycles or quarterly intervals, whichever occurs first, to check for wear, corrosion, or mechanical damage that could compromise force transmission reliability. Service life typically ranges from 1 to 5 million cycles depending on load factors, operating environment, and attachment type, with spherical joints generally providing longer service life than clevis connections due to distributed wear patterns. Preventive maintenance includes checking thread engagement torque annually, lubricating bearing surfaces with appropriate grease per DIN 51825 specifications, and replacing components when angular play exceeds 2 degrees or visible wear appears on contact surfaces. Critical applications may require more frequent inspection intervals based on risk assessment and ISO 13849 safety category requirements.
