Magnetic proximity sensors

Aventics magnetic proximity sensors are non-contact position detection devices specifically engineered for pneumatic cylinder applications, utilizing magnetic field detection to determine piston position without physical contact with moving components. These sensors are extensively used in automotive manufacturing lines, packaging machinery, material handling systems, and general industrial automation where precise pneumatic cylinder position feedback is critical. The SN2, SN3, SN5-X, and ST series sensors integrate seamlessly with Aventics pneumatic cylinders to provide reliable end-of-stroke detection and intermediate position monitoring. Industries including food processing, pharmaceutical production, and chemical manufacturing rely on these sensors for process control and safety interlocking in pneumatic automation systems.

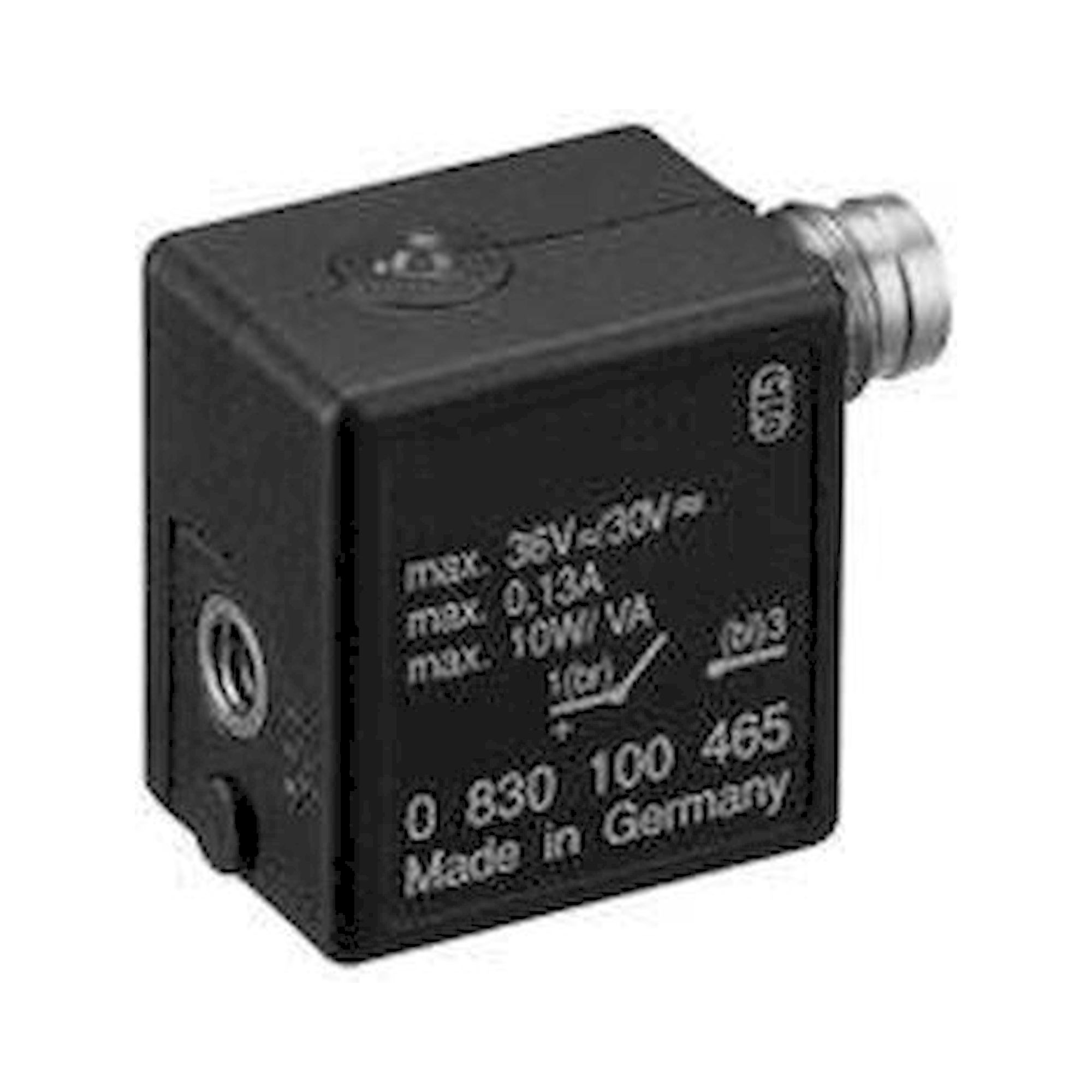

Critical selection parameters for Aventics magnetic proximity sensors include sensing range, typically 8mm to 12mm for models like the SN2-PN-M008 and SN5-PN-M012 series, operating voltage requirements ranging from 10-30VDC for DC versions, and connection methods including M8, M12 threaded housings or cable connections. The switching frequency capability varies by series, with SN5-X models offering enhanced pulse extension features for high-speed applications, while ST series sensors provide IO-Link communication for Industry 4.0 integration. Housing material selection between standard polymer and epoxy resin variants like the SN2-R3-M008-036 EPOXYDHARZ affects chemical resistance and mechanical durability. Cable length options from 0.3m to 5m and connector types must match the application's installation constraints and electrical interface requirements.

Aventics magnetic proximity sensors comply with EN 60947-5-2 standard for proximity switches and detectors, ensuring electromagnetic compatibility according to EN 61000 series standards for industrial environments. The sensors meet IP67 ingress protection rating per IEC 60529, providing dust-tight sealing and protection against temporary water immersion up to 1 meter depth. CE marking indicates conformity with European directives including EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU for restricted hazardous substances. Selected models carry UL recognition for North American markets, while the robust design philosophy follows ISO 14119 safety standards for position switches used in safety-related applications. ATEX certification may be available for specific variants intended for explosive atmosphere applications in chemical and petrochemical industries.

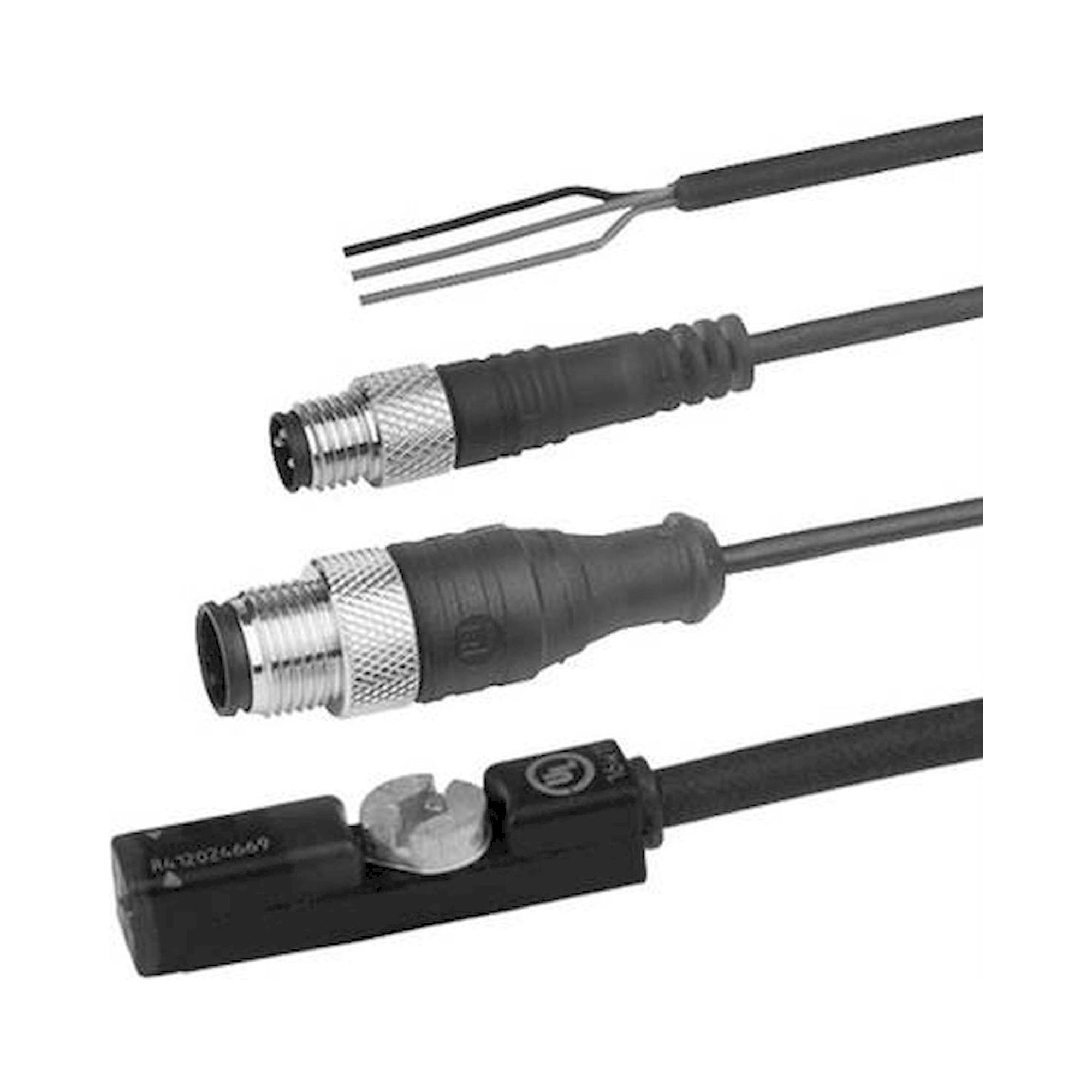

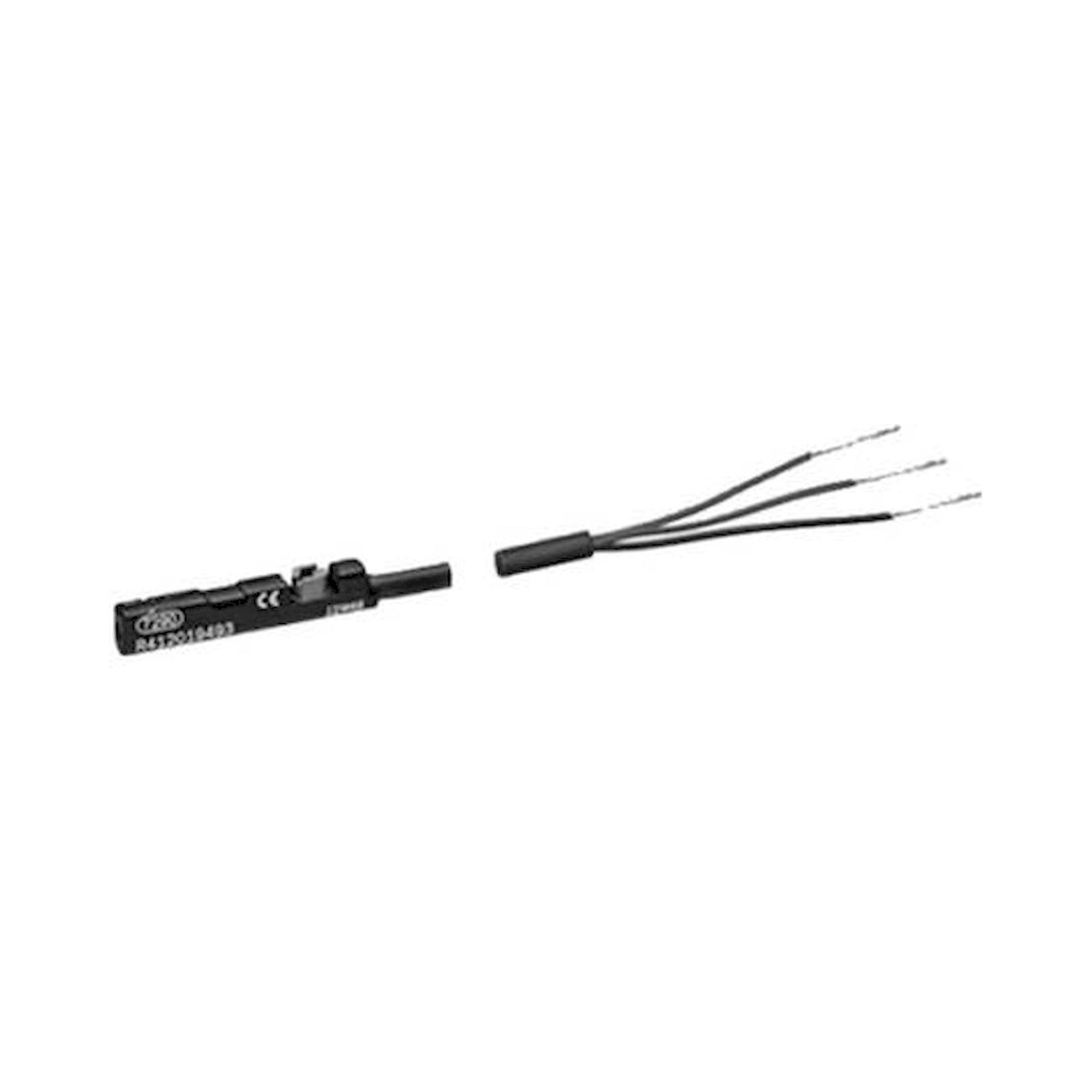

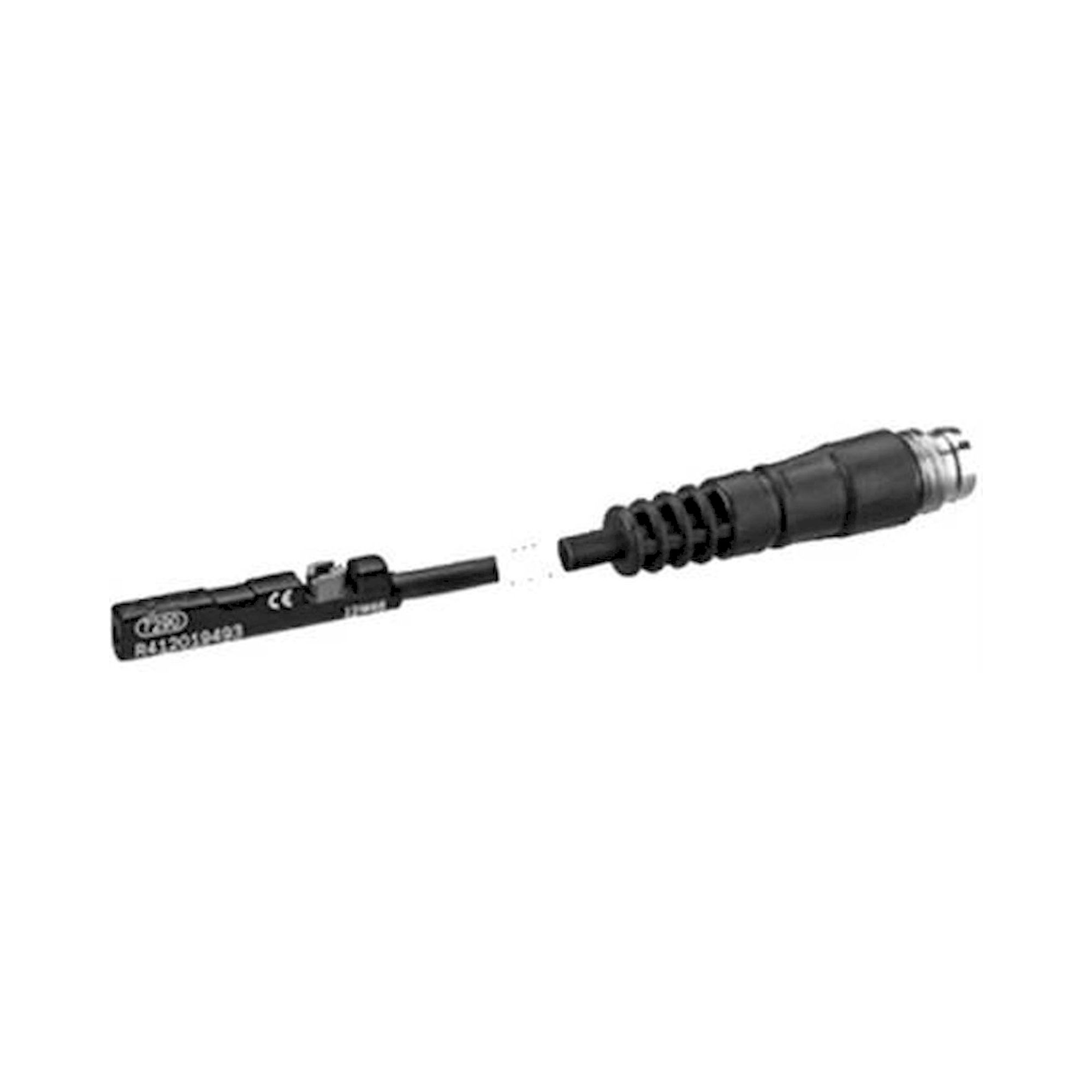

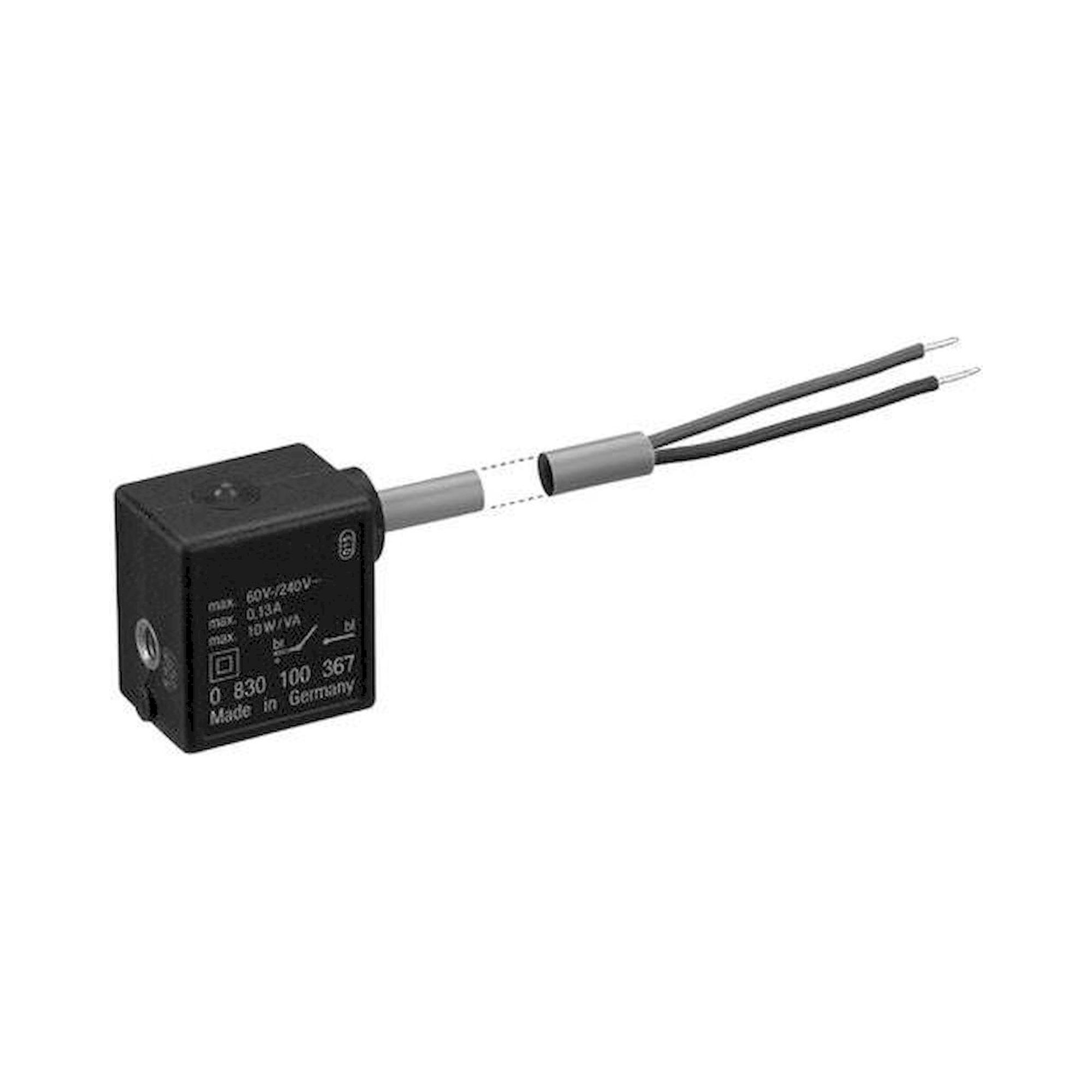

The SN2 series represents the standard range with M8 threaded housings, 2-wire DC or AC operation, and basic switching functionality suitable for general pneumatic applications with switching frequencies up to 500 Hz. SN3 series sensors feature enhanced electromagnetic immunity and improved temperature stability, while the SN5-X series incorporates pulse extension technology for reliable detection of fast-moving pneumatic actuators and offers both standard and impulse-extended variants. The ST series represents the premium range with IO-Link capability, M12 connections, and advanced diagnostic features including switching counter, temperature monitoring, and parameterization options. ST4-2P models provide 2-wire operation with reduced power consumption, while ST6-LT sensors offer extended temperature range operation from -40°C to +85°C for harsh industrial environments.

Aventics magnetic proximity sensors require mounting directly onto pneumatic cylinder tie-rod slots or T-slots using appropriate mounting brackets, with the sensor face positioned 0-2mm from the cylinder wall for optimal magnetic field coupling. The sensors operate on 10-30VDC supply voltage with current consumption typically below 15mA, requiring standard industrial control system compatibility with PNP or NPN output configurations. M8 and M12 connector versions provide IP67-rated connections, while cable variants with PUR jacket offer flexibility for mobile applications with bend radius requirements of 5x cable diameter. Installation must consider the minimum 20mm spacing between multiple sensors to prevent magnetic field interference, and the sensing axis must be perpendicular to the cylinder axis for maximum detection range. Temperature compensation is integrated across the -25°C to +70°C operating range for consistent performance without external calibration.

Aventics magnetic proximity sensors achieve IP67 protection rating according to IEC 60529, ensuring complete dust protection and resistance to water immersion up to 1 meter depth for 30 minutes, making them suitable for harsh industrial washdown environments. Operating temperature range spans -25°C to +70°C for standard models, with ST6-LT series extending to -40°C to +85°C for extreme temperature applications in outdoor or unheated facilities. The sensors withstand mechanical shock up to 30g and vibration resistance to 10g according to IEC 60068 standards, while electromagnetic immunity meets EN 61000-4 requirements for industrial environments with welding equipment and variable frequency drives. Maximum switching voltage reaches 30VDC with 200mA continuous current rating, incorporating reverse polarity protection and short-circuit protection for enhanced system safety. The robust housing design provides protection class II insulation with reinforced cable strain relief rated for 10^6 bending cycles in dynamic applications.

Aventics magnetic proximity sensors are designed as maintenance-free components with solid-state switching technology eliminating mechanical wear points, typically achieving 10^9 switching cycles minimum service life under rated conditions. Routine inspection intervals of 6 months should verify secure mounting, cable integrity, and connector tightness, while annual functional testing confirms proper switching response and LED indication operation. The sensors require no calibration or adjustment throughout their service life, though periodic cleaning of the sensing face with isopropyl alcohol removes accumulated contamination that could affect detection range. Environmental exposure monitoring should track temperature cycling, chemical contact, and mechanical stress, with replacement recommended if housing cracks, cable damage, or erratic switching behavior develops. Preventive replacement intervals typically range from 5-8 years in standard industrial applications, while harsh chemical or high-temperature environments may require earlier replacement based on application-specific degradation factors.
