Fasteners for drives
Cylinder attachments and accessories

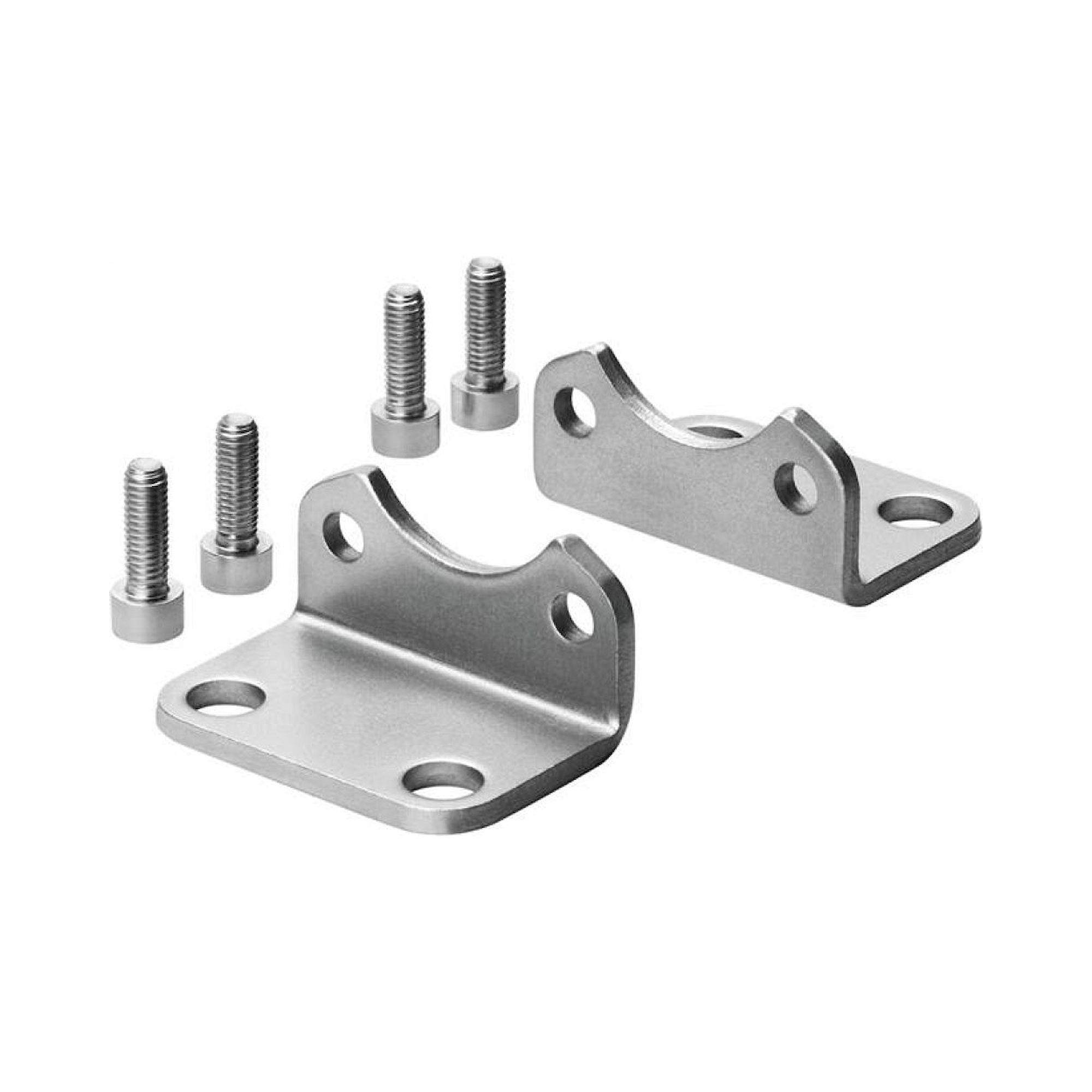

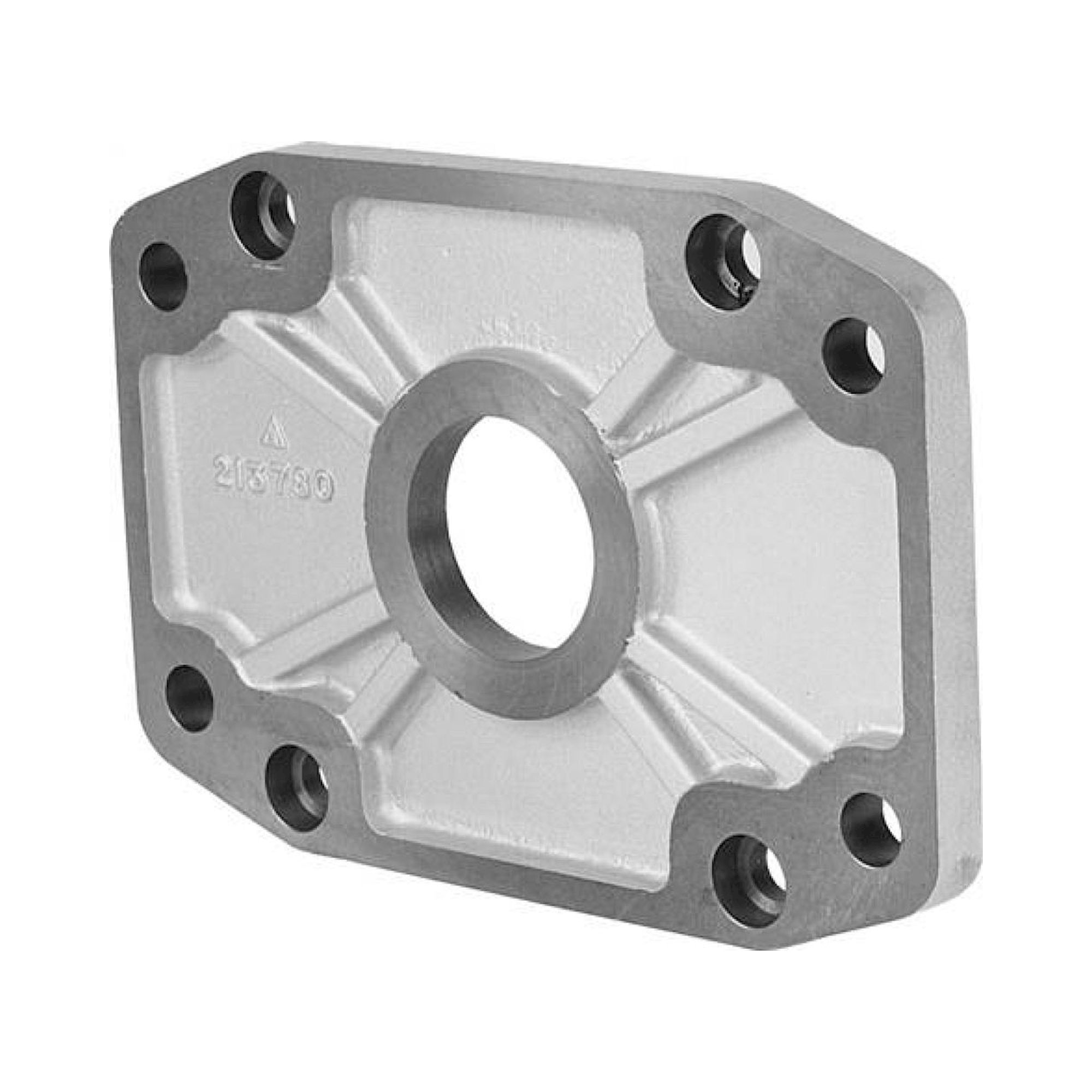

Festo fasteners for drives comprise flange and foot mounts as well as clevis eyes and fork heads that provide positive-locking attachment of Festo pneumatic cylinders to machine frames. The range covers flange mounts FBN (for DNC round cylinders, bore 8/10 to 63 mm), FNC flange plates (bore 12-125 mm) and foot mounts HBN in single and double versions. With over 655 items, the range addresses all common bore sizes across the Festo cylinder series.
| Series | Bore (mm) | Mounting type |
|---|---|---|
| FBN | 8/10, 12/16, 20/25, 32, 40, 50, 63 | Front flange for DNC |
| FNC | 12-125 | Front flange plate for DNC/DPNC |
| HBN X1 / X2 | 12/16, 20/25, 32 | Foot mount, single/double |
Typical applications: Horizontal and vertical axes in assembly automation, push-rod kinematics with a fixed front-flange mount and a floating piston rod end, lifting and pressing units with foot mounts on carrier plates, and test fixtures requiring a rigidly aligned cylinder body.
