What are Festo shock absorber accessories and what industrial applications require these pneumatic damping components?

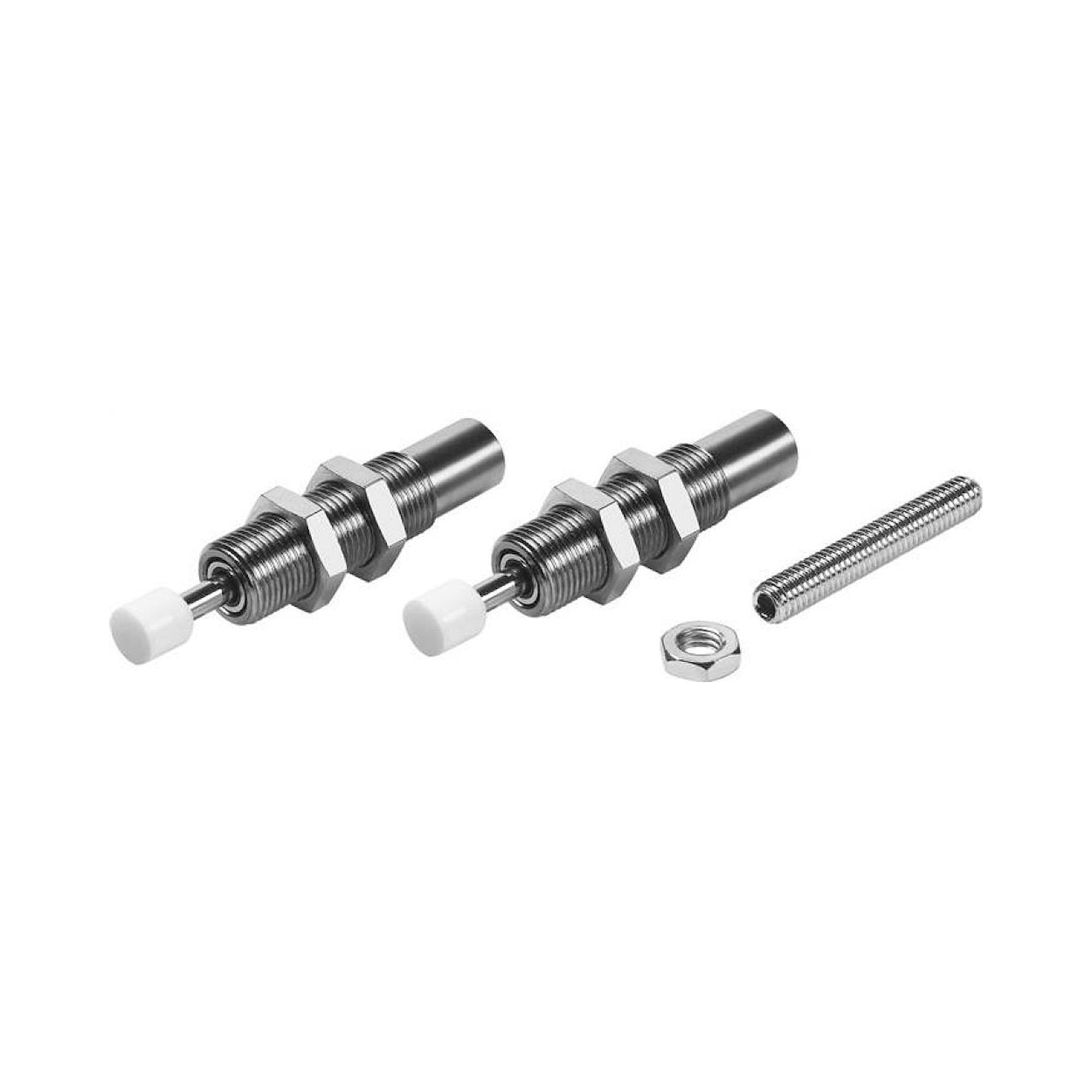

Festo shock absorber accessories comprise mounting hardware, end caps, and assembly kits designed to optimize pneumatic cylinder damping performance in automated production lines. The Stoßdämpferbausatz series including SLZ-50-KF-A and YHD-40 models provide complete mounting solutions for cylinders operating at pressures up to 10 bar in packaging machinery, assembly automation, and material handling systems. Industries requiring precise motion control such as automotive manufacturing, pharmaceutical production, and electronics assembly depend on these damping accessories to eliminate impact forces and reduce mechanical wear. The DADP-ES-G6 holder series accommodates bore sizes from 12mm to 25mm for standardized cylinder integration across diverse pneumatic applications.

What technical criteria determine the selection of Festo pneumatic shock absorber accessories for specific cylinder applications?

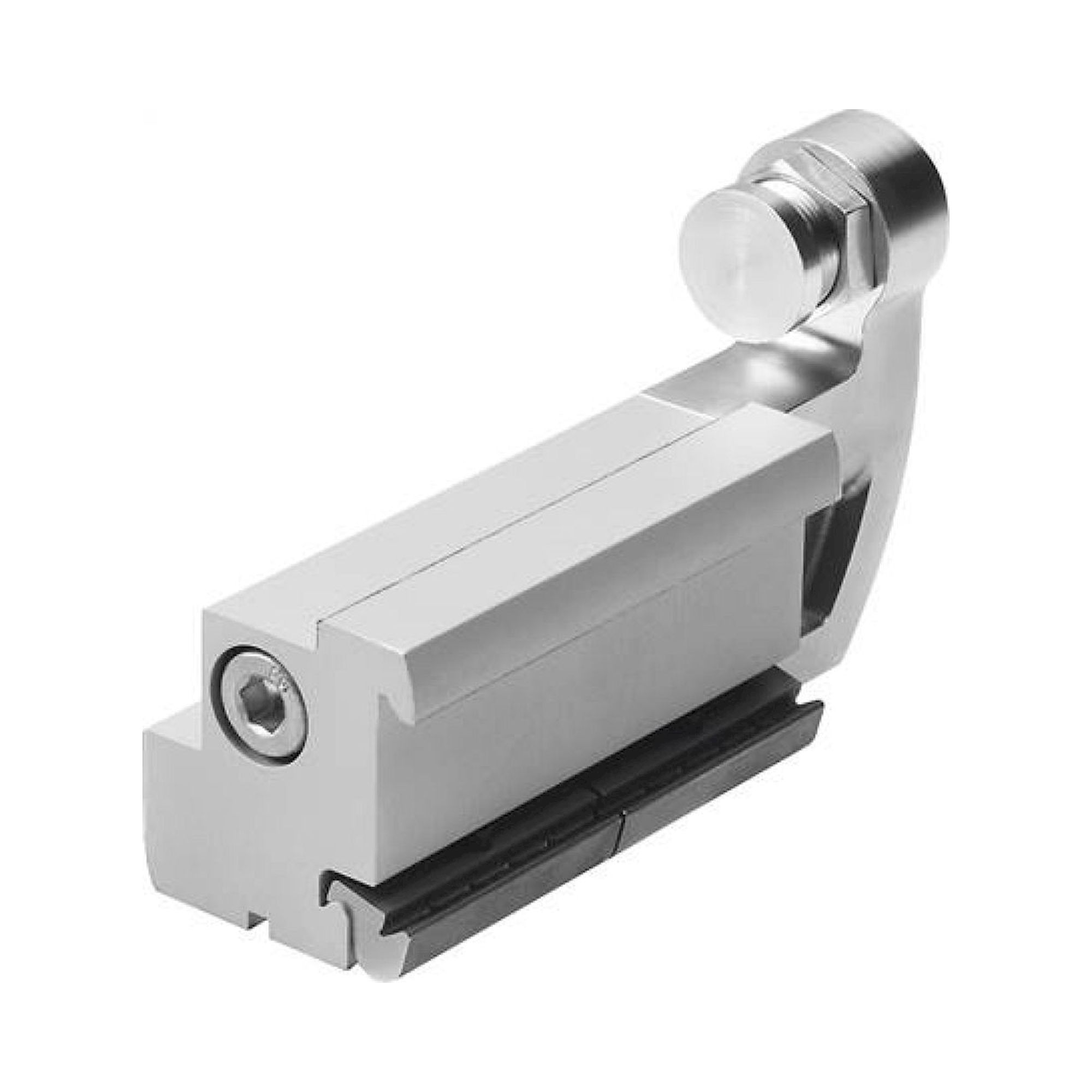

Selection of Festo shock absorber accessories depends primarily on cylinder bore diameter, operating pressure range, and stroke length requirements for the target application. The SLZ series accommodates bore sizes from 25mm to 50mm with maximum operating pressures of 10 bar, while YHD models cover smaller diameters from 18mm to 40mm for lighter-duty applications. Operating temperature range typically spans -20°C to +80°C for standard elastomer seals, with media compatibility extending to compressed air quality classes according to ISO 8573-1. The KYC-63 end stop component handles impact forces up to 150 Joules, making bore diameter and kinetic energy calculations essential for proper accessory sizing in high-cycle automation systems.

Which international standards and certifications apply to Festo shock absorber accessories in industrial pneumatic systems?

Festo shock absorber accessories comply with ISO 15552 dimensional standards for pneumatic cylinder accessories and ISO 4762 specifications for mounting hardware threading. The elastomer components meet ISO 1629 material classification requirements for NBR and FKM seals operating in compressed air environments according to ISO 8573-1 quality standards. European conformity marking ensures compliance with EN 60204-1 electrical safety standards where integrated position sensing is required, while material certifications align with RoHS directive 2011/65/EU for restricted substance compliance. ATEX directive 2014/34/EU certification applies to specific models designated for potentially explosive atmospheres in chemical processing applications, with temperature class ratings clearly marked on explosion-proof variants.

What are the functional differences between SLZ, SLE, YHD, and DADP series Festo shock absorber accessories?

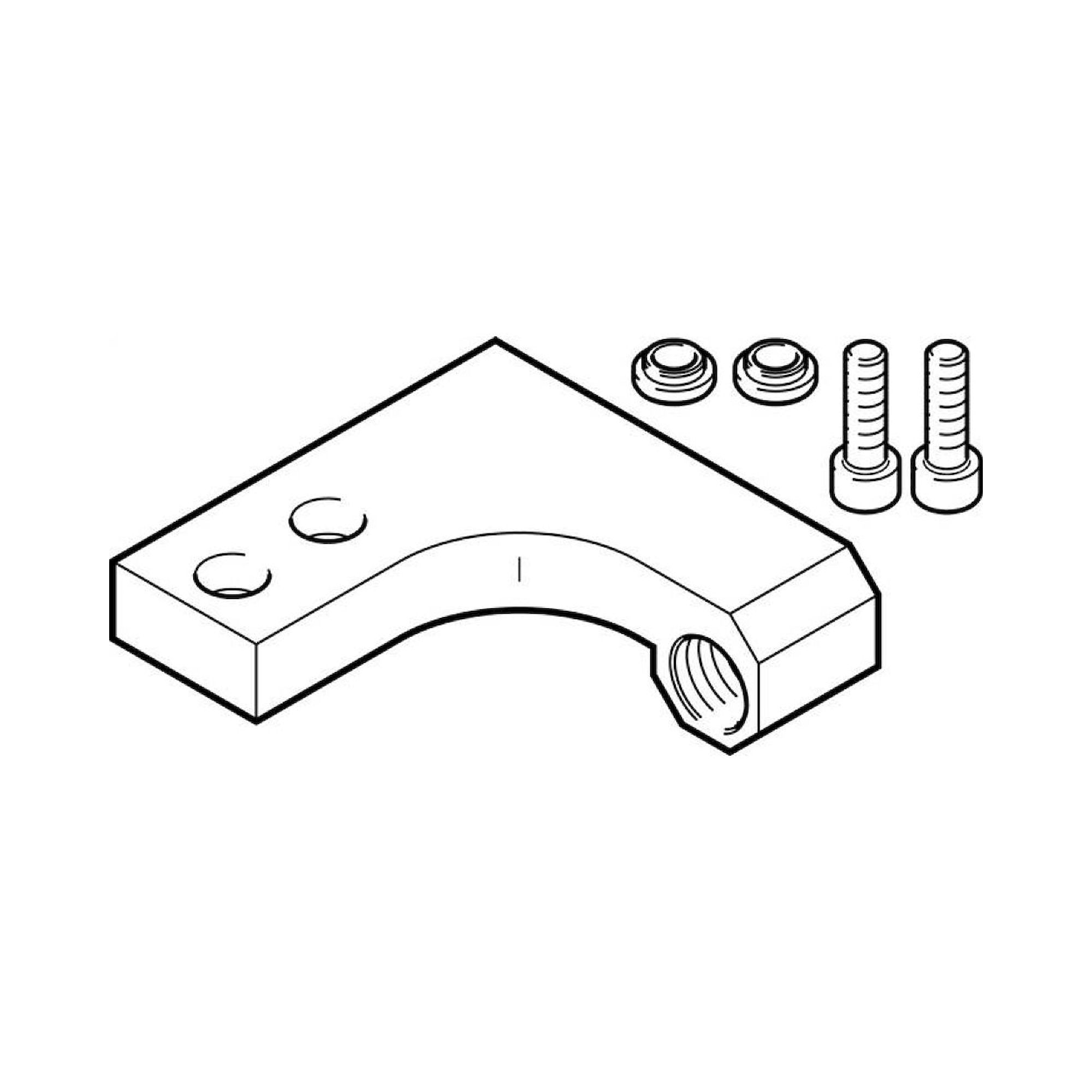

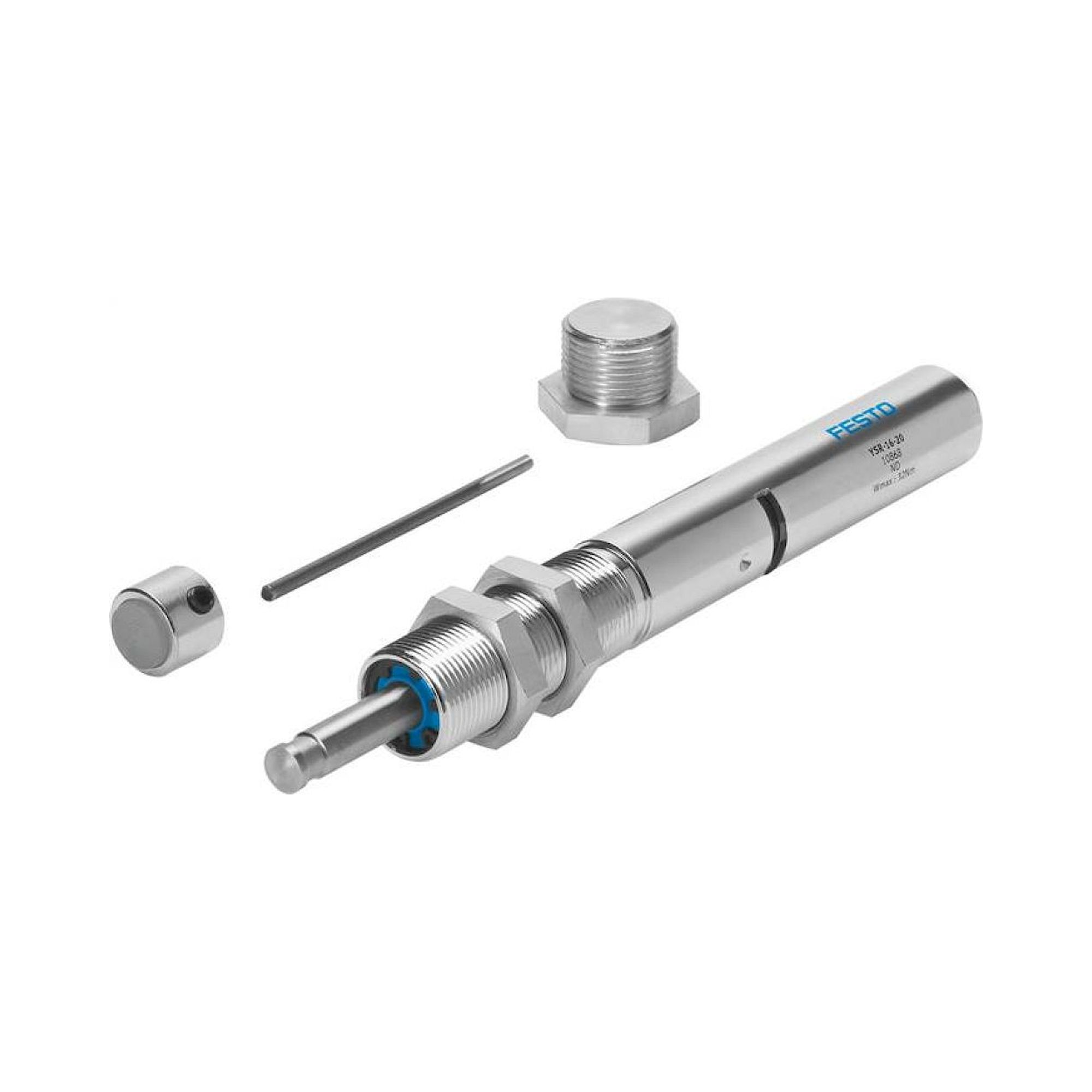

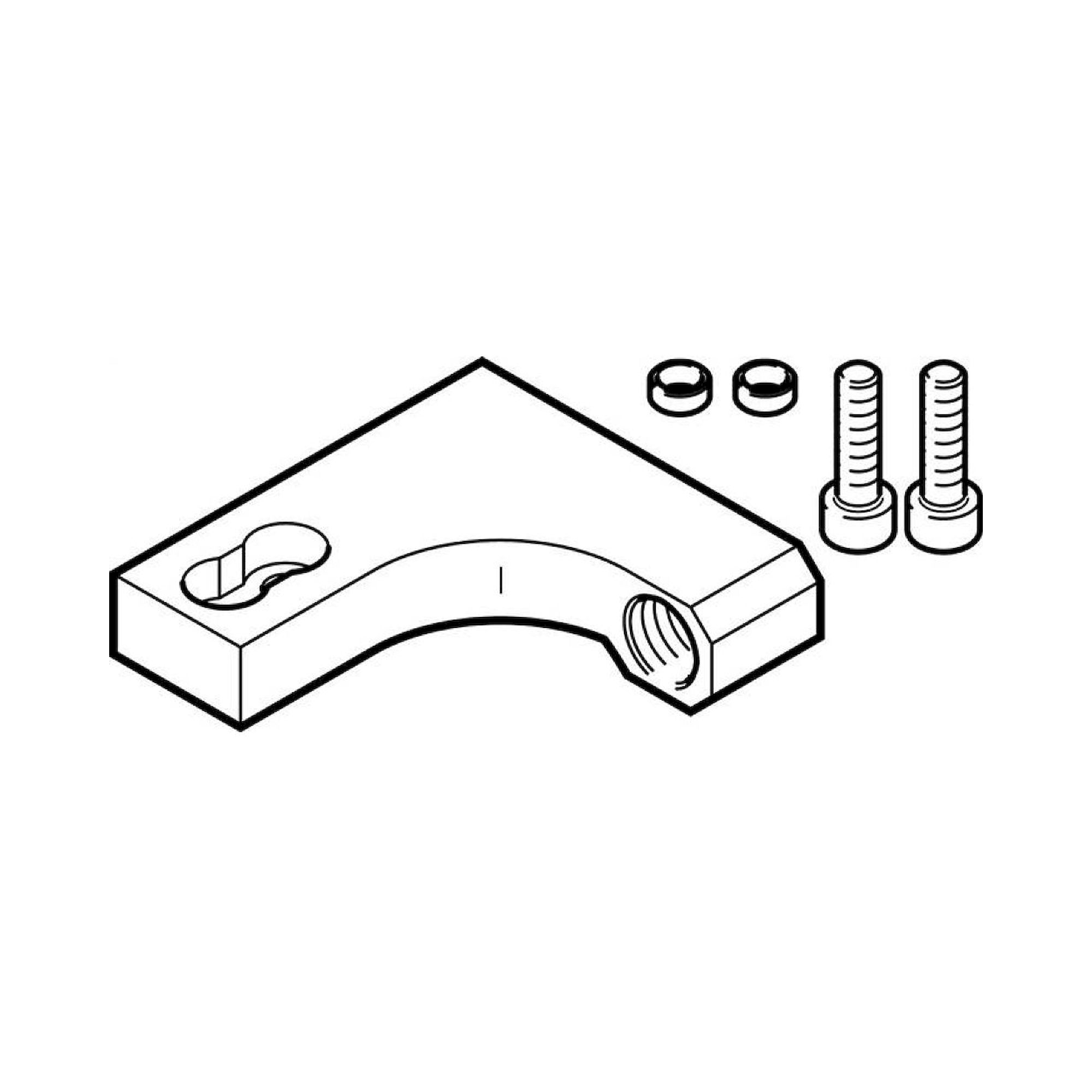

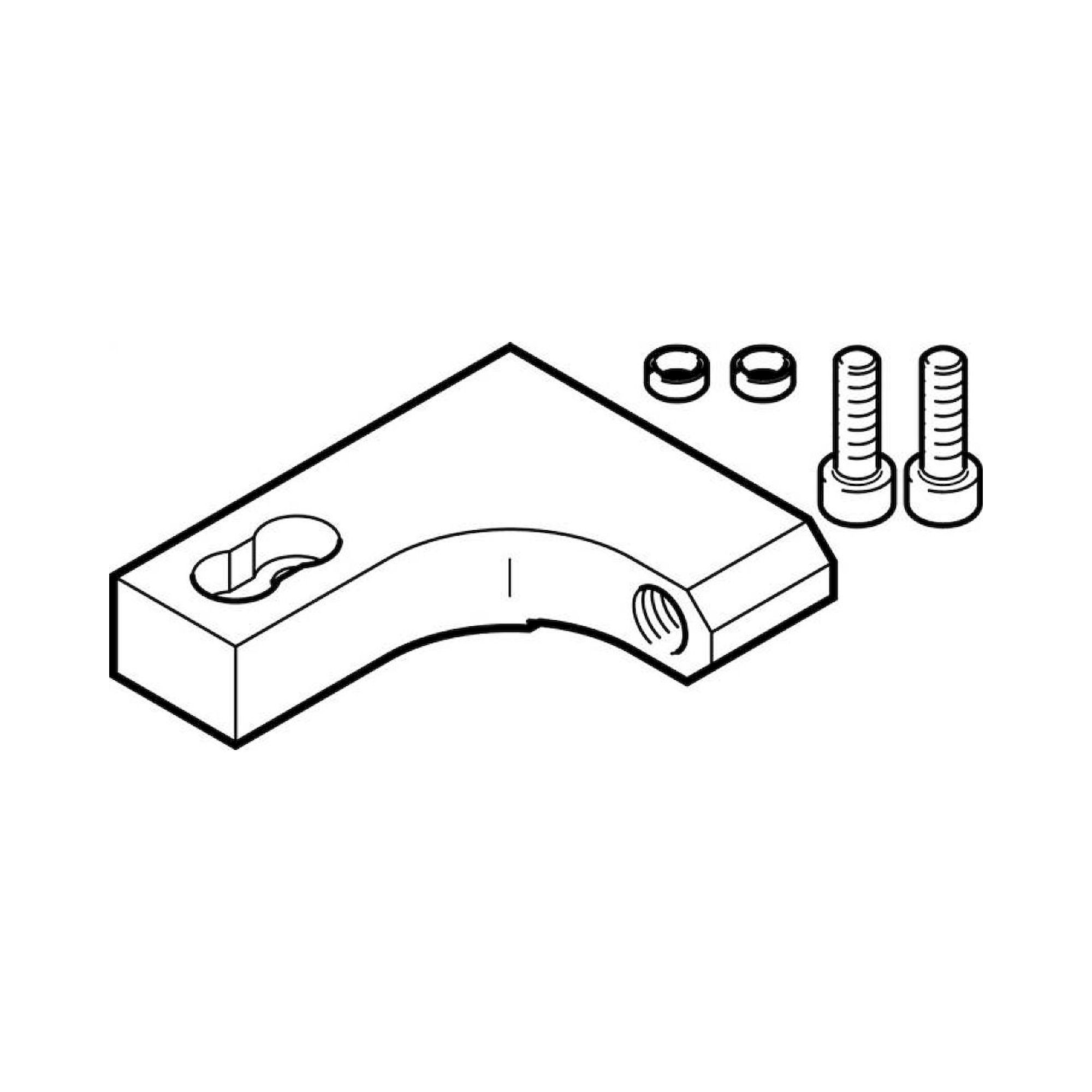

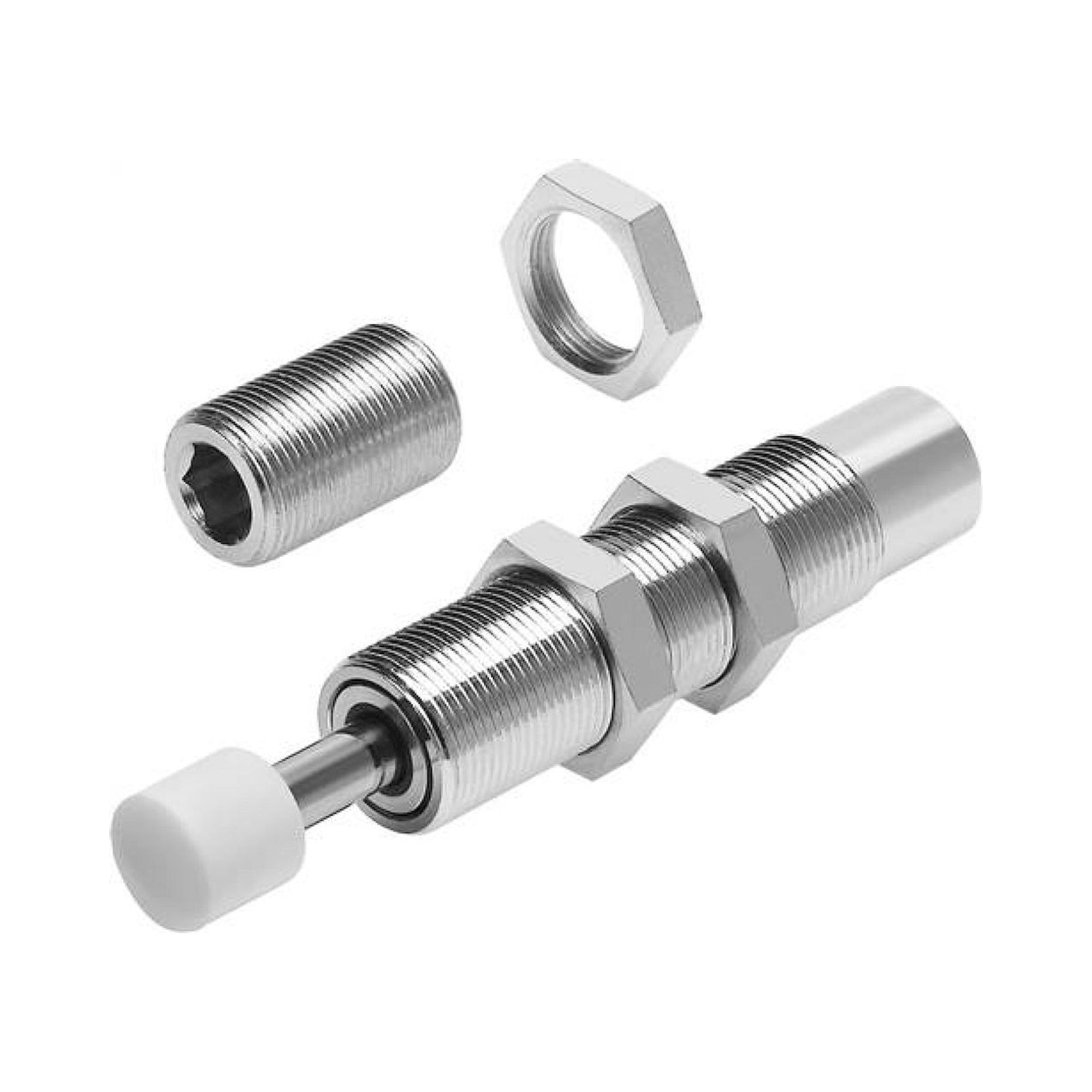

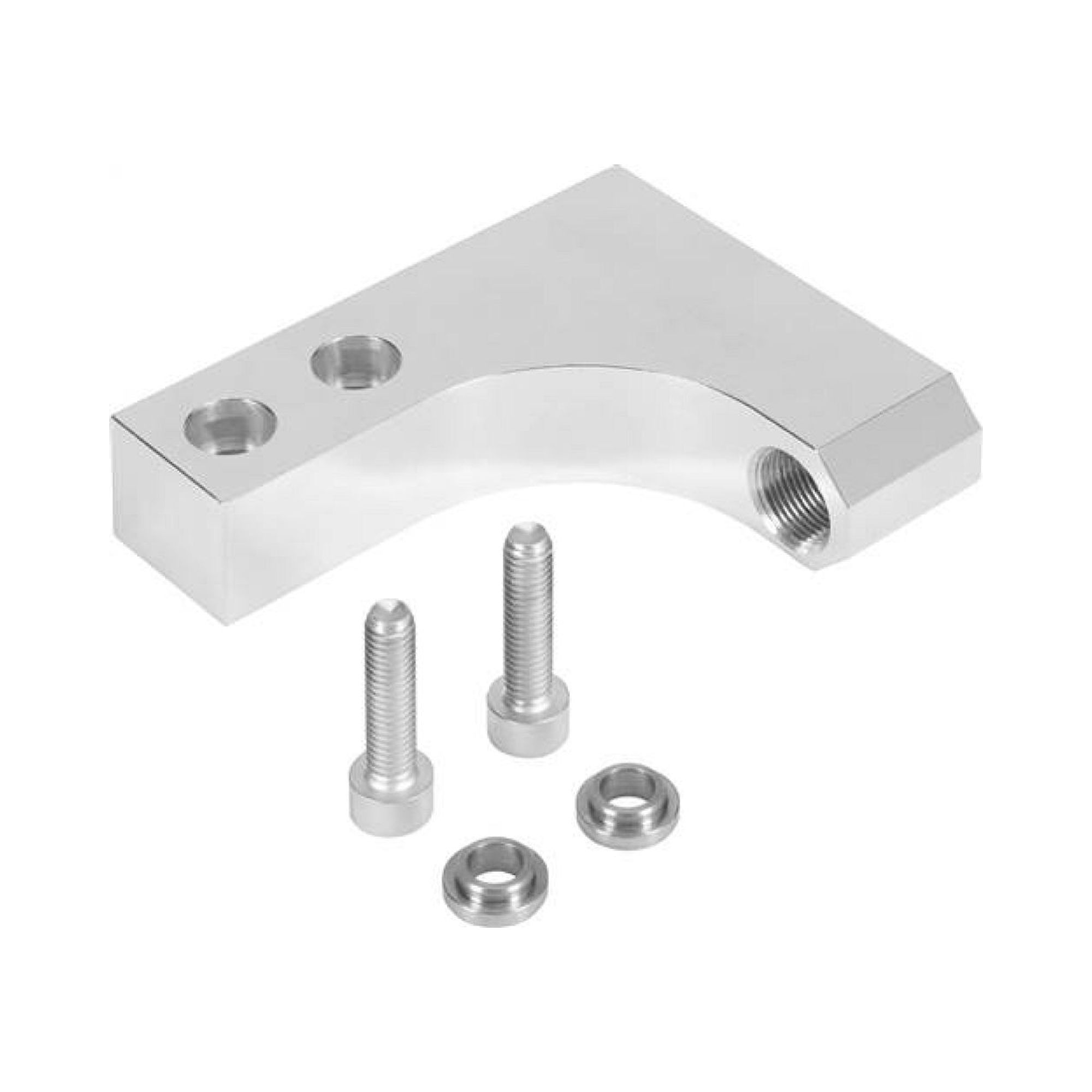

The SLZ series like SLZ-50-KF-A provides complete shock absorber kits with adjustable damping for heavy-duty applications requiring energy absorption up to 300 Joules per stroke. SLE models such as SLE-40-YSR-C feature self-compensating designs for consistent damping across varying loads without manual adjustment in medium-duty cycling applications. YHD series including YHD-25 offers compact mounting solutions for space-constrained installations with bore diameters under 40mm and energy ratings below 100 Joules. The DADP-ES-G6 series functions as precision mounting holders with G6 tolerance class machining for exact cylinder alignment, available in bore sizes from 12mm to 25mm for standardized ISO cylinder integration.

What installation requirements and system compatibility considerations apply to Festo pneumatic shock absorber accessories?

Installation of Festo shock absorber accessories requires ISO 15552 compliant cylinder mounting with M6 to M10 threaded connections depending on bore size and load rating specifications. The SLZ and SLE series mount directly to cylinder end caps using standard DIN 912 socket head cap screws with torque values ranging from 8 Nm for 25mm bore applications to 25 Nm for 50mm bore installations. System compatibility extends to all Festo DNC, DSBC, and DSBG cylinder series operating at pressures between 1.5 and 10 bar with G1/8 to G1/2 pneumatic connections. The DADP holder series integrates with both tie-rod and compact cylinder designs, requiring 0.1mm mounting surface flatness tolerance for optimal shock absorber alignment and performance consistency.

What safety ratings and environmental specifications apply to Festo shock absorber accessories in industrial pneumatic applications?

Festo shock absorber accessories typically carry IP54 ingress protection ratings for dust and water resistance in standard industrial environments, with IP65 variants available for washdown applications in food processing. Operating temperature ranges span -20°C to +80°C for NBR seal materials, extending to +150°C for FKM high-temperature variants in thermal processing applications. Maximum operating pressure ratings reach 10 bar for standard models with burst pressure testing conducted at 15 bar according to ISO 4414 pneumatic safety standards. The KYC-63 end stop component withstands impact forces up to 150 Joules with mechanical safety factors of 4:1, while threaded mounting connections meet DIN 912 strength class 12.9 specifications for reliable attachment under cyclic loading conditions.

What maintenance intervals and service life expectations apply to Festo pneumatic shock absorber accessories?

Festo shock absorber accessories require visual inspection every 500,000 cycles or annually for seal integrity, mounting bolt torque verification, and damping fluid level assessment in adjustable models. The elastomer damping elements typically provide 2-5 million cycle service life depending on impact energy levels, with SLZ series components rated for continuous operation at 80% maximum energy capacity. Preventive replacement intervals range from 18-36 months based on operating duty cycle, with harsh environment applications requiring accelerated schedules due to temperature cycling and contamination exposure. Inspection protocols include checking for oil leakage, measuring damping stroke consistency within ±2mm tolerance, and verifying mounting hardware torque values according to DIN 912 specifications to maintain optimal shock absorption performance throughout the service interval.

Accessories for damping elements

Cylinder attachments and accessories

Festo accessories for damping elements include shock absorber kits, stop kits and end-stop limiters that enable controlled deceleration of the piston rod or slide at the end position. The range contains SLE and SLZ shock absorber kits (for ADVU/AEVU cylinders), KSM stop kits, PF stops, YSRA end-stop limiters and YSRF mounting flanges. With 112 items, the range covers the common bore sizes of Festo compact and ISO cylinders.

⚙ SLE shock absorber kit - for ADVU/AEVU, bores 10-50 mm, with YSR damper and clamping ring

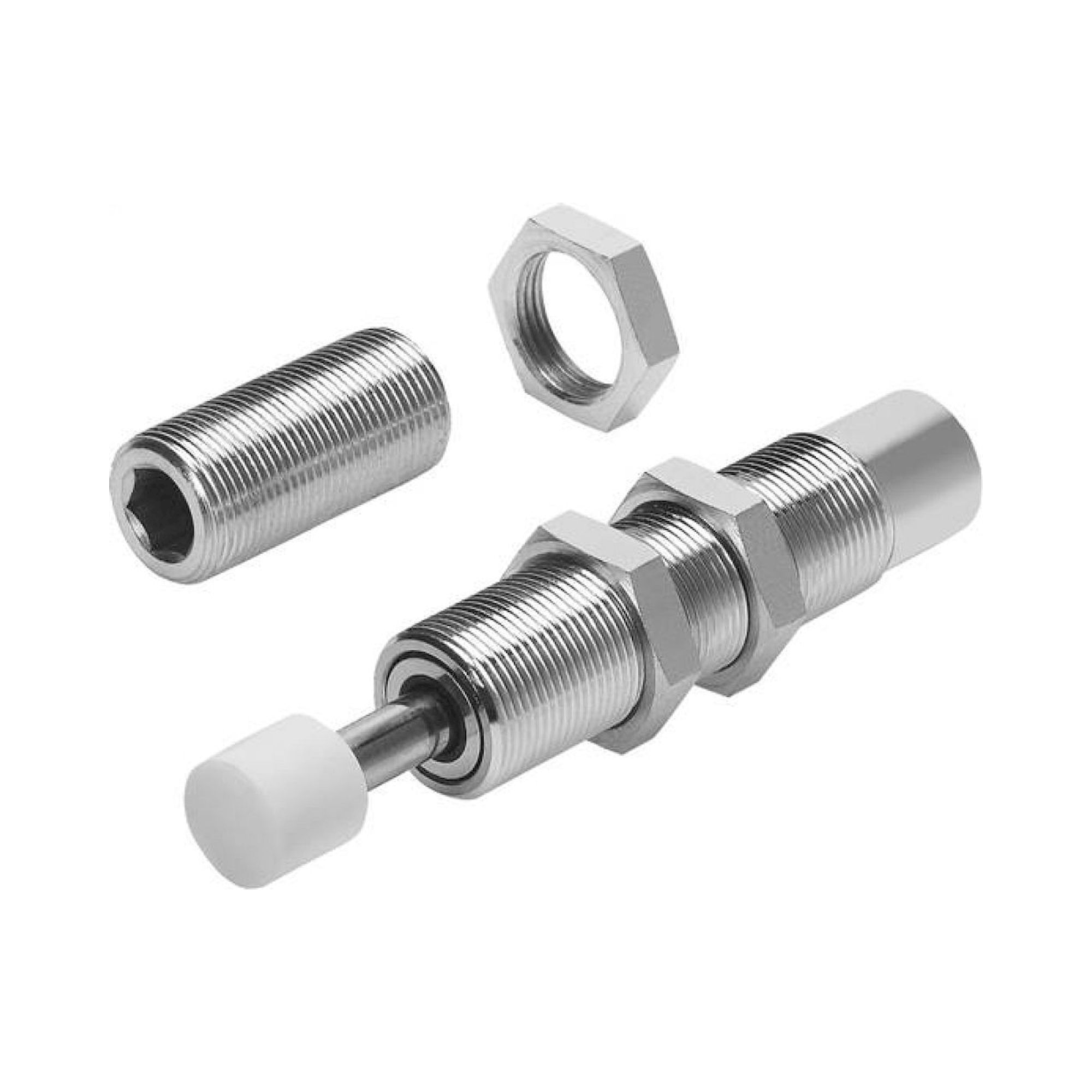

⬡ SLZ shock absorber kit - for other cylinder series, bores 16-50 mm

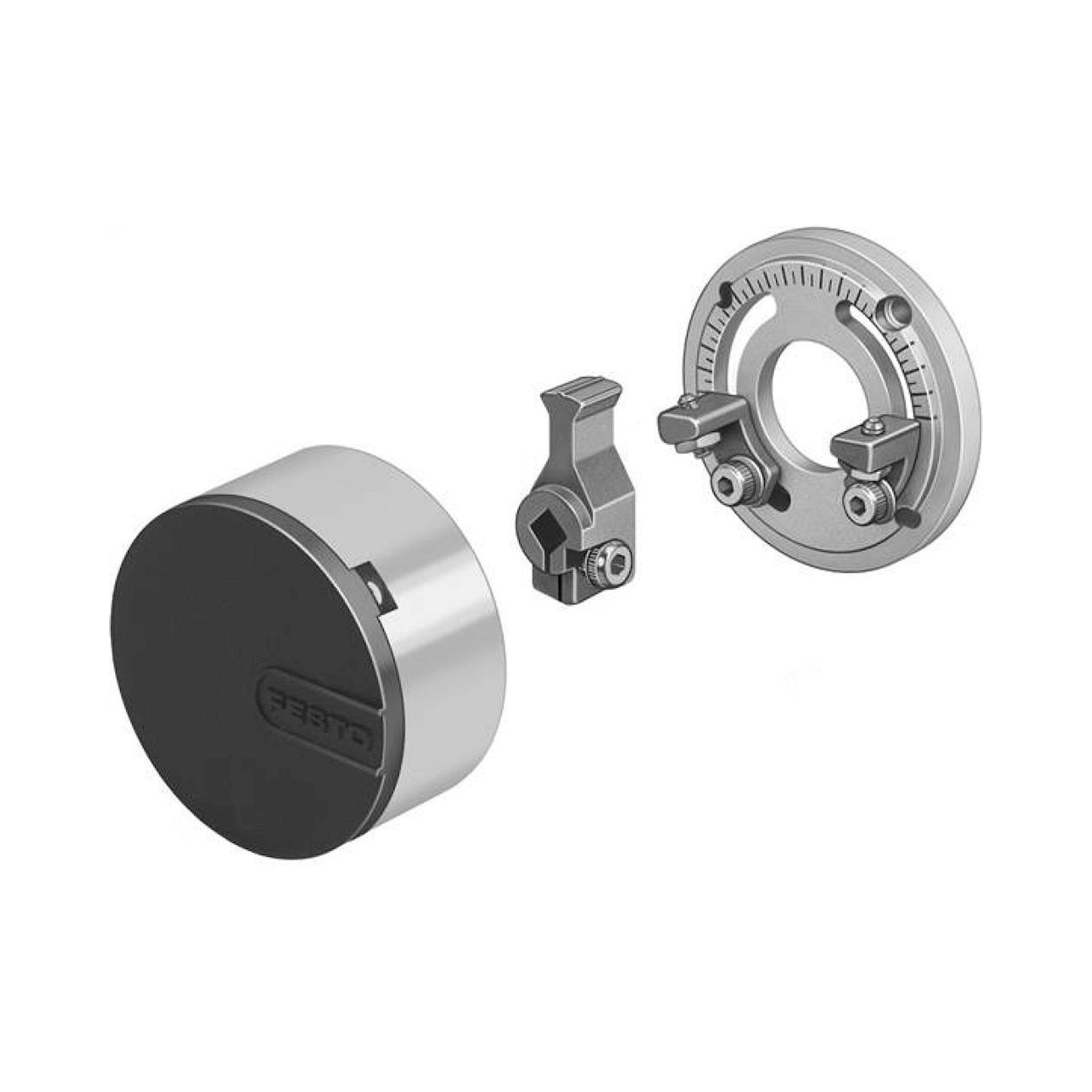

✓ KSM stop kit - rigid end-stop, bores 6, 8, 10 mm

✦ PF stop - for SLT slides (10, 20, 25 mm), adjustable mechanical end stop

⚡ YSRA / YSRF - end-stop limiters and flanges for YSR damper system, bores 7-12 mm

SLE kits are designed for compact cylinders ADVU/AEVU as they match the ADVU cylinder contour. SLZ kits suit DNC ISO cylinders and other series. PF stops are used on SLT slide actuators where adjustable mechanical end positions are needed. KSM stop kits provide a rigid limit without a damping function, suited to slow strokes with low kinetic energy.

Typical applications: Fast short-stroke cylinders in assembly automation where unbuffered end positions would impact the cylinder end cap, slide actuators with adjustable stroke end positions, and handling units with shock-sensitive load-carrying attachments.
