Accessories for direct valve mounting
Cylinder attachments and accessories
Festo accessories for direct valve mounting are fixing kits that allow valves to be mounted directly on the pneumatic cylinder, eliminating external tube connections. The range covers ZVB-8 kits (for 14/18 mm and 24 mm valve body widths) and DAVM-MW kits for the V1 mounting interface on cylinder bores of 32 and 50 mm. Direct valve mounting shortens switching times and reduces potential leakage by removing intermediate fittings.
ZVB-8-14/18 and ZVB-8-24 - for 14/18 mm and 24 mm valve body widths, mounted directly on cylinder end cap
DAVM-MW-V1-32 and -50 - V1 mounting interface for cylinder bores 32 and 50 mm
Reduced hose connections - less leakage potential, faster switching times
Compact assembly - valve and cylinder as one unit, reduced space in the machine frame
| Type | Valve width / interface | Cylinder bore |
|---|---|---|

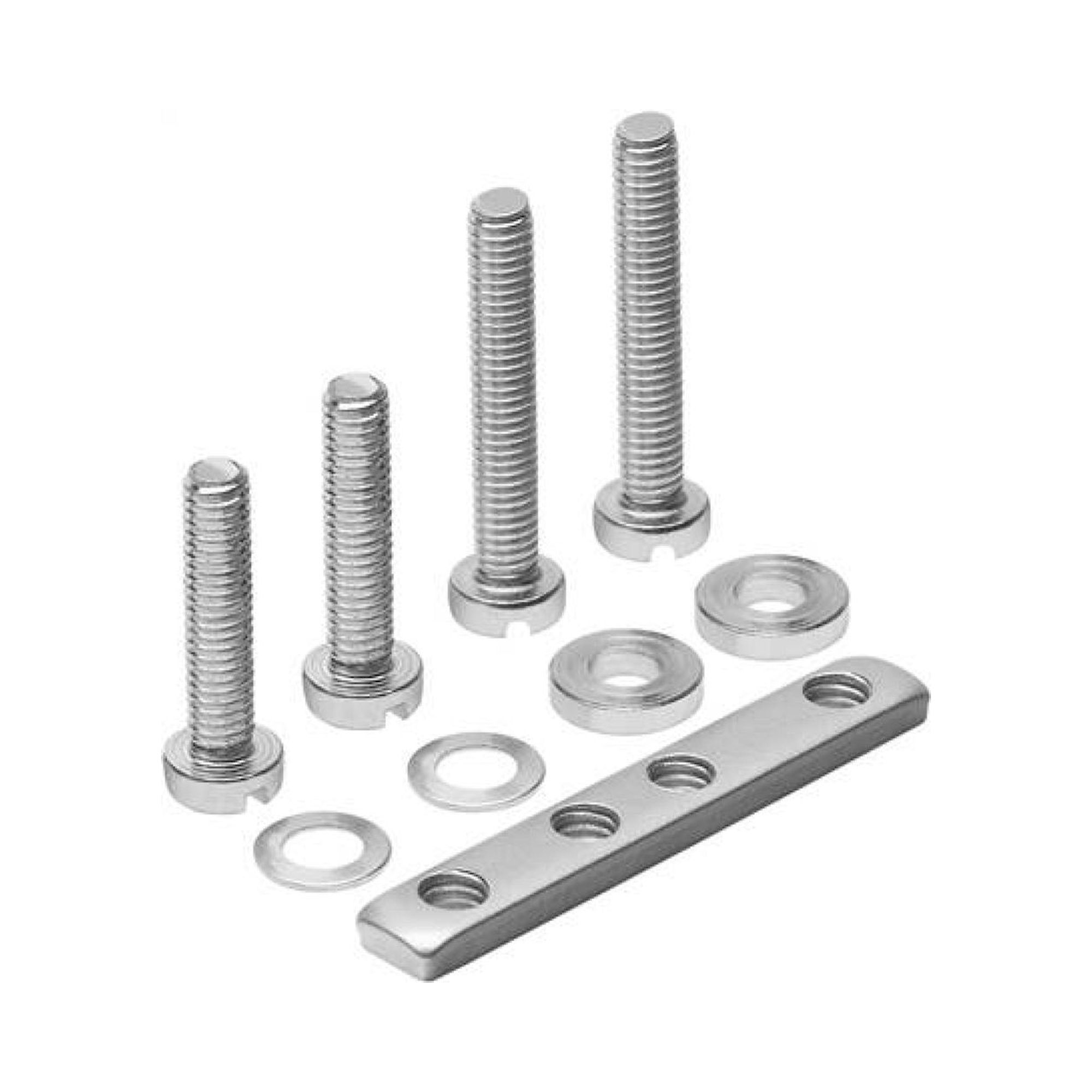

| ZVB-8-14/18 | 14/18 mm | Cylinders with ZVB mounting dimensions |

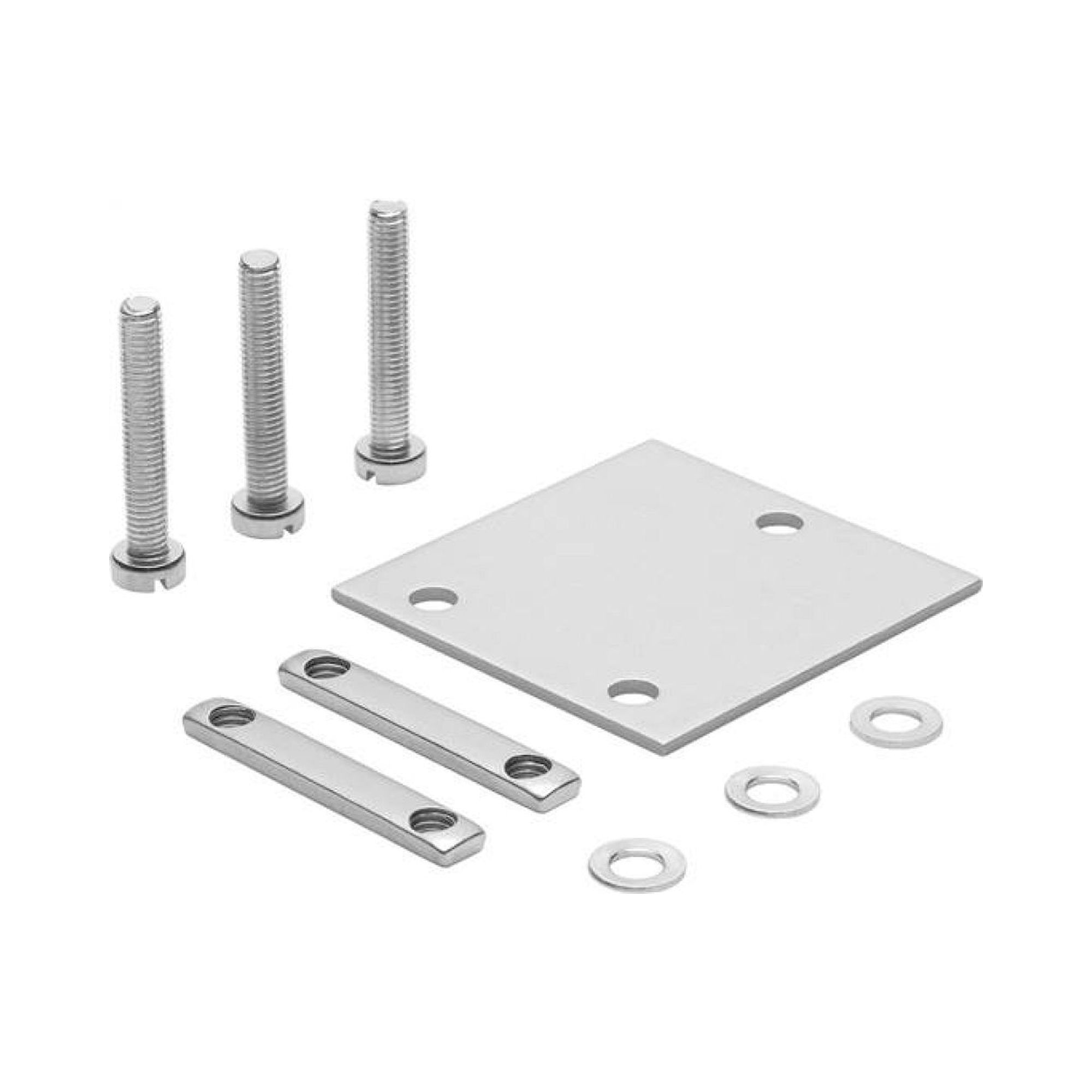

| ZVB-8-24 | 24 mm | Cylinders with ZVB mounting dimensions |

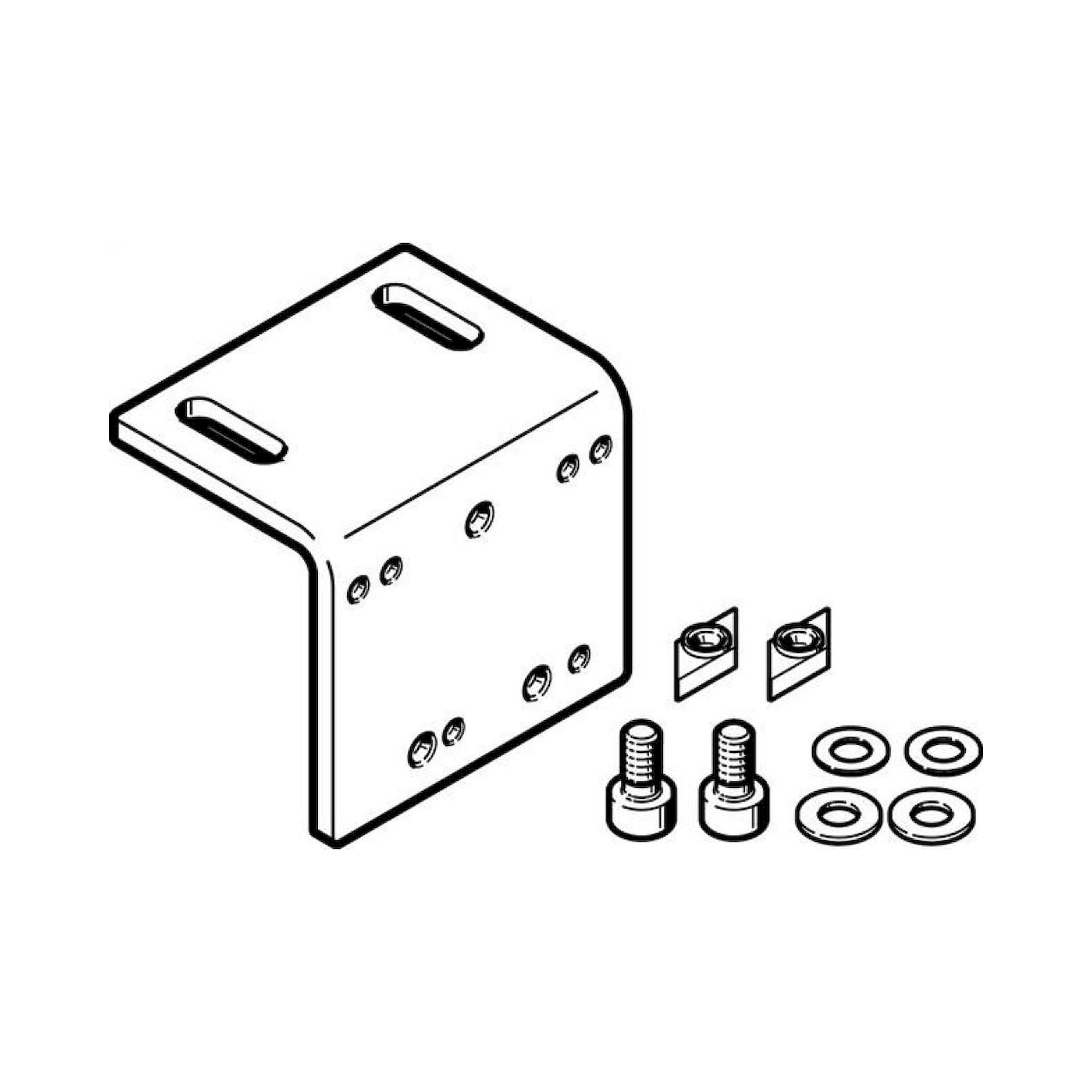

| DAVM-MW-V1-32-V | V1 interface | 32 mm |

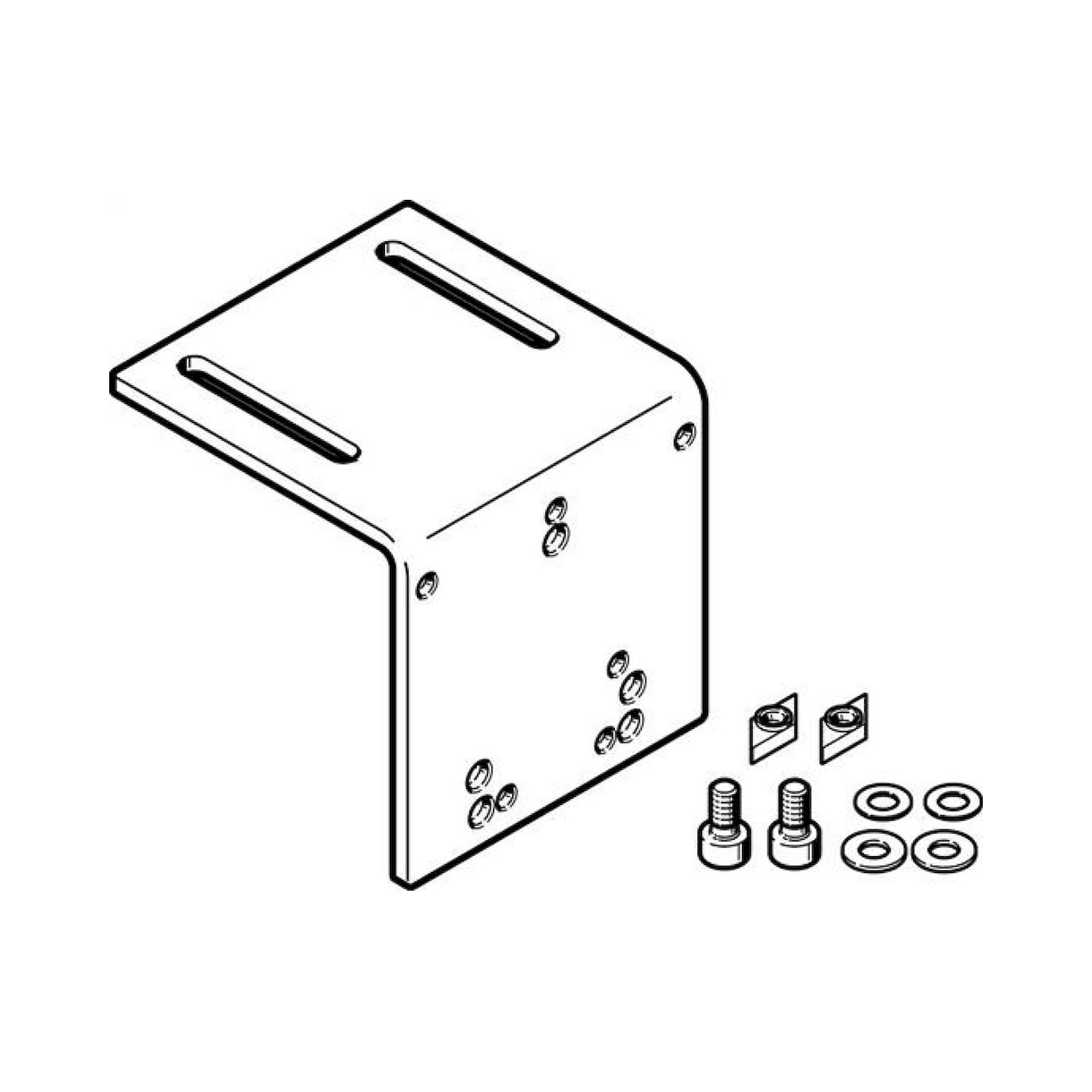

| DAVM-MW-V1-50-V | V1 interface | 50 mm |
Typical applications: Compact handling units where small dead volumes are needed for fast switching, decentralised valve mounting directly on grippers and end-effectors, and installations where space constraints prevent a centralised valve manifold.
