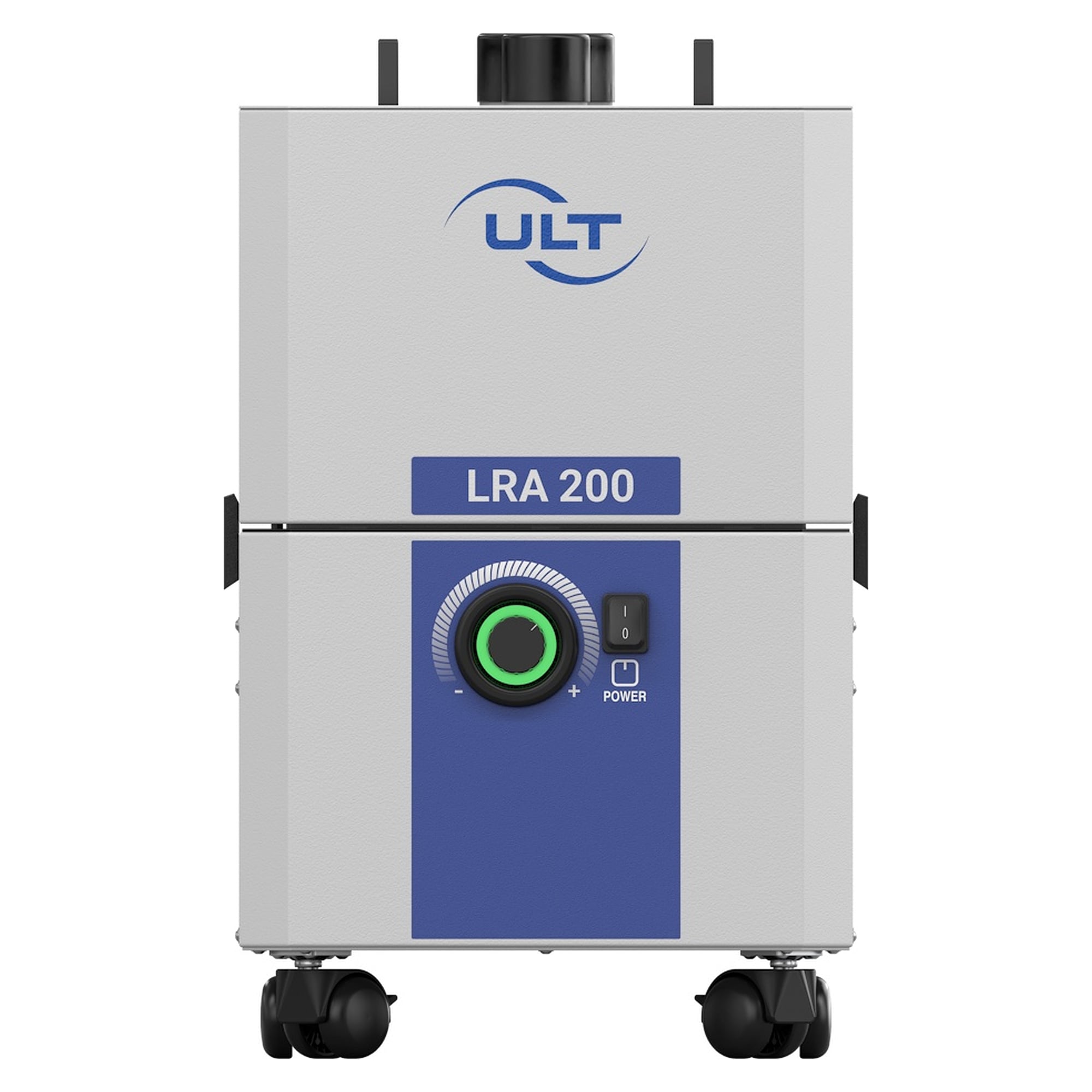

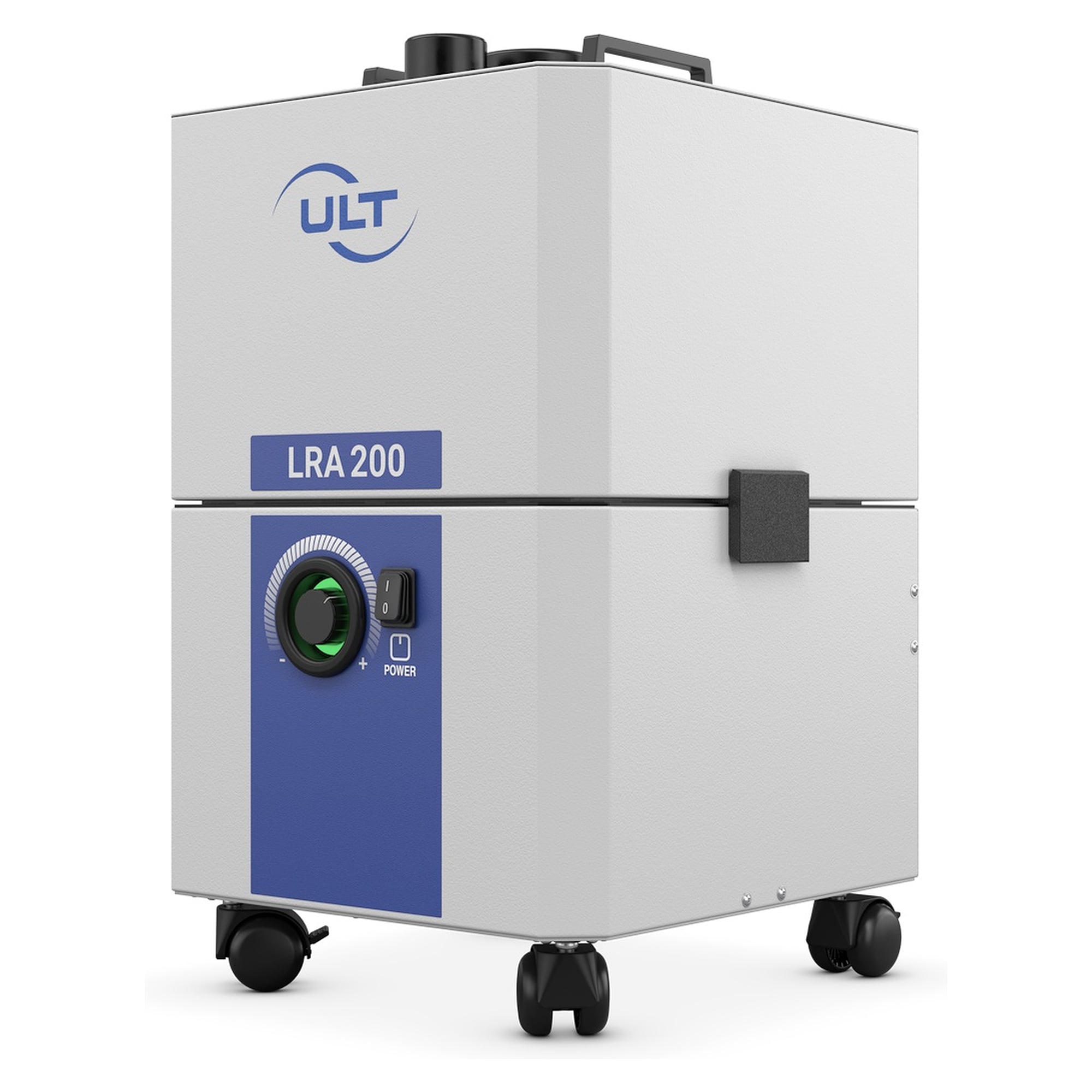

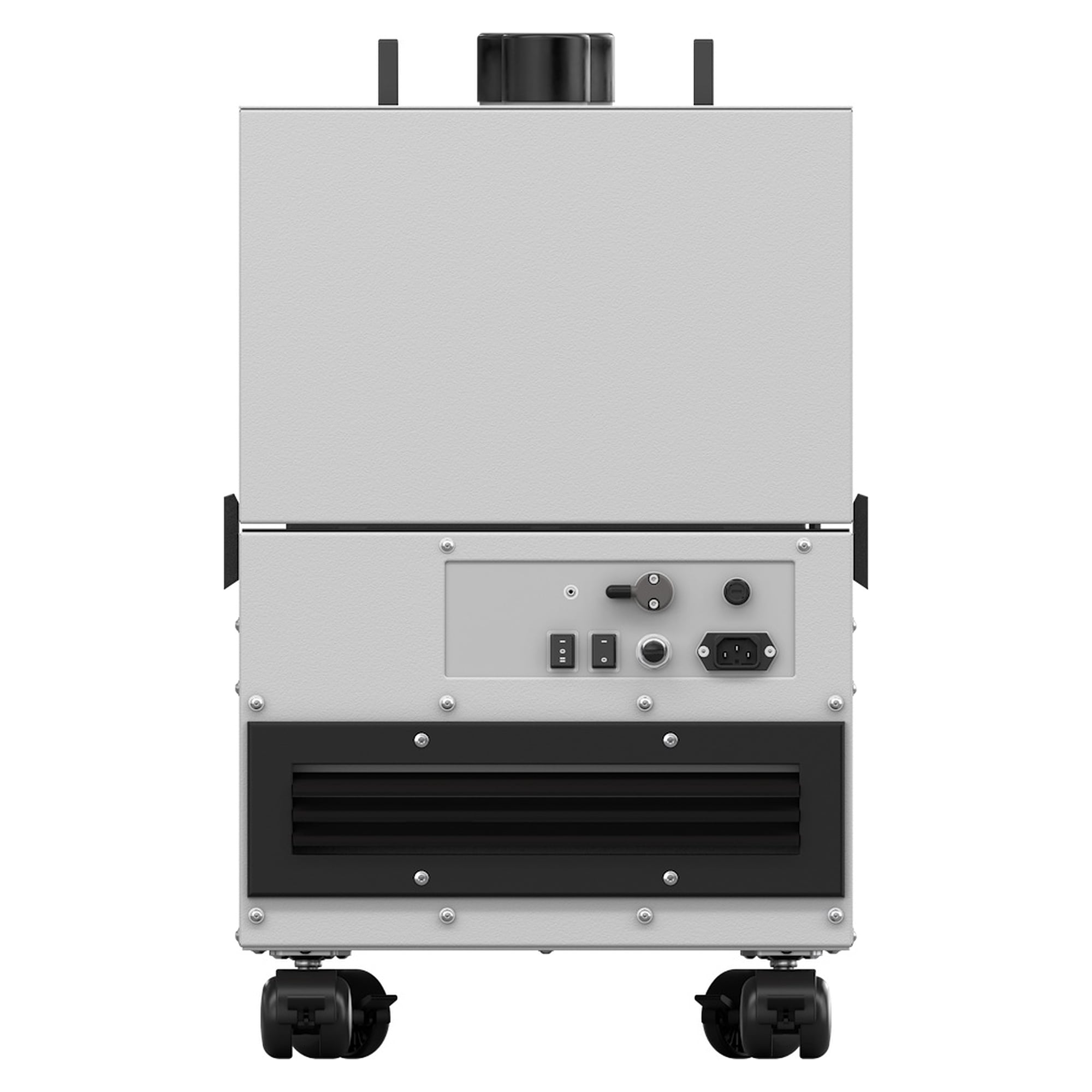

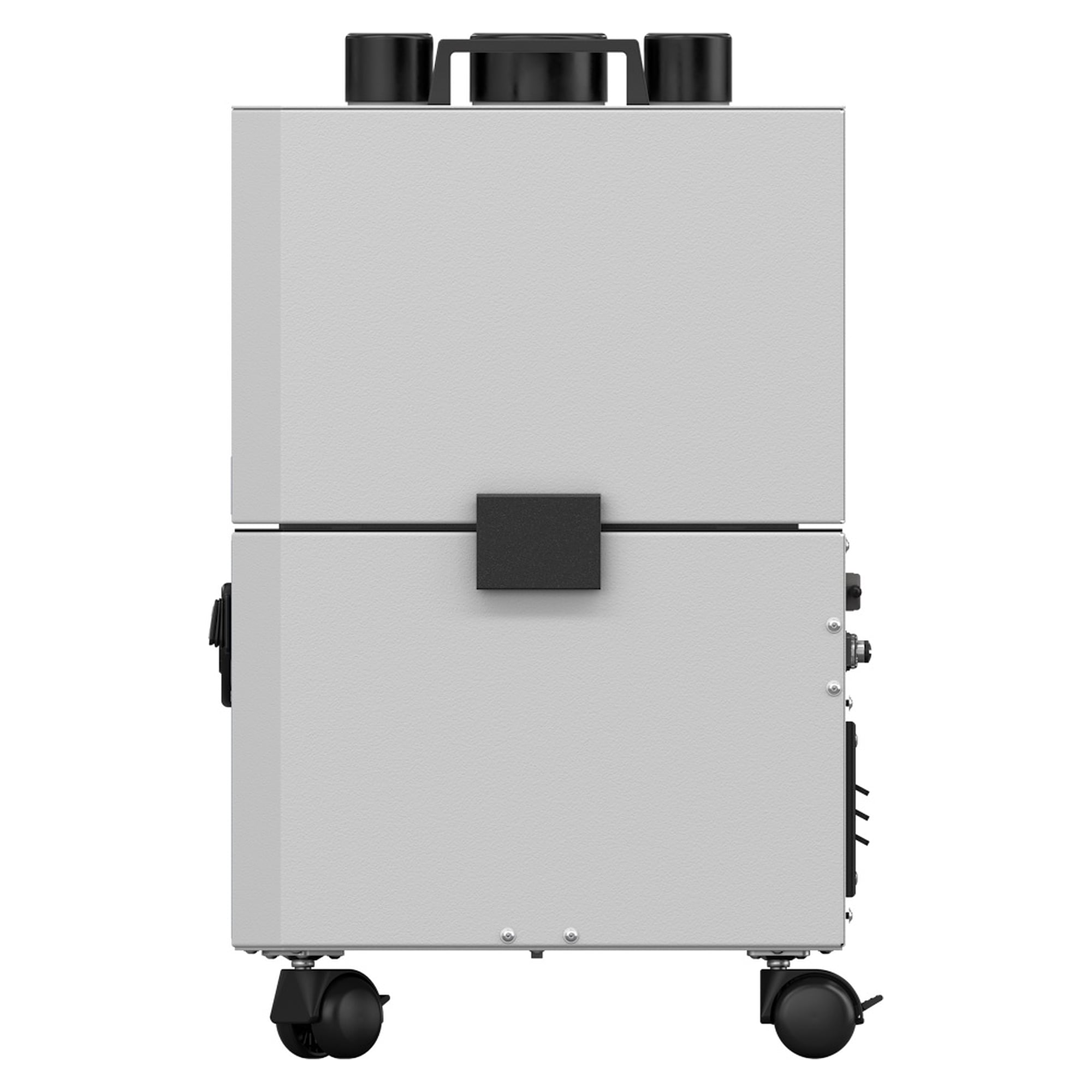

Solder Fume Extraction Unit LRA 200.1 MD.20 for 1 to 4 Workstations, 230 m³/h at 1,000 Pa - ULT 1-00088 (CL21144)
Solder fume extraction unit from the ULT series 200.1 for 1 to 4 workstations. The MD.20 blower delivers 230 m³/h at 1,000 Pa, enough reserve for several extraction points on one unit. Series 200.1 filters are available as accessories.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Extracting several soldering stations with one unit saves space, maintenance and purchase cost. The ULT LRA 200.1 MD.20 serves 1 to 4 workstations and delivers 230 m³/h at 1,000 Pa.
Key benefits
- For 1 to 4 workstations on one unit
- MD.20 blower with 230 m³/h at 1,000 Pa
- LRA unit range for solder fumes, series 200.1
- Series 200.1 filters and connection cable available as accessories
Applications
Solder fume extraction at manual and rework soldering stations in electronics production, service and training.
Technical data
| Product type | Solder fume extraction unit |
|---|---|
| Type designation | LRA 200.1 MD.20.50.6006 |
| Series | 200.1 |
| Blower | MD.20 |
| Extraction points | 1 to 4 |
| Application | Airflow 230 m³/h at 1,000 Pa |
| Sales unit | 1 piece |
| Weight | 27 kg |
| Manufacturer | ULT |
| Manufacturer Nr. | 1-00088 (CL21144) |
| HS-Code | 84213925 |
| GPSR manufacturer information | ULT AG Am Göpelteich 1 DE-02708 Löbau www.ult.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Downloads
Accessories
Console 200.1 S75 for mounting an Alsident System 75 extraction arm - ULT 0200.1-CONSOLE.S75.01
