Profile rail, trolley Bosch Rexroth
Strut profiles
Bosch Rexroth profile rails and trolleys form the linear guidance system for sliding door and suspended applications within the aluminium profile kit. The 8-article range includes profile rail 30x45C in standard lengths of 5600 mm, 6070 mm, and 6170 mm as well as a cut-to-length item with 1000 mm section, plus standard trolleys, sliding door trolleys, an ESD end piece 30x45 C, and a further 30x45C profile in length 20x6070 mm. The profile rail guides the trolleys with positive force transfer in both transverse and longitudinal directions.
| Article | Version | Order number |
|---|---|---|
| Profile rail 30x45C | 20x5600 mm | 3842523598 |
| Profile rail 30x45C | 20x6070 mm | 3842557950 |
| Profile rail 30x45C | L=6170 mm | 3842558312 |

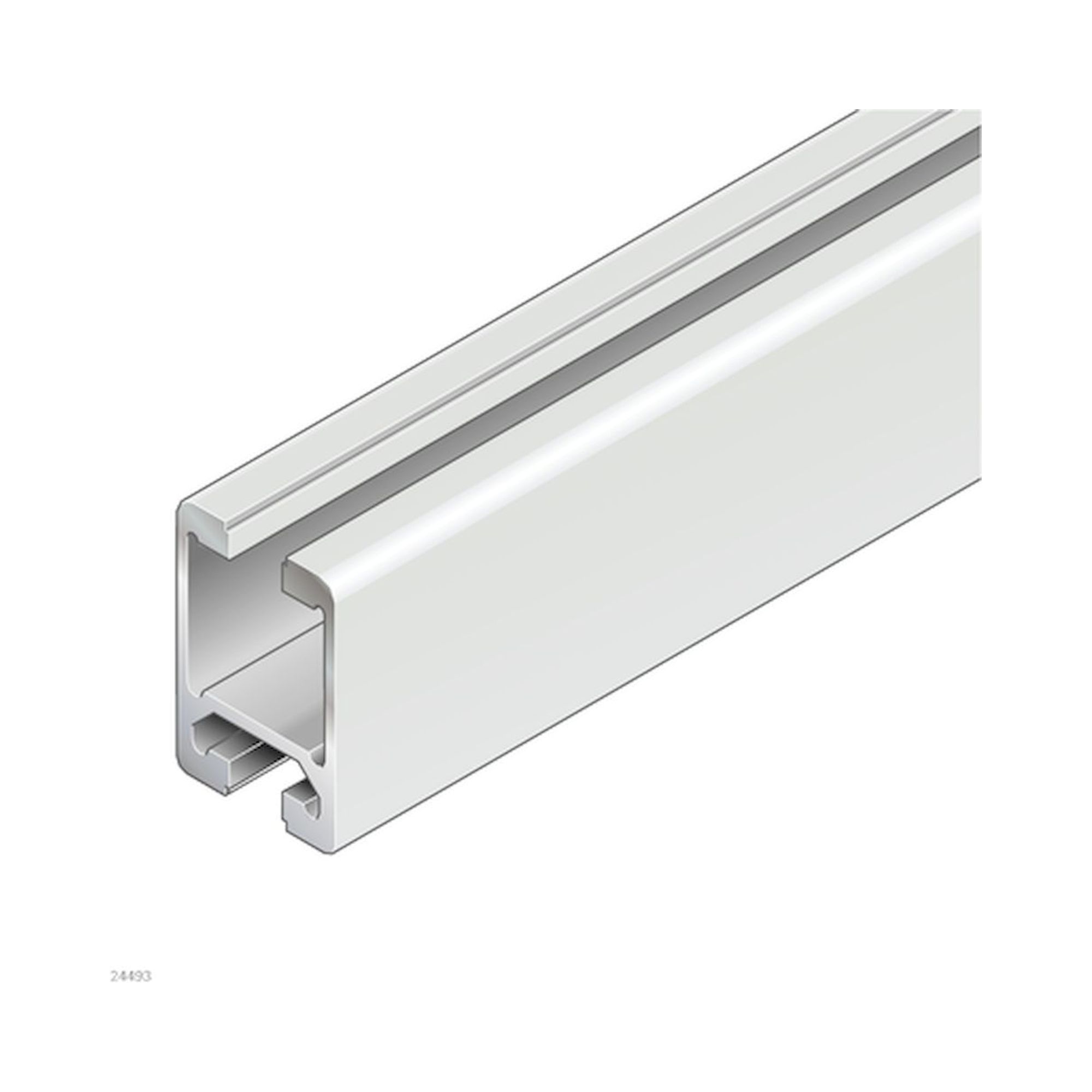

| Profile rail 30x45C | Cut-to-length price | 3842992946 |
| Profile rail 30x45C | 1000 mm section | 3842992946-1000 |
| Trolley | Standard | 3842521510 |
| Trolley, sliding door | Standard | 3842524153 |
| End piece 30x45 C ESD | ESD | 3842554711 |
Typical applications: Sliding doors on machine guards and room partitions, suspended transport systems for workpiece carriers and auxiliary equipment, linear sliding elements on workstation systems and storage racks, and antistatic sliding door applications in EPA zones using the ESD end piece.
