Strut profiles , slot 10, modular dimensions 50

Strut profiles

Bosch Rexroth strut profiles with slot 10 and modular dimension 50 form the heavy-duty segment of the modular profile system. The 75-article range includes cross-sections of 50x50L, 50x100L, 50x150L, 100x100L, and 100x200L in standard lengths up to 6070 mm, complemented by an extensive cut-to-length range. Bore variants include M12, M12/M12, D17, D17/D17, D17V, and D9.8/D9.8, enabling direct bolted connections without separate T-slot nuts. The large aluminium cross-sections provide significantly higher load capacity compared to slot-8/10-R40/45 profiles.

The 100x200L cross-section delivers the highest bending stiffness in the range and is suited to frame structures in heavy transfer systems. Cut-to-length articles (3842993156-175) cover all main cross-sections with M12 and D17 bore variants.

⚙ Slot 10, modular dimension 50 mm - heavy-duty system for high stiffness and load requirements

✦ Cross-sections 50x50 to 100x200 mm - up to 6070 mm standard length, all available cut to length

↕ Bore variants M12 and D17 - direct bolted connection without separate T-slot nuts

⬡ Cross-section 100x200L - maximum bending stiffness in the slot-10-R50 family

✓ Compatible with slot-10 connection elements - bolt connectors, brackets, and base elements from the slot-10 range

Cross-section	Bore variants	Max. length
50x50L	M12, M12/M12, D17, D17/D17, D17V, D9.8/D9.8	6070 mm

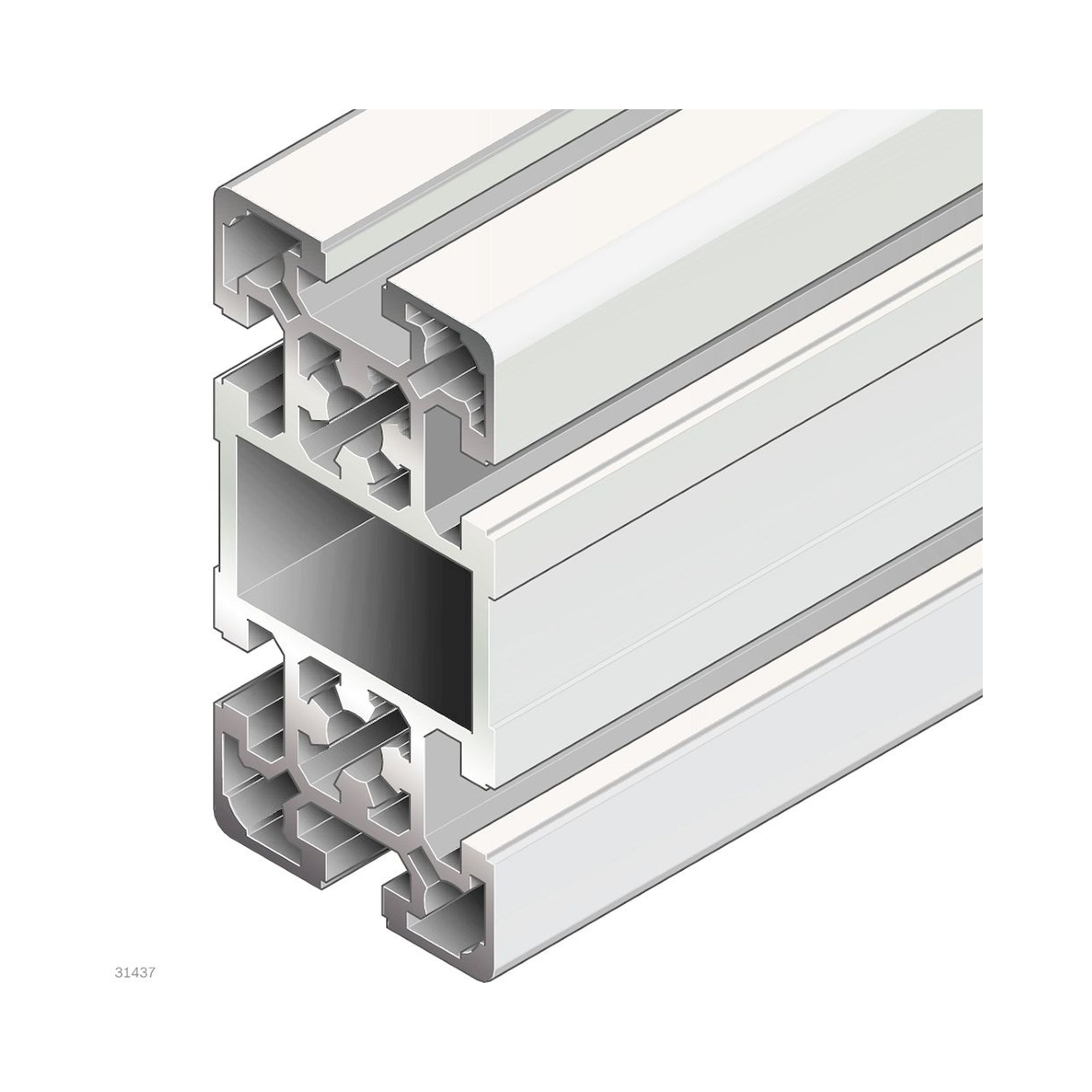

50x100L	M12, M12/M12, D17/D17, D17V, D17V/D17V	6070 mm

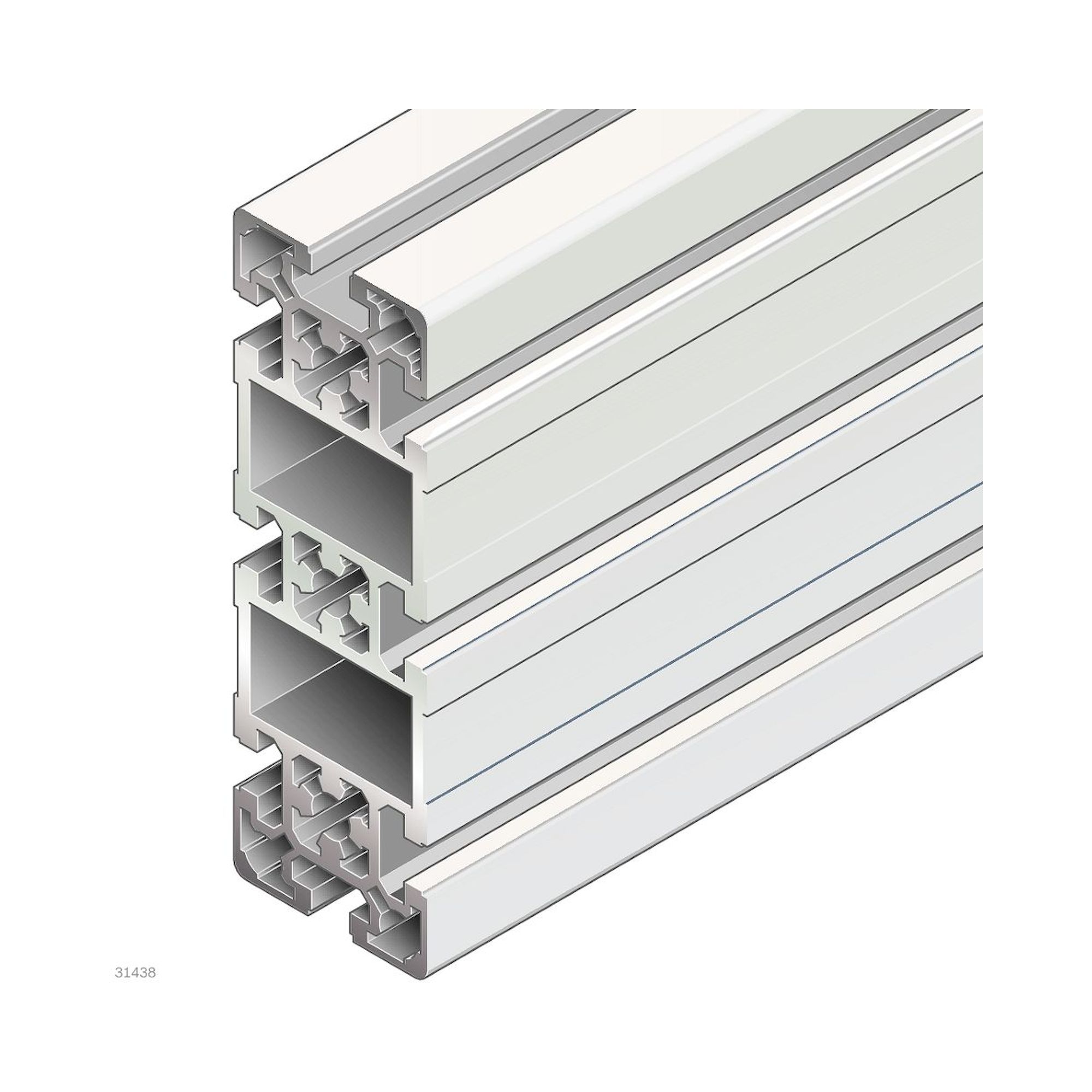

50x150L	Standard	6070 mm

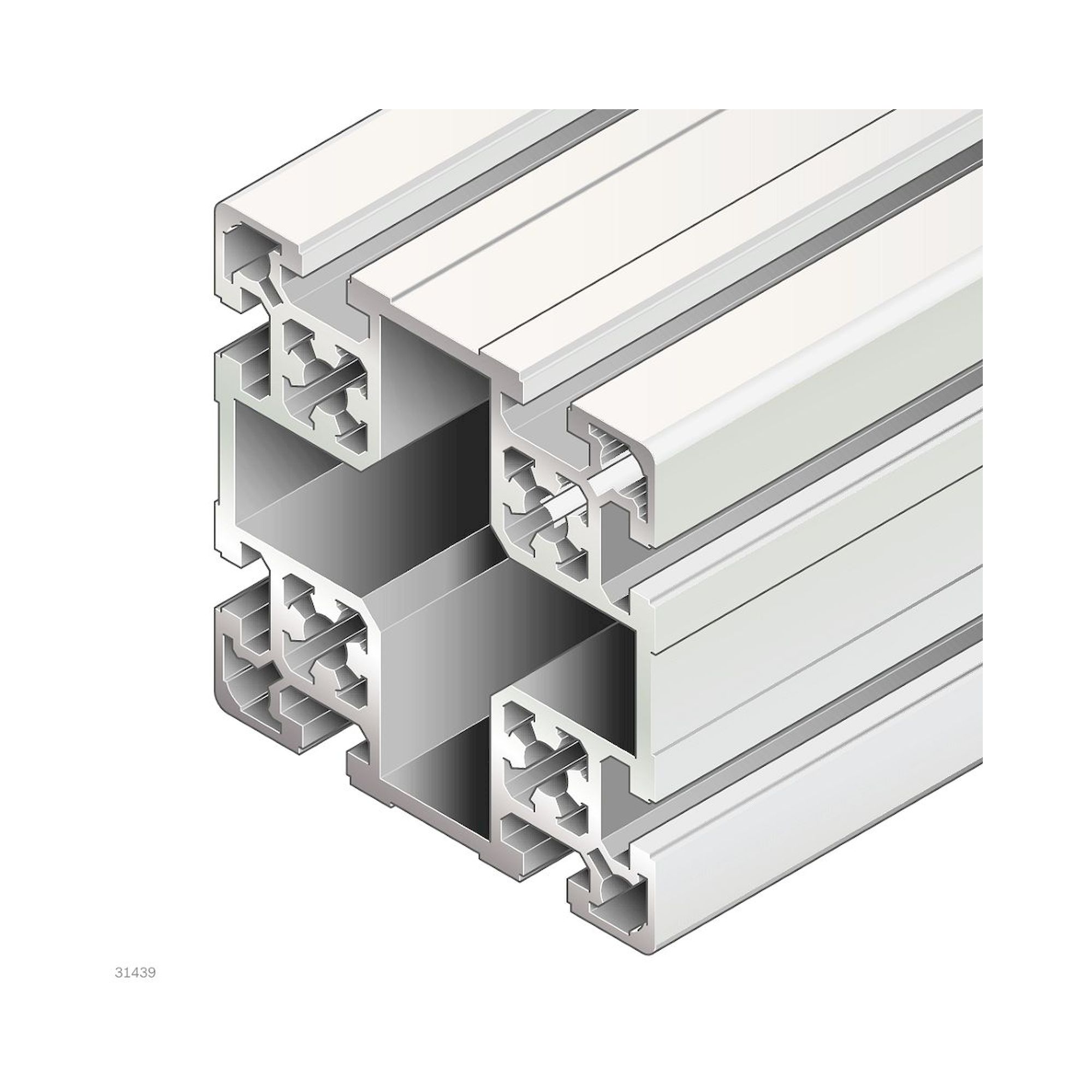

100x100L	M12, M12/M12, M12/D17	6070 mm

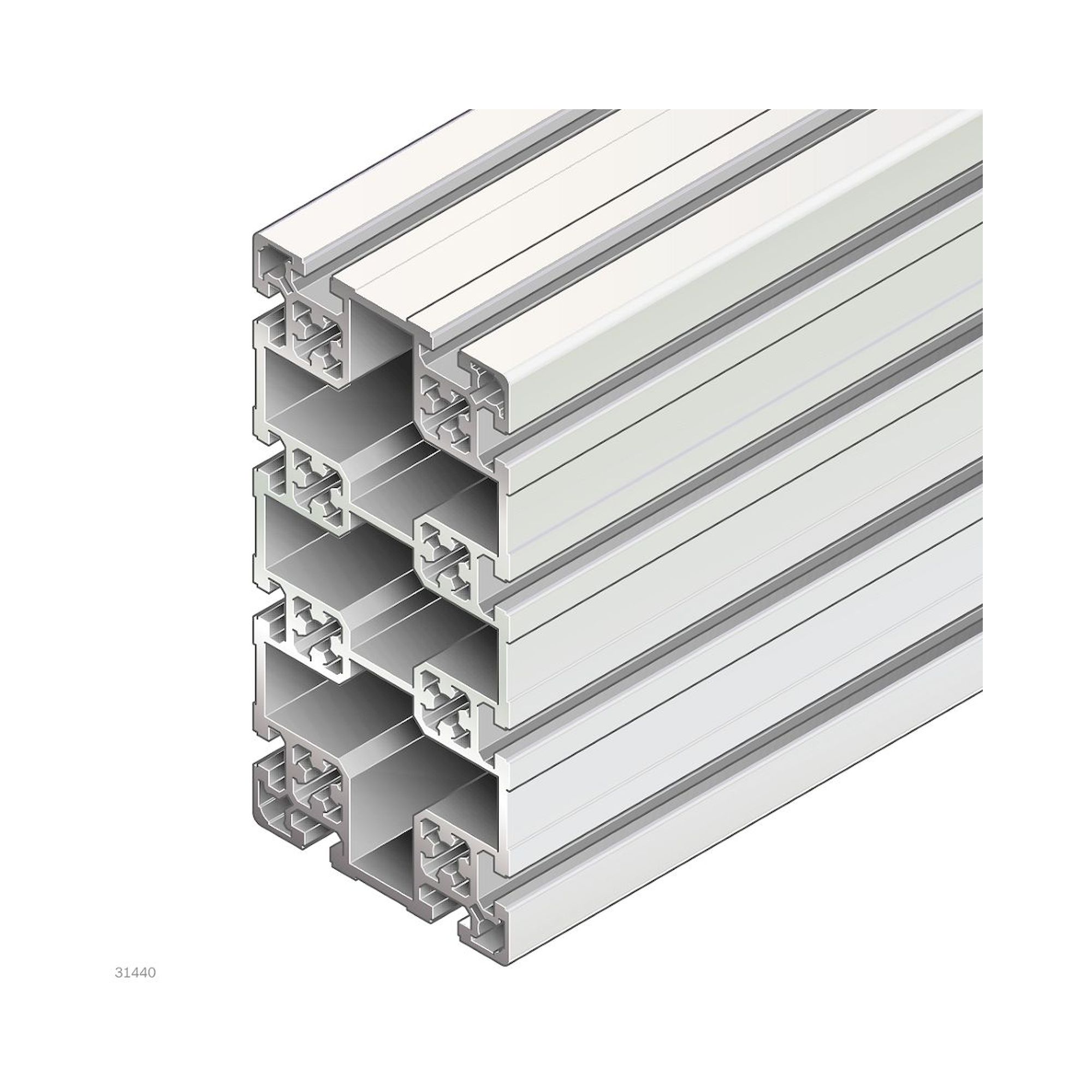

100x200L	Standard	6070 mm

Typical applications: Load-bearing frames for heavy assembly and test rigs, machine bed structures and gantry systems, heavy-duty shelving and pallet carriers in logistics installations, and foundation frames for stationary machines and transfer lines with high transverse load requirements.
