Strut profiles , slot 10, modular dimensions 60

Bosch Rexroth strut profiles with slot 10 and modular dimensions 60 are precision-extruded aluminum structural components designed for constructing modular assembly workstations, machine frames, and automation equipment in manufacturing environments. These profiles feature integrated T-slot channels with 10mm slot width and 60mm grid spacing, enabling systematic connection of accessories and structural elements. Primary applications include ESD-safe workbenches, clean room assembly systems, pneumatic automation frames, and reconfigurable production line structures across automotive, electronics, pharmaceutical, and precision engineering industries.

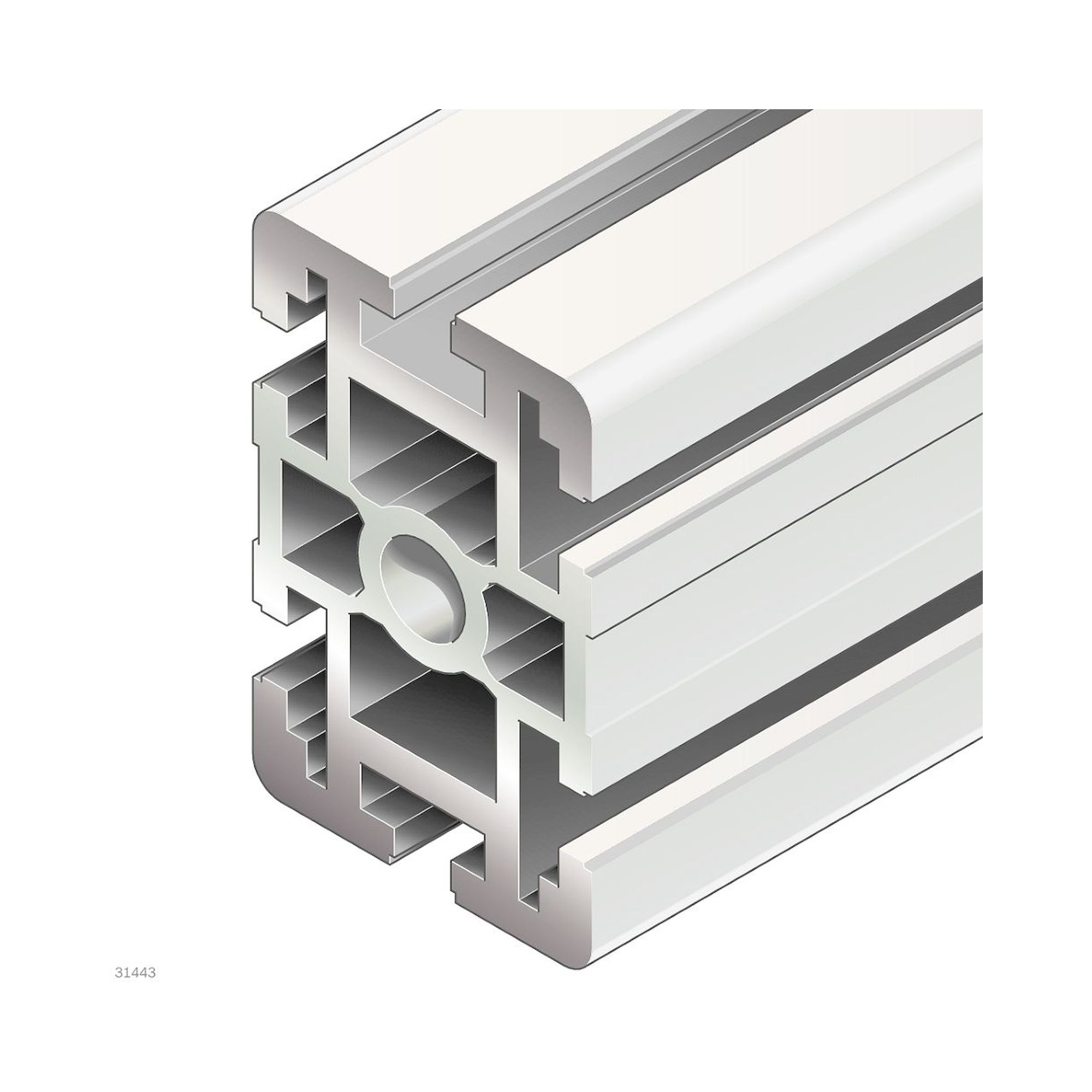

Selection of Bosch Rexroth 60x90 strut profiles depends on end connection specifications, with variants including F1/F1 for standard flat connections, M16/M16 for threaded rod assemblies, D17/D17 for dowel pin alignment, and specialized VS versions for vibration-dampened applications. The profile cross-section measures 60x90mm with integrated slot 10 channels, available in standard lengths of 1000mm or extended 5600mm sections for large-scale constructions. Connection type determines load capacity and assembly method, with M16 threaded connections supporting higher axial loads compared to F1 flat connections, while D17 dowel variants provide precise positional alignment within ±0.1mm tolerance.

Bosch Rexroth strut profiles comply with DIN EN 755 for aluminum alloy extrusions, ISO 8015 for geometric dimensioning and tolerancing, and DIN 4102 Class B1 for fire behavior classification in industrial environments. The aluminum alloy typically meets EN AW-6063 T66 specifications with minimum yield strength of 160 N/mm², ensuring structural integrity under industrial loading conditions. Profile geometry adheres to ISO 4762 for T-slot dimensions and DIN 6912 compatibility for standard fastening hardware, while surface treatments conform to DIN EN 12206 anodizing standards for corrosion resistance in workshop environments.

F1 connections feature flat end faces for direct profile-to-profile joining with connector plates, while F2 variants include pre-machined fastening holes for simplified assembly without additional drilling. M16 connections incorporate internal M16 threaded inserts at profile ends, enabling direct threaded rod connections for high-strength joints with axial load capacity exceeding 15kN. D17 connections contain precision-bored 17mm diameter holes for dowel pin alignment, ensuring positional accuracy within ±0.05mm for precision assembly applications. VS designations indicate vibration-dampened versions with internal damping elements to reduce resonance in dynamic machinery applications.

Bosch Rexroth slot 10 strut profiles require compatible T-nuts, connector plates, and fastening hardware designed for 10mm slot width and M8 threading specifications. Installation demands precision cutting with fine-tooth carbide blades maintaining perpendicular cuts within ±0.2mm to ensure proper connection alignment and load distribution. System compatibility extends to standard Bosch Rexroth modular system components including panel supports, door hinges, and cable management accessories, all engineered for the 60mm grid pattern. Profile connections require proper torque application between 8-12 Nm for M8 fasteners to achieve specified joint strength without aluminum thread damage.

Bosch Rexroth aluminum strut profiles operate safely within temperature ranges from -40°C to +80°C with structural load capacity maintained throughout this range according to EN AW-6063 material specifications. The anodized surface treatment provides IP54 protection against dust and moisture ingress when properly sealed, making profiles suitable for industrial workshop environments with moderate contamination levels. Fire safety classification reaches B1 according to DIN 4102, ensuring controlled flame spread characteristics in manufacturing facilities. Maximum recommended static loading for 60x90 profiles reaches 25kN in compression and 15kN in tension, with safety factors incorporated per DIN EN 1999 aluminum structure design standards.

Bosch Rexroth aluminum strut profiles require annual visual inspection for connection integrity, surface condition, and alignment verification, with detailed geometric measurement every 24 months using precision gauges to confirm dimensional stability within ±0.5mm tolerance. Service life typically exceeds 20 years in standard industrial environments when properly maintained, with anodized surface protection lasting 15-20 years before requiring renewal in corrosive atmospheres. Critical connection points demand torque verification every 12 months, ensuring M8 fasteners maintain 8-12 Nm specification to prevent joint loosening under operational vibration. Cleaning protocols involve mild alkaline solutions compatible with aluminum anodizing, avoiding acidic or chloride-containing cleaners that compromise surface integrity and structural performance.
