i-CON Vario 4 MK2 ESD 4-Channel Soldering and Hot Air Station with Vacuum, 500 W - Ersa 0ICV4005AIC
Flagship of the i-CON family: a 4-channel soldering and desoldering station with vacuum for professional electronics manufacturing. Supplied with i-Tool 150 W, i-Tool AIR S 200 W and Chip Tool VARIO 2x40 W. ESD-safe, with auto-standby and i-Op operation.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

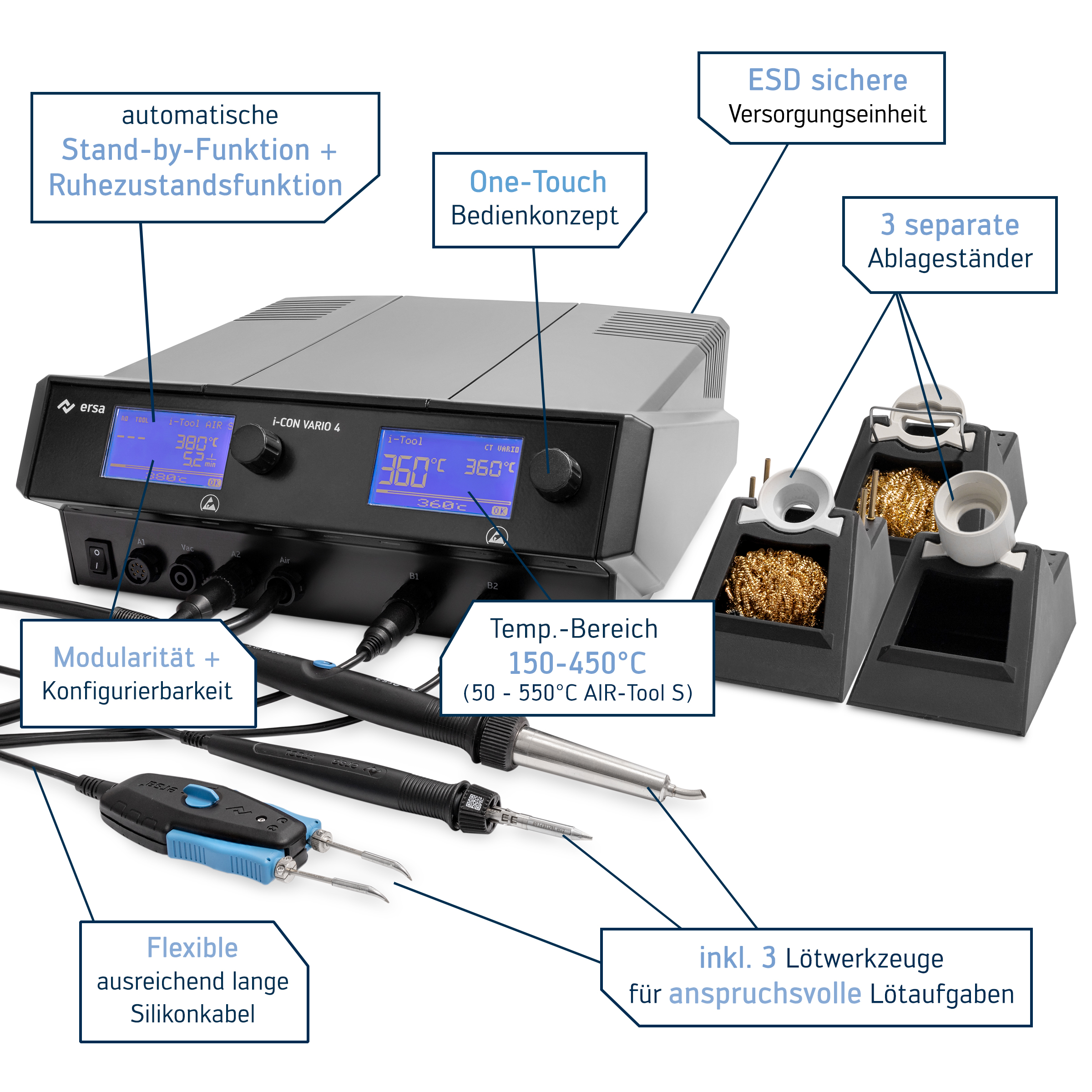

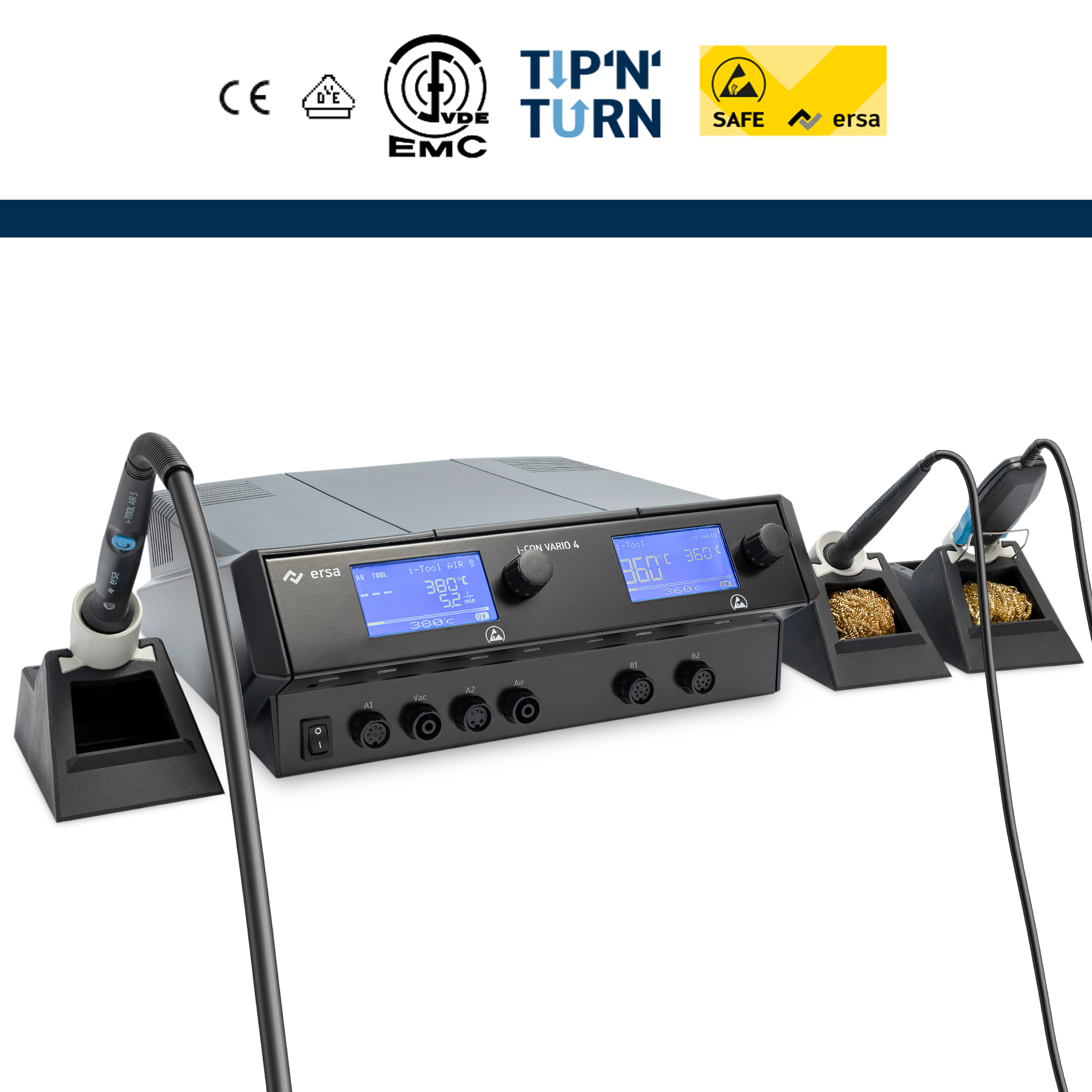

The Ersa i-CON VARIO 4 MK2 is the top-class multi-channel soldering and desoldering station (500 W). It provides four soldering tools for demanding tasks and bundles all functions, including air and vacuum generation, in a central supply unit with clear i-Op operation. The station is ideally suited for use in ESD-protected areas.
Tools
i-Tool AIR S (200 W): an ergonomic, lightweight hot air pencil for fatigue-free work on SMD components. The hot air volume (2 to 20 l/min) is set directly on the handpiece and shown on the display. A motion sensor activates it when removed from the holder, and an IR sensor allows button-free switching on and off; various nozzles can be fitted.
Chip Tool VARIO (2x40 W): compact desoldering tweezers for the finest SMD components. The pluggable heating-element pairs can be precisely aligned and quickly exchanged; a switch toggles between self-closing and self-opening operation. Equipped with a motion sensor for activation from standby.
i-Tool (150 W): an extremely light, powerful fine soldering iron with fast heat-up and reheat behaviour, process-window alarm, energy power levels and an auto-standby sensor. The integrated Tip'N'Turn bayonet lock enables quick tip changes and improves performance by 20-25 % compared with a screw connection.
Interfaces for Ersa solder fume extraction units or infrared preheating, a USB port, and quick configuration via microSD card. Standby power consumption approx. 52 W.
Technical data
| Max. power | 500 W |
|---|---|
| Temperature range | 150-450 °C |
| Max. tip temperature | 450 °C |
| Heat-up time | 9 sec. |
| Tip series | 462 |
| Soldering/desoldering tip | Series 0462MDLF007 |
| Tip diameter/width | 0.70 mm |
| Replacement heating element | 016100J |
| Replacement soldering/desoldering iron | 0460MDJ |
| Antistatic version | Yes |
| Digital display | Yes |
| Standby power consumption | approx. 52 W |
| Weight | 11.5 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0ICV4005AIC |
| EAN | 4003008153897 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
| Power (W) | 500 W |
| Tip diameter/width [mm] | 0.7 |
| Heat-up time [s] | 9 |
| Series | 462 |
| Temperature (max.) | up to 450 °C |

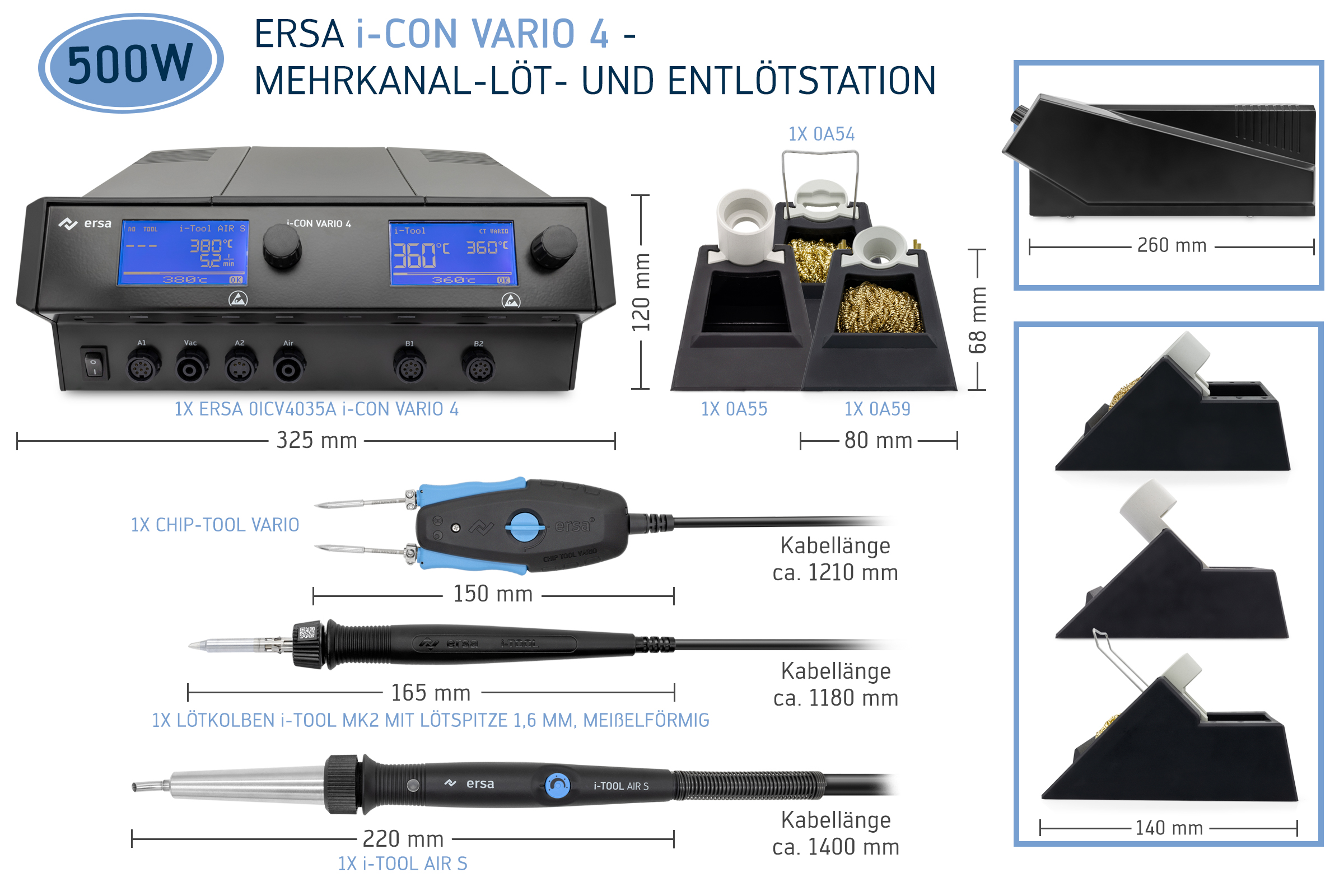

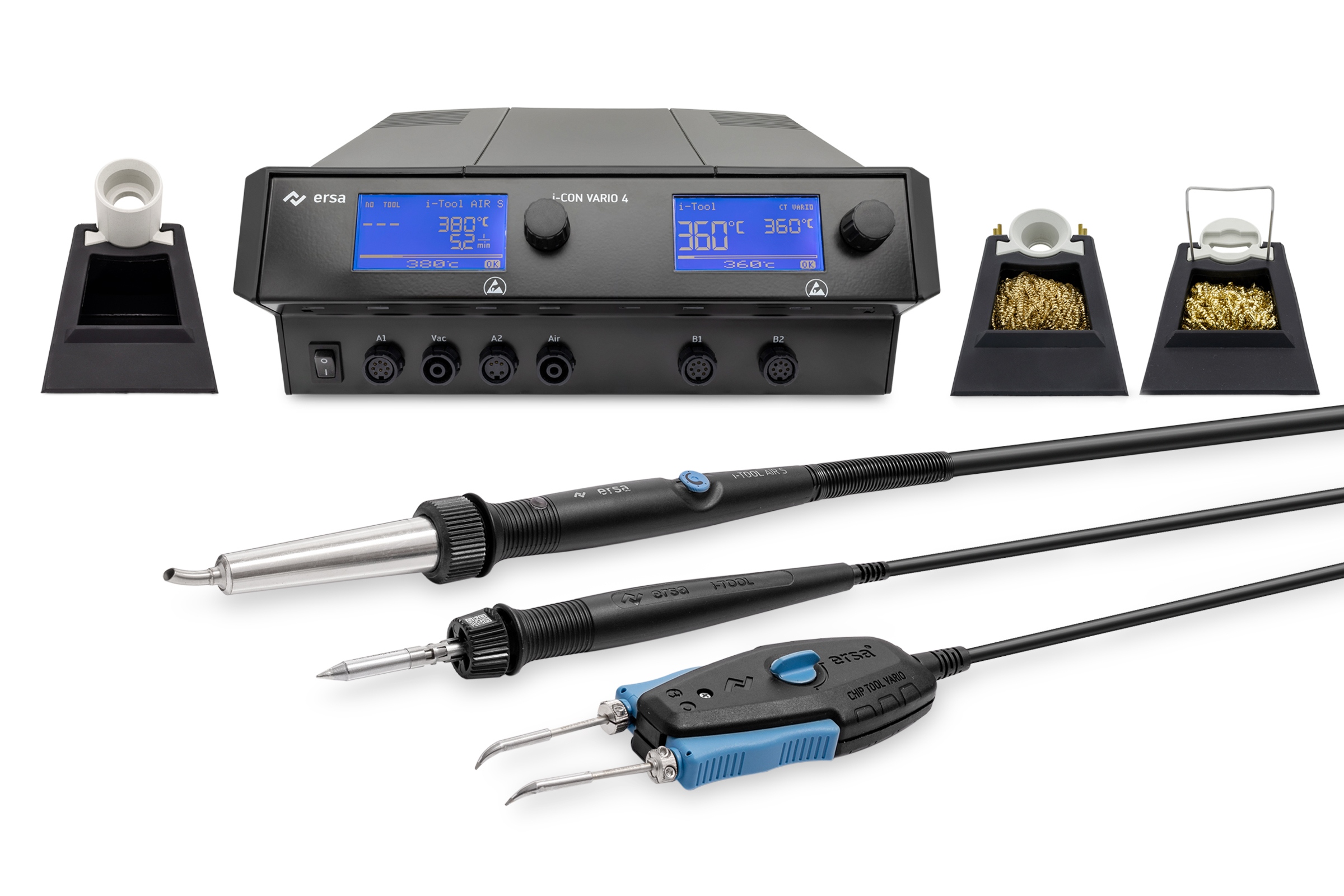

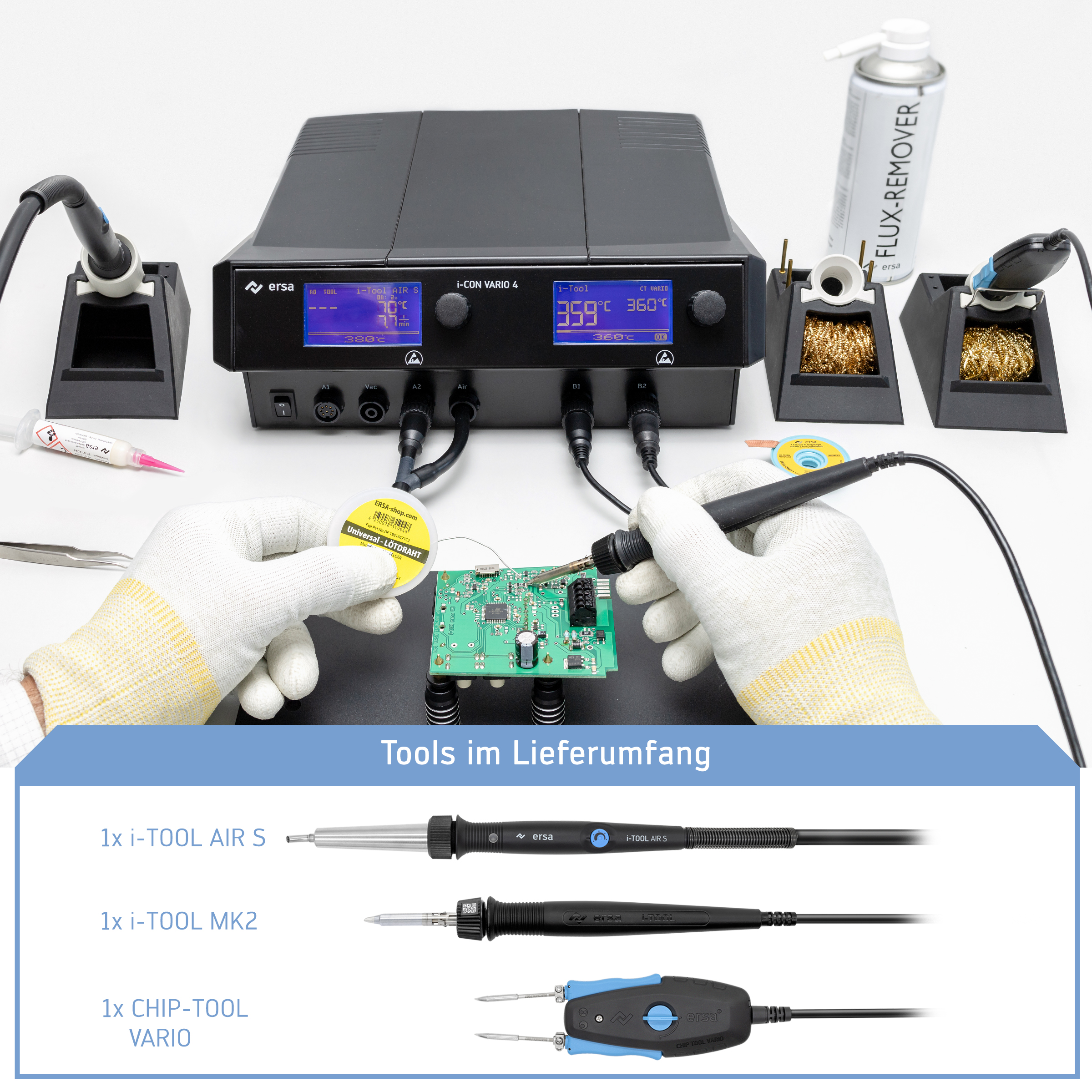

Scope of delivery
- Electronics station, antistatic 200 W (0ICV403A)
- i-Tool AIR S hot air pencil 200 W (0470ERJ) with hot air nozzle, 3.5 mm diameter (0472ER)
- i-Tool soldering iron 150 W (0105CDJ) with chisel-shaped soldering tip 1.6 mm (0142CDLF16)
- Chip Tool VARIO desoldering tweezers 2x40 W with chisel-shaped desoldering tip 0.7 mm (0462MDLF007)
- Holders for i-Tool AIR S (0A55), for i-Tool (0A59) and for Chip Tool VARIO (0A54)
