Flat cylinder EZH
Compact, short-stroke and flat cylinders
Festo flat cylinders EZH are single-acting pneumatic cylinders in flat design with bore diameters from 1.5 to 10 mm. The available range covers 6 items of the EZH series in two groups: the miniature form EZH-1.5/6.5 (effective bore 6.5 mm) with 10 mm stroke, and variants EZH-2.5/9 and EZH-5/20 with strokes of 10 to 50 mm. The EZH is particularly suited to applications requiring very small forces in minimal installation space.
| Type | Bore Ø | Stroke | Design |
|---|---|---|---|

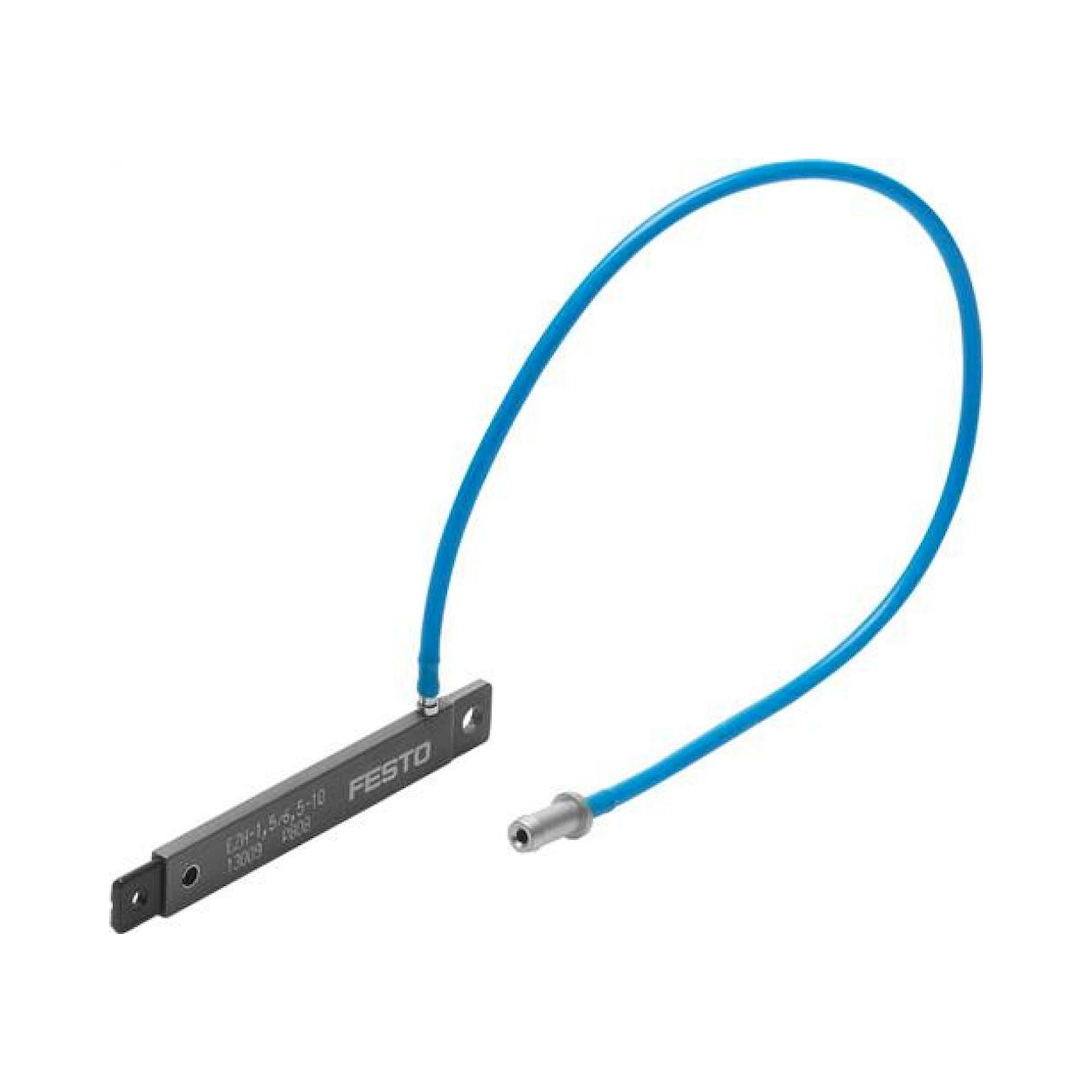

| EZH-1,5/6,5-10 | 1.5 mm (eff. 6.5) | 10 mm | Single-acting |
| EZH-2,5/9-10-B | 2.5 mm | 10 mm | Through-rod |
| EZH-2,5/9-20-B | 2.5 mm | 20 mm | Through-rod |

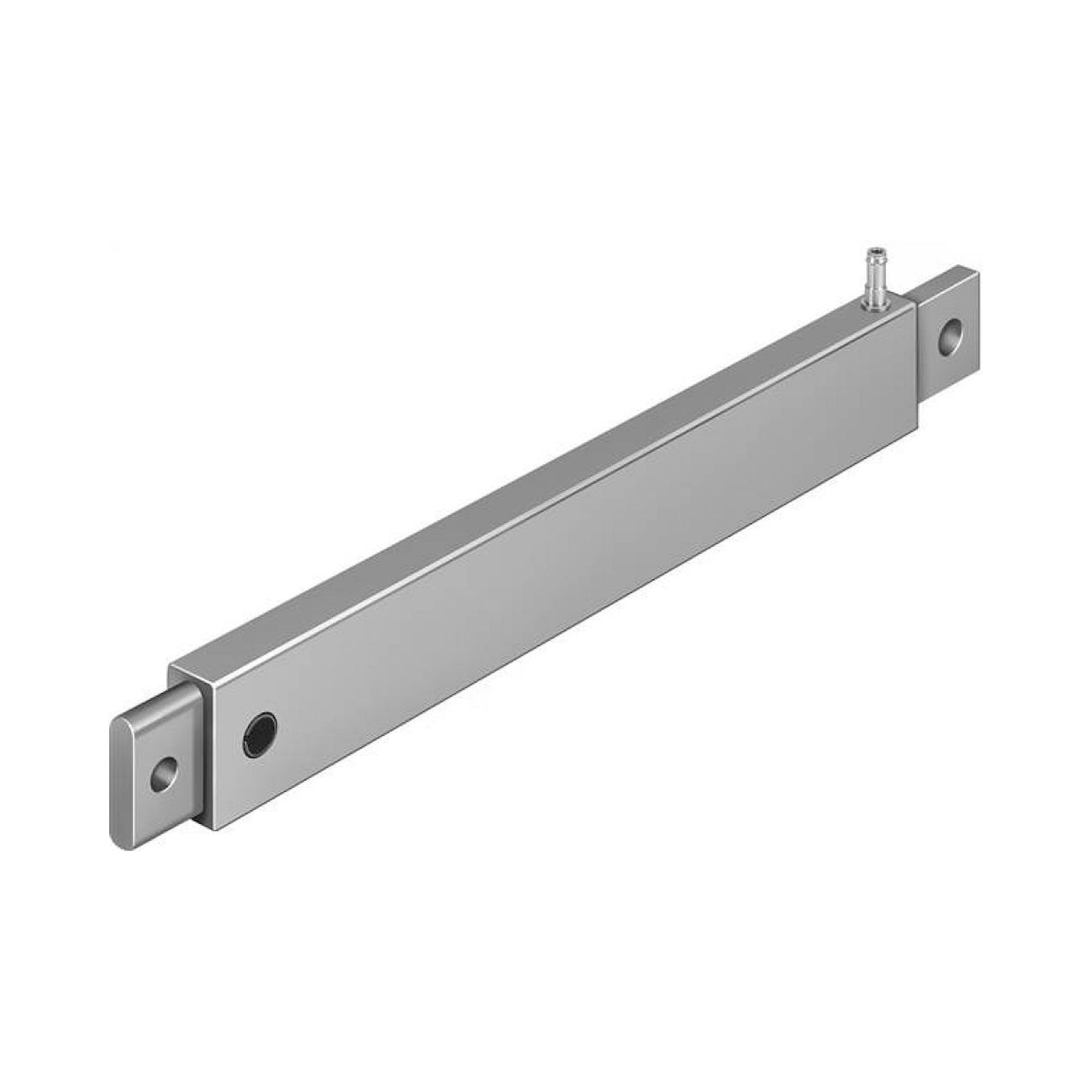

| EZH-5/20-25-B | 5 mm | 25 mm | Through-rod |
| EZH-5/20-50-B | 5 mm | 50 mm | Through-rod |

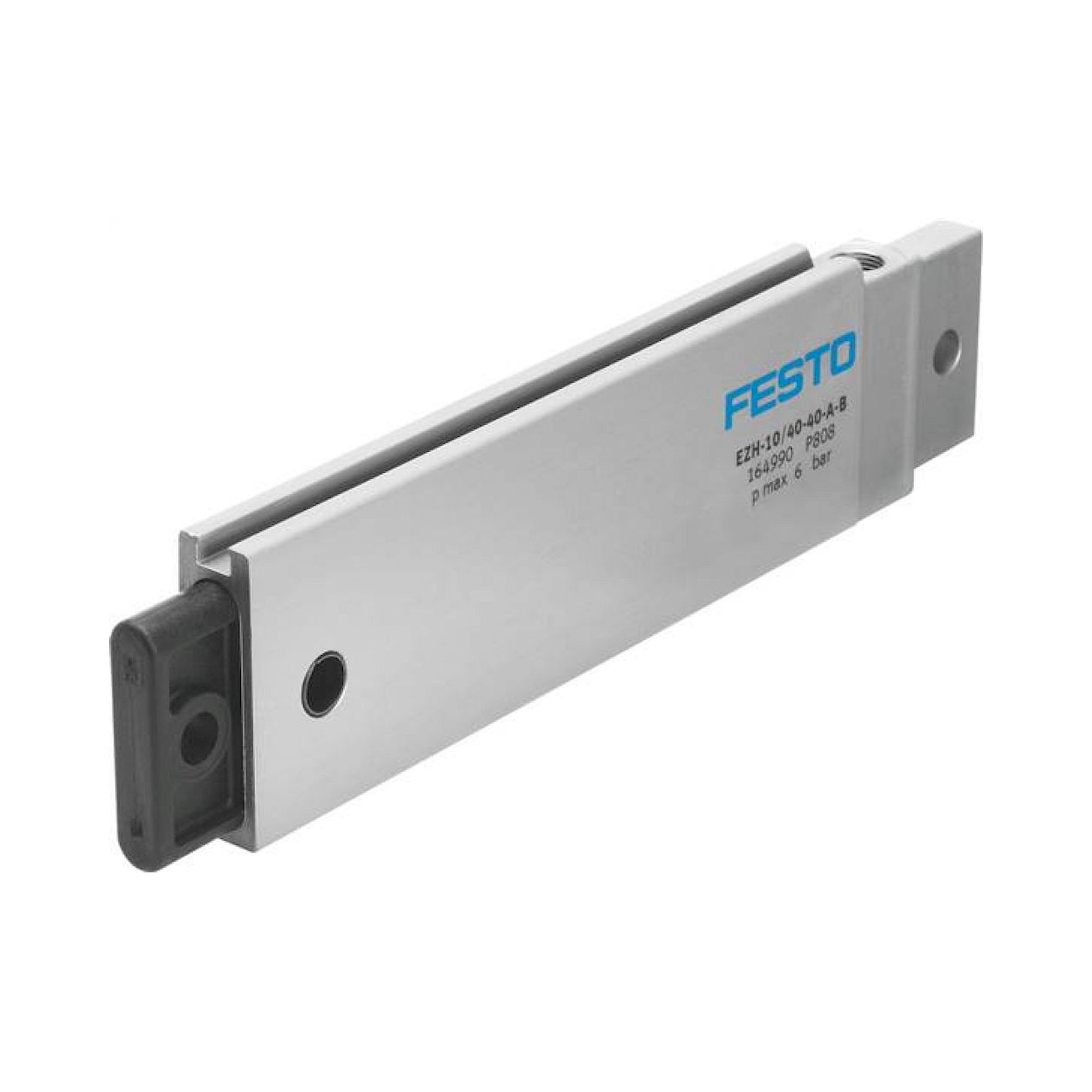

| EZH-10/40-40-A-B | 10 mm | 40 mm | Double-acting, through-rod |
Typical applications: Miniature automation and laboratory technology with very small actuating forces, precision mechanics and medical technology with tight space constraints, prototype construction, and special-purpose machinery where minimal cylinder geometry and low mass are required.
