Compact cylinder ADNGF, metric
Compact, short-stroke and flat cylinders
Festo compact cylinders ADNGF (metric) are double-acting pneumatic cylinders in a rectangular compact housing with metric dimensions. The range covers 159 items in bore diameters from 32 to 100 mm with stroke lengths from 10 to 80 mm. All available versions carry the suffix -P-A (magnetic piston), allowing position sensors to be mounted directly on the sensor slot of the housing.
Bore Ø 32-100 mm - stroke 10-80 mm, metric design, compact housing
Rectangular housing - short overall length, direct mounting on base plates or slotted frames
Suffix -P-A - magnetic piston standard, sensor slot for inductive and magnetic sensors
Metric dimensions - piston rod diameter and fixing holes to metric standard

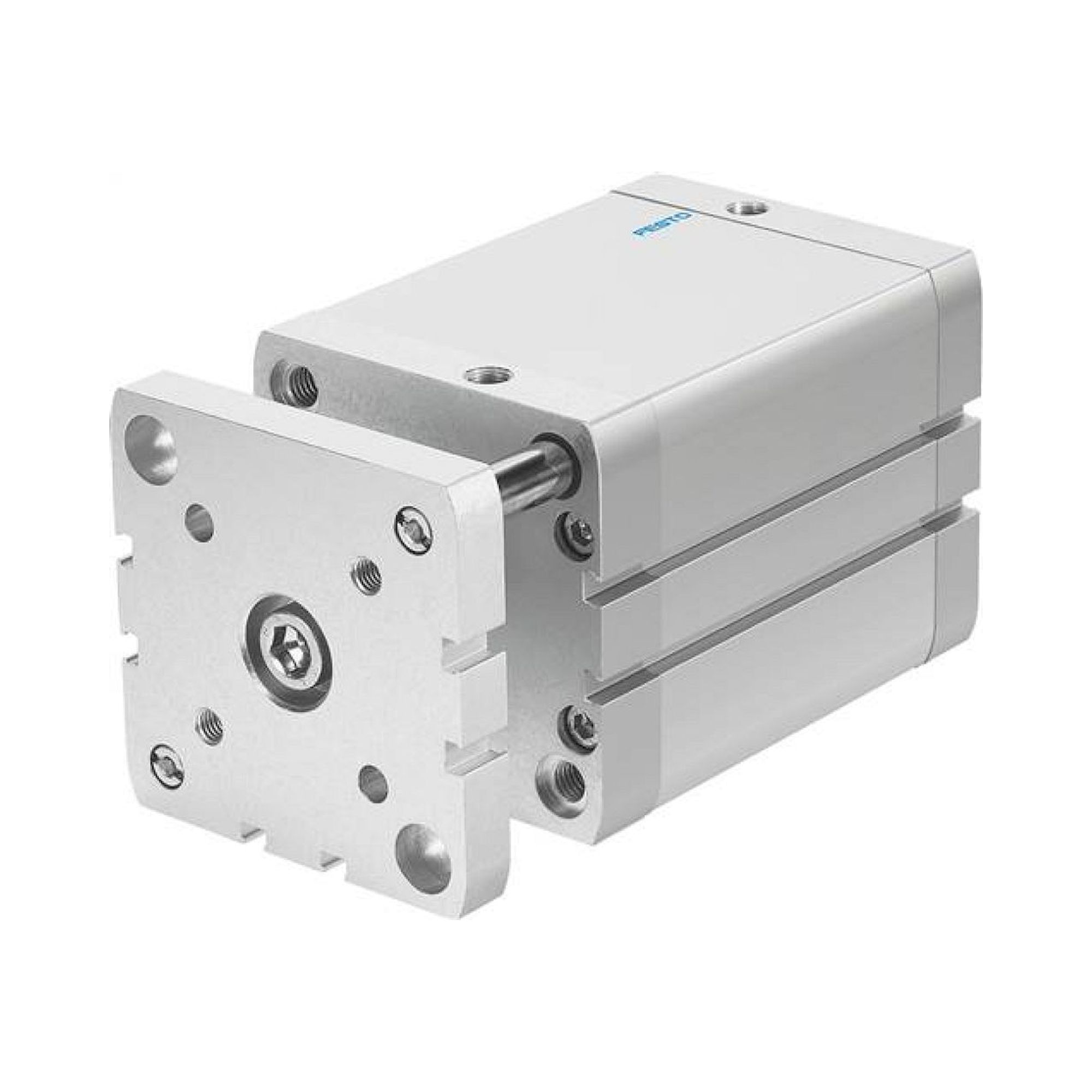

Largest size ADNGF-100 - bore Ø 100 mm, stroke up to 80 mm for high forces in compact format
| Type | Bore Ø | Stroke |
|---|---|---|
| ADNGF-32-...-P-A | 32 mm | 10-80 mm |
| ADNGF-40-...-P-A | 40 mm | 10-80 mm |
| ADNGF-50-...-P-A | 50 mm | 10-80 mm |
| ADNGF-63-...-P-A | 63 mm | 10-80 mm |
| ADNGF-80-...-P-A | 80 mm | 10-80 mm |
| ADNGF-100-...-P-A | 100 mm | 10-80 mm |
Typical applications: Clamping and holding fixtures in assembly lines, pressing tasks with high forces in compact space, stamping and embossing units, handling machines with short strokes, and special-purpose machinery where high cylinder force is needed in a flat rectangular housing.
