Flat cylinder DZH, metric
Compact, short-stroke and flat cylinders

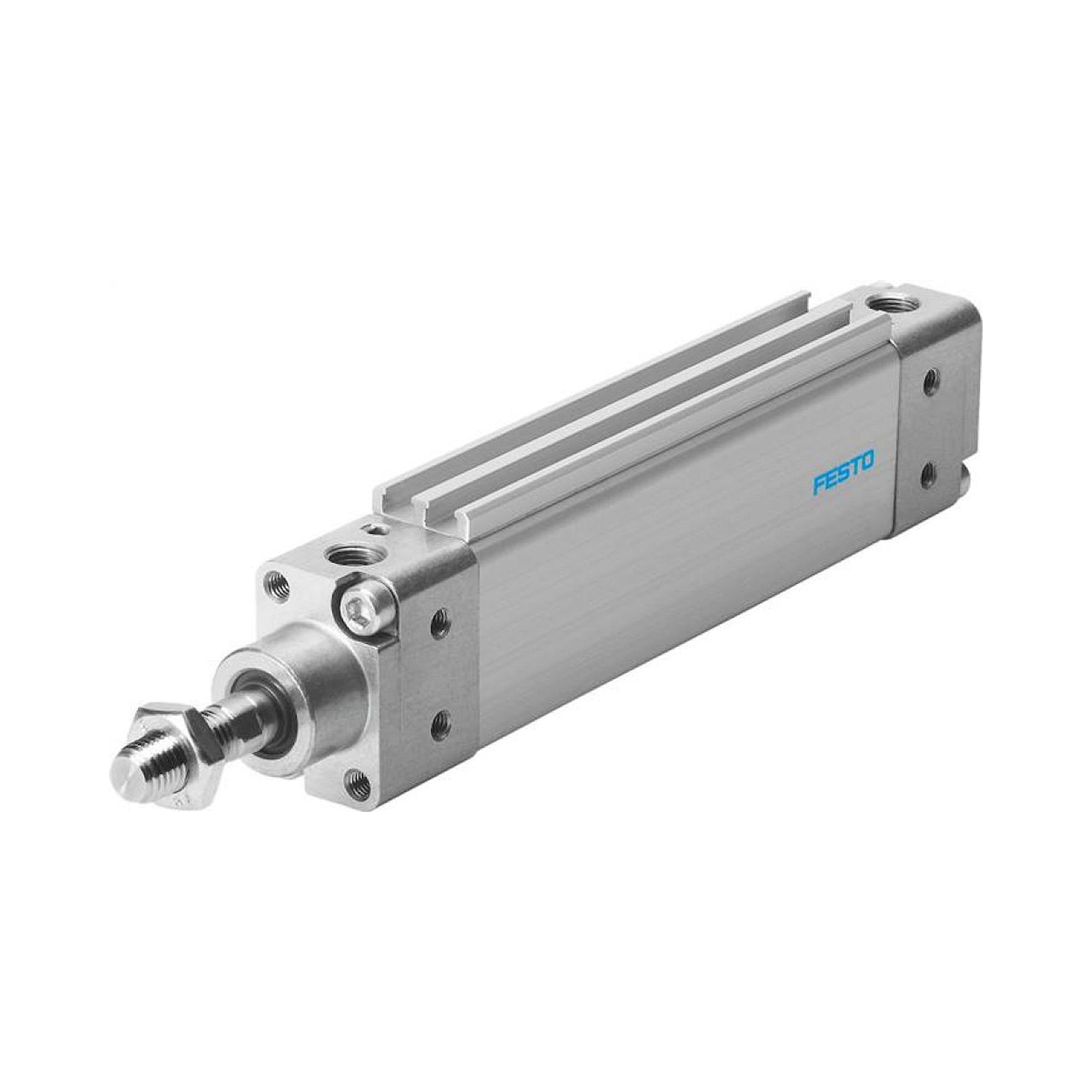

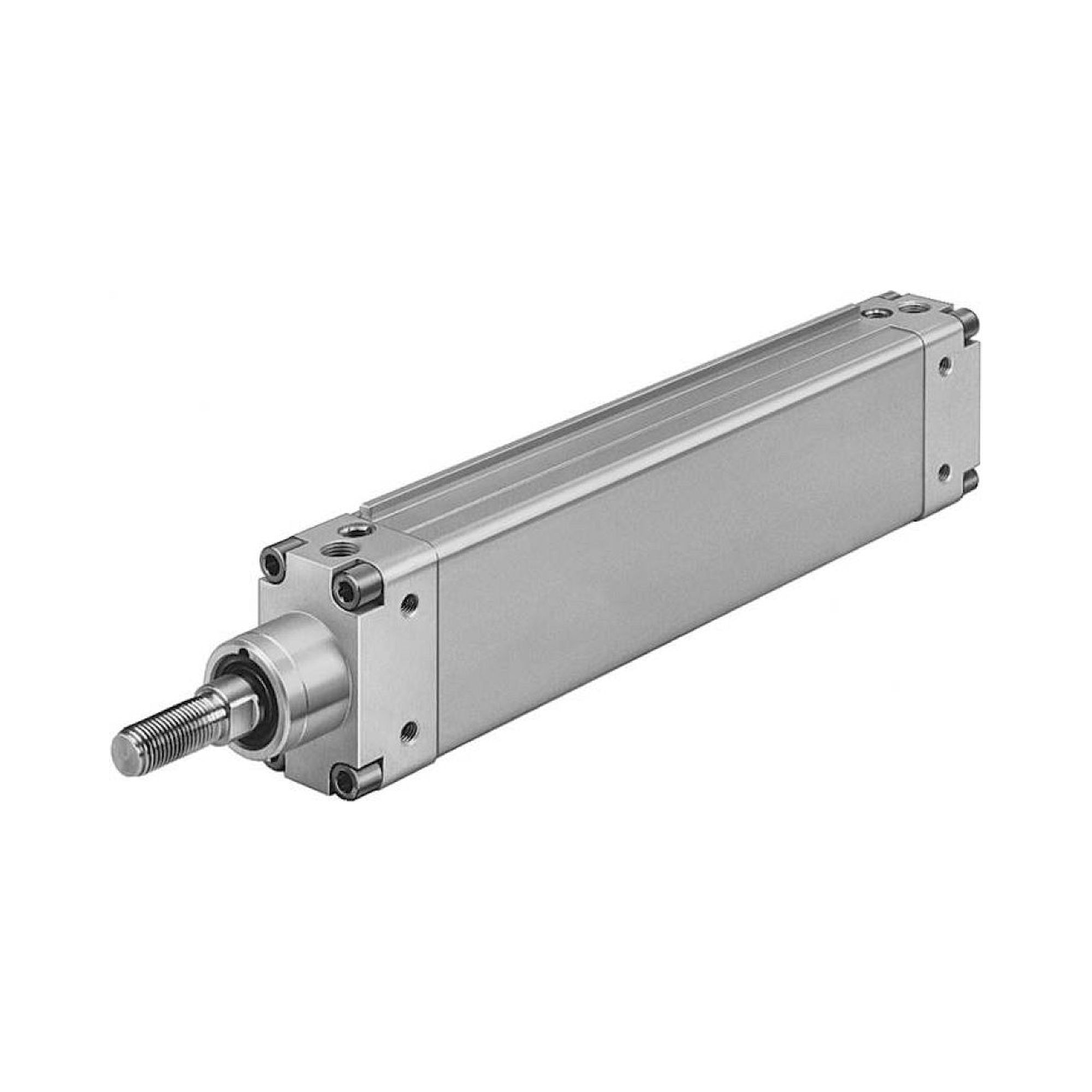

Festo flat cylinders DZH (metric) are double-acting pneumatic cylinders in flat design with metric dimensions and a through-rod on both sides. The range covers 70 items in bore diameters from 16 to 40 mm with stroke lengths from 25 to 320 mm. The through-rod provides uniform guidance and prevents rotation of the piston rod; all variants carry the suffix -PPV-A for adjustable end cushioning and magnetic piston.
| Type | Bore Ø | Stroke |
|---|---|---|
| DZH-16-...-PPV-A | 16 mm | 25-200 mm |
| DZH-20-...-PPV-A | 20 mm | 25-320 mm |
| DZH-25-...-PPV-A | 25 mm | 25-320 mm |
| DZH-32-...-PPV-A | 32 mm | 25-320 mm |
| DZH-40-...-PPV-A | 40 mm | 25-320 mm |
Typical applications: Handling systems with low installation heights and medium to long strokes, packaging machinery with push and pull movements, assembly machines requiring rotation-free linear motion via through-rod, and special-purpose machinery with flat installation space and symmetric force requirements.
