Compact cylinder ADN-S
Compact, short-stroke and flat cylinders
Festo compact cylinders ADN-S are double-acting mini pneumatic cylinders with bore diameters of 6 and 10 mm and strokes of 5 and 10 mm. The range covers 16 items in three variant groups: internal thread on the piston rod (suffix -I), external thread (suffix -A), and with or without magnetic piston (-A). These mini cylinders are designed for applications where very small installation space and low mass are critical.
| Type | Bore Ø | Stroke | Rod / Magnetic piston |
|---|---|---|---|

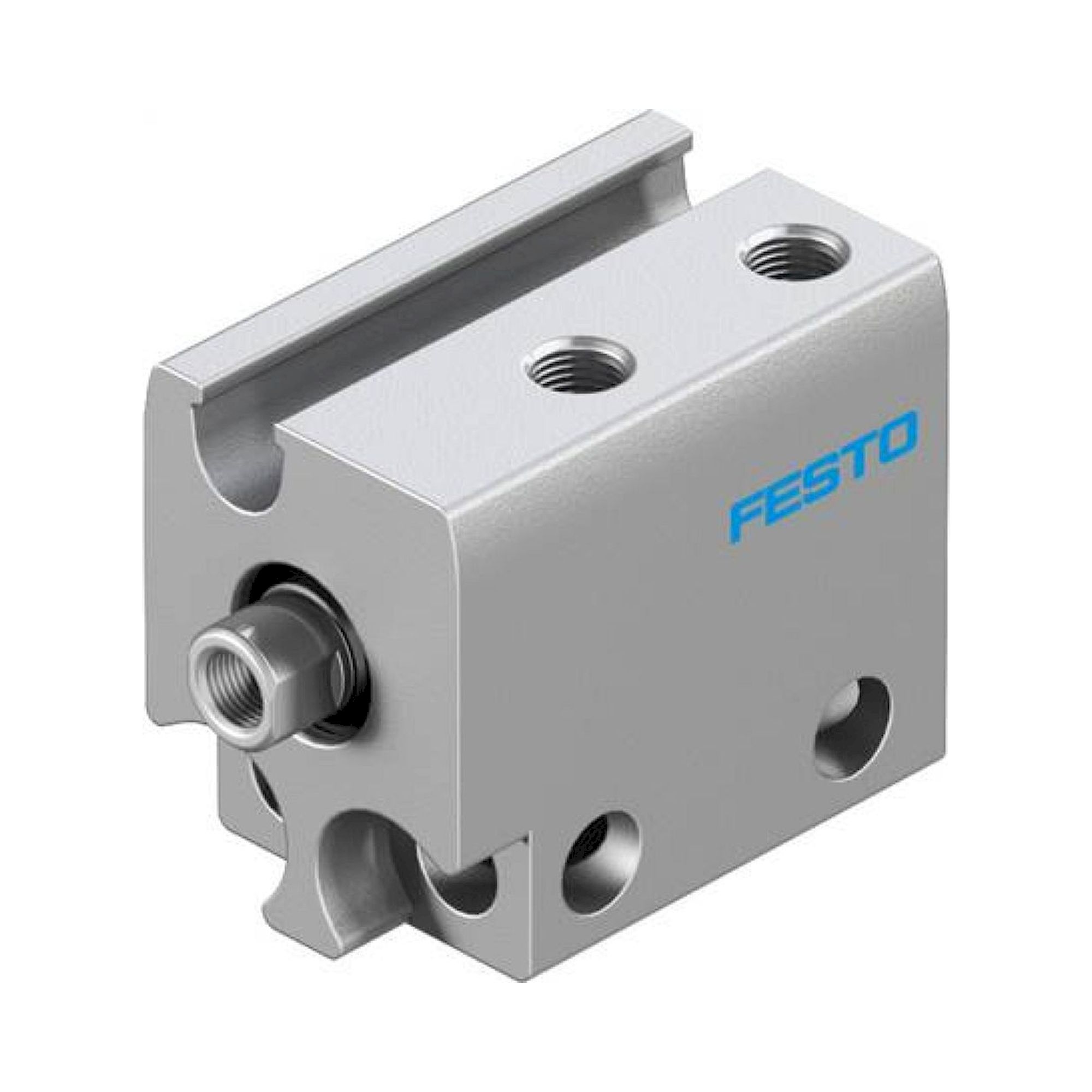

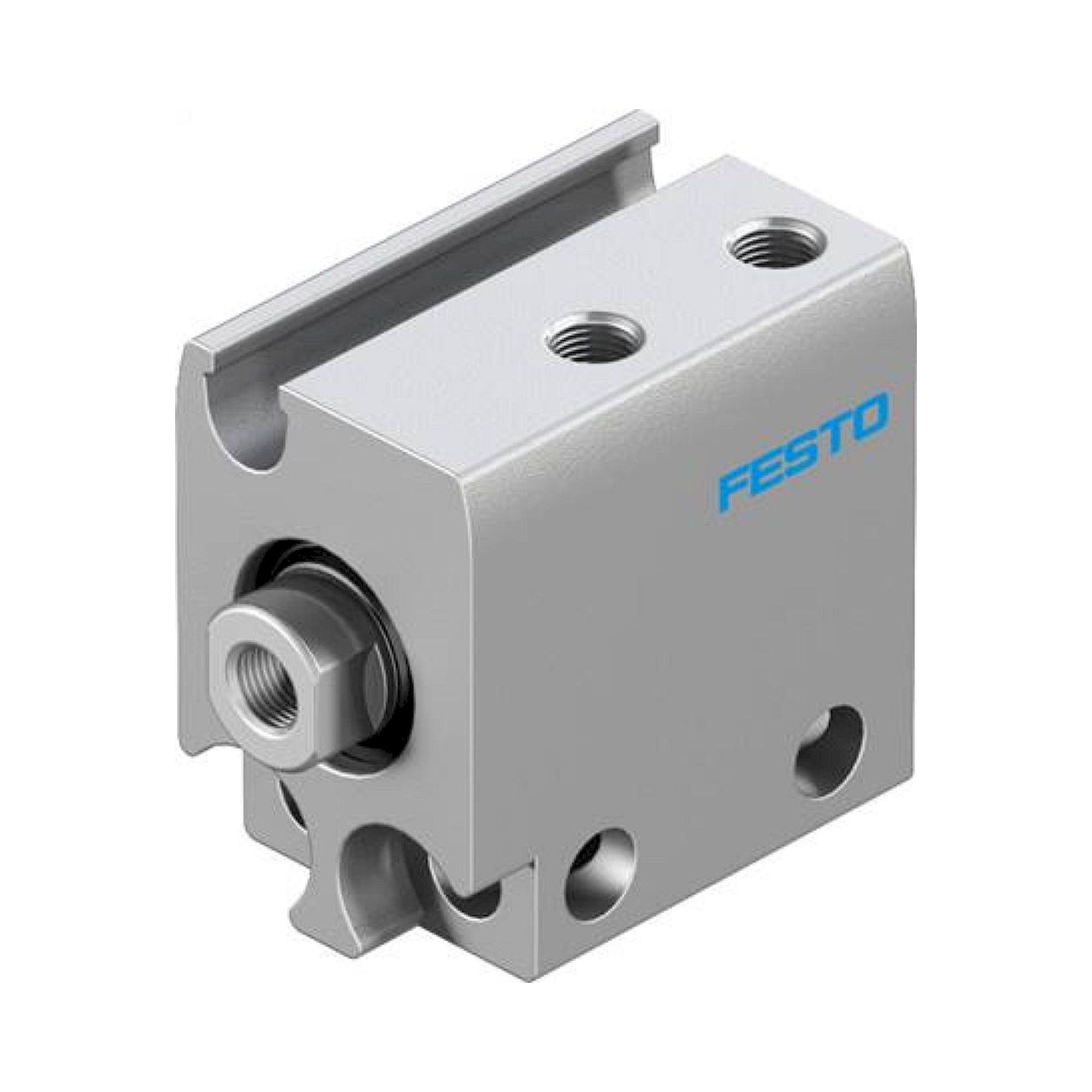

| ADN-S-6-5-I | 6 mm | 5 mm | Internal thread, no magnet |

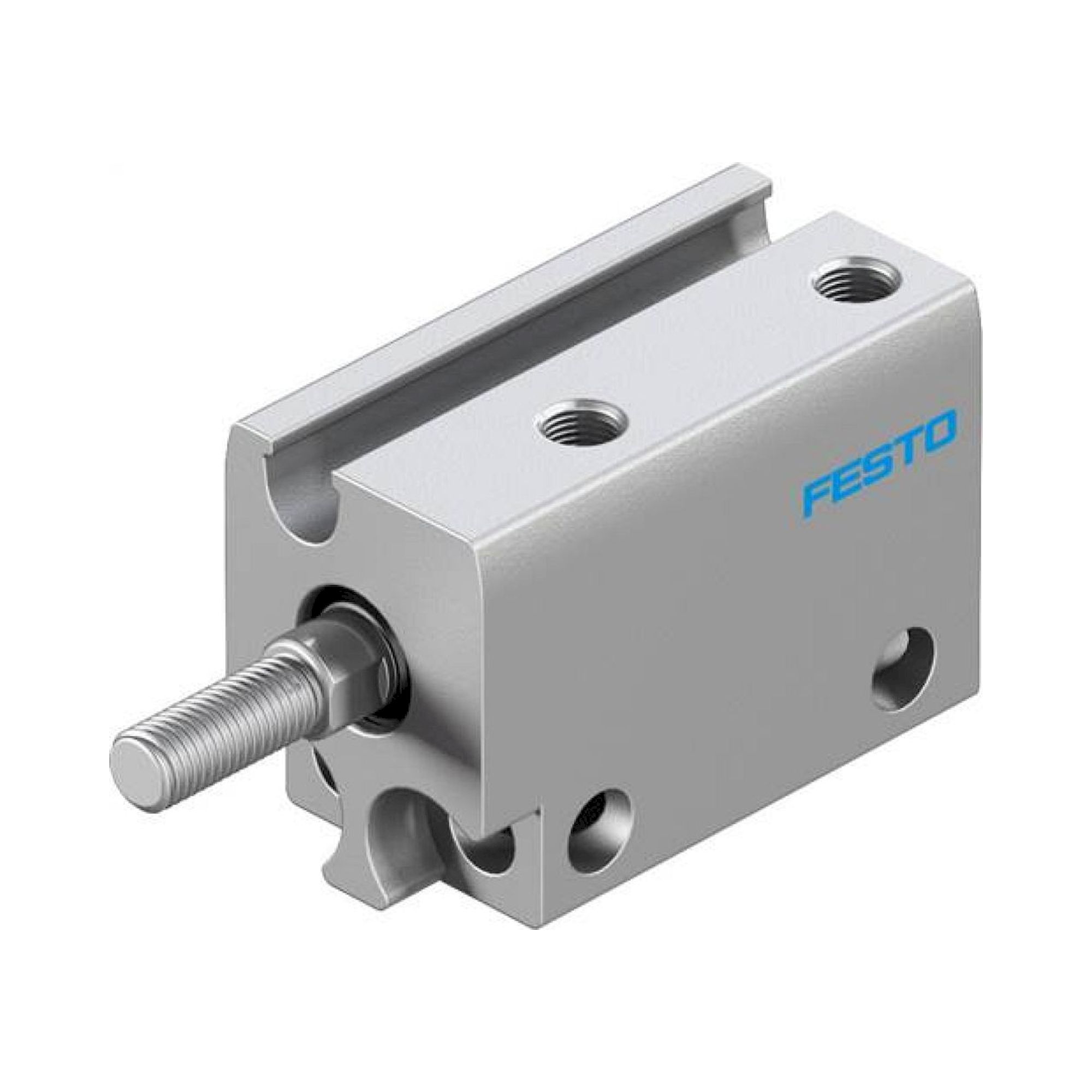

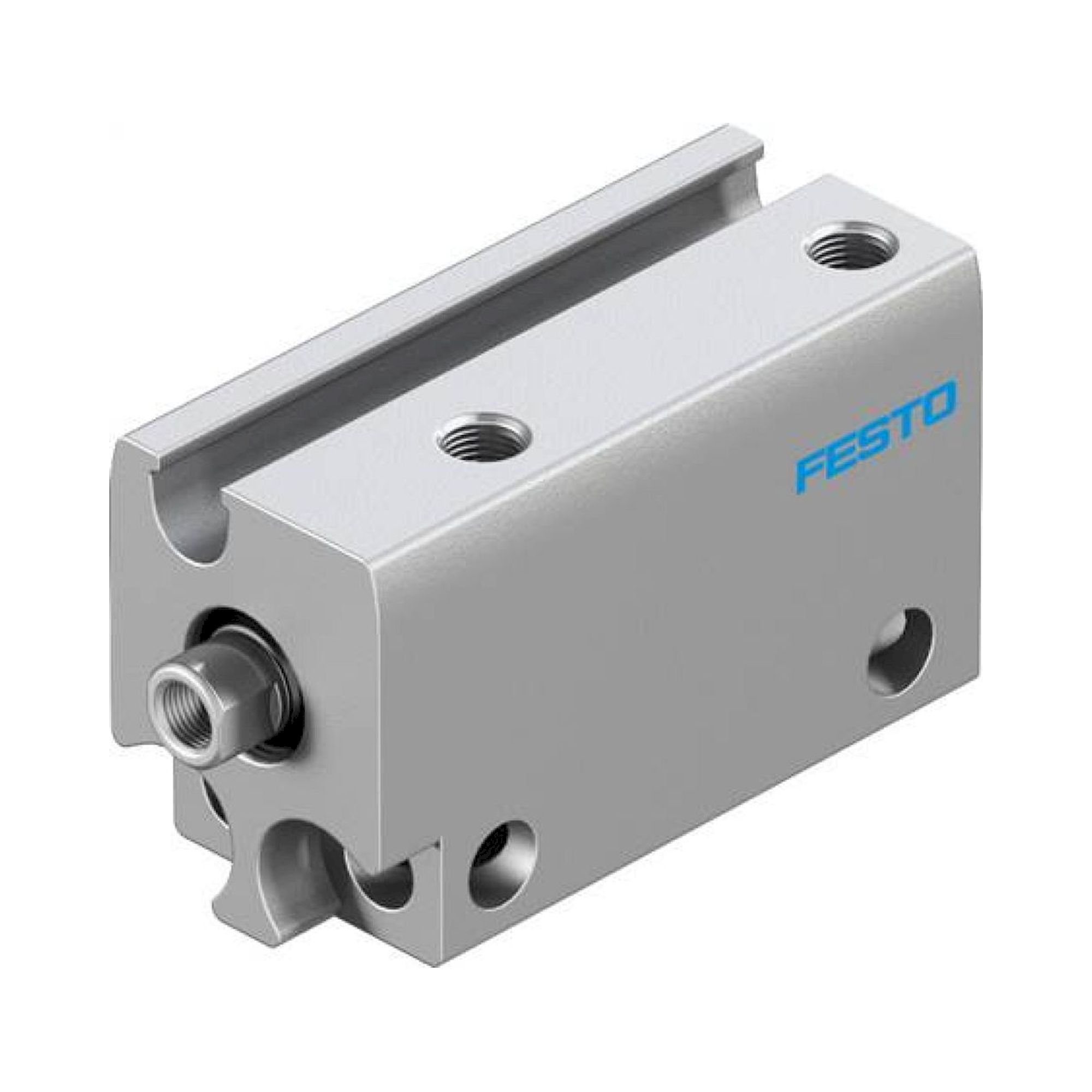

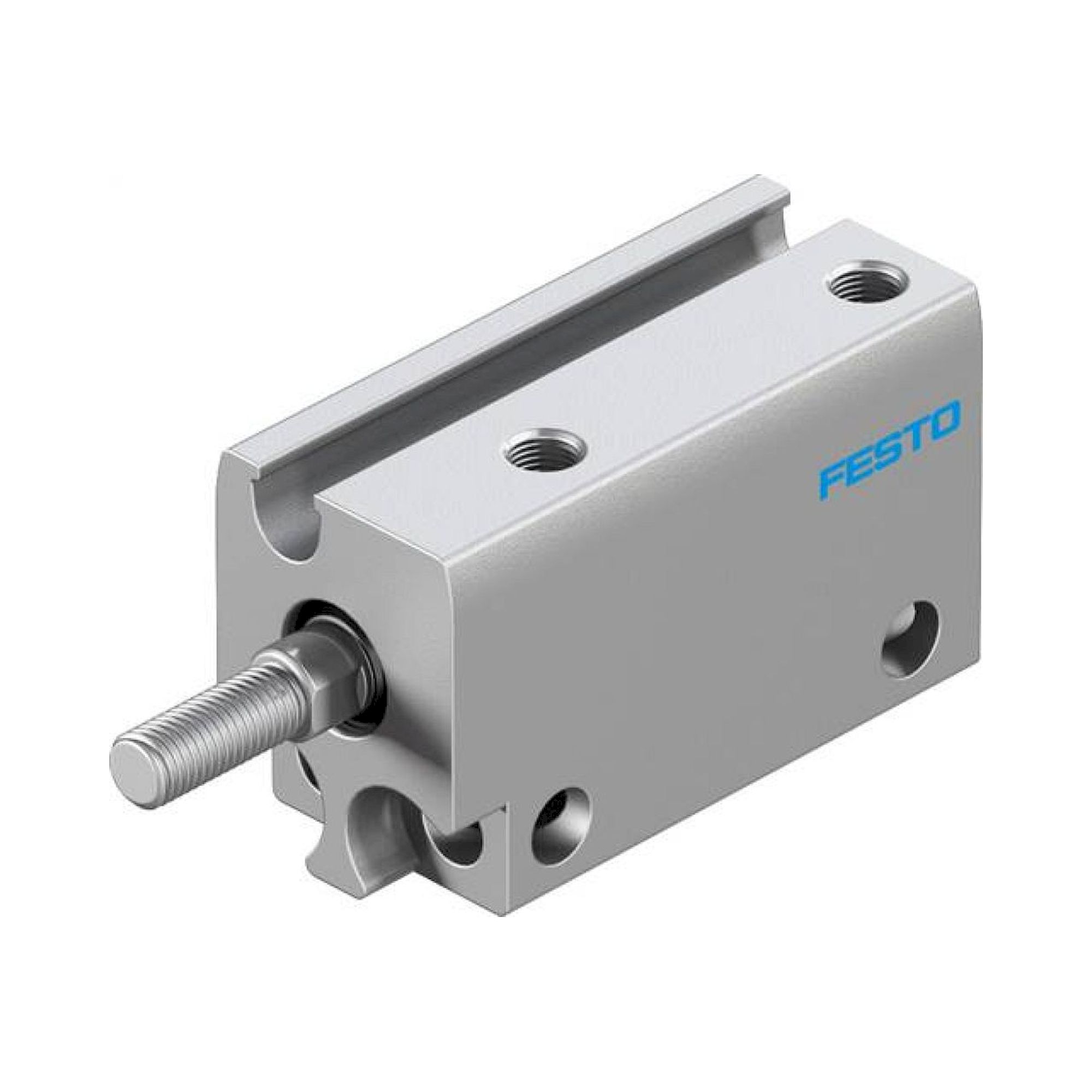

| ADN-S-6-10-I-A | 6 mm | 10 mm | Internal thread, magnetic piston |

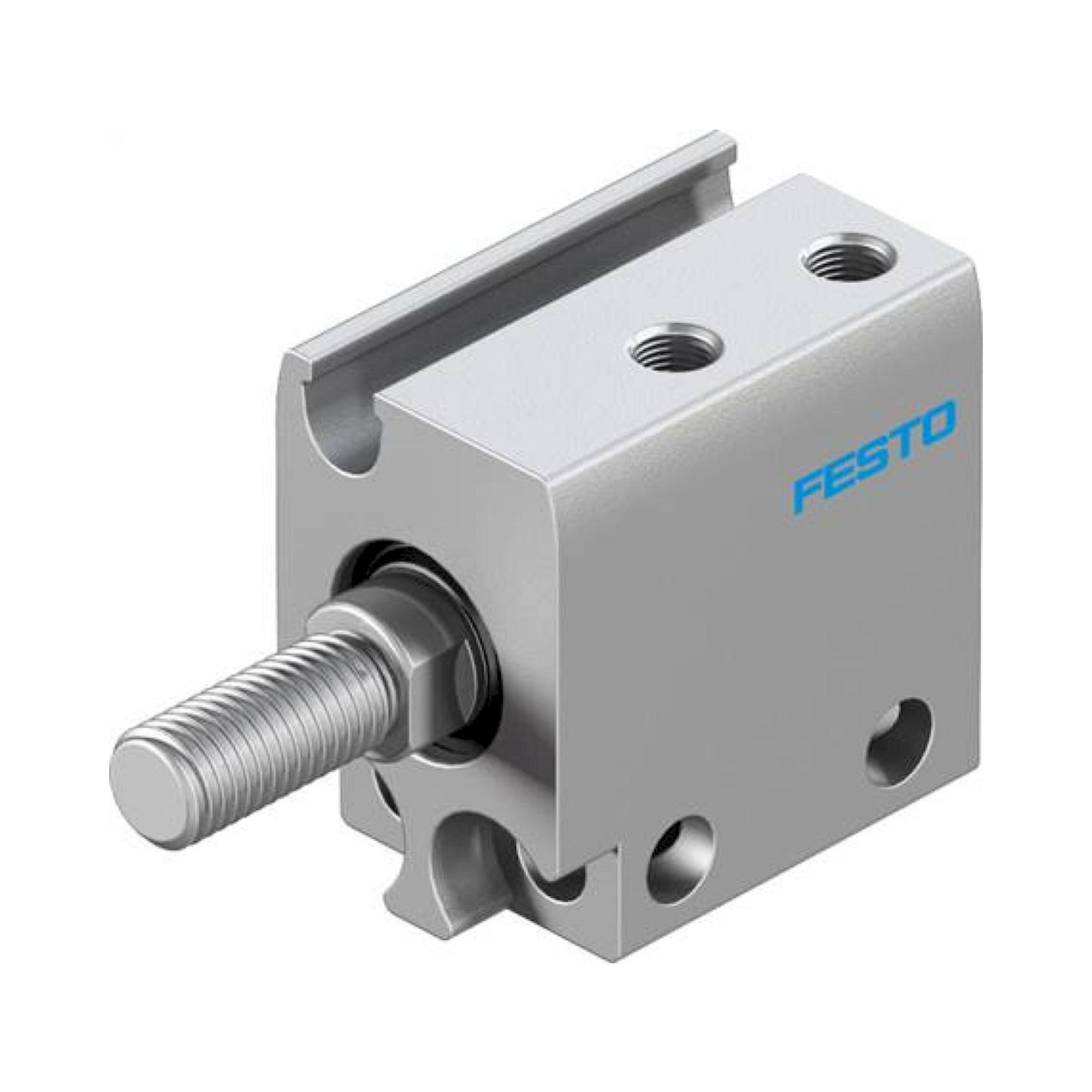

| ADN-S-10-5-A | 10 mm | 5 mm | External thread, no magnet |

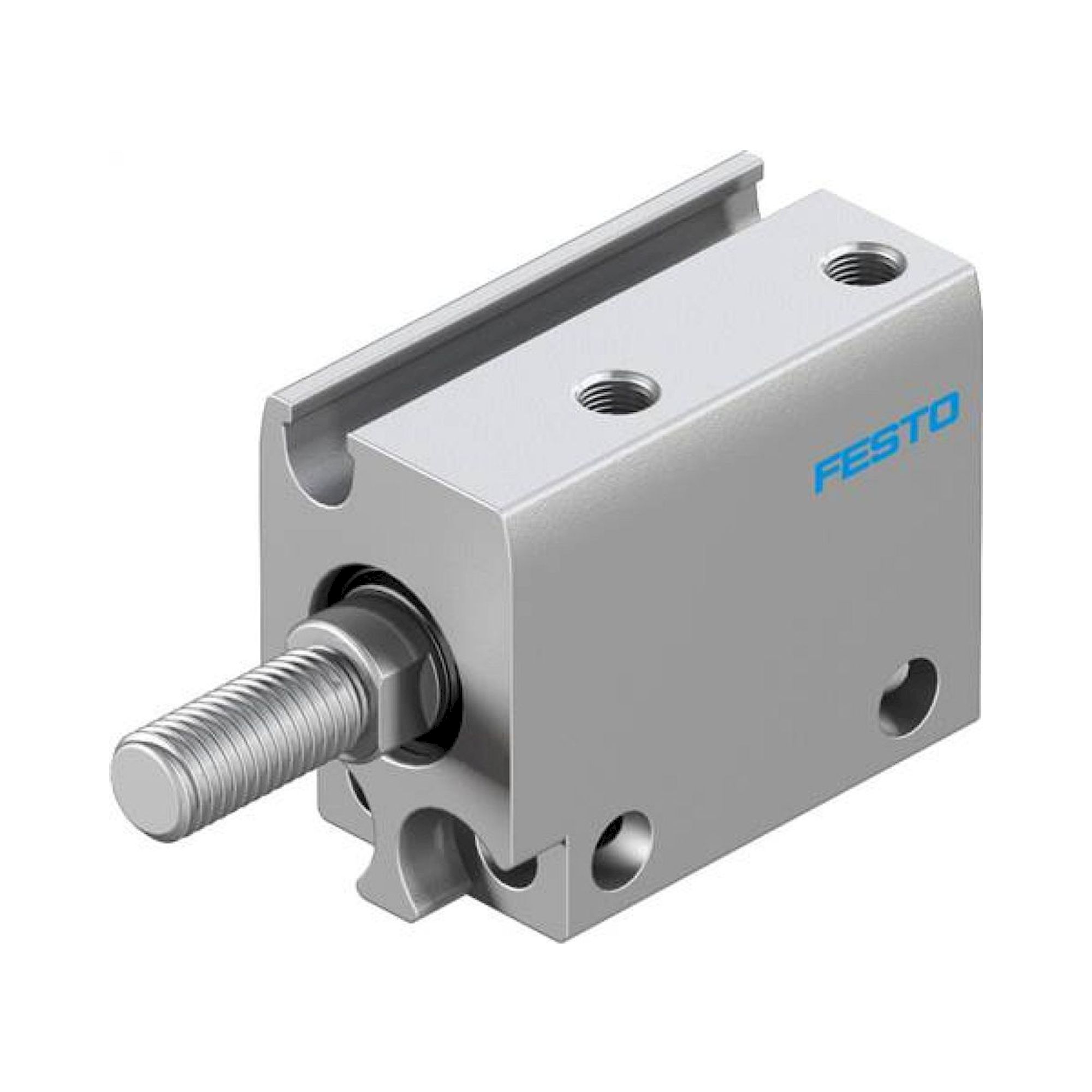

| ADN-S-10-10-A-A | 10 mm | 10 mm | External thread, magnetic piston |
Typical applications: Miniature automation in electronics and medical technology, robot grippers and collaborative robot arms with minimal payload constraints, precision assembly machines, laboratory automation, and test fixtures where very small actuating forces and short strokes are required.
