Compact cylinder DPDM
Compact, short-stroke and flat cylinders
Festo compact cylinders DPDM are double-acting pneumatic cylinders in a compact housing with bore Ø 32 mm and strokes from 5 to 50 mm. The range covers 160 items in two basic variants: DPDM (standard) and DPDM-Q (cross-connection). Each variant is also available in a single-acting version (suffix -S-PA) and double-acting version (suffix -PA). The DPDM-Q series allows direct connection of multiple cylinders for tandem arrangements.
Bore Ø 32 mm - stroke 5-50 mm, standard and Q variant (cross-connection)

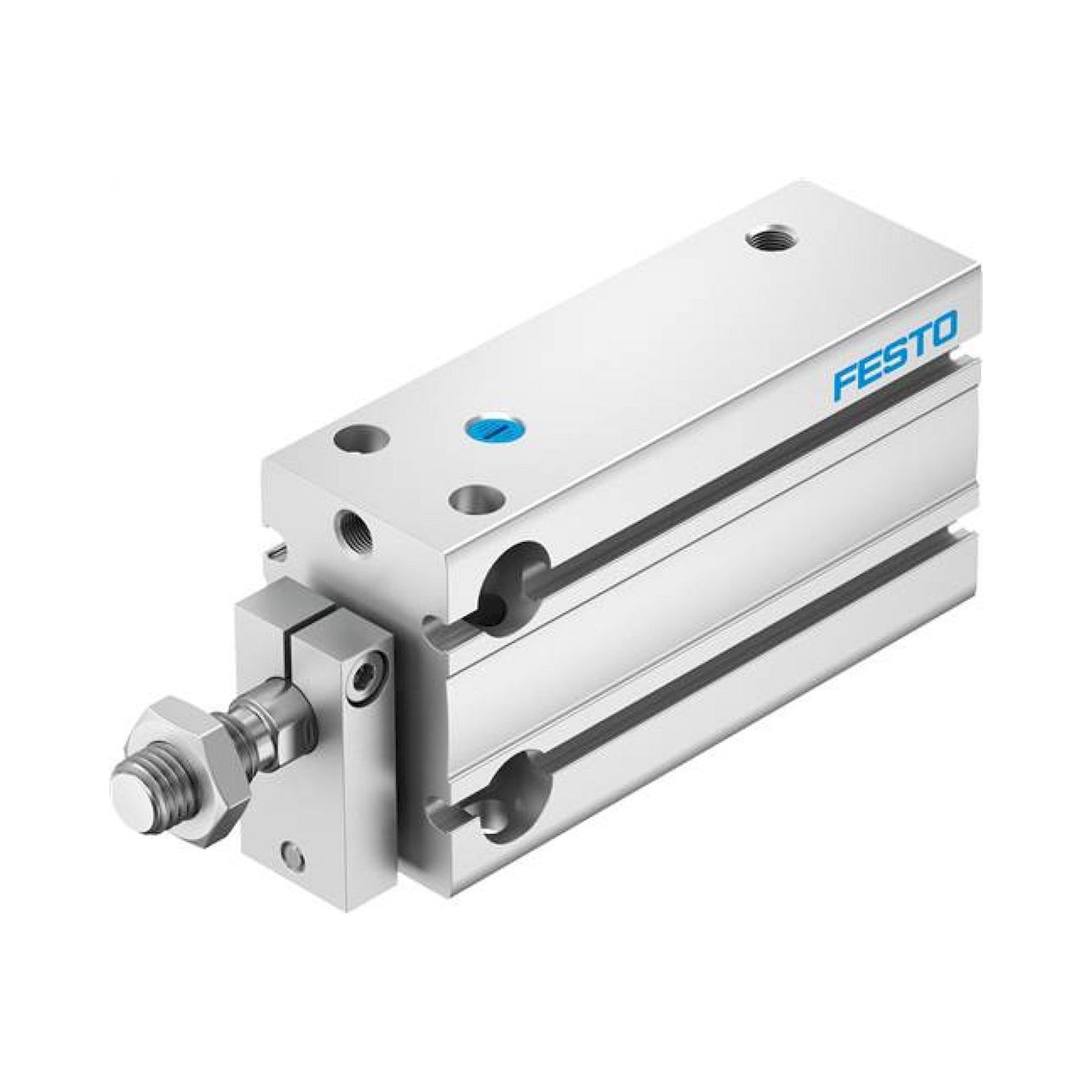

DPDM-Q tandem - cross-connection design for directly joining multiple cylinders
Single and double-acting - suffix -S-PA (single-acting) or -PA (double-acting) per application requirement
Suffix -P-PA - magnetic piston version with sensor slot for position sensors
Compact housing - short overall length, direct fixing via threaded holes
| Type | Design | Stroke |
|---|---|---|
| DPDM-32-...-S-PA | Single-acting standard | 5-15 mm |

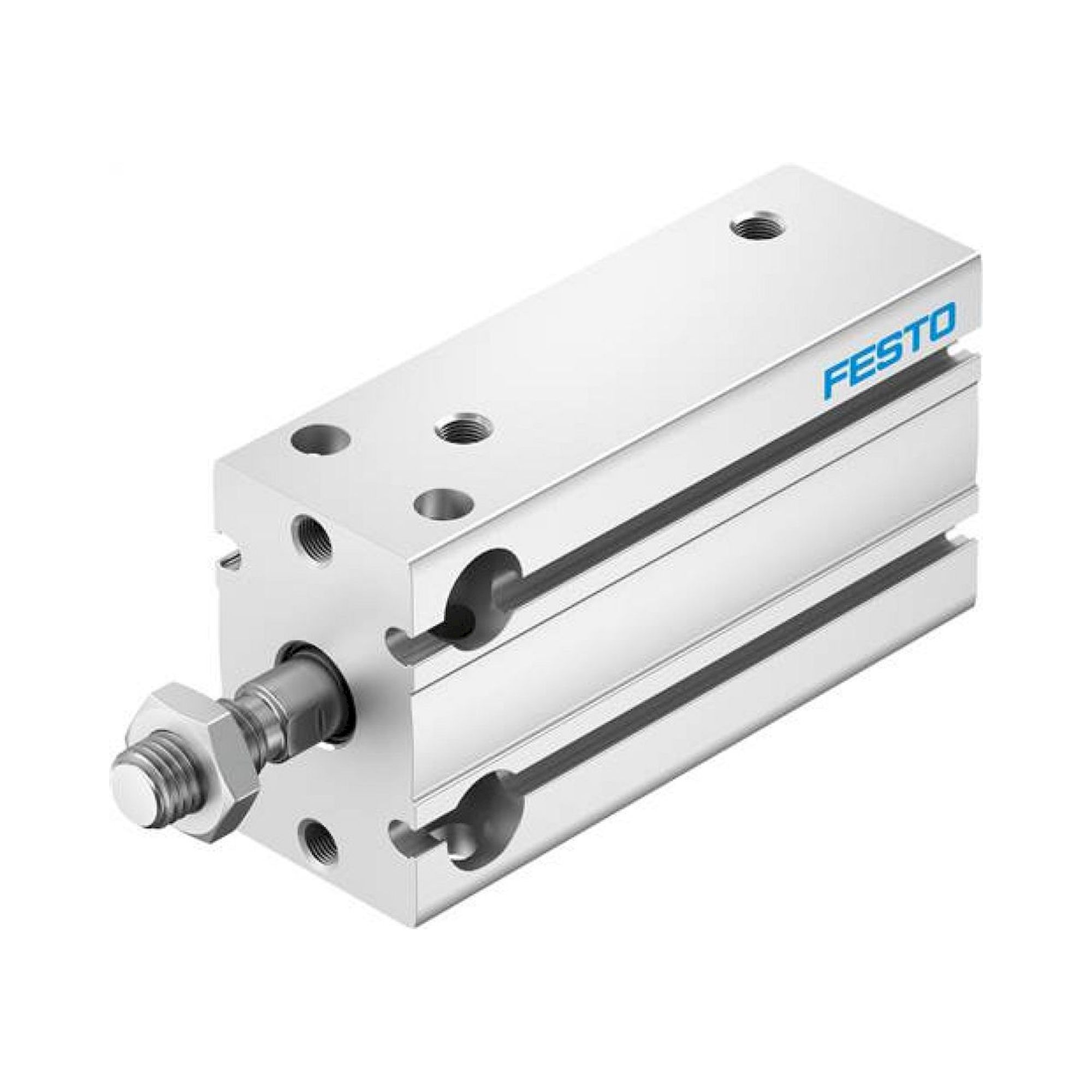

| DPDM-32-...-PA | Double-acting standard | 5-50 mm |
| DPDM-Q-32-...-PA | Double-acting Q (cross-connection) | 5-50 mm |
| DPDM-Q-32-...-S-PA | Single-acting Q (cross-connection) | 5-15 mm |
| DPDM-Q-32-...-P-PA | Double-acting Q, magnetic piston | 5-15 mm |
Typical applications: Clamping and holding fixtures with short strokes, tandem arrangements for doubled cylinder force (DPDM-Q), locking and blocking mechanisms, handling machines with confined installation spaces, and packaging machinery with cam profiles or fixed stops.
