Cartridges QSP, inch

Push-in fittings

Festo QSP cartridges in the inch series follow the same press-fit cartridge principle as the metric range, but are designed for tube outside diameters to US and British imperial standards: 1/8", 3/16", 5/32", 1/4", 5/16" and 3/8". All inch variants carry the suffix -U in the part number. The press-fit body diameters (OD 10, 14, 18, 20 mm) are the same as in the metric range, so both can be installed in the same manifold plate.

Straight (QSPKG), single-elbow (QSPLKG) and double-elbow (QSPLLKG) forms allow selecting the tube exit direction to suit the installation space. No adapters are needed to connect inch tubing to QSP manifold plates.

⚙ Inch tube connections - 1/8" to 3/8", identified by suffix -U

✓ Same press-fit ODs as metric QSP - 10, 14, 18, 20 mm; identical plate bores usable for both

⬡ Straight, 90° and 180° forms - QSPKG, QSPLKG, QSPLLKG for flexible routing

✦ Mixed installation possible - inch and metric cartridges can coexist in a single plate

Type	Form	Press OD	Tube (inch)

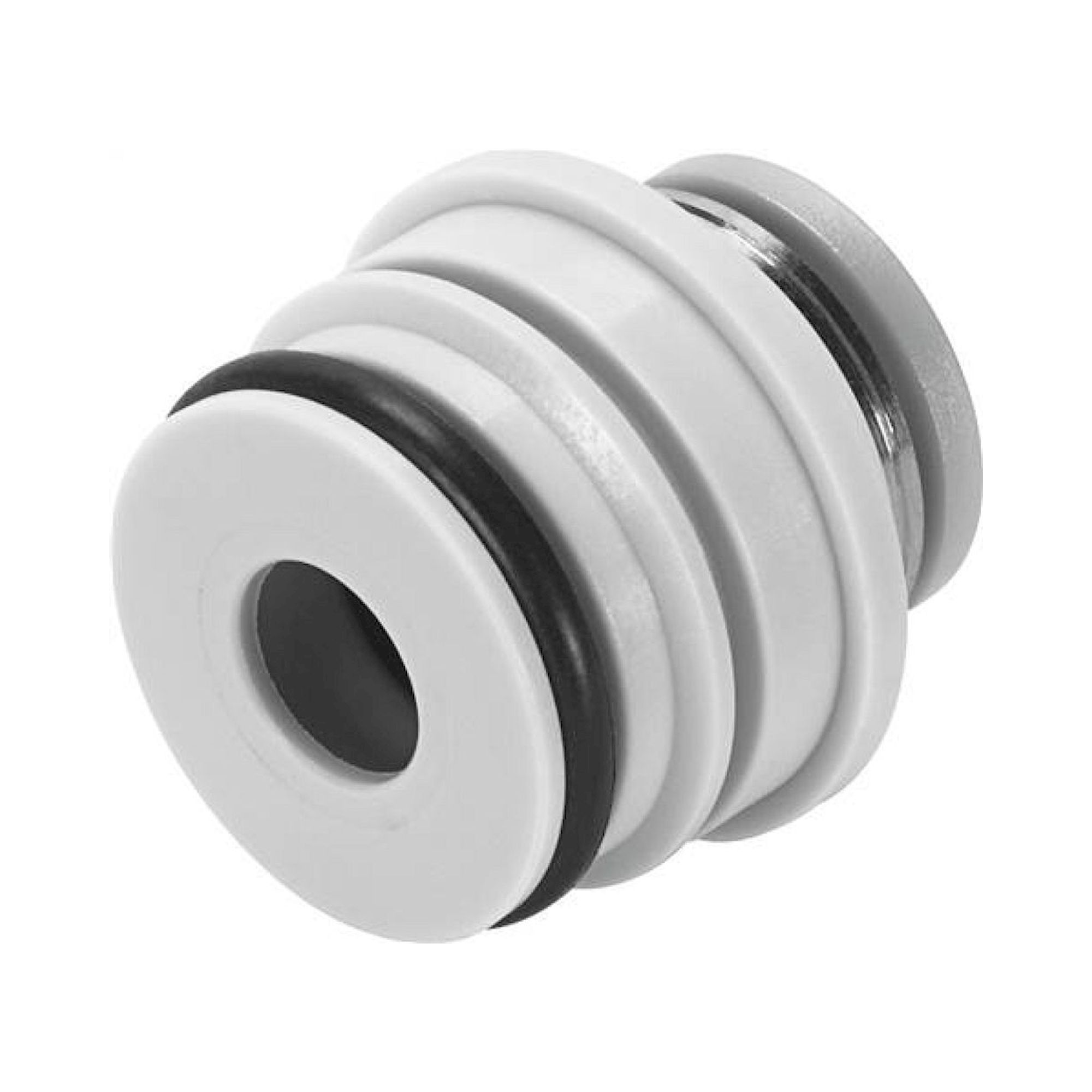

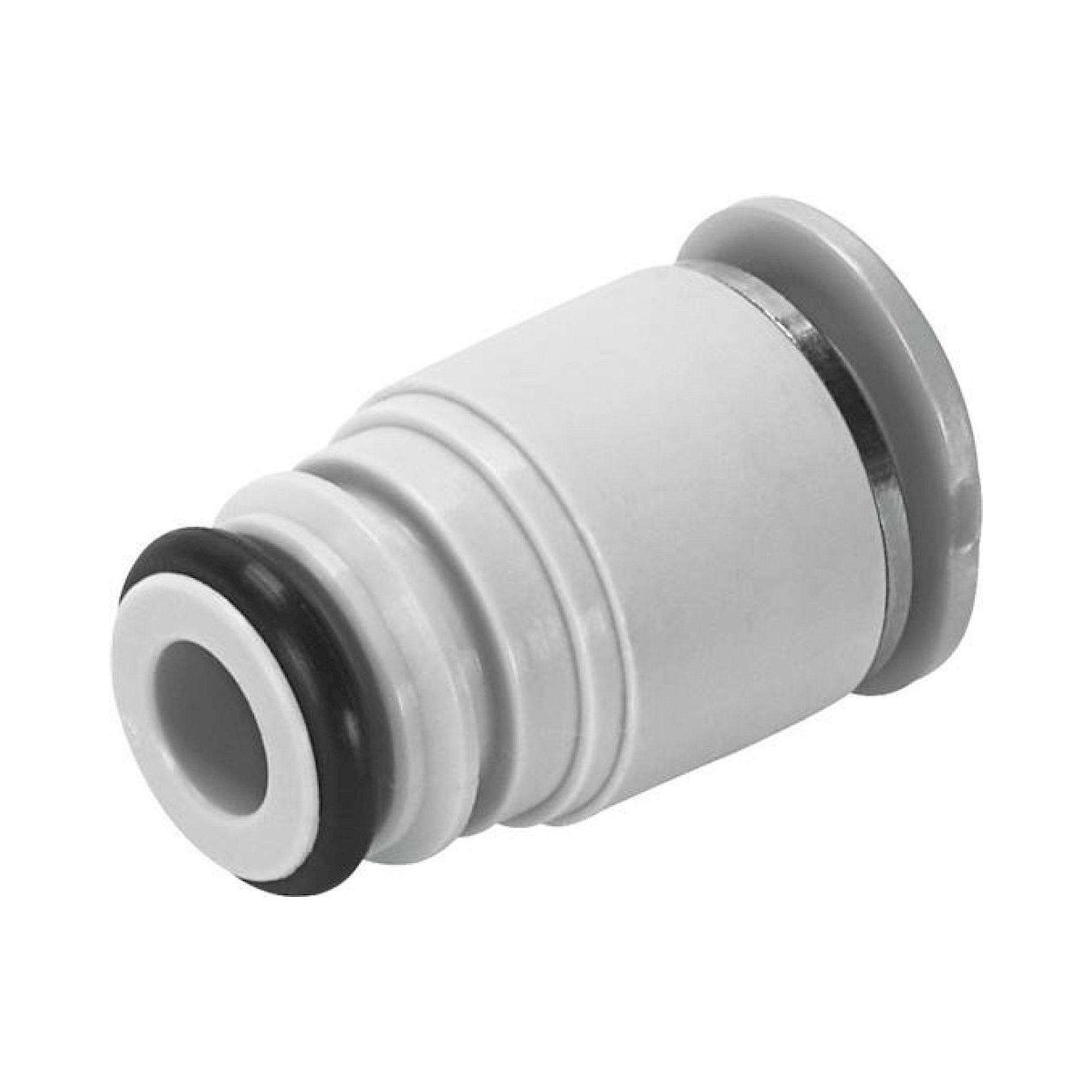

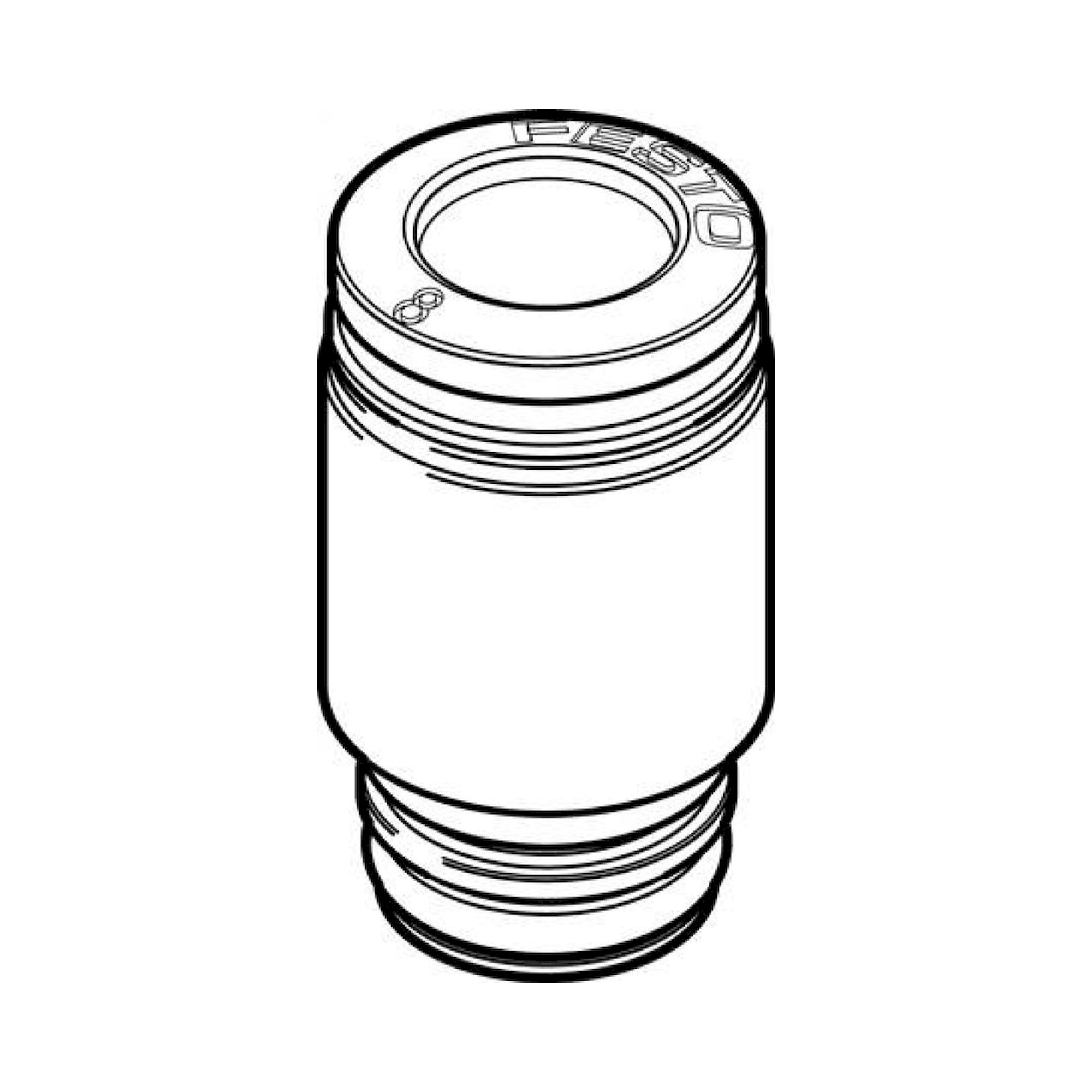

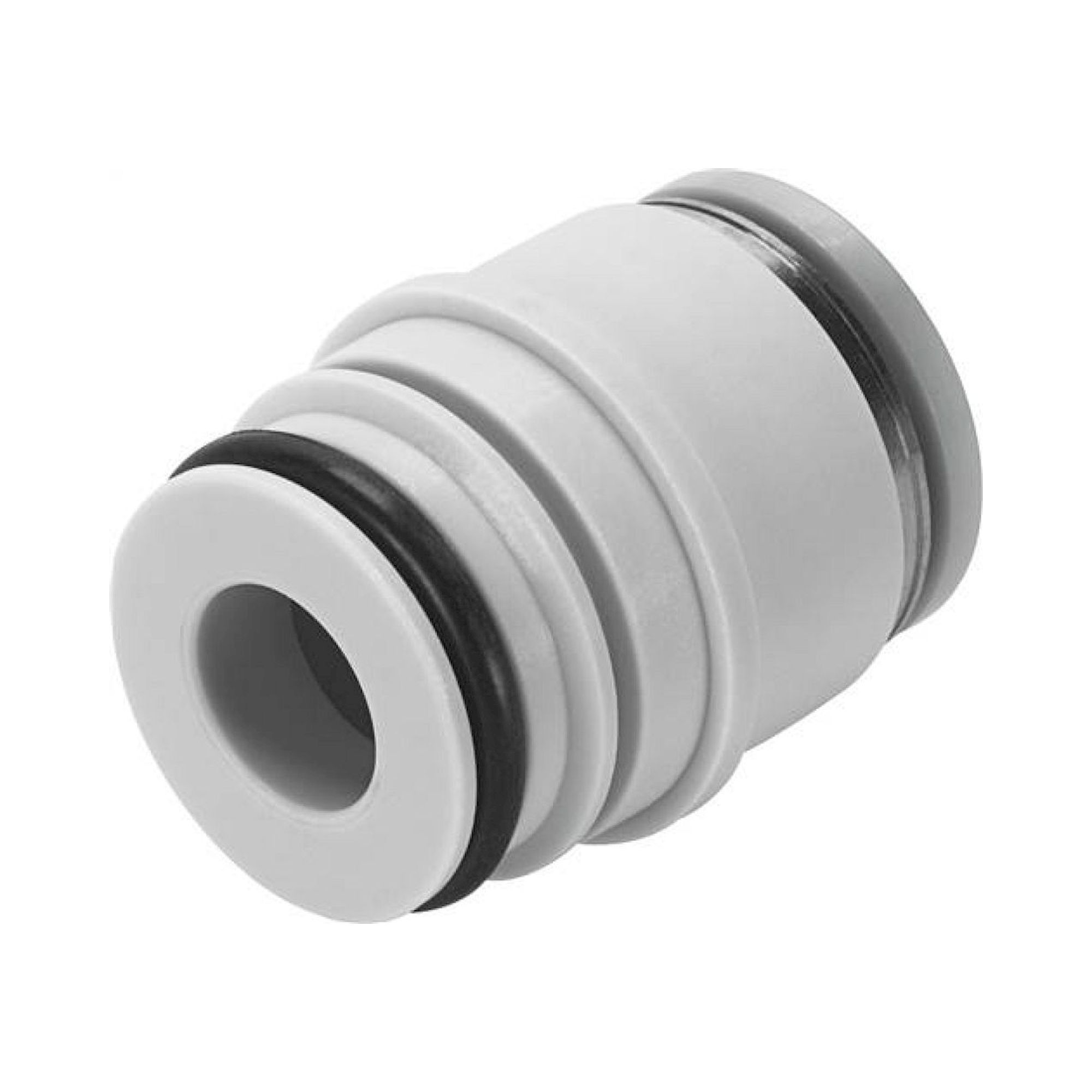

QSPKG10-1/8-U to -1/4-U	Straight, G thread	10 mm	1/8", 3/16", 5/32", 1/4"
QSPKG14-1/4-U, -5/16-U	Straight, G thread	14 mm	1/4", 5/16"

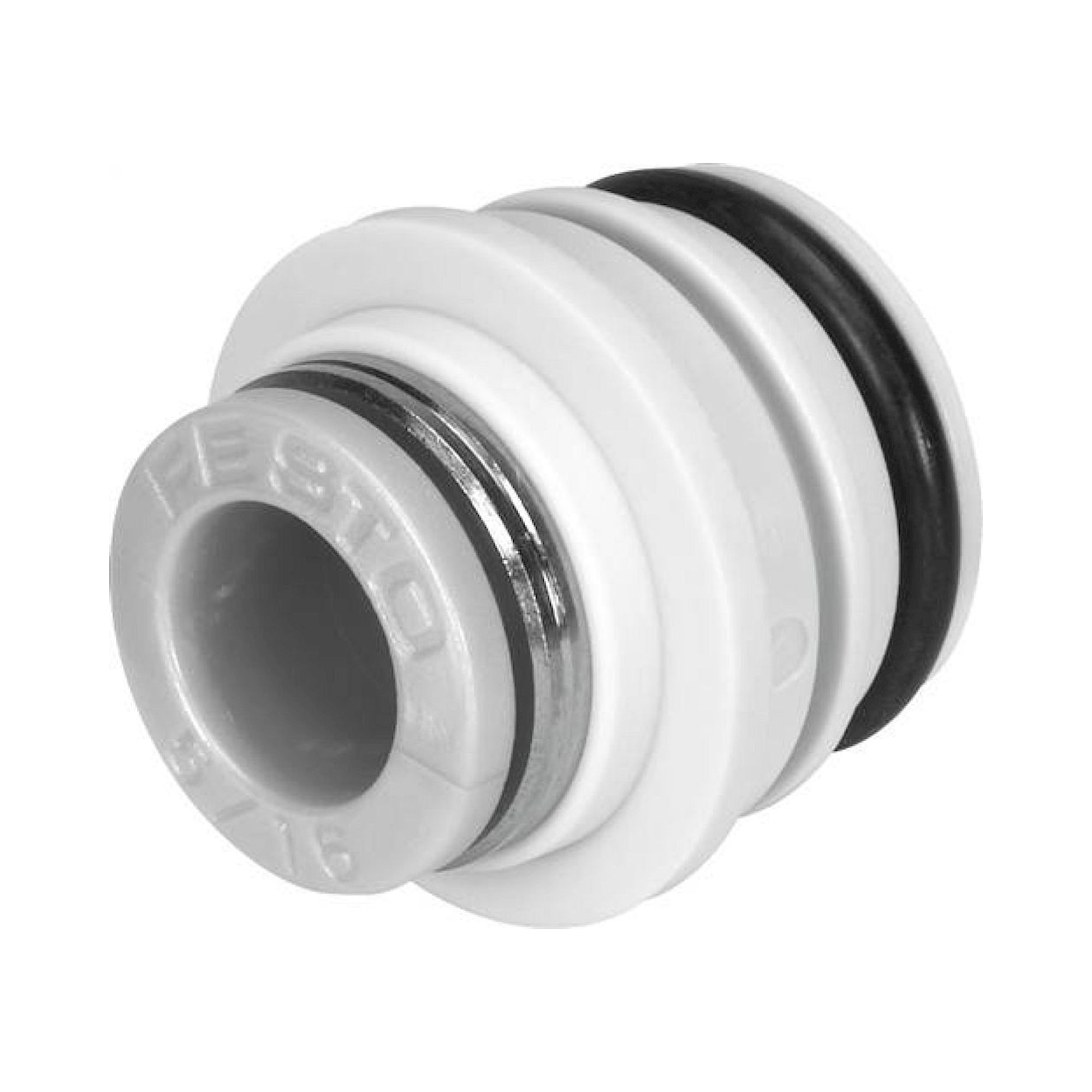

QSPKG18-5/16-U, -3/8-U	Straight, G thread	18 mm	5/16", 3/8"
QSPKG20-5/16-U to -1/2-U	Straight, G thread	20 mm	5/16", 3/8", 1/2"

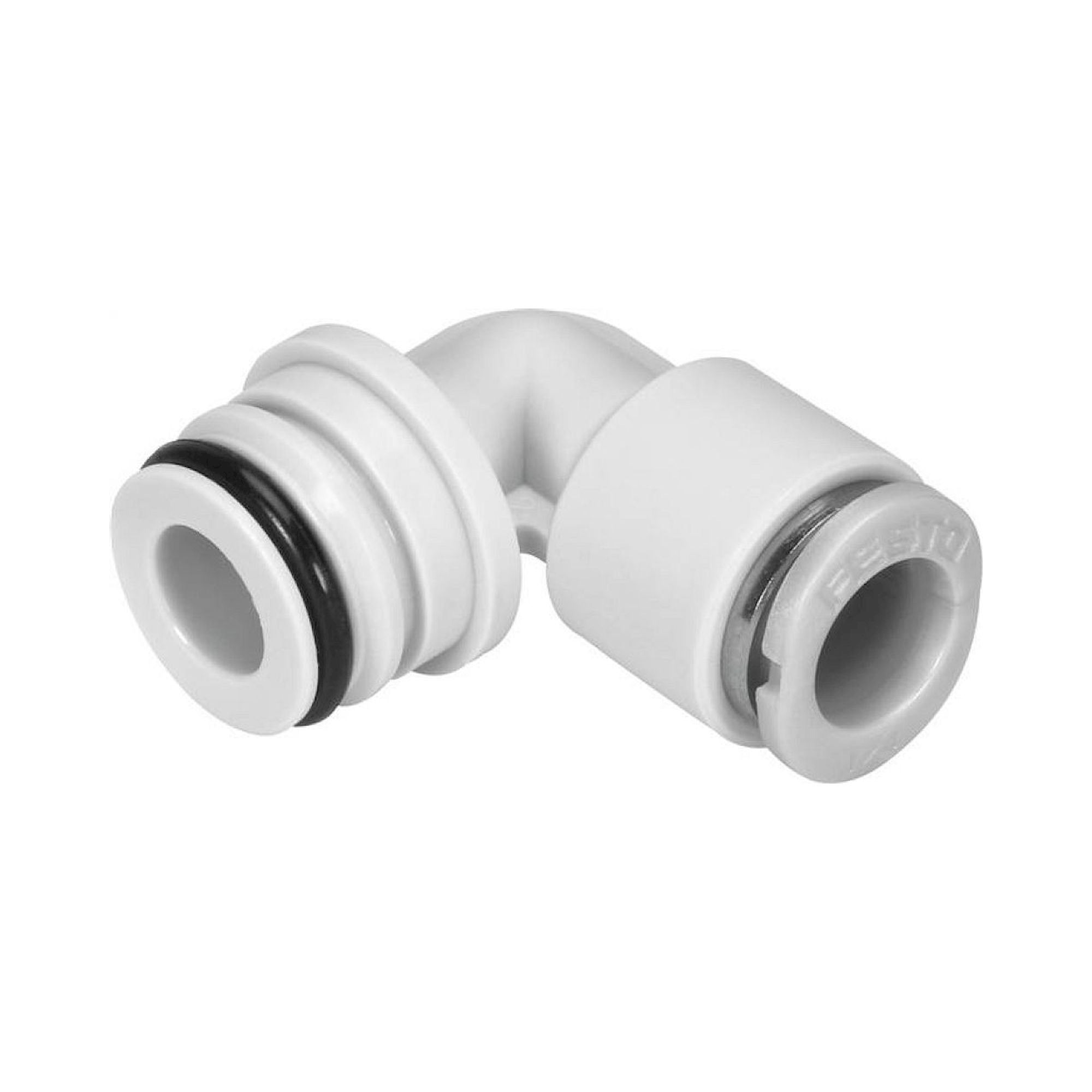

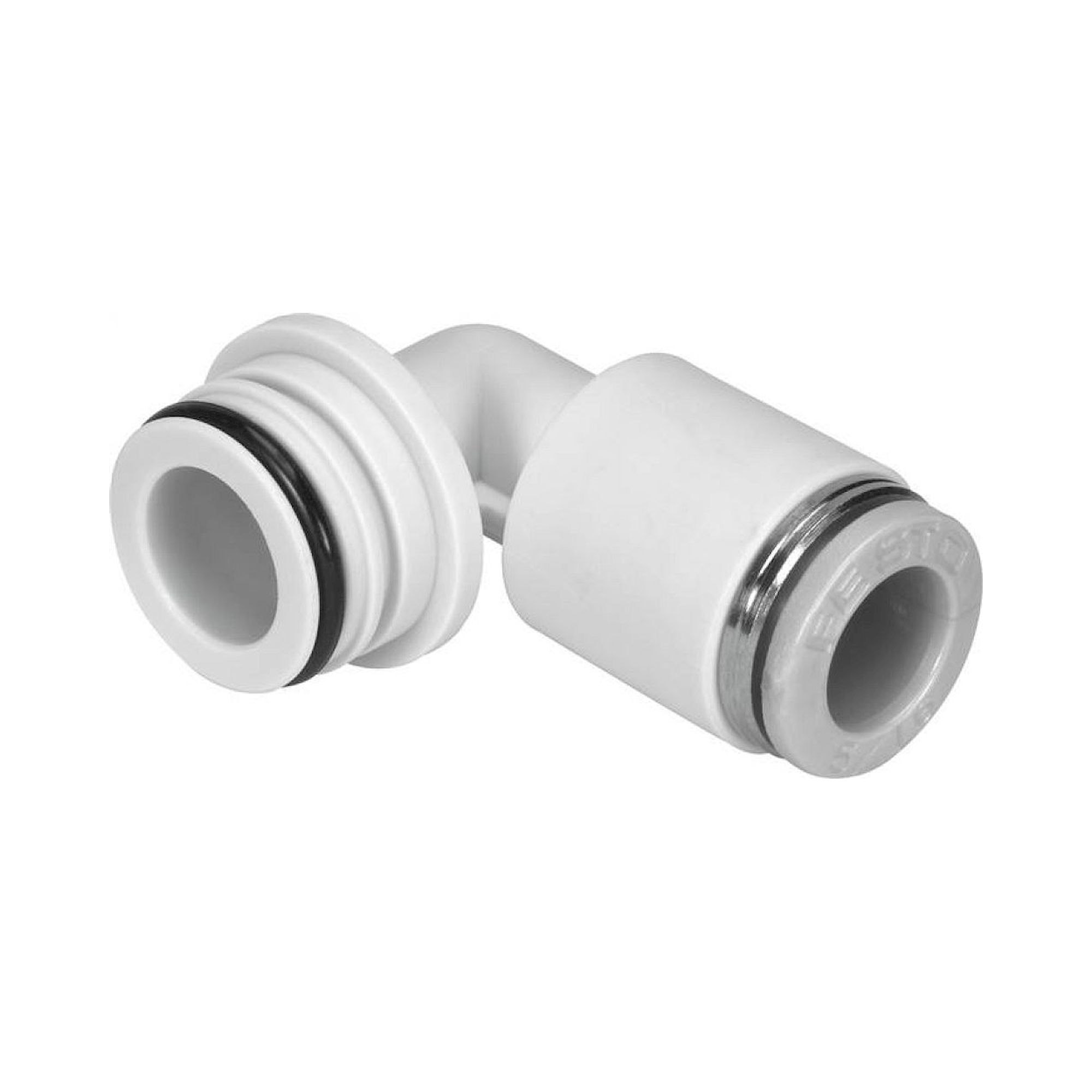

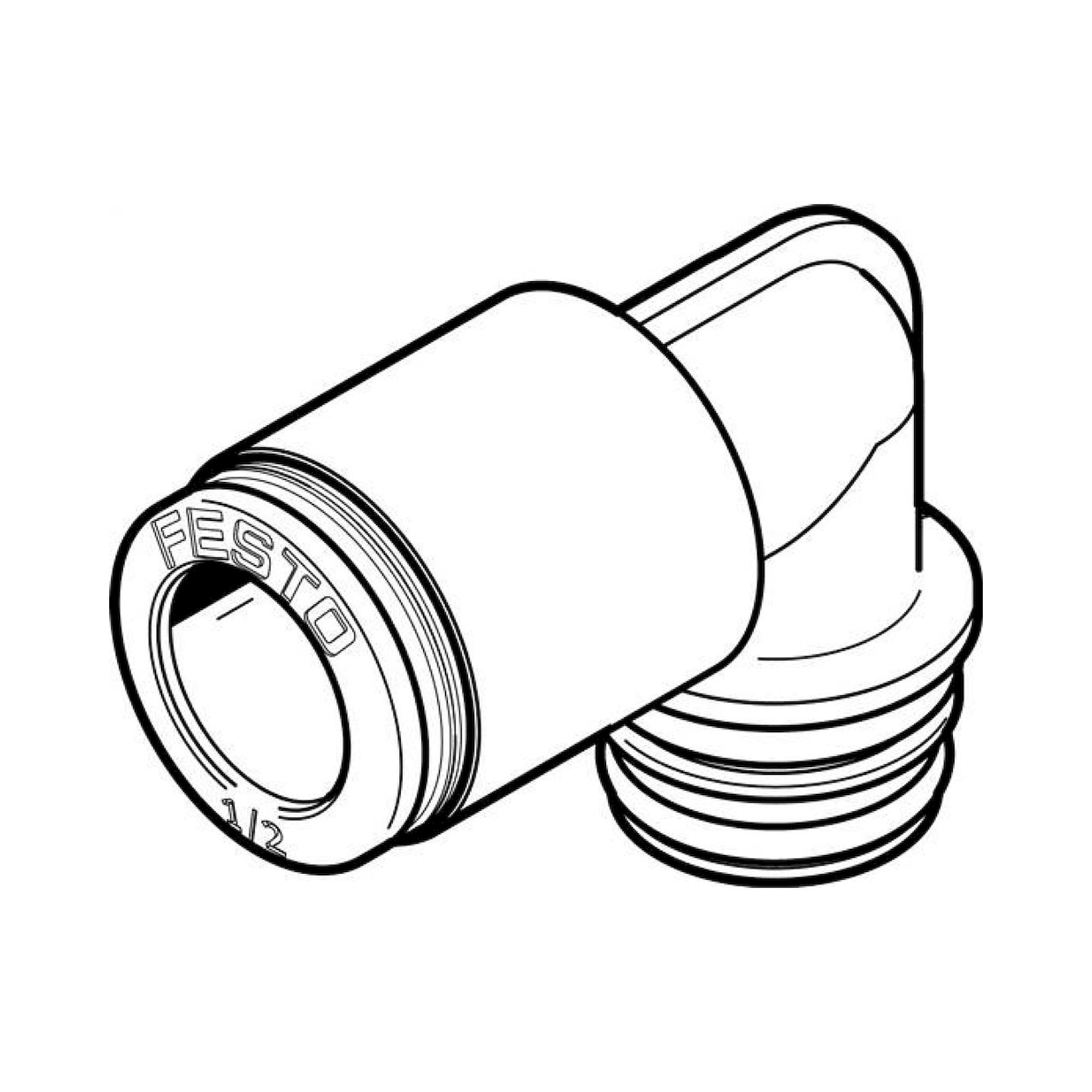

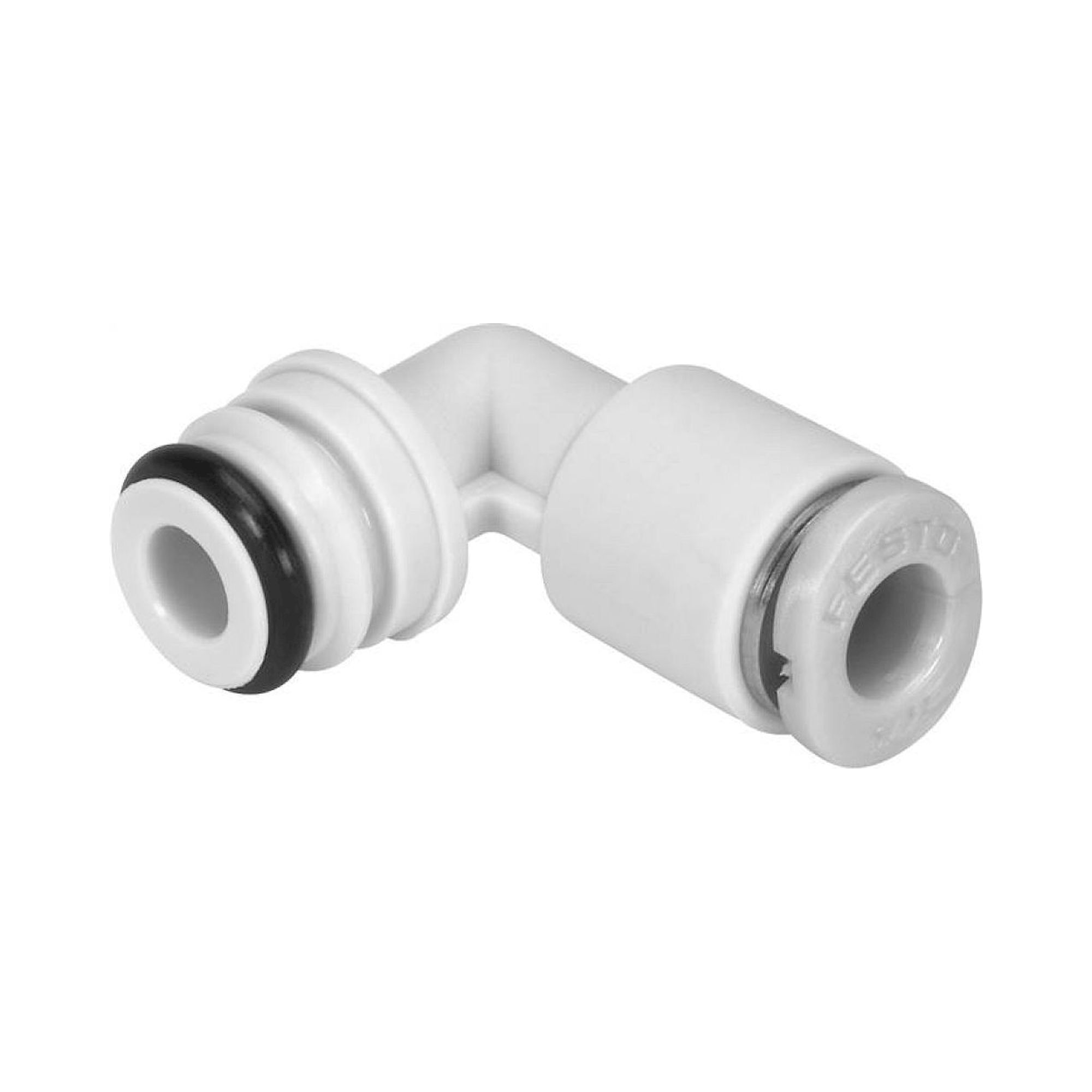

QSPLKG10-... to QSPLKG20-...	90° elbow	10-20 mm	1/8"-3/8"

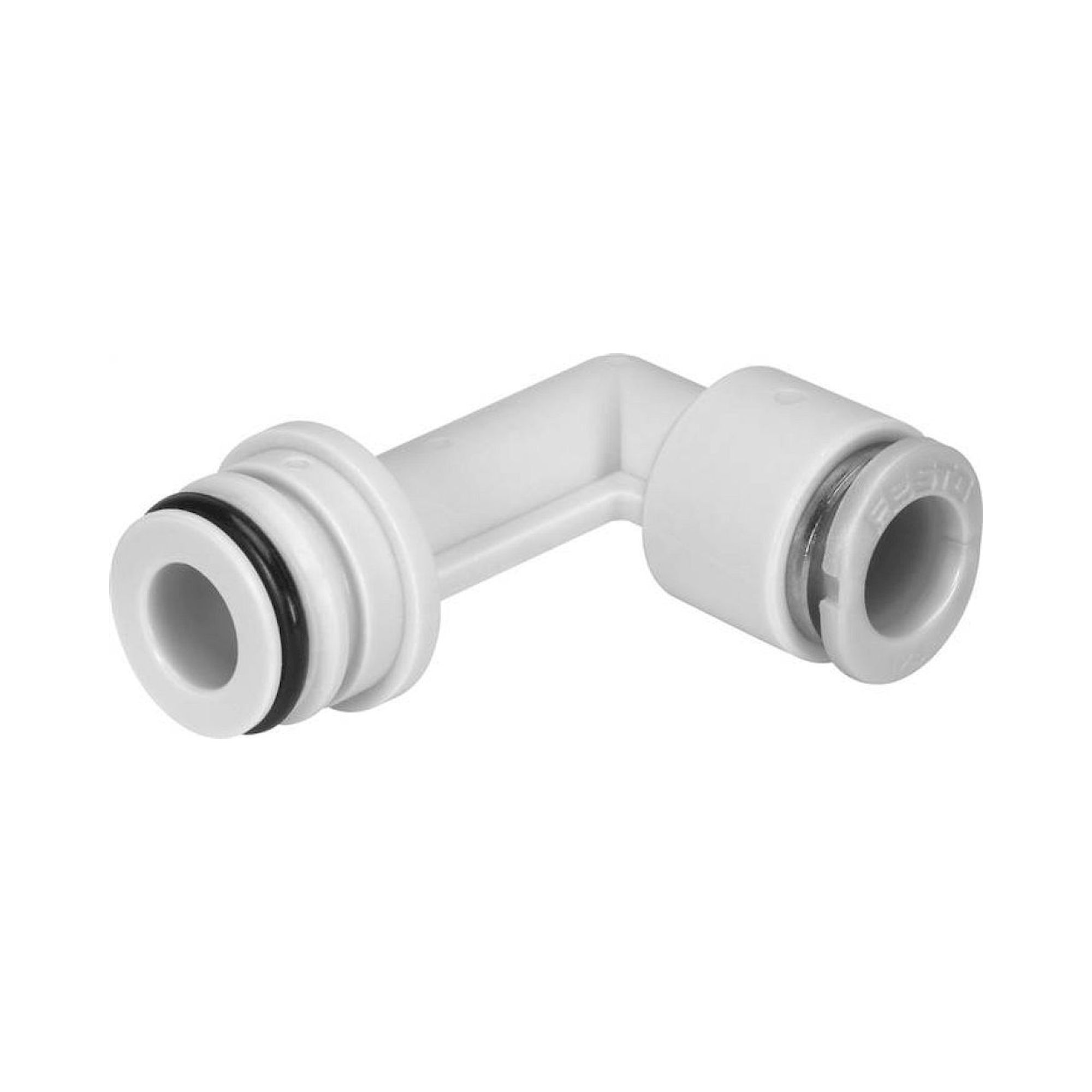

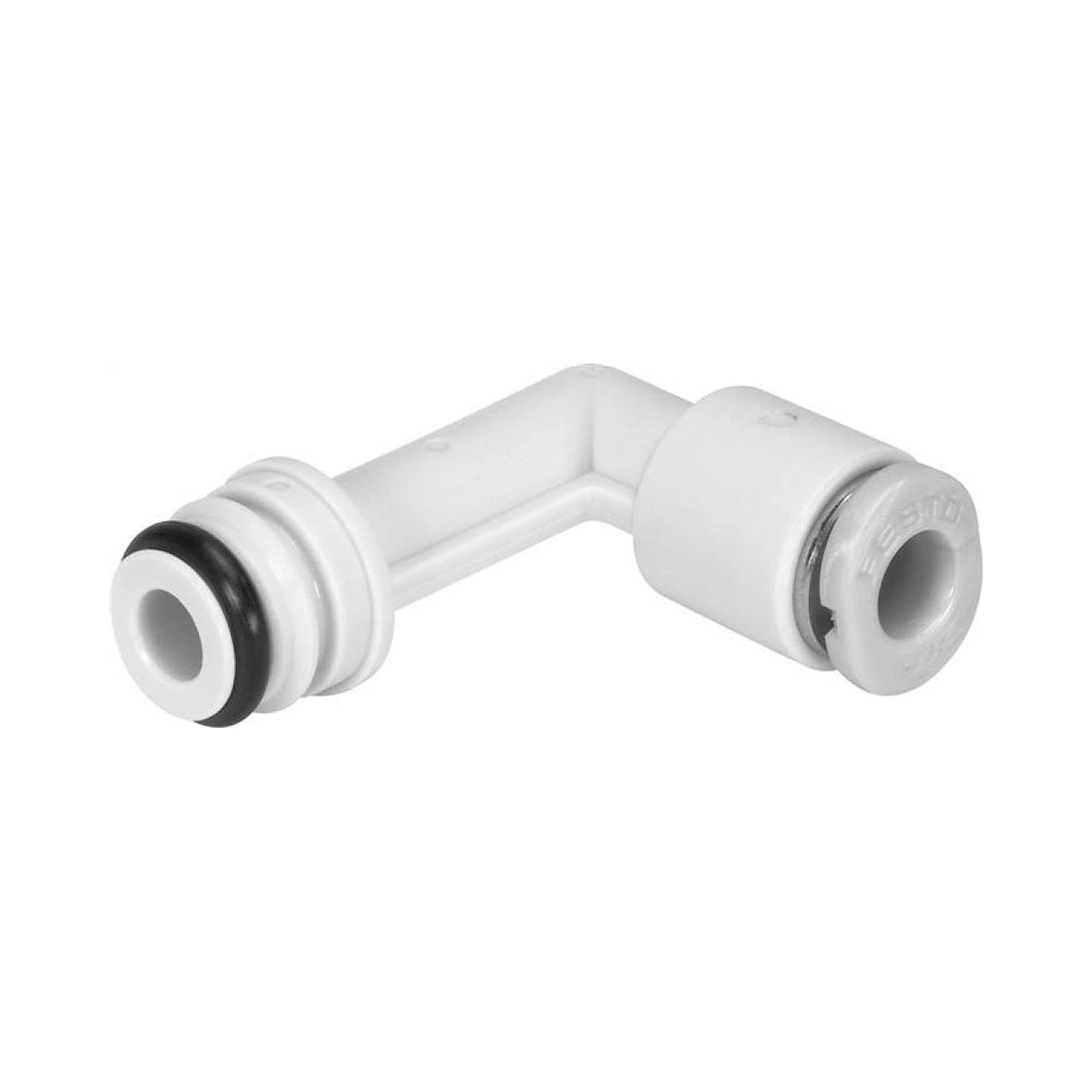

QSPLLK18-3/8-U, -5/16-U	180° U-bend	18 mm	3/8", 5/16"

Typical applications: Machines of North American or British origin with imperial tube systems, retrofit projects where existing inch pneumatic lines are to be connected to Festo manifold plates, and export machines destined for markets using inch standardisation.
