What are Festo CRQS stainless steel push-in fittings and which industries use them?

Festo CRQS stainless steel push-in fittings are pneumatic connectors designed for creating secure compressed air connections in corrosive environments. These fittings enable tool-free installation while providing excellent chemical resistance through their stainless steel construction. Primary applications include food processing, pharmaceutical manufacturing, chemical processing, and marine installations where standard brass or plastic fittings would degrade. The CRQS series supports multiple connection configurations including straight-through, T-junctions, Y-connections, L-bends, and bulkhead feedthroughs for versatile system integration.

What are the key technical selection criteria for Festo CRQS stainless steel pneumatic fittings?

Selection of Festo CRQS fittings requires matching tube outer diameter to fitting size, with available options including 10mm, 12mm, and 16mm tube connections. Thread specifications range from G1/2 to G3/8 BSP parallel threads for system integration compatibility. Operating pressure capability typically reaches 16 bar for most configurations, while temperature resistance spans -20°C to +150°C depending on sealing materials. Media compatibility extends to compressed air, inert gases, and specific chemical vapors when stainless steel construction provides adequate corrosion resistance for the application environment.

Which international standards apply to Festo CRQS stainless steel push-in fittings?

Festo CRQS stainless steel fittings comply with ISO 14743 standards for pneumatic fluid power push-in connectors, ensuring dimensional accuracy and performance consistency. The stainless steel material grades typically meet DIN EN 10088 specifications for corrosion-resistant steel components in industrial applications. Thread connections conform to ISO 228-1 for BSP parallel threads, providing reliable sealing when properly installed with appropriate thread sealants. Additional compliance may include ATEX directives for explosive atmosphere applications and FDA material approvals for food-grade pneumatic systems depending on specific model configurations.

What are the differences between CRQS straight, T-junction, Y-connection, and L-bend variants?

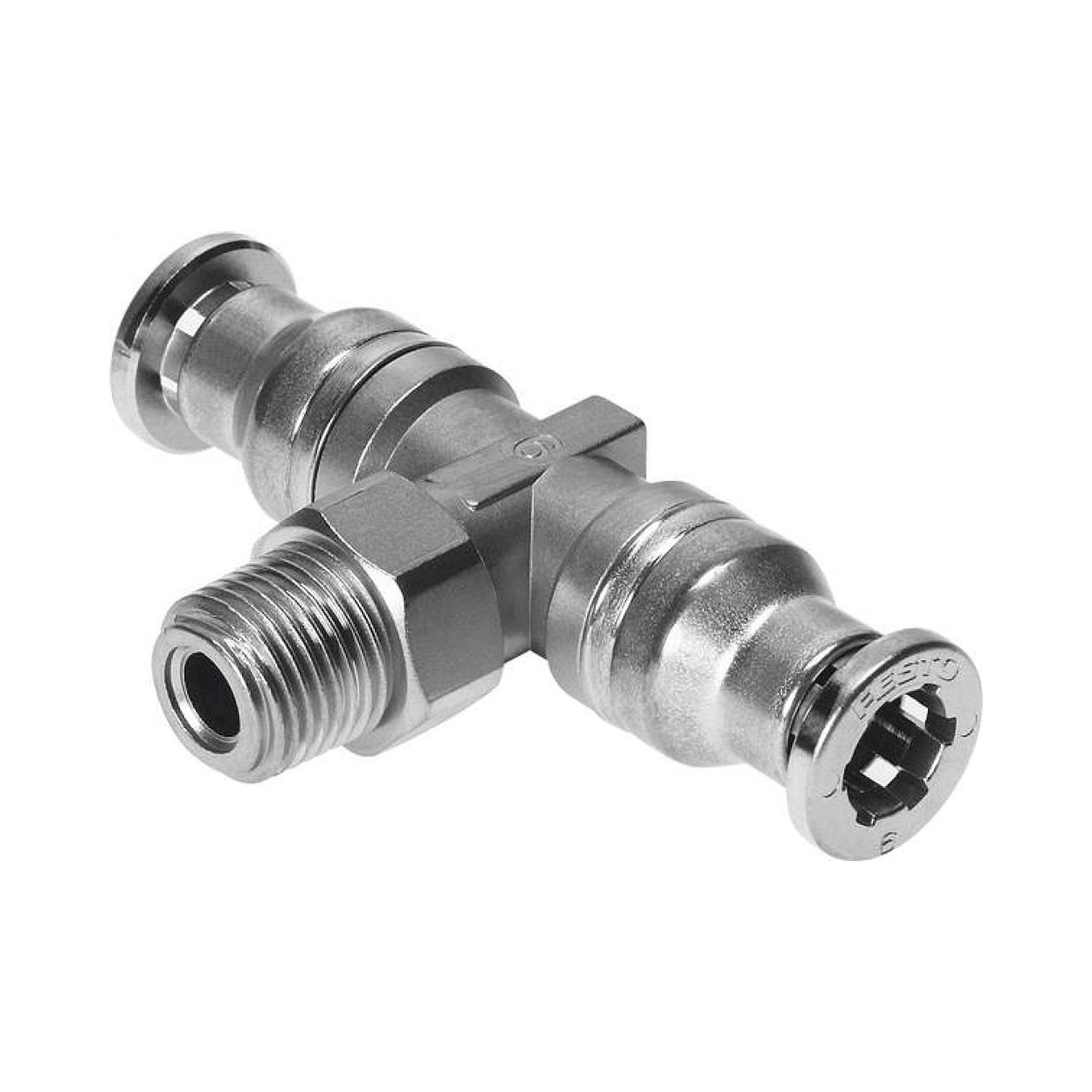

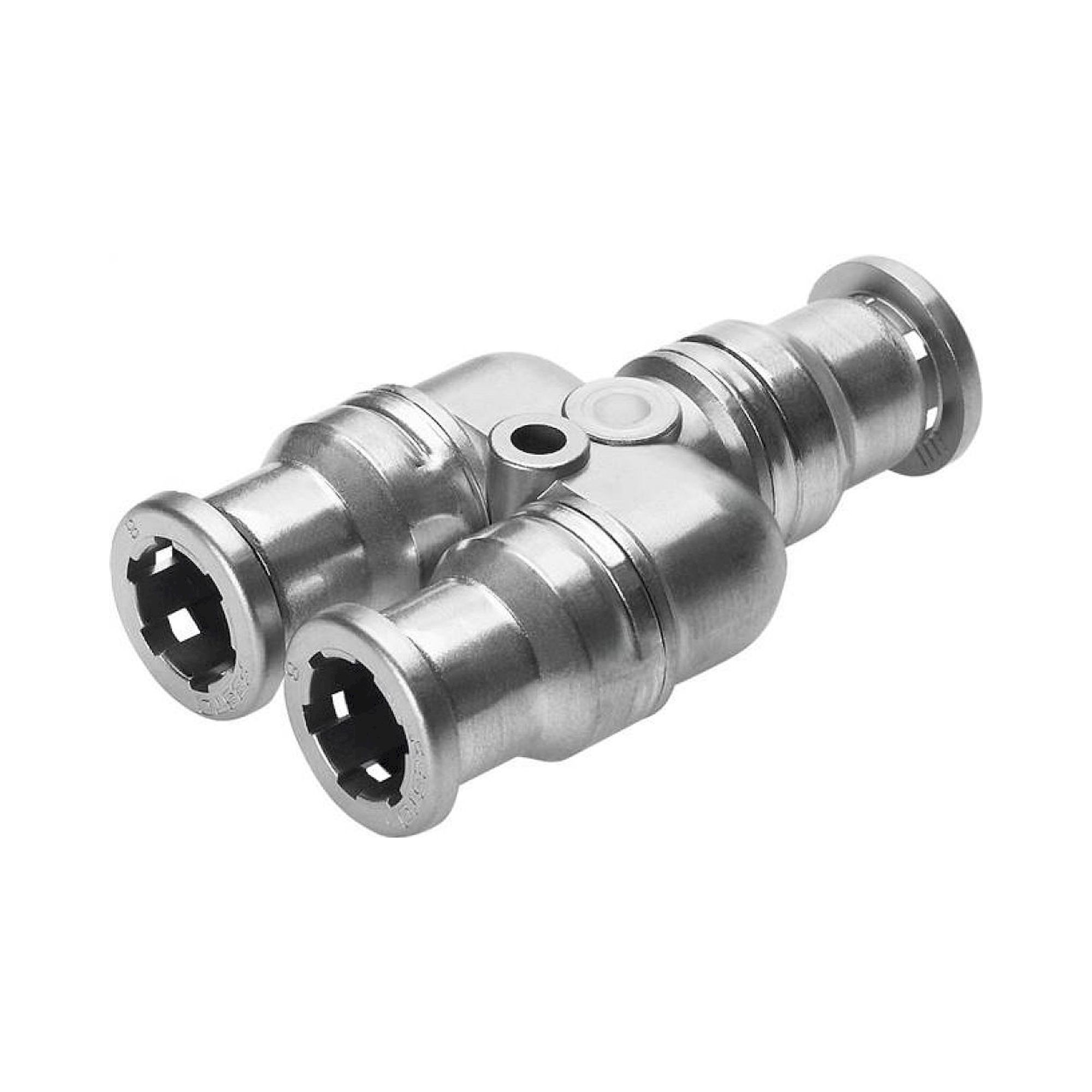

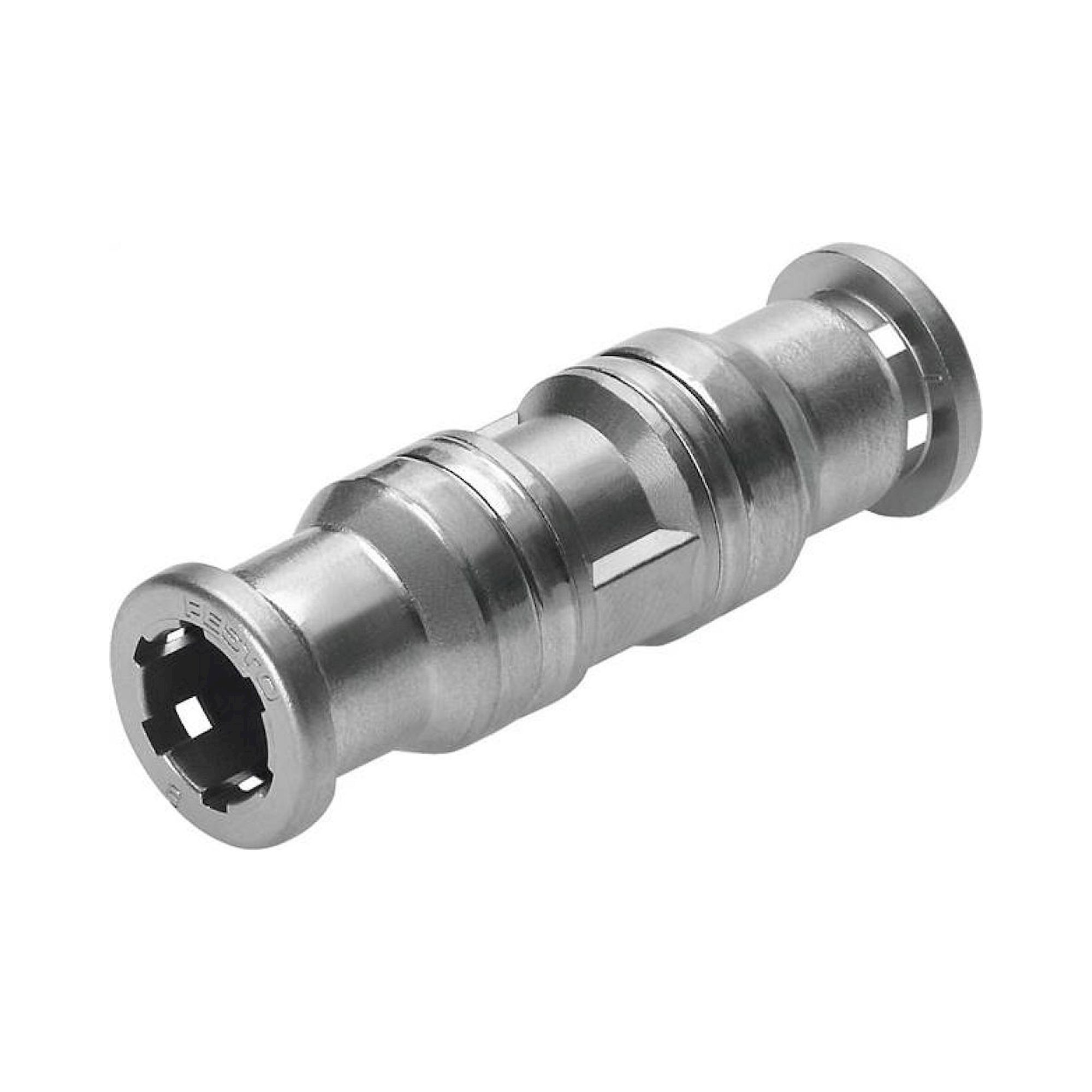

Festo CRQS straight fittings like the CRQS-16 provide direct tube-to-thread connections for linear pneumatic runs, while T-junctions such as CRQST-16 enable three-way flow distribution from a single threaded port. Y-connections including CRQSY-16 create dual outlet configurations with angled flow paths reducing pressure drop compared to T-fittings. L-bend models like CRQSL-16 redirect airflow through 90-degree angles in space-constrained installations, and bulkhead fittings such as CRQSS-12 provide sealed panel penetrations for pneumatic lines crossing enclosure walls while maintaining IP protection ratings.

What are the installation requirements and system compatibility for Festo CRQS fittings?

Festo CRQS fittings require polyamide or polyurethane pneumatic tubing with outer diameters matching the fitting specification, typically 10mm, 12mm, or 16mm depending on model selection. Installation involves inserting the tube fully into the fitting until it contacts the internal stop, with the integrated collet automatically securing the connection without additional tools. Thread connections require PTFE tape or liquid thread sealant applied to male threads before assembly to achieve proper sealing at operating pressures up to 16 bar. System compatibility extends to standard compressed air networks, vacuum applications down to -0.95 bar, and inert gas distribution systems where stainless steel material compatibility is verified.

What are the safety ratings and operating limits for Festo CRQS stainless steel pneumatic fittings?

Festo CRQS stainless steel fittings operate safely at pressures up to 16 bar with appropriate tube and system components, maintaining reliable sealing across temperature ranges from -20°C to +150°C depending on O-ring materials. The stainless steel body construction provides inherent corrosion resistance in chemical environments while meeting IP65 protection when properly installed in bulkhead configurations. Safety factors typically incorporate 4:1 burst pressure ratios above maximum working pressure, and the push-in mechanism includes integrated strain relief to prevent accidental disconnection under system pressure fluctuations or mechanical stress.

What maintenance schedule and service life expectations apply to Festo CRQS pneumatic fittings?

Festo CRQS stainless steel fittings require minimal maintenance beyond periodic visual inspection for tube wear at the collet interface and verification of proper tube insertion depth every 12 months. Service life typically exceeds 10 years in standard compressed air applications, with stainless steel construction providing extended durability in corrosive environments compared to brass alternatives. O-ring seals may require replacement after 5-7 years depending on operating temperature cycles and media exposure, while the collet mechanism should be inspected for proper grip retention during annual pneumatic system pressure testing. Tube replacement becomes necessary when surface wear or stress cracking appears at the fitting connection point.

Push-in fittings CRQS, stainless steel

Push-in fittings

Festo CRQS stainless steel push-in fittings are designed for corrosive environments and applications with direct media or cleaning agent contact. The range of 78 articles covers straight push-in fittings (CRQS-M5, CRQS-1/8 to CRQS-1/2) and elbow push-in fittings (CRQSL-) in metric and inch sizes, with tube outside diameters from 4 to 16 mm. Tube-to-tube connectors without a threaded port (CRQS-4 to CRQS-16) join two tube ends directly.

⚙ Stainless steel 1.4305 - resistant to cleaning agents, acids, and moisture

⚡ Thread connections M5 to G 1/2 - complete coverage of small and medium pneumatic nominal sizes

✓ Tube OD 4-16 mm - compatible with common Festo PUN and PAN tubing

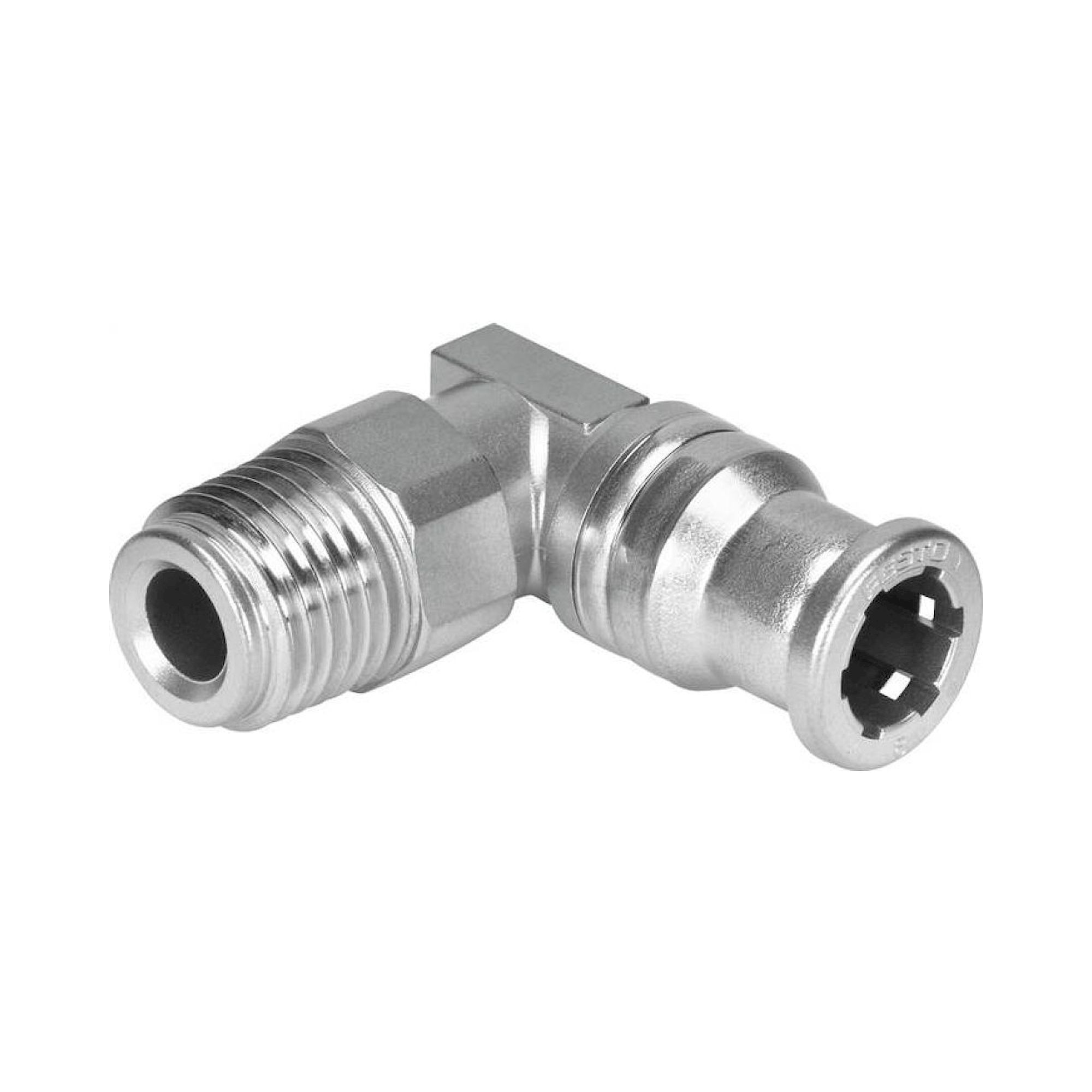

⬡ Elbow fittings CRQSL - directional redirection in confined installation spaces, 90° angle

✦ Tube-to-tube CRQS-4 to CRQS-16 - direct connection of two tube ends without a threaded adapter

Type	Port	Tube OD	Form
CRQS-M5-4 / -6	M5	4, 6 mm	straight
CRQS-1/8-6 / -8	G 1/8	6, 8 mm	straight
CRQS-1/4-8 / -10	G 1/4	8, 10 mm	straight
CRQS-3/8-10 / -12	G 3/8	10, 12 mm	straight

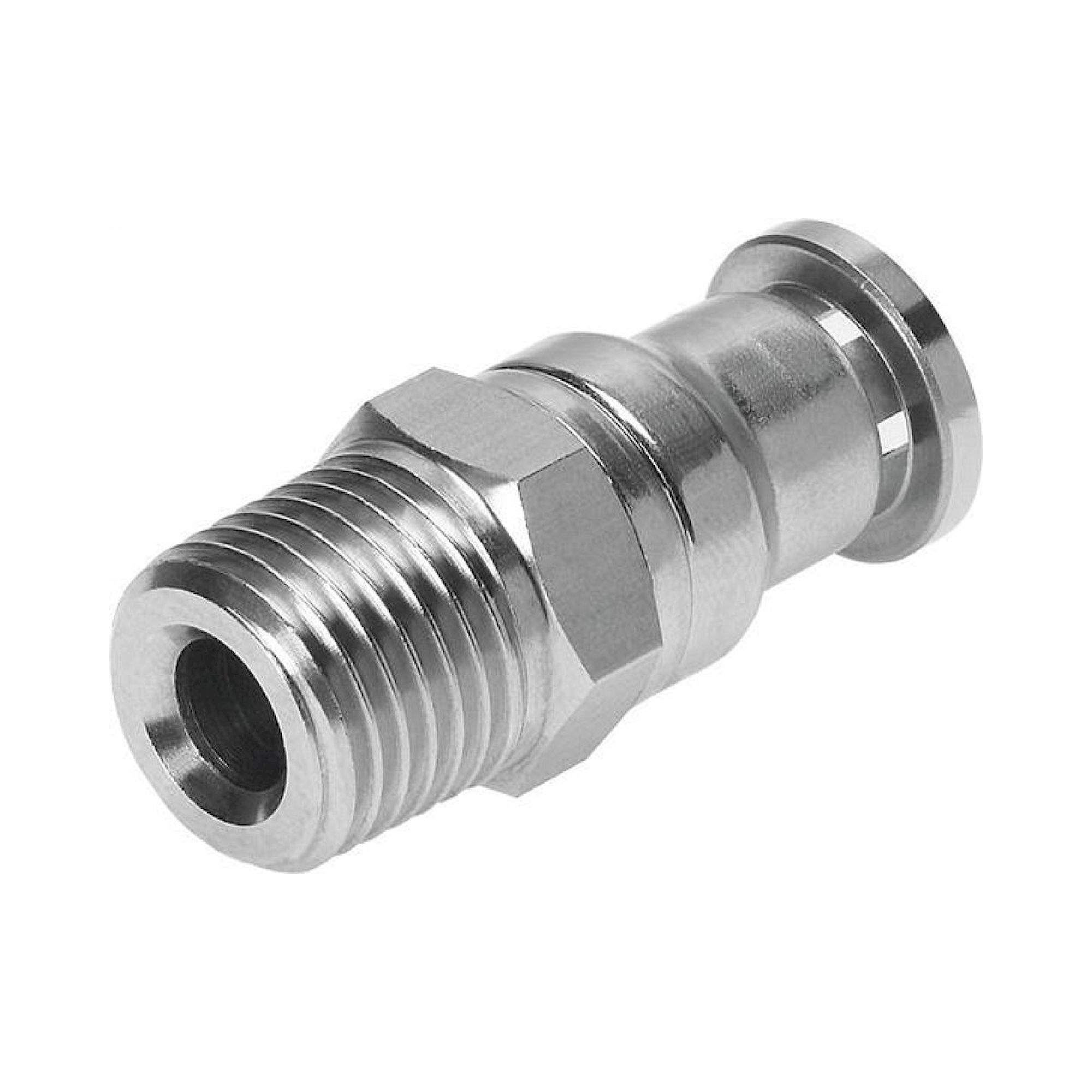

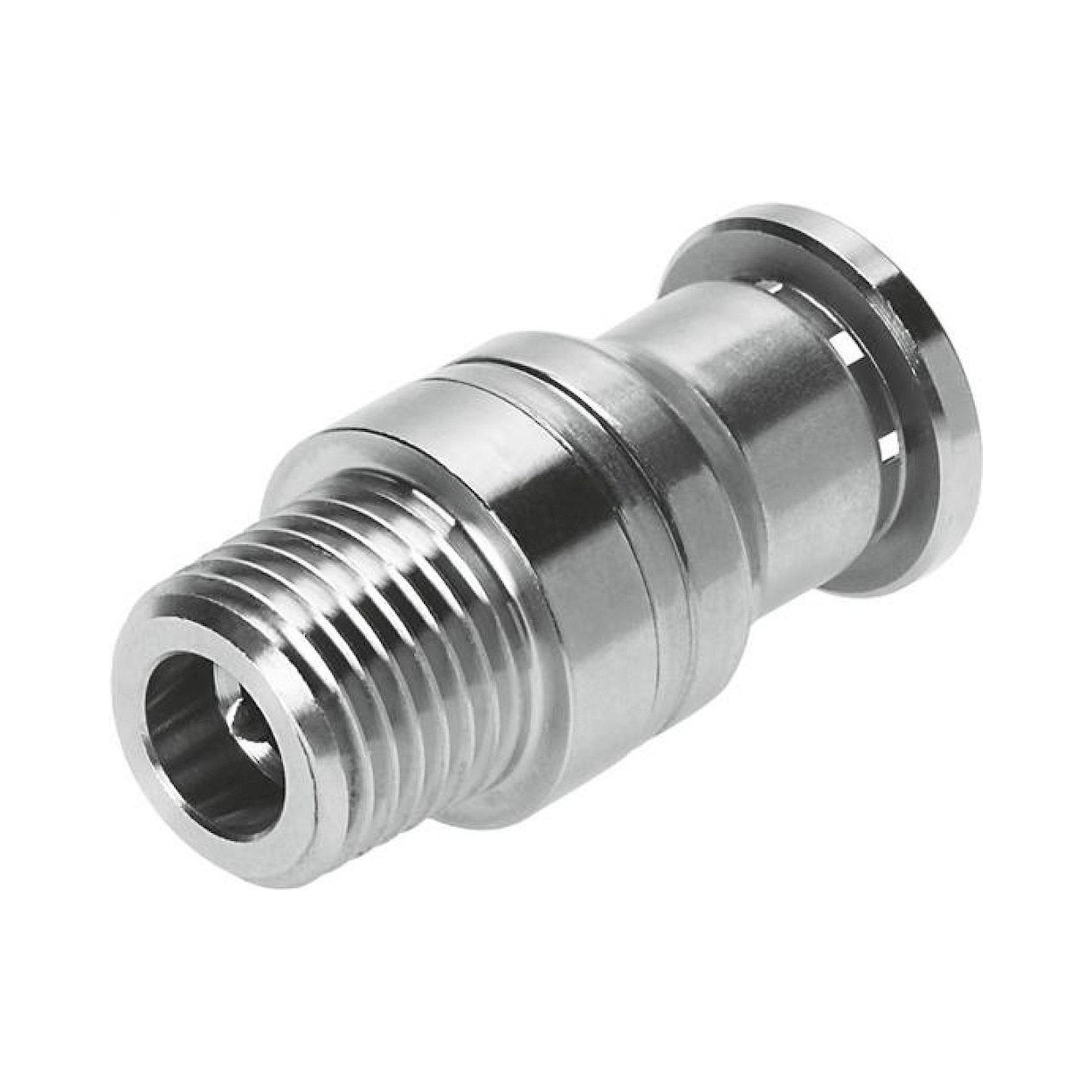

CRQS-1/2-12 / -16	G 1/2	12, 16 mm	straight
CRQSL-1/4-8 / -10	G 1/4	8, 10 mm	L-elbow (90°)

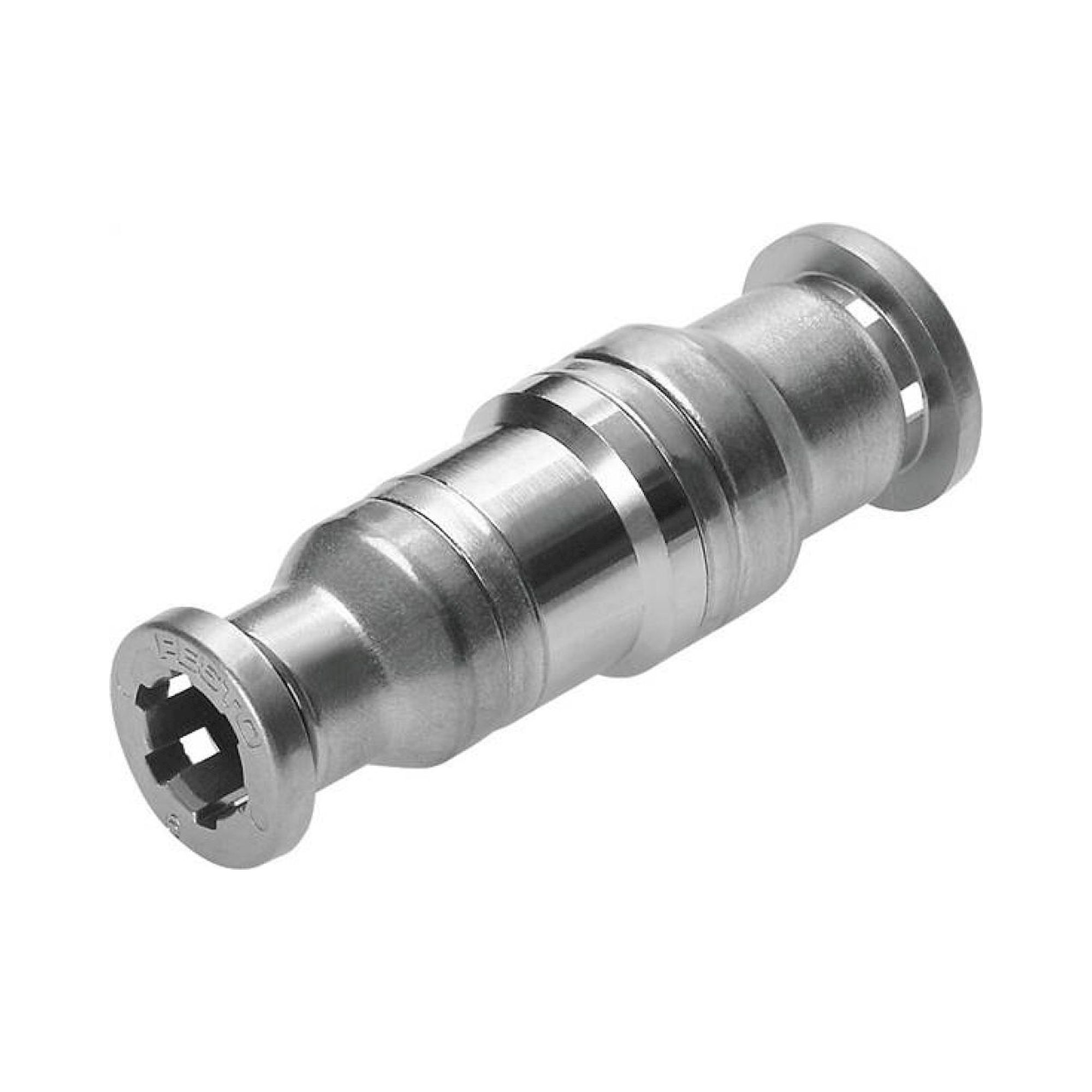

CRQS-4 to CRQS-16	no thread	4-16 mm	tube-to-tube

Typical applications: Food processing and packaging with regular wet cleaning (CIP/SIP), pharmaceutical installations with cleanroom requirements, chemical and laboratory technology with aggressive cleaning media, outdoor installations and areas with high humidity or condensation, and all applications where brass fittings are not permitted for corrosion or contamination reasons.
