Push-in fittings QS, standard series
Push-in fittings

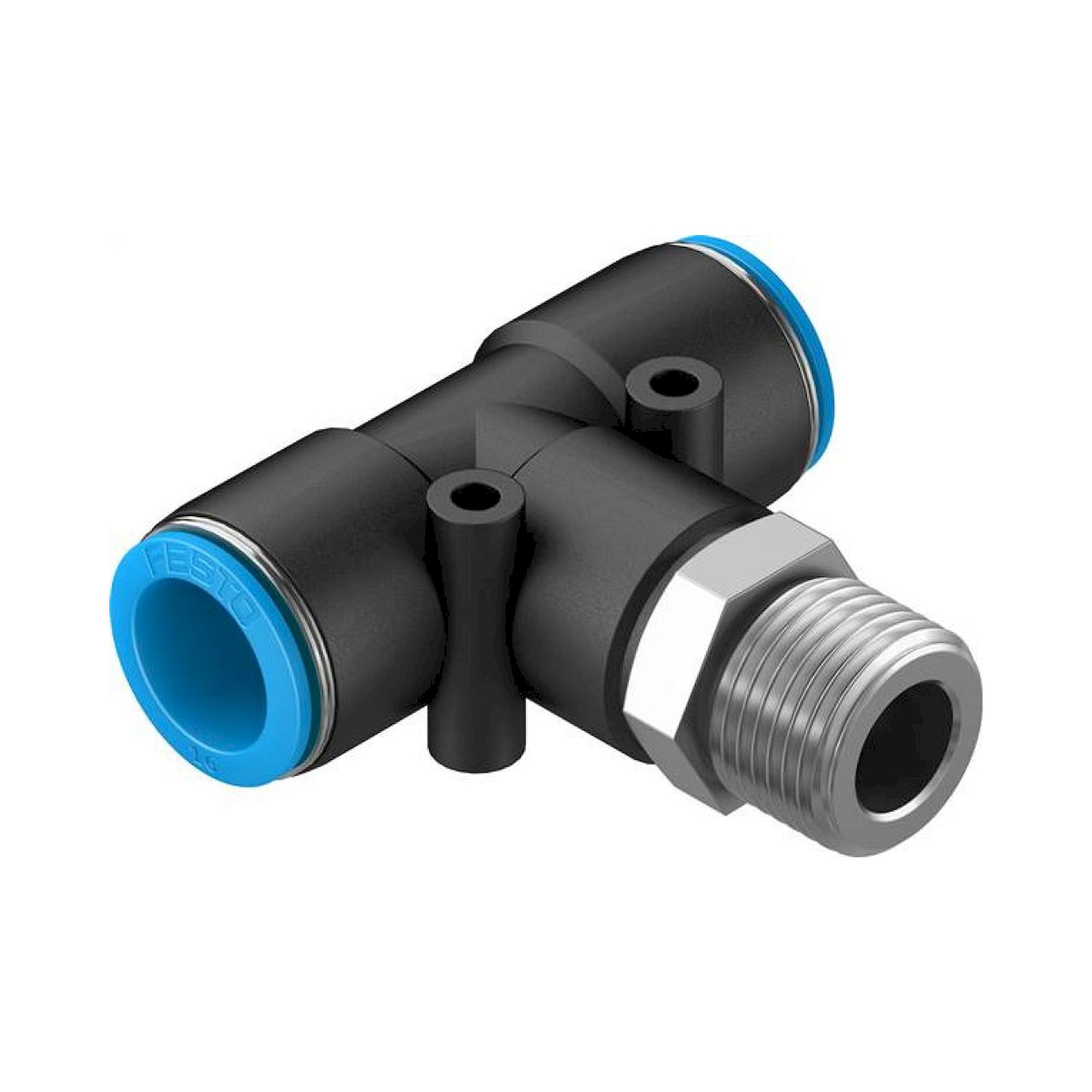

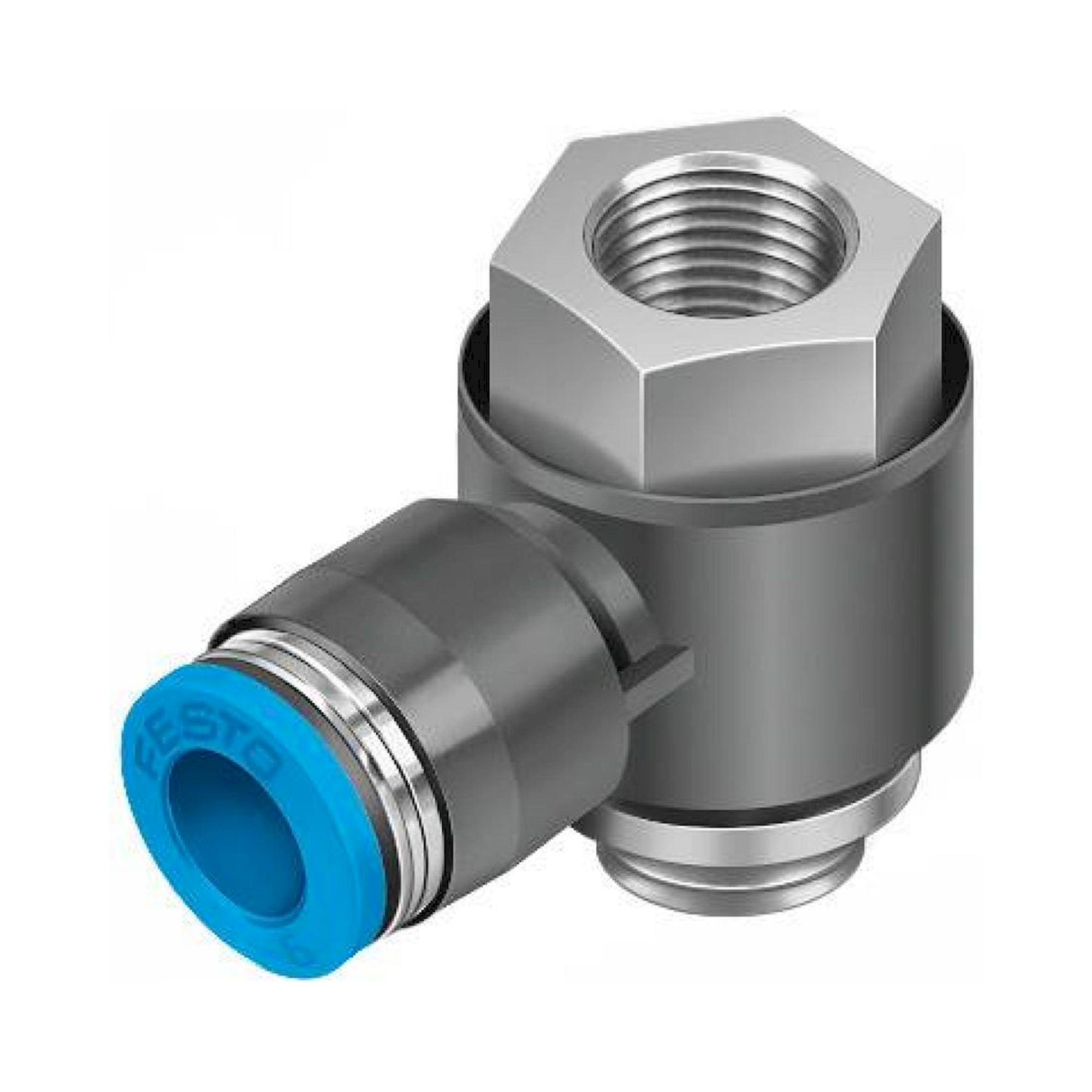

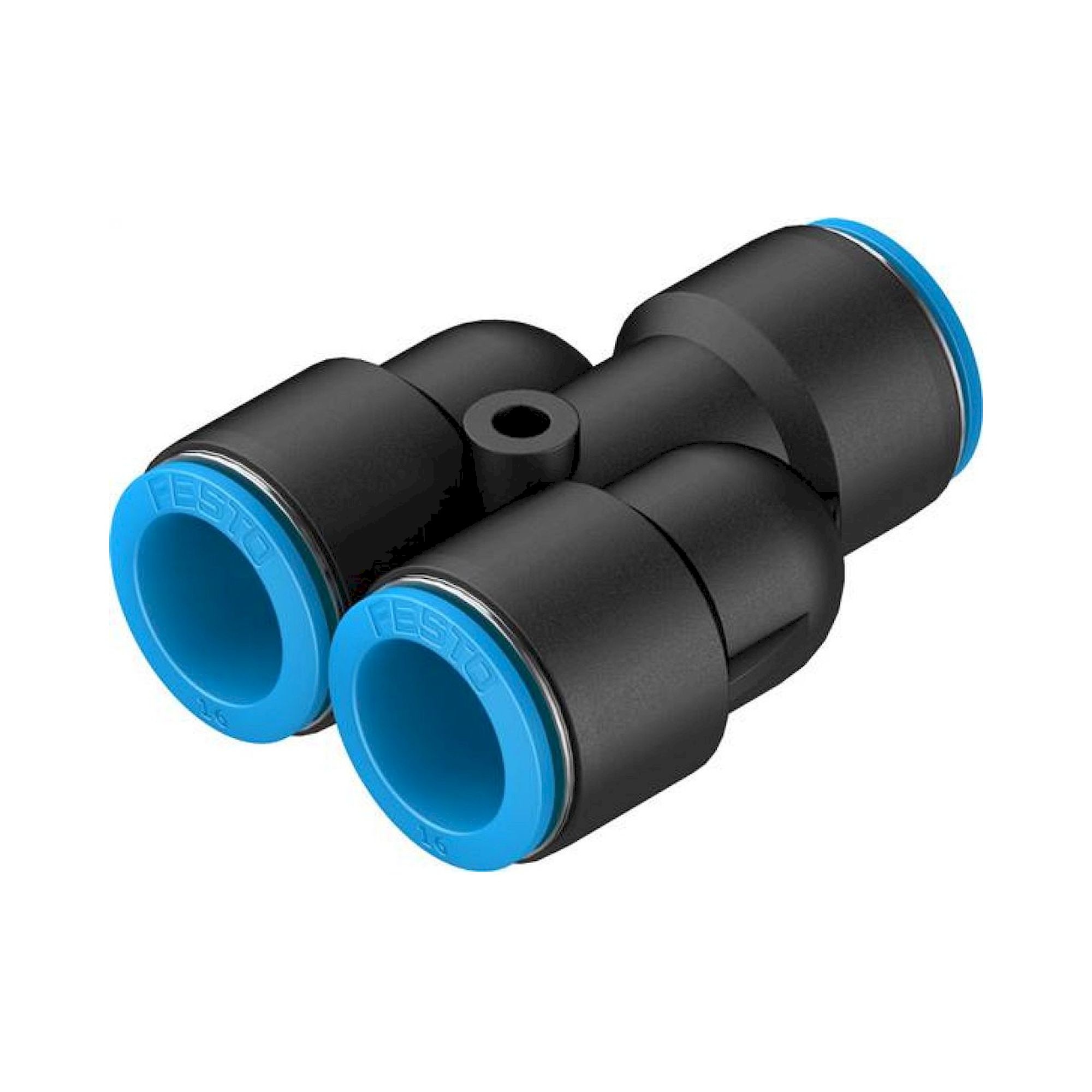

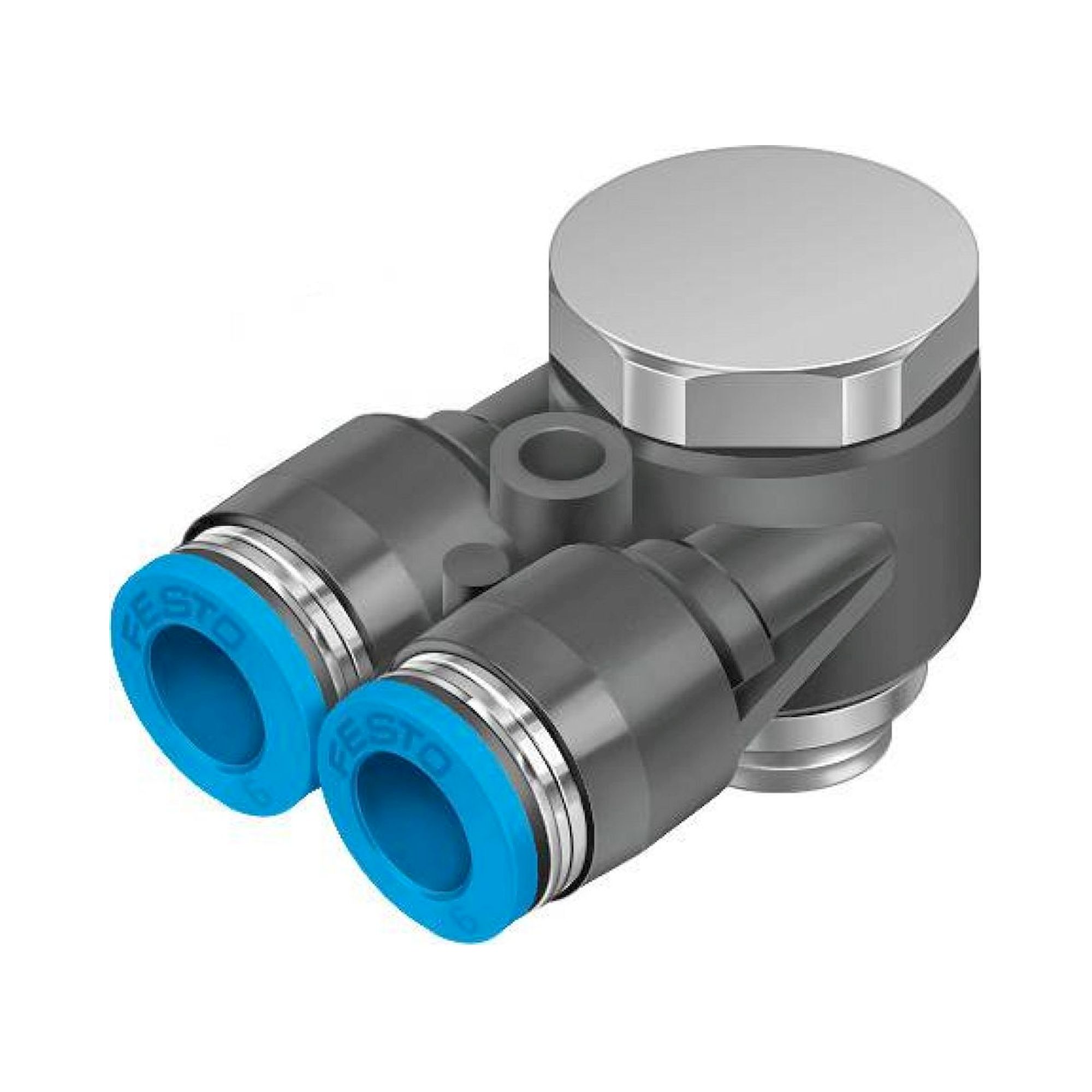

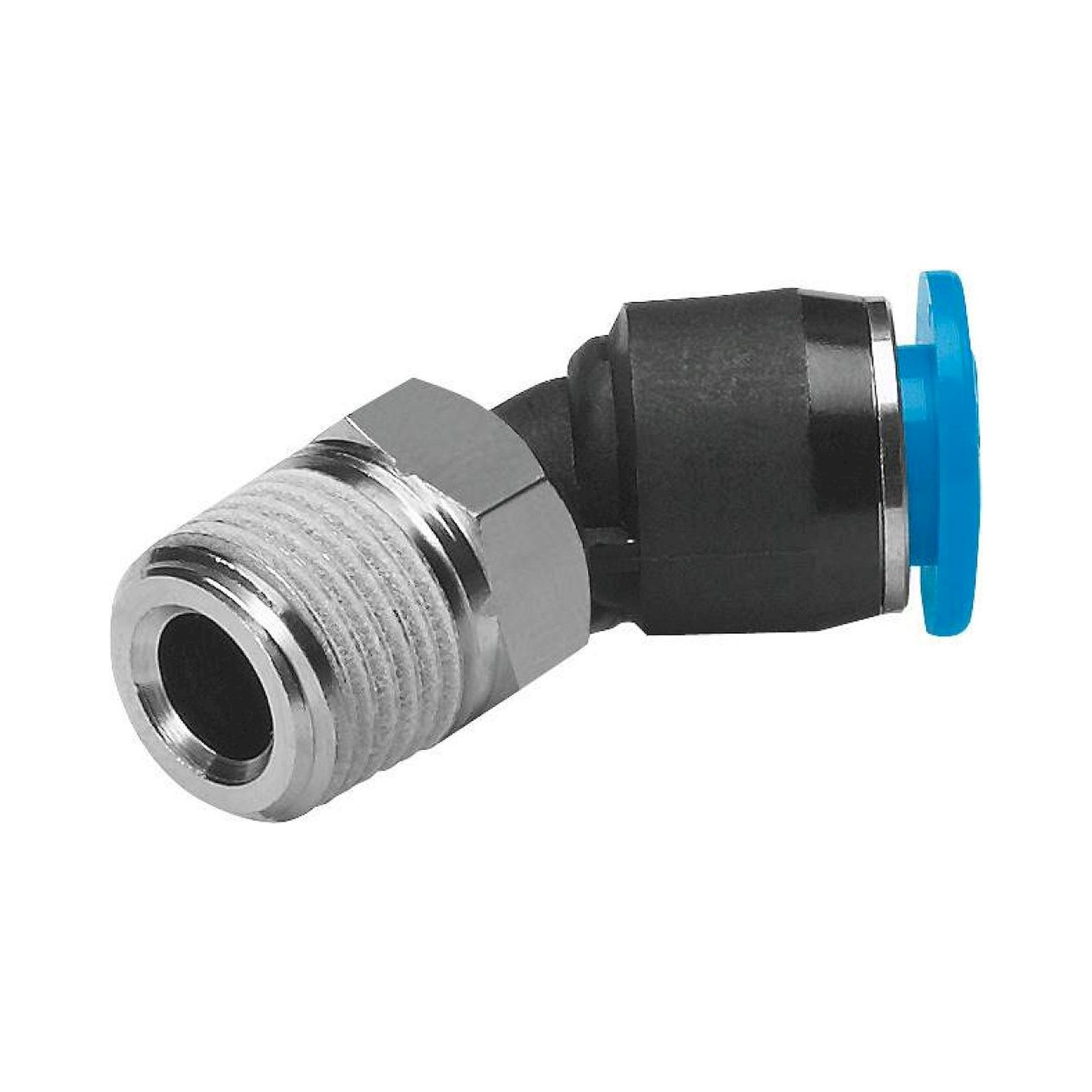

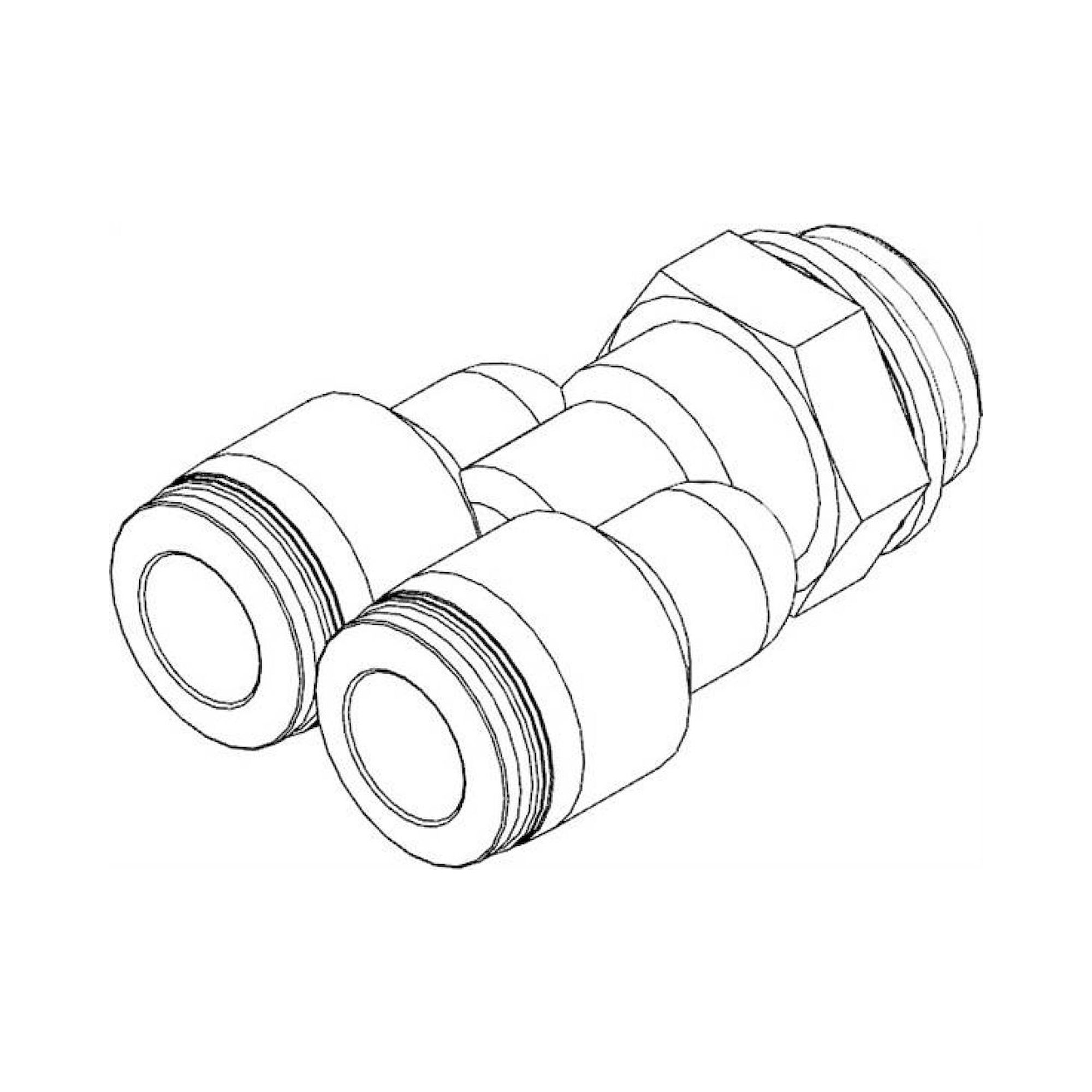

The Festo push-in fittings QS, standard series is the most comprehensive Festo push-in fitting series with 622 articles. It covers thread connections from G 1/8 to G 1/2 and tube outside diameters from 4 to 16 mm, encompassing all common shapes: straight fittings, L-elbows, T-pieces, Y-distributors, bulkhead fittings, and tube-to-tube double connectors without threaded port. Variants with the suffix -I (inner lock) prevent accidental tube withdrawal by means of a second clamping stage.
| Shape | Example type | Function |
|---|---|---|

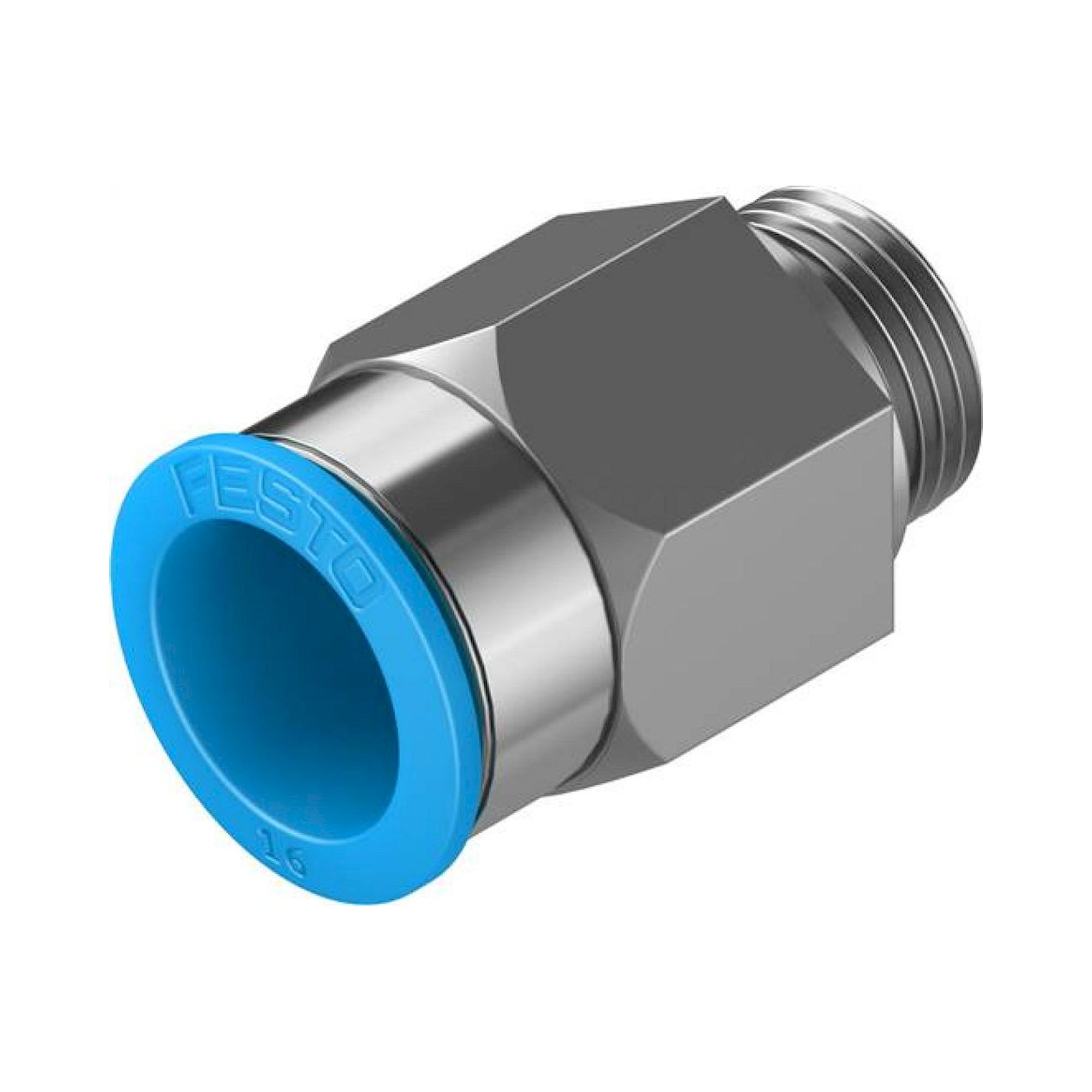

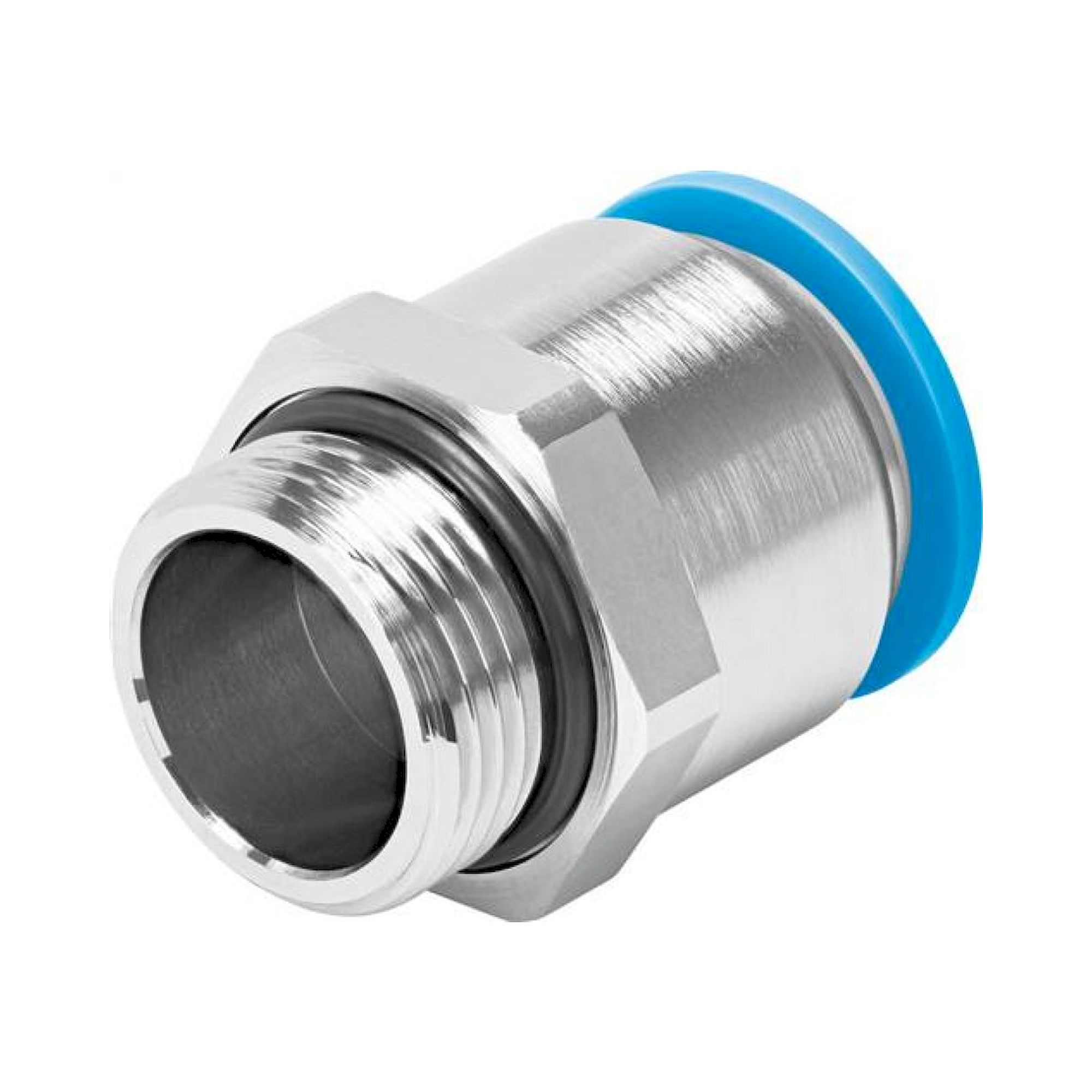

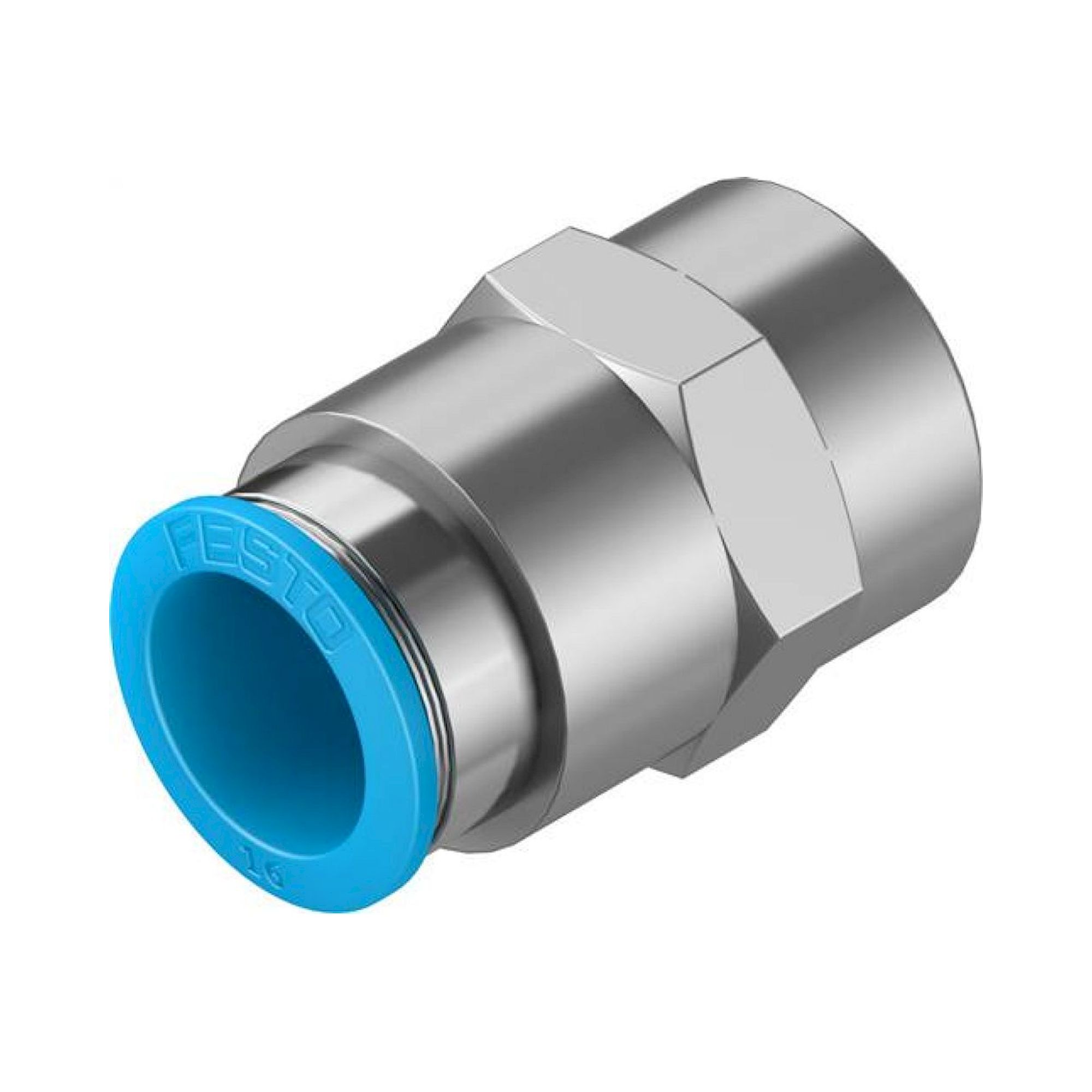

| Straight fitting | QS-1/4-6, QS-1/4-8 | Standard tube to threaded port connection |

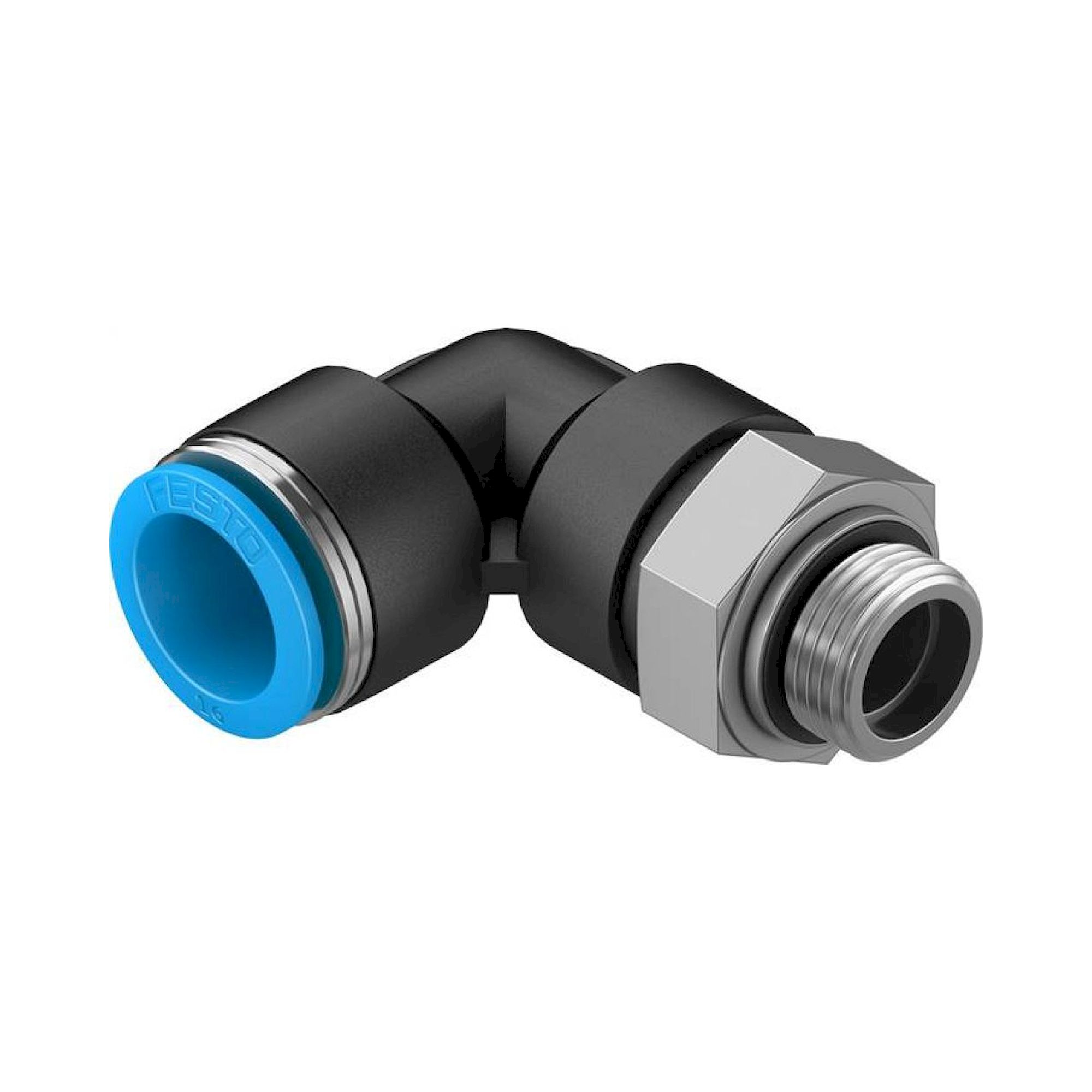

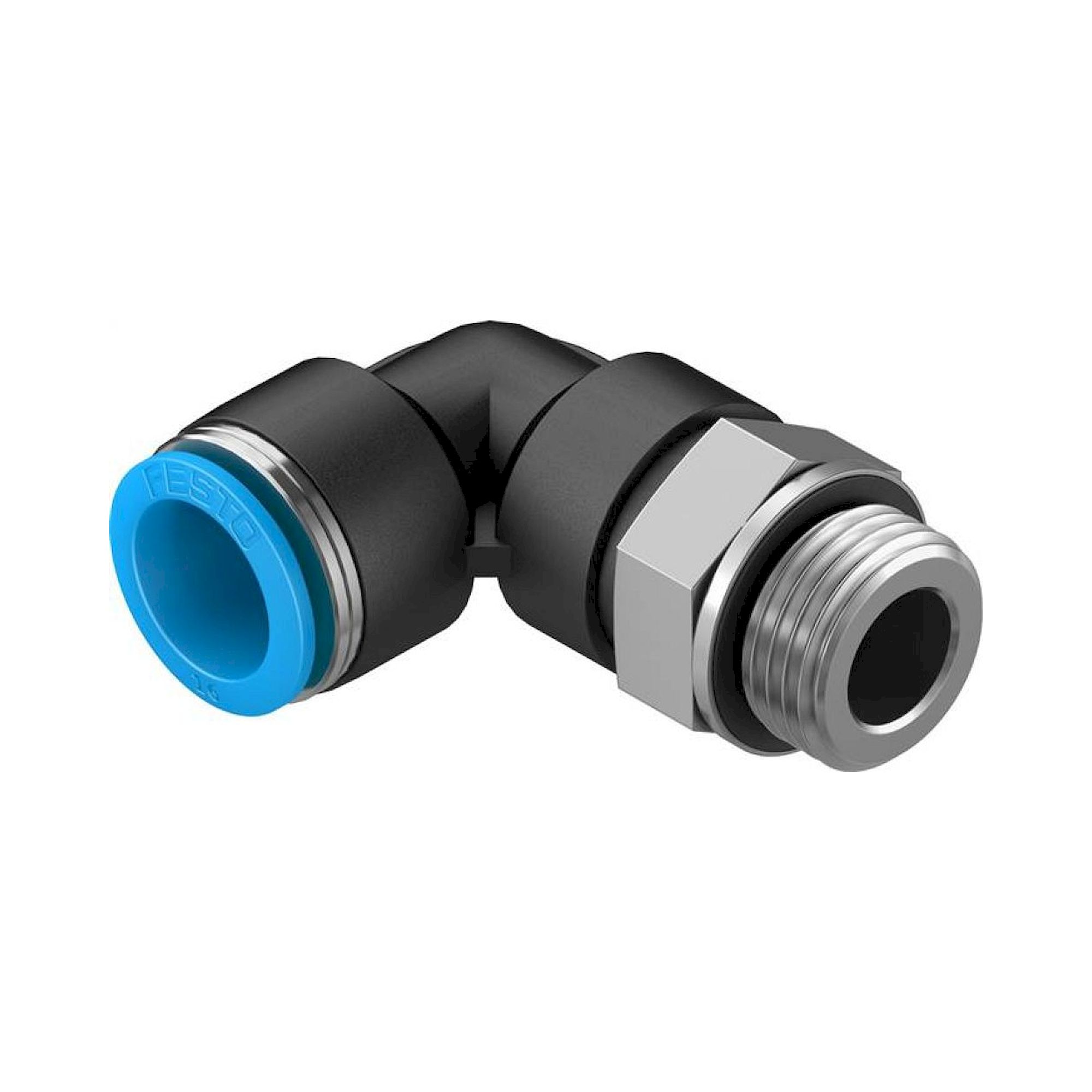

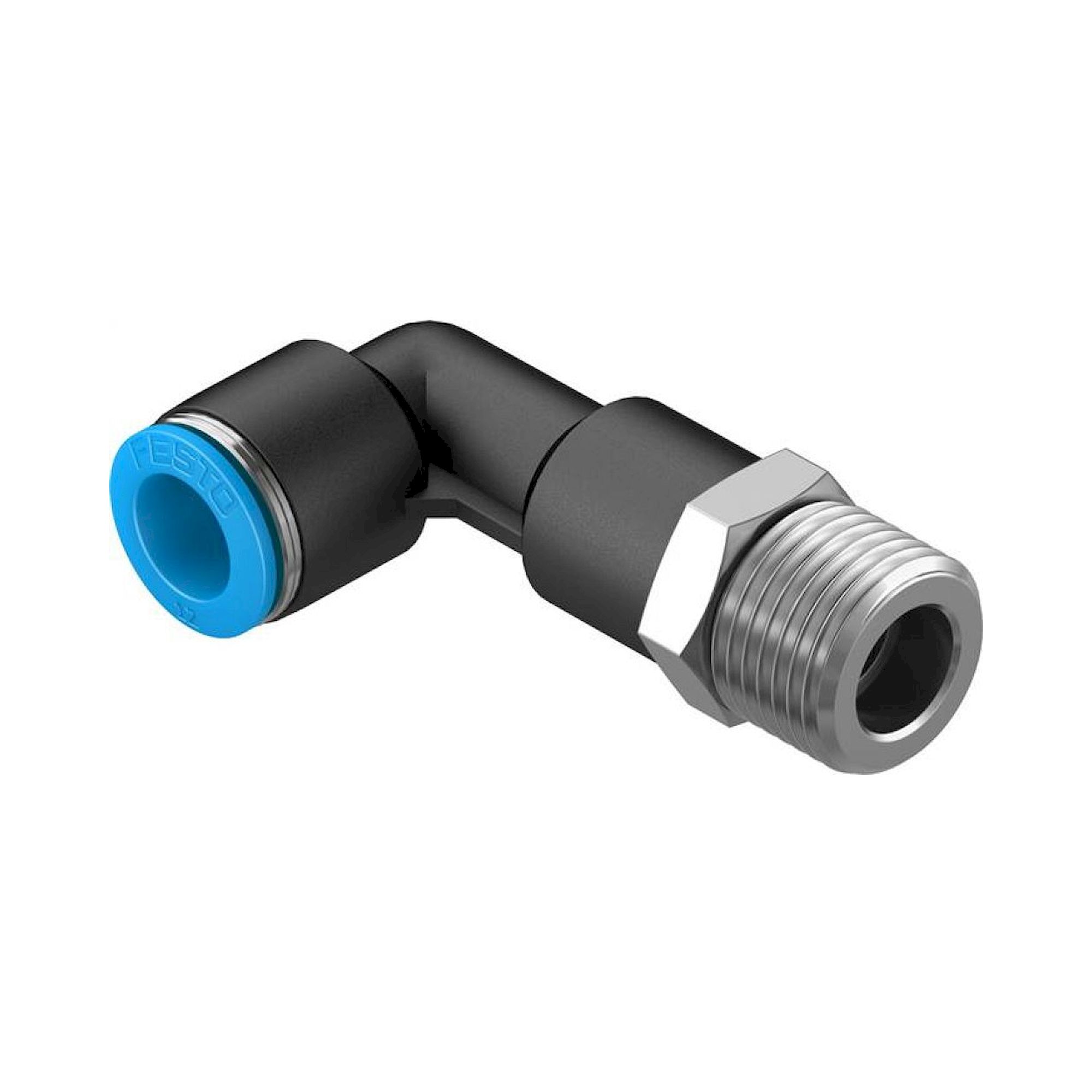

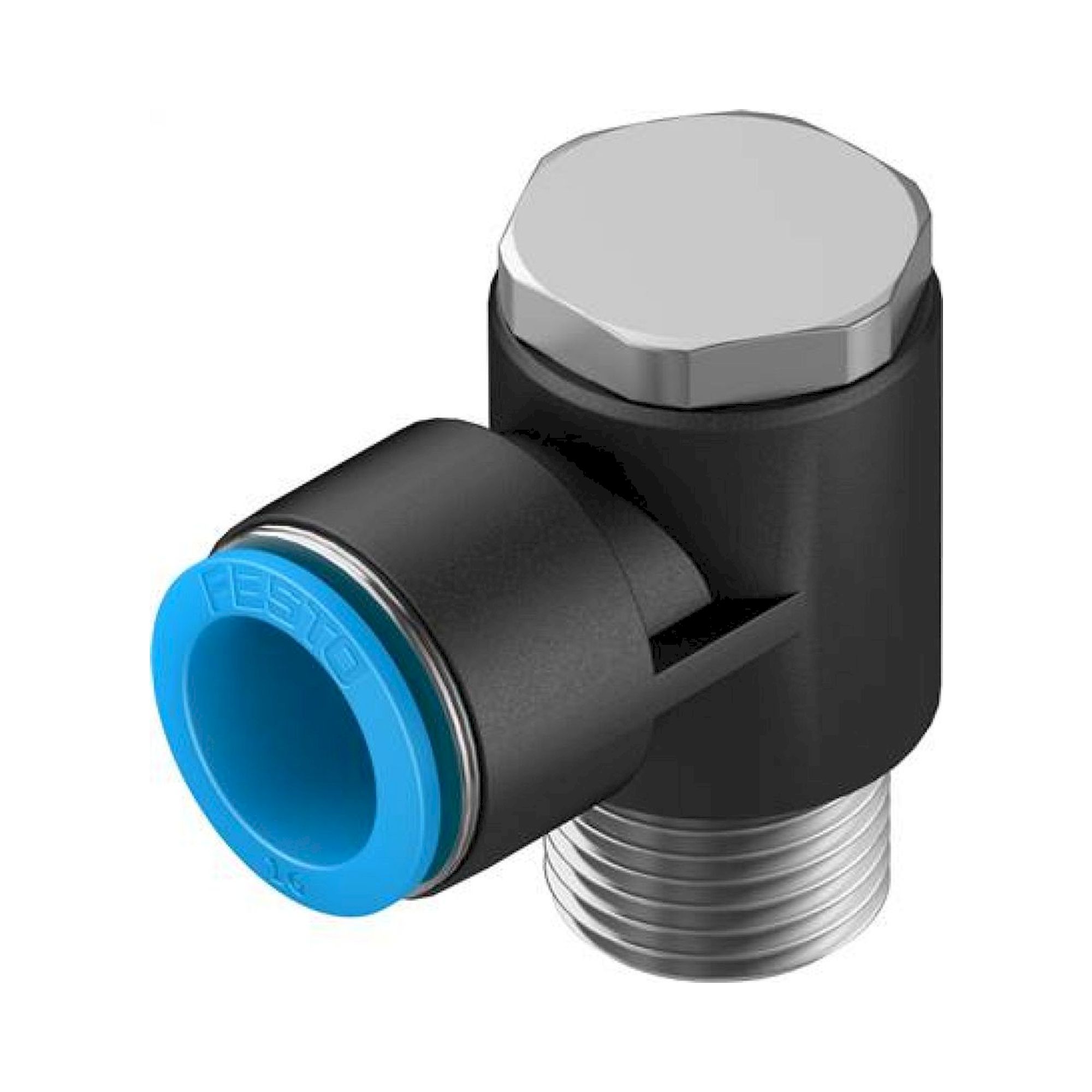

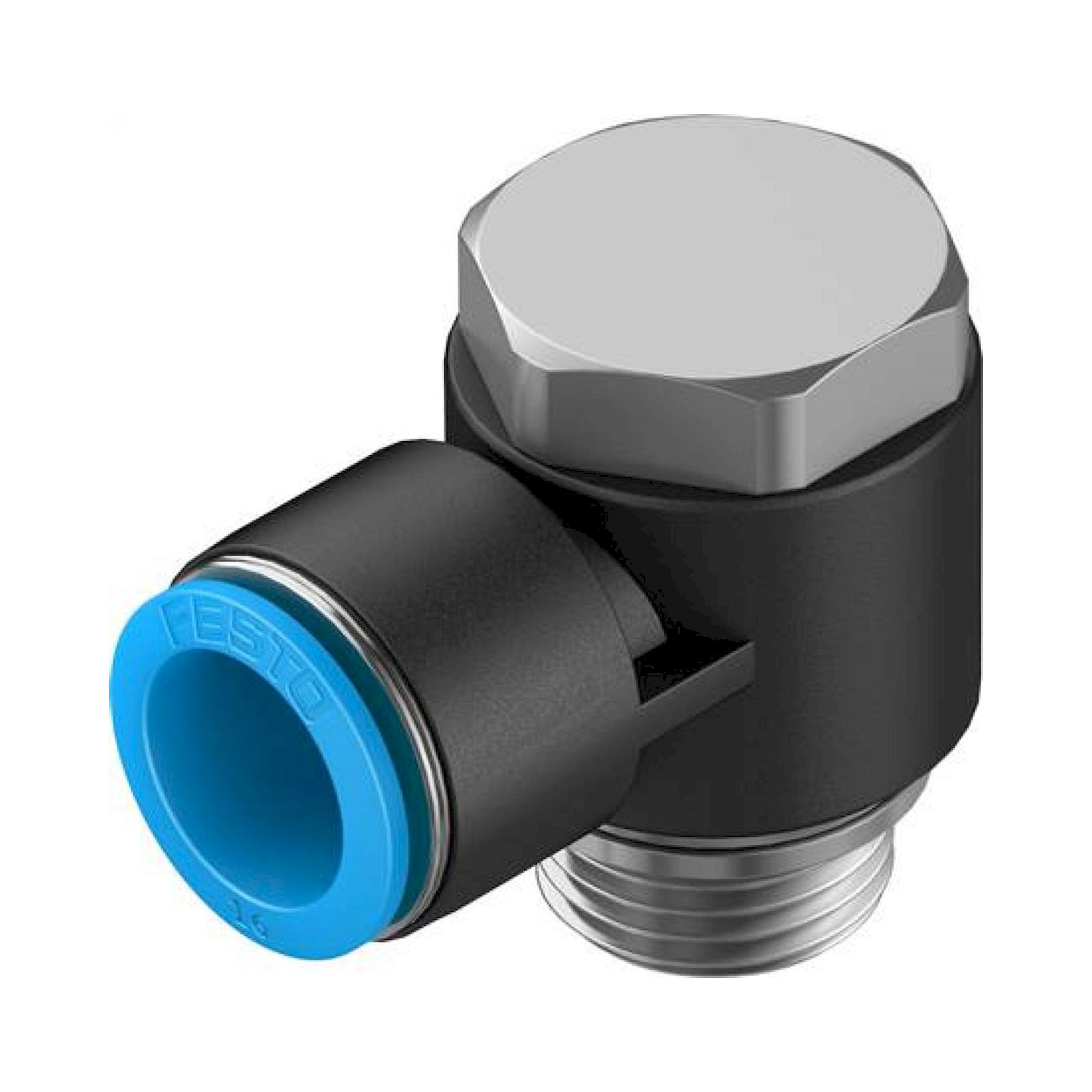

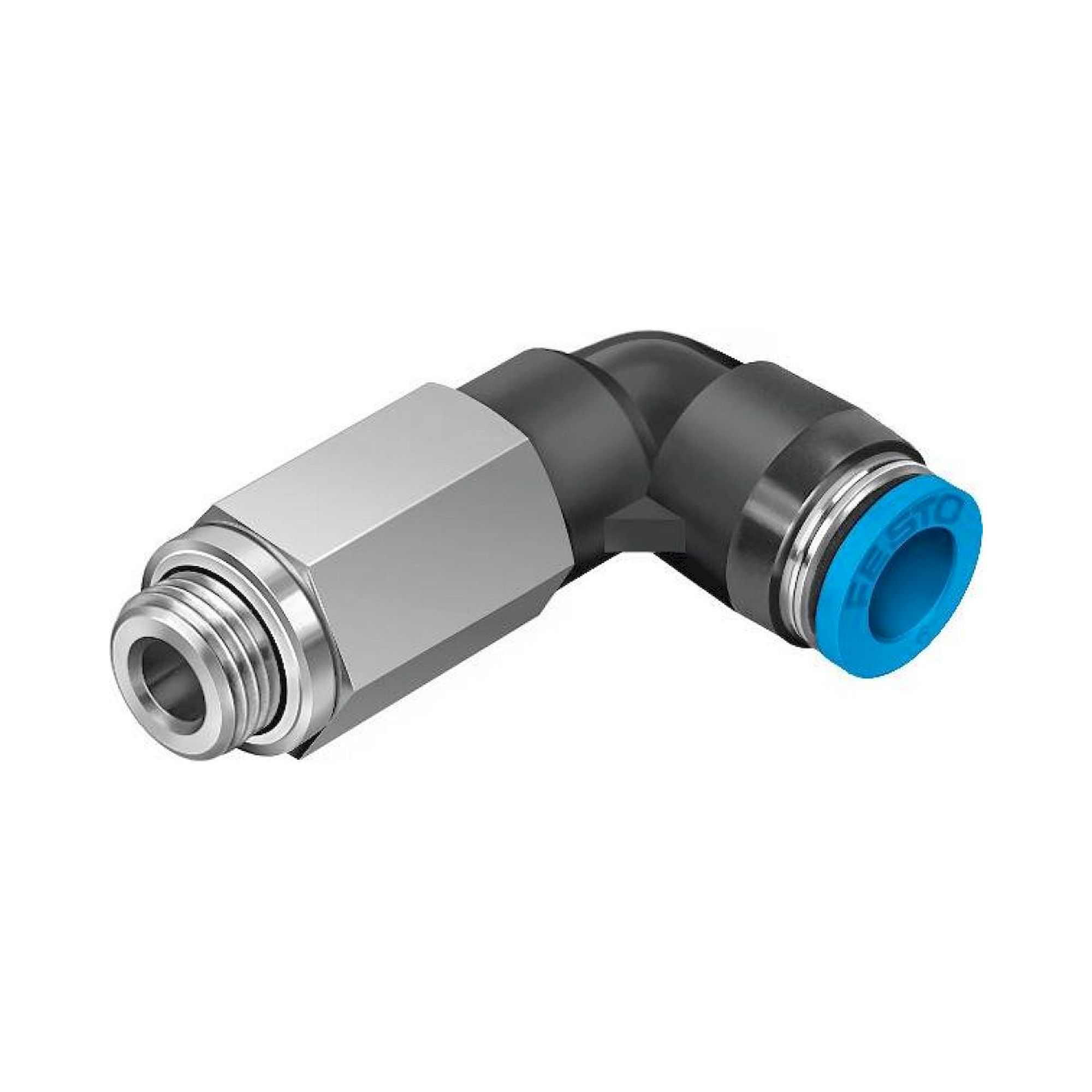

| L-elbow | QS-...L-... | 90° redirection, saves space |

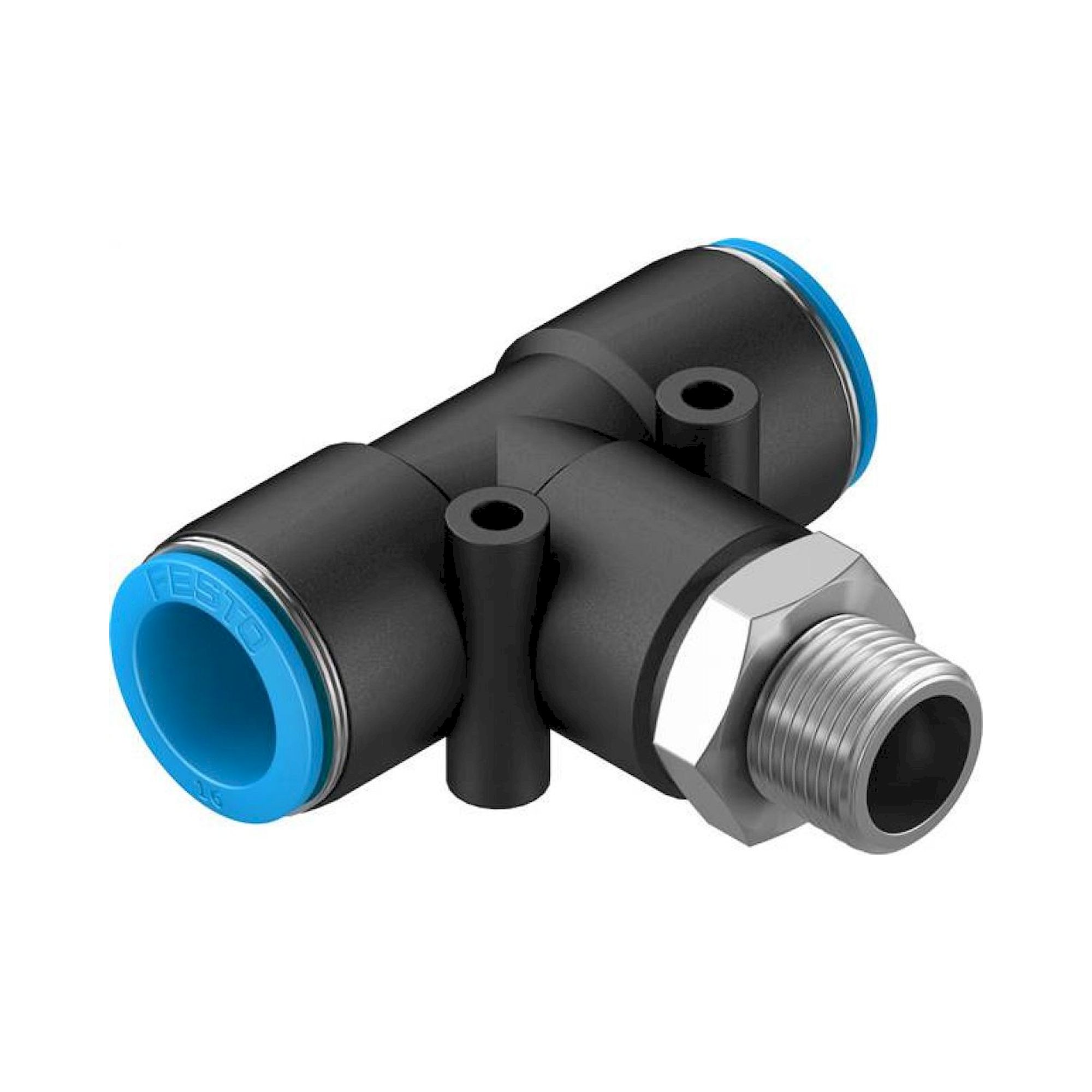

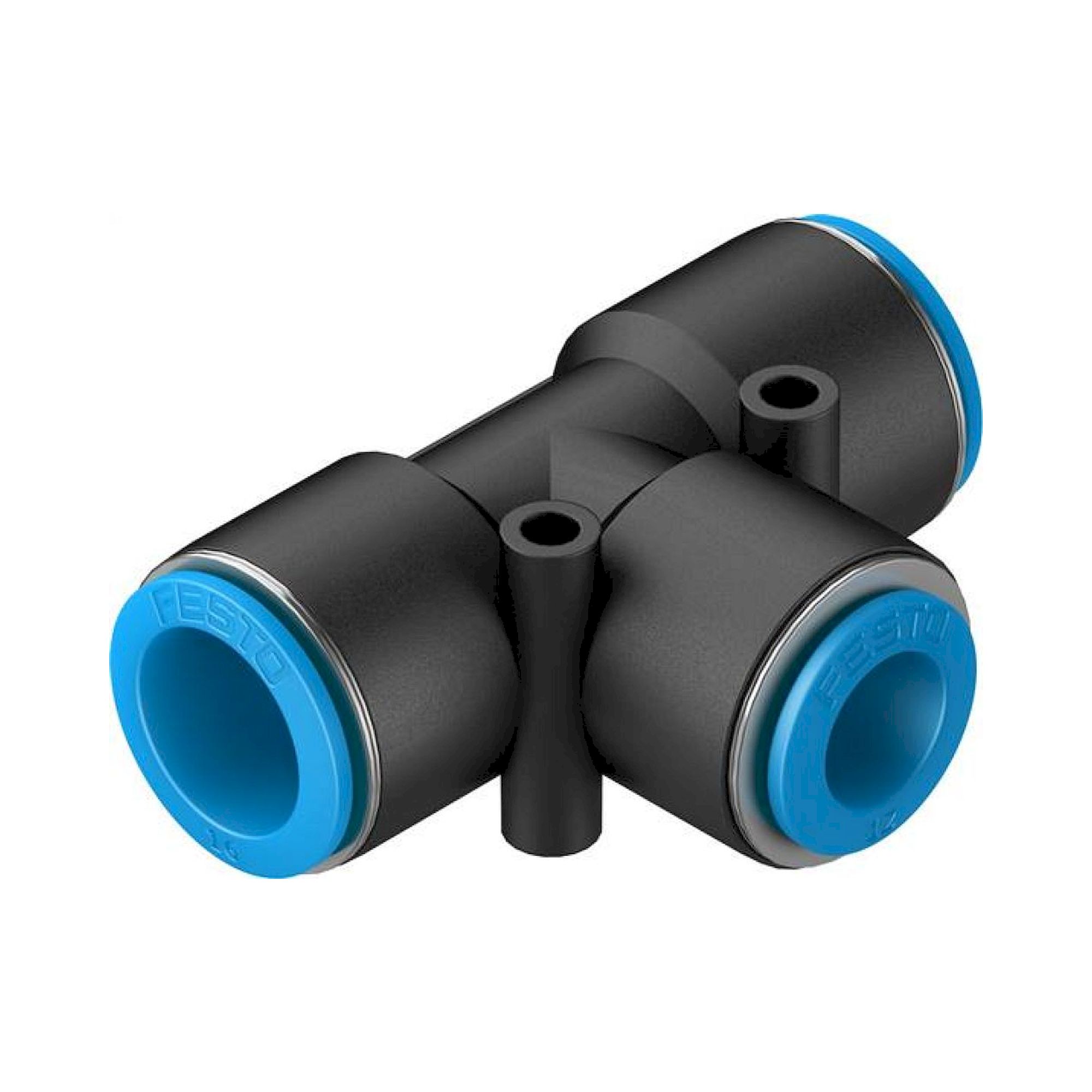

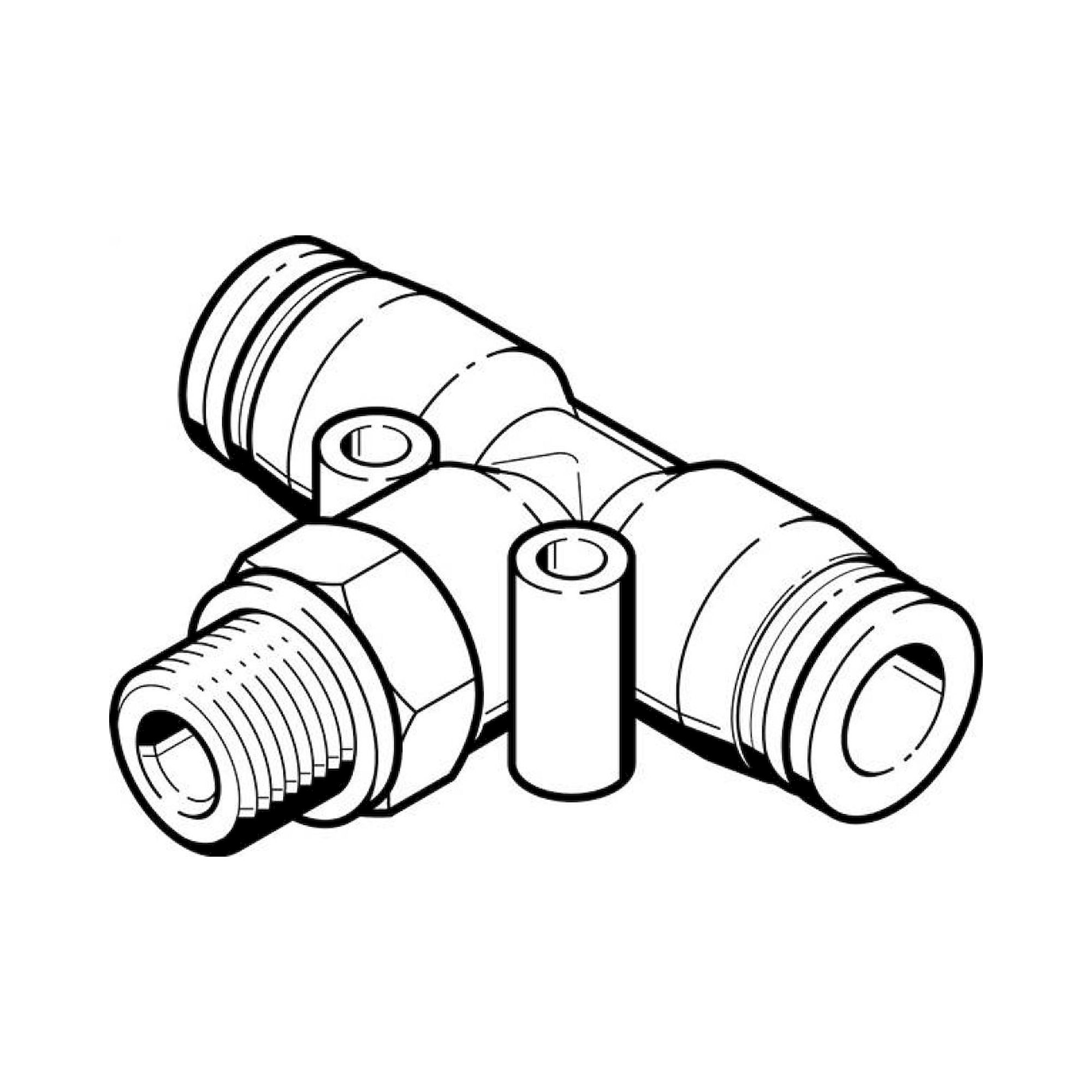

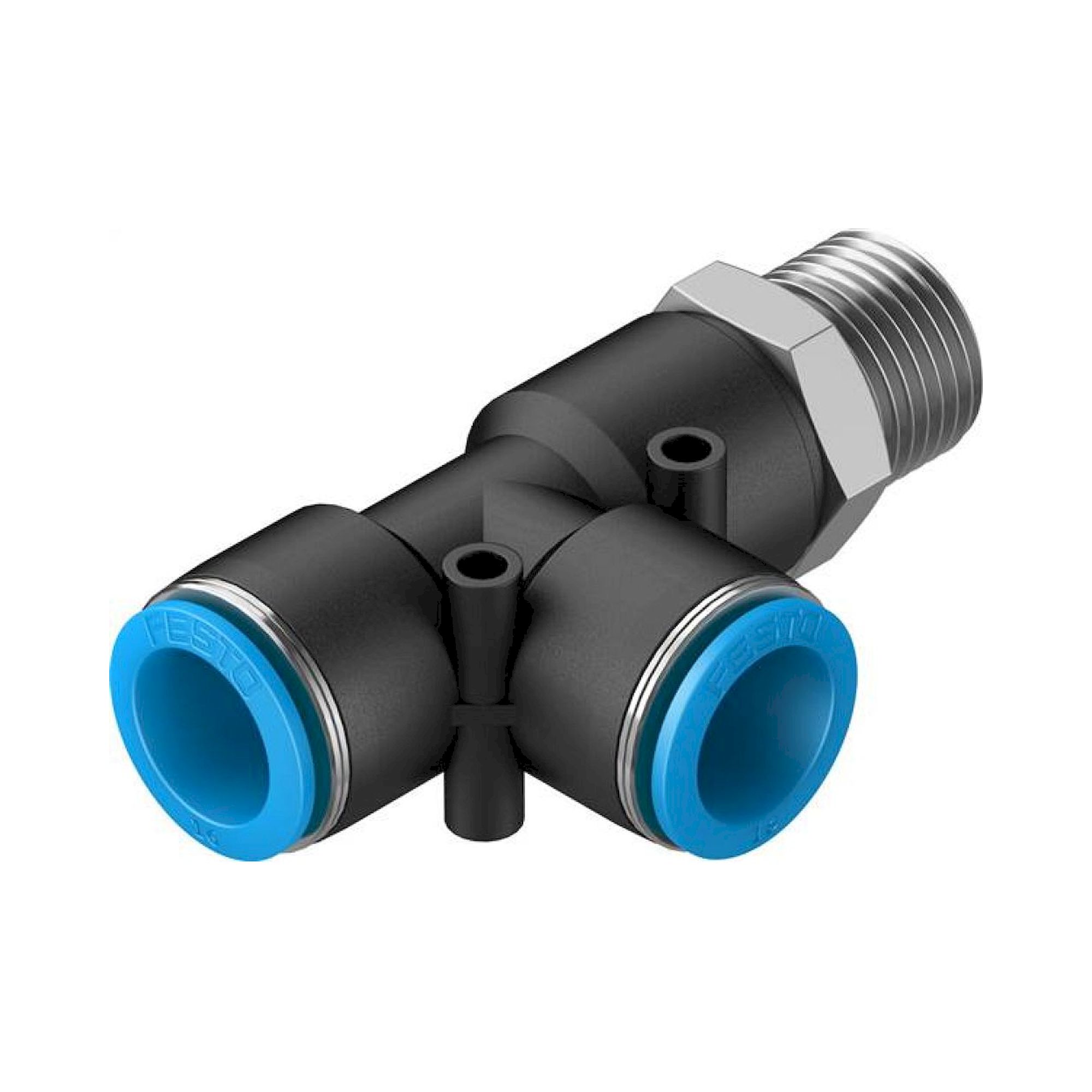

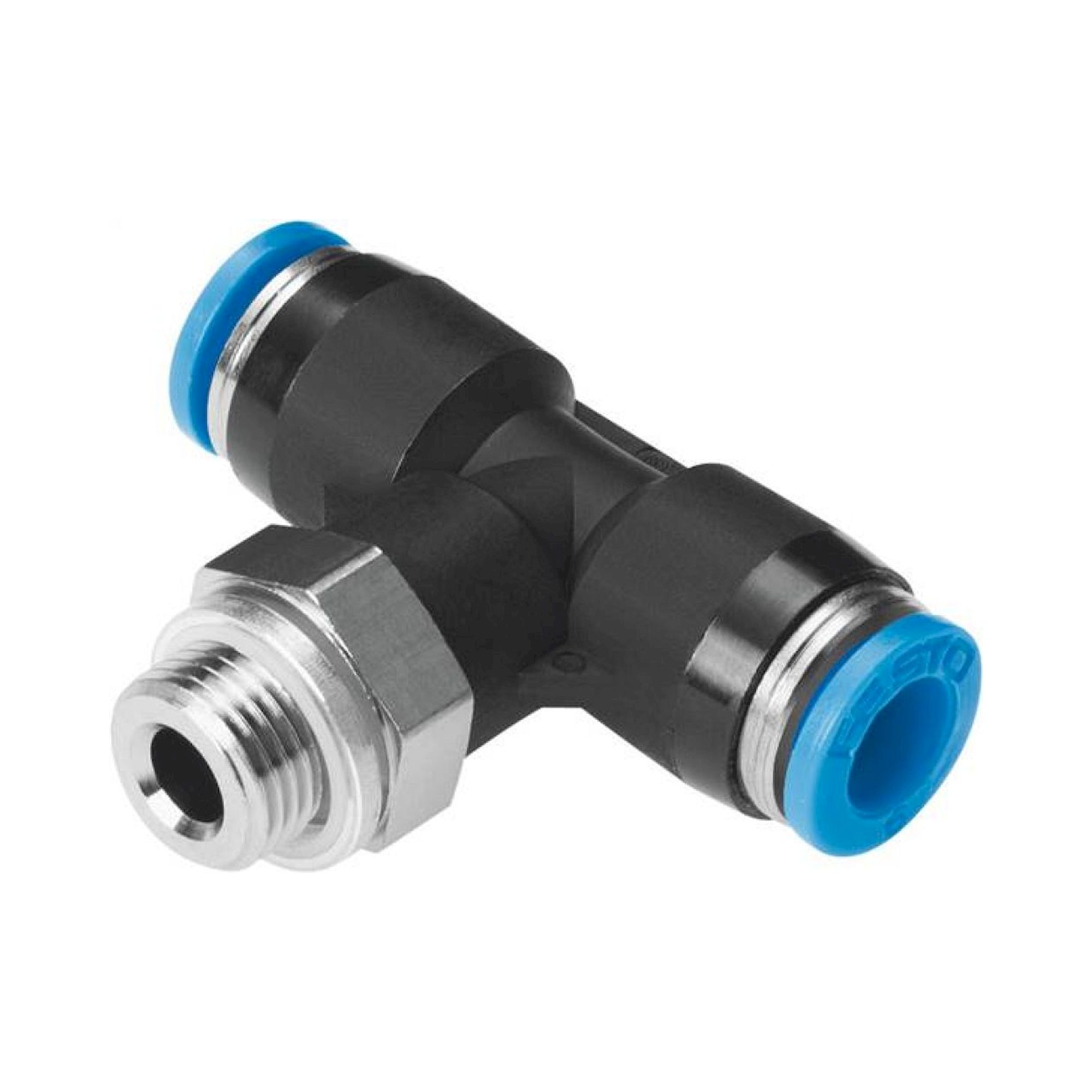

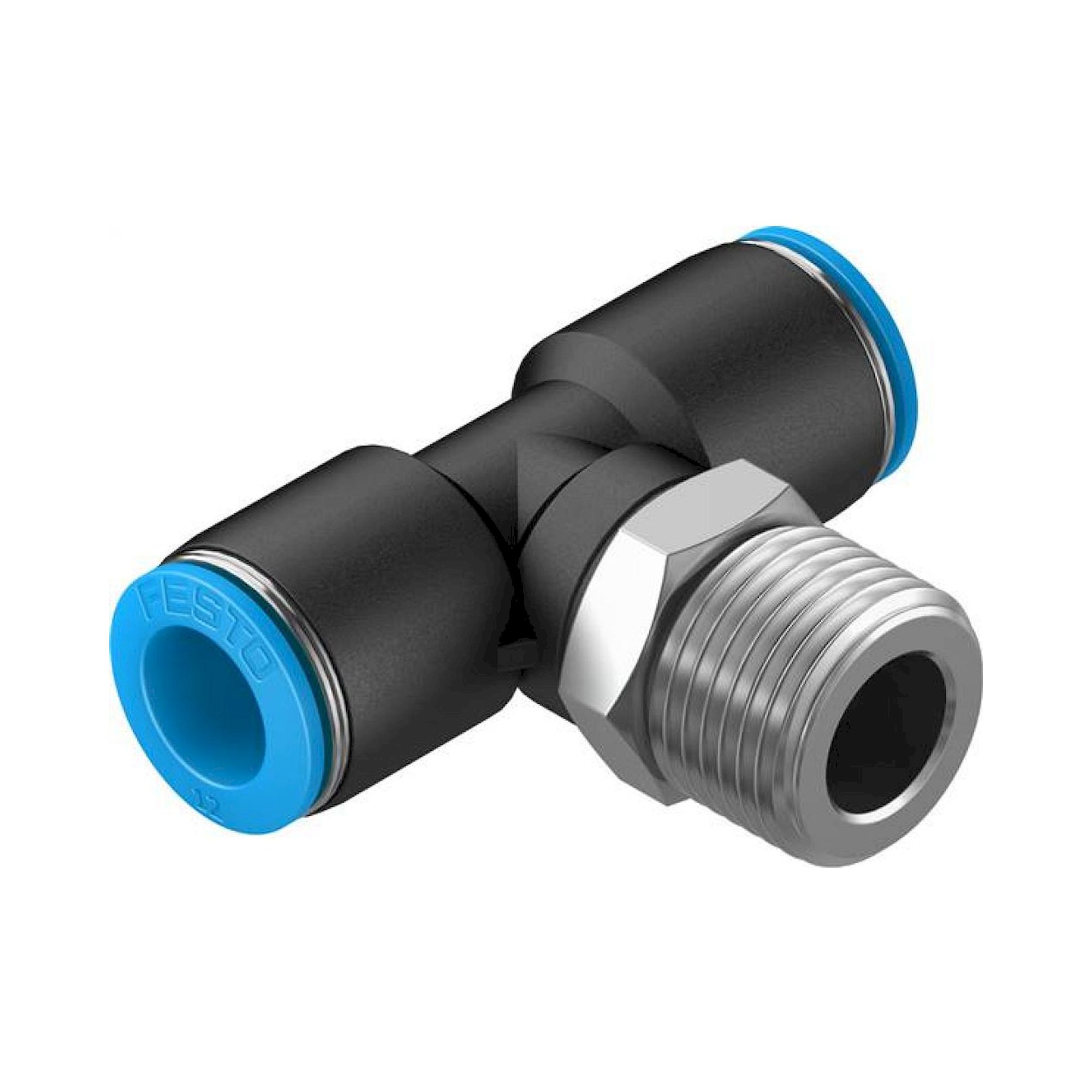

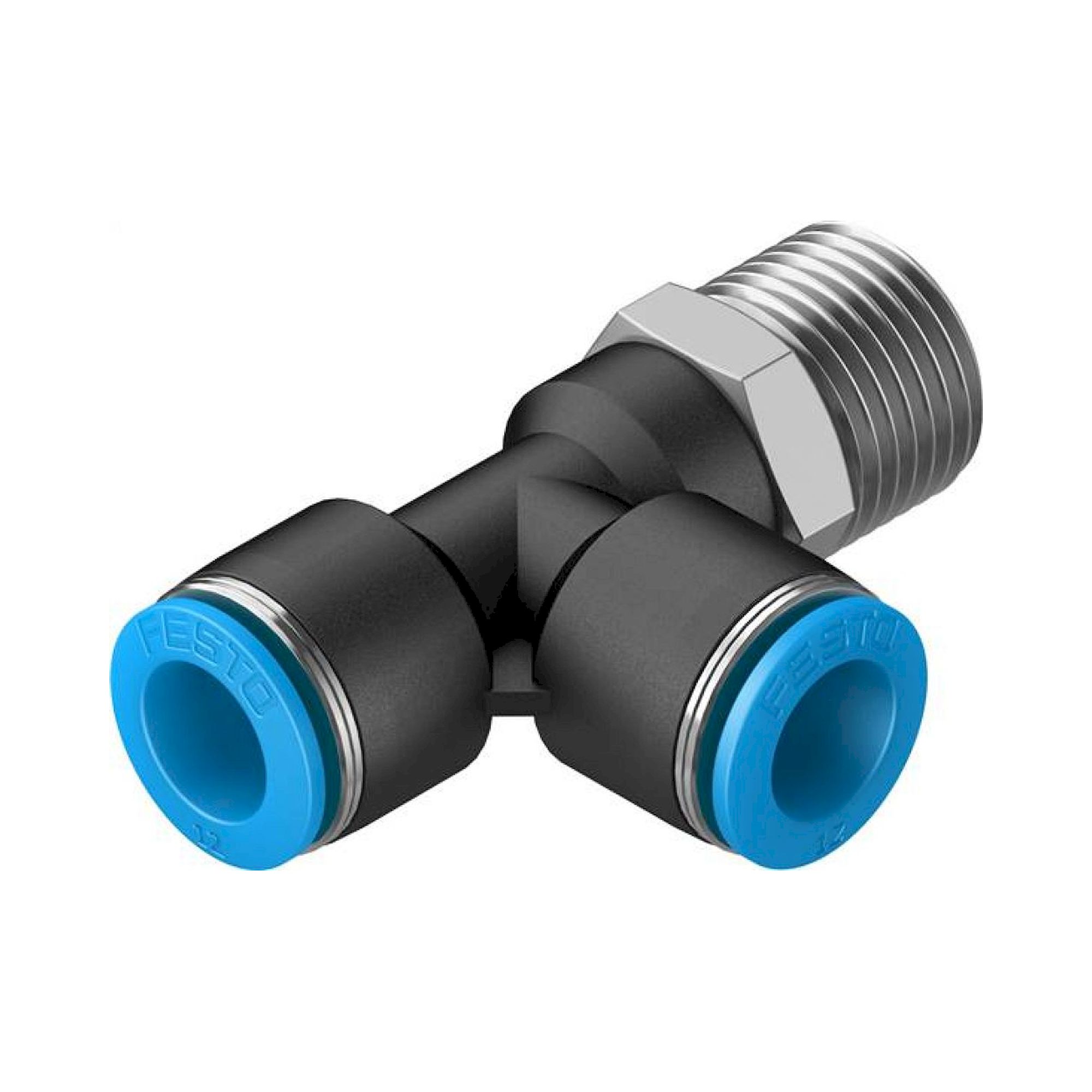

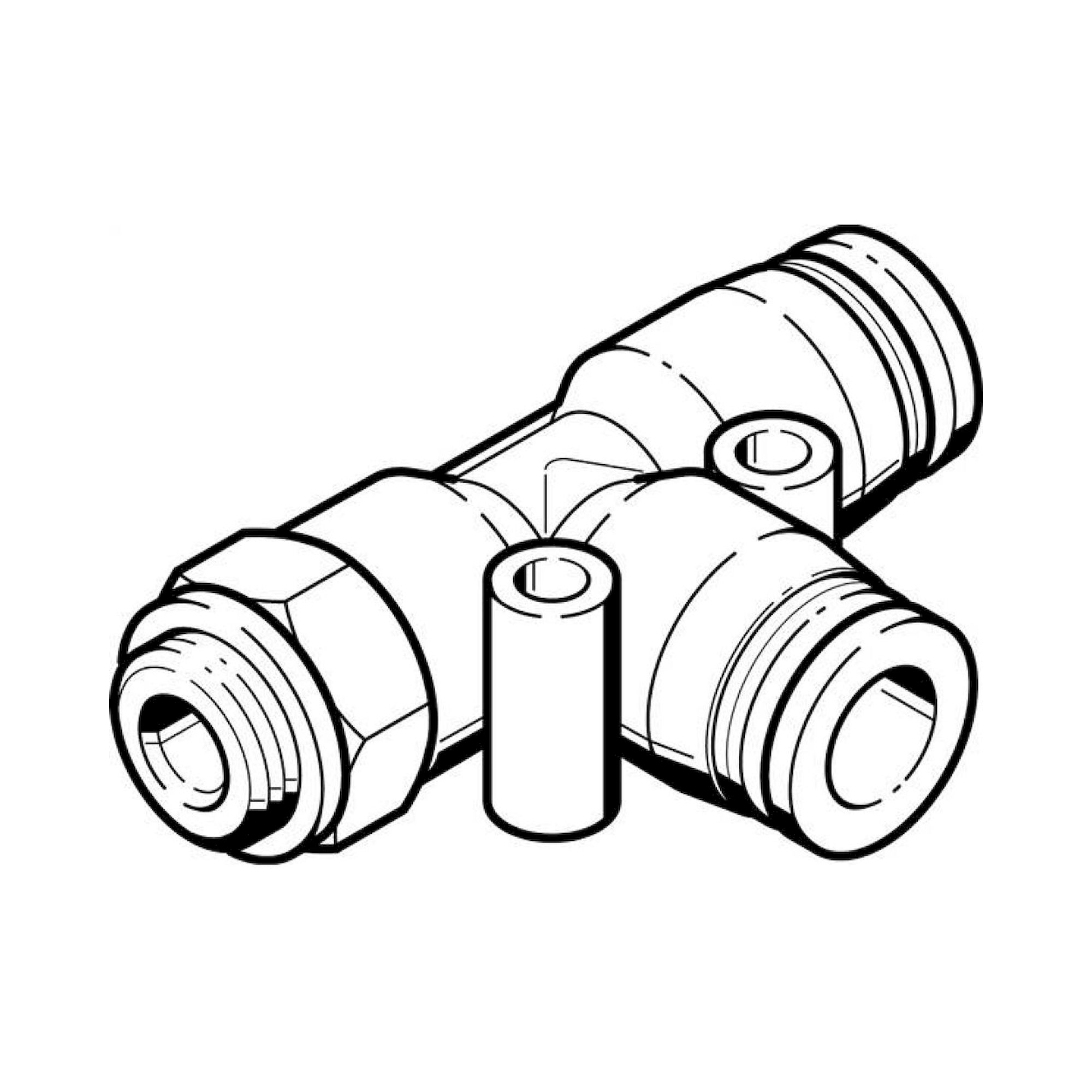

| T-piece | QS-...T-... | Three-way branch |
| Bulkhead fitting | QS-...D-... | Panel feed-through for tubing |
| Double connector | QS-10, QS-10-6 | Tube-to-tube without threaded port |
| Inner lock -I | QS-1/4-6-I | Enhanced tube locking against pull-out |
Typical applications: General machine building and automation with polyurethane and nylon tubing, pneumatic cylinder connections in assembly automation, pneumatic gripping and handling systems, control valve port connections in pneumatic control cabinets, and maintenance and repair work benefiting from fast tool-free disassembly. The -I variants are used in vibration-intensive environments such as air motors or impact tools.
