What are Festo QSP cartridges and what industrial applications use these pneumatic push-in fittings?

Festo QSP cartridges are modular pneumatic push-in fitting inserts designed for quick-connect applications in compressed air systems, featuring tube diameter compatibility from 4mm to 20mm as evidenced by models like QSP10-4 and QSPKG20-12. These cartridge fittings serve automation equipment, packaging machinery, material handling systems, and assembly lines where frequent line changes require tool-free disconnection capabilities. Manufacturing industries including automotive, food processing, and electronics assembly rely on QSP cartridges for their pneumatic actuator connections, vacuum systems, and compressed air distribution networks.

What are the key technical selection criteria for choosing the correct Festo QSP cartridge model?

Selection of Festo QSP cartridges depends primarily on tube outer diameter compatibility, with available sizes ranging from 4mm (QSP10-4) through 20mm (QSPKG20-12), and thread specifications where models like QSPLKG20-12 indicate specific port configurations. Operating pressure capability typically reaches 16 bar for standard pneumatic applications, while media compatibility covers compressed air, inert gases, and vacuum applications down to -0.9 bar. Port geometry variations include straight-through designs (QSP series), angled configurations (QSPLK models), and specialized variants with integrated check valves or flow restrictors depending on system requirements.

Which international standards and certifications apply to Festo QSP pneumatic cartridge fittings?

Festo QSP cartridges comply with ISO 14743 standard for pneumatic push-in fittings, ensuring dimensional consistency and performance reliability across international installations. The fittings meet DIN EN 983 requirements for compressed air system components, while material specifications align with ISO 8573 for air quality compatibility including corrosion resistance and particle contamination limits. European machinery directive 2006/42/EC compliance ensures integration compatibility with CE-marked pneumatic equipment, and selected models carry additional certifications for food-grade applications under FDA 21 CFR 177.2600 when specified for direct food contact environments.

What are the differences between QSP, QSPLK, QSPKG, and QSPLLKG cartridge variants in the Festo product line?

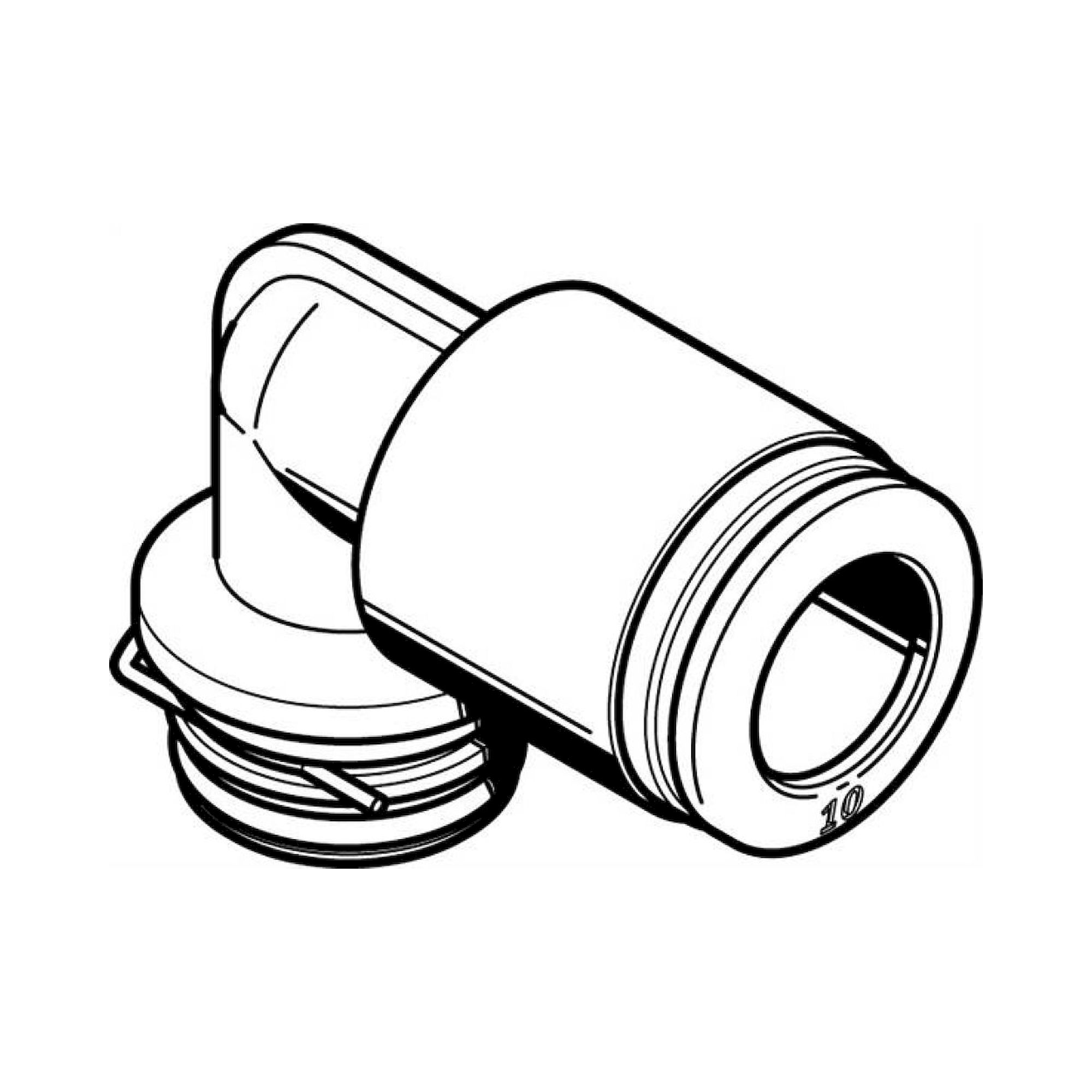

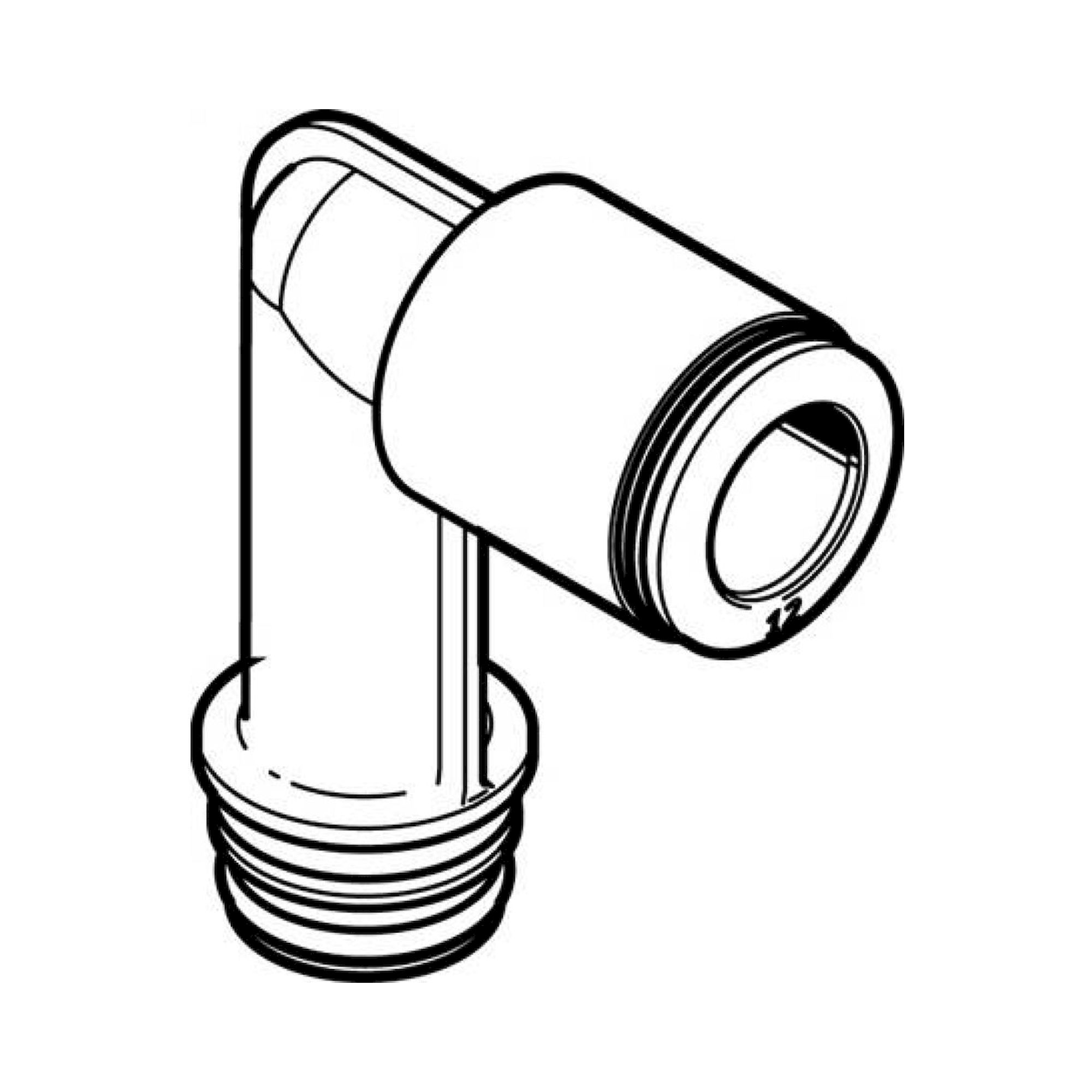

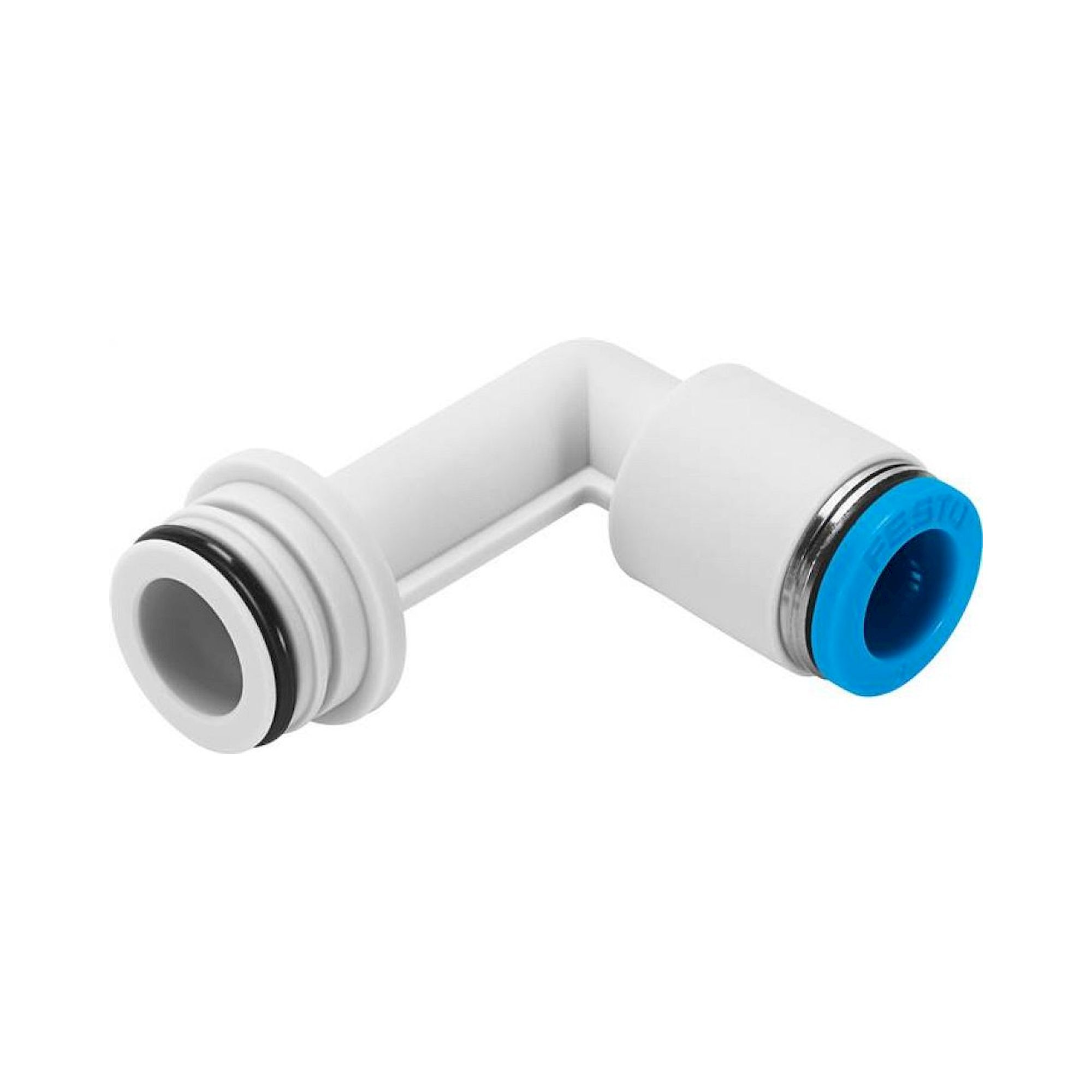

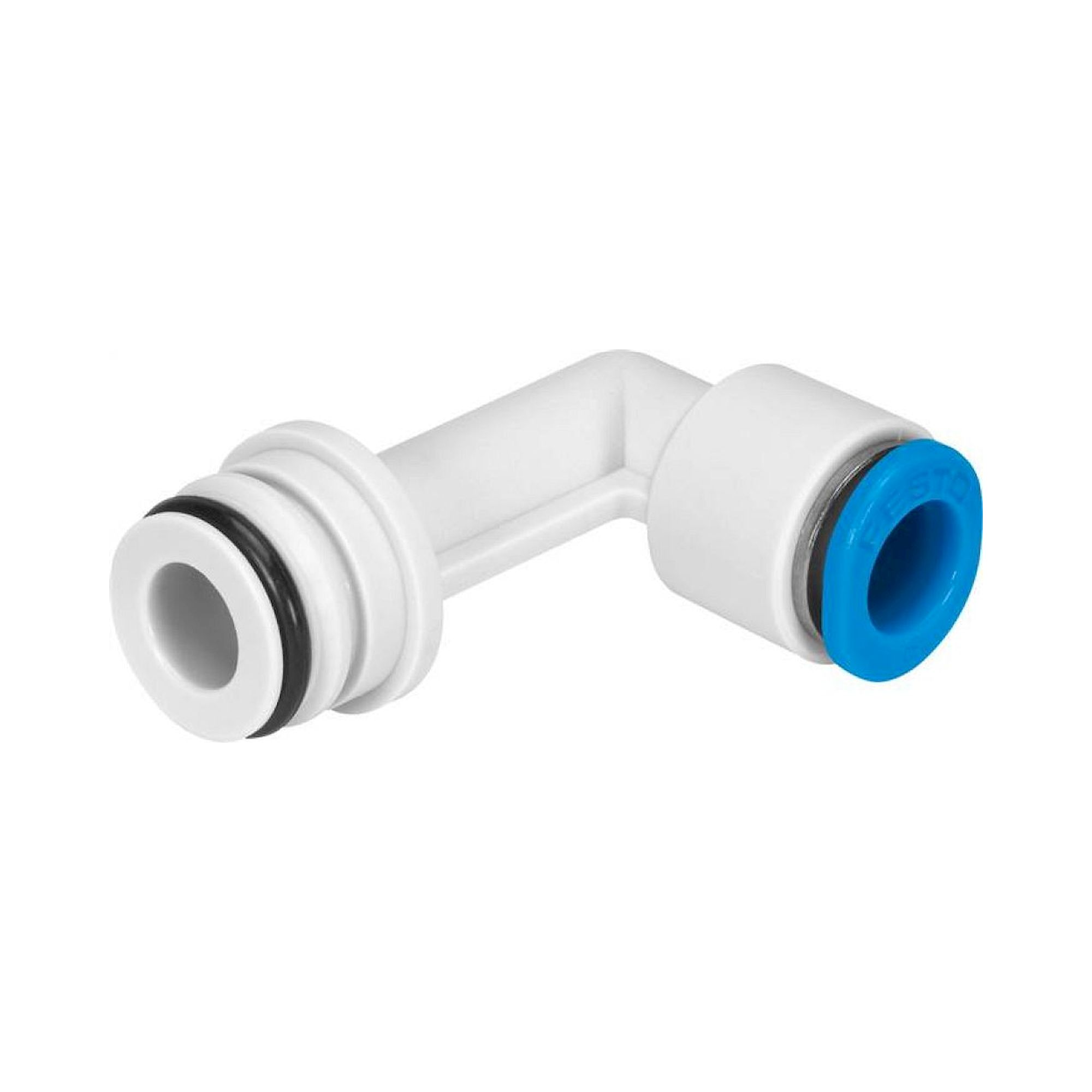

Standard QSP cartridges like QSP10-6 provide straight-through flow paths for basic push-in connections, while QSPLK variants such as QSPLK18-10 feature integrated check valves preventing backflow in single-direction applications. QSPKG models including QSPKG20-12 incorporate internal flow restrictors for controlled actuator speed regulation, and QSPLLKG cartridges like QSPLLKG20-12 combine both check valve and flow restriction functions in a single component. The numerical designations indicate port thread size and tube diameter compatibility, with PTB suffix models like QSP14-PTB serving as blanking plugs for unused ports in manifold applications.

What are the installation requirements and system compatibility specifications for Festo QSP cartridge fittings?

Festo QSP cartridges require compatible manifold blocks or valve bodies with standardized M5, M7, or G1/8 threaded ports depending on the specific model series, with installation torque specifications typically ranging from 2-4 Nm to prevent thread damage. The cartridges feature push-in tube connection technology accepting standard pneumatic tubing materials including polyurethane, polyamide, and PTFE with shore hardness ratings between 85A-95A for optimal sealing. System compatibility extends to working pressures up to 16 bar at ambient temperatures from -20°C to +80°C, with vacuum capability down to -0.9 bar for suction applications in material handling and packaging equipment.

What safety ratings, IP protection class, and operating parameter limits apply to Festo QSP pneumatic cartridges?

Festo QSP cartridges operate safely within pressure limits of 16 bar maximum working pressure and vacuum capability to -0.9 bar, with temperature ranges from -20°C to +80°C for standard compressed air applications using ISO 8573 quality air. The cartridge assemblies achieve IP65 protection rating when properly installed in compatible manifolds with appropriate sealing, providing dust-tight construction and protection against water jets from any direction. Material construction using corrosion-resistant brass, stainless steel, and NBR sealing elements ensures compatibility with standard industrial compressed air containing trace amounts of oil mist up to 40mg/m³ per ISO 8573-1 classification.

What maintenance schedule and service life expectations apply to Festo QSP pneumatic cartridge systems?

Festo QSP cartridges typically achieve 2 million connection cycles under normal operating conditions with ISO 8573 class 7:4:4 compressed air quality, requiring visual inspection every 6 months for seal integrity and connection tightness. Preventive maintenance involves checking for external leakage using soapy water solution at 6-month intervals, with cartridge replacement recommended after 5 years of continuous operation or immediately upon detection of internal leakage exceeding 0.1 l/min at 6 bar test pressure. Operating environment factors including temperature cycling, vibration exposure, and contamination levels directly impact service intervals, with harsh industrial conditions potentially reducing maintenance intervals to quarterly inspections for mission-critical pneumatic circuits.

Cartridges QSP

Push-in fittings

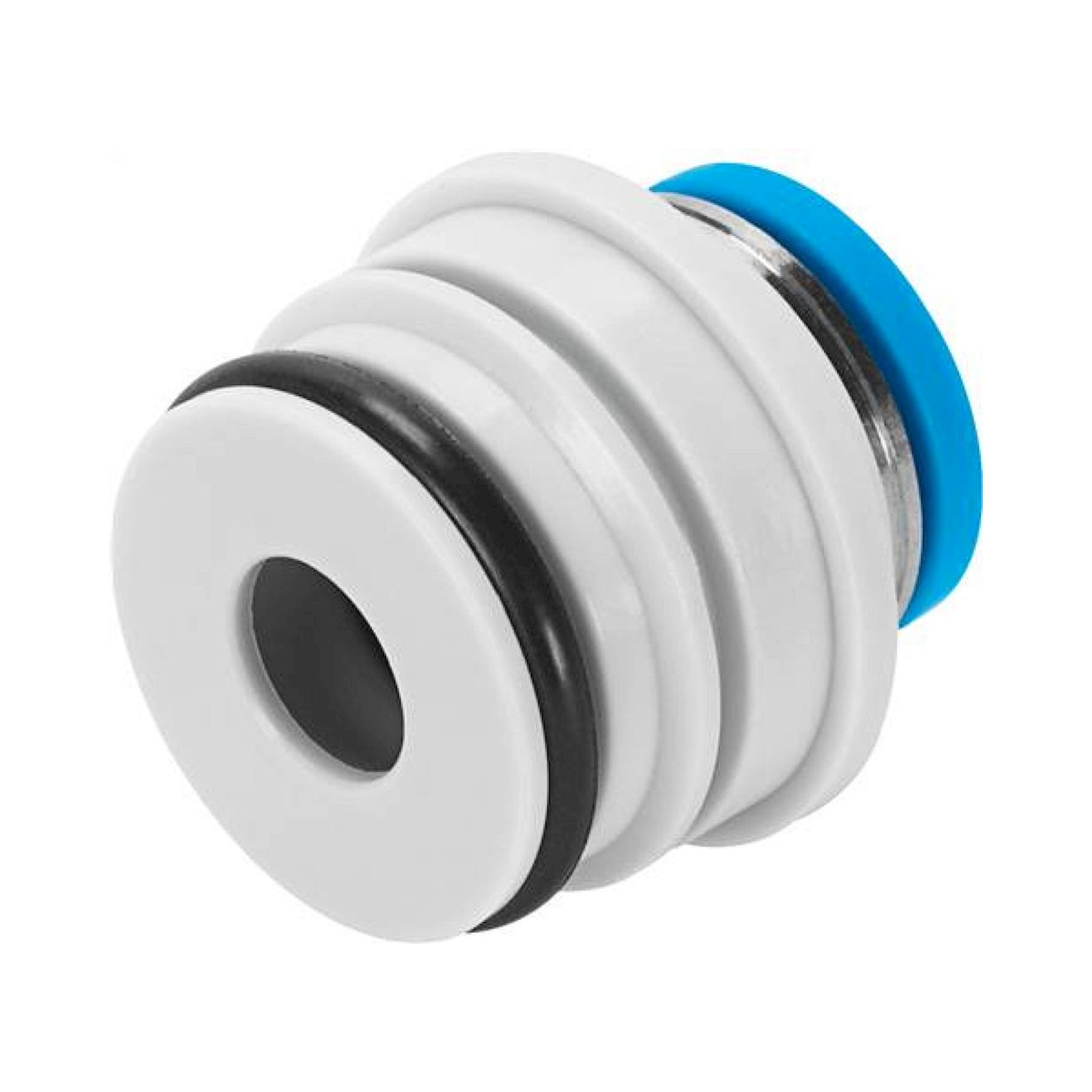

Festo QSP cartridges are push-in fitting inserts pressed into manifold plates, control blocks or machine bodies without tools. The system separates the fitting function from the thread in the carrier body: once installed, the cartridge accepts a pneumatic tube repeatedly. Blanking plug variants (QSP10-PTB, QSP14-PTB, QSP17-PTB) seal unused ports pressure-tight.

Straight and angled variants (QSPK, QSPLK, QSPLLK) and versions with a G male thread (QSPKG) cover all standard installation configurations. Tube outside diameters 4, 6, 8 and 10 mm are represented across the range.

⚙ Cartridge concept - press-fit insert for plates and blocks, decouples the push-in fitting from the carrier

✓ Tube OD 4, 6, 8, 10 mm - straight (QSPK), 90° elbow (QSPLK), 180° U-bend (QSPLLK)

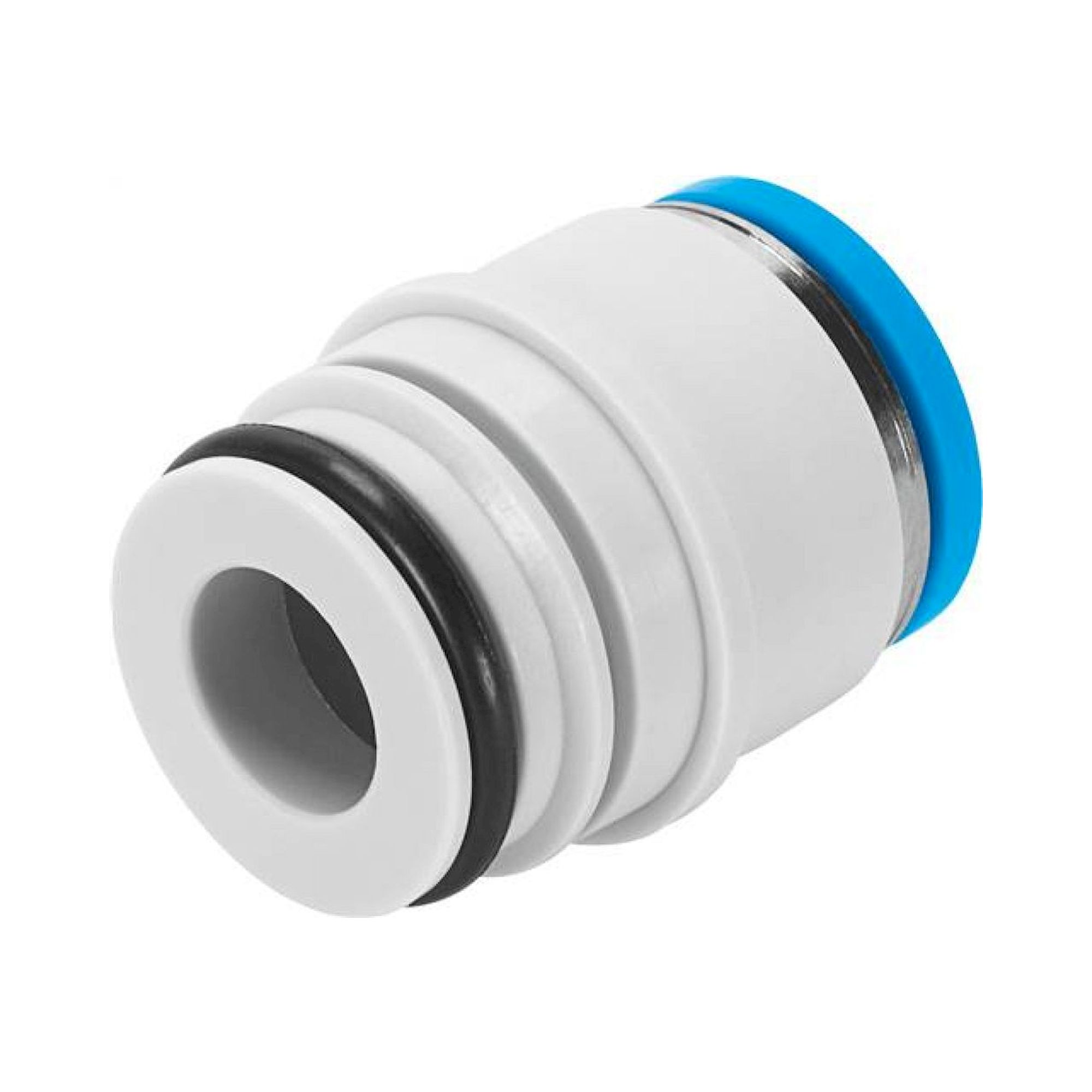

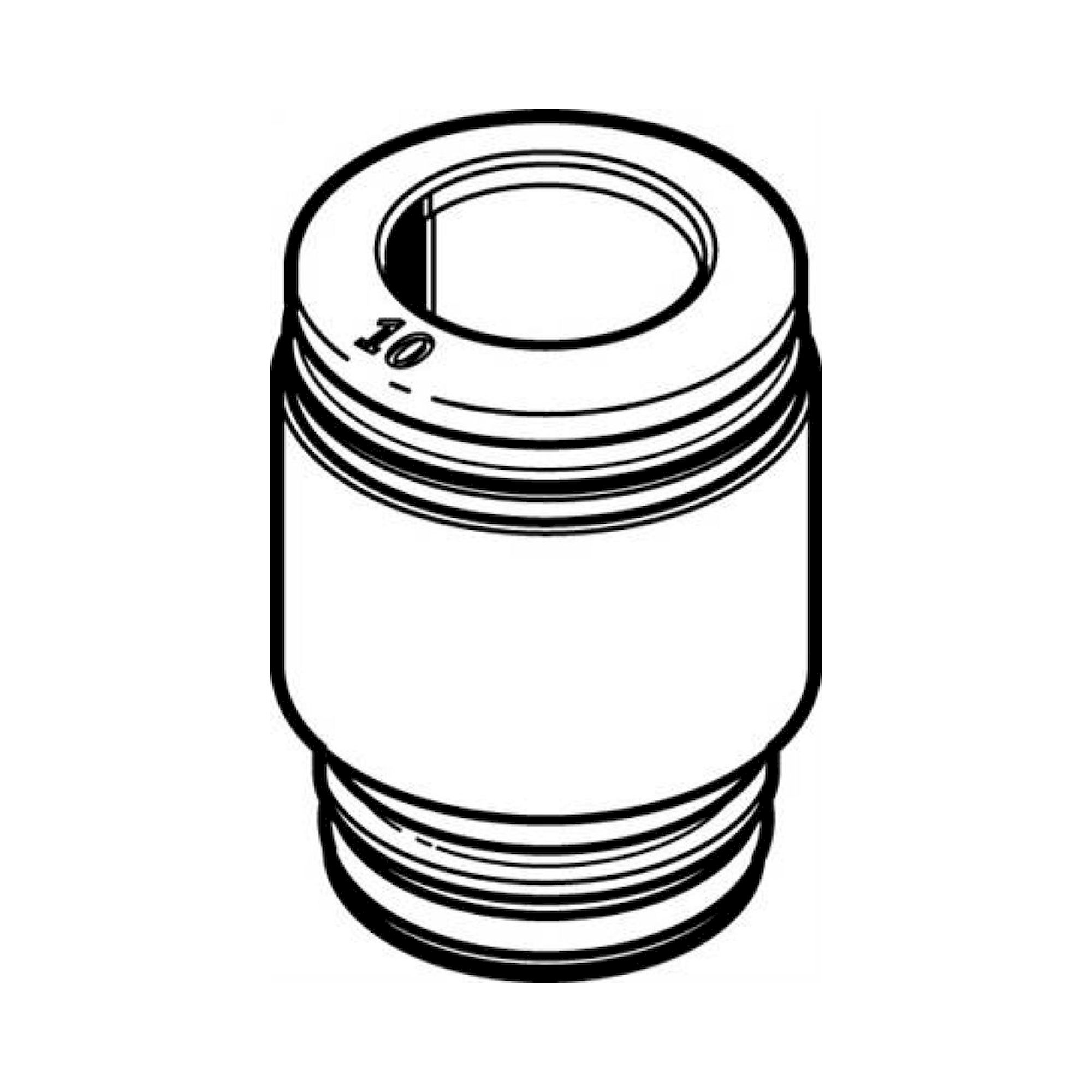

⬡ G-thread versions (QSPKG, QSPLKG) - external thread for screwed-in carriers

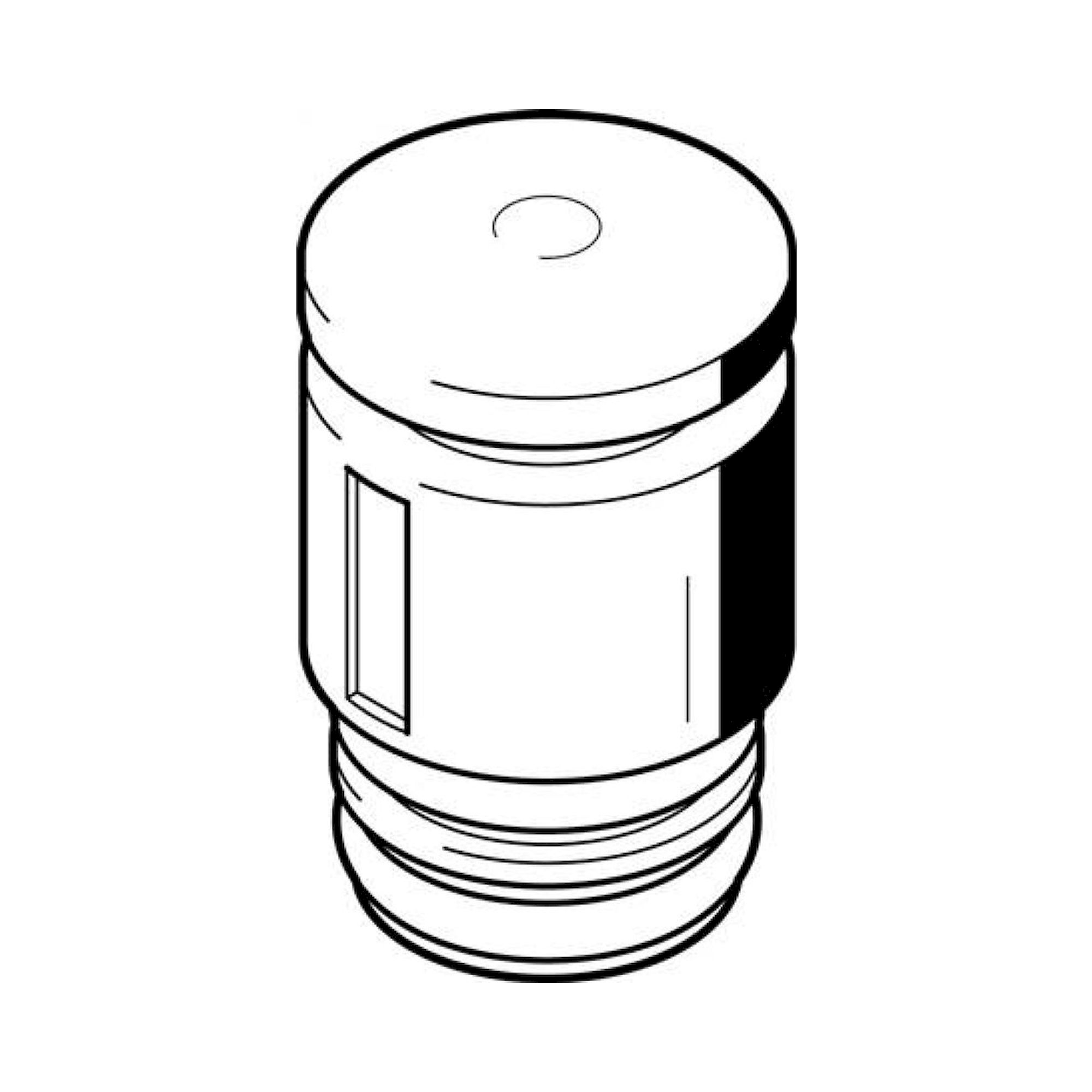

🛡 Blanking plugs (PTB) - pressure-tight port seal, sizes 10, 14, 17

📦 Pack of 10 (P10) - many types supplied in 10-piece packs for efficient stock management

Series	Form	Connection	Tube OD

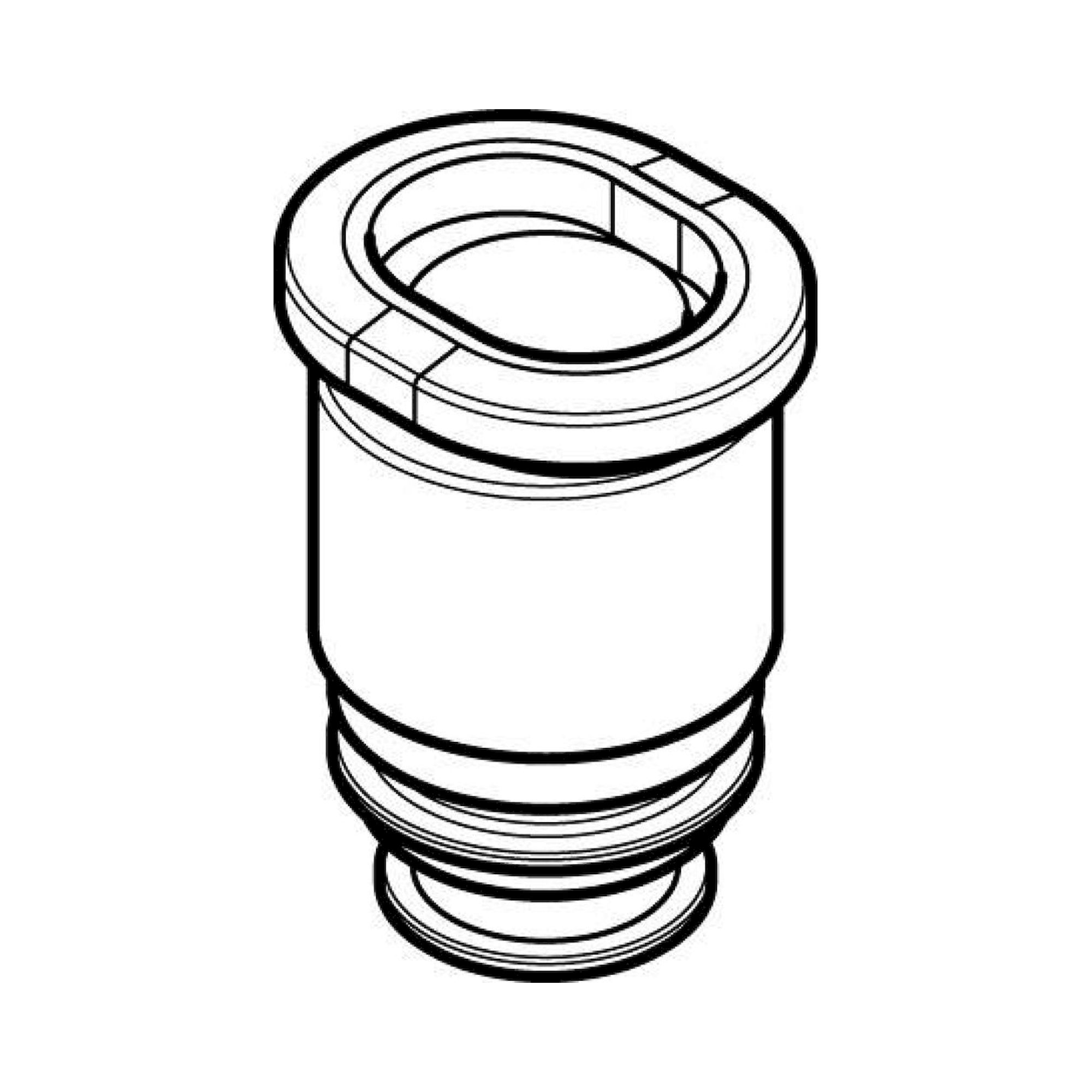

QSP10-4, -6	Straight, press-fit	Press OD 10 mm	4, 6 mm

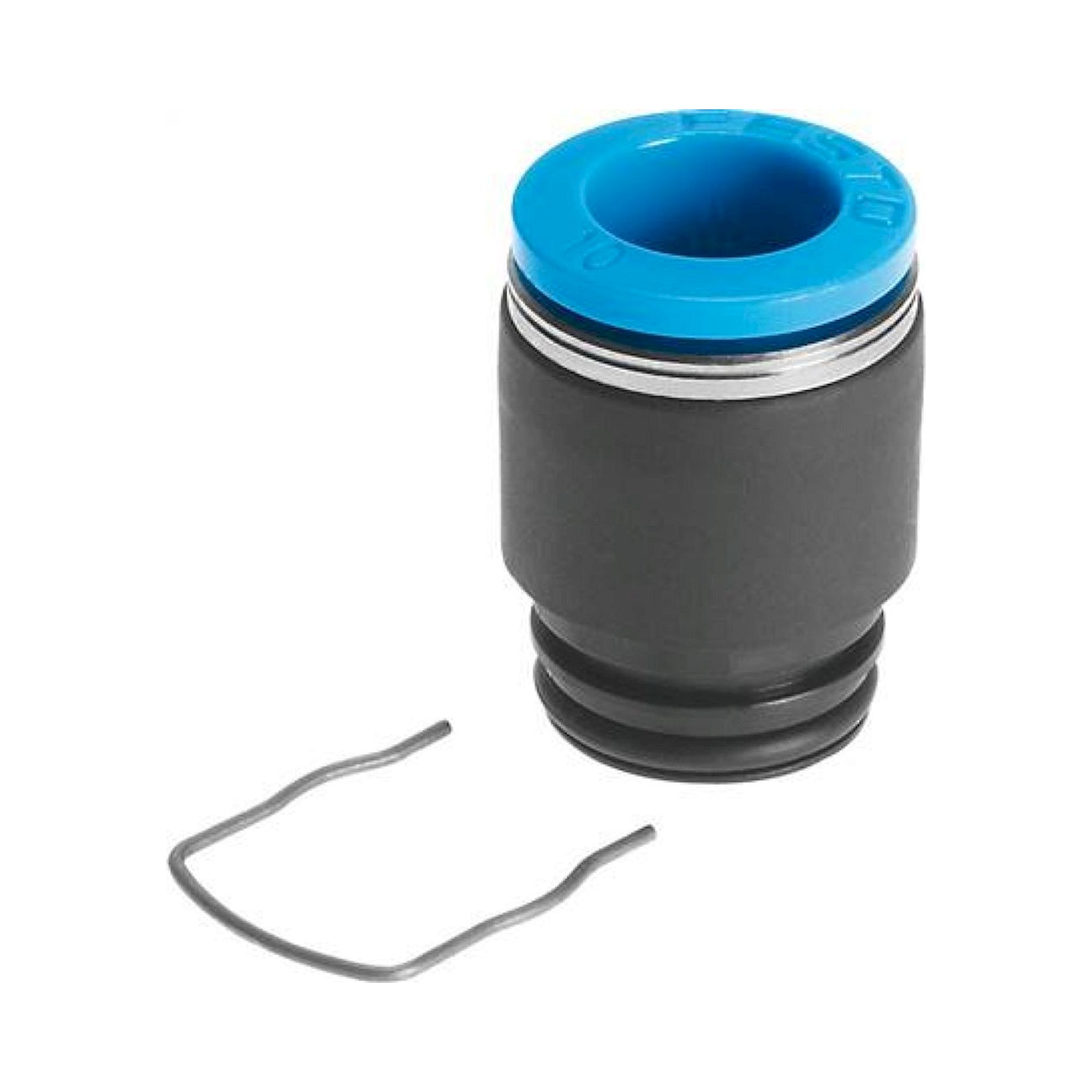

QSPK18-4 to -10	Straight with G male thread	Press OD 18 mm	4, 6, 8, 10 mm

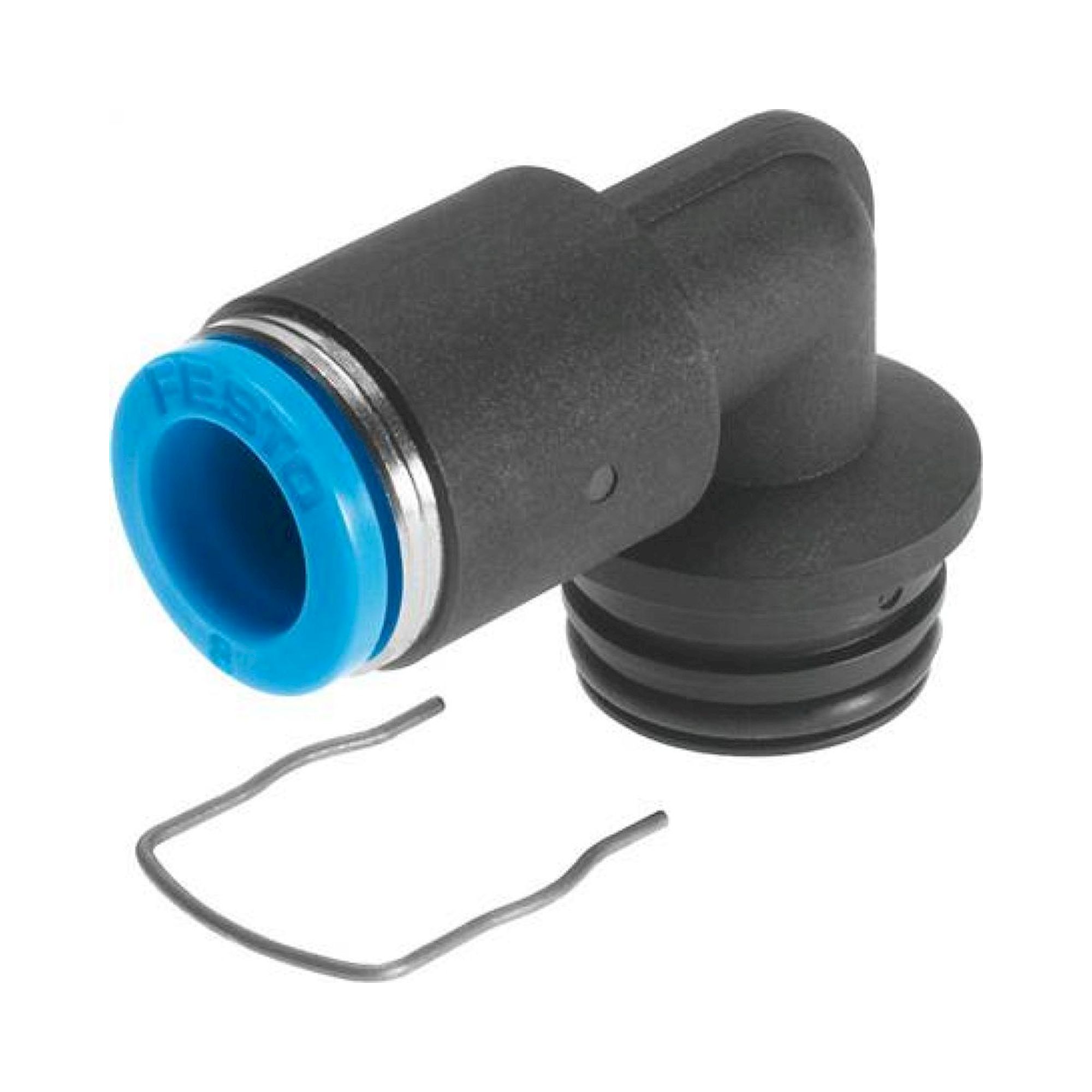

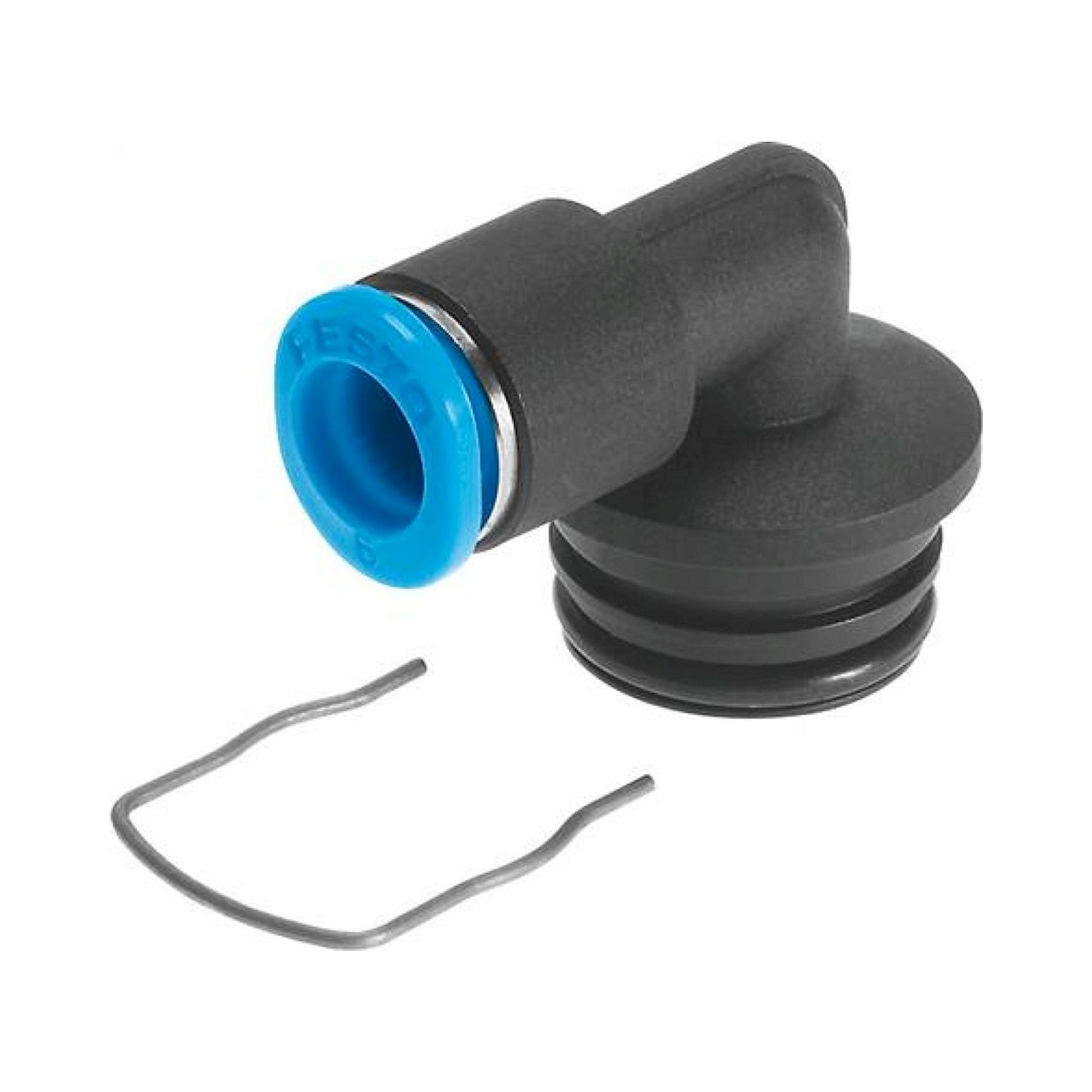

QSPLK18-4 to -10	90° elbow	Press OD 18 mm	4, 6, 8, 10 mm

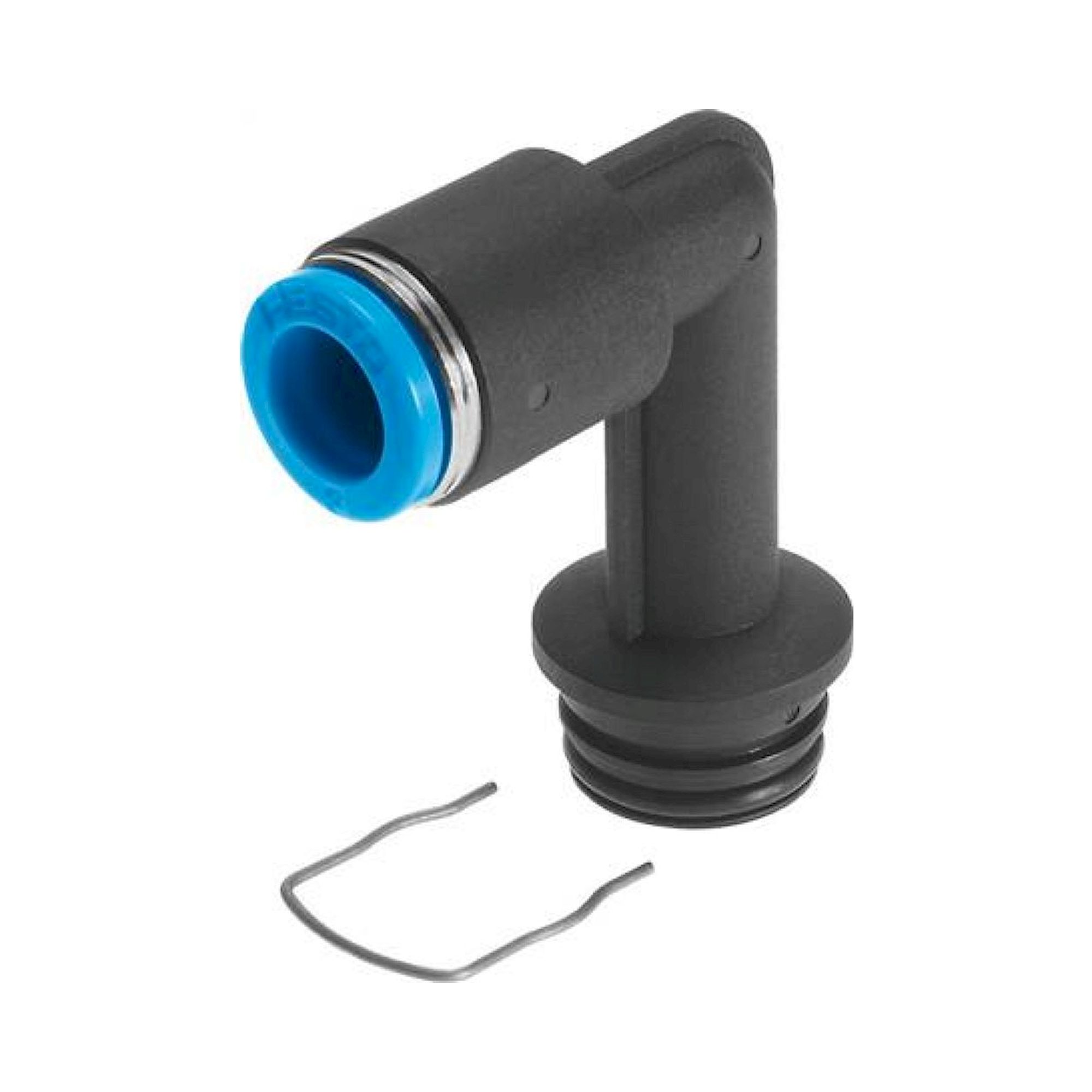

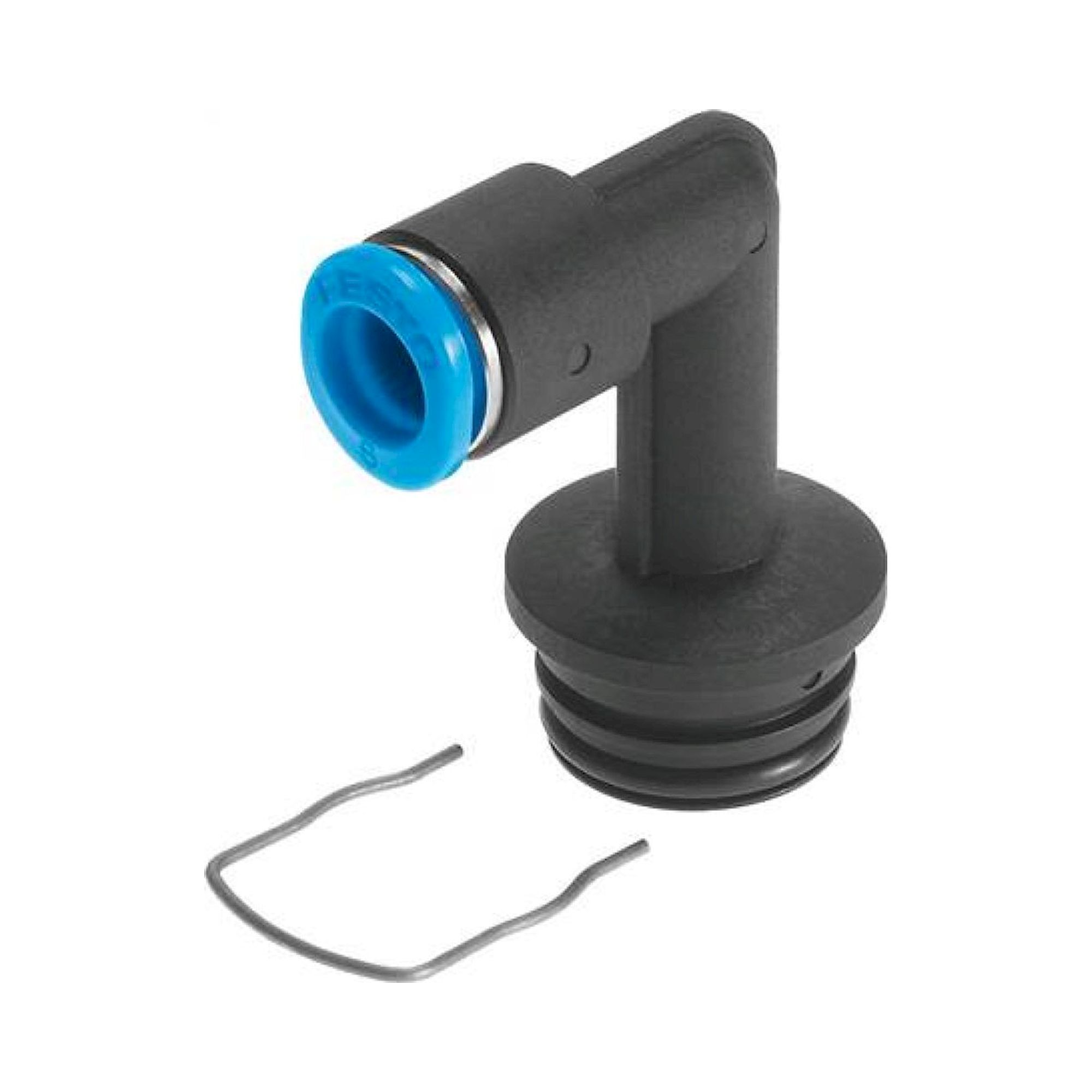

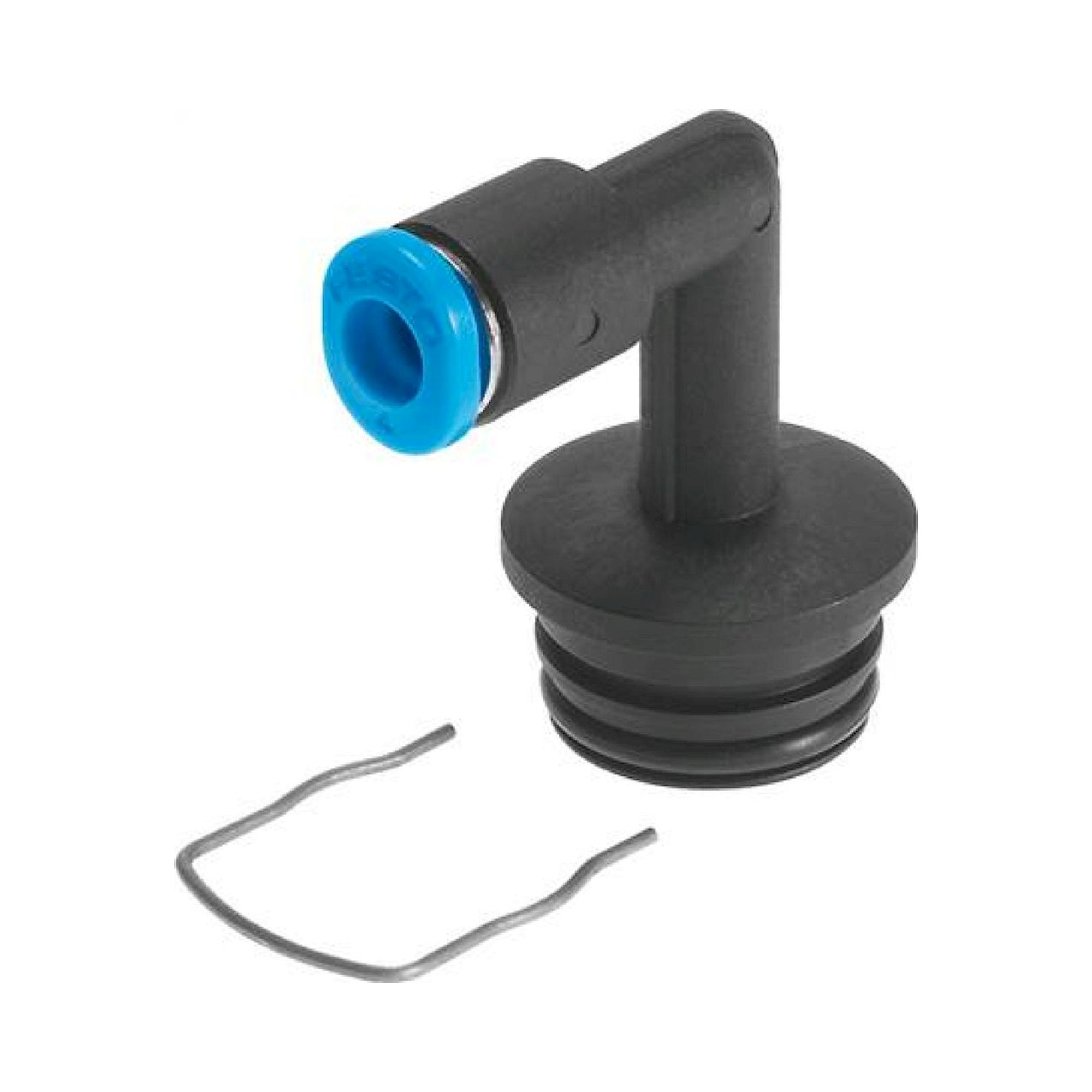

QSPLLK18-4 to -10	180° U-bend	Press OD 18 mm	4, 6, 8, 10 mm
QSPKG10, QSPLKG10	Straight / 90°, G thread	OD 10 mm	3, 4, 6 mm

Typical applications: Aluminium manifold plates with machined press-fit bores, control blocks in special-purpose machines, multi-connection manifolds with frequently changed tube connections, and compact pneumatic assemblies where the fitting must be replaceable without reworking the block.
