Flow control valves

Festo flow control valves are pneumatic components that regulate compressed air flow rates and direction in automated systems, encompassing throttle check valves (Drossel-Rückschlagventil), precision flow regulators (Präzisions-Drosselrückschlagventil), time delay valves (Zeitverzögerungsventil), and pulse valves (Kurzimpulsventil). These valves serve critical functions in manufacturing automation, packaging machinery, automotive assembly lines, and material handling systems where precise pneumatic actuator speed control is essential. Industries including automotive, food processing, pharmaceutical manufacturing, and semiconductor production rely on these components to achieve repeatable cycle times and consistent product quality.

Key selection criteria for Festo pneumatic flow control valves include port connection sizes ranging from 1/8 inch to 3/4 inch as seen in models like GRP-160-1/8-AL and GR-3/4, operating pressure range typically 0 to 10 bar for standard pneumatic applications, and flow coefficient (Cv) values that determine maximum achievable flow rates. The valve type designation indicates functionality where GR models provide basic throttle check operation, GRP series offers precision flow regulation with enhanced repeatability, and GRPO variants include outlet throttling for exhaust flow control. Thread specifications follow ISO 228-1 (G-thread) or NPT standards depending on regional requirements, while response time characteristics vary from milliseconds for pulse valves to several seconds for time delay applications.

Festo pneumatic flow control valves comply with ISO 5599 for pneumatic valve interface standards, ensuring interchangeability with other manufacturers' components in automated systems. Manufacturing quality follows ISO 9001 certification requirements, while pressure vessel compliance adheres to the European Pressure Equipment Directive (PED) 2014/68/EU for components handling compressed air above 0.5 bar. Environmental testing meets IP65 protection class standards per IEC 60529 for dust and water ingress resistance, and material certifications include RoHS compliance for electronic components where applicable. ATEX certification applies to specific valve variants designed for explosive atmosphere applications in Zone 1 and Zone 2 environments.

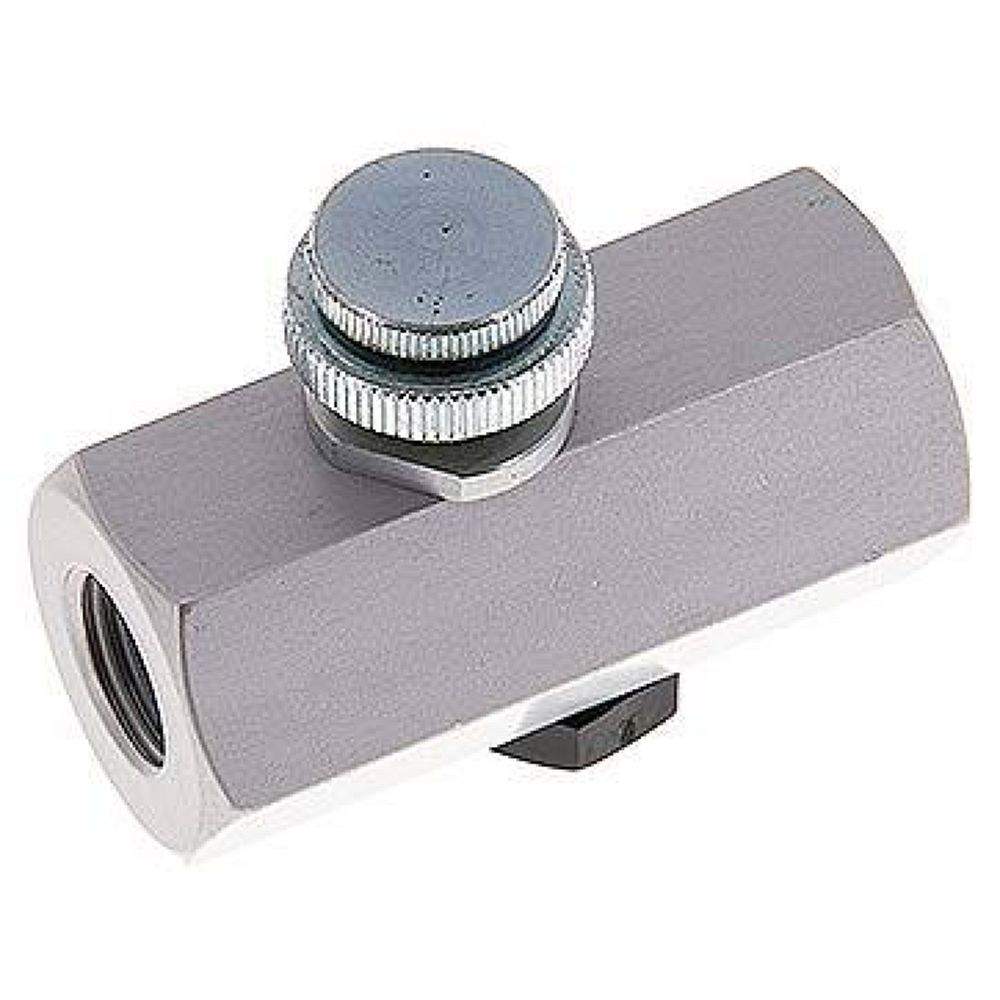

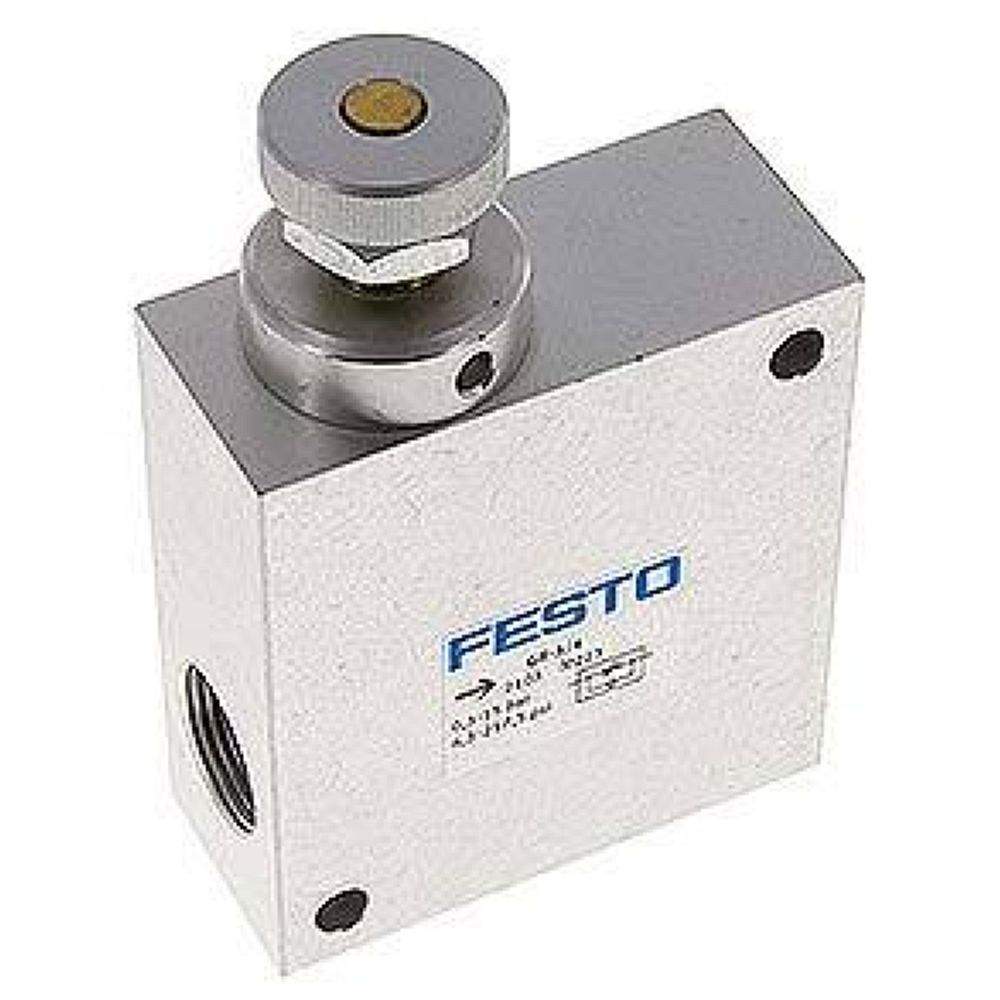

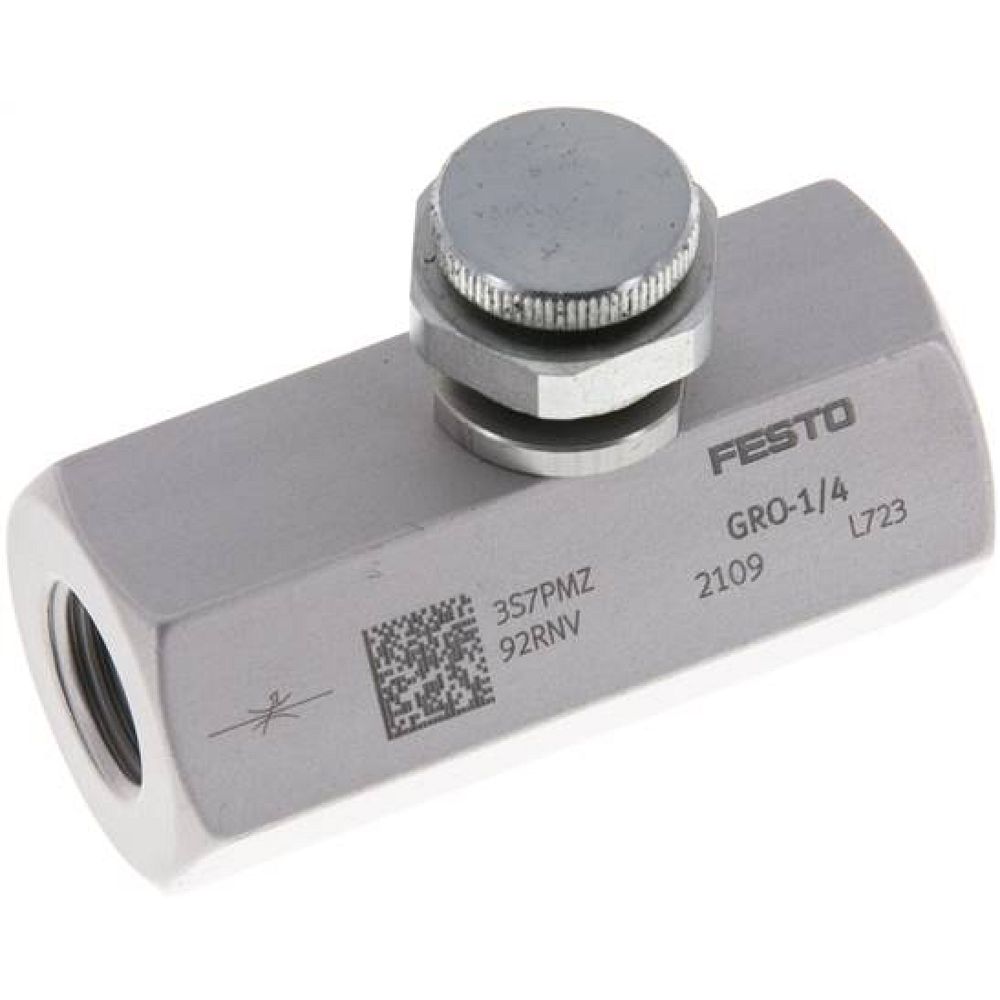

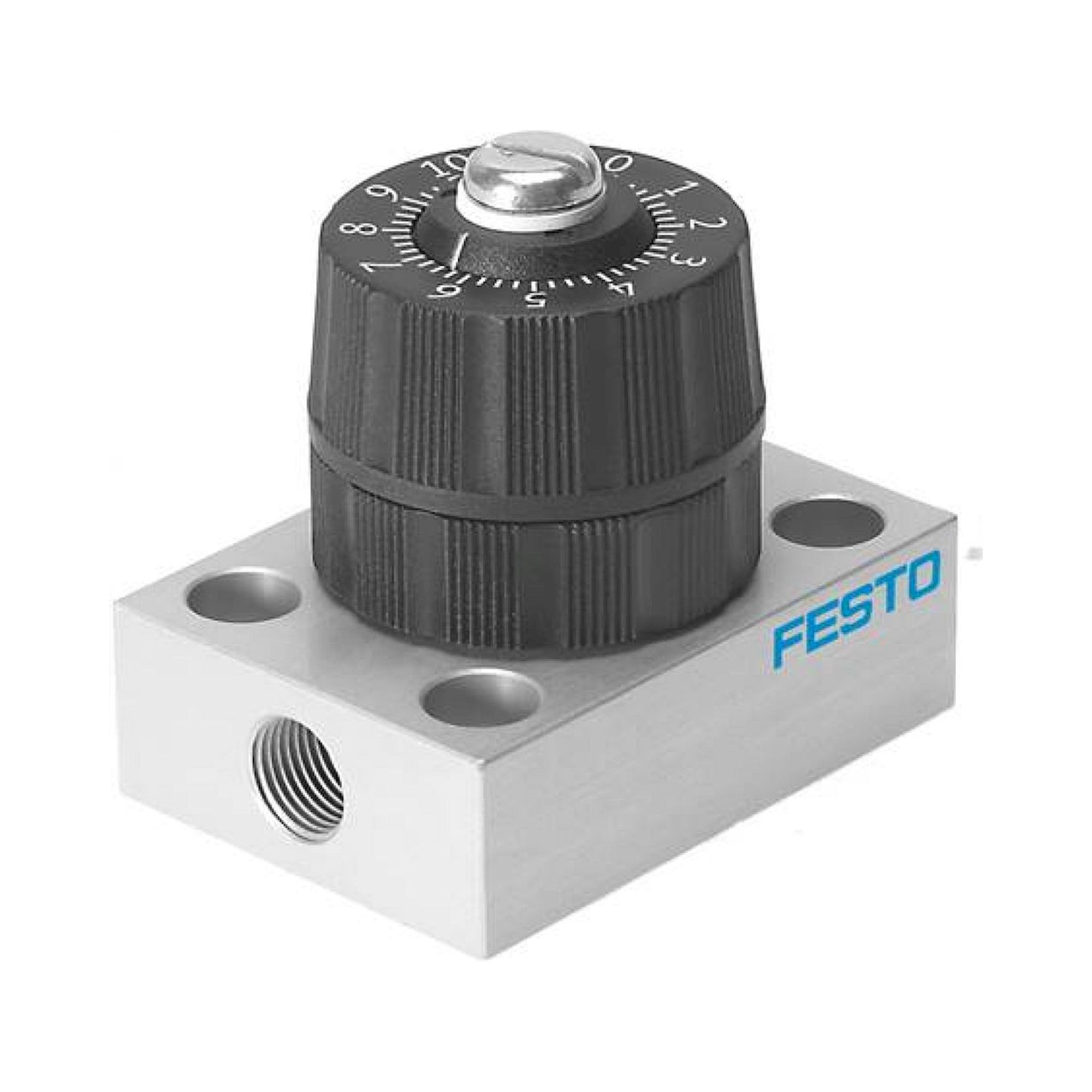

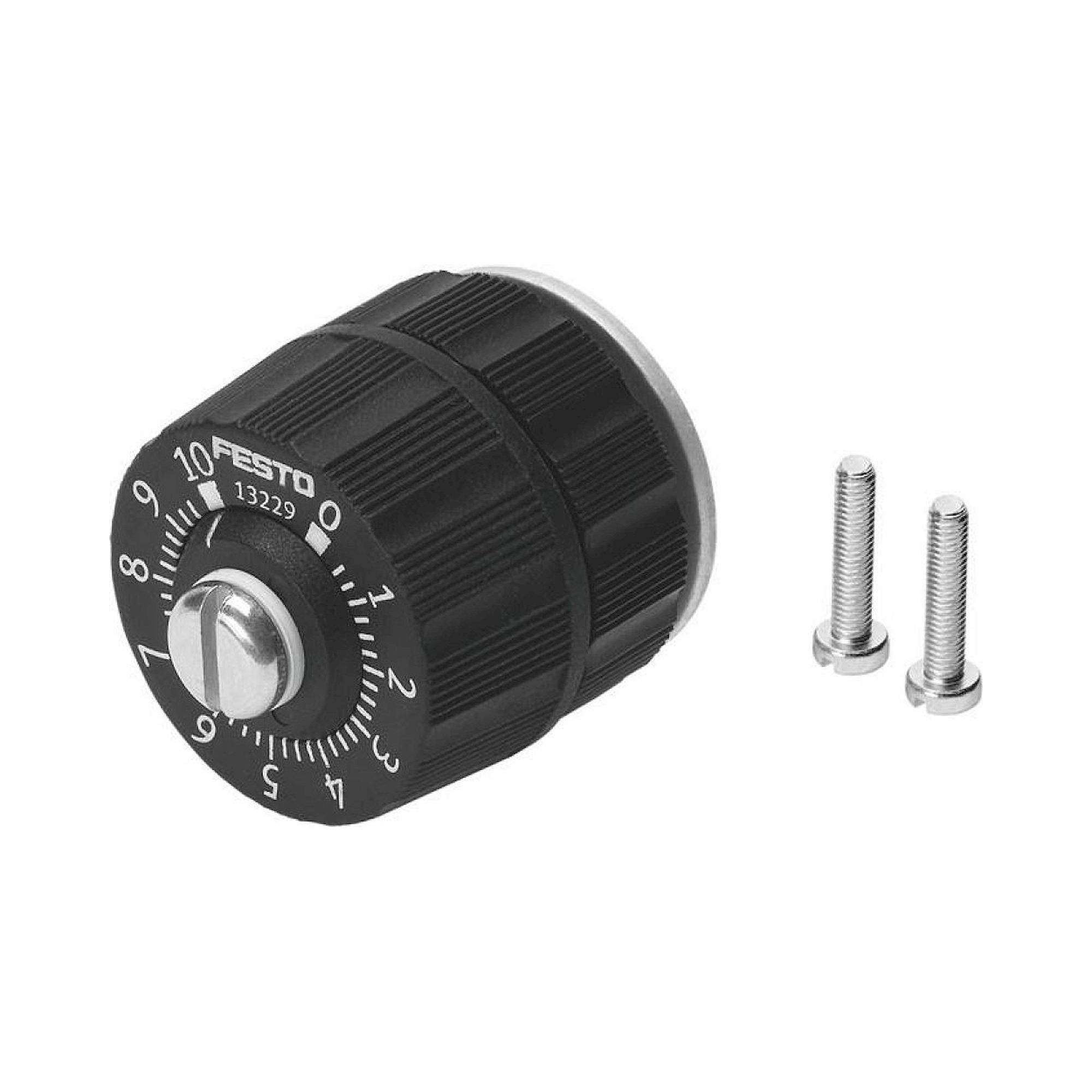

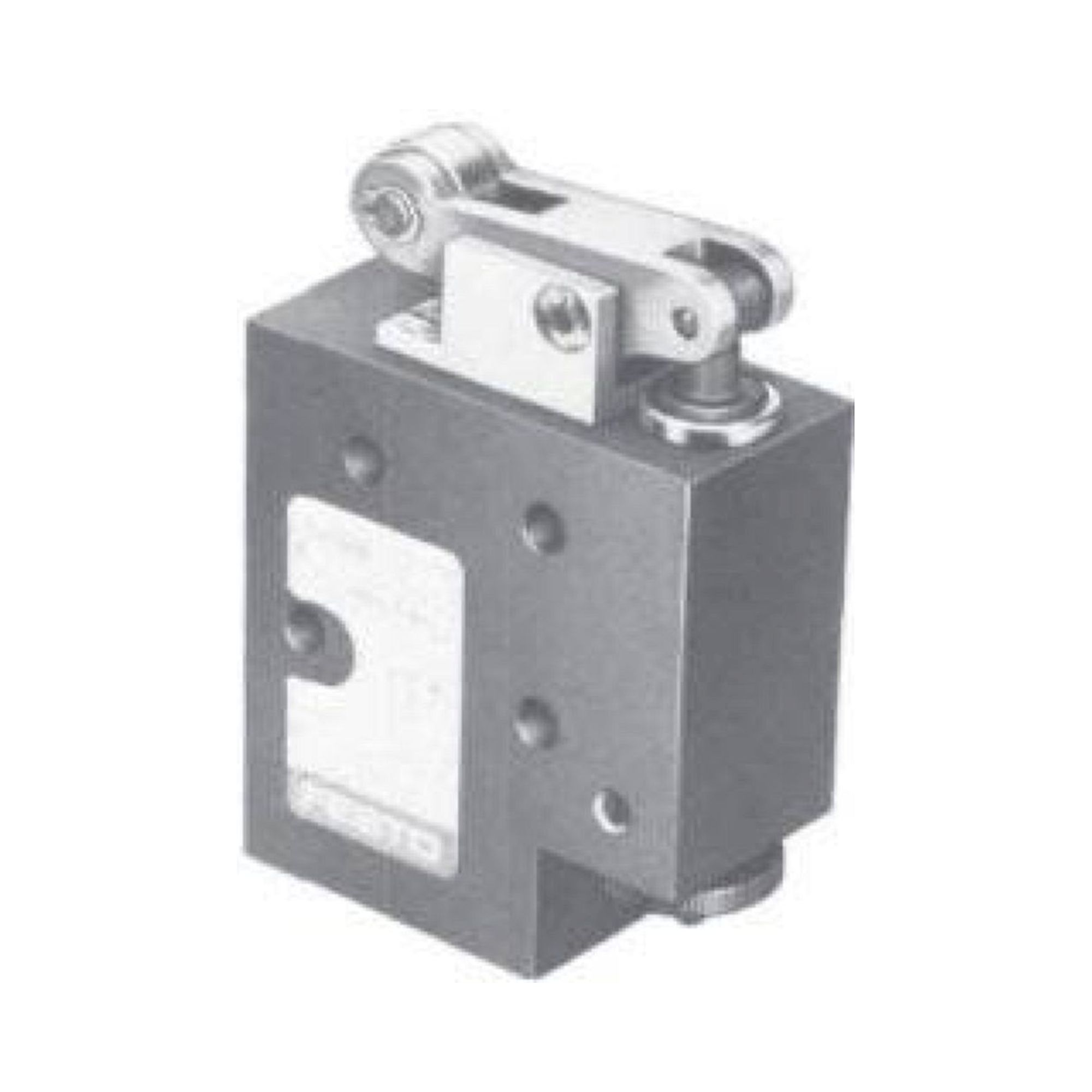

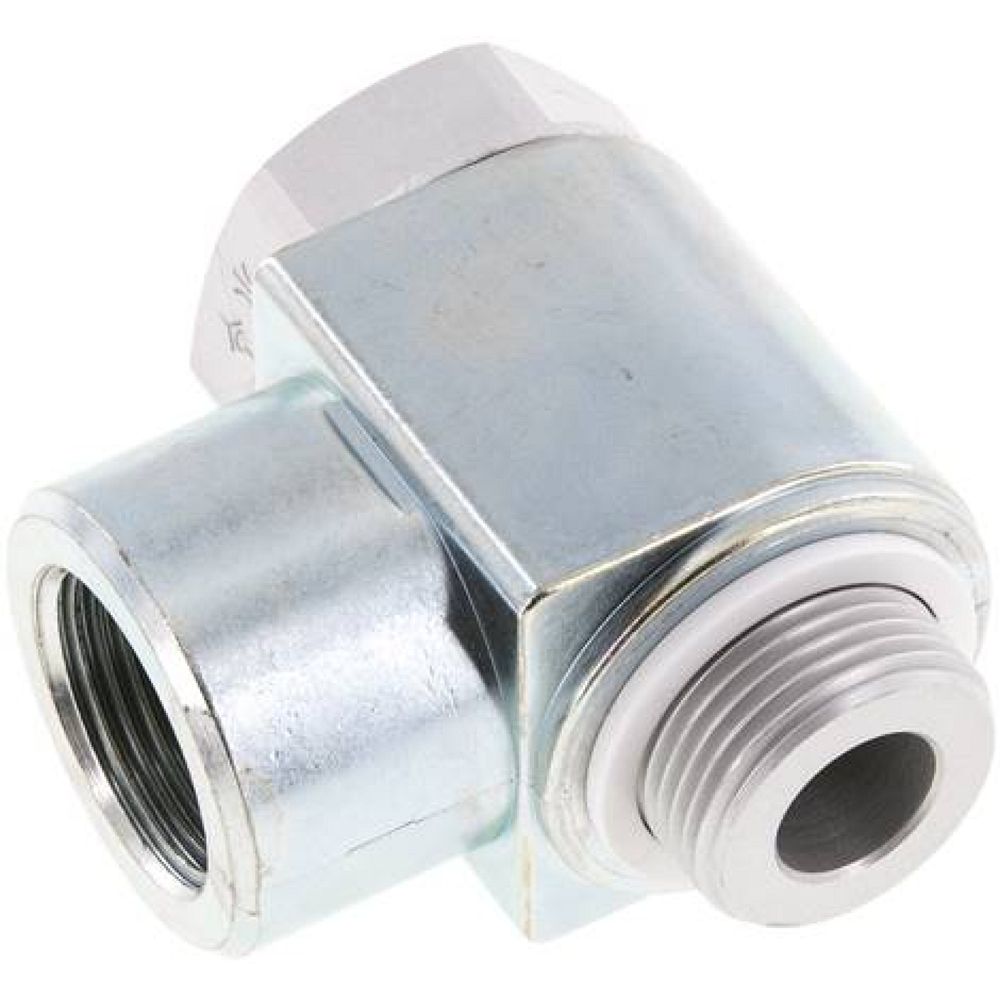

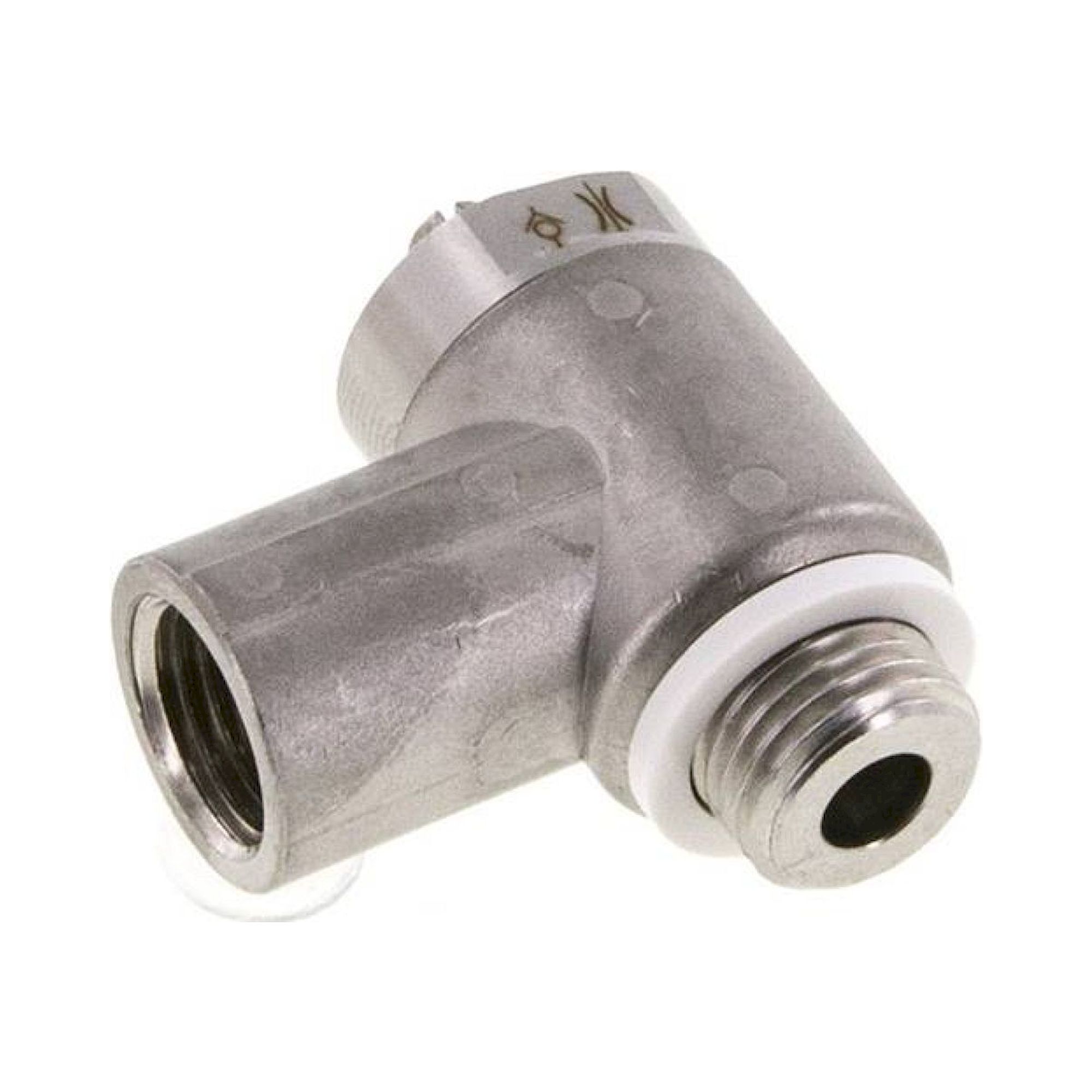

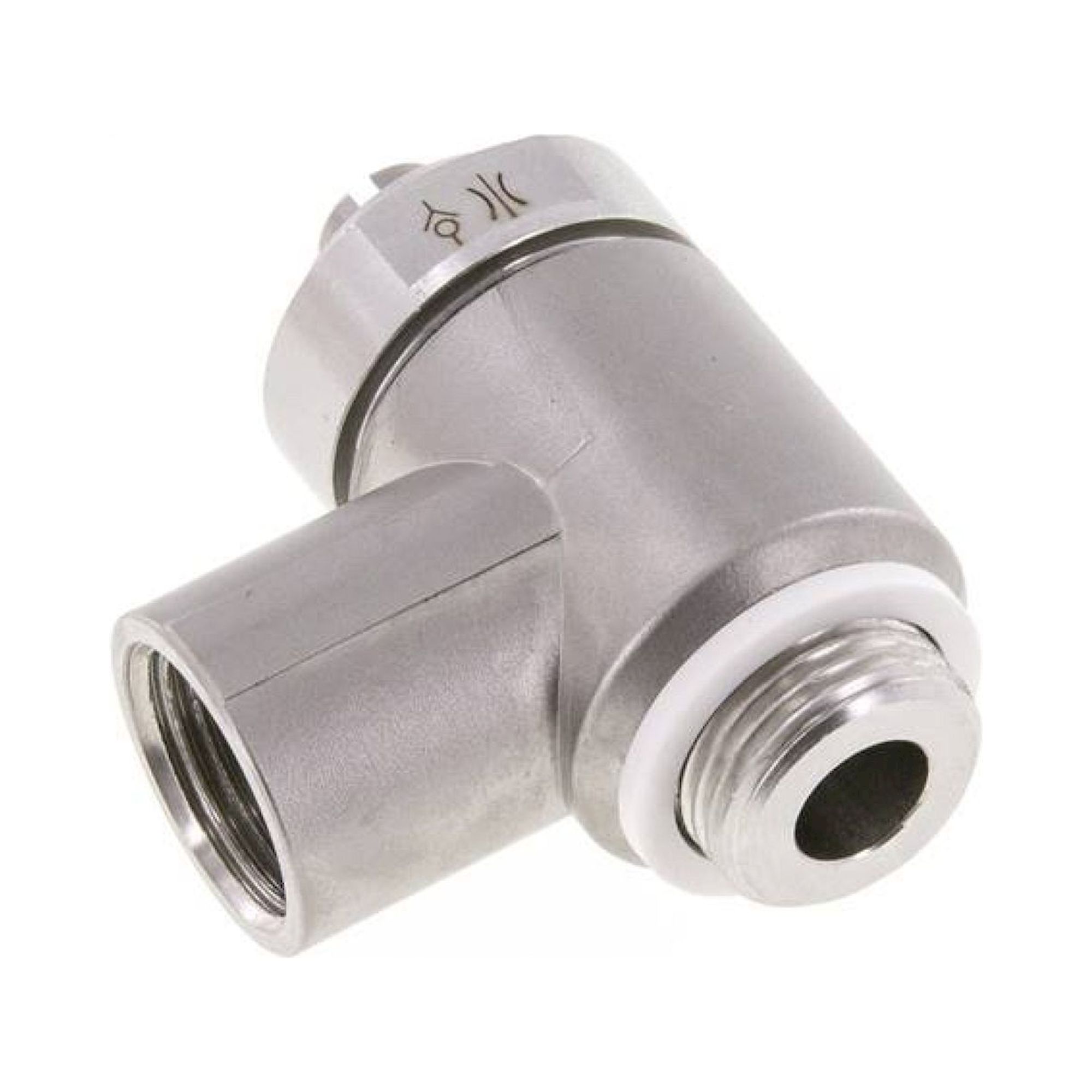

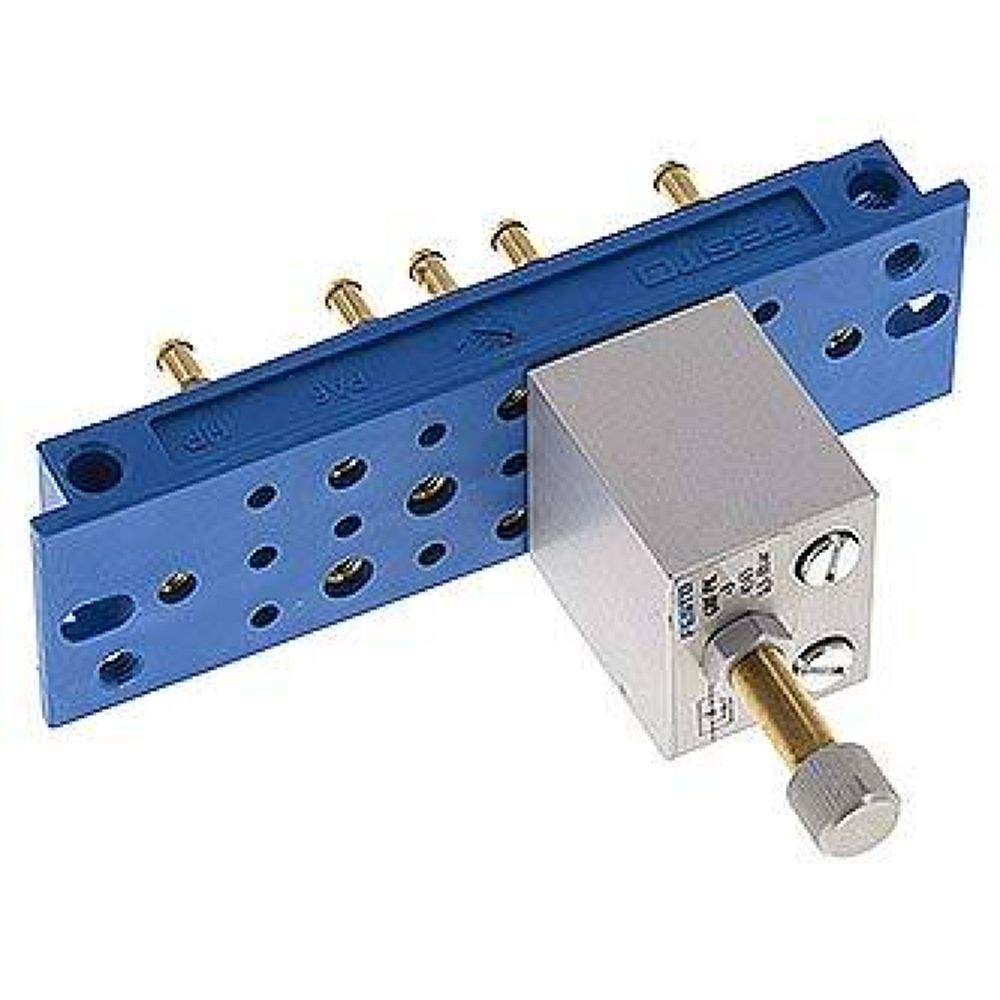

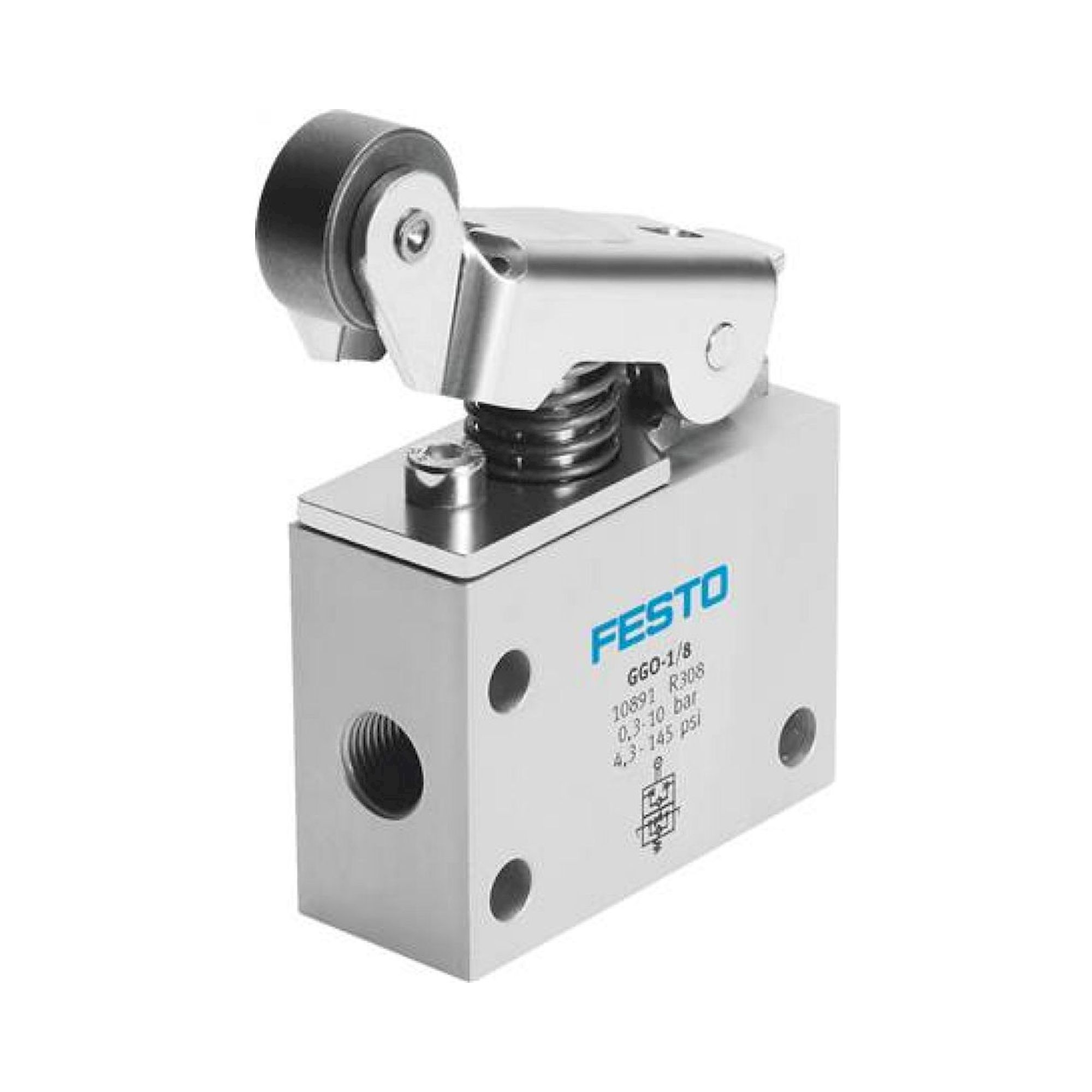

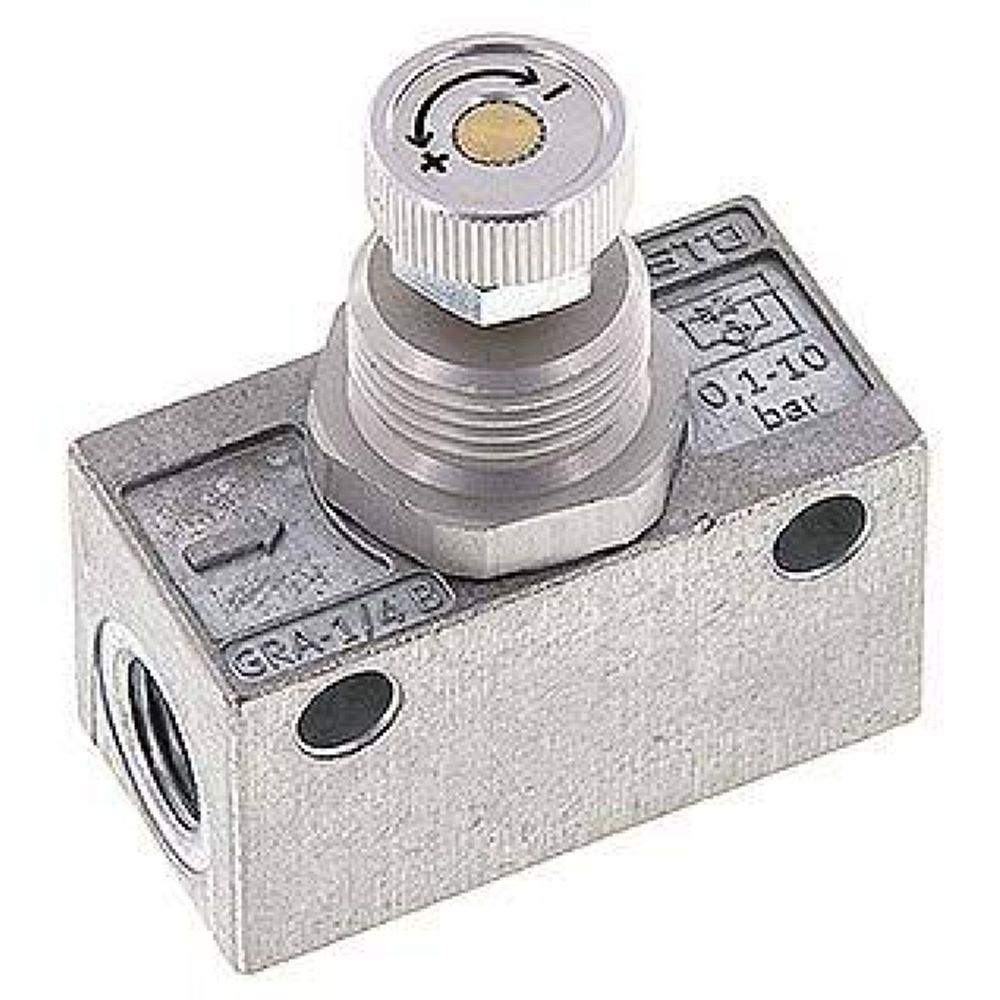

Festo GR series represents basic throttle check valves providing unidirectional flow restriction with free return flow, suitable for simple speed control applications with connection sizes from 1/2 to 3/4 inch. GRP precision flow regulators offer enhanced flow stability through internal pressure compensation and tighter manufacturing tolerances, available in sizes from PK-3 to PK-4 push-in fittings and 1/8 inch threaded connections as seen in models GRP-70-1/8-AL and GRP-160-1/8-AL. GRPO variants provide outlet throttling capability where flow restriction occurs on the exhaust side rather than supply, critical for controlling actuator retraction speeds in cylinder applications. VZ time delay valves like the VZ-3-PK-3 incorporate pneumatic timing mechanisms to create programmed delays between input signal and output response, essential for sequential operation control.

Festo flow control valves require clean, dry compressed air per ISO 8573-1 Class 7.4.4 quality standards with maximum particle size 40 microns and pressure dew point at least 10°C below ambient temperature to prevent internal corrosion and ensure reliable operation. Installation orientation is typically unrestricted except for time delay valves which require specific mounting positions to maintain timing accuracy through internal pneumatic reservoir function. Push-in connection types (PK-3, PK-4) accommodate standard pneumatic tubing from 4mm to 12mm outer diameter with automatic tube retention, while threaded connections follow ISO 228-1 (G-thread) specifications for leak-tight assembly using appropriate thread sealant or PTFE tape. System pressure must remain within valve specifications, typically 0 to 10 bar operating range, with adequate filtration upstream to protect internal sealing elements.

Festo pneumatic flow control valves operate reliably within temperature ranges from -10°C to +60°C for standard models, with extended temperature variants available for applications requiring -40°C to +80°C operation in harsh industrial environments. Protection class IP65 per IEC 60529 ensures resistance to dust ingress and water jets, making these valves suitable for food processing, chemical plants, and outdoor installations where washdown procedures are standard. Maximum working pressure reaches 10 bar (145 PSI) for most models with proof pressure testing at 15 bar, while minimum operating pressure starts at 0.5 bar to ensure proper valve function and seal integrity. Burst pressure ratings exceed 40 bar providing substantial safety margin, and materials comply with FDA CFR 21 and EU 10/2011 regulations for food contact applications where required.

Festo pneumatic flow control valves require minimal maintenance with typical service intervals of 2 million operating cycles or 12 months under normal industrial conditions, whichever occurs first, based on ISO 8573-1 Class 7.4.4 air quality and proper system filtration. Routine inspection involves checking for external air leakage at threaded connections, verifying flow adjustment settings remain stable, and monitoring actuator speed consistency to detect internal seal degradation before performance deterioration affects production quality. Complete seal replacement becomes necessary when internal leakage exceeds 0.1 L/min at 6 bar test pressure, typically occurring after 5 to 10 million cycles depending on operating conditions and media contamination levels. Predictive maintenance programs should include annual flow rate verification using calibrated flow meters and quarterly visual inspection of connection integrity, particularly in applications involving temperature cycling or chemical exposure.
