Cube Cupla

Low pressure up to 19 bar

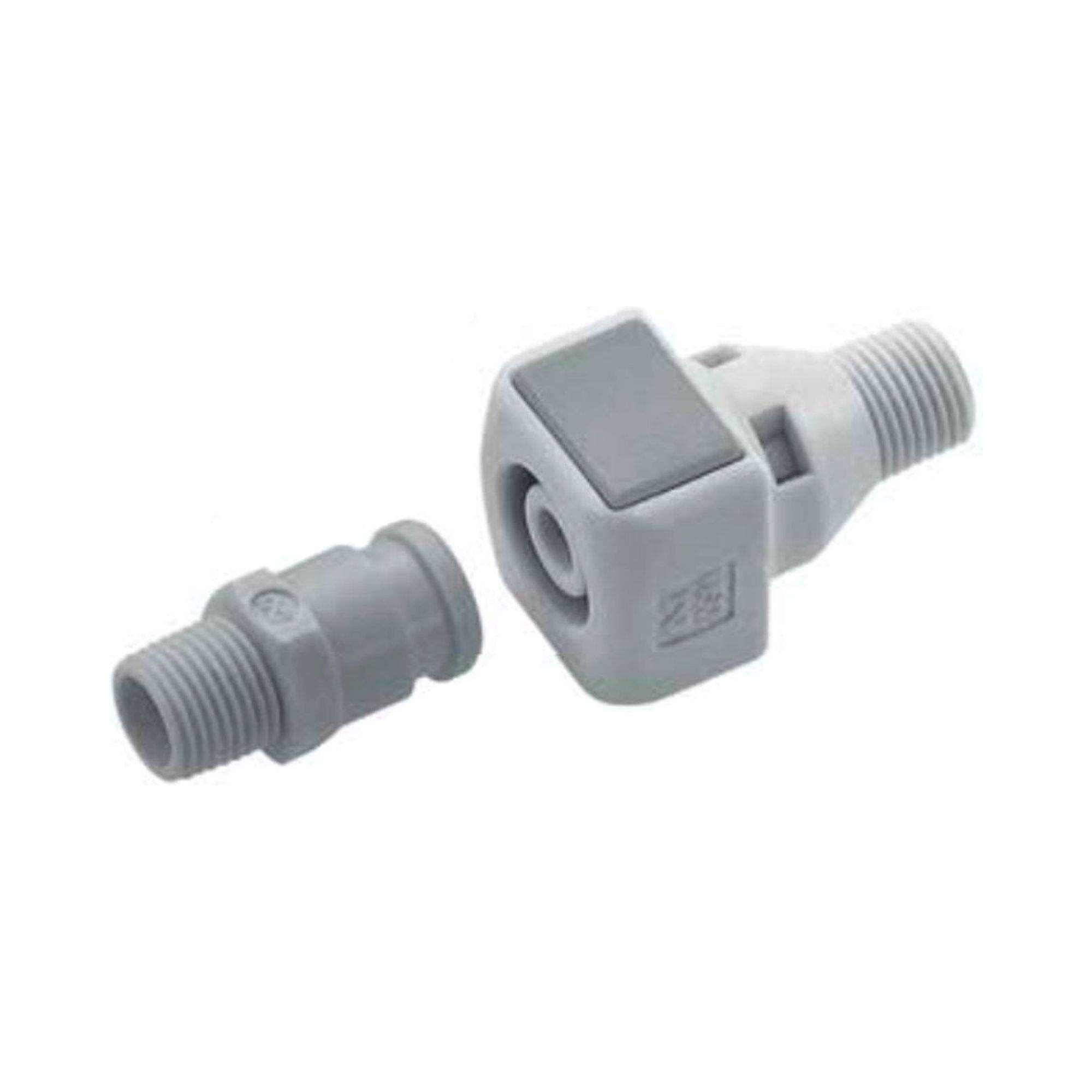

The Nitto Kohki Cube Cupla is a low-pressure quick-release coupling in POM (polyoxymethylene) with NBR seals, developed for low-pressure applications up to 19 bar. The extensive range of over 100 types divides into standard versions (SPC-04SH to SPC-10SM), extended versions (SPC-04PHB, SPC-06PHB), closed variants (SPC-04SH-VL to SPC-10SM-VL), and 90-degree angle versions (SPC-04PHL, SPC-06PHL). Plugs (P-types) and sockets (S-types) are available in nominal sizes 04, 06, and 10.

⬡ POM body - Lightweight plastic, chemically resistant to oils, petrol, and mild solvents; low weight for mobile applications

⚙ Extensive type variety - Standard, angle (PHL), extended (PHB), and locked (VL) versions within one system

↕ Nominal sizes 04, 06, 10 - Three steps for different hose diameters and flow rates

✓ VL locking - SPC-xxxx-VL variants with additional safeguard against unintentional disconnection

Version	Type examples	Material	Feature
Standard	SPC-04SH, SPC-06SH, SPC-10SM, SPC-04PH, SPC-06PH, SPC-10PM	POM/NBR	Basic plug and socket
90-degree angle	SPC-04PHL, SPC-06PHL	POM/NBR	Angled plug outlet
Extended	SPC-04PHB, SPC-06PHB	POM/NBR	Extended plug outlet
Locked (VL)	SPC-04SH-VL, SPC-06SH-VL, SPC-04PH-VL, SPC-06PH-VL	POM/NBR	Lock against disconnection

Typical applications: Pneumatics in electronics and semiconductor manufacturing (POM for clean environments), hose connections on robot arms and handling systems, low-pressure air tool connections, laboratory automation and medical technology, and portable pneumatic equipment where low weight and compact size are required.

Technical data from the manufacturer catalogue

Series	CUBE CUPLA
Body material	Polyacetal resin (POM)
Seal material	NBR (Nitrile rubber)
Max working pressure	1.0 MPa {10 kgf/cm2, 10 bar, 145 PSI}
Working temperature	Nitrile rubber (NBR): -20 °C to +60 °C
Valve structure	Two-way shut-off, one-way shut-off or straight through, depending on the combination of valved and valveless socket and plug.
Applicable fluids	Air, Water
Vacuum service	53.0 kPa {400 mmHg}: socket only -, plug only -, when connected Operational
Size range	4 mm and 6 mm ID tube, 1/8 inch
Catalogue page	C01en-b, 33

Operating principle

Both halves close on disconnection, so the line contents are retained on both sides.

Connecting sequence of a ball locking quick connect coupling.

Both socket and plug have built-in valve types and valveless types.
Simple one action for connection or disconnection.
Lightweight plastic coupling.
In all five color variations to prevent piping mistakes.
Ultra-lightweight, made of polyacetal resin. Compact design for space saving.
Just push plug into socket for connection. Simply press the button on the socket for disconnection.
Two-way shut-off type with valve on both sides and straight through type with low pressure loss are available.
L type plug is suitable for piping in narrow spaces are available.

All models of the series

PH - Hose barb

Model	Coupling part	Application	Plastic (g)	L	A	T	øB
SPC-04PH-IVR	Plug	4 mm ID tube	3.1	(36)	10	4.8	2.5
SPC-04PH-BLU	Plug	4 mm ID tube	3.1	(36)	10	4.8	2.5
SPC-04PH-YEL	Plug	4 mm ID tube	3.1	(36)	10	4.8	2.5
SPC-04PH-PNK	Plug	4 mm ID tube	3.1	(36)	10	4.8	2.5
SPC-04PH-GRN	Plug	4 mm ID tube	3.1	(36)	10	4.8	2.5
SPC-04PH-VL-IVR	Plug	4 mm ID tube	2.6	(36)	10	4.8	2.5
SPC-04PH-VL-BLU	Plug	4 mm ID tube	2.6	(36)	10	4.8	2.5
SPC-04PH-VL-YEL	Plug	4 mm ID tube	2.6	(36)	10	4.8	2.5
SPC-04PH-VL-PNK	Plug	4 mm ID tube	2.6	(36)	10	4.8	2.5
SPC-04PH-VL-GRN	Plug	4 mm ID tube	2.6	(36)	10	4.8	2.5
SPC-06PH-IVR	Plug	6 mm ID tube	3.4	(40)	15	7	3.6
SPC-06PH-BLU	Plug	6 mm ID tube	3.4	(40)	15	7	3.6
SPC-06PH-YEL	Plug	6 mm ID tube	3.4	(40)	15	7	3.6
SPC-06PH-PNK	Plug	6 mm ID tube	3.4	(40)	15	7	3.6
SPC-06PH-GRN	Plug	6 mm ID tube	3.4	(40)	15	7	3.6
SPC-06PH-VL-IVR	Plug	6 mm ID tube	2.9	(40)	15	7	3.6
SPC-06PH-VL-BLU	Plug	6 mm ID tube	2.9	(40)	15	7	3.6
SPC-06PH-VL-YEL	Plug	6 mm ID tube	2.9	(40)	15	7	3.6
SPC-06PH-VL-PNK	Plug	6 mm ID tube	2.9	(40)	15	7	3.6
SPC-06PH-VL-GRN	Plug	6 mm ID tube	2.9	(40)	15	7	3.6

SH - Hose barb

Model	Coupling part	Application	Plastic (g)	L	A	T	øB
SPC-04SH-IVR	Socket	4 mm ID tube	6.5	35	10	4.8	2.5
SPC-04SH-BLU	Socket	4 mm ID tube	6.5	35	10	4.8	2.5
SPC-04SH-YEL	Socket	4 mm ID tube	6.5	35	10	4.8	2.5
SPC-04SH-PNK	Socket	4 mm ID tube	6.5	35	10	4.8	2.5
SPC-04SH-GRN	Socket	4 mm ID tube	6.5	35	10	4.8	2.5
SPC-04SH-VL-IVR	Socket	4 mm ID tube	6.1	35	10	4.8	2.5
SPC-04SH-VL-BLU	Socket	4 mm ID tube	6.1	35	10	4.8	2.5
SPC-04SH-VL-YEL	Socket	4 mm ID tube	6.1	35	10	4.8	2.5
SPC-04SH-VL-PNK	Socket	4 mm ID tube	6.1	35	10	4.8	2.5
SPC-04SH-VL-GRN	Socket	4 mm ID tube	6.1	35	10	4.8	2.5
SPC-06SH-IVR	Socket	6 mm ID tube	7.0	40	15	7	3.6
SPC-06SH-BLU	Socket	6 mm ID tube	7.0	40	15	7	3.6
SPC-06SH-YEL	Socket	6 mm ID tube	7.0	40	15	7	3.6
SPC-06SH-PNK	Socket	6 mm ID tube	7.0	40	15	7	3.6
SPC-06SH-GRN	Socket	6 mm ID tube	7.0	40	15	7	3.6
SPC-06SH-VL-IVR	Socket	6 mm ID tube	6.6	40	15	7	3.6
SPC-06SH-VL-BLU	Socket	6 mm ID tube	6.6	40	15	7	3.6
SPC-06SH-VL-YEL	Socket	6 mm ID tube	6.6	40	15	7	3.6
SPC-06SH-VL-PNK	Socket	6 mm ID tube	6.6	40	15	7	3.6
SPC-06SH-VL-GRN	Socket	6 mm ID tube	6.6	40	15	7	3.6

PM - Male thread

Model	Coupling part	Application	Plastic (g)
SPC-10PM-IVR	Plug	Rc 1/8	2.0
SPC-10PM-BLU	Plug	Rc 1/8	2.0
SPC-10PM-YEL	Plug	Rc 1/8	2.0
SPC-10PM-PNK	Plug	Rc 1/8	2.0
SPC-10PM-GRN	Plug	Rc 1/8	2.0
SPC-10PM-VL-IVR	Plug	Rc 1/8	1.5
SPC-10PM-VL-BLU	Plug	Rc 1/8	1.5
SPC-10PM-VL-YEL	Plug	Rc 1/8	1.5
SPC-10PM-VL-PNK	Plug	Rc 1/8	1.5
SPC-10PM-VL-GRN	Plug	Rc 1/8	1.5

SM - Male thread

Model	Coupling part	Application	Plastic (g)
SPC-10SM-IVR	Socket	Rc 1/8	6.8
SPC-10SM-BLU	Socket	Rc 1/8	6.8
SPC-10SM-YEL	Socket	Rc 1/8	6.8
SPC-10SM-PNK	Socket	Rc 1/8	6.8
SPC-10SM-GRN	Socket	Rc 1/8	6.8
SPC-10SM-VL-IVR	Socket	Rc 1/8	6.4
SPC-10SM-VL-BLU	Socket	Rc 1/8	6.4
SPC-10SM-VL-YEL	Socket	Rc 1/8	6.4
SPC-10SM-VL-PNK	Socket	Rc 1/8	6.4
SPC-10SM-VL-GRN	Socket	Rc 1/8	6.4

PHB - Hose barb for panel mount

Model	Coupling part	Application	Plastic (g)	L	A	T	øB	øF	øJ
SPC-04PHB-IVR	Plug	4 mm ID tube	5.9	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-BLU	Plug	4 mm ID tube	5.9	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-YEL	Plug	4 mm ID tube	5.9	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-PNK	Plug	4 mm ID tube	5.9	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-GRN	Plug	4 mm ID tube	5.9	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-VL-IVR	Plug	4 mm ID tube	5.4	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-VL-BLU	Plug	4 mm ID tube	5.4	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-VL-YEL	Plug	4 mm ID tube	5.4	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-VL-PNK	Plug	4 mm ID tube	5.4	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-04PHB-VL-GRN	Plug	4 mm ID tube	5.4	(40)	10	4.8	2.5	5 mm or less	11.1 +0.3/0
SPC-06PHB-IVR	Plug	6 mm ID tube	6.2	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-BLU	Plug	6 mm ID tube	6.2	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-YEL	Plug	6 mm ID tube	6.2	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-PNK	Plug	6 mm ID tube	6.2	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-GRN	Plug	6 mm ID tube	6.2	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-VL-IVR	Plug	6 mm ID tube	5.7	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-VL-BLU	Plug	6 mm ID tube	5.7	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-VL-YEL	Plug	6 mm ID tube	5.7	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-VL-PNK	Plug	6 mm ID tube	5.7	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0
SPC-06PHB-VL-GRN	Plug	6 mm ID tube	5.7	(45)	15	7	3.6	5 mm or less	11.1 +0.3/0

PHL - L type hose barb

Model	Coupling part	Application	Plastic (g)	L	A	T	øB	øE	øP
SPC-04PHL-IVR	Plug	4 mm ID tube	3.5	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-BLU	Plug	4 mm ID tube	3.5	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-YEL	Plug	4 mm ID tube	3.5	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-PNK	Plug	4 mm ID tube	3.5	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-GRN	Plug	4 mm ID tube	3.5	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-VL-IVR	Plug	4 mm ID tube	3	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-VL-BLU	Plug	4 mm ID tube	3	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-VL-YEL	Plug	4 mm ID tube	3	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-VL-PNK	Plug	4 mm ID tube	3	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-04PHL-VL-GRN	Plug	4 mm ID tube	3	(29)	10.5	4.8	2.5	23.5	(24.5)
SPC-06PHL-IVR	Plug	6 mm ID tube	3.9	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-BLU	Plug	6 mm ID tube	3.9	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-YEL	Plug	6 mm ID tube	3.9	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-PNK	Plug	6 mm ID tube	3.9	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-GRN	Plug	6 mm ID tube	3.9	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-VL-IVR	Plug	6 mm ID tube	3.4	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-VL-BLU	Plug	6 mm ID tube	3.4	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-VL-YEL	Plug	6 mm ID tube	3.4	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-VL-PNK	Plug	6 mm ID tube	3.4	(30.5)	15.5	7	4	28.5	(25.5)
SPC-06PHL-VL-GRN	Plug	6 mm ID tube	3.4	(30.5)	15.5	7	4	28.5	(25.5)

Dimensions in millimetres. Values in brackets apply in the connected condition.

Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore

Series comparison

Series	Max working pressure	Size range	Valve structure	Applicable fluids
COMPACT CUPLA	10 bar	Thread 1/8 inch; tube barb for ø4 x ø6 and ø6 x ø8 tube	Two-way shut-off	Air, Water
CUBE CUPLA	10 bar	4 mm and 6 mm ID tube, 1/8 inch	Two-way shut-off, one-way shut-off or straight through, depending on the combination of valved and valveless socket and plug.	Air, Water
FULL BLOW CUPLA	15 bar	Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. SN type for urethane hose: for dia. 6.5 mm x dia. 10 mm, dia. 8 mm x dia. 12 mm, dia. 8.5 mm x dia. 12.5 mm and dia. 11 mm x dia. 16 mm polyurethane hose.	One-way shut-off	Air
HI CUPLA 200	15 bar	Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. Tube barb (Tube fitter): Polyurethane tube outer dia. 6 +/-0.1, 8 +/-0.15, 10 +/-0.15; Polyamide tube outer dia. 6 +0.05/-0.08, 8 +0.05/-0.1, 10 +0.05/-0.1; Fluorine contained resin tube outer dia. 6 +/-0.07, 8 +/-0.07, 10 +/-0.07.	One-way shut-off	Air
HI CUPLA ACE	15 bar	Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose	One-way shut-off	Air, Water
HI CUPLA	15 bar	Thread and hose barb 1/8 inch to 1 inch, 1/4 inch to 1 inch hose	One-way shut-off	Air, Water
LINE CUPLA 200	15 bar	-	One-way shut-off	Air
LEVER LOCK CUPLA	18 bar	Metal body: 3/4 inch to 4 inch. Plastic body: 3/4 inch, 1 inch, 1 1/2 inch, 2 inch, 3 inch.	Straight through	Water, Hydraulic oil, Air, Powder, Steam

Choose CUBE CUPLA when the line runs at up to 1.0 MPa {10 kgf/cm2} and the shut-off behaviour has to be selected: valved and valveless sockets and plugs give two-way shut-off, one-way shut-off or straight through within one series, whereas MICRO CUPLA, SMALL CUPLA and SUPER CUPLA are one-way shut-off only and COMPACT CUPLA is two-way shut-off only. The polyacetal resin (POM) body covers water as well as air, and the five body colors keep lines apart that would otherwise be confused. For air lines rated 1.5 MPa {15 kgf/cm2} such as HI CUPLA 200, FULL BLOW CUPLA or LINE CUPLA 200, or for the straight through LEVER LOCK CUPLA in large sizes, CUBE CUPLA is not the right choice.

Body and seal materials

Body material
Polyacetal resin (POM)

Seal material	Mark	Working temperature	Remarks
Nitrile rubber	NBR	-20 °C to +60 °C	Standard material

Further catalogue data

Note	Value
Tightening torque range (R 1/8)	0.9 to 1.1 Nm {9.2 to 11 kgf cm}
Volume of air admixture on connection	0.60 mL (built-in valve type only). May vary depending upon the usage conditions.
Volume of spillage per disconnection	0.51 mL (built-in valve type only). May vary depending upon the usage conditions.
Connection capability - socket with valve and plug with valve	Two-way shut-off
Connection capability - socket with valve and plug without valve	Not connectable
Connection capability - socket without valve and plug with valve	One-way shut-off
Connection capability - socket without valve and plug without valve	Straight through
Body colors	Blue, Yellow, Pink, Green, Ivory. See page 7 for the colors. Only the parts shown on page 36 are colored, the other plastic parts are ivory.
PH type plug dimensions from the drawing (mm)	ø14, (10.5)
PHB type plug dimensions from the drawing (mm)	Hex.14 (WAF), (10.5)
PHL type plug dimensions from the drawing (mm)	ø14, (10.5)
PM type plug dimensions from the drawing (mm)	Thread R 1/8, Hex.12 (WAF), 11, 23
SH type socket dimensions from the drawing (mm)	(ø25.5), (20.3), 19.5
SM type socket dimensions from the drawing (mm)	Thread R 1/8, (ø25.5), (20.3), 19.5, 31.5
Minimum cross-sectional area (mm2) - plug SPC-04PH/PHB/PHL	SPC-04SH 5, SPC-06SH 5, SPC-10SM 5, SPC-04SH-VL 5, SPC-06SH-VL 5, SPC-10SM-VL 5
Minimum cross-sectional area (mm2) - plug SPC-06PH/PHB/PHL	SPC-04SH 5, SPC-06SH 8.6, SPC-10SM 8.6, SPC-04SH-VL 5, SPC-06SH-VL 8.6, SPC-10SM-VL 8.6
Minimum cross-sectional area (mm2) - plug SPC-10PM	SPC-04SH 5, SPC-06SH 8.6, SPC-10SM 8.6, SPC-04SH-VL 5, SPC-06SH-VL 8.6, SPC-10SM-VL 8.6
Minimum cross-sectional area (mm2) - plug SPC-04PH-VL/PHB-VL/PHL-VL	SPC-04SH not connectable, SPC-06SH not connectable, SPC-10SM not connectable, SPC-04SH-VL 5, SPC-06SH-VL 5, SPC-10SM-VL 5
Minimum cross-sectional area (mm2) - plug SPC-06PH-VL/PHB-VL	SPC-04SH not connectable, SPC-06SH not connectable, SPC-10SM not connectable, SPC-04SH-VL 5, SPC-06SH-VL 10.2, SPC-10SM-VL 10.2
Minimum cross-sectional area (mm2) - plug SPC-06PHL-VL	SPC-04SH not connectable, SPC-06SH not connectable, SPC-10SM not connectable, SPC-04SH-VL 5, SPC-06SH-VL 10.2, SPC-10SM-VL 12.6
Minimum cross-sectional area (mm2) - plug SPC-10PM-VL	SPC-04SH not connectable, SPC-06SH not connectable, SPC-10SM not connectable, SPC-04SH-VL 5, SPC-06SH-VL 10.2, SPC-10SM-VL 16.6
Flow rate	Pressure - Flow Characteristics graph on page 34, flow rate in m3/min (ANR) against pressure in MPa {kgf/cm2}, tested with air. Solid line: built-in valve type, dotted line: valveless type. The fluid flow will not differ by body color.

Interchangeability and size groups

Sockets and plugs can be connected regardless of end configurations. Do not use the combination of a valved socket with a valveless plug: the valve in the socket will not open and the fluid will not flow.

Safety and application notes

Do not use in the combination of valved sockets and valveless plugs. The valve in the socket will not open and the fluid will not flow.
Note: When disconnected, the fluid from the valveless side will flow out. Take care if the fluid is water.
Evaluation shall be made by the customer before use to determine the suitability with applications that require sanitation control.
Before use, please be sure to read "Safety Guide" described at the end of this book and "Instruction Sheet" that comes with the products.

All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 33. The complete catalogue is available for download on this page.

What are Cube Cupla pneumatic couplings and which industrial applications use them?

Cube Cupla pneumatic couplings from Nitto Kohki are low-pressure quick-connect fittings designed for reliable fluid connections in pneumatic systems operating up to 19 bar. These POM body couplings with NBR seals serve manufacturing automation, packaging machinery, pneumatic tool connections, and compressed air distribution networks. Their cube-shaped design provides secure mechanical engagement while enabling rapid connection and disconnection cycles essential in production environments where frequent tool changes or system reconfiguration occurs.

What technical specifications should engineers consider when selecting Cube Cupla pneumatic couplings?

Selection of Cube Cupla couplings requires evaluation of maximum operating pressure up to 19 bar, port sizes including SPC-04SH (4mm), SPC-06SH (6mm), and SPC-10SM (10mm) variants, and media compatibility with compressed air and neutral gases. The POM (polyoxymethylene) body material provides excellent dimensional stability and chemical resistance, while NBR (nitrile butadiene rubber) sealing elements ensure reliable sealing across temperature ranges. Flow capacity, connection frequency, and valve configuration with standard or VL (valve-less) options determine optimal coupling selection for specific pneumatic circuit requirements.

Which international standards and certifications apply to Cube Cupla pneumatic couplings?

Cube Cupla pneumatic couplings comply with ISO 4414 standards for pneumatic fluid power systems and general safety requirements for compressed air applications. The couplings meet material specifications under ISO 1043 for POM thermoplastic identification and performance criteria defined in ISO 5676 for pneumatic quick-action couplings. Manufacturing quality follows ISO 9001 standards while dimensional tolerances adhere to ISO 286 precision requirements, ensuring reliable interchangeability and consistent performance across industrial pneumatic installations.

What are the differences between standard Cube Cupla variants and VL models?

Standard Cube Cupla models like SPC-04SH, SPC-06SH, and SPC-10SM incorporate automatic shut-off valves that close when disconnected, preventing air loss and maintaining system pressure. The VL variants such as SPC-04SH-VL, SPC-06SH-VL, and SPC-10SM-VL feature valve-less designs that allow free flow when connected but do not provide automatic sealing upon disconnection. Valve-less models reduce pressure drop across the coupling connection but require manual system isolation before disconnection, making them suitable for applications where minimal flow restriction outweighs automatic shut-off functionality.

What installation requirements and system compatibility considerations apply to Cube Cupla couplings?

Cube Cupla couplings require threaded connections compatible with standard pneumatic fittings and sufficient clearance for manual engagement and disengagement operations. Installation demands proper thread sealing using PTFE tape or anaerobic sealants to achieve rated pressure capability up to 19 bar, with mounting orientation allowing unrestricted access for coupling operation. System compatibility extends to compressed air, nitrogen, and inert gases with operating temperatures typically ranging from -10°C to +60°C, while avoiding aggressive chemicals that could degrade POM body materials or NBR sealing elements.

What safety ratings and environmental specifications do Cube Cupla pneumatic couplings meet?

Cube Cupla couplings operate safely at maximum working pressures up to 19 bar with proof pressure testing typically performed at 1.5 times working pressure according to pneumatic component standards. The POM body construction withstands ambient temperatures from -10°C to +60°C while maintaining dimensional stability and sealing integrity throughout thermal cycling. These couplings achieve IP40 protection rating against solid particle ingress when properly mated, though they lack specific ATEX certification for explosive atmosphere applications without additional documentation from the manufacturer.

What maintenance schedule and service life expectations apply to Cube Cupla pneumatic couplings?

Cube Cupla couplings typically require visual inspection every 6 months for seal integrity, body wear, and proper engagement mechanism function, with NBR seals showing service life of 2-5 years depending on operating pressure, temperature, and connection frequency. Preventive maintenance involves checking for air leakage at 19 bar test pressure, verifying smooth coupling operation without binding, and replacing units showing visible wear or seal degradation. High-cycle applications exceeding 10,000 connect-disconnect operations annually may require more frequent inspection intervals, while continuous pressurization accelerates seal aging compared to intermittent duty cycles.
