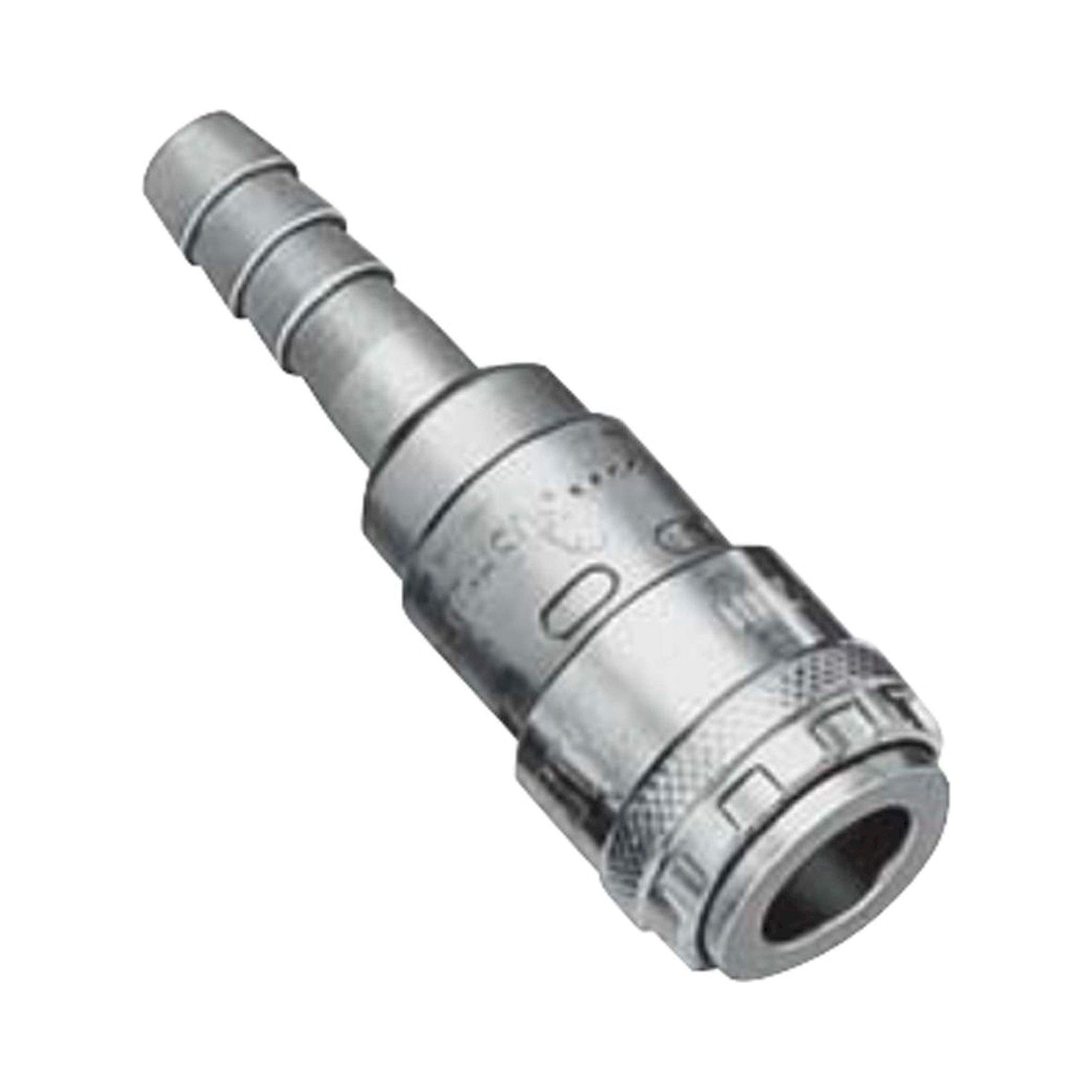

The Nitto Kohki HI Cupla 200 is a low-pressure quick-release coupling in steel with NBR seals, rated for operating pressures up to 19 bar. The range includes sockets (200-xSH, 200-xSM, 200-xSF, 200-xSC) and plugs (200-xPC) in nominal sizes 20, 30, 40, 60, 80, and 100, plus a smaller size 17. G external thread (H), G internal thread (F), metric (M), and hose connection (C) are available as connection options. The 200 series is designed for high flow rates at low pressures.
⚡High flow up to size 100 - Steel body for low-pressure main air lines with large nominal bore
⚙Steel with NBR - Robust for general compressed-air applications and industrial environments up to 19 bar
✓Four connection forms - G external (H), G internal (F), metric (M), and hose (C) cover all common line terminations
↕Nominal sizes 17-100 - Wide scaling from compact hand-tool connection to main distribution line
Type
Role
Connection
Material
200-17SH
Socket
G external
Steel/NBR
200-20SH / 200-30SH / 200-40SH
Socket
G external
Steel/NBR
200-20SM / 200-30SM / 200-40SM
Socket
Metric
Steel/NBR
200-20SF / 200-30SF / 200-40SF
Socket
G internal
Steel/NBR
200-60SC / 200-80SC / 200-100SC
Socket
Hose
Steel/NBR
60PC / 80PC / 100PC
Plug
Hose
Steel/NBR
Typical applications: Main compressed-air lines in manufacturing and assembly halls, connections for pneumatic main lines and hose reels, quick-change compressed-air fittings on compressors and air treatment units, workshop installations with frequent hose disconnection, and industrial compressed-air distribution networks up to 19 bar.
Technical data from the manufacturer catalogue
Series
HI CUPLA 200
Body material
Steel (Chrome plated)
Seal material
Nitrile rubber (NBR)
Max working pressure
1.5 MPa {15 kgf/cm2, 15 bar, 218 PSI}
Working temperature
Nitrile rubber (NBR): -20 °C to +60 °C
Valve structure
One-way shut-off
Applicable fluids
Air
Vacuum service
Not suitable for vacuum application in either connected or disconnected condition.
On disconnection the valve in the socket closes the supply line. The fluid left in the plug escapes.Connecting sequence of a ball locking quick connect coupling.
Just push the plug into the socket for simple and secure connection. This reduces connection time and improves efficiency.
New valve design for low pressure loss to achieve flow rate increase (15% up over the conventional model).
End-face seal is achieved when connected.
Enhanced operability with low connection resistance.
End-face seal design is superior to external seal with an O-ring due to no seal damage caused by exhausted lubrication.
Available only with steel body. Not suitable for water or oil.
Also available with quick connect/disconnect Tube Fitter type.
Push-to-connect type for air lines.
All models of the series
SH - Hose barb
Model
Coupling part
Application
Steel (g)
L
A
T
øB
200-17SH
Socket
1/4 inch hose
86
(77)
27
7.2
4.5
200-20SH
Socket
1/4 inch hose
90
(77)
27.5
9
5
200-30SH
Socket
3/8 inch hose
92
(79)
32
11.3
7.5
200-40SH
Socket
1/2 inch hose
104
(79.5)
32
15
10
SM - Male thread
Model
Coupling part
Application
Steel (g)
L
T
øB
øH(WAF)
200-20SM
Socket
Rc 1/4
89
(60)
R 1/4
7.5
Hex.19
200-30SM
Socket
Rc 3/8
91
(60.5)
R 3/8
10
Hex.19
200-40SM
Socket
Rc 1/2
102
(56)
R 1/2
13
Hex.24
SF - Female thread
Model
Coupling part
Application
Steel (g)
L
T
øH(WAF)
200-20SF
Socket
R 1/4
94
(57.5)
Rc 1/4
Hex.19
200-30SF
Socket
R 3/8
103
(55.5)
Rc 3/8
Hex.22
200-40SF
Socket
R 1/2
138
(57.5)
Rc 1/2
Hex.29
SC - Tube Fitter
Model
Coupling part
Application
Steel (g)
L
øB
200-60SC
Socket
For 6 mm OD tube
100
(64)
5
200-80SC
Socket
For 8 mm OD tube
105
(67.5)
6.5
200-100SC
Socket
For 10 mm OD tube
123
(70.5)
8.5
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
Series
Max working pressure
Size range
Valve structure
Applicable fluids
COMPACT CUPLA
10 bar
Thread 1/8 inch; tube barb for ø4 x ø6 and ø6 x ø8 tube
Two-way shut-off
Air, Water
CUBE CUPLA
10 bar
4 mm and 6 mm ID tube, 1/8 inch
Two-way shut-off, one-way shut-off or straight through, depending on the combination of valved and valveless socket and plug.
Air, Water
FULL BLOW CUPLA
15 bar
Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. SN type for urethane hose: for dia. 6.5 mm x dia. 10 mm, dia. 8 mm x dia. 12 mm, dia. 8.5 mm x dia. 12.5 mm and dia. 11 mm x dia. 16 mm polyurethane hose.
Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose
One-way shut-off
Air, Water
HI CUPLA
15 bar
Thread and hose barb 1/8 inch to 1 inch, 1/4 inch to 1 inch hose
One-way shut-off
Air, Water
LINE CUPLA 200
15 bar
-
One-way shut-off
Air
LEVER LOCK CUPLA
18 bar
Metal body: 3/4 inch to 4 inch. Plastic body: 3/4 inch, 1 inch, 1 1/2 inch, 2 inch, 3 inch.
Straight through
Water, Hydraulic oil, Air, Powder, Steam
Choose HI CUPLA 200 for air lines worked at up to 1.5 MPa {15 kgf/cm2}, where the 1.0 MPa {10 kgf/cm2} of MICRO CUPLA, SMALL CUPLA, COMPACT CUPLA, CUBE CUPLA and SUPER CUPLA is not enough. Against the equally rated one-way shut-off series HI CUPLA, FULL BLOW CUPLA, LINE CUPLA 200 and HI CUPLA ACE it is the choice when the seal is to sit on the end face and when socket and tube are to be joined in one push by the integrated Tube Fitter. It is no candidate where the line has to stay open, which is what the straight through LEVER LOCK CUPLA does, nor where two-way shut-off as in COMPACT CUPLA or CUBE CUPLA is required, and it stays limited to air on a steel body.
Body and seal materials
Body material
Steel (Chrome plated)
Seal material
Mark
Working temperature
Remarks
Nitrile rubber
NBR
-20 °C to +60 °C
Standard material
Further catalogue data
Note
Value
Flow direction
Fluid must run from socket to plug.
Maximum tightening torque
1/4 inch: 14 {143} Nm {kgf . cm}. 3/8 inch: 22 {224}. The 1/2 inch value is printed but not legible in the extracted text.
Tube fitter tubes
Polyurethane tube, polyamide tube and fluorine contained resin tube. The printed outer diameter tolerances are +0.05/-0.08, +0.05/-0.1 and +0.05/-0.1 for the three tube sizes; the diameter figures themselves are not legible in the extracted text, but the model table names 6 mm, 8 mm and 10 mm OD tube.
Minimum cross-sectional area (mm2)
Plug columns are 17PH, 20PH, 30PH, 40PH, 10PM, 20PM, 30PM, 40PM, 20PF, 30PF, 40PF. Socket 200-17SH: 16 with every plug except 13 with 10PM. Socket 200-20SH: 16 with 17PH, 13 with 10PM, 20 with all other plugs. Sockets 200-30SH, 200-40SH, 200-20SM, 200-30SM, 200-40SM, 200-20SF, 200-30SF and 200-40SF: 16 with 17PH, 20 with 20PH, 13 with 10PM, 41 with 30PH, 40PH, 20PM, 30PM, 40PM, 20PF, 30PF and 40PF.
Socket outer diameter shown on the drawings
(ø26.5) for the SH, SM, SF and SC types
Note on specification table
Above specifications apply only to CUPLA. Maximum working pressure and working temperature range may vary depending on tube materials you use with and the working temperature.
WAF
WAF stands for width across flats.
Flow rate
The pages give pressure - flow characteristic curves only, no tabulated flow values. Test fluid is air; the chart runs to 3.5 m3/min (ANR) over 0 to 0.7 MPa {7 kgf/cm2}. Curves plotted: (1) 200-40SM x 40PM / 200-30SM x 30PM / 200-20SM x 20PM, (2) 200-100SC x 100PC, (3) 200-80SC x 80PC, (4) an SC x PC combination whose size figures are not legible in the extracted text.
Interchangeability and size groups
Interchangeable with plugs of HI CUPLA models 10, 17, 20, 30 and 40. Interchangeable with each models of NUT CUPLA series and HI CUPLA series, except two models whose numbers are not legible in the extracted text. Please see page 21 for "HI CUPLA Series Interchangeability".
Safety and application notes
Before use, please be sure to read "Safety Guide" described at the end of this book and "Instruction Sheet" that comes with the products.
Not suitable for vacuum application in either connected or disconnected condition.
Available only with steel body. Not suitable for water or oil.
Fluid must run from socket to plug.
When connecting an extremely soft tube such as soft polyurethane or soft nylon, attach the insert ring specified by the tube manufacturer to the inner diameter of the tube to be connected.
Do not exceed the maximum tightening torque given for each thread size.
