Small Cupla
Low pressure up to 19 bar

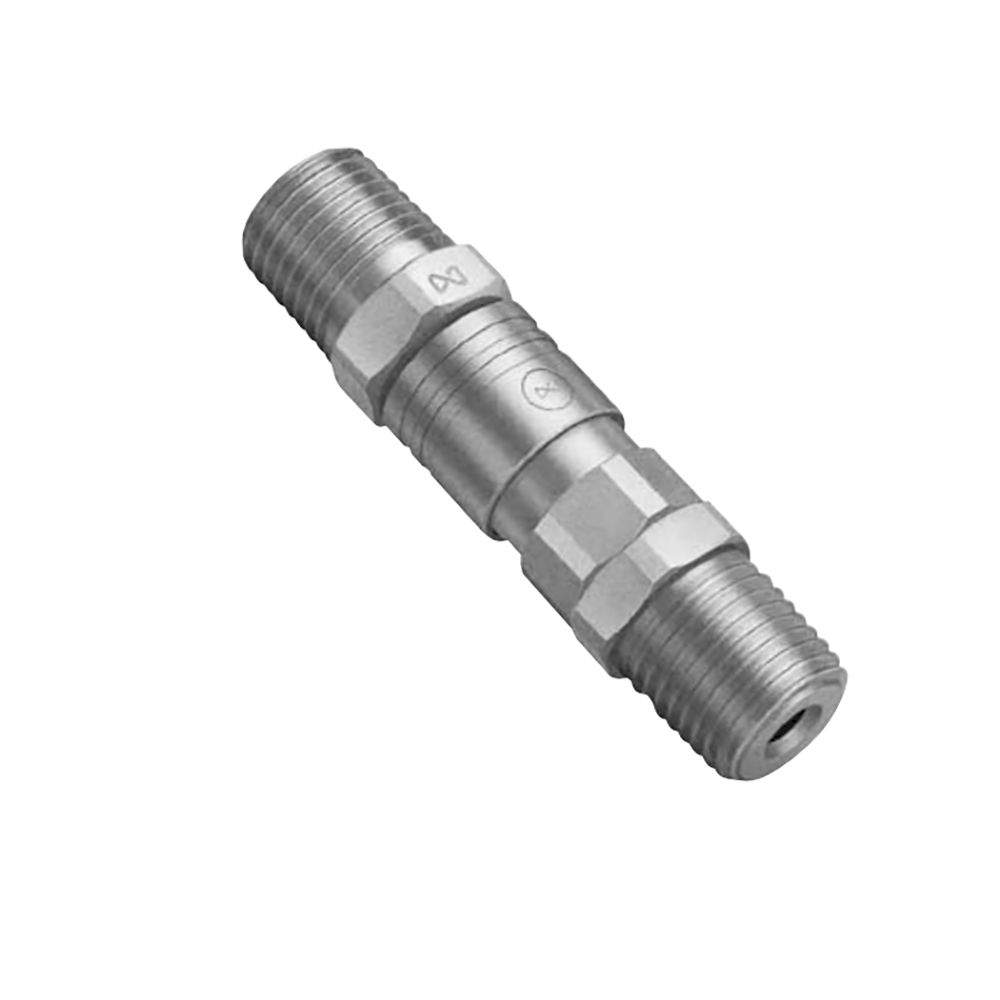

The Nitto Kohki Small Cupla is a compact low-pressure quick-release coupling for applications up to 19 bar, manufactured from brass with NBR seals. The range covers plug and socket variants in nominal sizes MS-40, MS-45, MS-10, and MS-20, with G-thread connections (male M, female F) and hose fittings for 6 mm and 8 mm hoses (PC, PCL). Structurally related to the Super Cupla, the Small Cupla features a particularly narrow body for confined installation spaces.
Brass with NBR - Standard material for dry compressed air and light industrial applications up to 19 bar
Compact body - Slim design for confined spaces, suitable for direct mounting on pneumatic cylinders or valves
Wide connection range - G external and internal threads (M, F), nipple (N), and direct hose fittings 6 and 8 mm (PC, PCL)
Plug and socket types - MS-x0P (plug) and MS-x0S (socket) as compatible pairs, including blanking element MS-5
| Type | Connection | Material | Seal |
|---|---|---|---|
| MS-40PN / MS-40SN | Nipple | Brass | NBR |
| MS-45PN / MS-45SN | Nipple | Brass | NBR |
| MS-10PM / MS-10SM | G male thread | Brass | NBR |
| MS-20PM / MS-20SM | G male thread | Brass | NBR |
| MS-10PF / MS-10SF | G female thread | Brass | NBR |
| MS-20PC-6/-8 / MS-20SC-6/-8 | Hose 6/8 mm | Brass | NBR |
Typical applications: Compressed-air supply to hand tools and small pneumatic cylinders, pneumatic controls in space-restricted installations, hose connections in production lines and assembly fixtures, and general compressed-air networks in workshops and manufacturing up to 19 bar.
Technical data from the manufacturer catalogue
| Series | SMALL CUPLA |
|---|---|
| Body material | CUPLA : Brass (Chrome plated), Tube Fitter Part : Brass (Nickel plated) , Plastic |
| Seal material | Nitrile rubber (NBR) |
| Max working pressure | 1.0 MPa {10 kgf/cm2, 10 bar, 145 PSI} |
| Working temperature | Nitrile rubber (NBR): -20 °C to +80 °C |
| Valve structure | One-way shut-off |
| Applicable fluids | Air, Water (Tube Fitter type is unsuitable for water.) |
| Vacuum service | 53.0 kPa {400 mmHg}: Socket only -, Plug only -, When connected Operational |
| Size range | Thread 1/8 inch, 1/4 inch; Hose barb polyamide hose o4xo6, o4.5xo6, urethane hose o4xo6; Tube barb (Tube fitter) polyurethane tube OD o6 +/-0.1, o8 +/-0.15, polyamide tube OD o6 +0.05/-0.08, o8 +0.05/-0.1, fluorine contained resin tube OD o6 +/-0.07, o8 +/-0.07 |
| Catalogue page | C01en-b, 27 |
Operating principle
- Compact socket with built-in valve and 14 mm OD sleeve. Suits applications calling for compact and modular components.
- Just push in the plug to the socket for connection by easy one hand operation.
- Plated brass for corrosion resistance adopted for the body. Stable performance for long life.
- A wide line-up of end configurations (female and male threads, hose barbs, manifolds) enables suitability with a wide range of piping applications such as pneumatic, scientific and medical equipment.
- Also available with quick connect/disconnect Tube Fitter type.
- Lightweight and compact push-to-connect operation. Responding to requirements of modular combinations.
All models of the series
PN - Hose barb
| Model | Coupling part | Application | Brass (g) | L | C | øH1(WAF) | øH2(WAF) | øøB | øøD |
|---|---|---|---|---|---|---|---|---|---|
| MS-40PN | Plug | ø4 mm x ø6 mm Polyamide | 10.5 | (31) | 15.2 | Hex.10 | Hex.10 | 2.5 | 11 |
| MS-45PN | Plug | ø4.5 mm x ø6 mm Polyamide, ø4 mm x ø6 mm Polyurethane | 11 | (31) | 15.2 | Hex.10 | Hex.10 | 3 | 11 |
SN - Hose barb
| Model | Coupling part | Application | Brass (g) | L | øH1(WAF) | øH2(WAF) | øøB | øøD |
|---|---|---|---|---|---|---|---|---|
| MS-40SN | Socket | ø4 mm x ø6 mm Polyamide | 26.5 | (40.8) | Hex.10 | Hex.12 | 2.5 | 14 |
| MS-45SN | Socket | ø4.5 mm x ø6 mm Polyamide, ø4 mm x ø6 mm Polyurethane | 27.0 | (40.8) | Hex.10 | Hex.12 | 3 | 14 |
PM - Male thread
| Model | Coupling part | Application | Brass (g) | L | C | T | øH(WAF) | øøB | øøD |
|---|---|---|---|---|---|---|---|---|---|
| MS-10PM | Plug | Rc 1/8 | 9 | 28.5 | 15.2 | R 1/8 | Hex.11 | 4 | 12 |
| MS-20PM | Plug | Rc 1/4 | 19.5 | 32.5 | 15.2 | R 1/4 | Hex.14 | 4 | 15.2 |
SM - Male thread
| Model | Coupling part | Application | Brass (g) | L | T | øH(WAF) | øøB | øøD | øøE |
|---|---|---|---|---|---|---|---|---|---|
| MS-10SM | Socket | Rc 1/8 | 24 | (36.8) | R 1/8 | Hex.12 | 4 | 14 | 13.2 |
| MS-20SM | Socket | Rc 1/4 | 34 | (40.8) | R 1/4 | Hex.14 | 4 | 14 | 15.2 |
PF - Female thread
| Model | Coupling part | Application | Brass (g) | L | C | T | øH(WAF) | øøB | øøD |
|---|---|---|---|---|---|---|---|---|---|
| MS-10PF | Plug | R 1/8 | 11 | 27 | 15.2 | Rc 1/8 | Hex.13 | 4 | 14 |
SF - Female thread
| Model | Coupling part | Application | Brass (g) | L | T | øH(WAF) | øøB | øøD |
|---|---|---|---|---|---|---|---|---|
| MS-10SF | Socket | R 1/8 | 29.5 | (38.8) | Rc 1/8 | Hex.13 | 4 | 14 |
PC - Tube Fitter
| Model | Coupling part | Application | Brass (g) | L | C | øH(WAF) | øøB | øøE | øøT |
|---|---|---|---|---|---|---|---|---|---|
| MS-20PC-6 | Plug | 6 mm OD tube | 26.5 | (40.5) | 15.2 | Hex.16 | 4 | 17.5 | 10.3 |
| MS-20PC-8 | Plug | 8 mm OD tube | 31 | (47.5) | 15.2 | Hex.16 | 4 | 17.5 | 13.5 |
SC - Tube Fitter
| Model | Coupling part | Application | Brass (g) | L | øH(WAF) | øøD | øøE | øøT |
|---|---|---|---|---|---|---|---|---|
| MS-20SC-6 | Socket | 6 mm OD tube | 46 | (56.3) | Hex.16 | 14 | 17.5 | 10.3 |
| MS-20SC-8 | Socket | 8 mm OD tube | 50.5 | (60.8) | Hex.16 | 14 | 17.5 | 13.5 |
PCL - L-shaped Tube Fitter
| Model | Coupling part | Application | Brass (g) | L | C | øE | øH(WAF) | øøB | øøT |
|---|---|---|---|---|---|---|---|---|---|
| MS-20PCL-6 | Plug | 6 mm OD tube | 27.5 | (43) | 15.2 | (24.8) | Hex.16 | 4 | 10.5 |
| MS-20PCL-8 | Plug | 8 mm OD tube | 32 | (46.5) | 15.2 | (31.8) | Hex.16 | 4 | 13.5 |
SCL - L-shaped Tube Fitter
| Model | Coupling part | Application | Brass (g) | L | C | øH(WAF) | øøD | øøT |
|---|---|---|---|---|---|---|---|---|
| MS-20SCL-6 | Socket | 6 mm OD tube | 47.5 | (56.8) | (24.8) | Hex.16 | 14 | 10.5 |
| MS-20SCL-8 | Socket | 8 mm OD tube | 49.5 | (59.8) | (31.8) | Hex.16 | 14 | 13.5 |
SCB - Tube Fitter for panel mounting
| Model | Coupling part | Application | Brass (g) | L | øF | øH(WAF) | øHs(WAF) | øøC | øøD | øøJ |
|---|---|---|---|---|---|---|---|---|---|---|
| MS-20SCB-6 | Socket | 6 mm OD tube | 57.5 | (61.3) | 7 or less | Hex.15 | Hex.17 | 18 | 14 | 12.5+0.3 |
| MS-20SCB-8 | Socket | 8 mm OD tube | 58.5 | (62.8) | 8 or less | Hex.18 | Hex.17 | 21 | 14 | 15.5+0.3 |
MS-5 - SMALL LINE CUPLA with 5 branch ports
| Model | Coupling part | Application | Total (g) |
|---|---|---|---|
| MS-5 | Socket | Branch line with MS-10SM (5 pcs.) and 2 x Rc 1/4 ports | 238 |
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
| Series | Max working pressure | Size range | Valve structure | Applicable fluids |
|---|---|---|---|---|
| SMALL CUPLA | 10 bar | Thread 1/8 inch, 1/4 inch; Hose barb polyamide hose o4xo6, o4.5xo6, urethane hose o4xo6; Tube barb (Tube fitter) polyurethane tube OD o6 +/-0.1, o8 +/-0.15, polyamide tube OD o6 +0.05/-0.08, o8 +0.05/-0.1, fluorine contained resin tube OD o6 +/-0.07, o8 +/-0.07 | One-way shut-off | Air, Water (Tube Fitter type is unsuitable for water.) |
| COMPACT CUPLA | 10 bar | Thread 1/8 inch; tube barb for ø4 x ø6 and ø6 x ø8 tube | Two-way shut-off | Air, Water |
| CUBE CUPLA | 10 bar | 4 mm and 6 mm ID tube, 1/8 inch | Two-way shut-off, one-way shut-off or straight through, depending on the combination of valved and valveless socket and plug. | Air, Water |
| FULL BLOW CUPLA | 15 bar | Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. SN type for urethane hose: for dia. 6.5 mm x dia. 10 mm, dia. 8 mm x dia. 12 mm, dia. 8.5 mm x dia. 12.5 mm and dia. 11 mm x dia. 16 mm polyurethane hose. | One-way shut-off | Air |
| HI CUPLA 200 | 15 bar | Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. Tube barb (Tube fitter): Polyurethane tube outer dia. 6 +/-0.1, 8 +/-0.15, 10 +/-0.15; Polyamide tube outer dia. 6 +0.05/-0.08, 8 +0.05/-0.1, 10 +0.05/-0.1; Fluorine contained resin tube outer dia. 6 +/-0.07, 8 +/-0.07, 10 +/-0.07. | One-way shut-off | Air |
| HI CUPLA ACE | 15 bar | Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose | One-way shut-off | Air, Water |
| HI CUPLA | 15 bar | Thread and hose barb 1/8 inch to 1 inch, 1/4 inch to 1 inch hose | One-way shut-off | Air, Water |
| LEVER LOCK CUPLA | 18 bar | Metal body: 3/4 inch to 4 inch. Plastic body: 3/4 inch, 1 inch, 1 1/2 inch, 2 inch, 3 inch. | Straight through | Water, Hydraulic oil, Air, Powder, Steam |
Take SMALL CUPLA where a 14 mm OD sleeve and one hand push-to-connect matter on an air or water line at 1.0 MPa {10 kgf/cm2} and a one-way shut-off socket is acceptable. MICRO CUPLA and SUPER CUPLA share that rating and valve type, while COMPACT CUPLA and CUBE CUPLA offer two-way shut-off at the same 1.0 MPa {10 kgf/cm2} when the plug side has to hold the fluid as well; note that fluid flows out of the plug side of a SMALL CUPLA on disconnection, which matters on water. For air lines above 1.0 MPa {10 kgf/cm2}, HI CUPLA, HI CUPLA 200 and LINE CUPLA 200 are rated 1.5 MPa {15 kgf/cm2}.
Body and seal materials
| Body material |
|---|
| CUPLA : Brass (Chrome plated) |
| Tube Fitter Part : Brass (Nickel plated) , Plastic |
| Seal material | Mark | Working temperature | Remarks |
|---|---|---|---|
| Nitrile rubber | NBR | -20 °C to +80 °C | Standard material |
Further catalogue data
| Note | Value |
|---|---|
| Pressure unit conversion | Working pressure 1.0 MPa, 10 kgf/cm2, 10 bar, 145 PSI |
| Size, hose barb | Polyamide hose: ø4xø6, ø4.5xø6. Urethane hose: ø4xø6 |
| Size, tube barb (Tube fitter) | Polyurethane tube: Outside Dia. ø6 +/- 0.1, ø8 +/- 0.15. Polyamide tube: Outside Dia. ø6 -0.08, ø8 -0.1. Fluorine contained resin tube: Outside Dia. ø6 +/- 0.07, ø8 +/- 0.07 |
| Maximum tightening torque | 1/8 inch 5 {51}, 1/4 inch 9 {92}, PN and SN type 5 {51} Nm {kgf - cm} |
| Flow direction | Fluid flow can be bi-directional when socket and plug are connected. |
| Minimum cross-sectional area | MS-10SM x MS-10PM 12.5 mm2, MS-20SM x MS-20PM 12.5 mm2, MS-40SN x MS-40PN 4.9 mm2, MS-45SN x MS-45PN 7 mm2, Tube Fitter type for 6 mm OD tube 12.5 mm2, Tube Fitter type for 8 mm OD tube 12.5 mm2 |
| Working temperature range | The working temperature values are not legible in the supplied page text and are therefore not recorded. |
| Flow rate | Pressure - flow characteristics are given as a graph. Test conditions: fluid air, tube size ø6 mm x ø4 mm and ø8 mm x ø6 mm (SMALL CUPLA with Tube Fitter). Curves: 1 MS-10SM x MS-10PM, 2 MS-20SC-8 x MS-20PC-8, 3 MS-20SCL-8 x MS-20PCL-8, 4 MS-20SC-6 x MS-20PC-6, 5 MS-20SCL-6 x MS-20PCL-6, 6 MS-40SN x MS-40PN. Graph range 0 to 0.8 m3/min (ANR) against 0 to 0.7 MPa {0 to 7 kgf/cm2}. |
Interchangeability and size groups
Sockets and plugs can be connected regardless of end configurations.
Safety and application notes
- Note: Fluid will flow out from the plug side when disconnected. Take necessary precaution if the fluid is water.
- Before use, please be sure to read "Safety Guide" described at the end of this book and "Instruction Sheet" that comes with the products.
All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 27. The complete catalogue is available for download on this page.
