The Nitto Kohki HI Cupla ACE is a plastic quick coupling for low-pressure service up to 19 bar, manufactured from PBT/POM with NBR seals. The range covers 25 items across the PH, PM, PN and PF plug series and the SH, SM and SN socket series, in nominal sizes 20, 30, 50, 60, 65, 80 and 85. G-suffix variants (50PNG-PLA, 65PNG-PLA, 85PNG-PLA) are earthed versions, and the HA series provides an alternative body geometry with the same materials and pressure rating.
PBT (polybutylene terephthalate) and POM (polyoxymethylene) give the ACE series greater rigidity and better chemical resistance than conventional polypropylene couplings, making them suitable wherever lightweight construction and corrosion-free operation are required.
⚙PBT/POM construction - high rigidity, chemically resistant, corrosion-free
✓NBR seal - rated for compressed air and general pneumatic media
⚡G variants (PNG-PLA) - earthed versions 50PNG, 65PNG, 85PNG for Ex zones
↕HA series - alternative plug and socket geometry, nominal sizes 20-85
✦Wide range of port types - PH, PM, PN, PF plugs and SH, SM, SN sockets
Series
Type
Nominal sizes
Material / seal
20PH-PLA to 85PN-PLA
Plug
20, 30, 50, 60, 65, 80, 85
PBT/POM, NBR
20PFF-PLA
Flanged plug
20
PBT/POM, NBR
50PNG-PLA, 65PNG-PLA, 85PNG-PLA
Earthed plug
50, 65, 85
PBT/POM, NBR
HA-20SH to HA-85SN
Socket (HA series)
20, 30, 50, 60, 65, 80, 85
PBT/POM, NBR
HA-50SNG, HA-65SNG, HA-85SNG
Earthed socket
50, 65, 85
PBT/POM, NBR
Typical applications: Pneumatic tools and compressed-air lines up to 19 bar, applications requiring corrosion protection (humid environments, chemical exposure), portable equipment with weight constraints, and potentially explosive atmospheres with the earthed PNG/SNG variants.
Technical data from the manufacturer catalogue
Series
HI CUPLA ACE
Body material
Engineering plastics (PBT, POM)
Seal material
NBR (Nitrile rubber)
Max working pressure
1.5 MPa {15 kgf/cm2}; 1.0 MPa {10 kgf/cm2} for plastic plug and Model HA-T
Working temperature
NBR (Nitrile rubber), standard material: -20 °C to +60 °C
Valve structure
One-way shut-off
Applicable fluids
Air, Water
Vacuum service
Not suitable for vacuum application in either connected or disconnected condition.
Size range
Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose
Catalogue page
C01en-b, 61
Operating principle
On disconnection the valve in the socket closes the supply line. The fluid left in the plug escapes.Connecting sequence of a ball locking quick connect coupling.
The weight is merely a quarter of steel HI CUPLA's and smooth push-in connection is achieved.
Separation prevention mechanism for safety operation.
Pressure ratings comparable to steel CUPLA.
A built-in separation prevention mechanism locks the sleeve upon connection, thus prevents accidental disconnection.
Just push plug into socket for simple connection.
The weight is a quarter of steel HI CUPLA for easy handling.
Can be used for air and water.
Air flows in either direction from plug or from socket side when coupled.
All models of the series
PH - Plastic plug / Hose barb
Model
Coupling part
Application
Plastic (g)
L
H
A
T
øBp
øBd
20PH-PLA
Plug
1/4 inch hose
3
49
14
21.5
9
5.5
7
30PH-PLA
Plug
3/8 inch hose
4
52
16
23.5
11.5
7.5
7
SH - Hose barb
Model
Coupling part
Application
Plastic (g)
L
T
øB
øA1
øA2
HA-20SH
Socket
1/4 inch hose
26
(65.5)
9
5
25.5
21.5
HA-30SH
Socket
3/8 inch hose
28
(68)
11.5
7
28
23.5
PM - Plastic plug / Male thread
Model
Coupling part
Application
Plastic (g)
T
øBp
øBd
20PM-PLA
Plug
Rc 1/4 thread
8
R 1/4
7.1
7.4
30PM-PLA
Plug
Rc 3/8 thread
6
R 3/8
10
7.4
SM - Male thread
Model
Coupling part
Application
Plastic (g)
T
øB
HA-20SM
Socket
Rc 1/4 thread
27
R 1/4
7.1
HA-30SM
Socket
Rc 3/8 thread
26
R 3/8
8
PN - Plastic plug / For urethane hose connection
Model
Coupling part
Application
Plastic (g)
L
H
øBp
øBd
øHp(WAF)
50PN-PLA
Plug
ø5 mm x ø8 mm hose
9
(46)
23
4
7
Hex.19
60PN-PLA
Plug
ø6 mm x ø9 mm hose
9
(46)
23
4.7
7
Hex.19
65PN-PLA
Plug
ø6.5 mm x ø10 mm hose
9
(46)
23
5.3
7
Hex.19
80PN-PLA
Plug
ø8 mm x ø12 mm hose
12
(48.5)
26
6.5
7
Hex.22
85PN-PLA
Plug
ø8.5 mm x ø12.5 mm hose
12
(48.5)
26
7
7
Hex.22
SN - For urethane hose connection
Model
Coupling part
Application
Plastic (g)
L
øB
øH(WAF)
HA-50SN
Socket
ø5 mm x ø8 mm hose
27
(57)
4
Hex.19
HA-60SN
Socket
ø6 mm x ø9 mm hose
27
(57)
4.7
Hex.19
HA-65SN
Socket
ø6.5 mm x ø10 mm hose
27
(57)
5.3
Hex.19
HA-80SN
Socket
ø8 mm x ø12 mm hose
29
(59.5)
6.5
Hex.22
HA-85SN
Socket
ø8.5 mm x ø12.5 mm hose
29
(59.5)
7
Hex.22
PFF - Plastic plug / Parallel female thread
Model
Coupling part
Application
Plastic (g)
20PFF-PLA
Plug
G 1/4 thread
6
T - For two branch lines
Model
Coupling part
Application
Plastic (g)
HA-T
Socket
Inlet 20P-PLA / Outlet HA-65S (2 pcs.)
73
PNG - Plastic plug / For hose with hose guard nut connection
Model
Coupling part
Application
Plastic (g)
L
øD
A
øB
øH(WAF)
50PNG-PLA
Plug
ø5 mm x ø8 mm hose
14
(119)
23
(90)
4
Hex.19
65PNG-PLA
Plug
ø6.5 mm x ø10 mm hose
15
(119)
23
(90)
5.3
Hex.19
85PNG-PLA
Plug
ø8.5 mm x ø12.5 mm hose
17
(119)
26
(90)
7
Hex.22
SNG - For hose with hose guard nut connection
Model
Coupling part
Application
Plastic (g)
L
A
øB
øH(WAF)
HA-50SNG
Socket
ø5 mm x ø8 mm hose
31
(130)
(90)
4
Hex.19
HA-65SNG
Socket
ø6.5 mm x ø10 mm hose
33
(130)
(90)
5.3
Hex.19

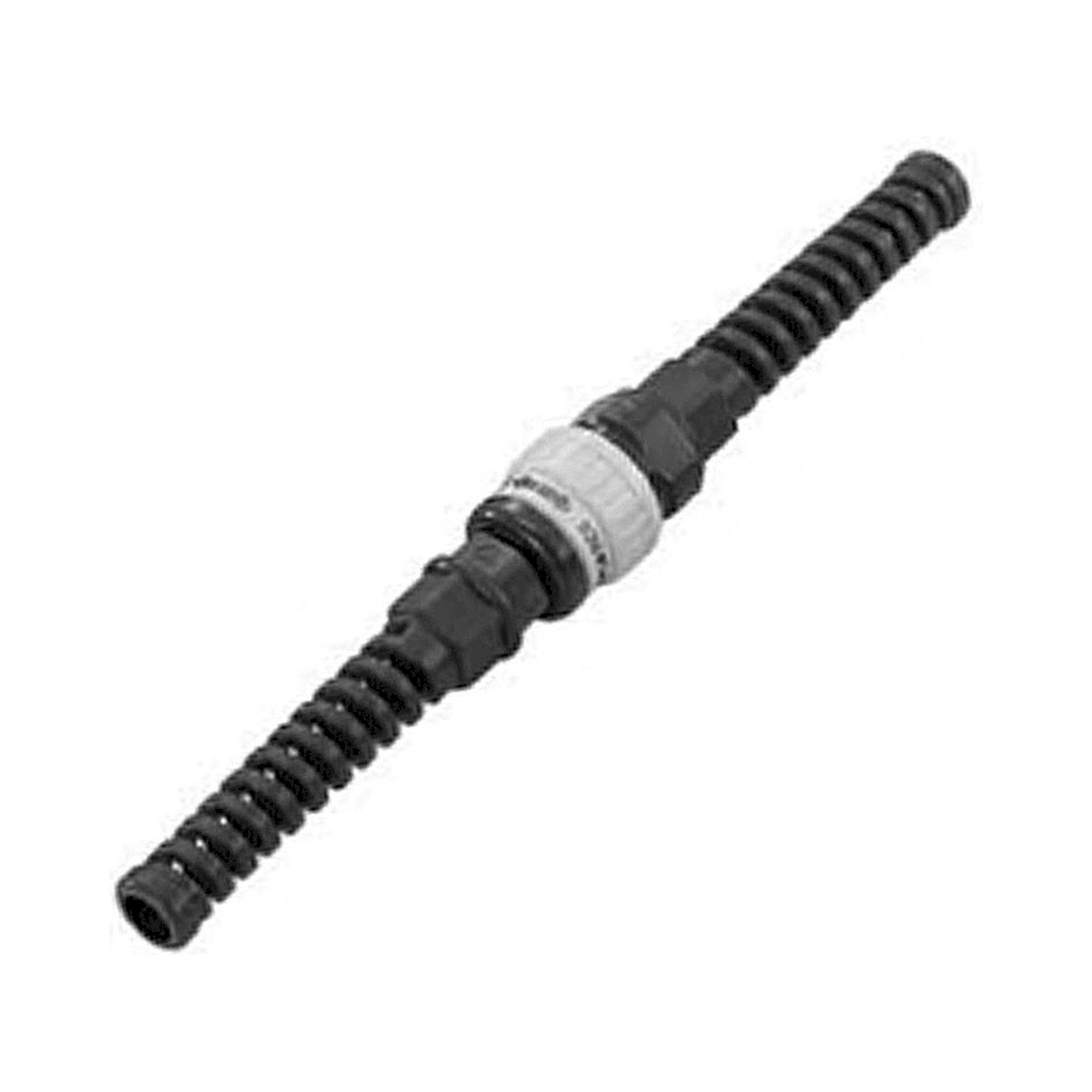

HA-85SNG
Socket
ø8.5 mm x ø12.5 mm hose
35
(130)
(90)
7
Hex.22
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
Series
Max working pressure
Size range
Valve structure
Applicable fluids
COMPACT CUPLA
10 bar
Thread 1/8 inch; tube barb for ø4 x ø6 and ø6 x ø8 tube
Two-way shut-off
Air, Water
CUBE CUPLA
10 bar
4 mm and 6 mm ID tube, 1/8 inch
Two-way shut-off, one-way shut-off or straight through, depending on the combination of valved and valveless socket and plug.
Air, Water
FULL BLOW CUPLA
15 bar
Thread and hose barb 1/4 inch, 3/8 inch, 1/2 inch. SN type for urethane hose: for dia. 6.5 mm x dia. 10 mm, dia. 8 mm x dia. 12 mm, dia. 8.5 mm x dia. 12.5 mm and dia. 11 mm x dia. 16 mm polyurethane hose.
Thread and hose barb 1/4 inch, 3/8 inch; PN, SN, PNG and SNG types for ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm and ø8.5 mm x ø12.5 mm polyurethane hose
One-way shut-off
Air, Water
HI CUPLA
15 bar
Thread and hose barb 1/8 inch to 1 inch, 1/4 inch to 1 inch hose
One-way shut-off
Air, Water
LINE CUPLA 200
15 bar
-
One-way shut-off
Air
LEVER LOCK CUPLA
18 bar
Metal body: 3/4 inch to 4 inch. Plastic body: 3/4 inch, 1 inch, 1 1/2 inch, 2 inch, 3 inch.
Straight through
Water, Hydraulic oil, Air, Powder, Steam
Pick HI CUPLA ACE for air lines that need the 1.5 MPa {15 kgf/cm2} class together with a plastic body at a quarter of the weight of steel HI CUPLA and a sleeve lock against accidental disconnection; plastic plugs and Model HA-T stay at 1.0 MPa {10 kgf/cm2}. MICRO CUPLA, SMALL CUPLA, SUPER CUPLA, COMPACT CUPLA and CUBE CUPLA are rated 1.0 MPa {10 kgf/cm2} and come into question only where that lower pressure is sufficient, and COMPACT CUPLA and CUBE CUPLA where shut-off on both sides is required instead of the one-way shut-off of HI CUPLA ACE. Where the same 1.5 MPa {15 kgf/cm2} is needed in metal, HI CUPLA, HI CUPLA 200, FULL BLOW CUPLA and LINE CUPLA 200 remain available; HI CUPLA ACE is interchangeable with HI CUPLA models 10, 17, 20, 30, 40 and 60.
Body and seal materials
Body material
Engineering plastics (PBT, POM)
Seal material
Mark
Working temperature
Remarks
NBR (Nitrile rubber), standard material
-
-20 °C to +60 °C
-
Further catalogue data
Note
Value
Working pressure by unit
1.5 MPa / 15 kgf/cm2 / 15 bar / 218 PSI; 1.0 MPa / 10 kgf/cm2 / 10 bar / 145 PSI for plastic plug and Model HA-T
Size, T type
HA-T type - Inlet : 20P-PLA, Outlet : HA-65S
Tightening torque range, 20/30SM and 20/30PM
2.5 to 3.0 {26 to 31} Nm {kgf cm}
Tightening torque range, 50/60/65SN, 50/60/65PN, 50/65SNG and 50/65PNG
1.6 to 2.0 {16 to 20} Nm {kgf cm}
Tightening torque range, 80/85SN, 80/85PN, 85SNG and 85PNG
2.2 to 2.8 {22 to 29} Nm {kgf cm}
Tightening torque range, 20PFF
2.0 to 2.5 {20 to 25} Nm {kgf cm}
Flow direction
Fluid flow can be bi-directional when socket and plug are connected.
Separation prevention mechanism
When the sleeve (Yellow color) is aligned to the lock position prior to connection, the sleeve will be locked to prevent accidental disconnection.
Brass inserts shown in the drawings
SH type socket and SM type socket (only 20SM) and PM type plug (only 20PM) are drawn with a brass insert.
Flow rate
Pressure - flow characteristics diagram is printed for HA-30SM x 20PM, HA-85SN x 20PM, HA-65SN x 20PM, HA-20SH x 20PM and HA-50SN x 20PM (flow rate 0 to 3.0 m3/min (ANR) against pressure 0 to 0.7 MPa {0 to 7 kgf/cm2}). Test condition: fluid air.
Interchangeability and size groups
Interchangeable with HI CUPLA models 10, 17, 20, 30, 40 and 60. Interchangeable with each models of NUT CUPLA series and HI CUPLA series except models 400, 600, and 800. Please see page 21 for 'HI CUPLA Series Interchangeability'.
Safety and application notes
Before use, please be sure to read the Safety Guide described at the end of this book and the Instruction Sheet that comes with the products.
All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 61. The complete catalogue is available for download on this page.
