What are compressed air preparation accessories and what industrial applications require them?

Compressed air preparation accessories are specialized components that condition compressed air for pneumatic systems by removing contaminants, regulating pressure, and ensuring proper lubrication. These accessories include service kits like the Festo PDAD series, air nozzles, module connectors, and branching modules that support filtration, pressure regulation, and air treatment equipment. Industries requiring these accessories include automotive manufacturing, packaging machinery, food processing, and general automation where contaminated or improperly conditioned compressed air can cause valve malfunctions, cylinder wear, and system downtime.

What technical criteria should engineers consider when selecting compressed air preparation accessories?

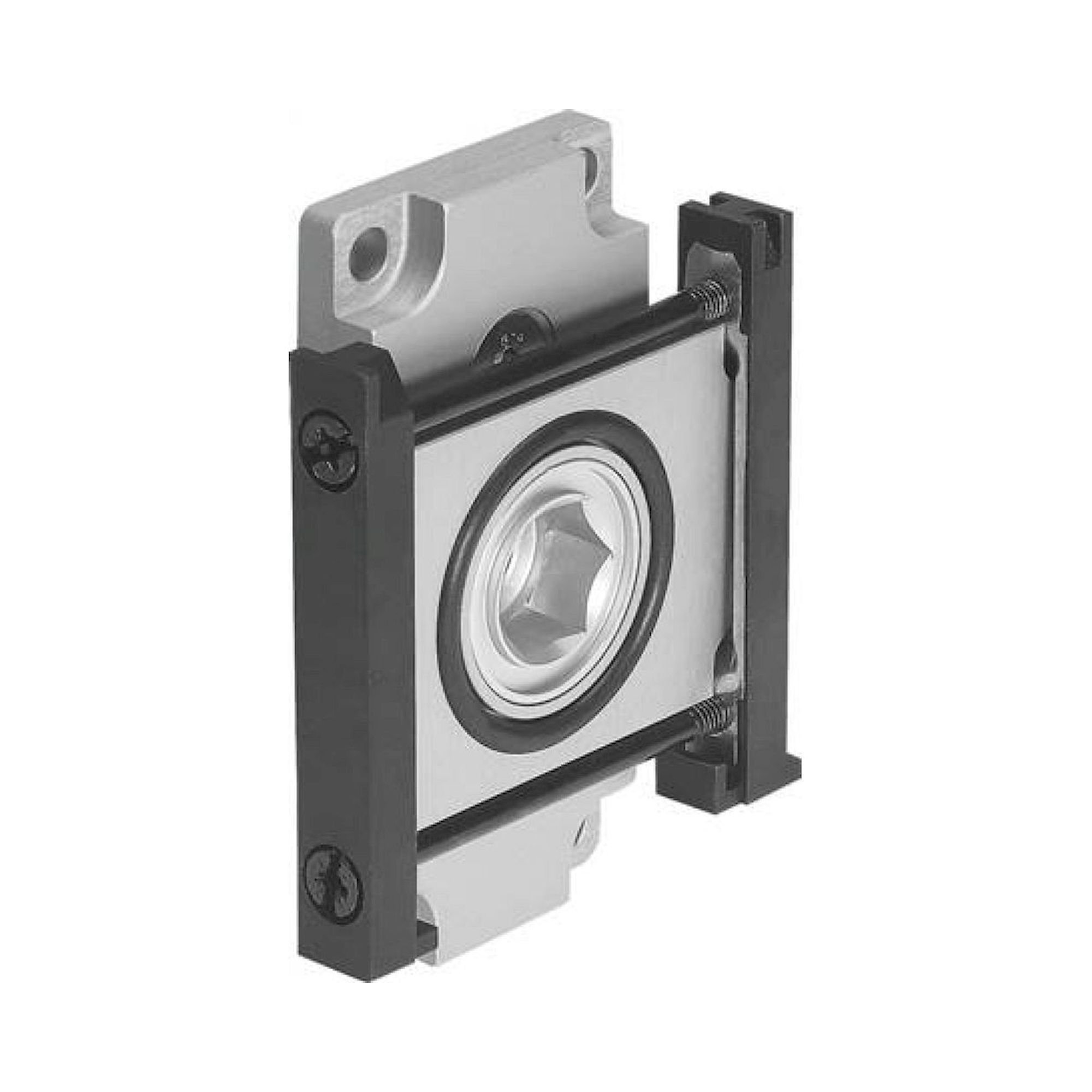

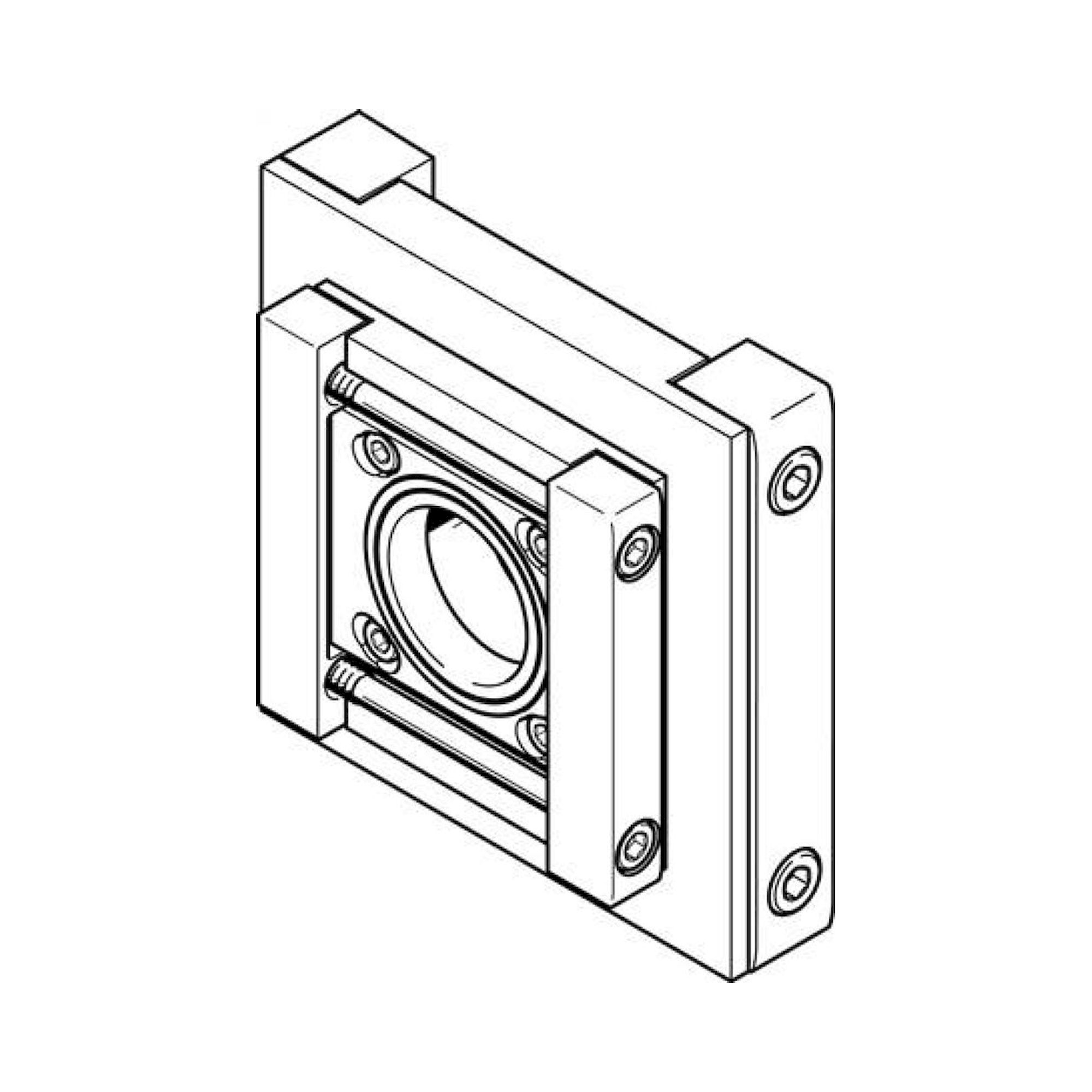

Engineers must evaluate operating pressure ranges, flow rates, port connection sizes, and media compatibility when selecting compressed air preparation accessories. The Festo PDAD service kit series covers different bore sizes from 9mm to 100mm, with specific kits like PDAD-09-SP-12000 for smaller systems and PDAD-100-SP-12000 for high-flow applications. Module connectors such as MS6-9-ARMV and MS9-12-ARMV provide different connection configurations, while branching modules like MS6-A-IPM-80 and MS4-A-IPM-80 offer 80mm mounting compatibility for various system architectures.

Which international standards apply to compressed air preparation accessories?

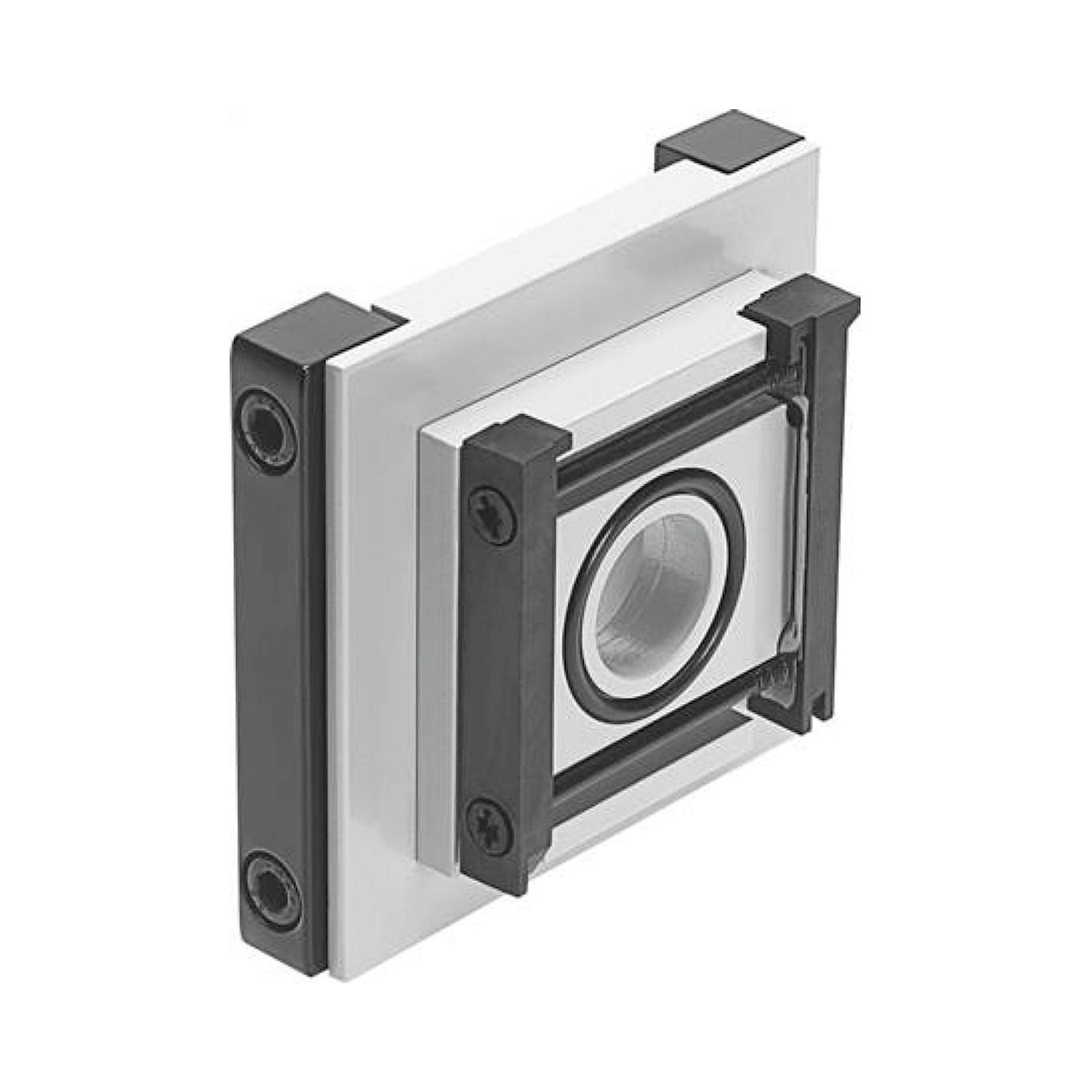

Compressed air preparation accessories must comply with ISO 8573 for compressed air quality classes, defining particle size, water content, and oil vapor limits. The MS6-9-ARMV-EX module connector specifically meets ATEX certification requirements for explosive atmosphere applications, ensuring intrinsic safety in hazardous locations. Additional relevant standards include ISO 4414 for pneumatic fluid power systems, EN 983 for safety requirements of fluid power systems, and IEC 61241 for electrical apparatus protection in combustible dust environments where compressed air systems operate.

What are the main differences between PDAD service kit variants and MS series module connectors?

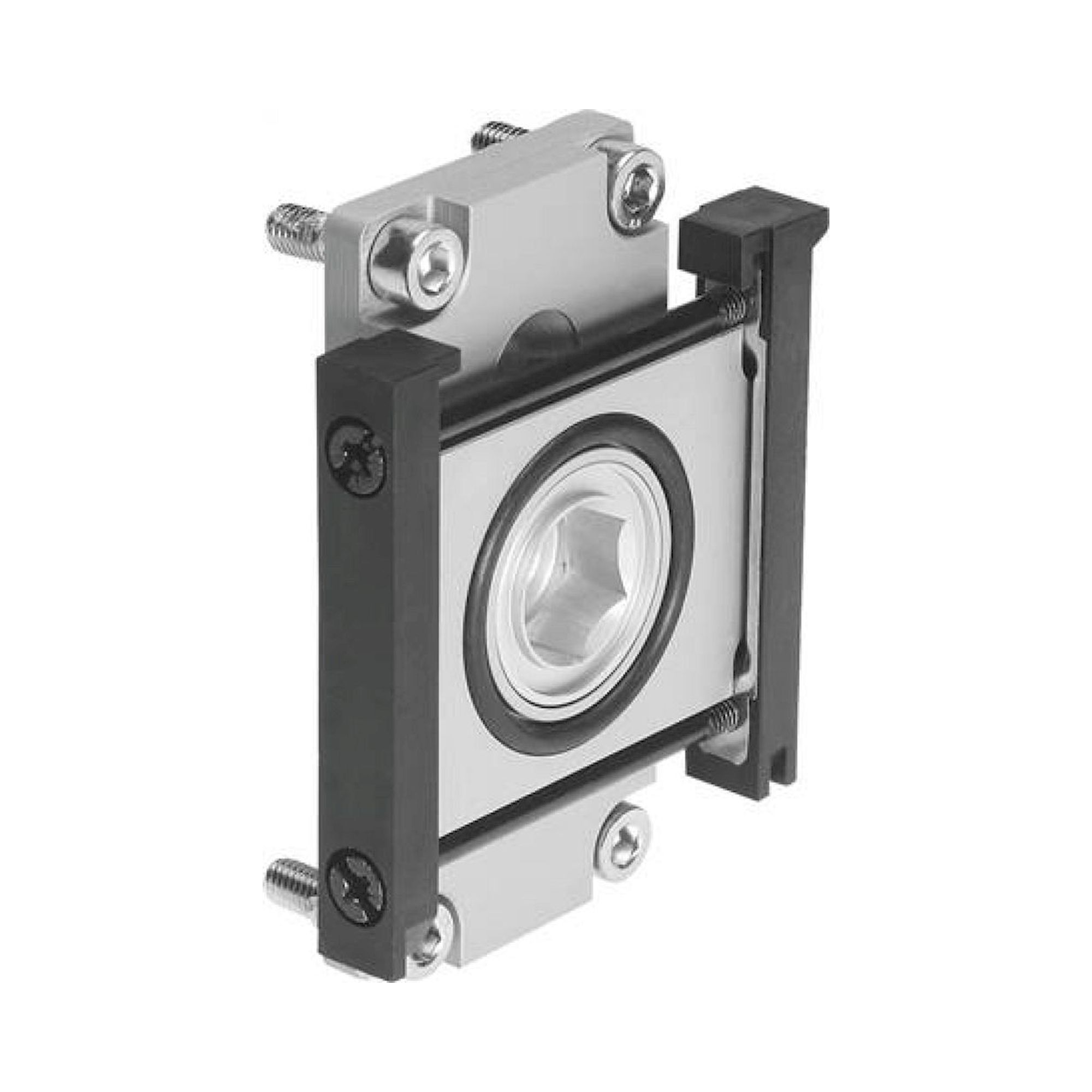

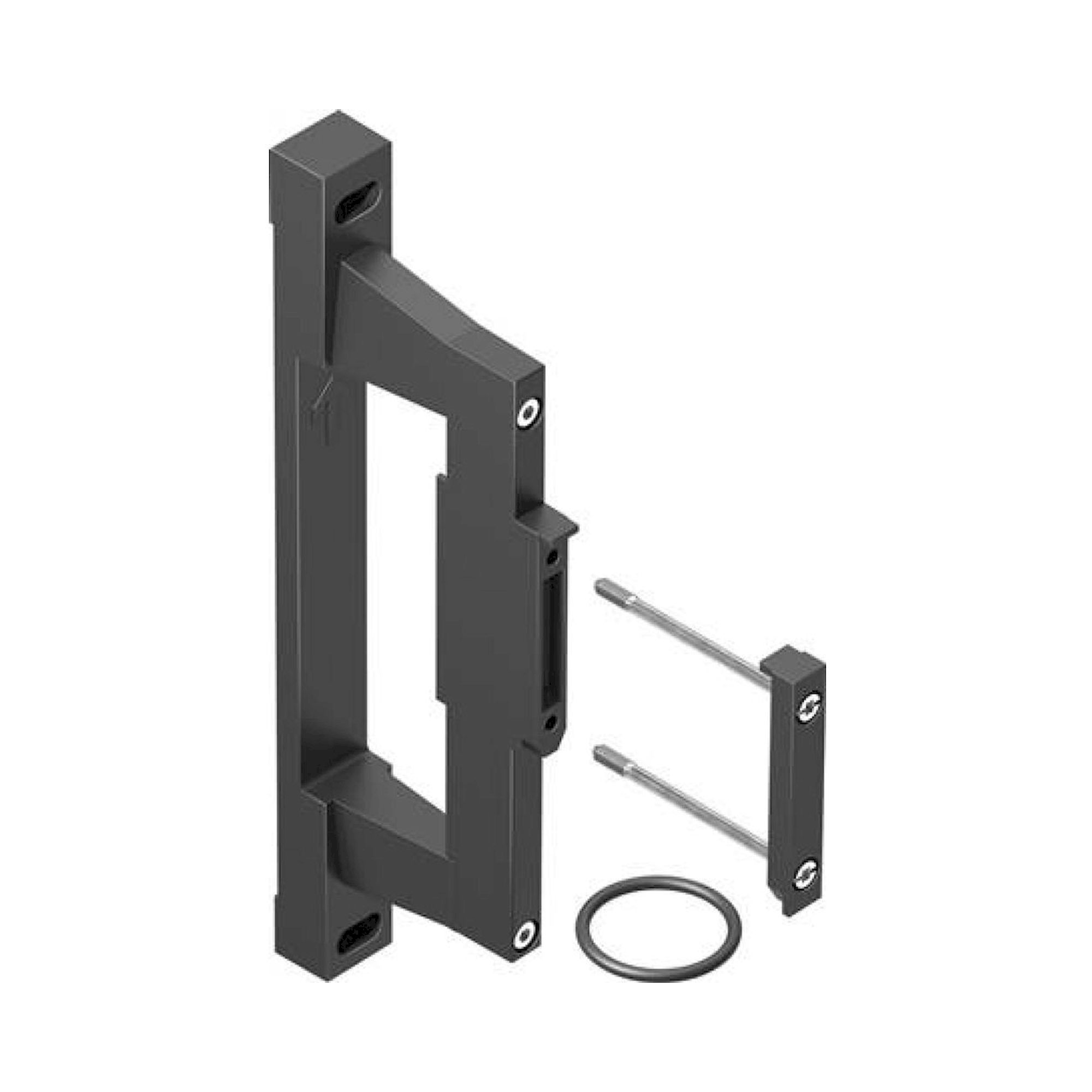

PDAD service kits differ primarily by bore diameter compatibility, with models ranging from PDAD-09-SP-12000 for 9mm bores to PDAD-100-SP-12000 for 100mm applications, each containing seals, O-rings, and maintenance components specific to that size range. MS series module connectors vary by connection type and safety rating, where standard MS6-9-ARMV handles general pneumatic connections while MS6-9-ARMV-EX provides ATEX-certified explosion protection for hazardous area installations. The MS series also includes specialized components like MS6-WPG wall mounting sets and power supply modules MS6-E-IPM-80-80 for integrated electrical connections.

What installation requirements and system compatibility factors apply to compressed air preparation accessories?

Compressed air preparation accessories require proper mounting orientation, adequate clearance for maintenance access, and compatibility with existing filter-regulator-lubricator units or modular preparation stations. Module connectors like MS6-9-ARMV typically require 6mm to 9mm pneumatic tubing connections with push-in fittings, while branching modules such as MS6-A-IPM-80 mount on standard 80mm spacing rails for modular system integration. Power supply modules like MS4-E-IPM-80-80 need 80mm rail mounting and electrical connections, requiring coordination between pneumatic and electrical installation teams for proper system integration.

What safety ratings and operating parameters do compressed air preparation accessories meet?

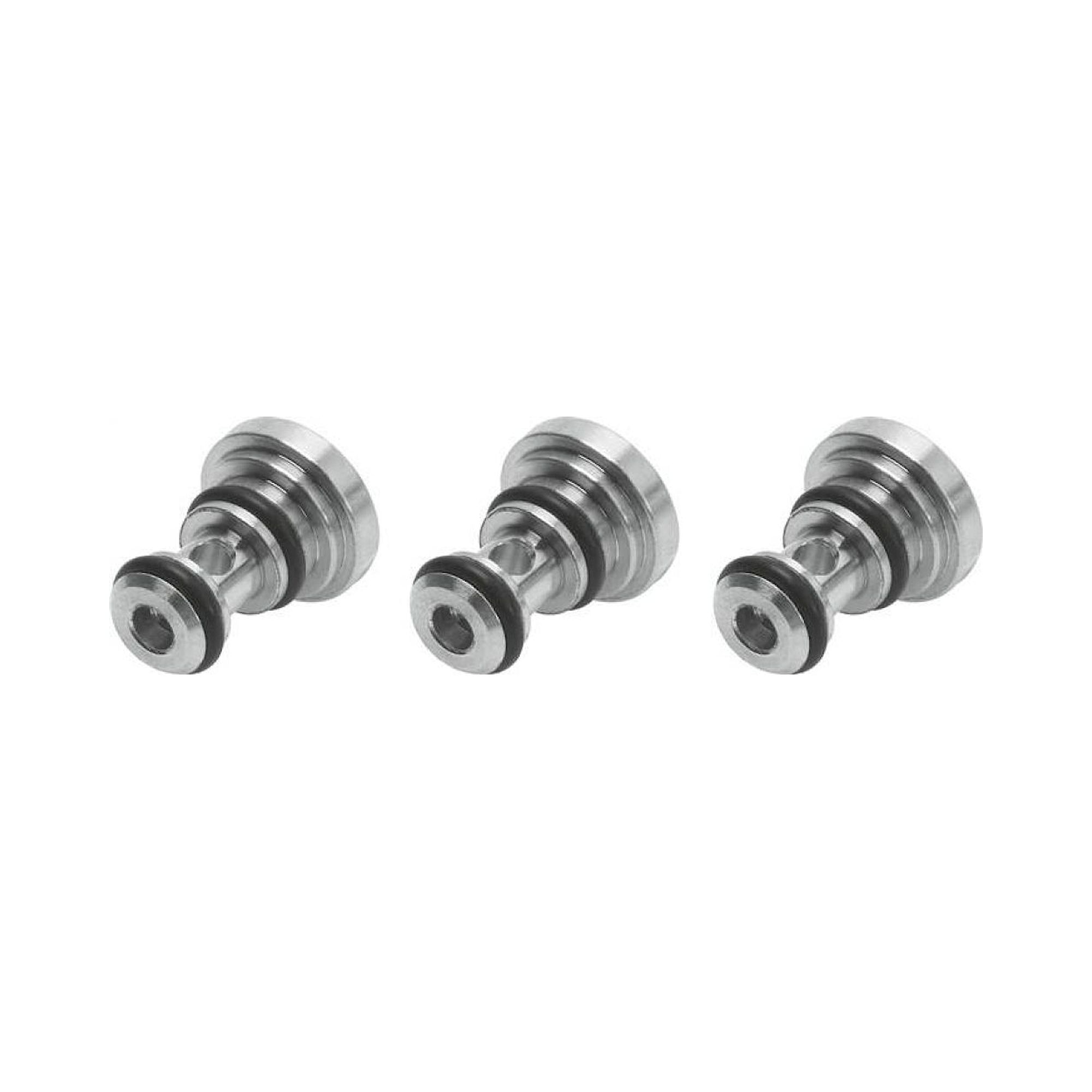

Festo compressed air preparation accessories typically operate within 0 to 10 bar pressure ranges with ambient temperatures from -10°C to +60°C, meeting IP65 protection class for dust and water resistance in industrial environments. The MS6-9-ARMV-EX module connector specifically meets ATEX Group II Category 3G certification for Zone 2 gas atmosphere applications, ensuring intrinsic safety in potentially explosive environments. Service kits maintain sealing integrity across these operating parameters, while air nozzles like ADNA-PDAD-100 provide proper air distribution without exceeding noise level regulations per ISO 4414 pneumatic system standards.

What maintenance intervals and service procedures are required for compressed air preparation accessories?

Service kits like the Festo PDAD series should be replaced every 12 months or 12,000 operating hours as indicated by the SP-12000 designation, whichever occurs first under normal operating conditions. Module connectors require quarterly inspection for secure connections and seal integrity, with complete replacement recommended after 5 years of continuous service in standard industrial environments. Air nozzles and branching modules need monthly cleaning and annual pressure testing to maintain proper flow characteristics, while ATEX-certified components like MS6-9-ARMV-EX require specialized inspection procedures following EN 60079 maintenance standards for explosive atmosphere equipment.

Accessories for compressed air preparation

Compressed air preparation

Festo accessories for compressed air preparation cover mounting brackets, threaded studs, hex nuts, knob heads and special oil for the assembly and operation of Classic series maintenance units. Mounting brackets (HR, HFOE, HRB, HRBK) and threaded studs (FRB, HSB) are available in MICRO/MINI/MIDI/MAXI sizes and enable wall mounting, tube mounting and series chaining of maintenance units. Connector kits (HRBC) and regulator knob heads (LR/LFR-D-MIDI/SW) complete the assembly range.

⚙ Mounting brackets HR/HFOE - wall and tube mounting, sizes MICRO/MINI/MIDI/MAXI for all Classic devices

✓ Threaded studs FRB/HSB - series chaining of multiple maintenance units via stud, matched to MIDI and MAXI

✦ Connector kits HRBC - for MIDI and MINI, complete sets for convenient assembly

⬡ Knob heads LR/LFR-D-SW - pressure regulator adjustment knob, tool-free pressure setting with locking

🛡 Special oil OFSW-32 - Festo special oil for LOE lubricators, food-grade versions on request

Item group	Sizes	Function
HR-D / HR-1/4-P	MINI/MIDI/MAXI	Wall/tube mounting bracket
HFOE-D	MICRO/MINI/MIDI/MAXI	Mounting bracket for filters and lubricators
HRB-D / HRBK-D	MINI/MIDI	Compact mounting bracket
FRB-D	MICRO/MINI/MIDI/MAXI	Threaded stud for series chaining
HMR-D	MINI/MIDI/MAXI	Hex nut for threaded stud connection
HRBC-D	MINI/MIDI	Complete connector kit
LR/LFR-D-MIDI/SW	MIDI	Knob head for LR/LFR pressure regulator
OFSW-32	-	Special oil 32 for Festo LOE lubricators

Typical applications: wall mounting of maintenance units and filter regulators on machine frames and steel structures (HR brackets), series chaining of filter, regulator and lubricator into a compact preparation station (FRB studs), tool-free pressure adjustment on LR/LFR regulators via knob heads, maintenance oil change for Festo LOE lubricators, and retrofit of existing preparation stations with additional mounting points.
