Manometer
Compressed air preparation
The Festo pressure gauge range for compressed air preparation covers flange gauges (FMA), precision flange gauges (FMAP) and screw-in gauges (MA) in housing sizes from 15 to 63 mm. FMA flange gauges are designed for direct mounting on Festo maintenance units and filter regulators; measuring ranges extend from 0-2.5 bar to 0-16 bar. Precision gauges FMAP-63 with G1/4 port are available in ranges of 1, 4, 6 and 16 bar. Screw-in gauges MA-15/23/27/40 cover compact installation spaces and small devices.
| Series | Housing | Port | Measuring ranges |
|---|---|---|---|
| FMA-40 | 40 mm | G1/4 | 2.5 / 10 / 16 bar |
| FMA-50 | 50 mm | G1/4 | 2.5 / 10 / 16 bar |

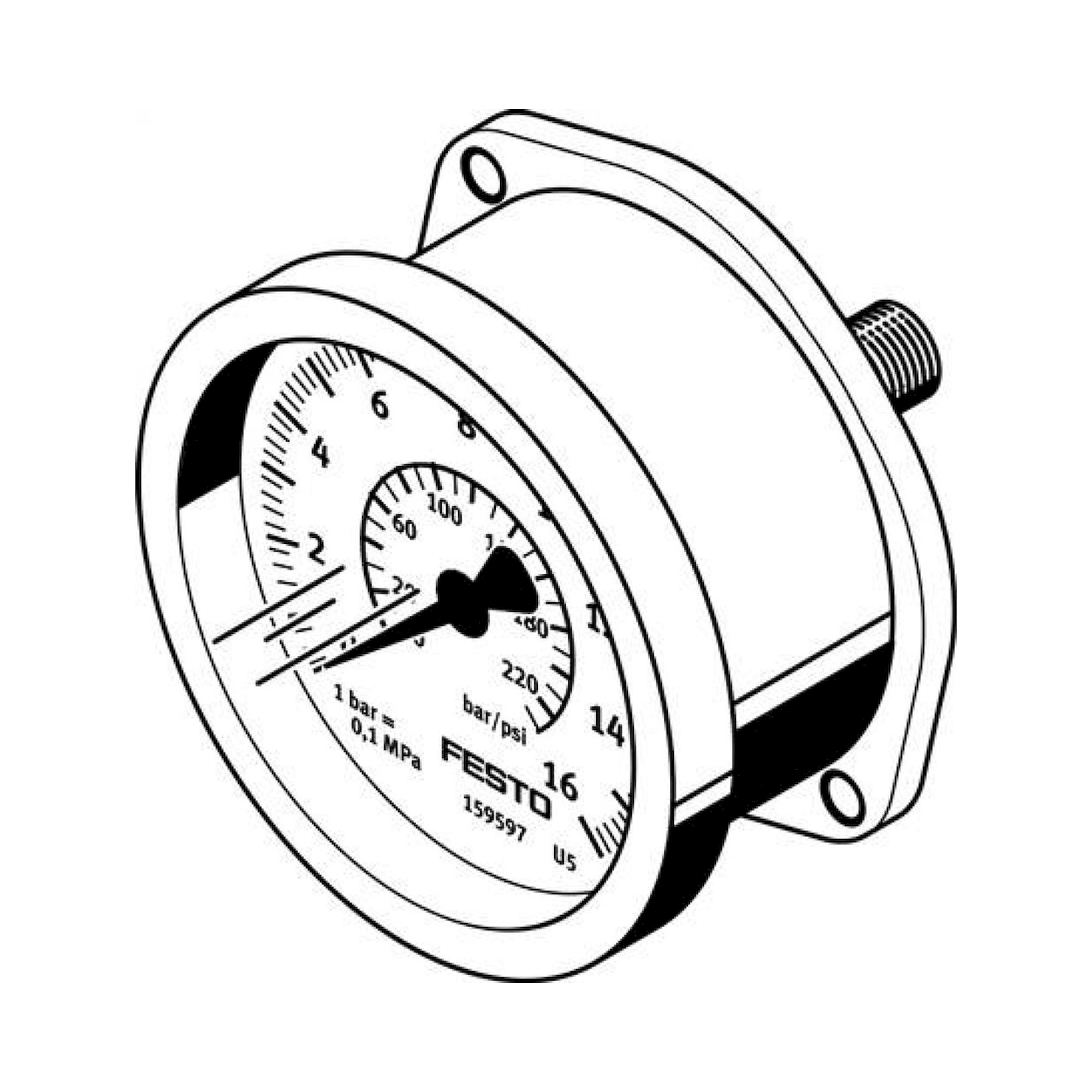

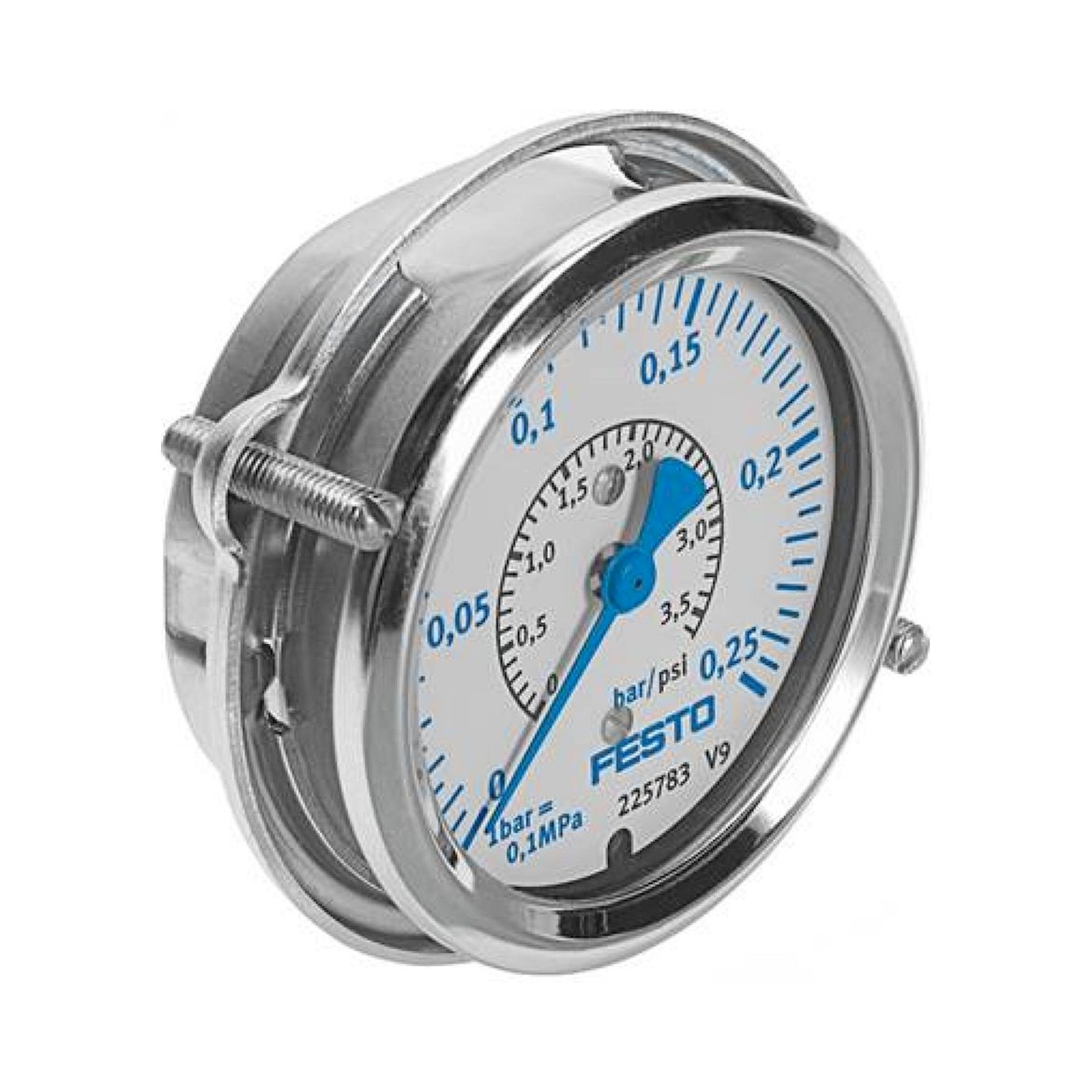

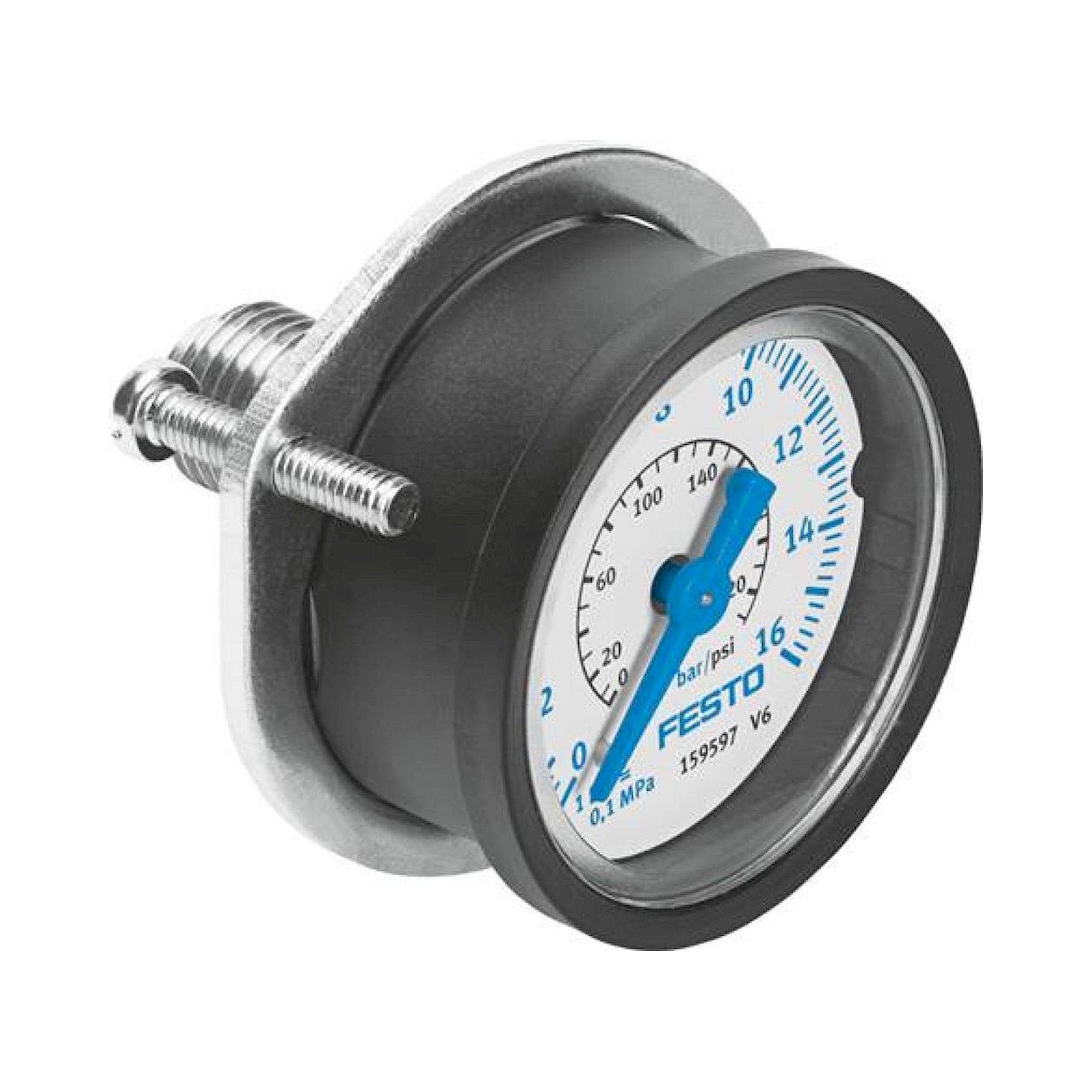

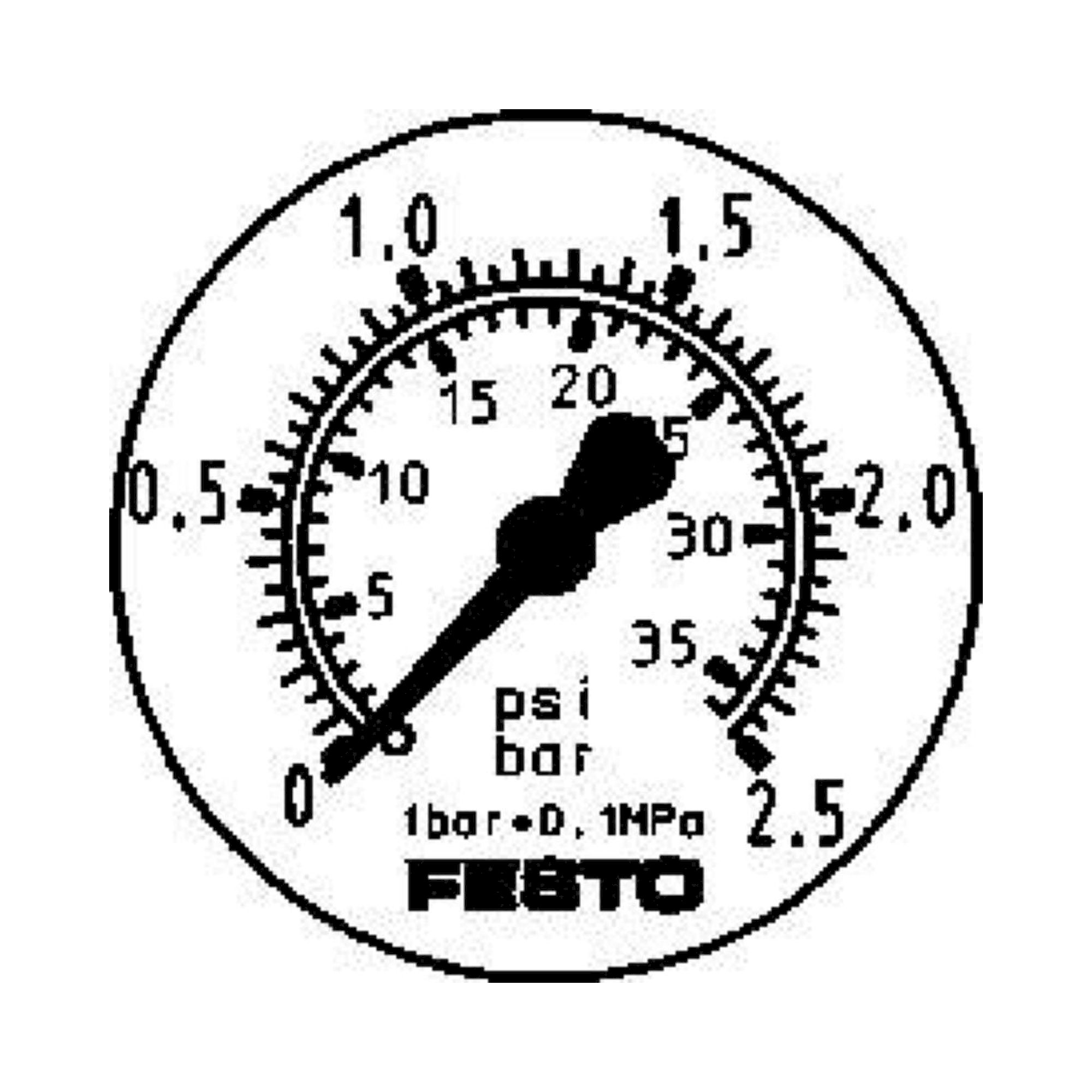

| FMA-63 | 63 mm | G1/4 | 0.25 / 2.5 / 10 / 16 bar |
| FMAP-63 | 63 mm | G1/4 | 1 / 4 / 6 / 16 bar (precision) |

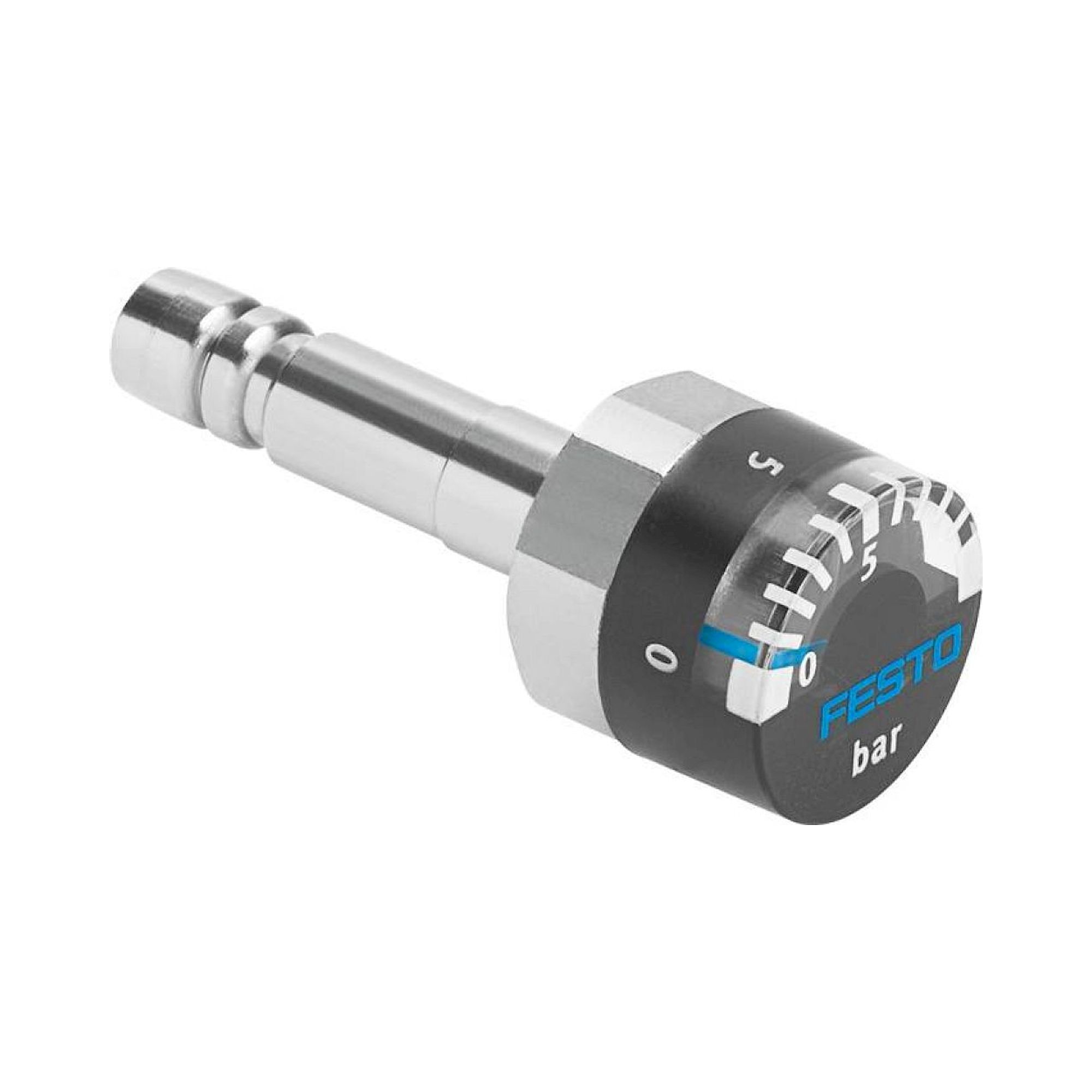

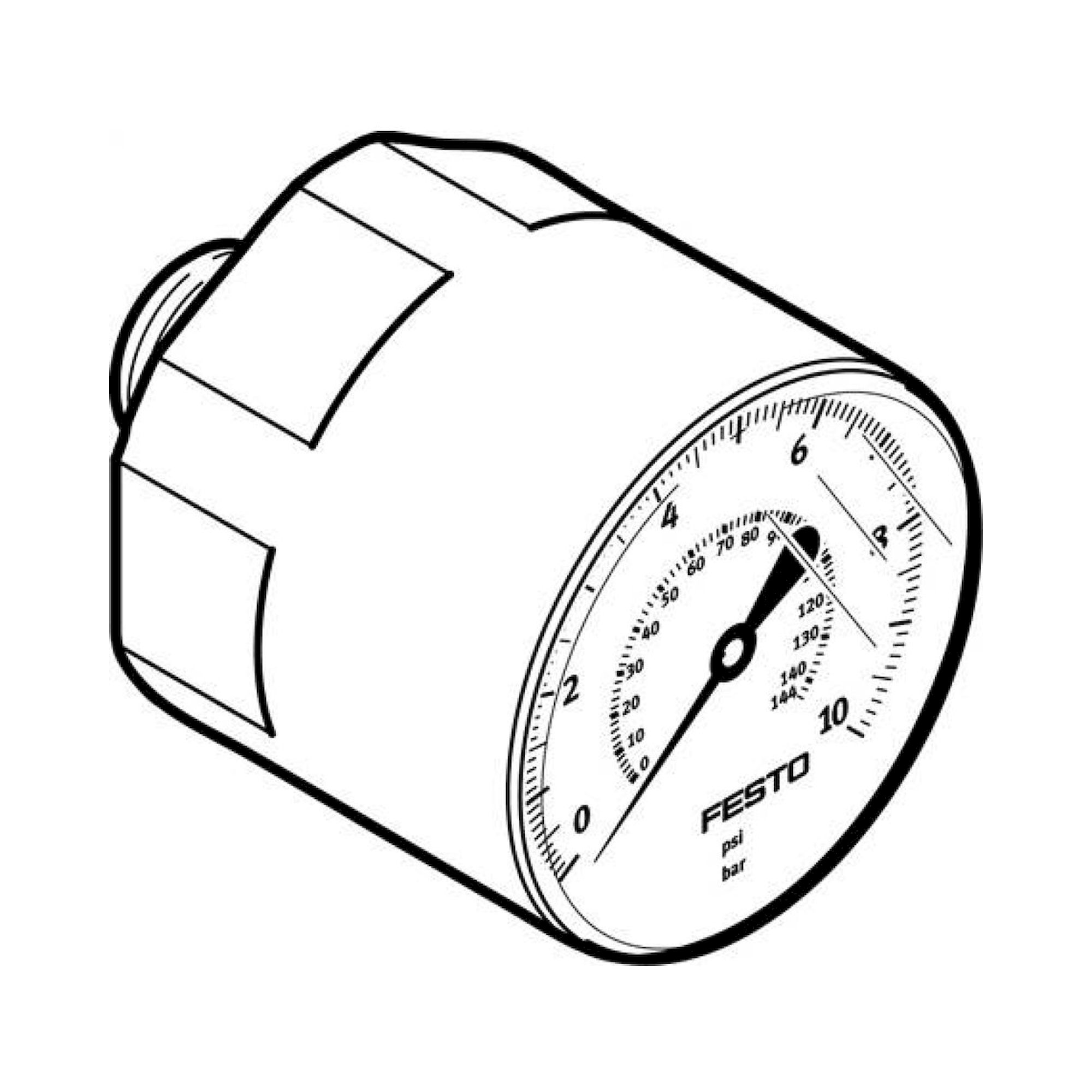

| MA-15 | 15 mm | QS-4/6/8 | 0-10 bar |
| MA-23 | 23 mm | R1/8 | 6 / 10 / 16 bar |
| MA-27 | 27 mm | M5 | 1.0 / 10 bar / 160 PSI |
| MA-40 | 40 mm | R1/8, MPA | 1.0 / 1.6 / 10 bar |

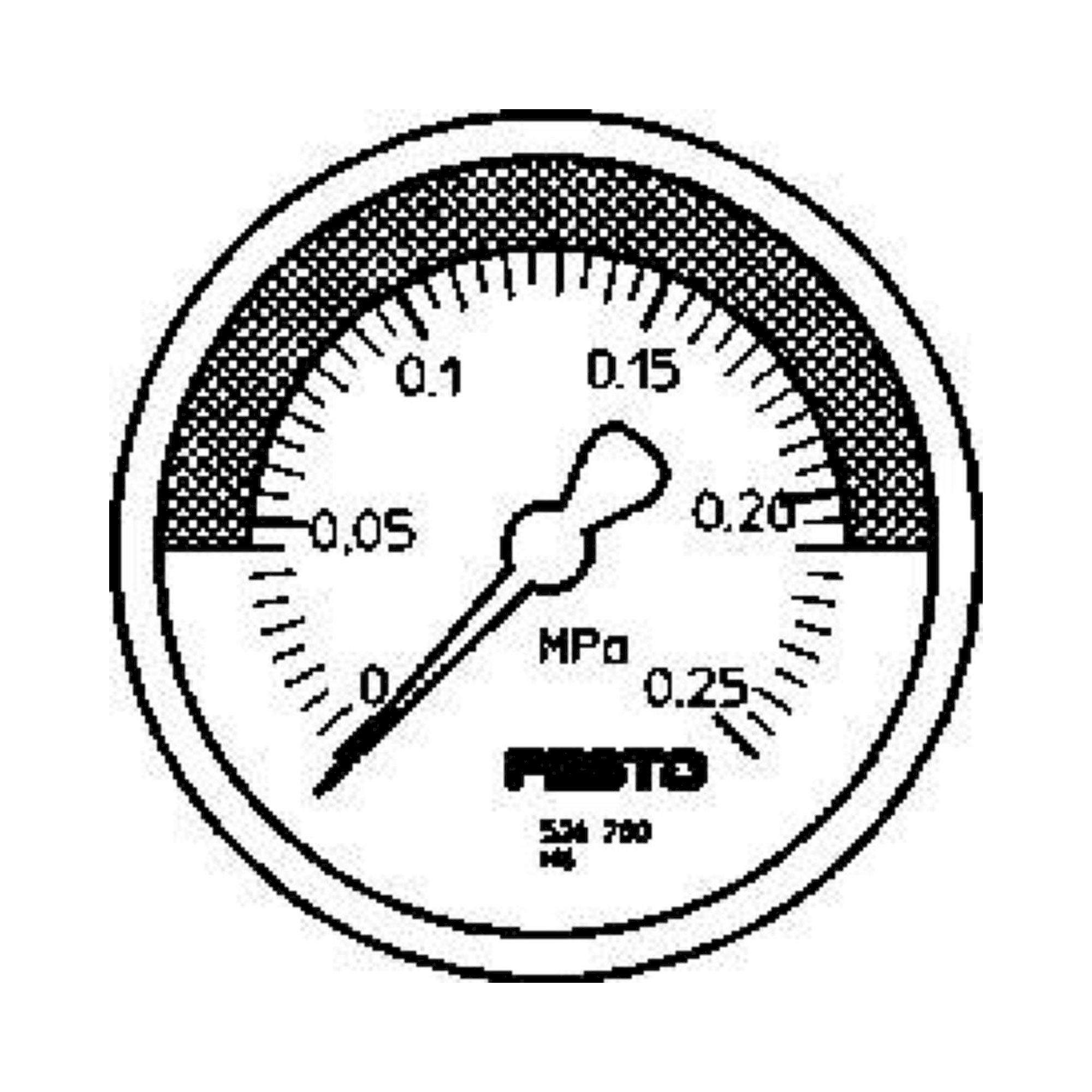

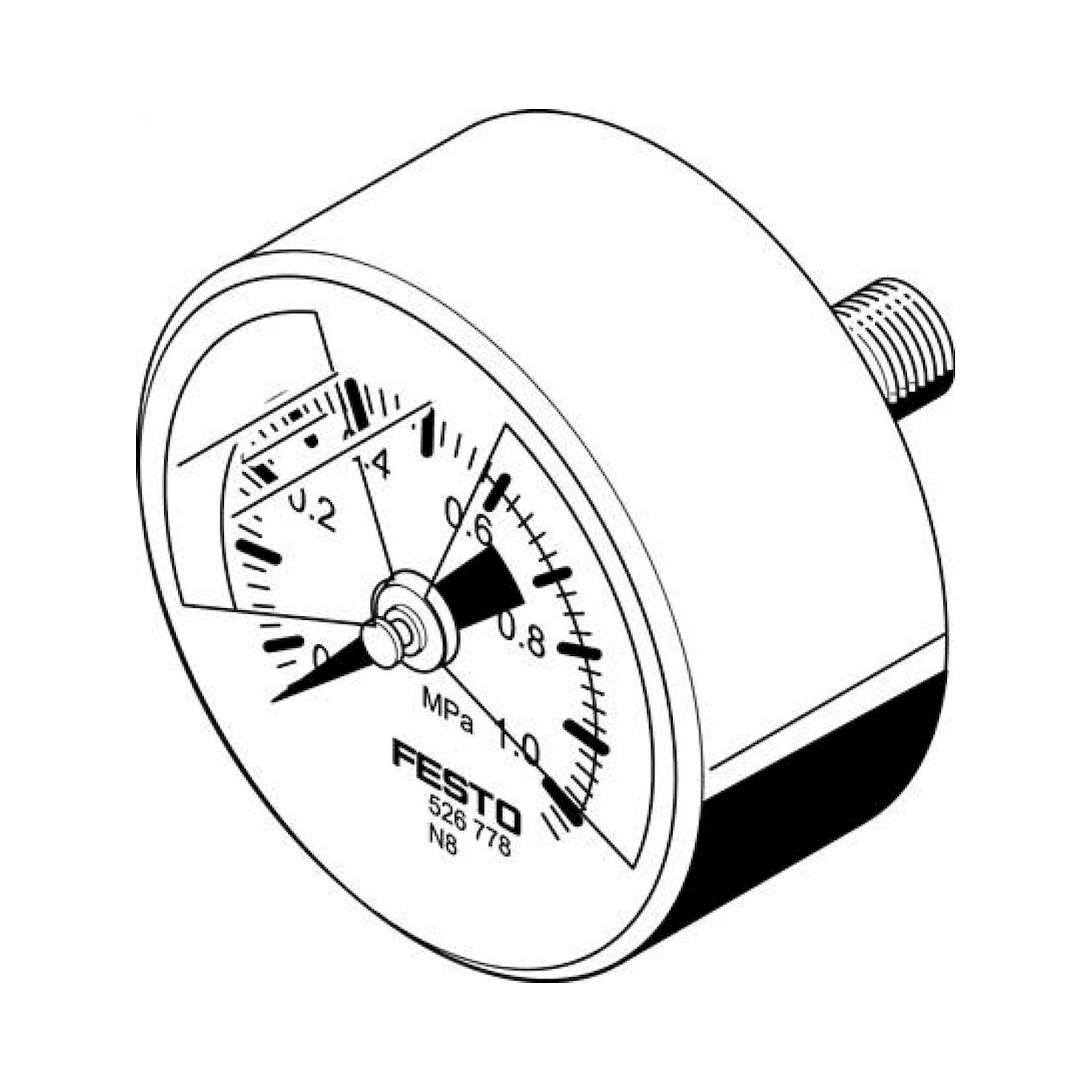

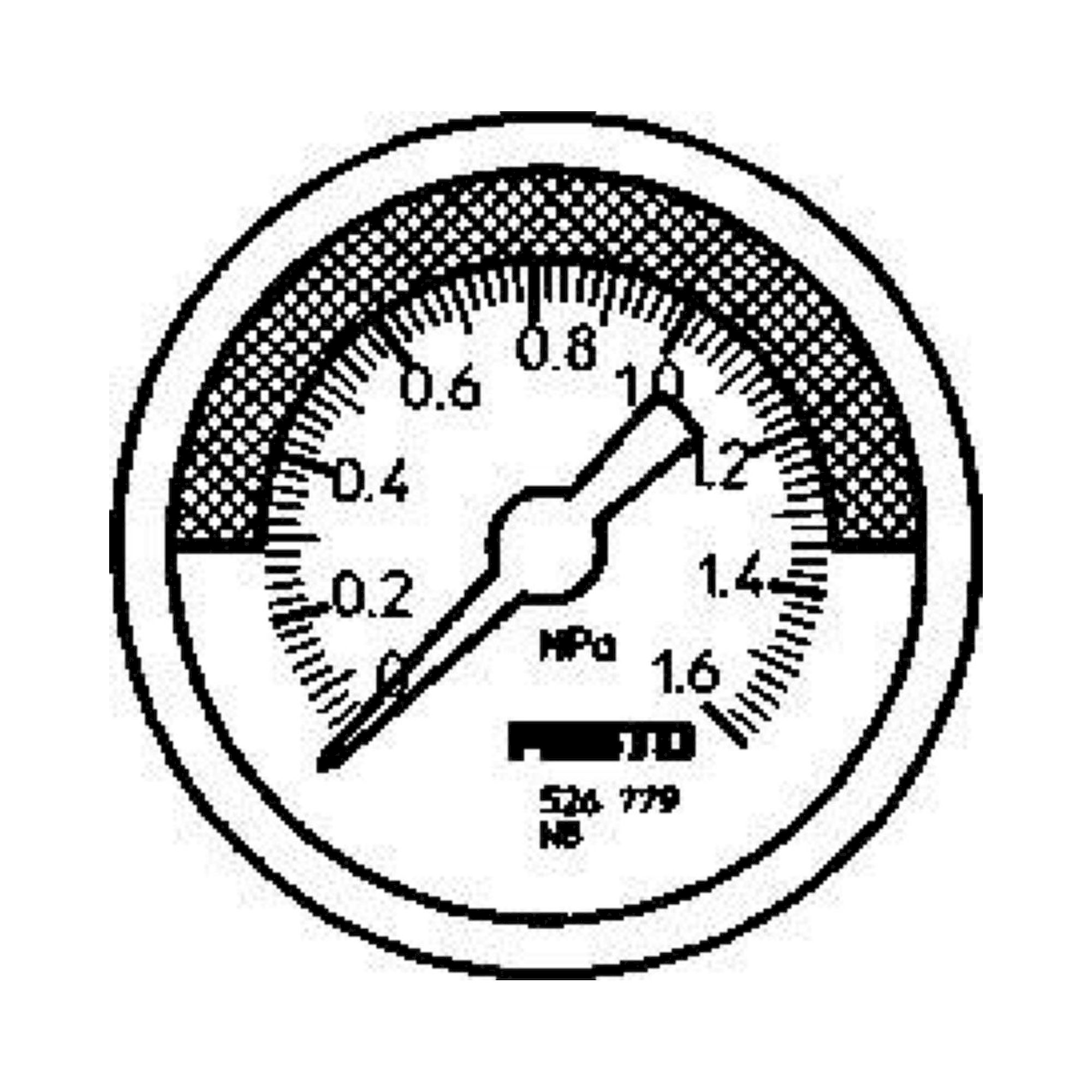

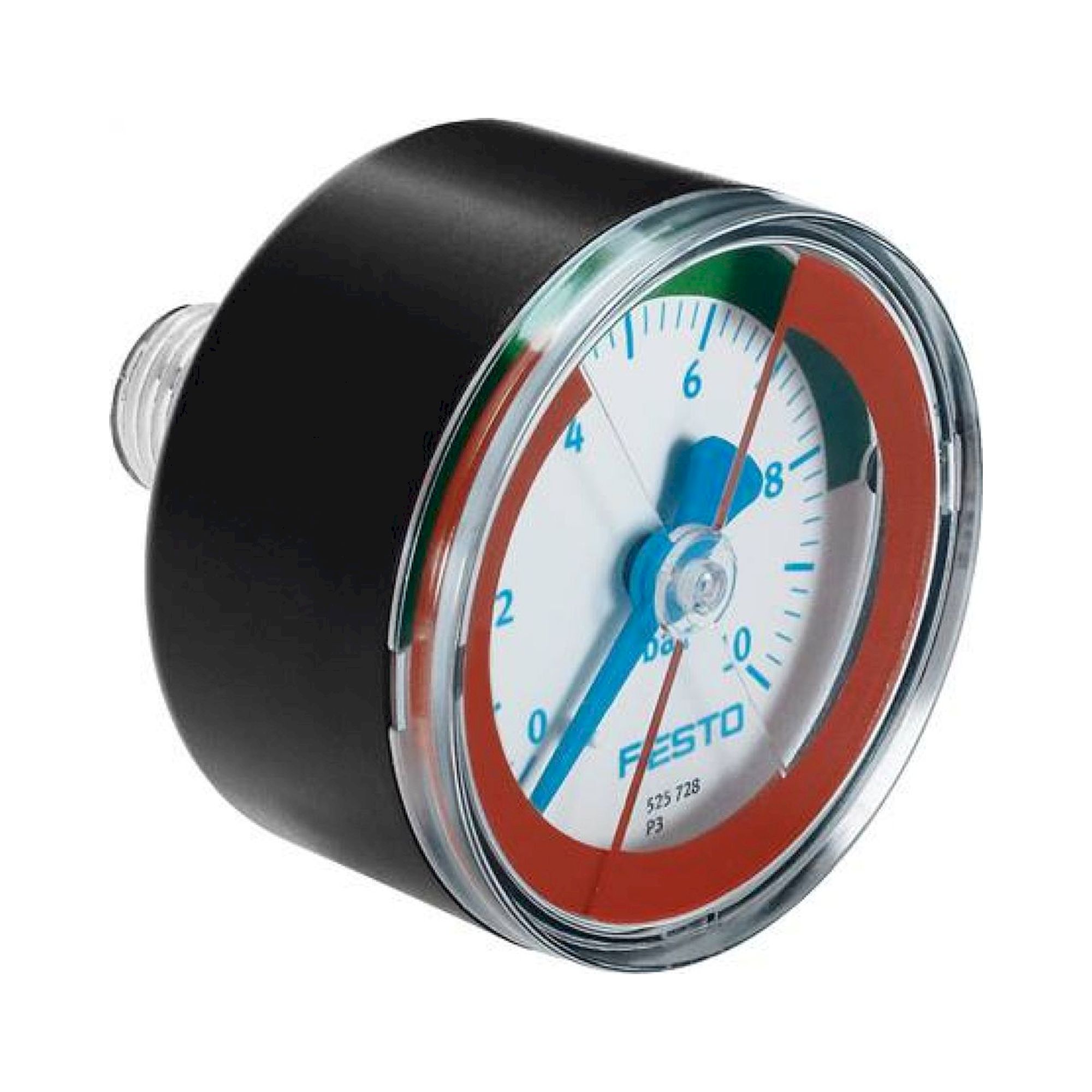

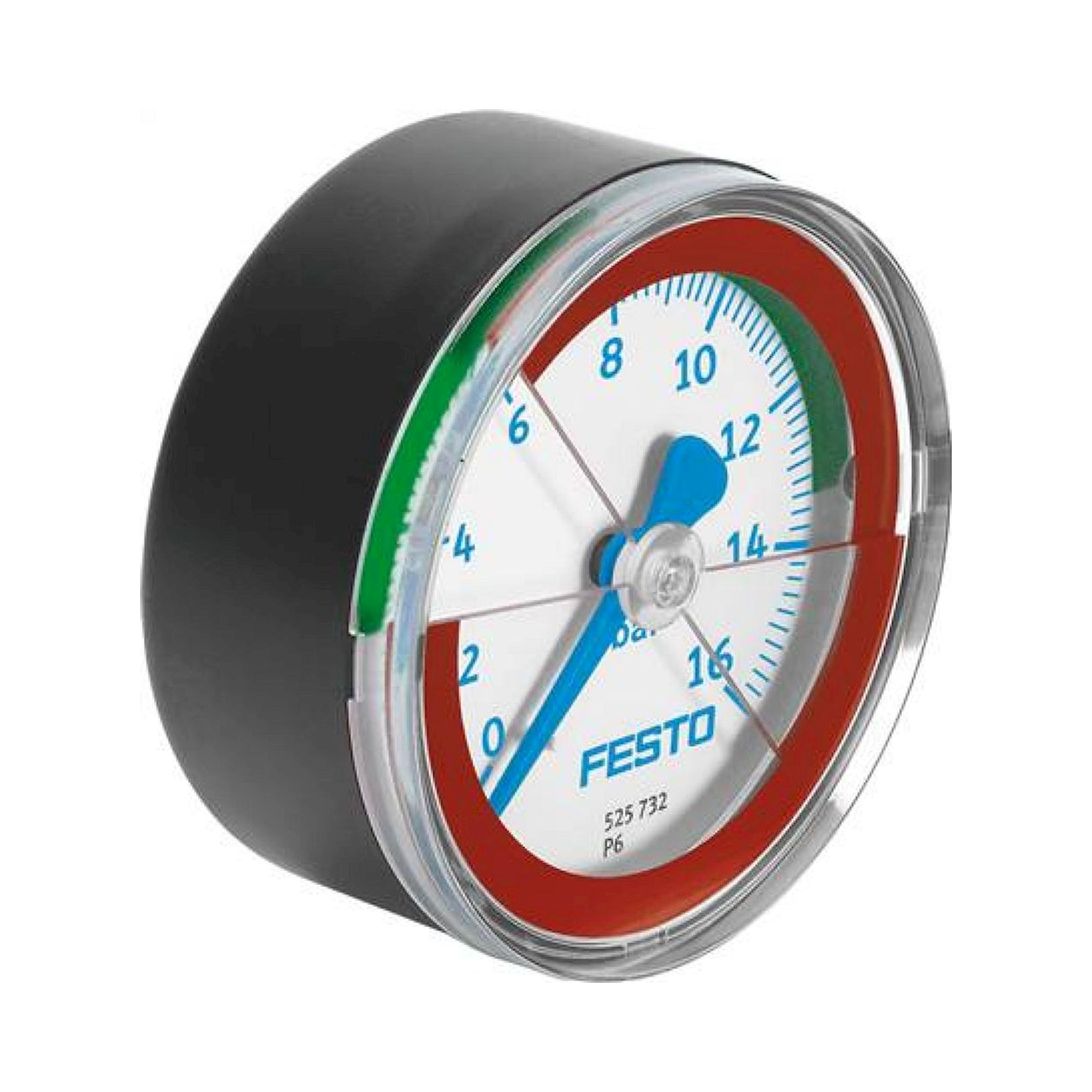

Typical applications: pressure indication on Festo maintenance units and filter regulators of the Classic series (FMA flange connection), pressure monitoring on individual pressure regulators with push-in connection (MA-15), precision measurement at test stations and test pressure circuits (FMAP-63), pressure indication on MPA ports with red-pointer trip for limit pressure monitoring, and pressure measurement on internationally supplied machines with MPa scaling.
