Stainless steel round cylinder ISO 6431
Cylinder
Stainless steel round cylinders to ISO 6431 (Clean Profile series ZDM/ZDPM) are designed for environments with elevated corrosion and hygiene requirements. Cylinder bodies, mounting components, and swivel accessories are manufactured from austenitic stainless steel (grades 1.4401, 1.4404, 1.4305). Alongside the ZDPM cylinders in bore sizes 32 and 50 mm, the range includes clevis mounts (TGR), centre-trunnion mounts (TJR), 90-degree fork mounts (TDR), and swivel pins (FFR), all in stainless steel.
| Type | Function | Bore sizes (mm) | Material |
|---|---|---|---|

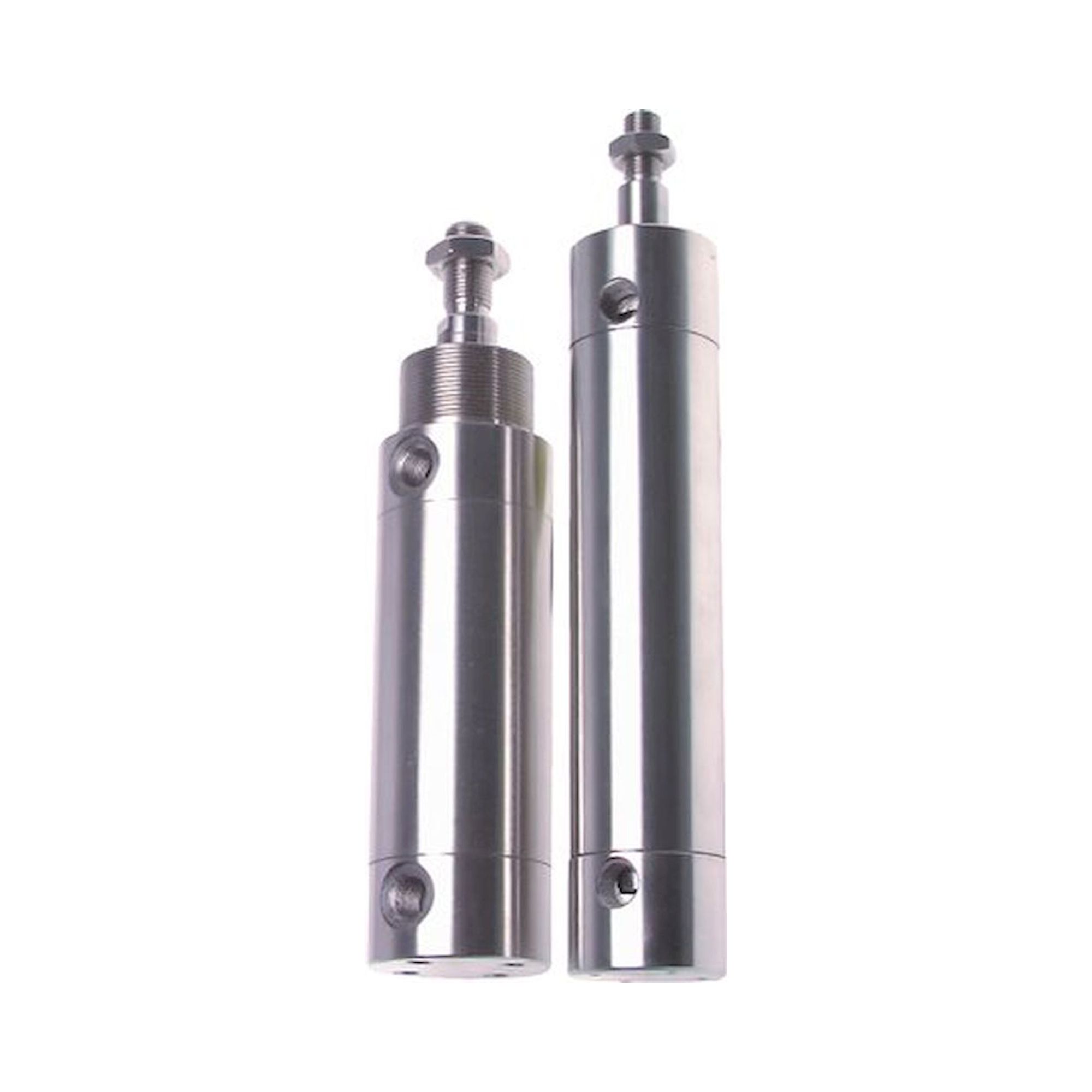

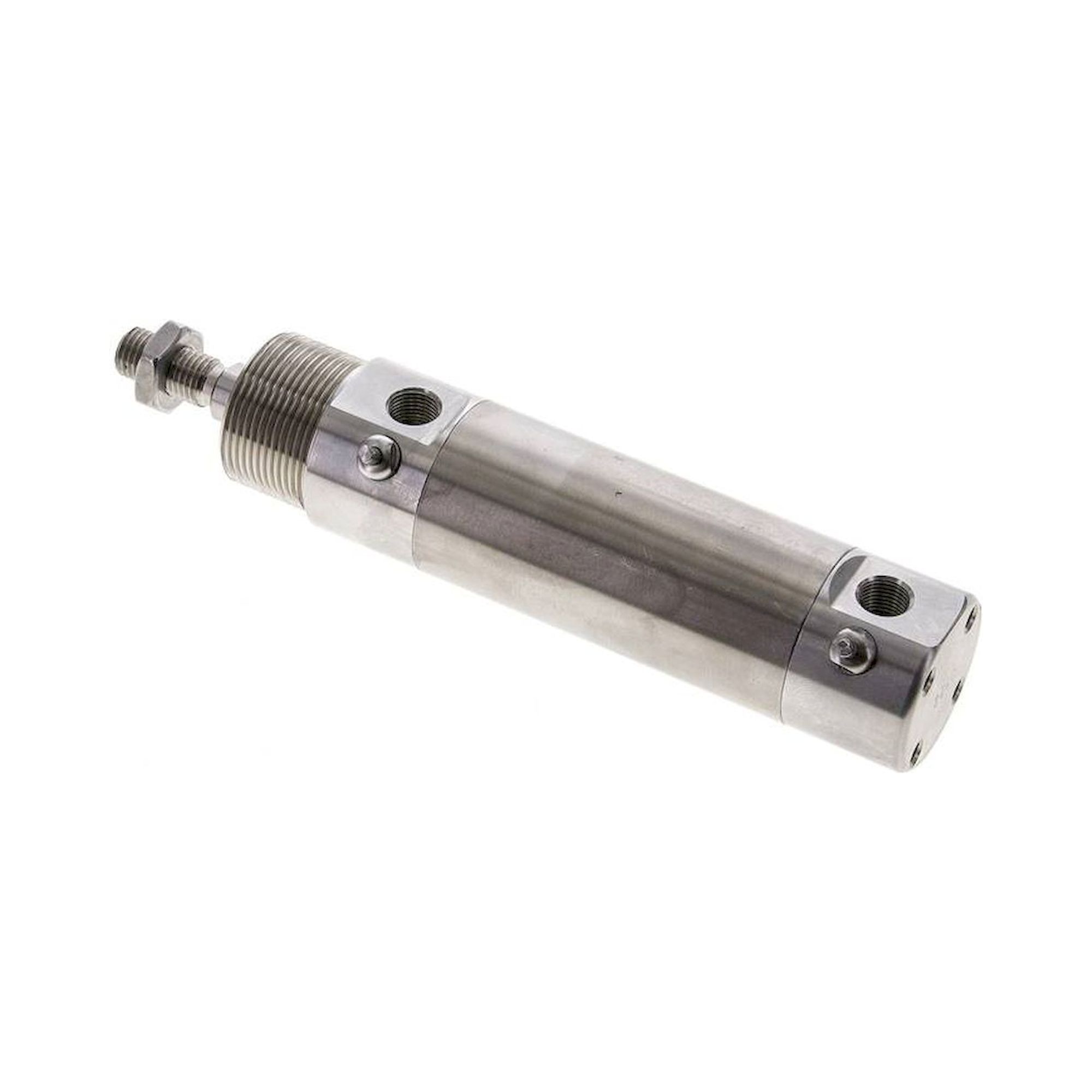

| ZDPM ..ES | Clean Profile cylinder | 32, 50 | Stainless steel |
| TGR ..ES | Clevis mount | 32, 40, 50, 63 | 1.4404 |

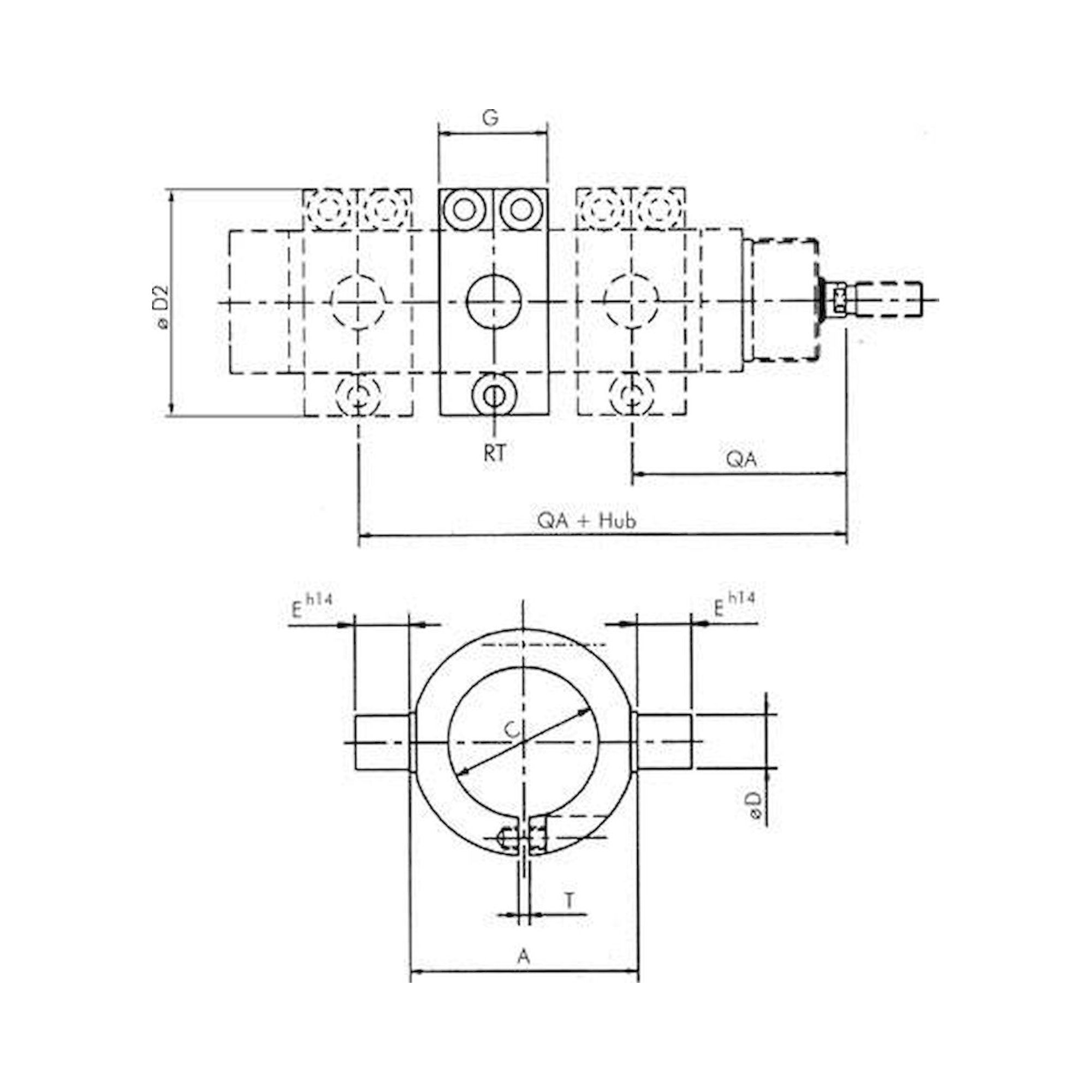

| TJR ..ES | Centre-trunnion mount | 32, 40, 50, 63 | 1.4401 |

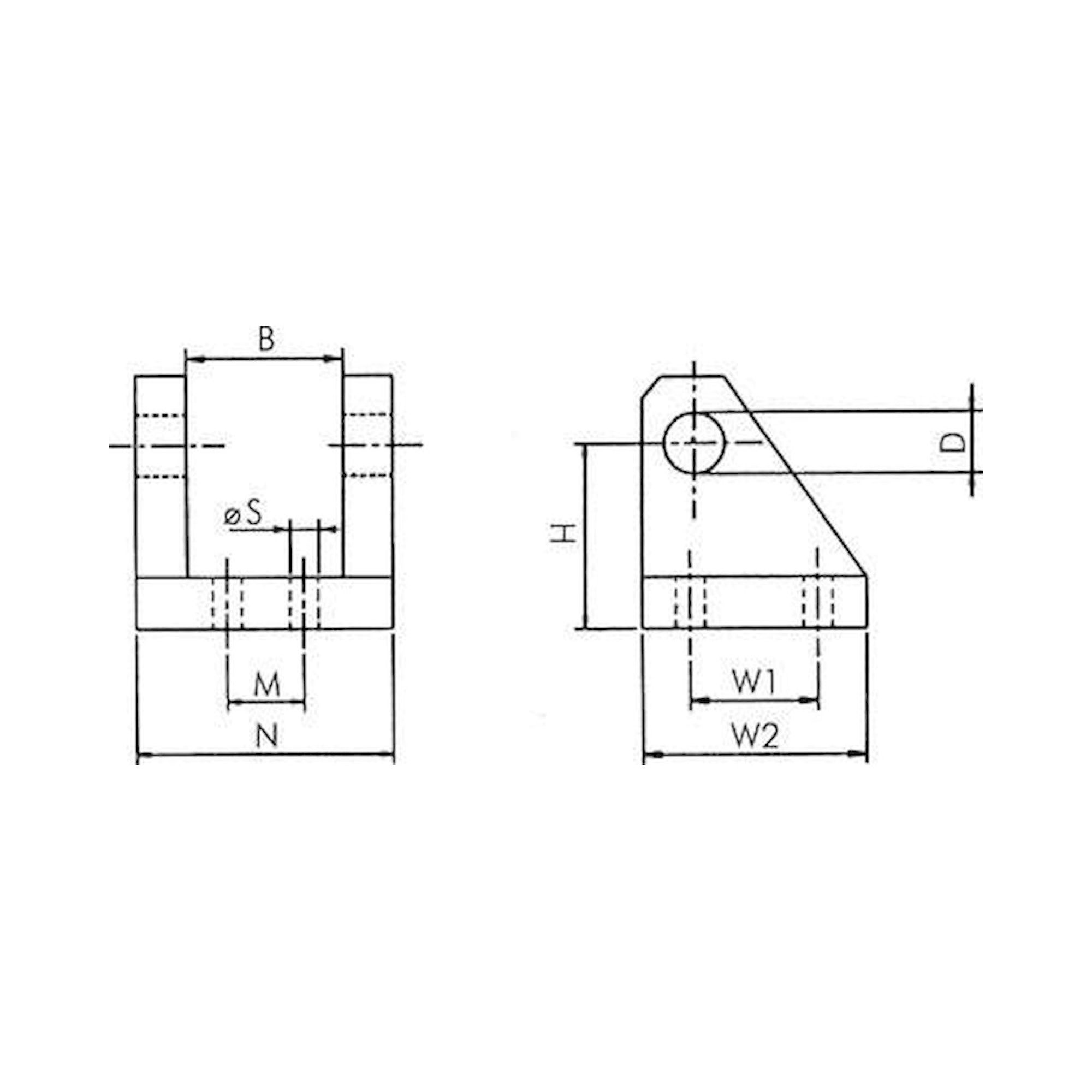

| TDR ..ES | 90-degree fork mount | 32, 40, 50 | Stainless steel |

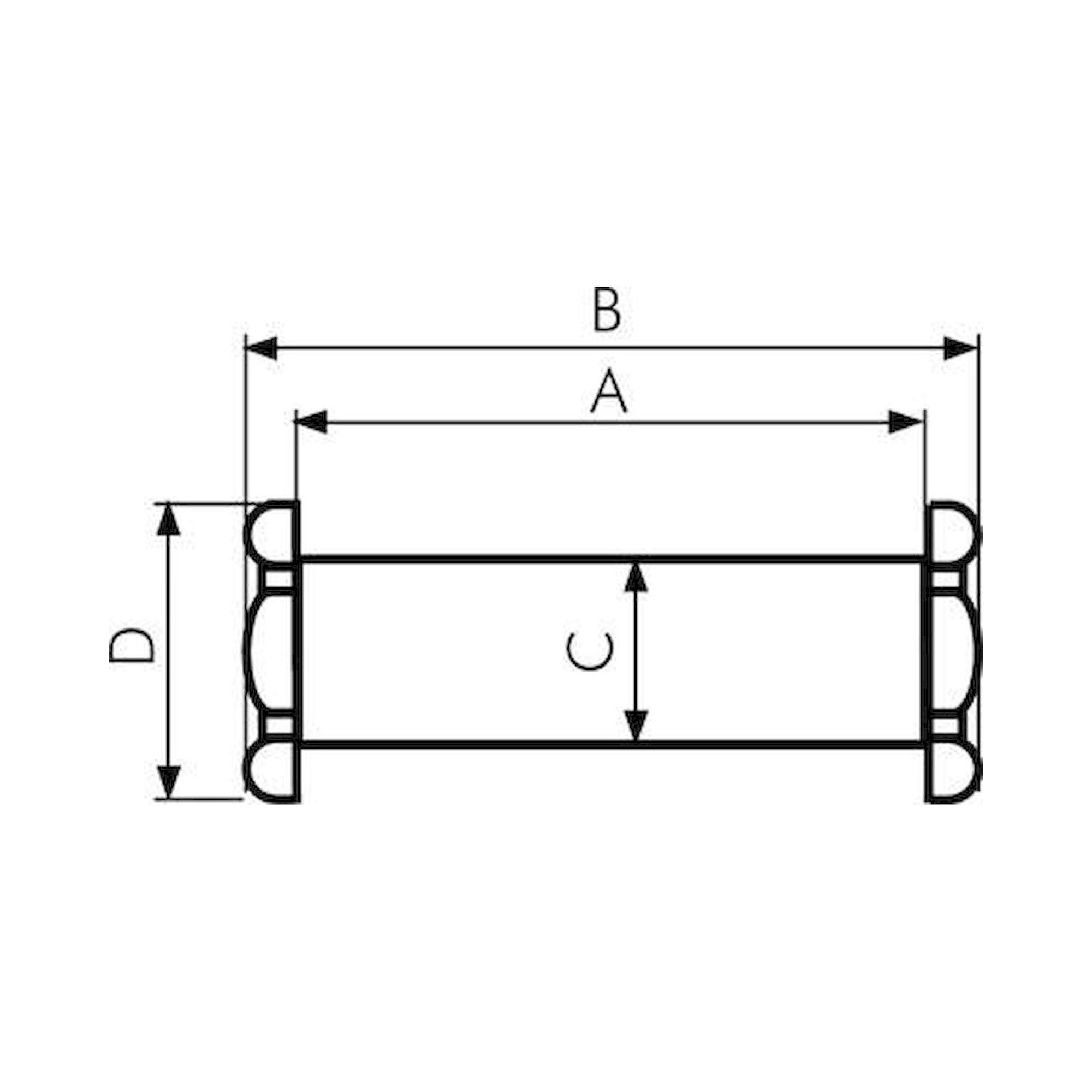

| FFR ..ES | Swivel pin | 32, 40, 50, 100 | Stainless steel |
Typical applications: Food and beverage processing with CIP/SIP cleaning cycles, pharmaceutical manufacturing and filling lines, chemical process engineering with acid or caustic media, marine and offshore installations, and outdoor equipment subject to permanent moisture or salt air exposure.
