Compact slide with ball bearing guide EXH

EXH compact slides with ball bearing guidance are precision pneumatic actuators that combine linear motion with integrated ball bearing guide systems for high-accuracy positioning in confined spaces. These compact actuators feature piston diameters from 10mm to 20mm with stroke lengths ranging from 5mm to 60mm, making them ideal for electronics manufacturing, medical device assembly, semiconductor handling, and precision machining applications. The ball bearing guidance ensures smooth operation with minimal friction while maintaining precise linear motion repeatability essential for automated production lines and robotic assembly systems.

The primary selection criteria for EXH compact slides include piston diameter matching required force output, with available sizes of 10mm, 16mm, and 20mm providing different thrust capabilities at standard 6 bar operating pressure. Stroke length selection ranges from 5mm for micro-positioning tasks up to 60mm for longer travel requirements, with the EMC EXH series offering precise increments to match application needs. Additional factors include mounting configuration, port thread size compatibility with existing pneumatic systems, and load capacity requirements for the specific automation task being performed.

EXH compact slides with ball bearing guidance comply with ISO 15552 pneumatic cylinder standards for dimensional compatibility and performance specifications, ensuring interchangeability with standard pneumatic system components. The units meet EN 983 safety requirements for pneumatic fluid power systems and conform to ISO 4762 specifications for socket head cap screws used in mounting applications. Manufacturing quality follows ISO 9001 standards while materials selection adheres to RoHS directive compliance for restricted substances, making these actuators suitable for regulated industrial environments including clean room and medical applications.

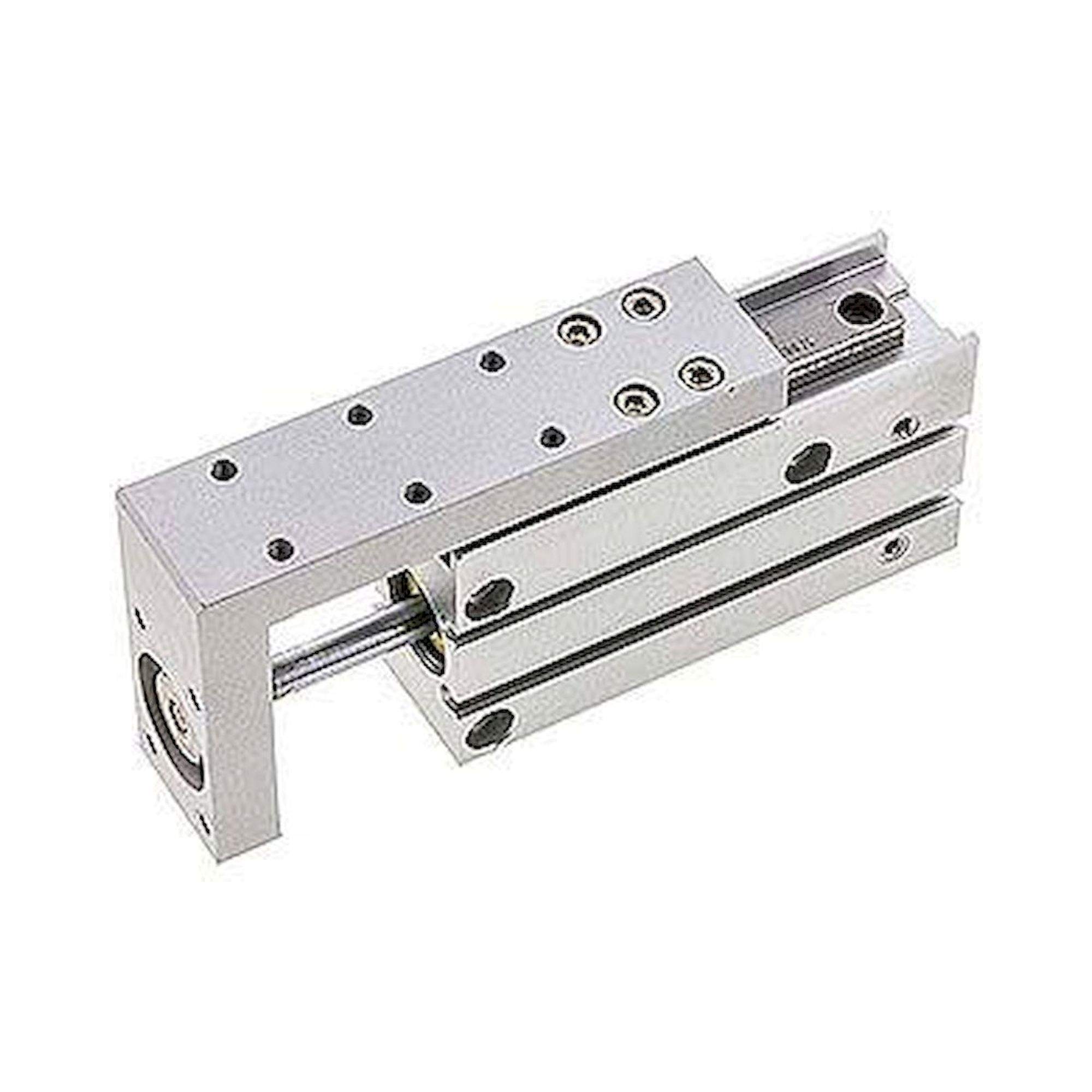

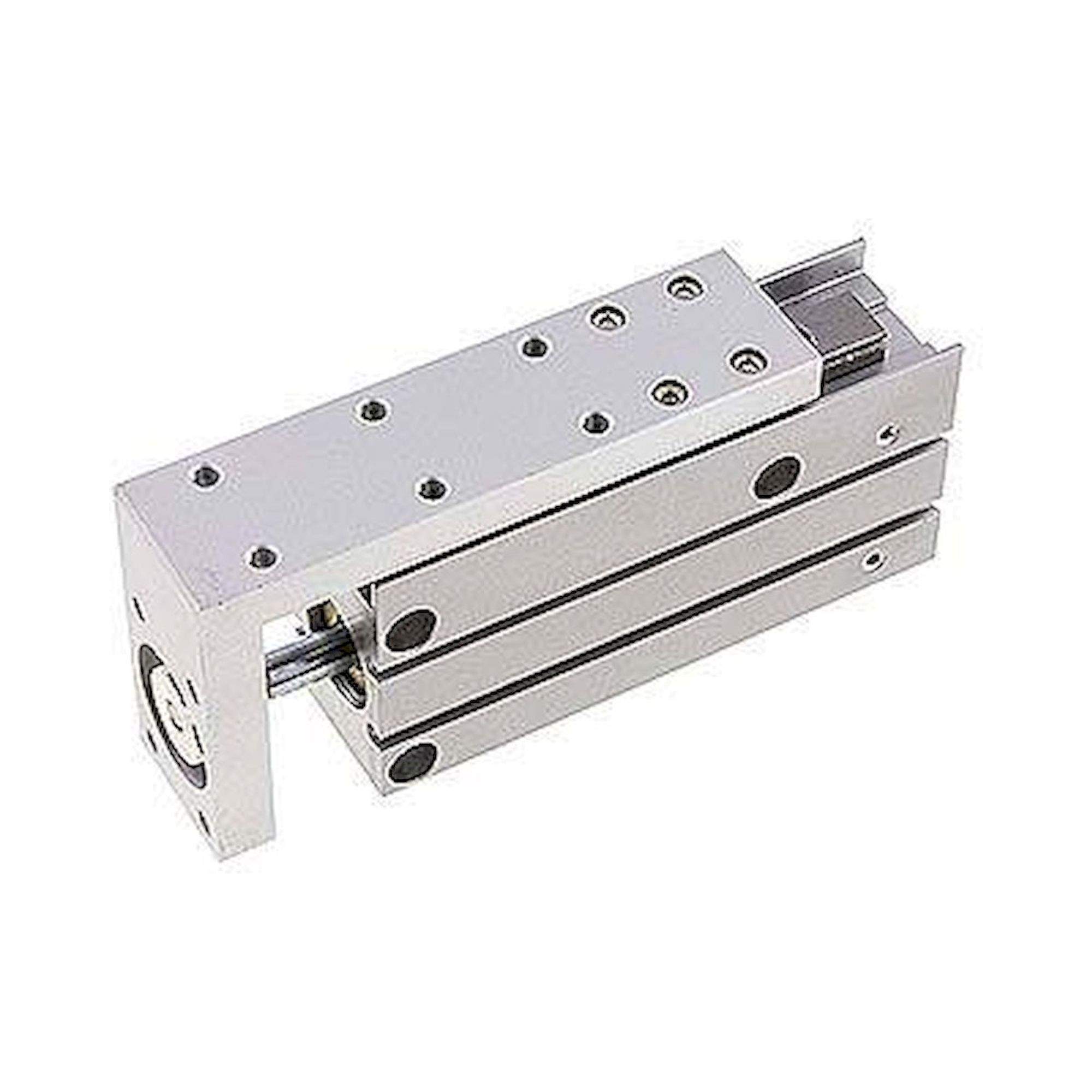

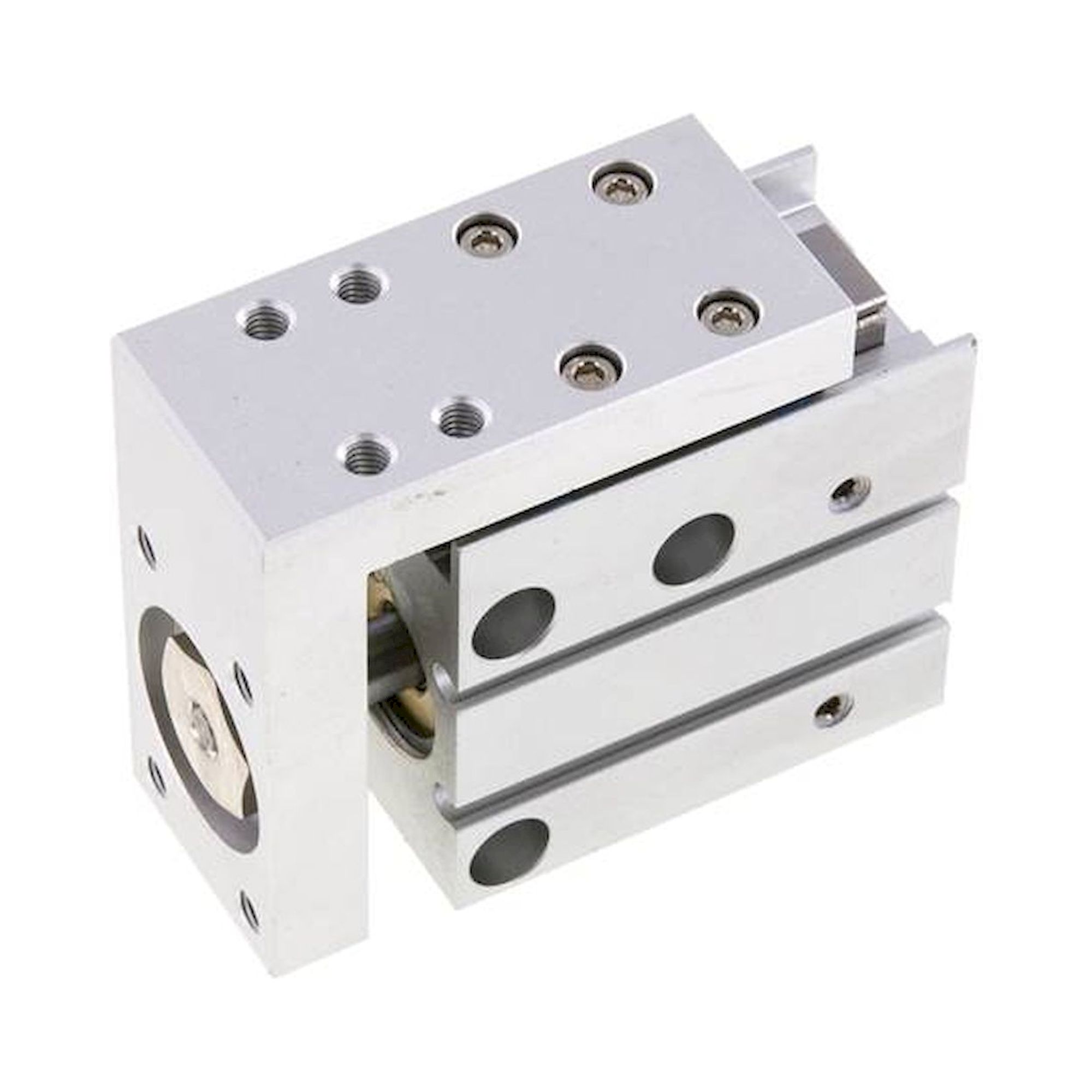

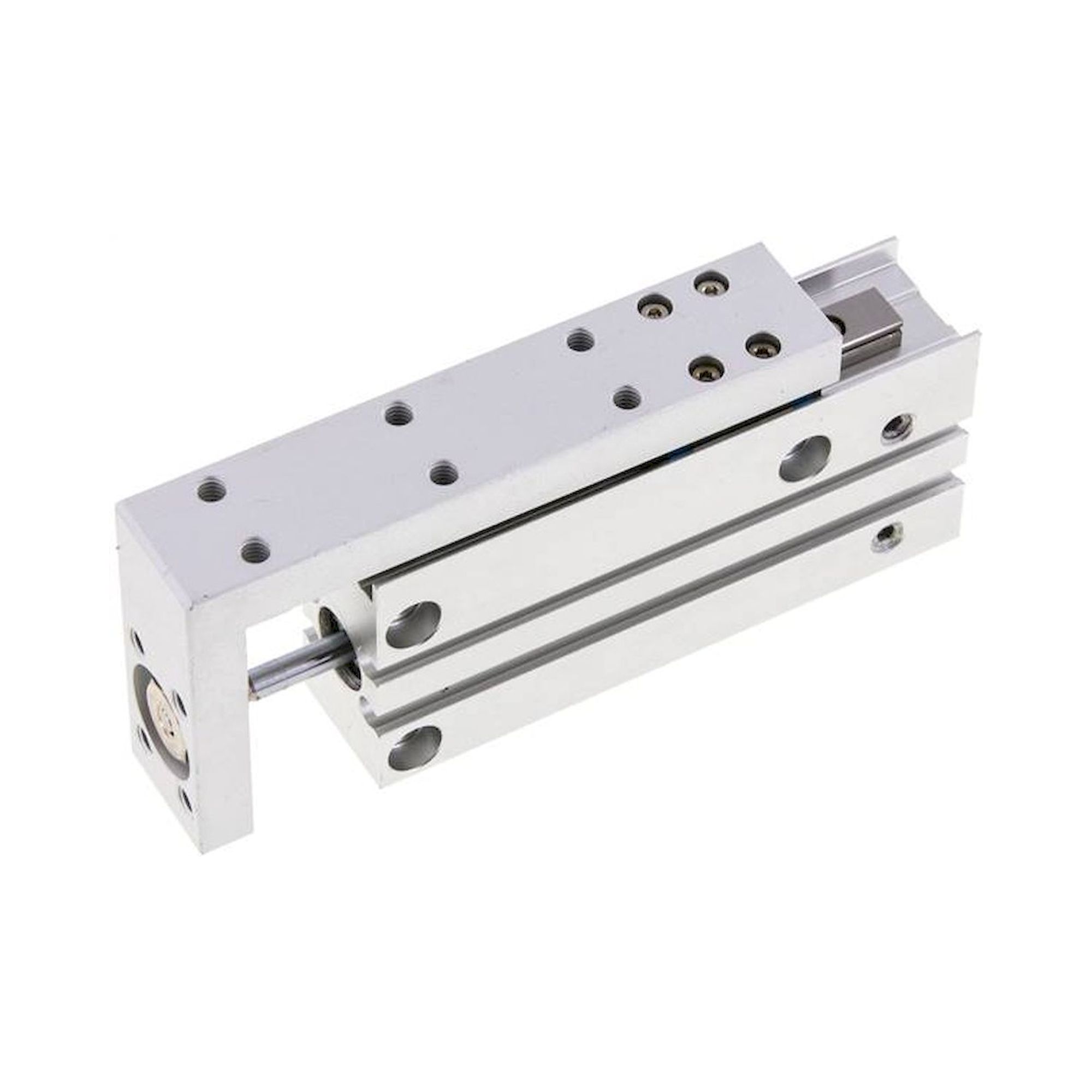

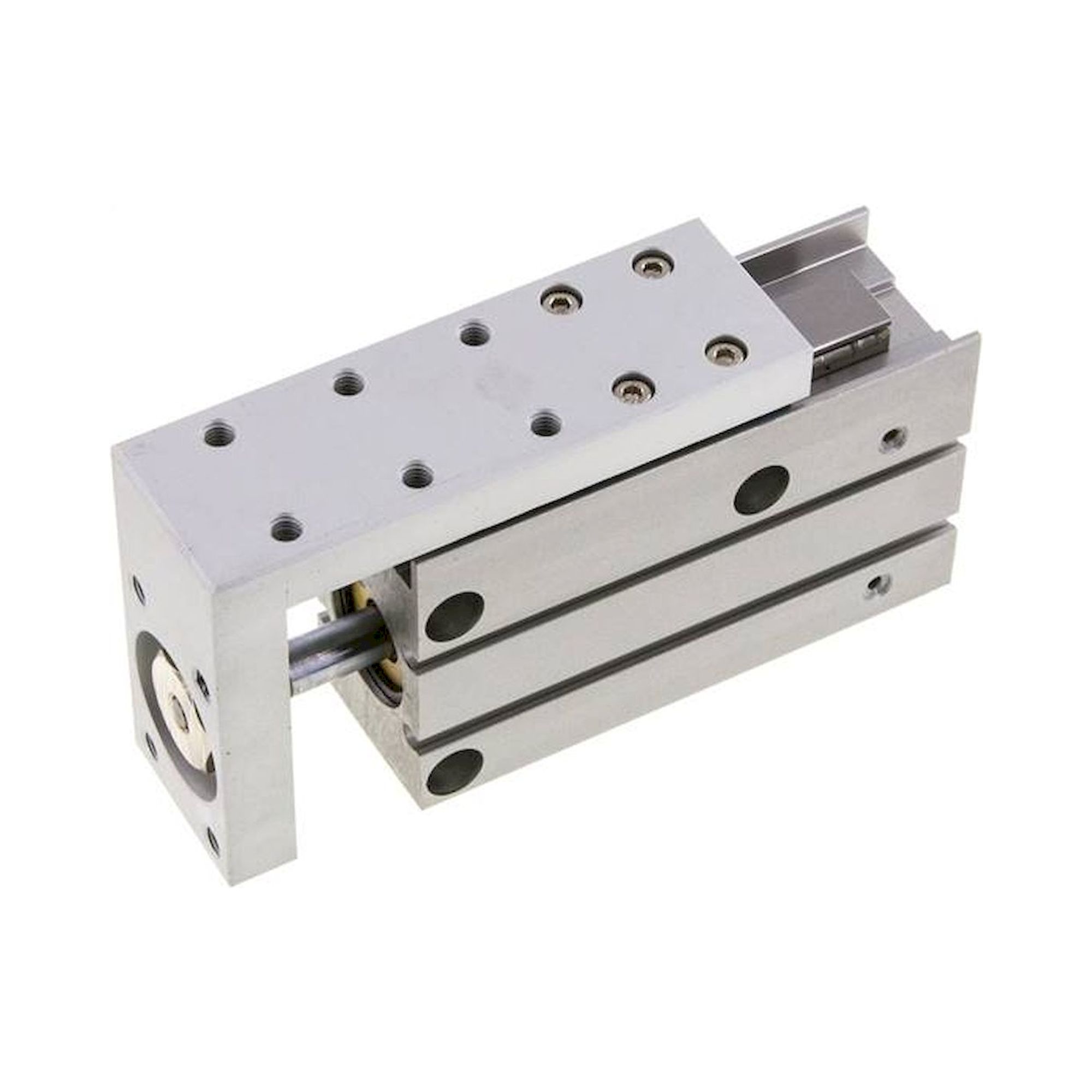

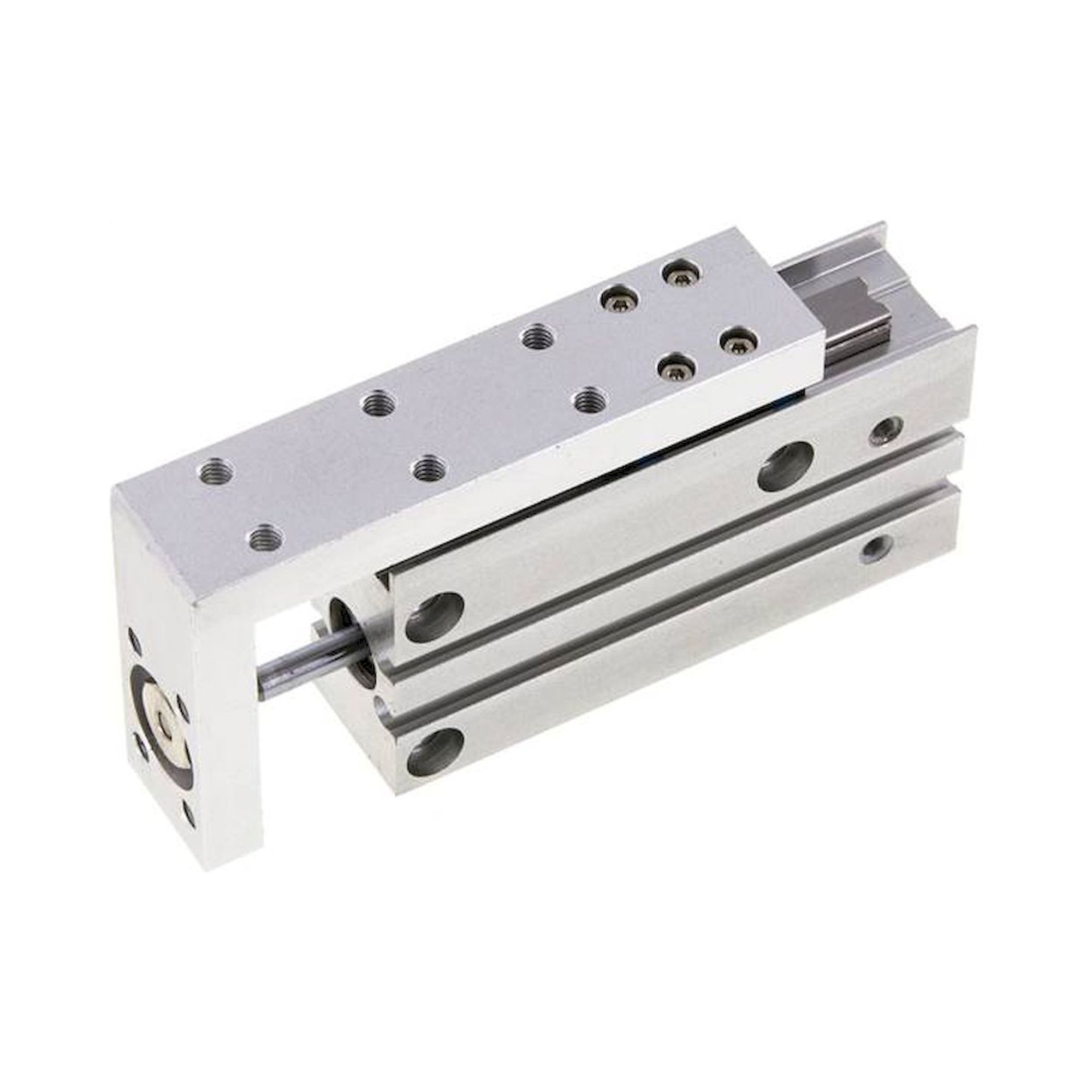

The EXH compact slide series offers three piston diameter options where the 10mm variants like EMC EXH 10/50 provide lower force output suitable for light-duty positioning, while 16mm models such as EMC EXH 16/40 deliver medium force capacity for general automation tasks. The 20mm piston diameter versions including EMC EXH 20/60 generate maximum thrust for heavy-duty applications requiring higher forces at 6 bar operating pressure. Stroke length variations from 5mm to 60mm within each piston size allow precise matching to travel distance requirements while maintaining the same mounting envelope and port configurations across the series.

EXH compact slides require standard G1/8 or M5 pneumatic port connections compatible with compressed air systems operating at 1.5 to 10 bar pressure range using ISO 8573-1 Class 7.4.4 filtered air quality standards. Installation demands rigid mounting surfaces capable of handling dynamic loads while maintaining alignment tolerance within 0.1mm to preserve ball bearing guidance accuracy. The compact design allows direct mounting through tapped holes in the cylinder body, with optional clevis or flange mounting accessories available for different orientation requirements in automated machinery and robotic applications.

EXH compact slides operate safely within temperature ranges from -10°C to +60°C ambient conditions while maintaining full performance specifications at working pressures between 1.5 and 10 bar maximum. The units feature IP40 protection rating against solid particle ingress, making them suitable for standard industrial environments but requiring additional protection in harsh or wash-down applications. Safety factor calculations incorporate 4:1 design margin on cylinder barrel strength while ball bearing guidance systems maintain precision under continuous cycling up to 10 million operations at rated loads and pressures.

EXH compact slides require visual inspection every 100,000 cycles or quarterly intervals to check for air leakage, smooth operation, and proper ball bearing guidance alignment without binding or excessive play. Preventive maintenance includes annual replacement of pneumatic seals and lubrication of ball bearing races using ISO VG 32 pneumatic oil applied through standard lubrication fittings. Service life typically exceeds 10 million operating cycles under normal industrial conditions with 6 bar working pressure, while ball bearing guidance systems maintain positioning accuracy within ±0.05mm throughout the operational lifespan when properly maintained and operated within specified load limits.
