Swivel clamping cylinder SQK

Cylinder

The SQK series swivel clamping cylinders (EMC) combine a 90-degree swing motion with a subsequent axial clamping stroke in a single unit. During extension, the arm swings clear of the workpiece; on retraction, it swings back and clamps with the specified clamping stroke. Bore diameters run from 16 to 40 mm, available in left-hand (SQKL) and right-hand (SQKR) swing variants with clamping strokes of 10, 20, 30, and 50 mm. Repair kits (REP) are available for all bore sizes.

⚙ Integrated swing and clamping - one cylinder replaces two separate actuators
↕ Clamping strokes 10-50 mm - 10, 20, 30, or 50 mm depending on bore size
✓ Left- and right-hand swing - SQKL counter-clockwise, SQKR clockwise
⬡ Bore 16-40 mm - matched clamping and swing force per size
📦 Repair kits available - REP kits for all bore sizes 16-40 mm

TypeBoreClamping strokes (mm)Swing direction

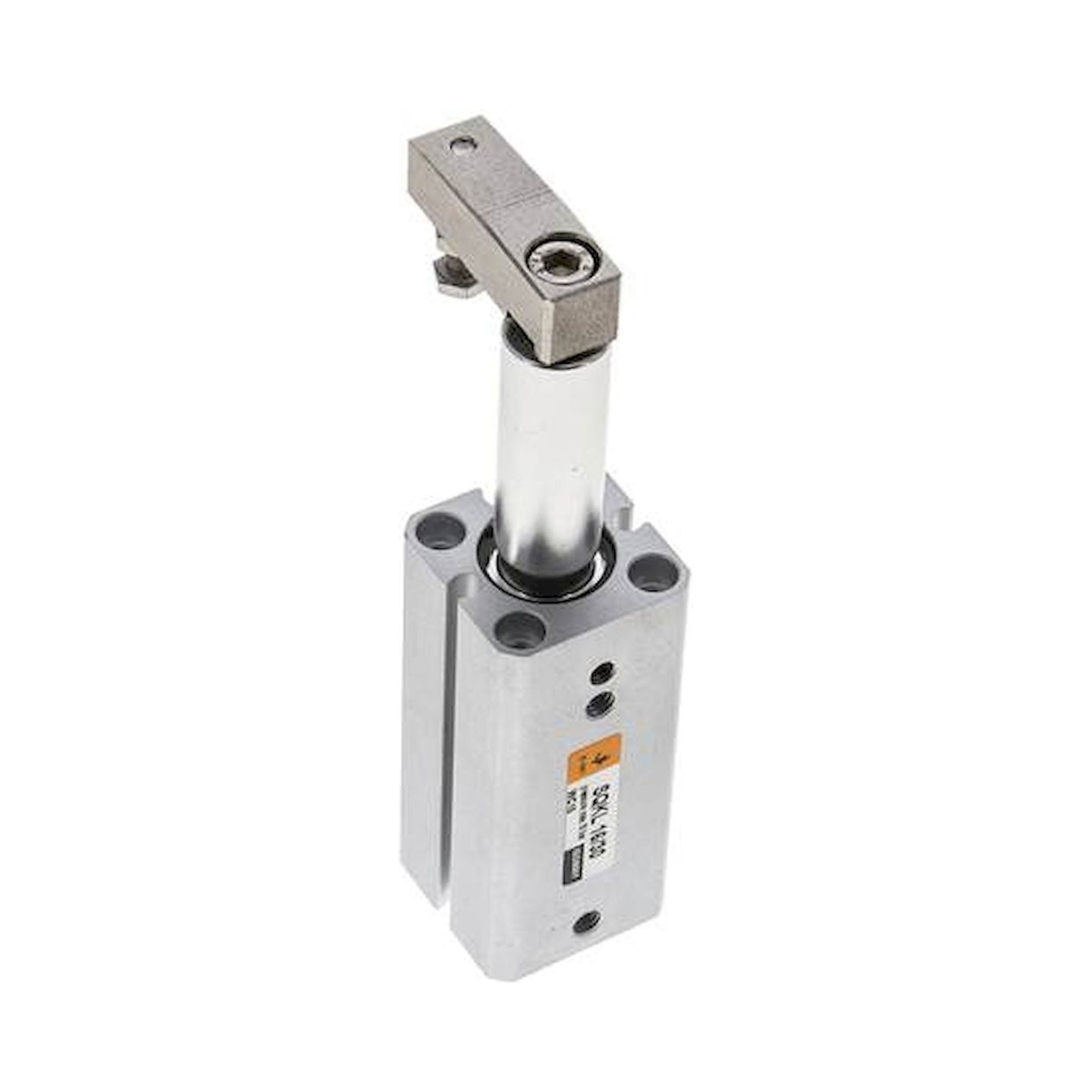

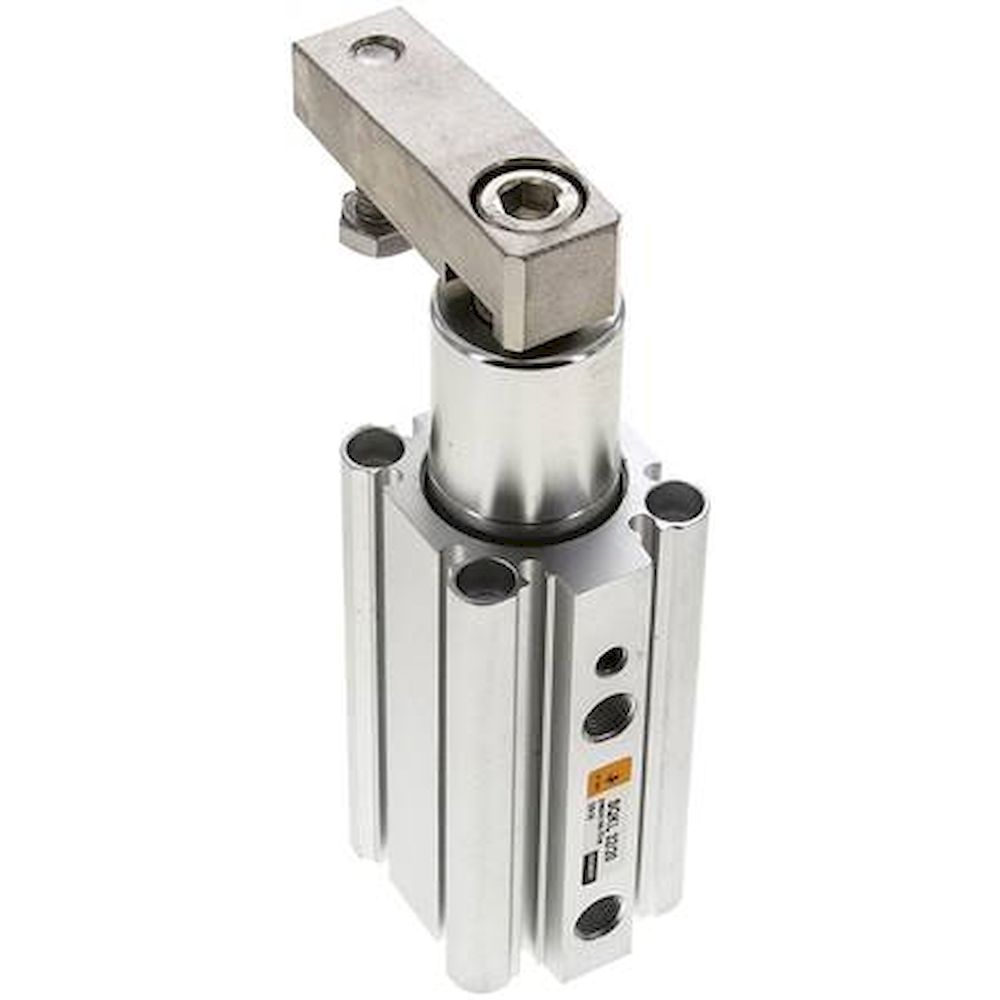

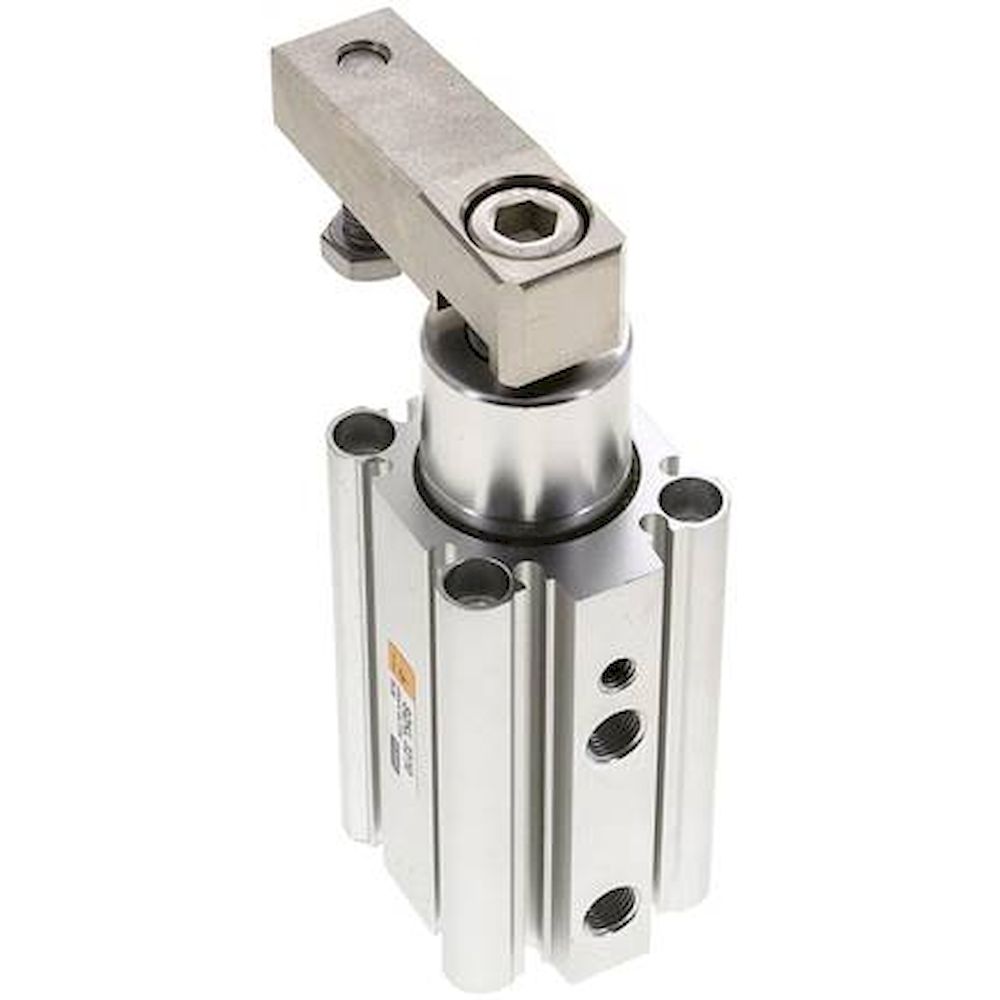

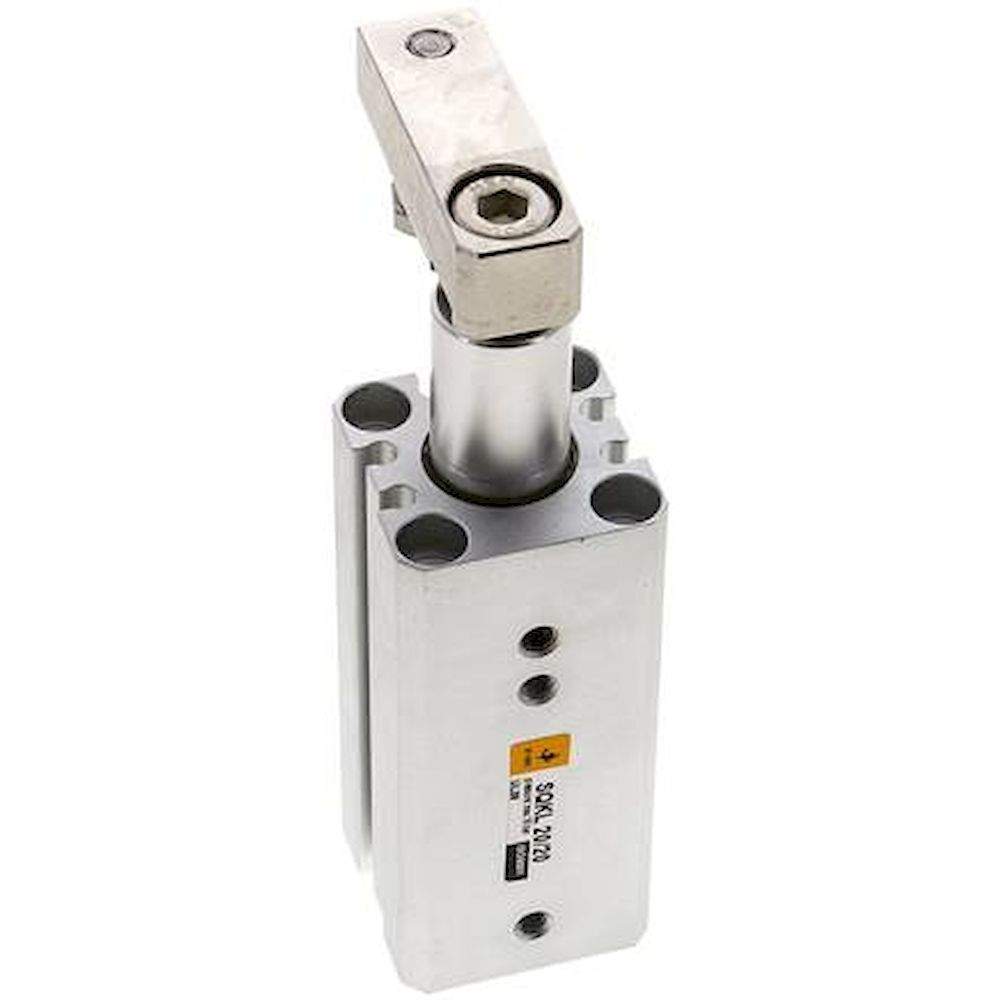

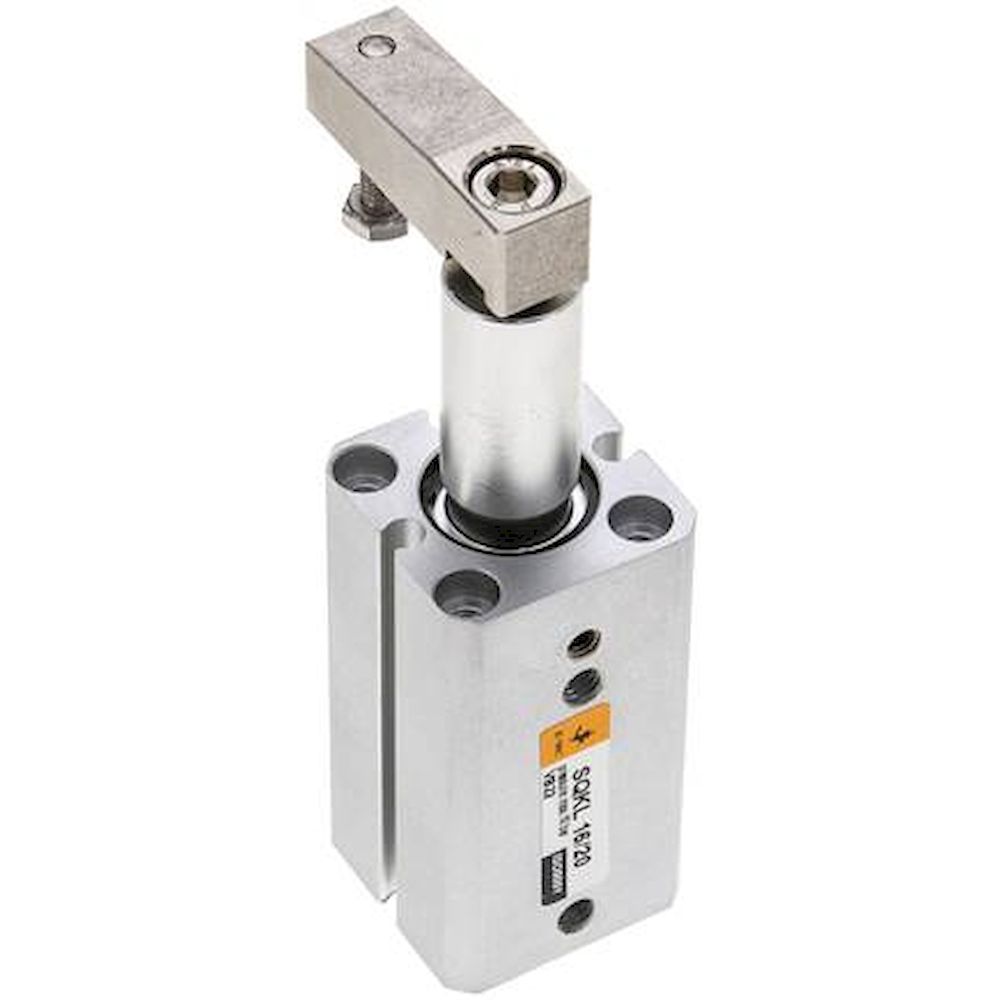

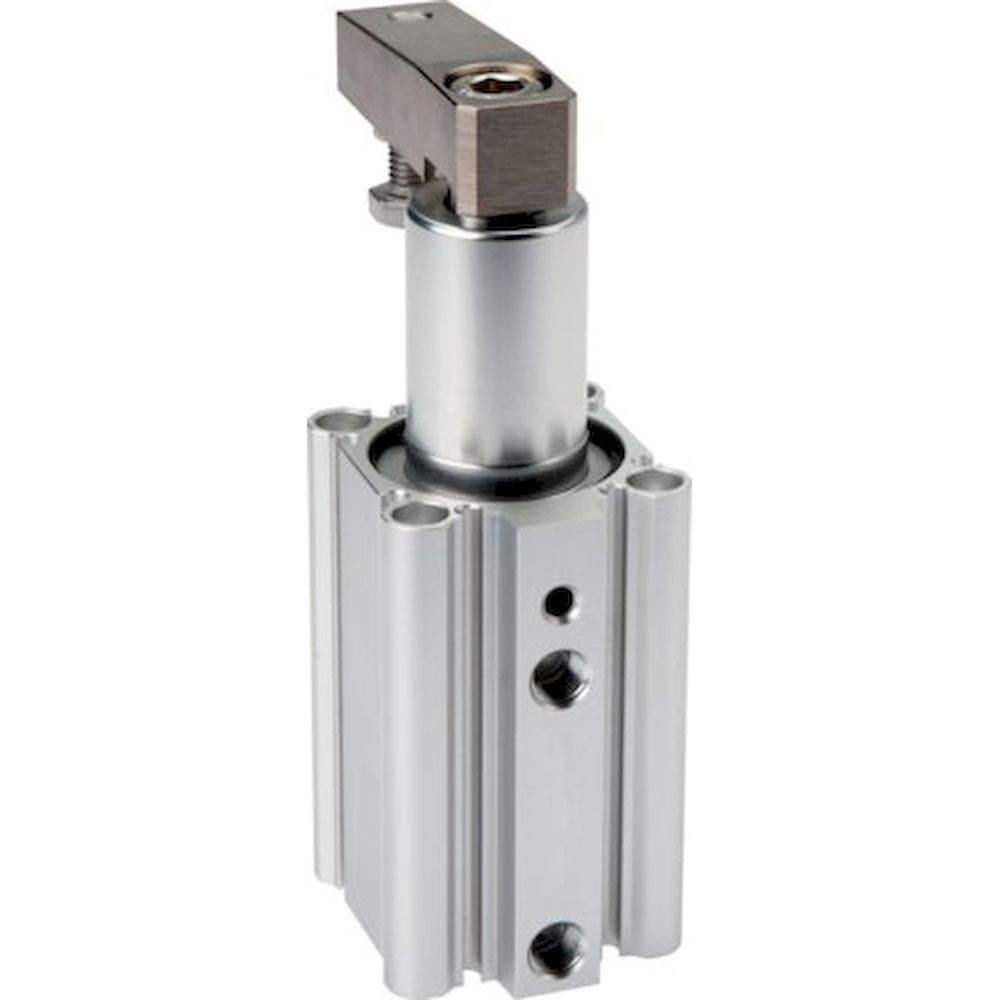

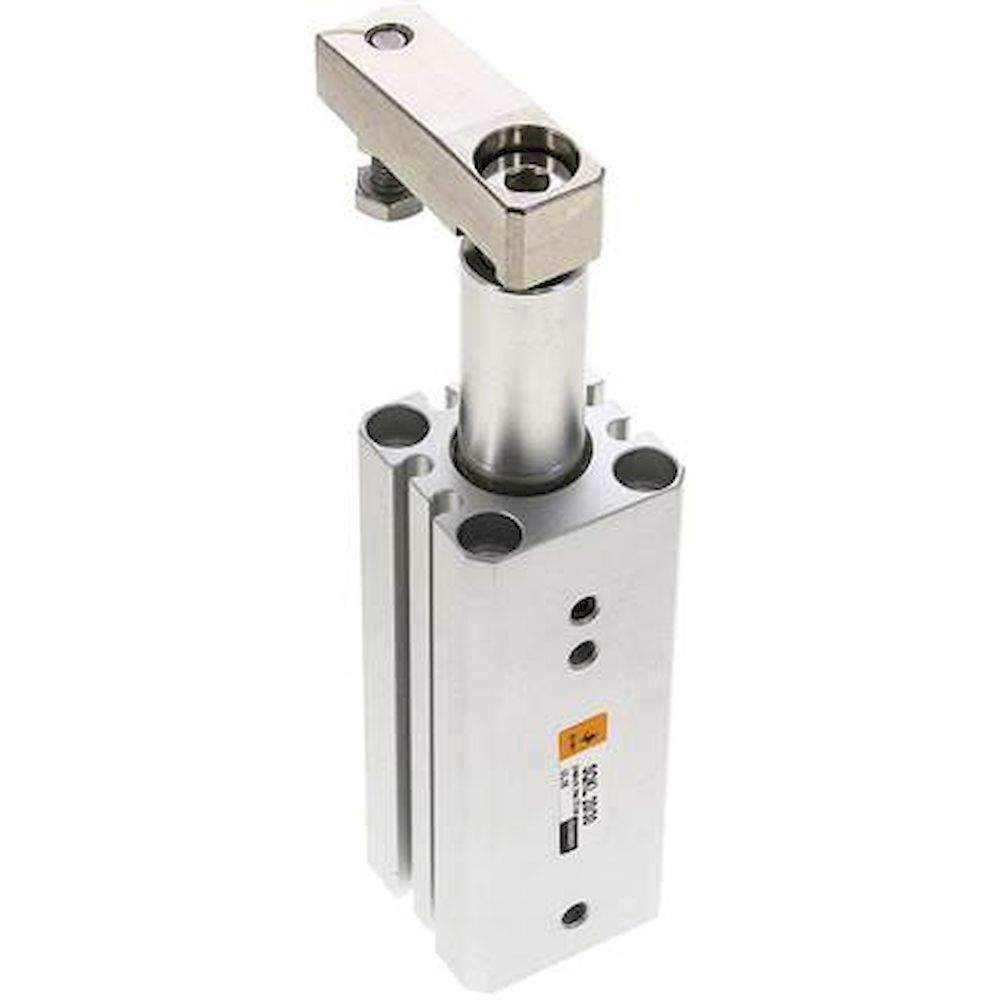

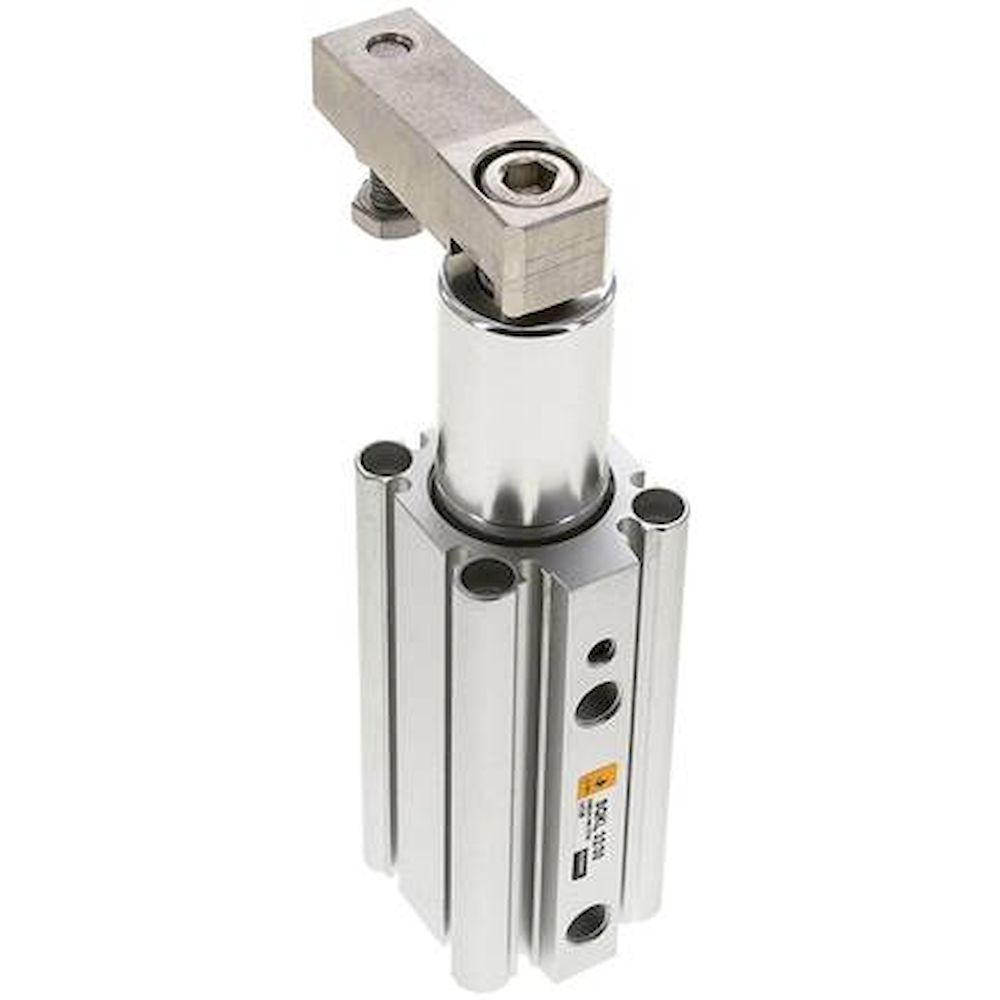

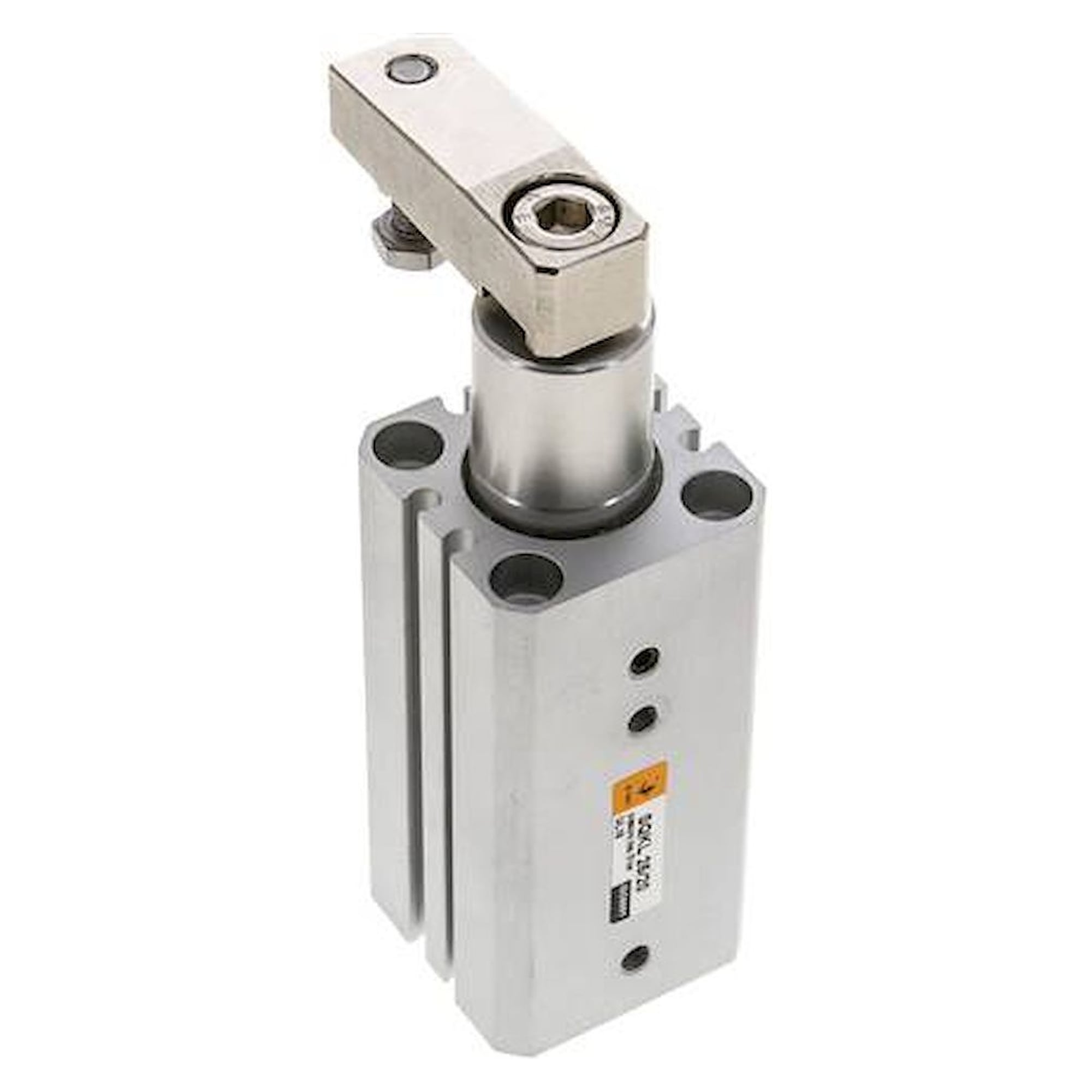

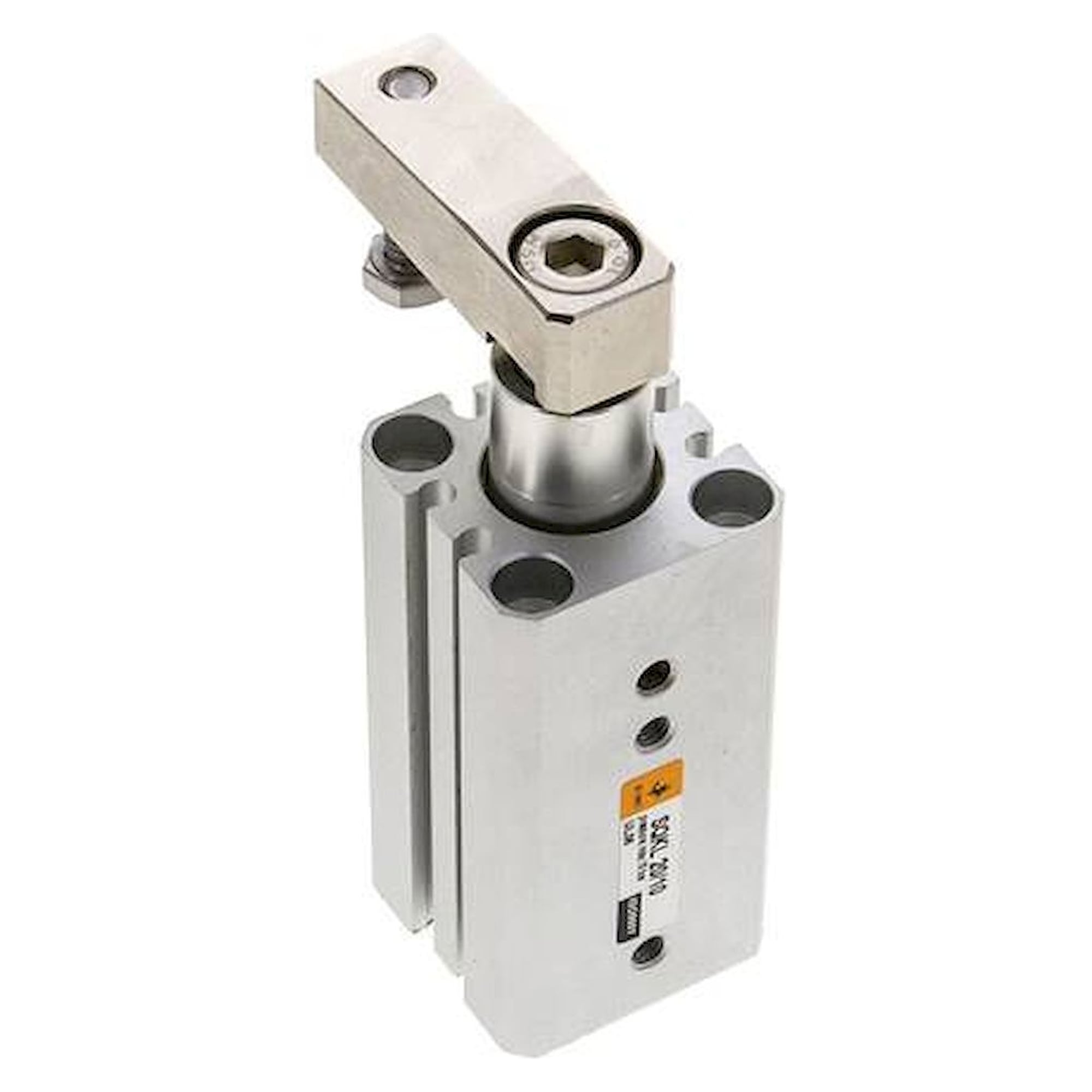

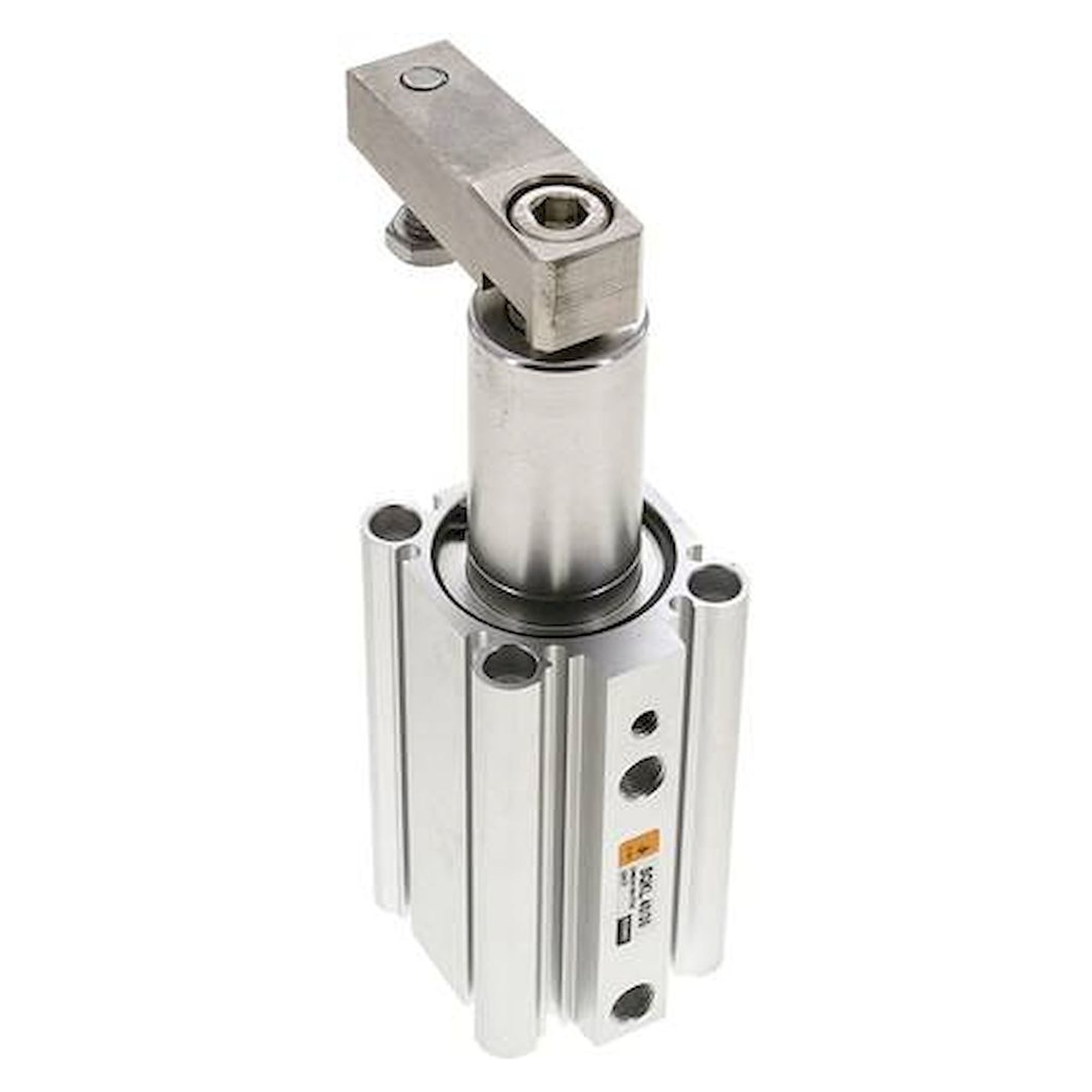

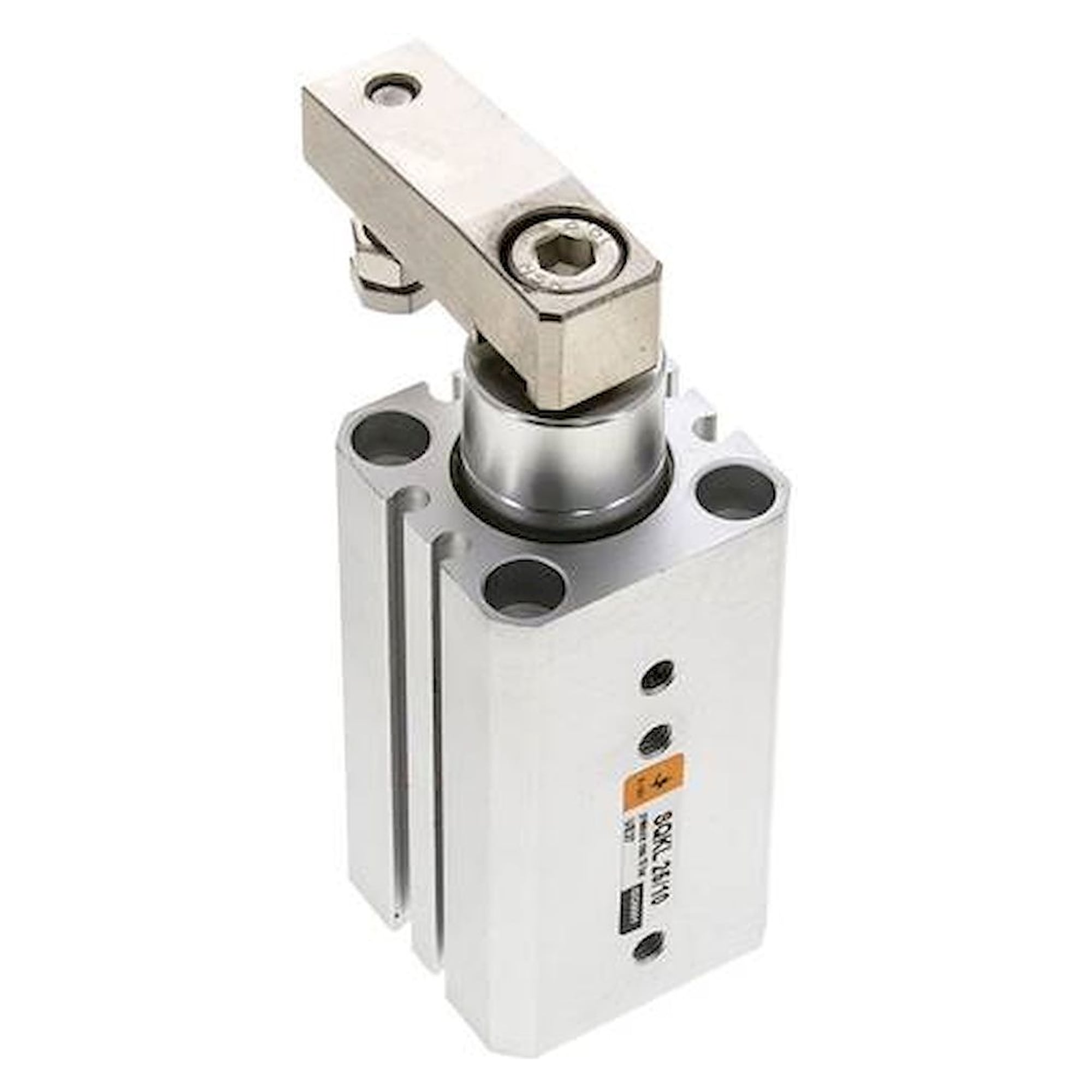

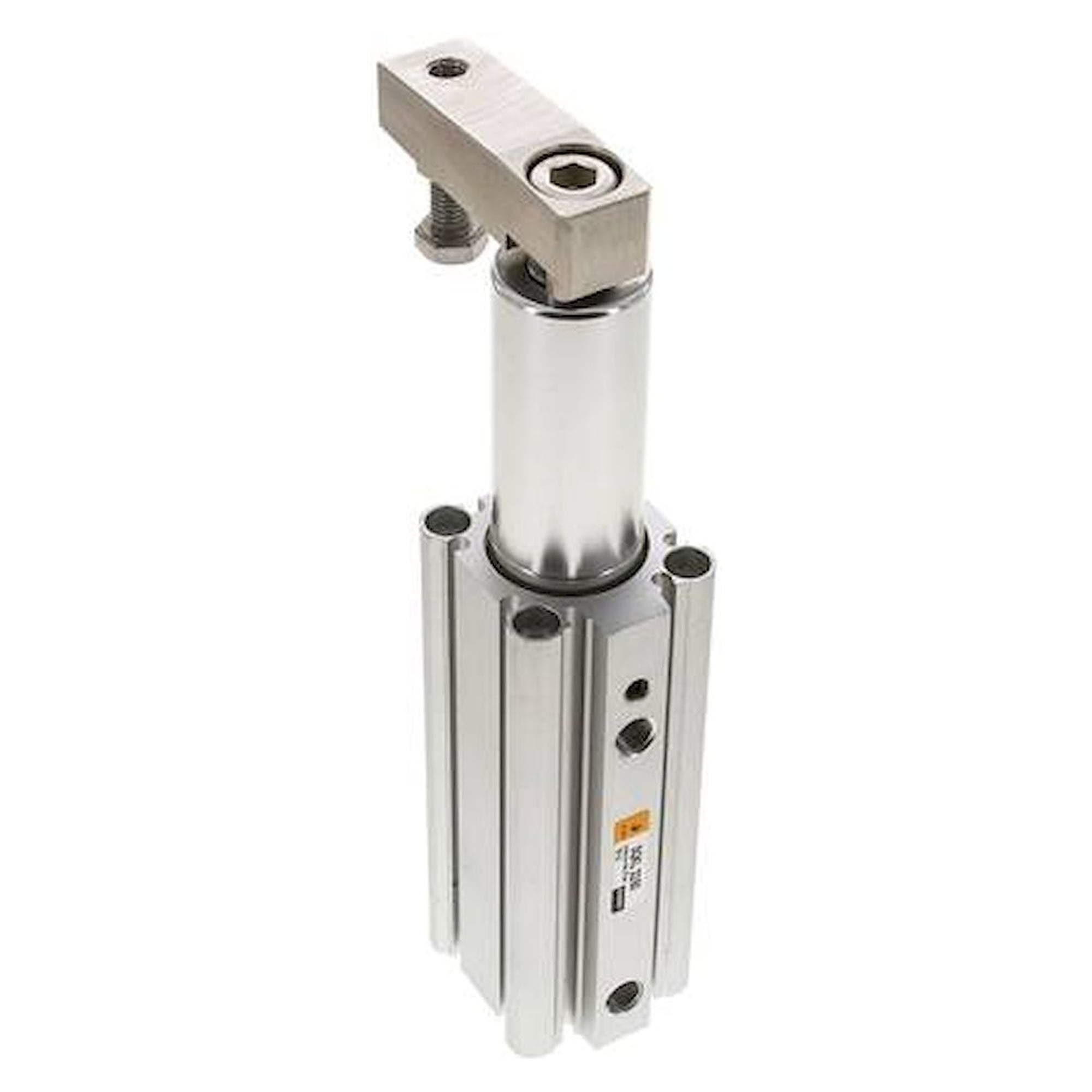

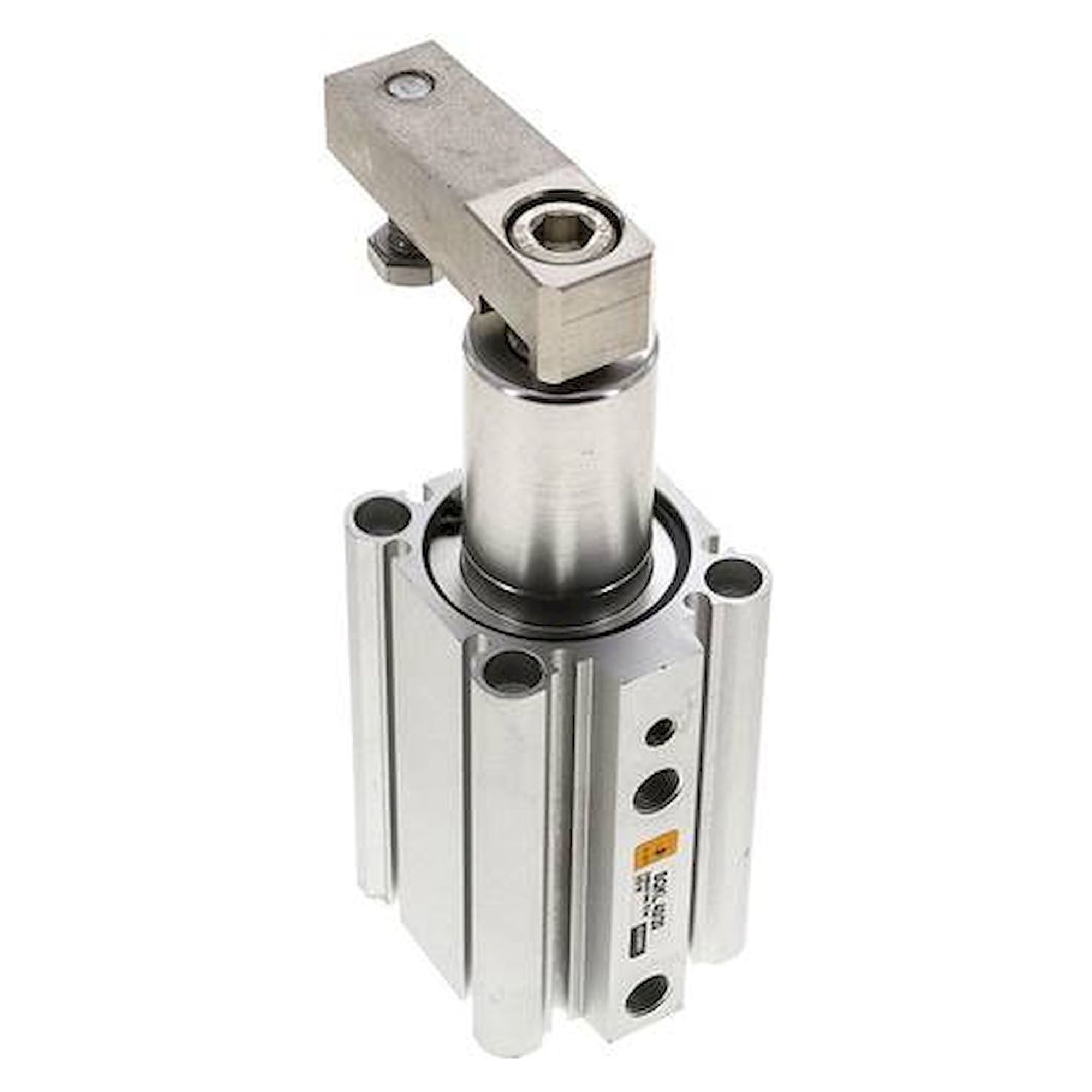

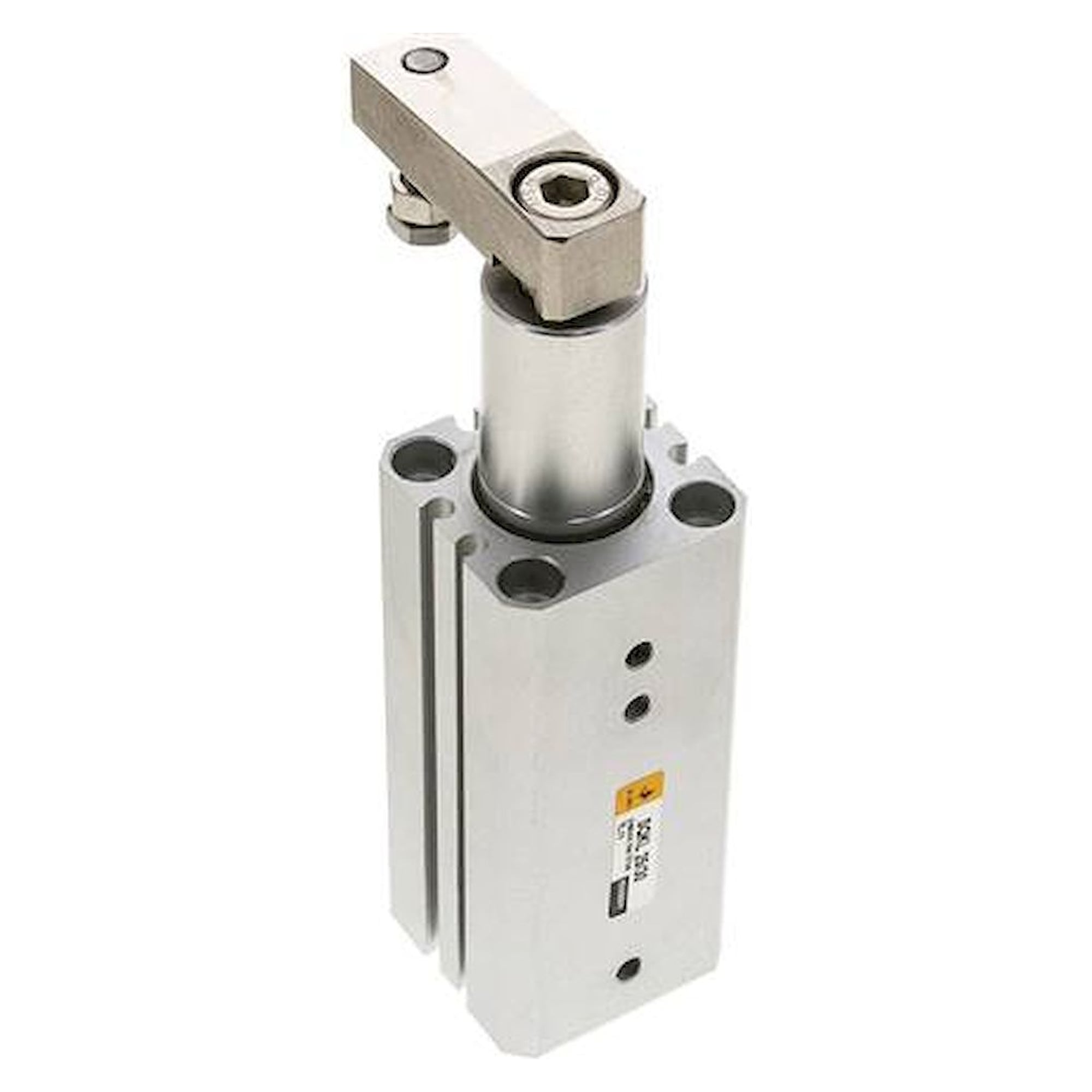

SQKL16, 20, 25, 32, 40 mm10, 20, 30, 50Left (counter-clockwise)

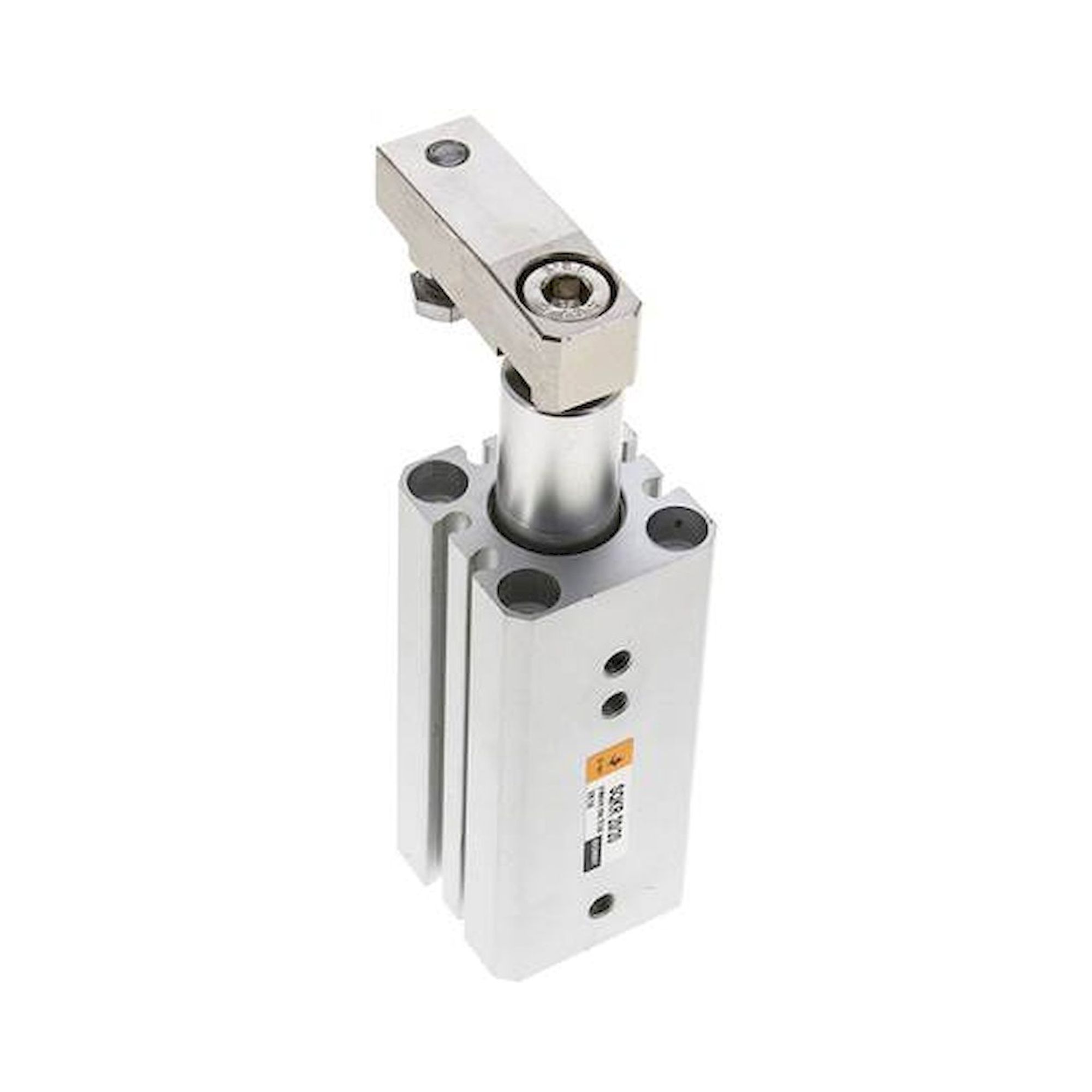

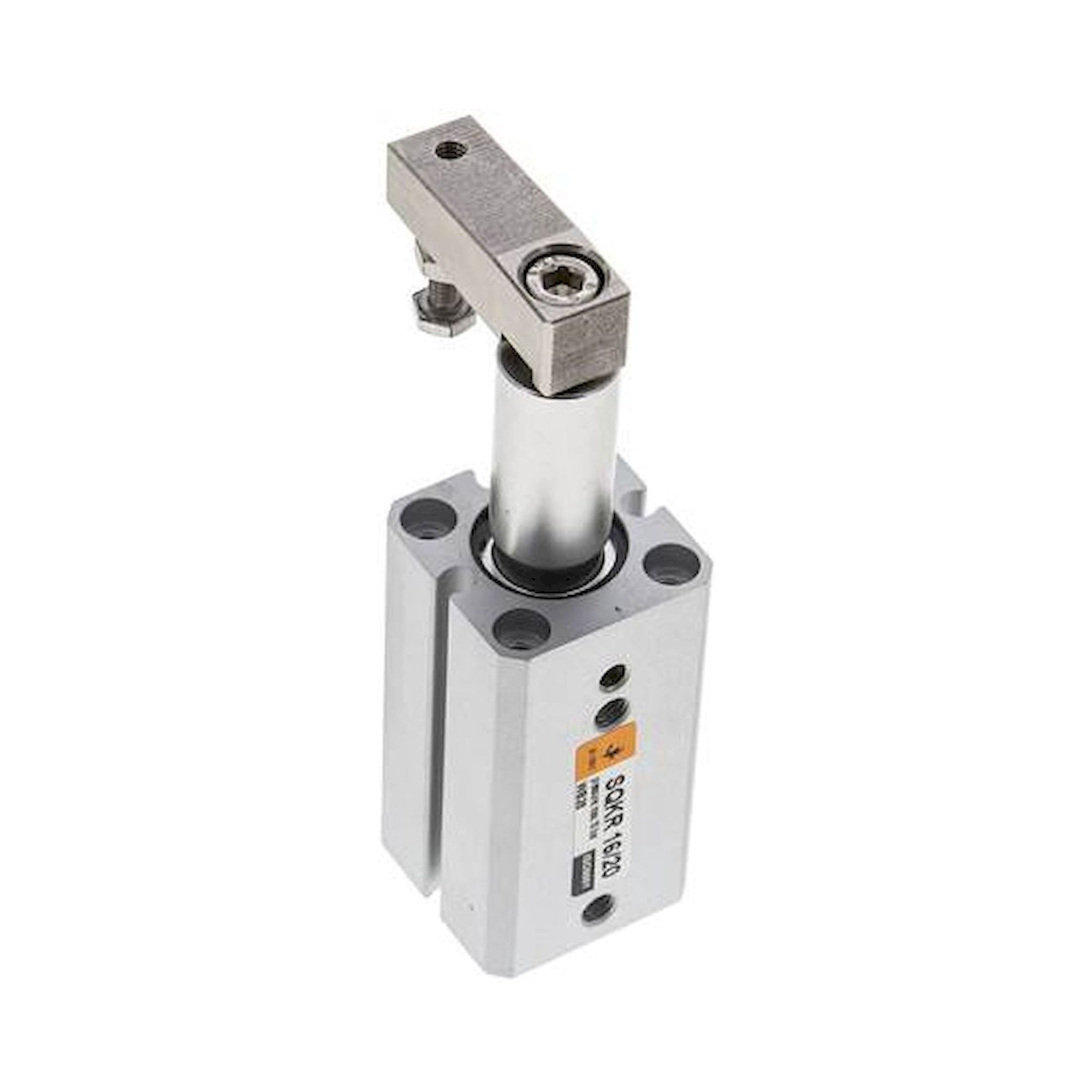

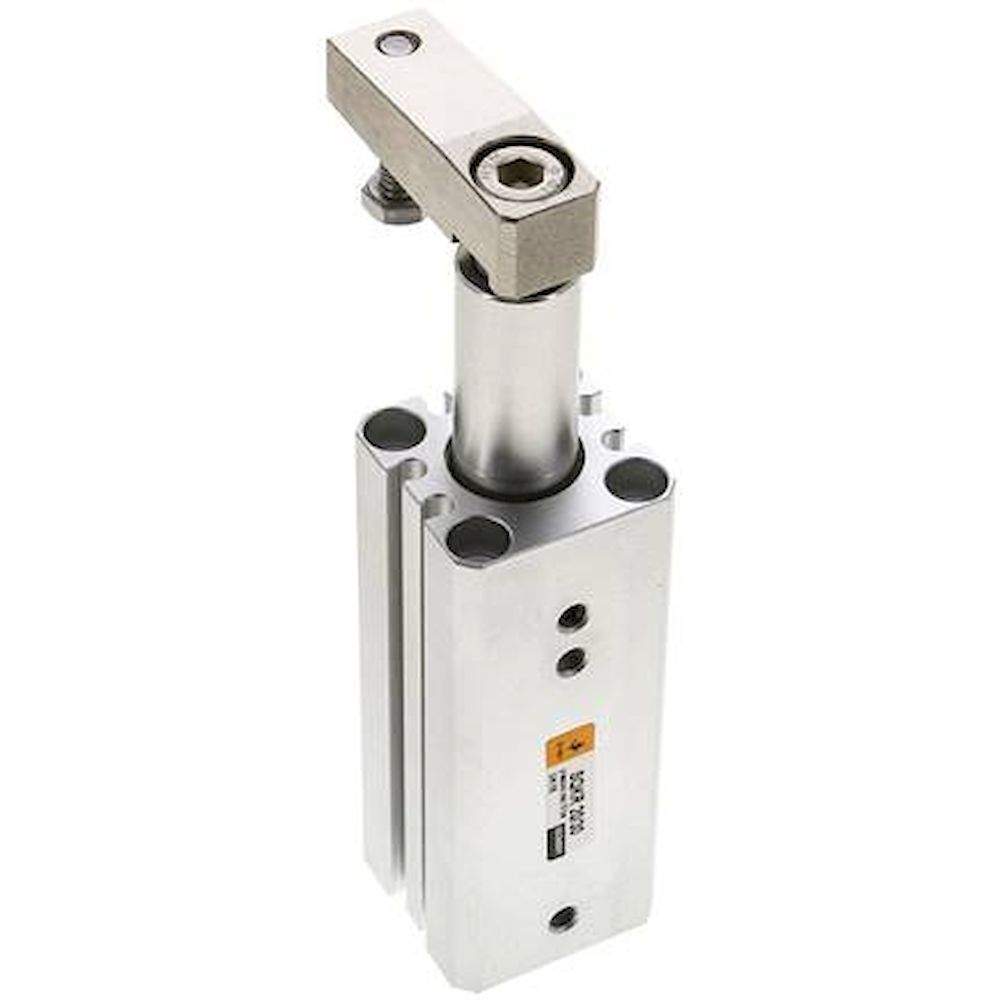

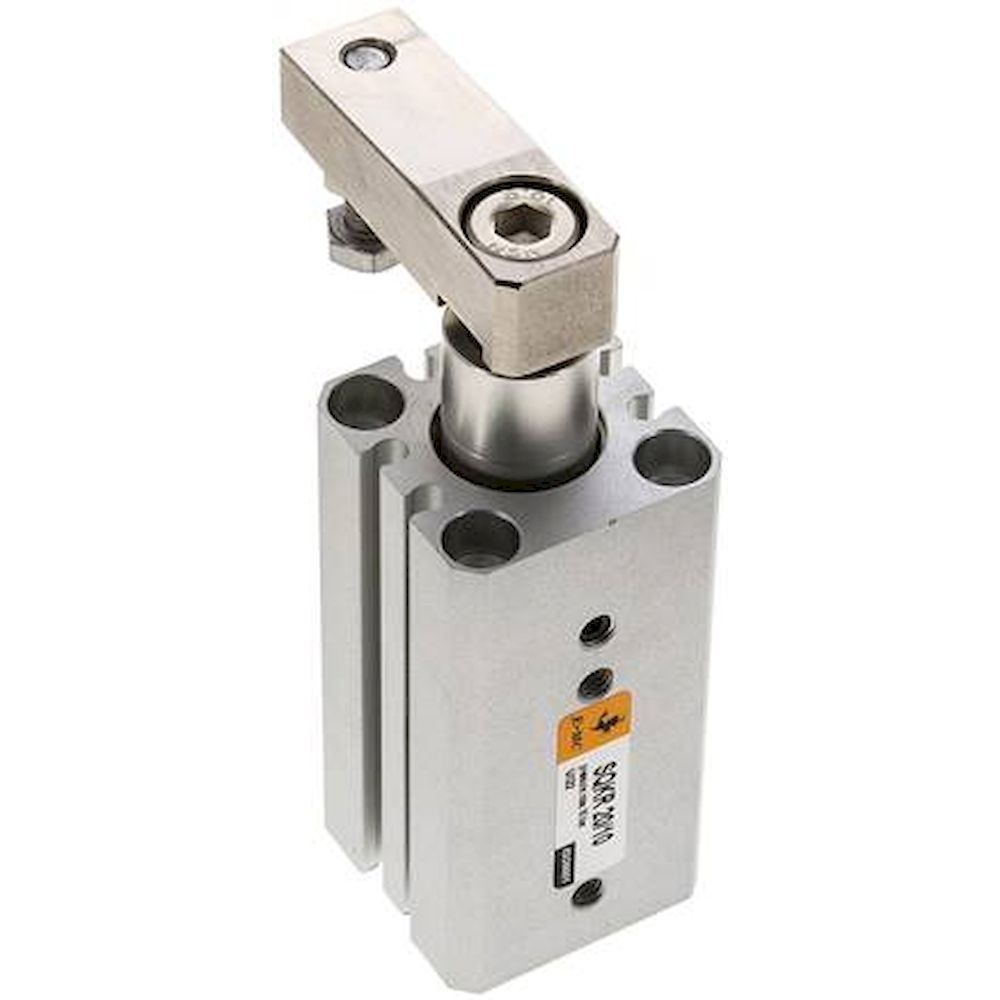

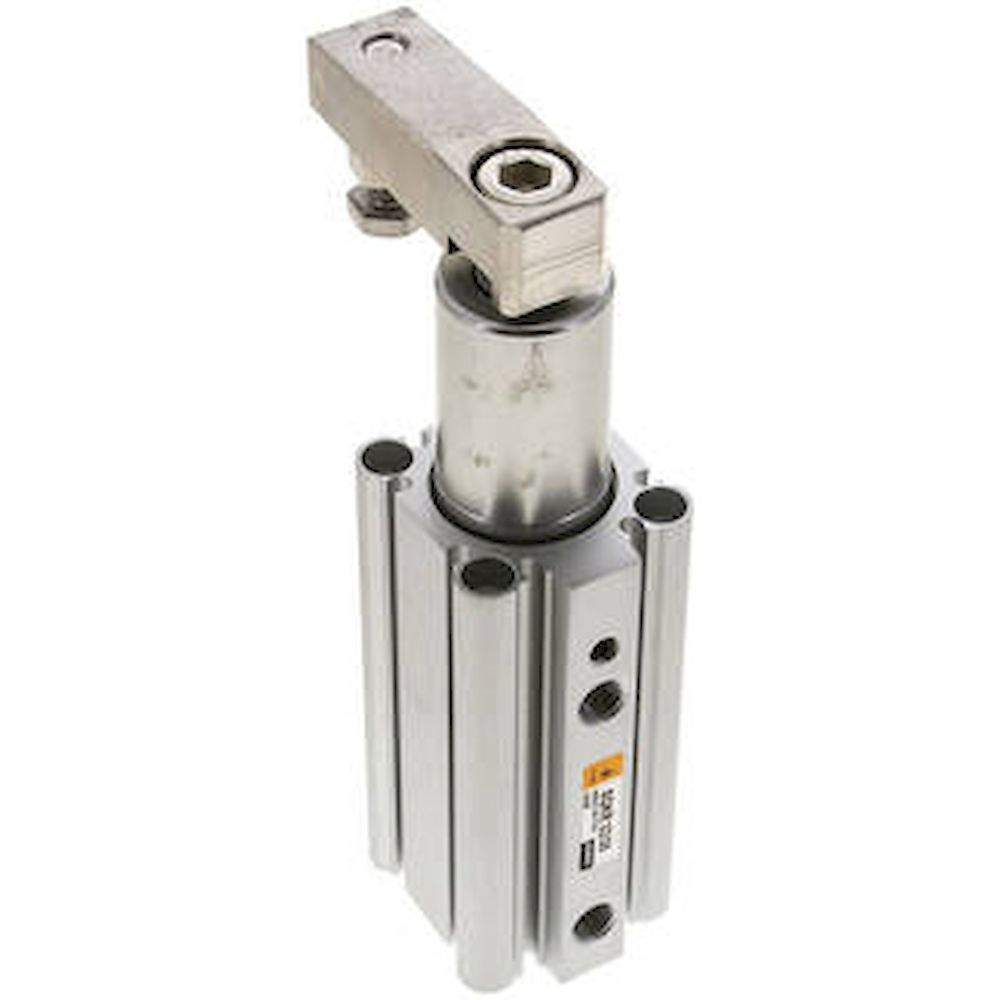

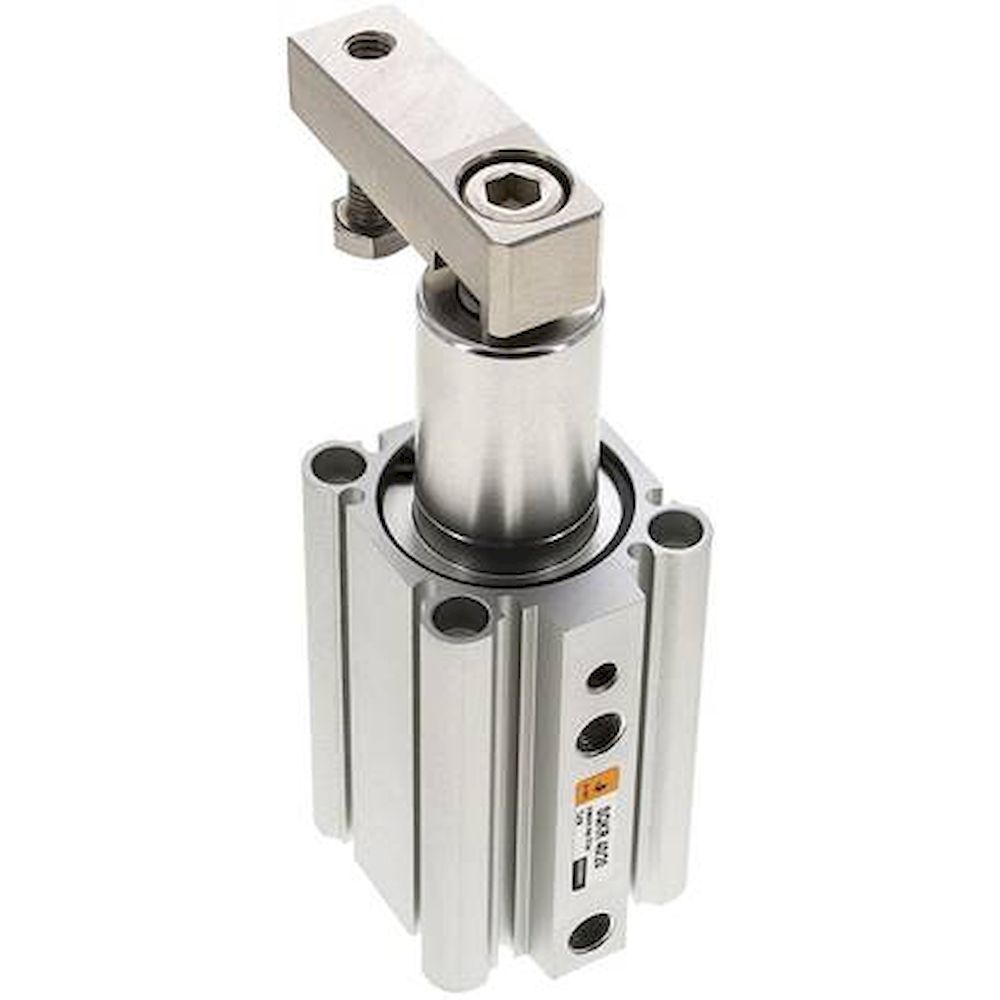

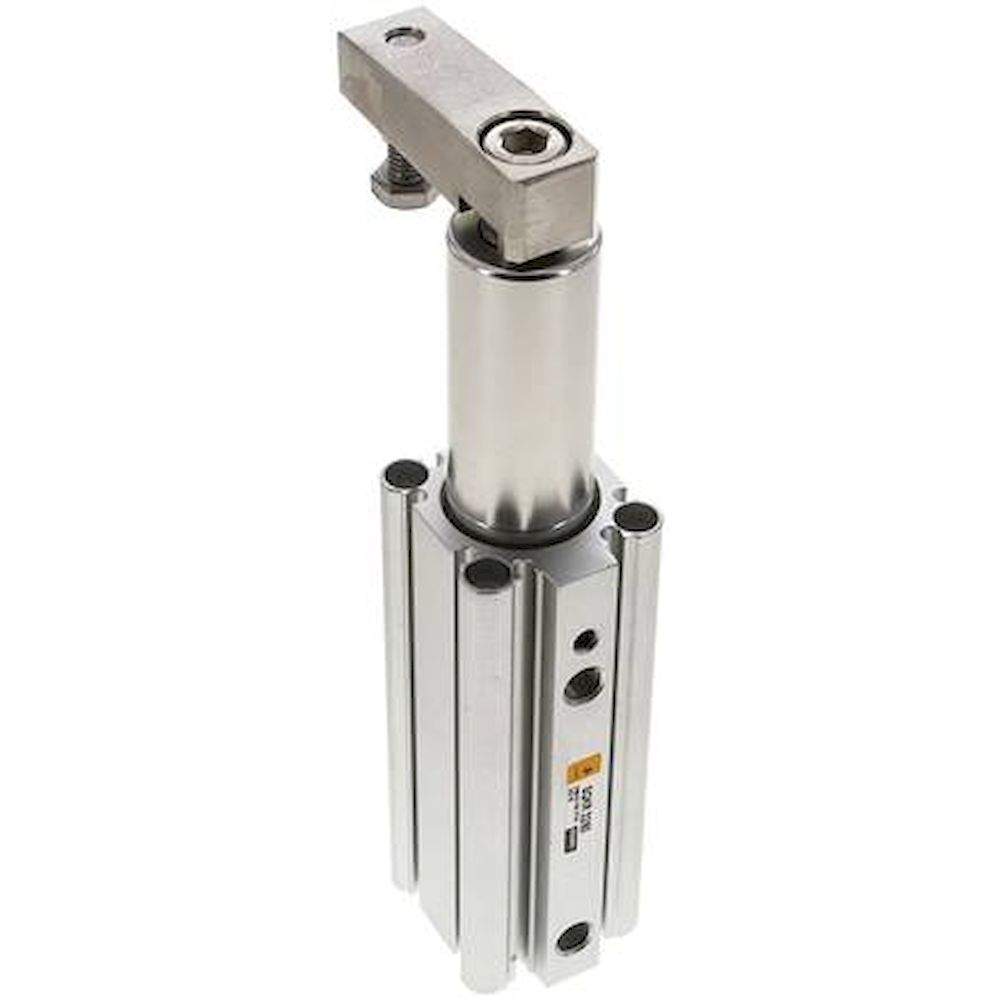

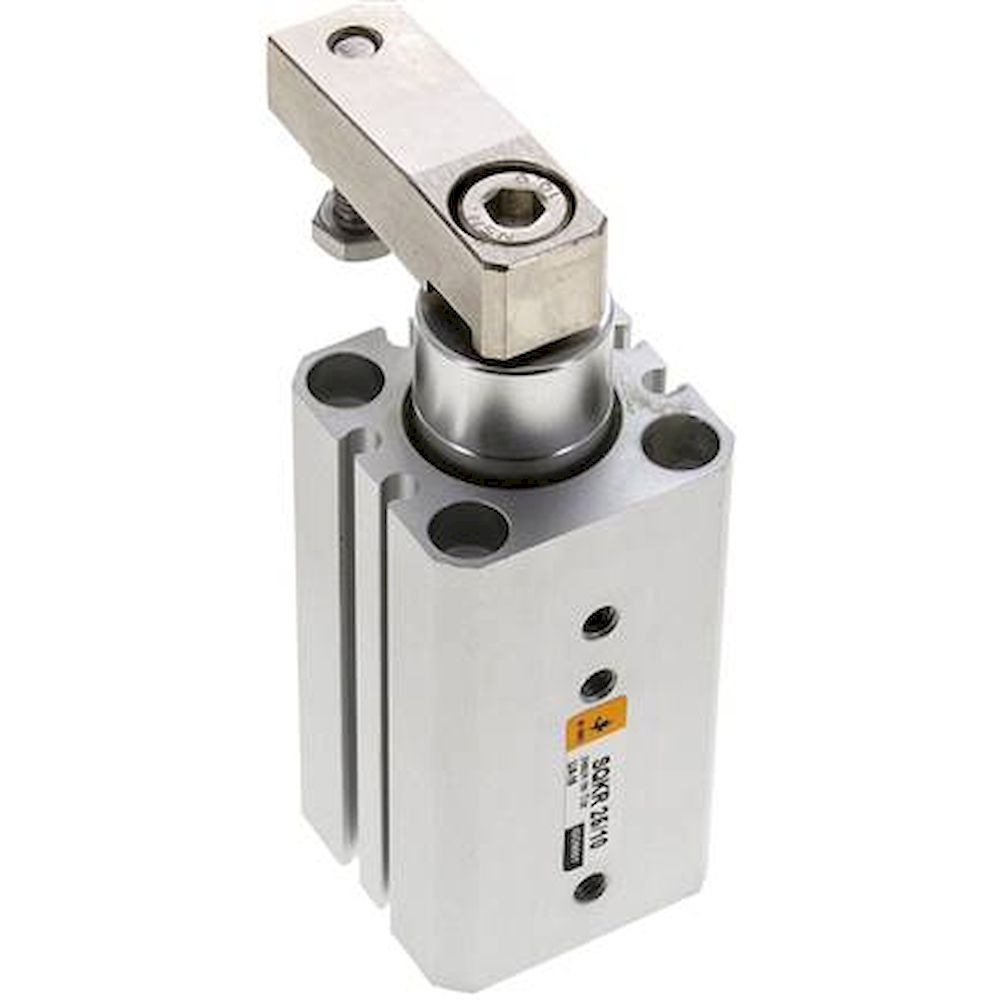

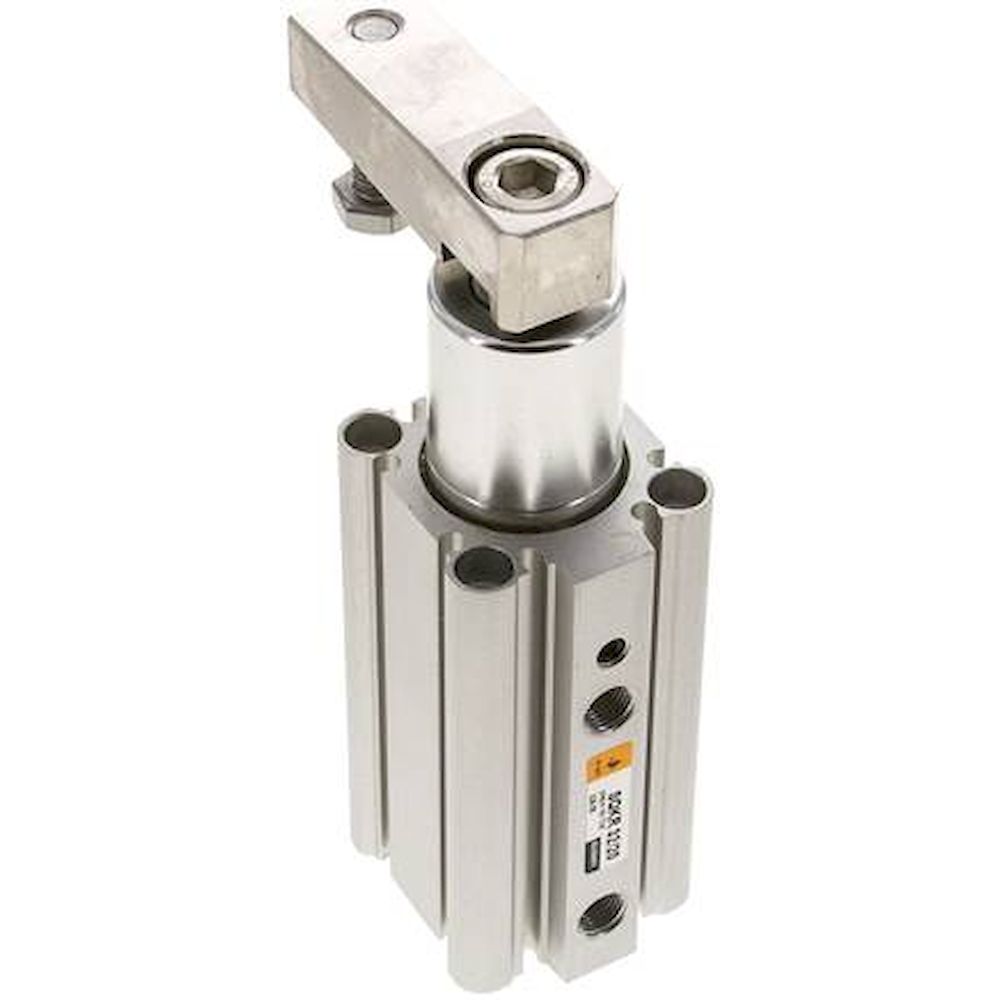

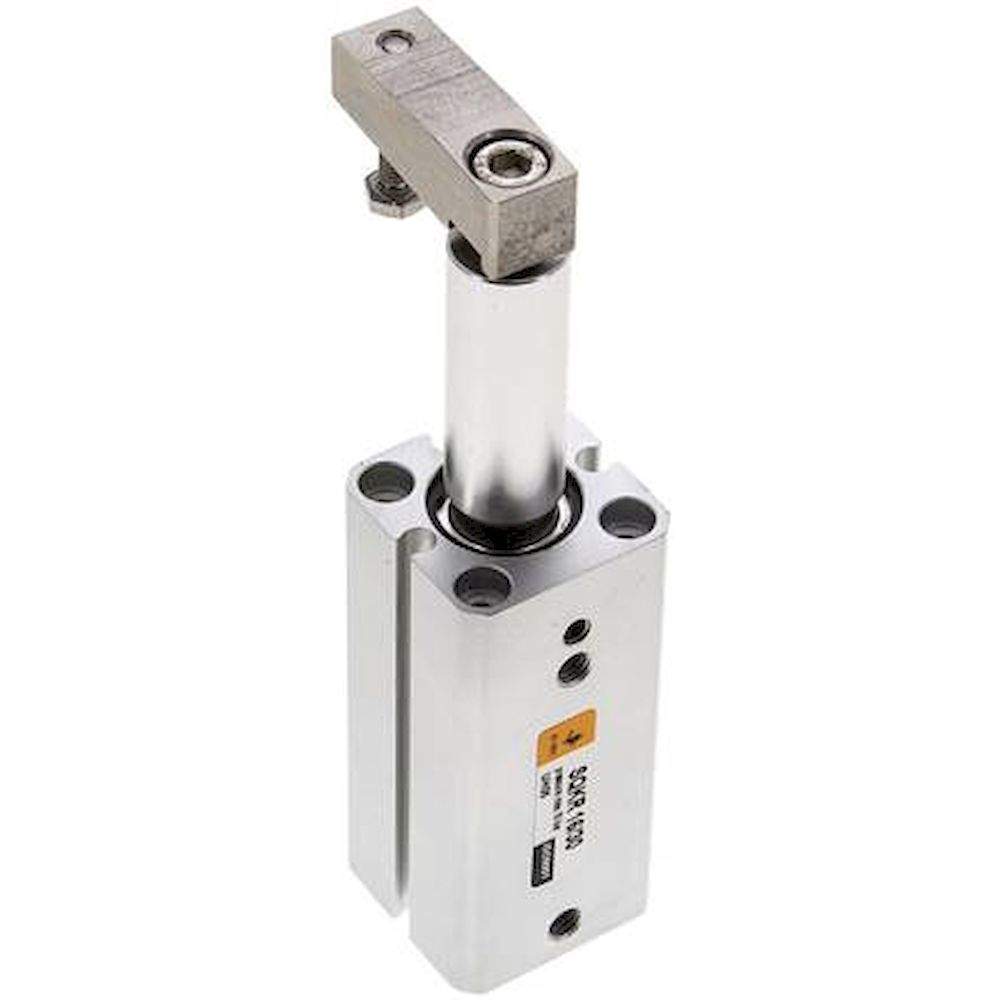

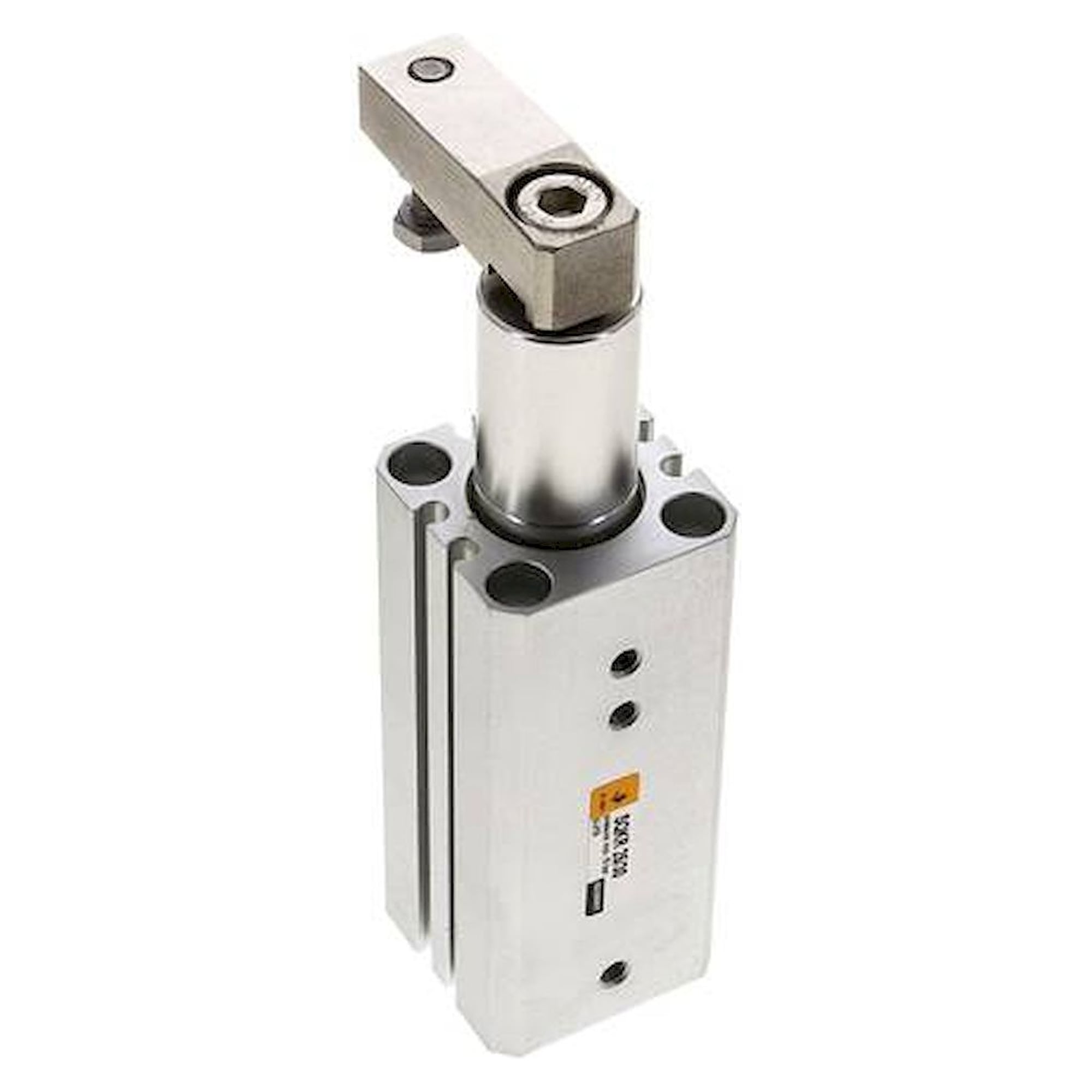

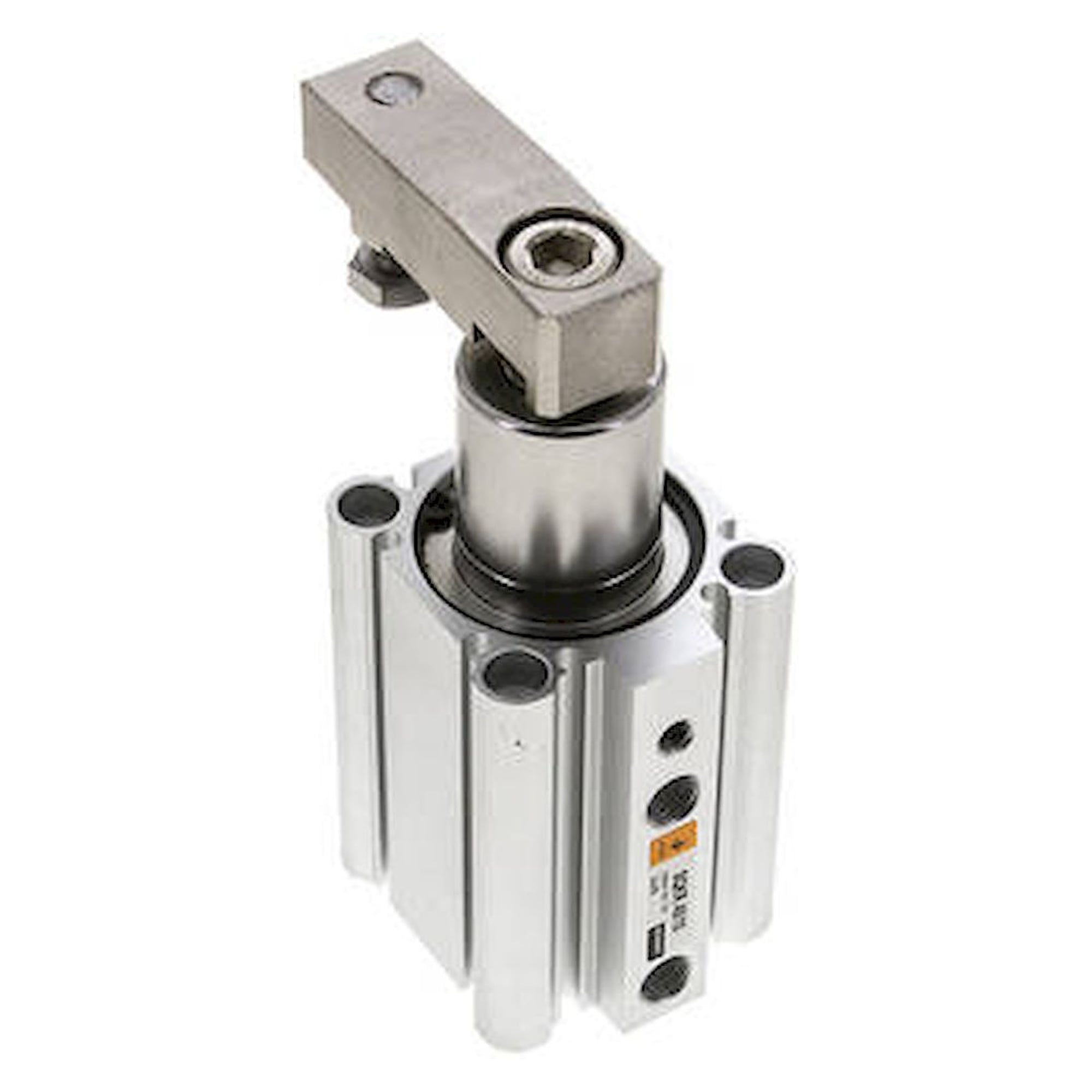

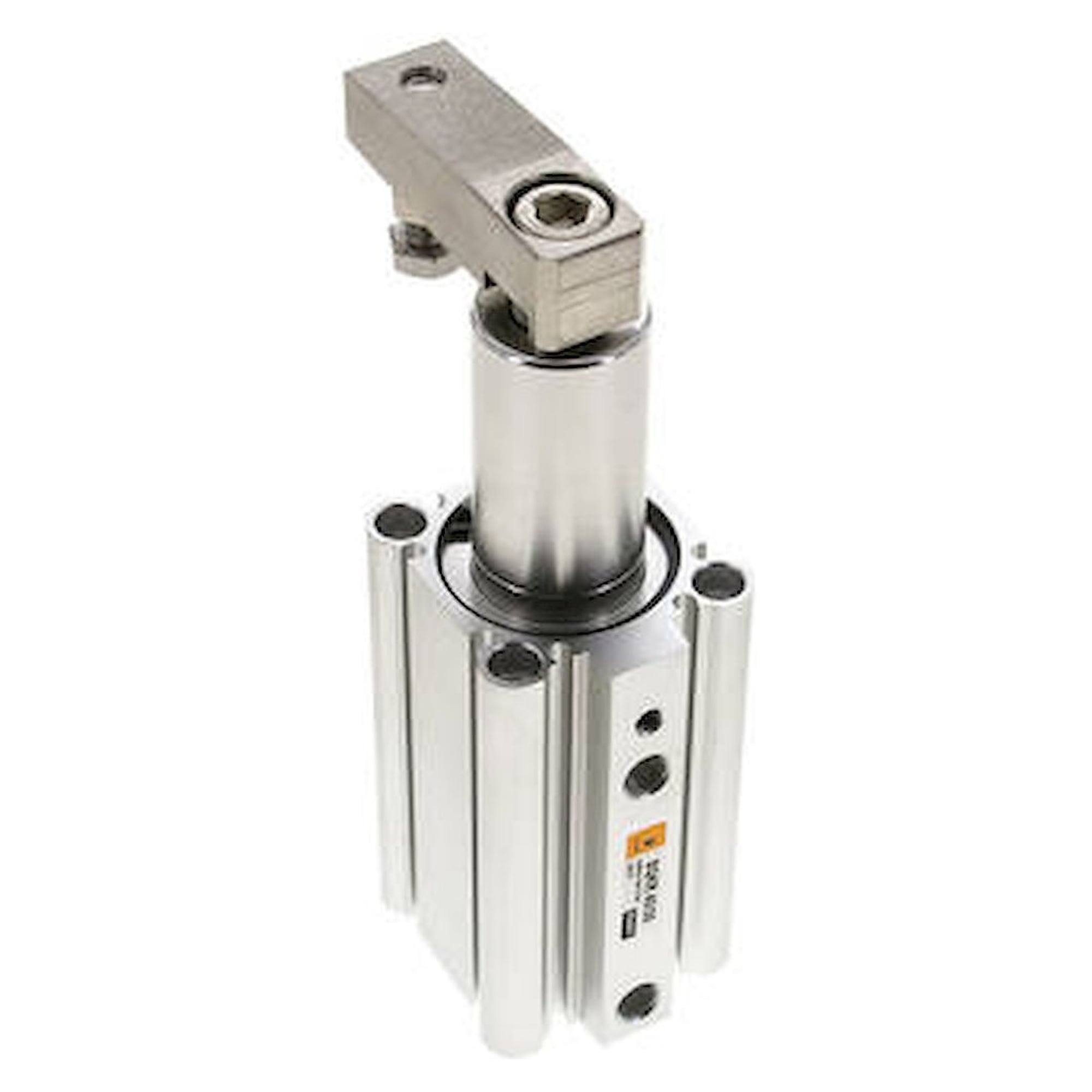

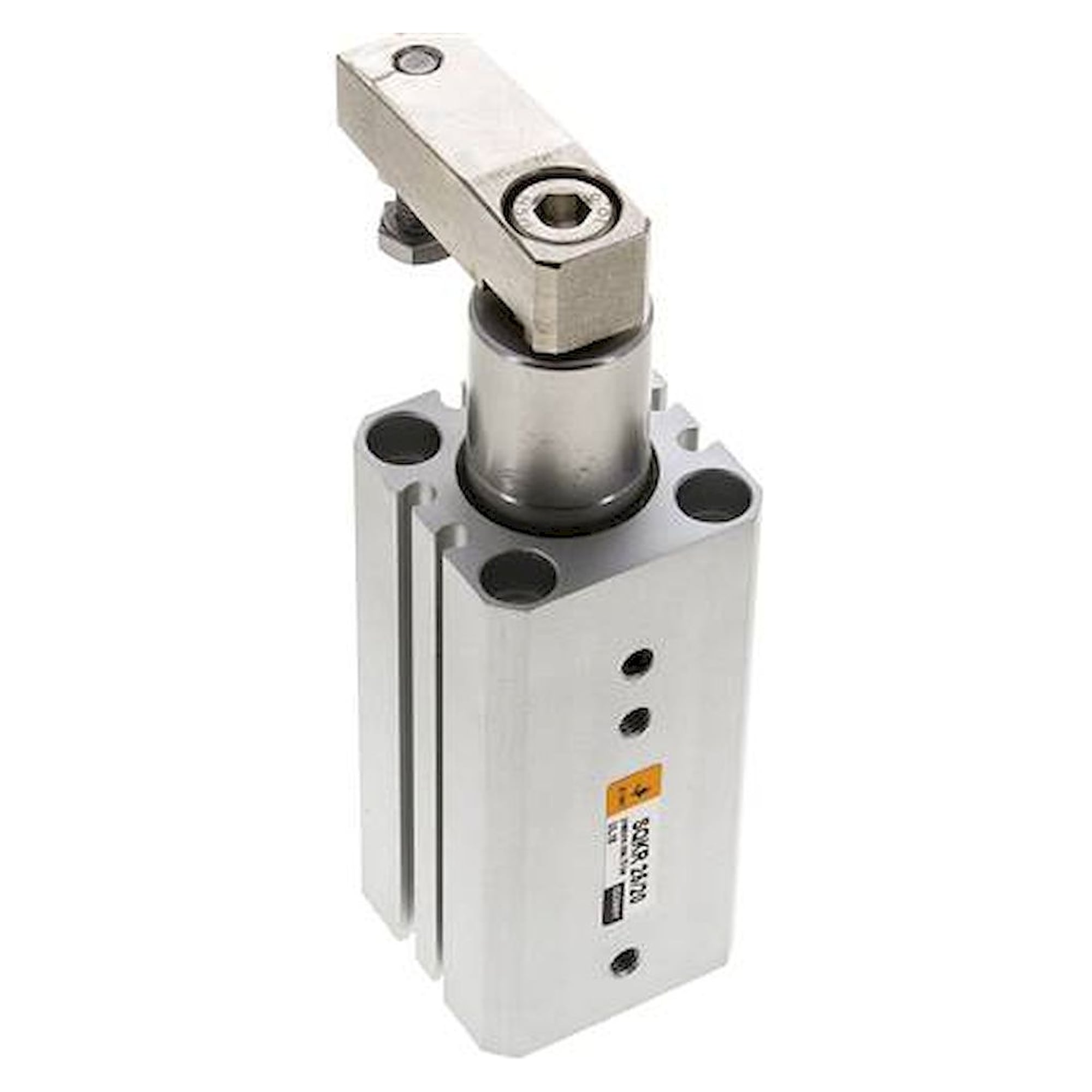

SQKR16, 20, 25, 32, 40 mm10, 20, 30, 50Right (clockwise)
SQK REP16, 20, 25, 32, 40 mm-Repair kit

Typical applications: Workpiece clamping and fixturing in transfer lines and machining centres, fixture systems with cyclic loading and unloading, assembly equipment requiring lateral workpiece access, and automated welding fixtures where the arm must be clear after clamping.

We can't find products matching the selection.
What is a swivel clamp cylinder?
A swivel clamp cylinder is a pneumatic device used for clamping applications where rotational movement is required.
What are the applications of SQK swivel clamp cylinders?
SQK swivel clamp cylinders are used in various industrial applications, especially where precise clamping and rotation are needed.
What industries use pneumatic swivel clamp cylinders?
Industries such as manufacturing, automotive, and automation use pneumatic swivel clamp cylinders for efficient operation.
How does a swivel clamp cylinder function?
It functions by using pneumatic pressure to create a clamping force while allowing for a degree of rotational movement.
What is the benefit of using SQK cylinders?
SQK cylinders offer precise clamping with the added advantage of rotational movement, enhancing automation processes.
Can SQK cylinders be used in hydraulic systems?
Yes, SQK cylinders are designed to be compatible with both pneumatic and hydraulic systems.
Where can I purchase SQK swivel clamp cylinders?
SQK swivel clamp cylinders can be purchased through specialized industrial equipment suppliers like ESD Equipment.
