Compact swivel tables EMQ 7-50

Compact rotary tables EMQ 7-50 are pneumatic actuators that provide precise rotational positioning through compressed air actuation, designed for space-constrained automation applications. These pneumatic rotary tables serve manufacturing industries including automotive assembly, packaging machinery, electronics production, and material handling systems where components require accurate angular positioning between defined stops. The EMQ series offers build sizes from 7mm to 50mm to accommodate different torque requirements and mounting constraints. Applications include part indexing, tool positioning, valve actuation, and workpiece orientation in automated production lines where reliable 90-degree or 180-degree rotation is essential for process efficiency.

Selection of EMQ compact rotary tables depends primarily on build size ranging from EMQ 7 to EMQ 50, which determines the available torque output and mounting dimensions for your specific application. Operating pressure typically ranges from 2 to 8 bar with standard G1/8 or M5 pneumatic connections depending on the build size selected. Damping configuration represents a critical selection criterion, with 'A' variants featuring fixed mechanical stops for precise positioning and 'R' variants incorporating adjustable shock absorbers for smoother deceleration and reduced system vibration. The choice between these damping options should align with your application's speed requirements, load characteristics, and acceptable noise levels during operation.

EMQ compact rotary tables comply with ISO 15552 pneumatic cylinder standards for dimensional compatibility and performance characteristics, ensuring interchangeability with standard pneumatic system components. The units meet EN 60529 ingress protection requirements typically achieving IP65 rating for dust and water resistance in industrial environments. Manufacturing follows ISO 9001 quality management standards with materials selection conforming to RoHS directive 2011/65/EU for restricted hazardous substances. These pneumatic actuators are designed according to ISO 4414 compressed air safety standards and integrate seamlessly with control systems meeting IEC 61131 programmable controller standards commonly used in factory automation applications.

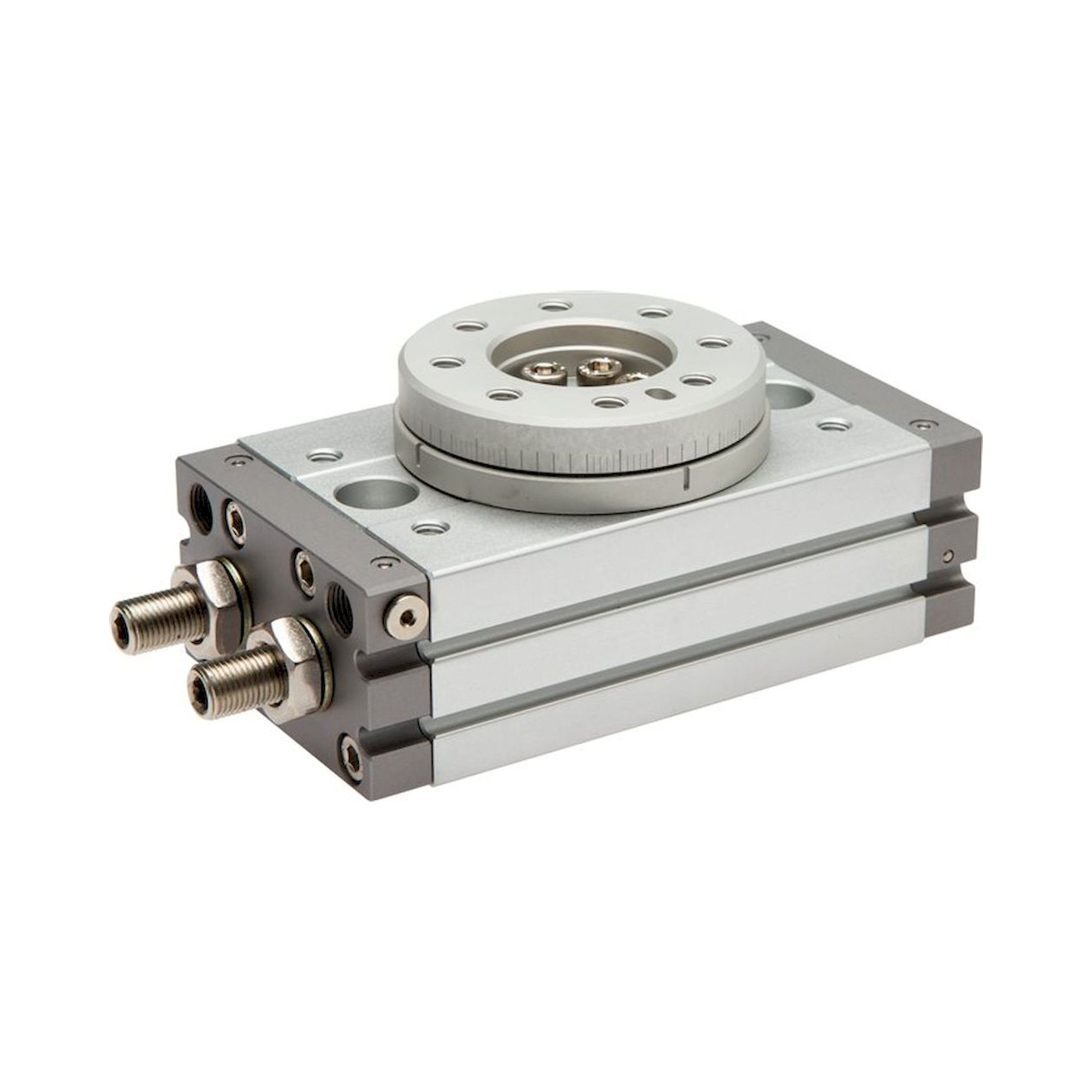

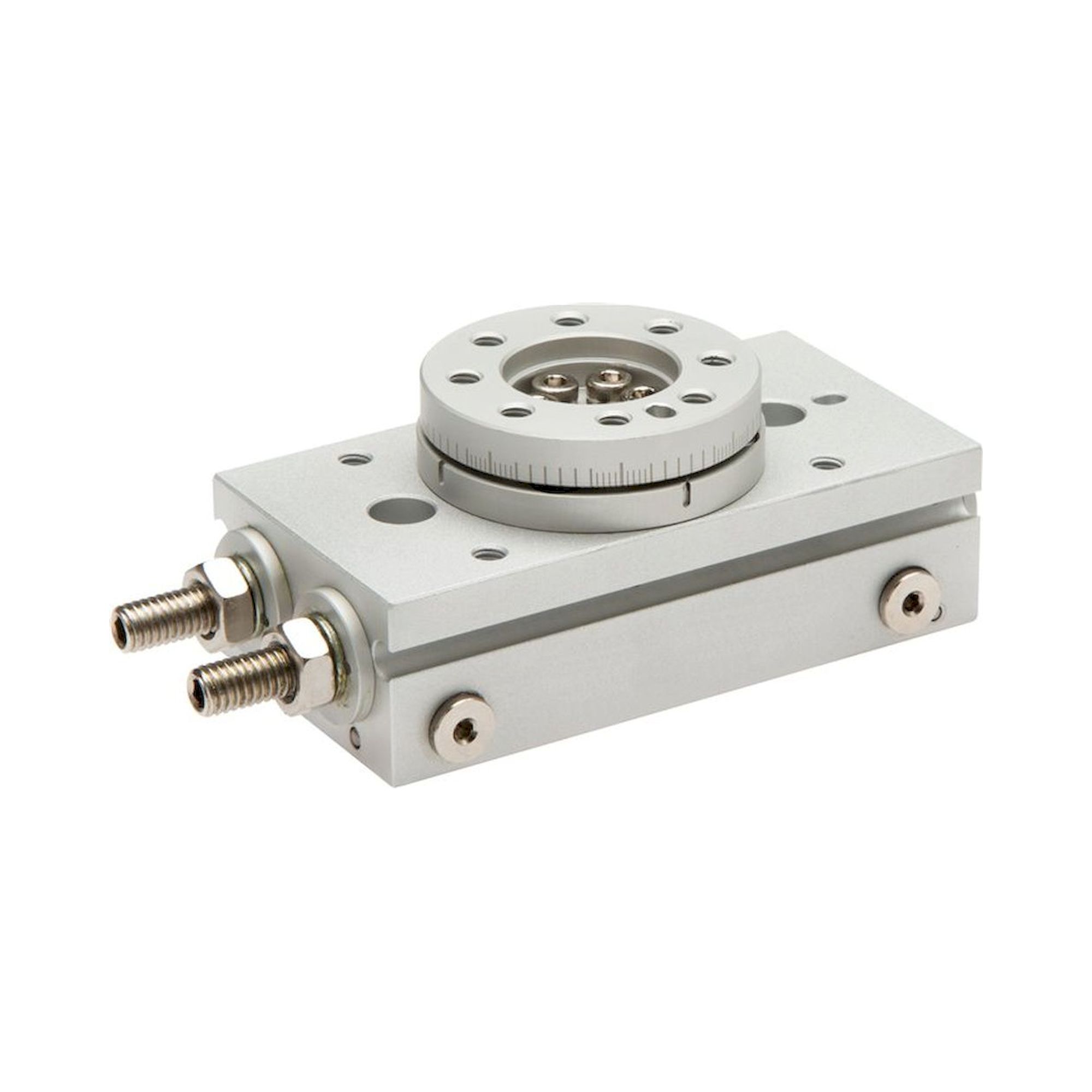

EMQ variants with designation 'A' feature fixed mechanical stops (Festanschlag) that provide rigid positioning with immediate deceleration upon reaching end positions, suitable for applications requiring maximum positioning accuracy and rapid cycle times. Models with 'R' designation incorporate adjustable shock absorbers (Stoßdämpfer) that enable smooth deceleration and reduced impact forces, essential for applications with heavier loads or where noise reduction is critical. The shock absorber variants offer adjustable cushioning characteristics to optimize performance across different operating pressures and load conditions. Additionally, replacement shock absorbers (SD designation) and complete repair kits (REP designation) are available for sizes 7 through 50, enabling field maintenance and extending service life of these precision pneumatic actuators.

EMQ compact rotary tables require clean, dry compressed air supply filtered to ISO 8573-1 Class 7.4.4 standards with operating pressure between 2 and 8 bar depending on application torque requirements. Standard pneumatic connections include G1/8 female threads for smaller sizes (EMQ 7-20) and M5 connections for larger variants, compatible with standard pneumatic fittings and tubing systems. Mounting utilizes precision-machined surfaces with tapped holes conforming to DIN 912 socket head cap screws for secure attachment to machine frames or actuator brackets. These rotary actuators integrate directly with 5/2-way or 5/3-way pneumatic valves and can be controlled through standard PLC outputs, making them compatible with Siemens, Allen-Bradley, and other industrial automation systems without requiring special interface modules.

EMQ compact rotary tables operate safely within temperature ranges from -20°C to +80°C with working pressure capabilities up to 10 bar maximum, though optimal performance occurs between 4 and 8 bar operating pressure. The units achieve IP65 ingress protection rating against dust and water jets, making them suitable for typical industrial environments including light washdown applications. Safety features include internal mechanical stops that prevent over-rotation and integrated sealing systems that maintain pressure integrity throughout the operating temperature range. These pneumatic actuators comply with Machinery Directive 2006/42/EC safety requirements and incorporate fail-safe mechanical positioning that maintains last position upon air pressure loss, ensuring predictable behavior during emergency stops or power failures.

EMQ compact rotary tables require quarterly inspection of pneumatic connections for leakage and annual replacement of sealing elements to maintain optimal performance, with complete repair kits (REP designation) available for all build sizes from EMQ 7 through EMQ 50. Expected service life ranges from 2 to 5 million operating cycles depending on operating pressure, load conditions, and environmental factors, with shock absorber variants (R-series) typically requiring damper element replacement every 1 million cycles. Preventive maintenance includes monthly lubrication checks using ISO VG 32 pneumatic oil and semi-annual cleaning of air supply filters to maintain ISO 8573-1 air quality standards. Complete overhaul intervals typically occur every 3-5 years in continuous operation applications, with replacement shock absorbers (SD designation) and comprehensive repair documentation supporting field maintenance by trained technicians.
