Screw-in cylinder
Cylinder

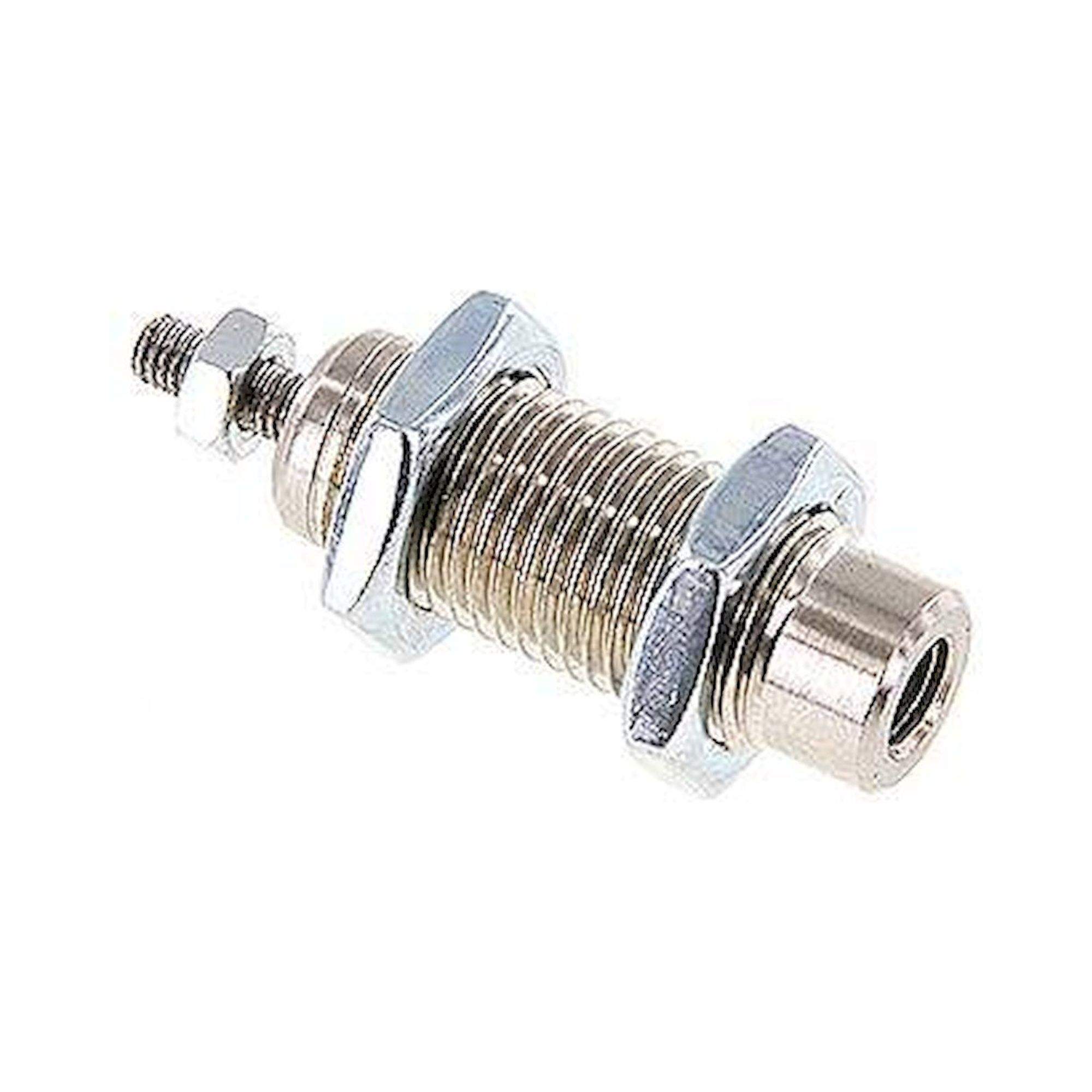

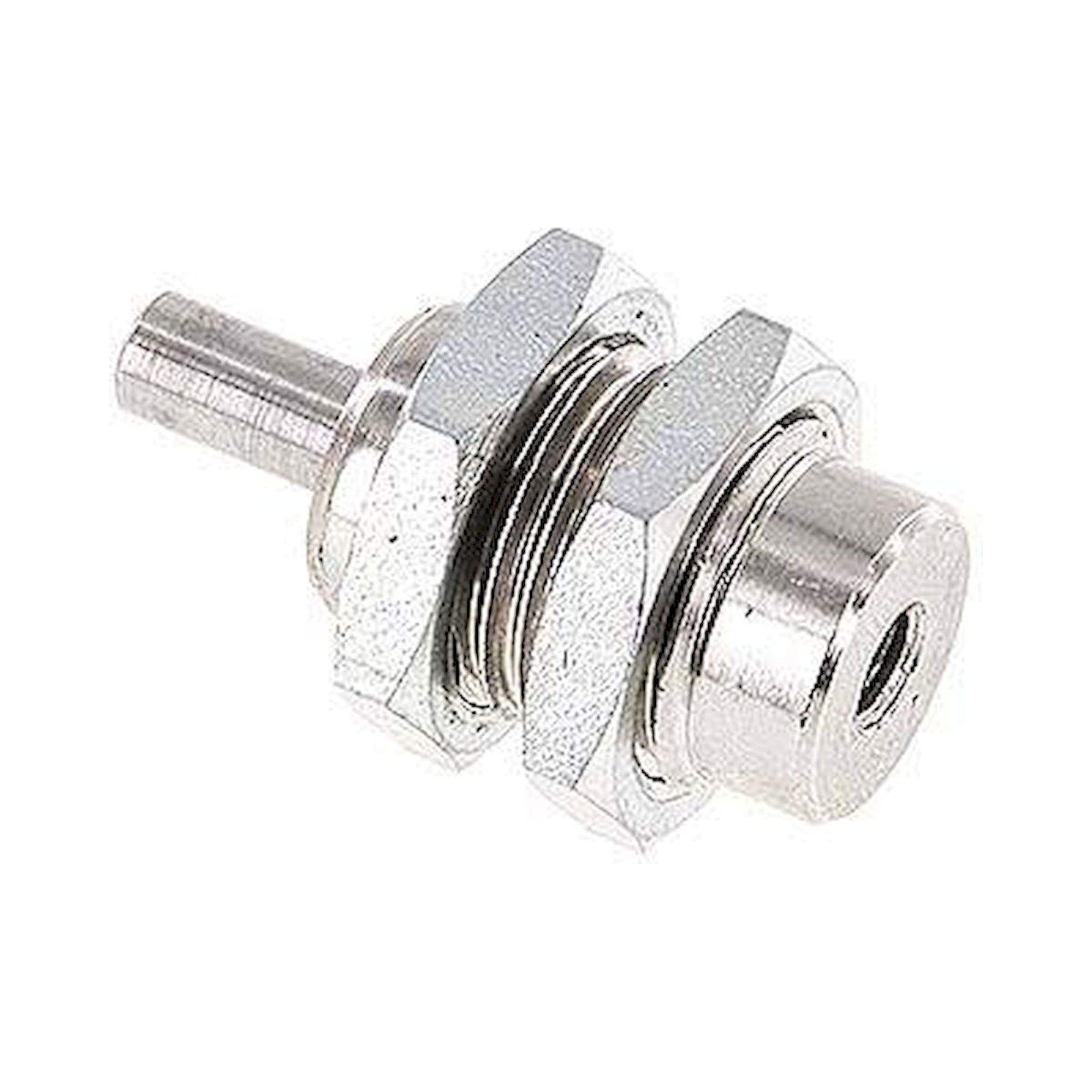

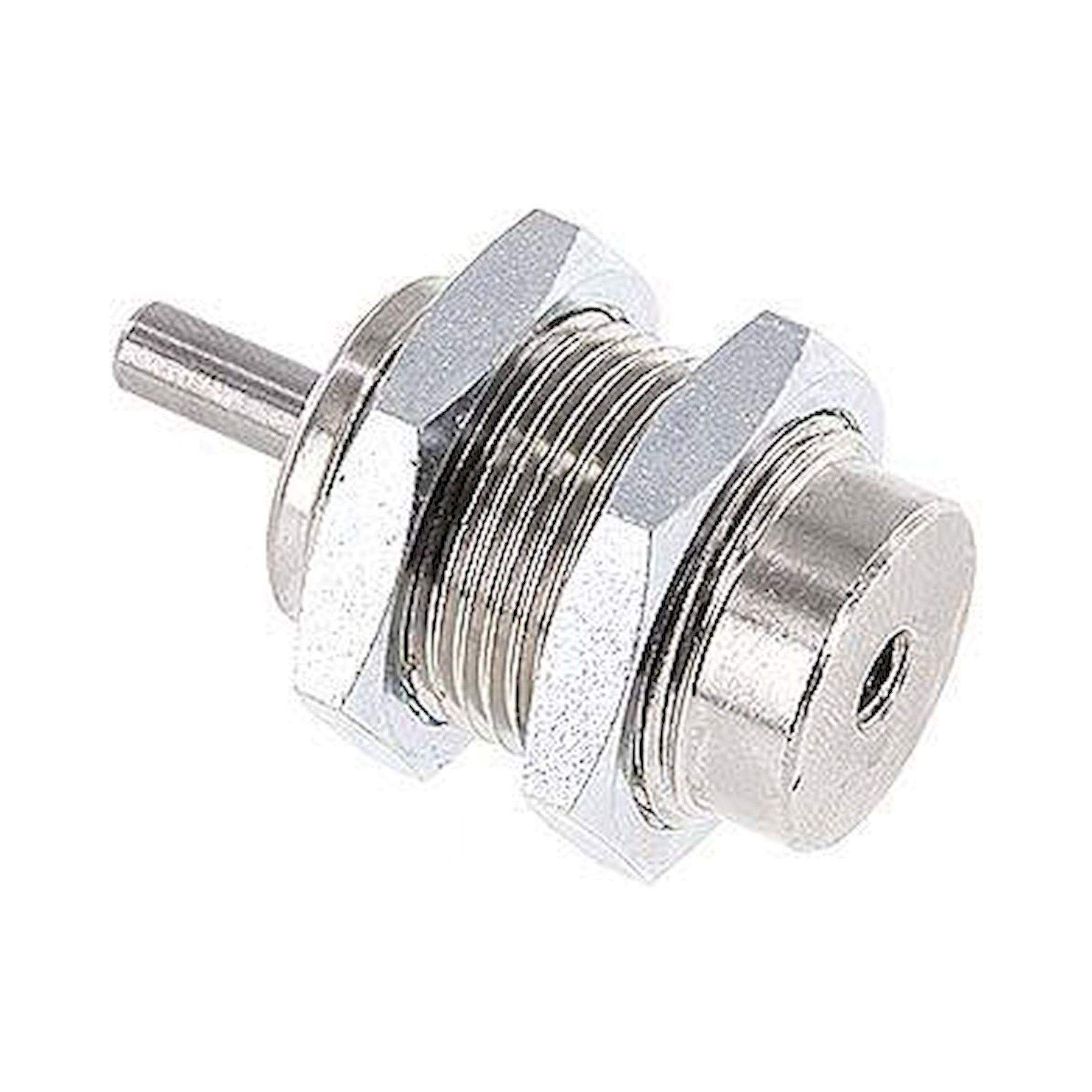

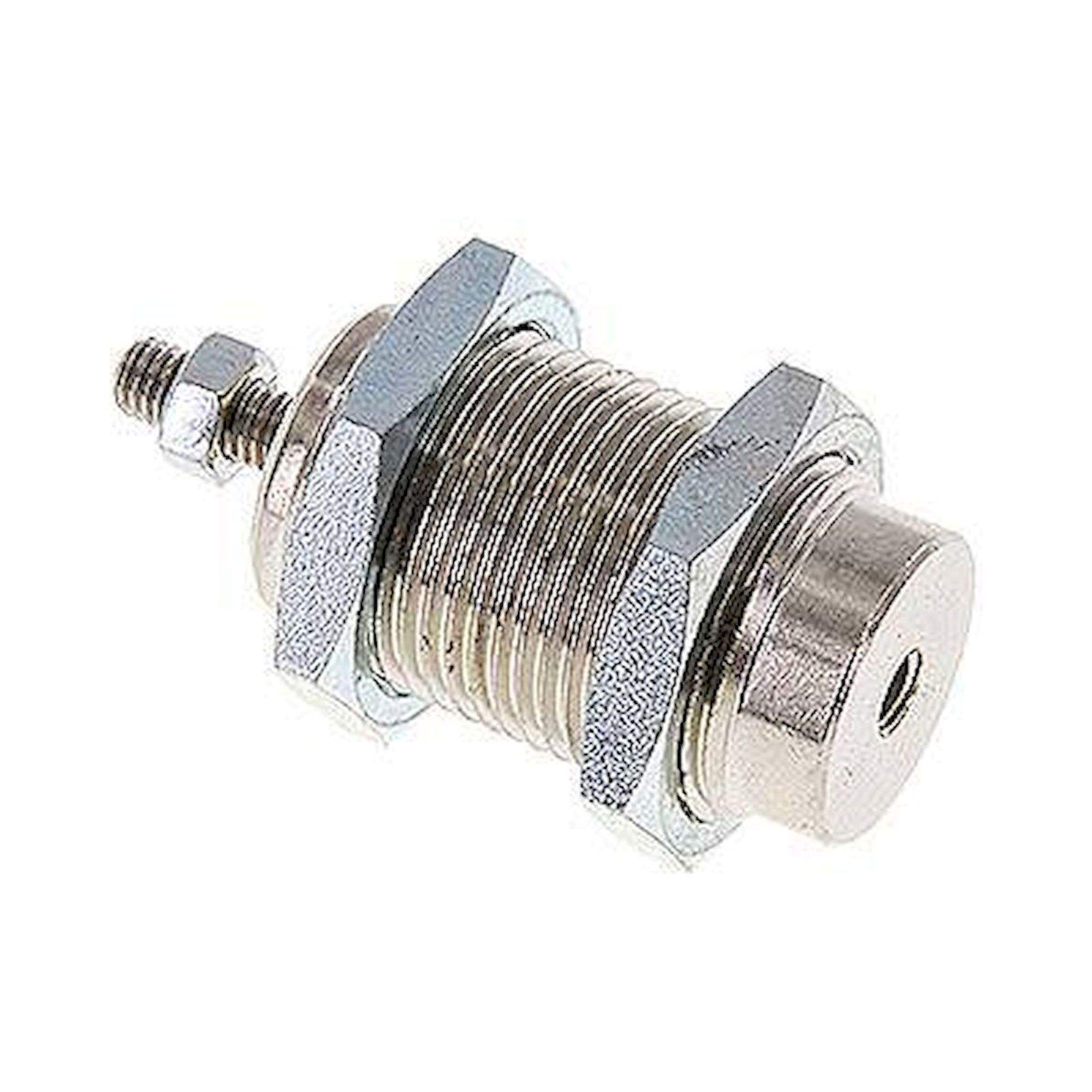

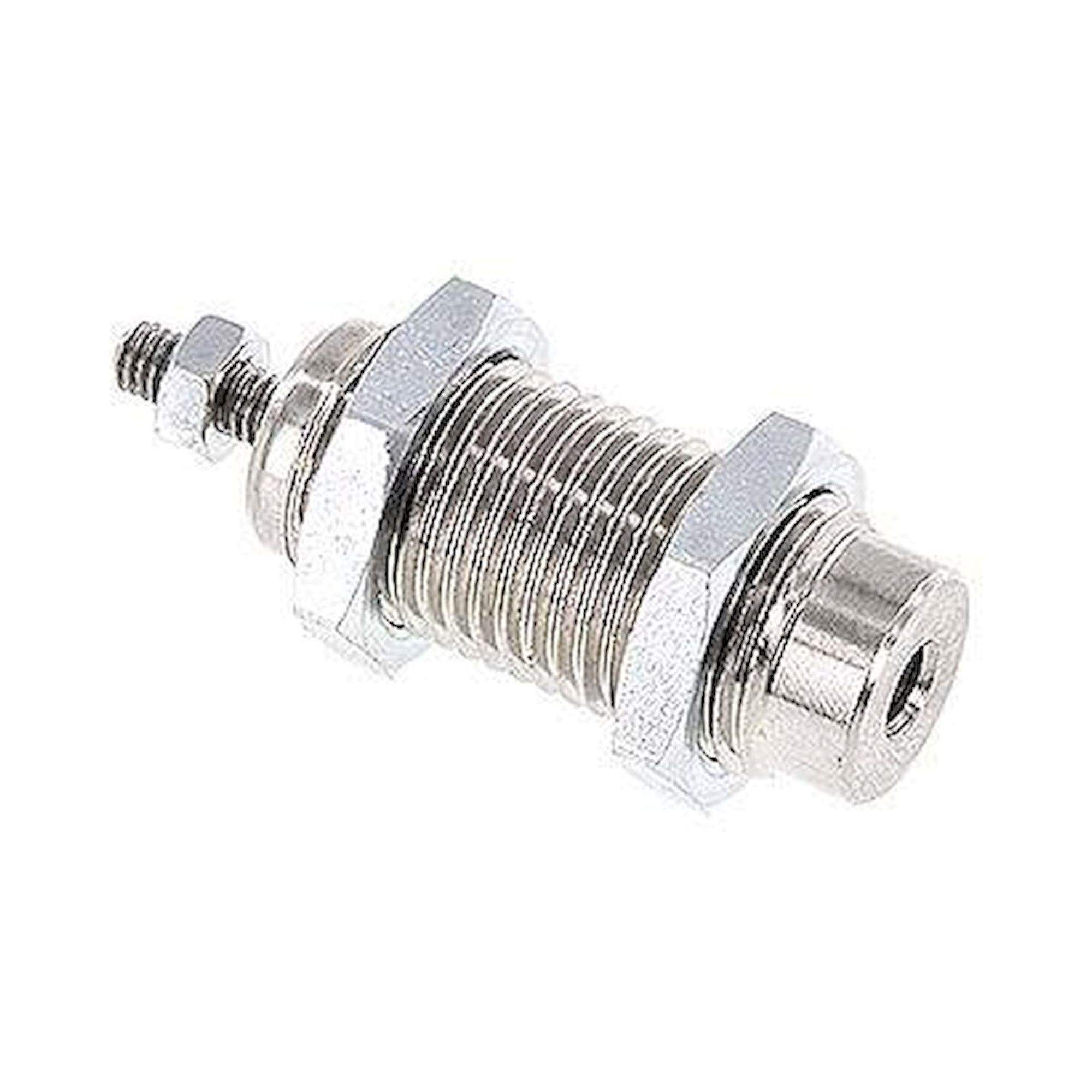

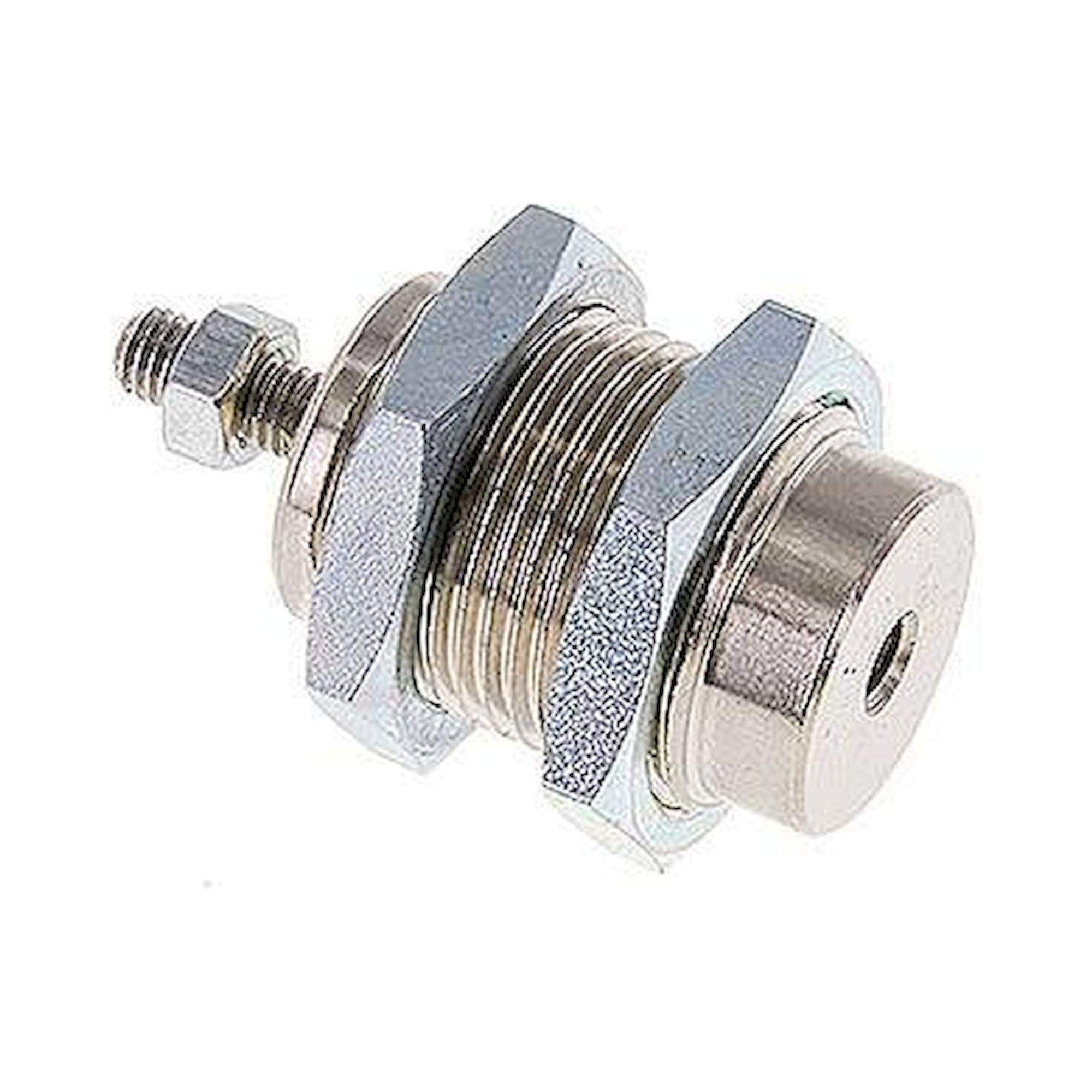

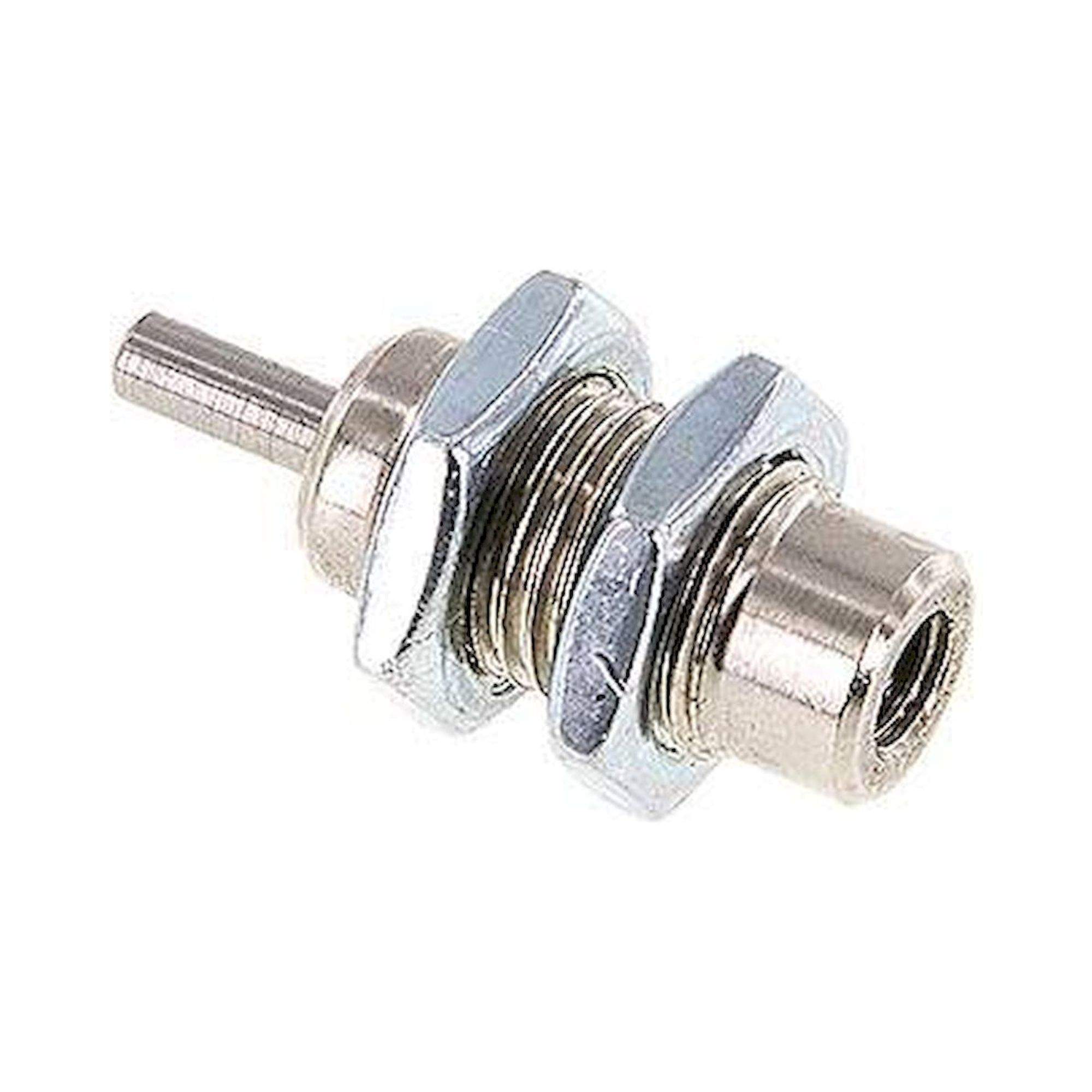

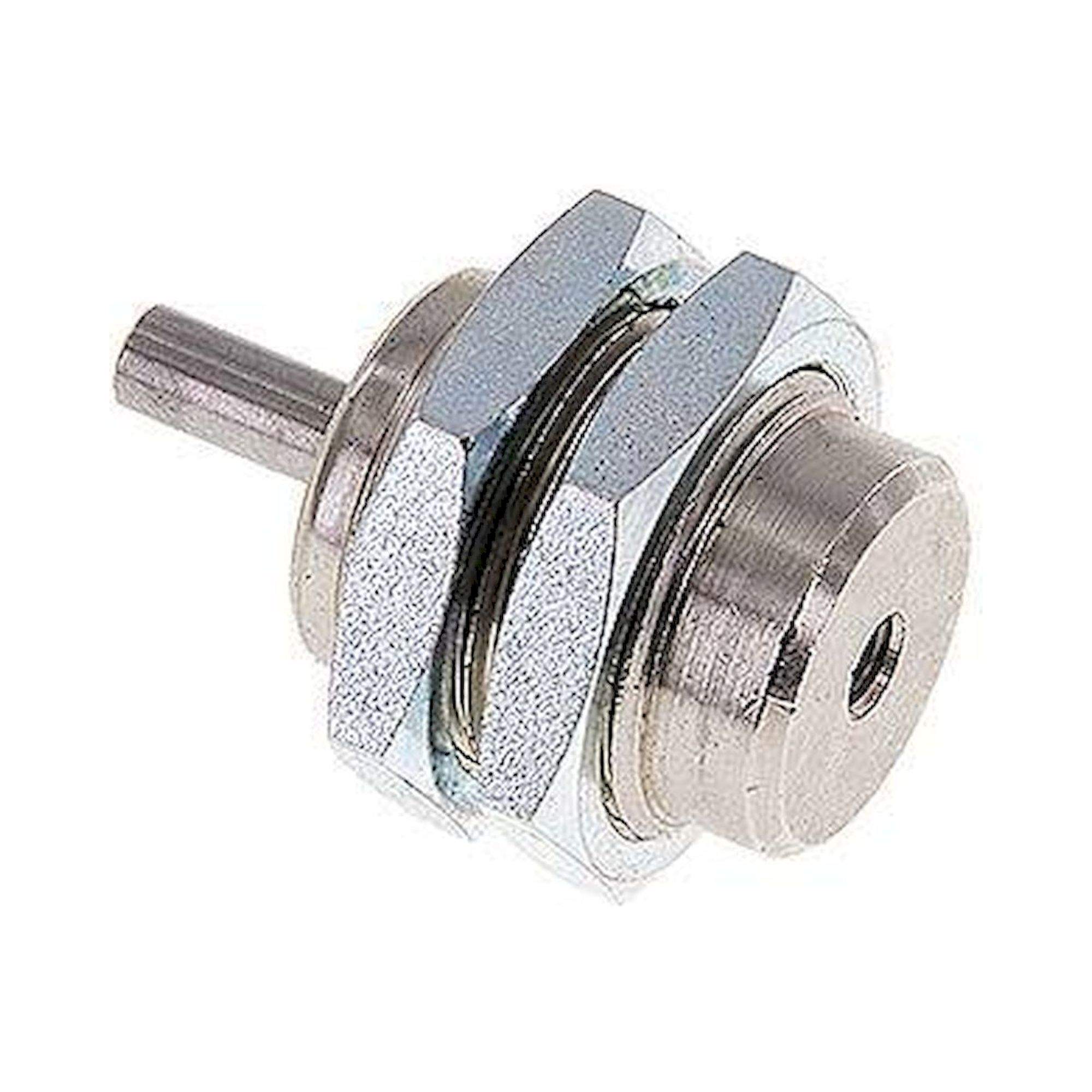

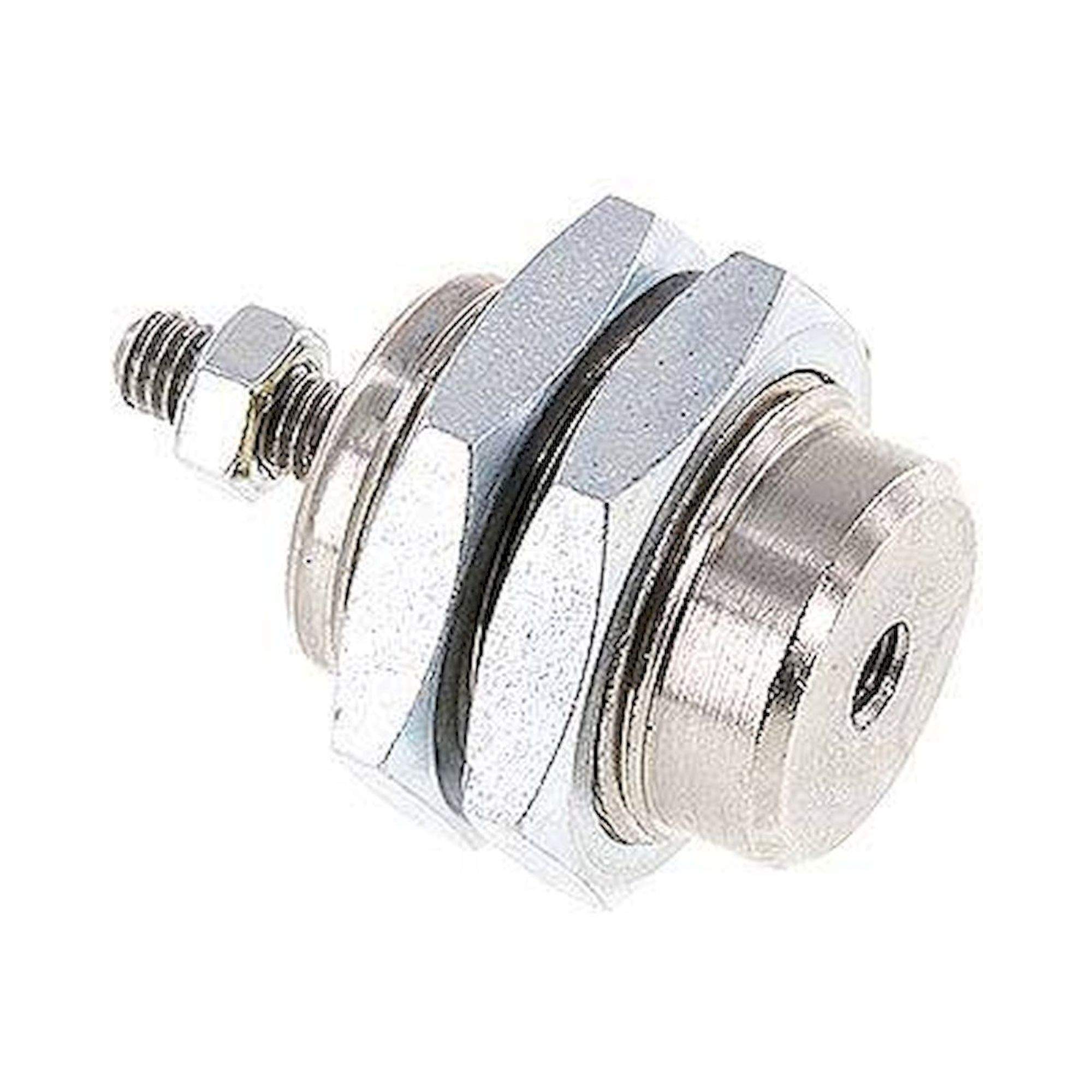

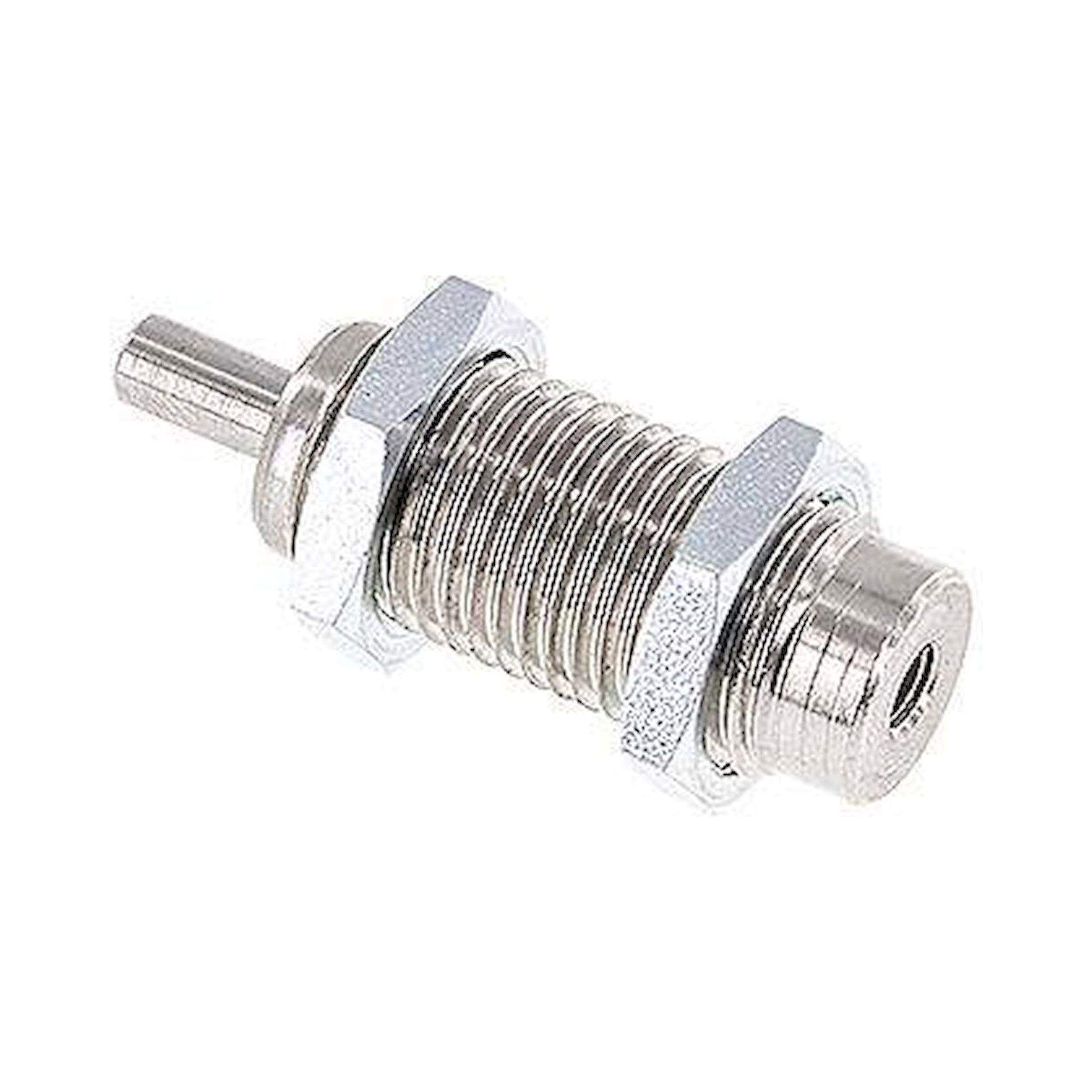

Screw-in cylinders (series HA and HB) are miniature pneumatic cylinders threaded directly into a tapped hole in the receiving component. No separate mounting bracket is required, making them suitable for extremely confined installation spaces. The programme covers bore diameters of 6, 10, and 16 mm with strokes of 5, 10, and 15 mm. The HA and HB series differ in their thread-in geometry and body length to suit different installation depths.
Bore 6, 10, 16 mm - three body length variants per bore diameter
Strokes 5, 10, 15 mm - short working strokes for compact actuation
Direct screw-in installation - no mounting plate or bracket needed
Series HA and HB - different thread-in geometries for flexible integration
| Series | Bore | Strokes (mm) |
|---|---|---|

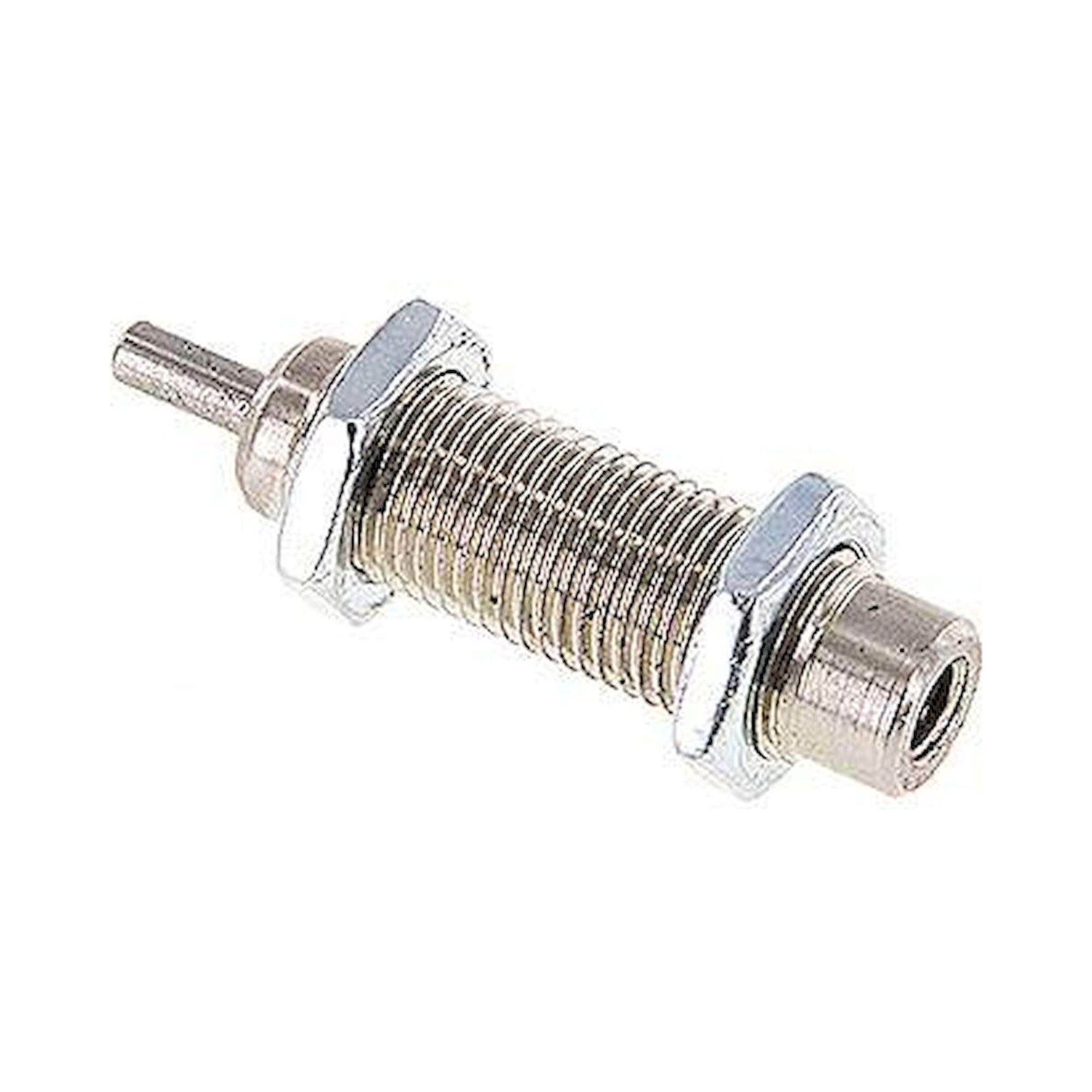

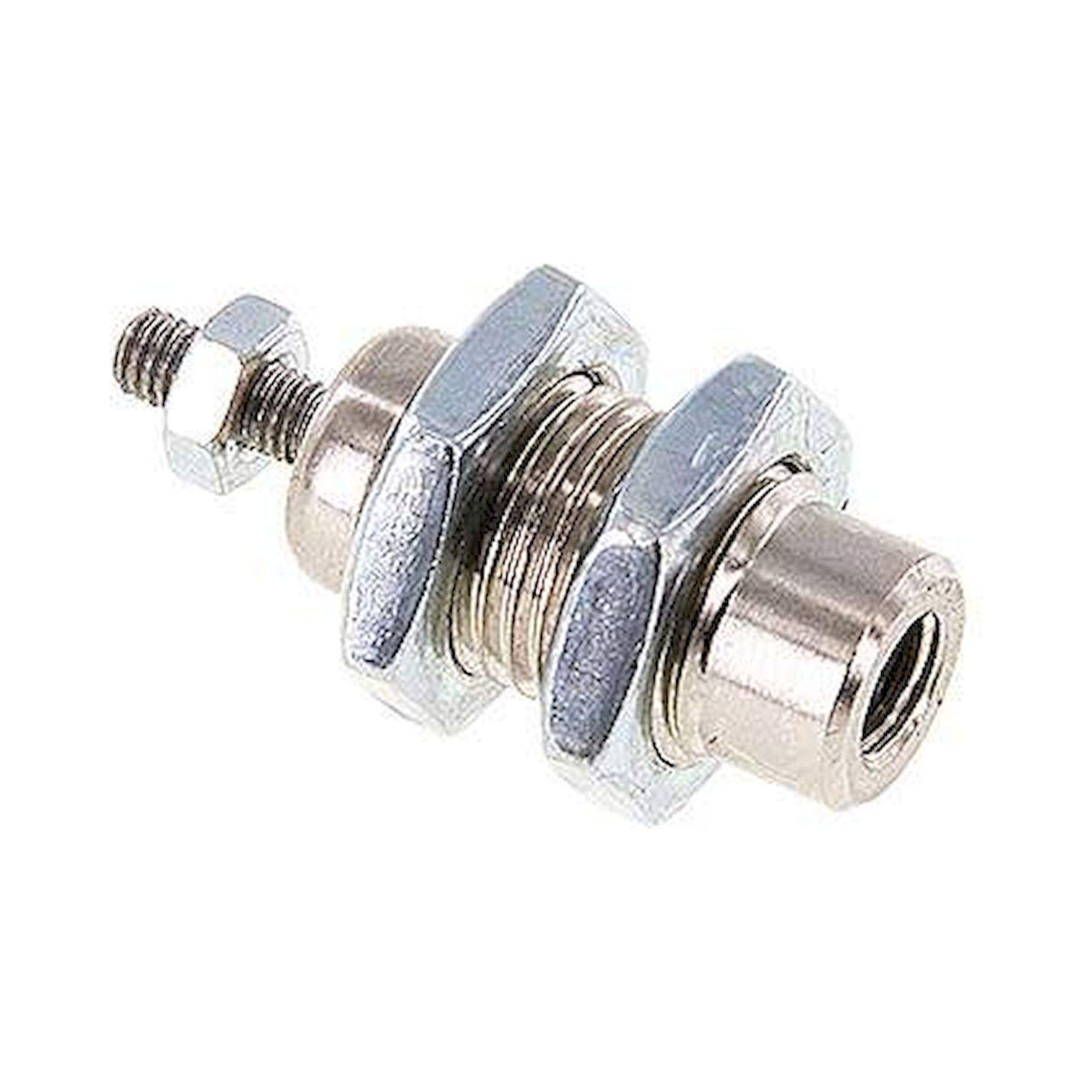

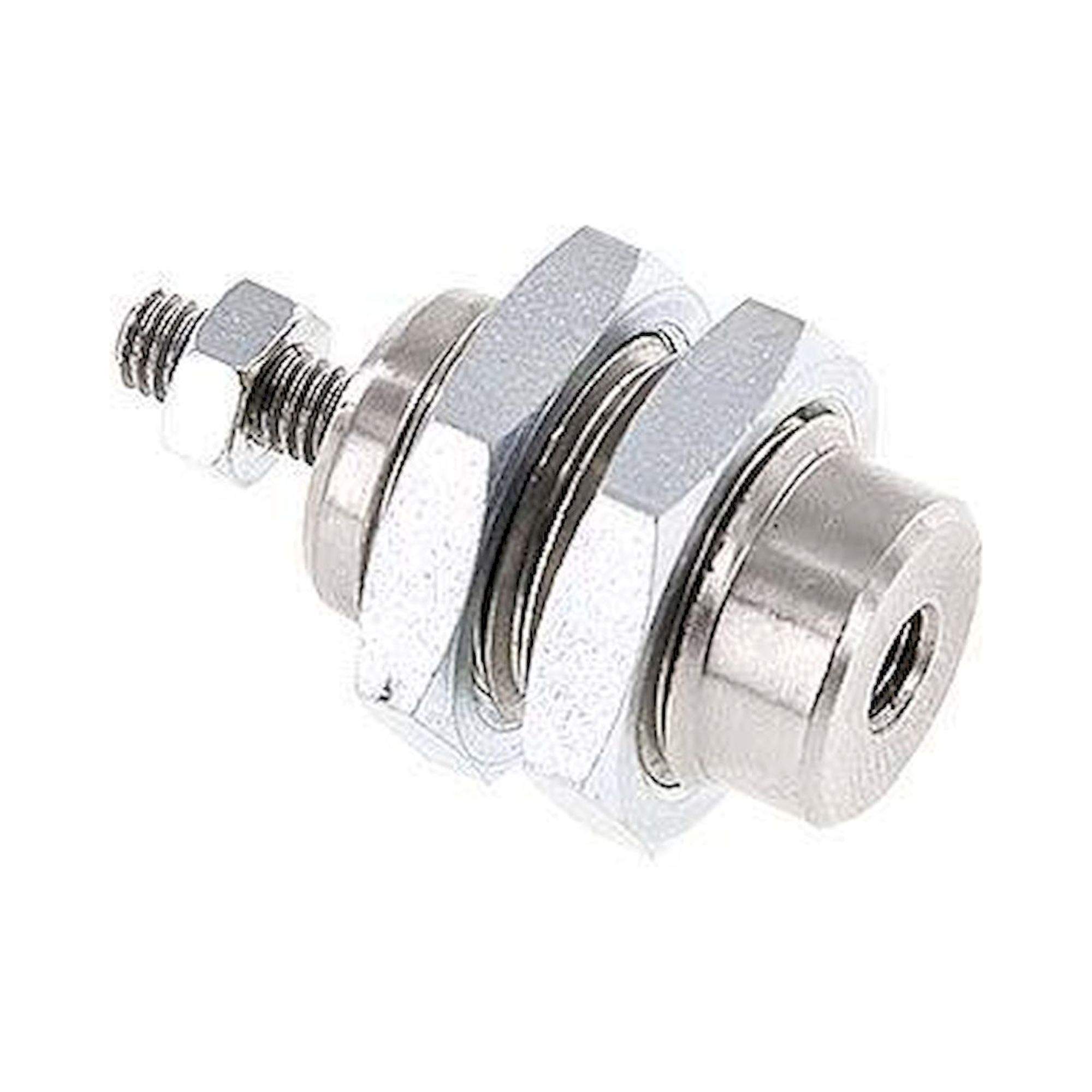

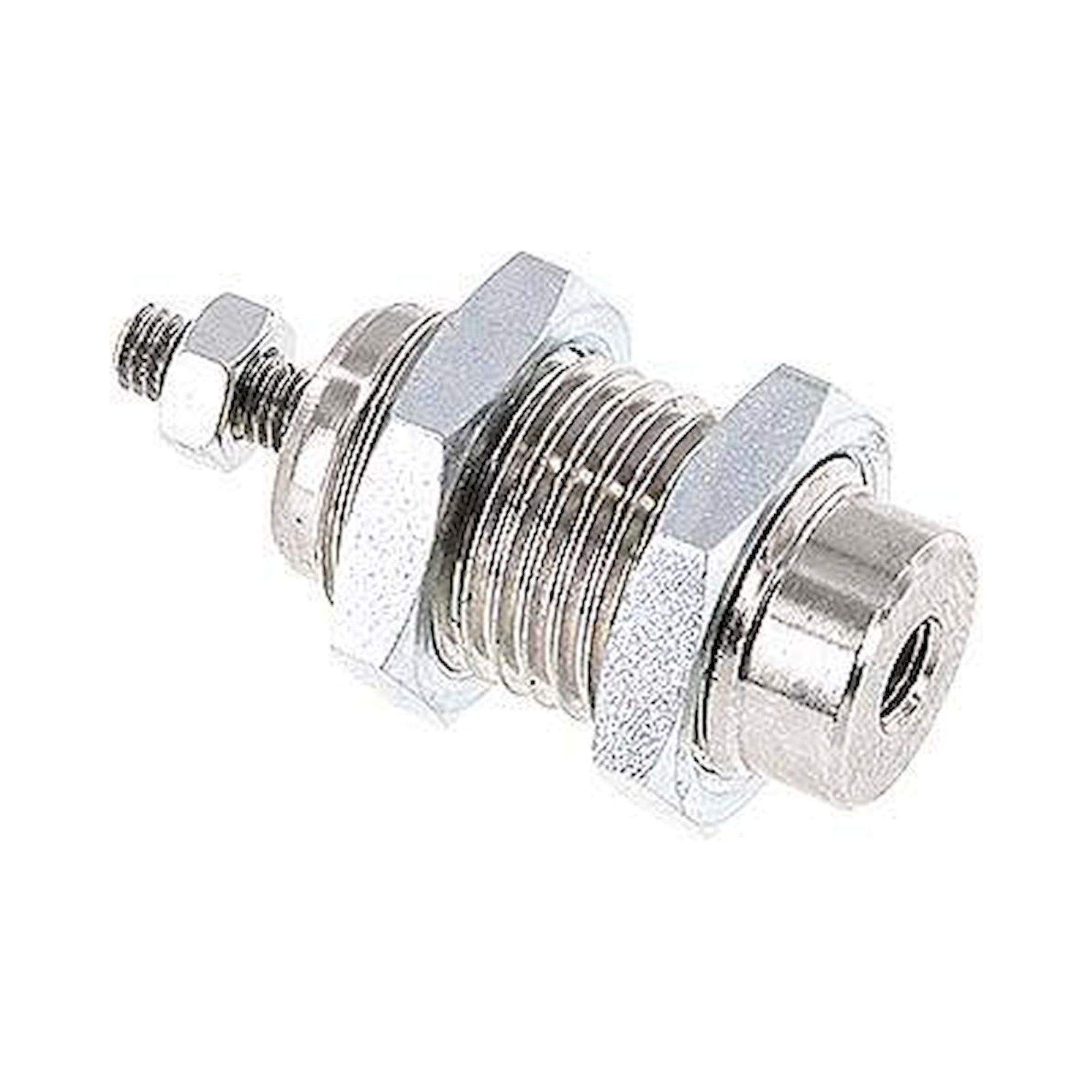

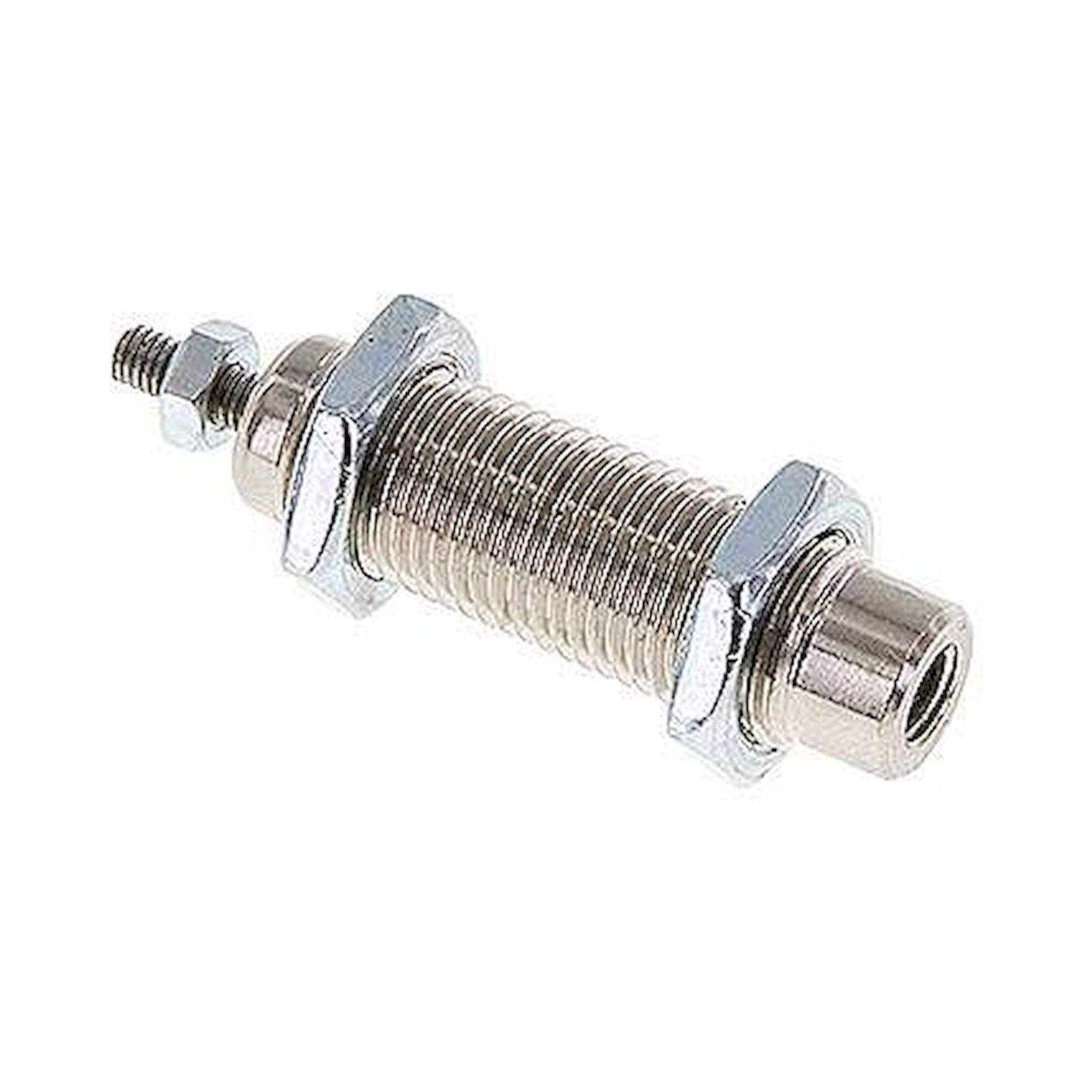

| HA | 6, 10, 16 mm | 5, 10, 15 |

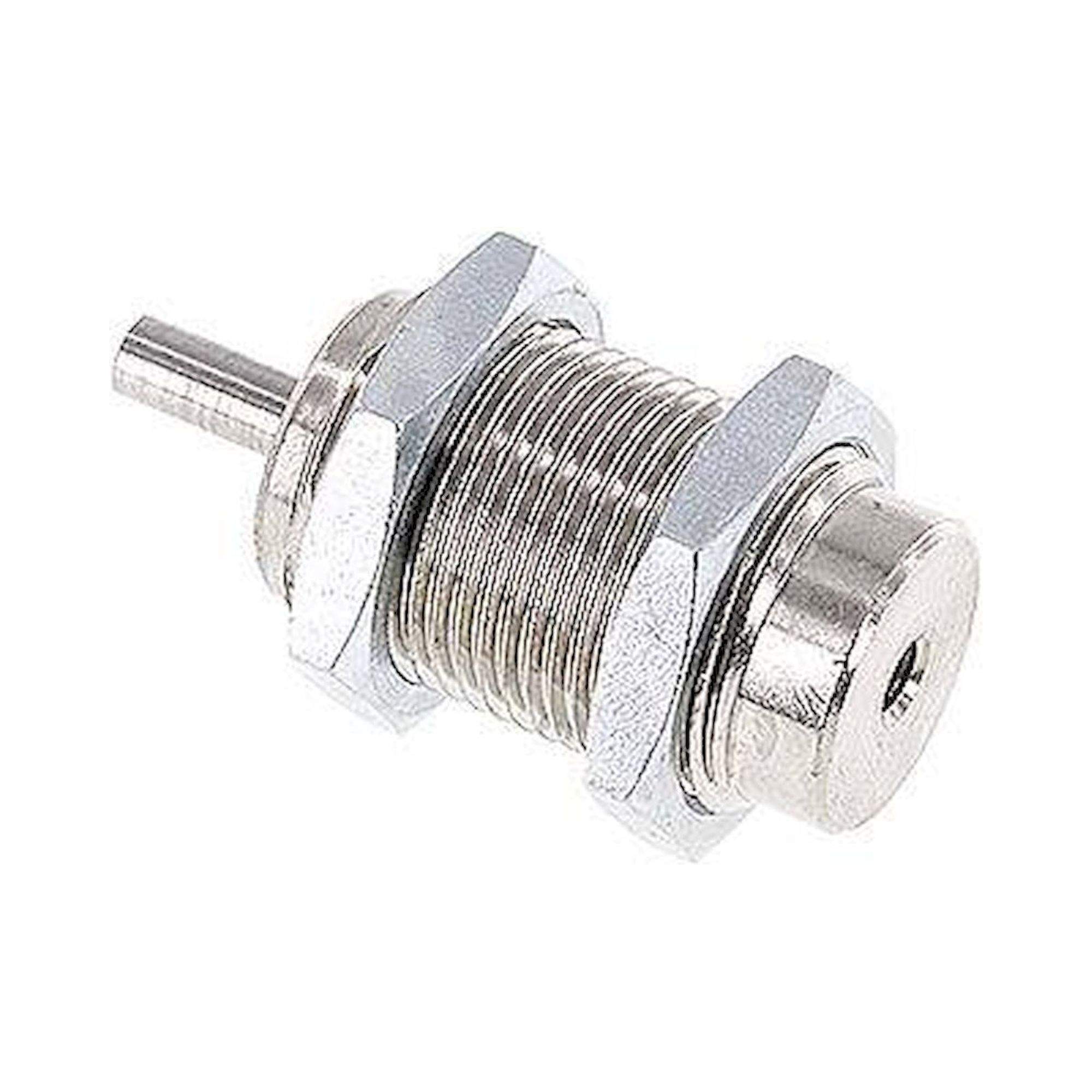

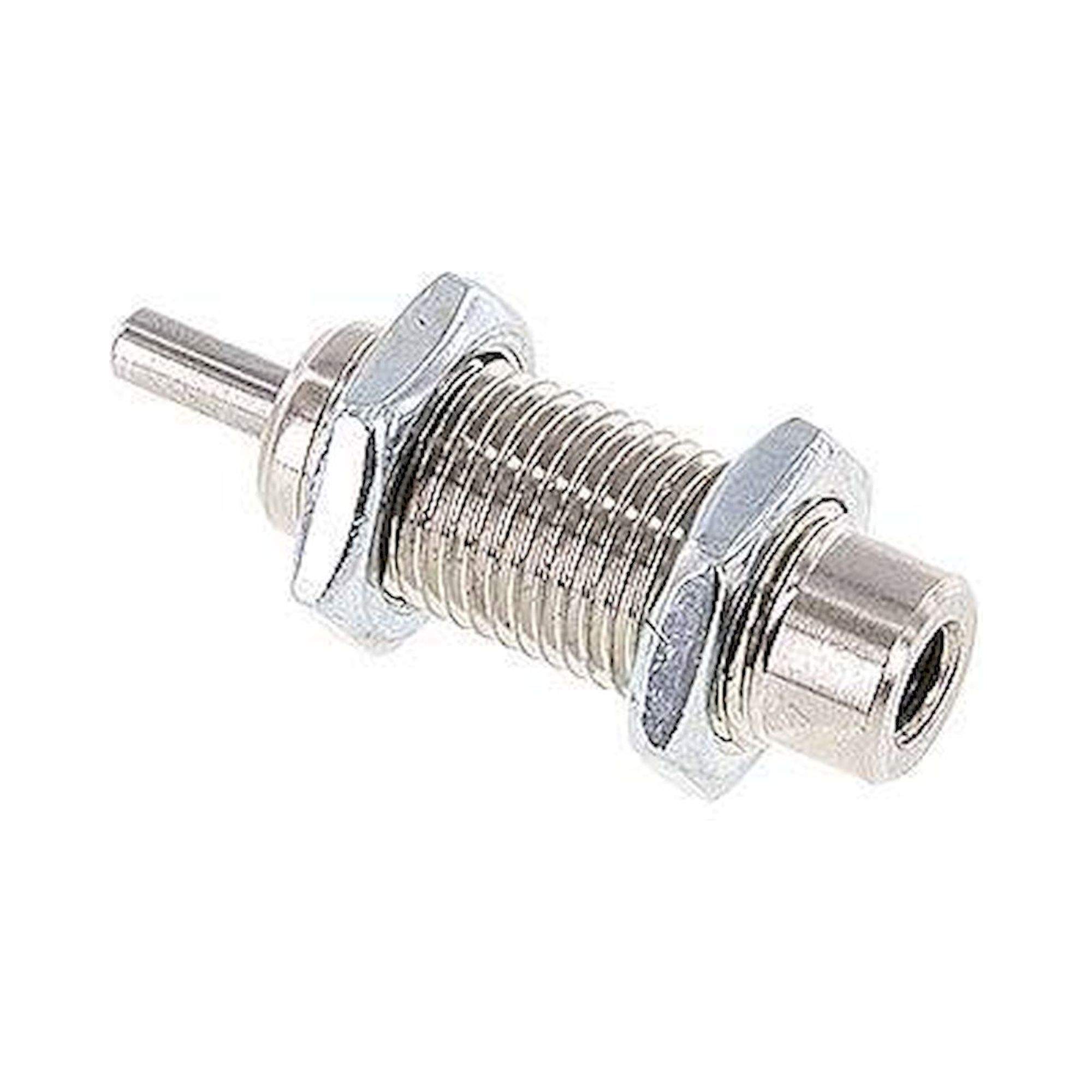

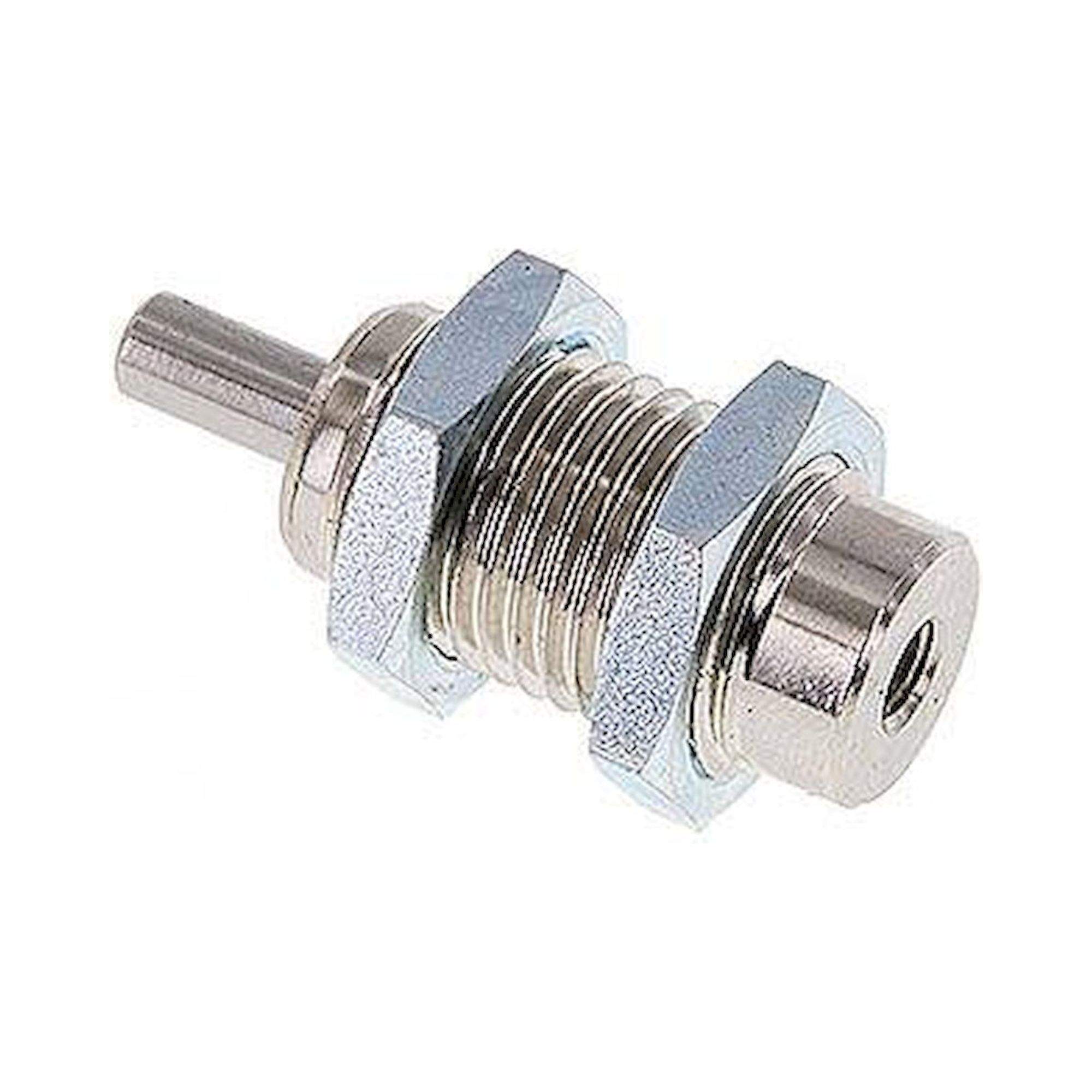

| HB | 6, 10, 16 mm | 5, 10, 15 |
Typical applications: Miniature clamping technology, pushbutton actuation, locating pins in fixtures, detent mechanisms, and compact special-purpose machine solutions where available installation space rules out a conventional cylinder.
