Limit switches and relays

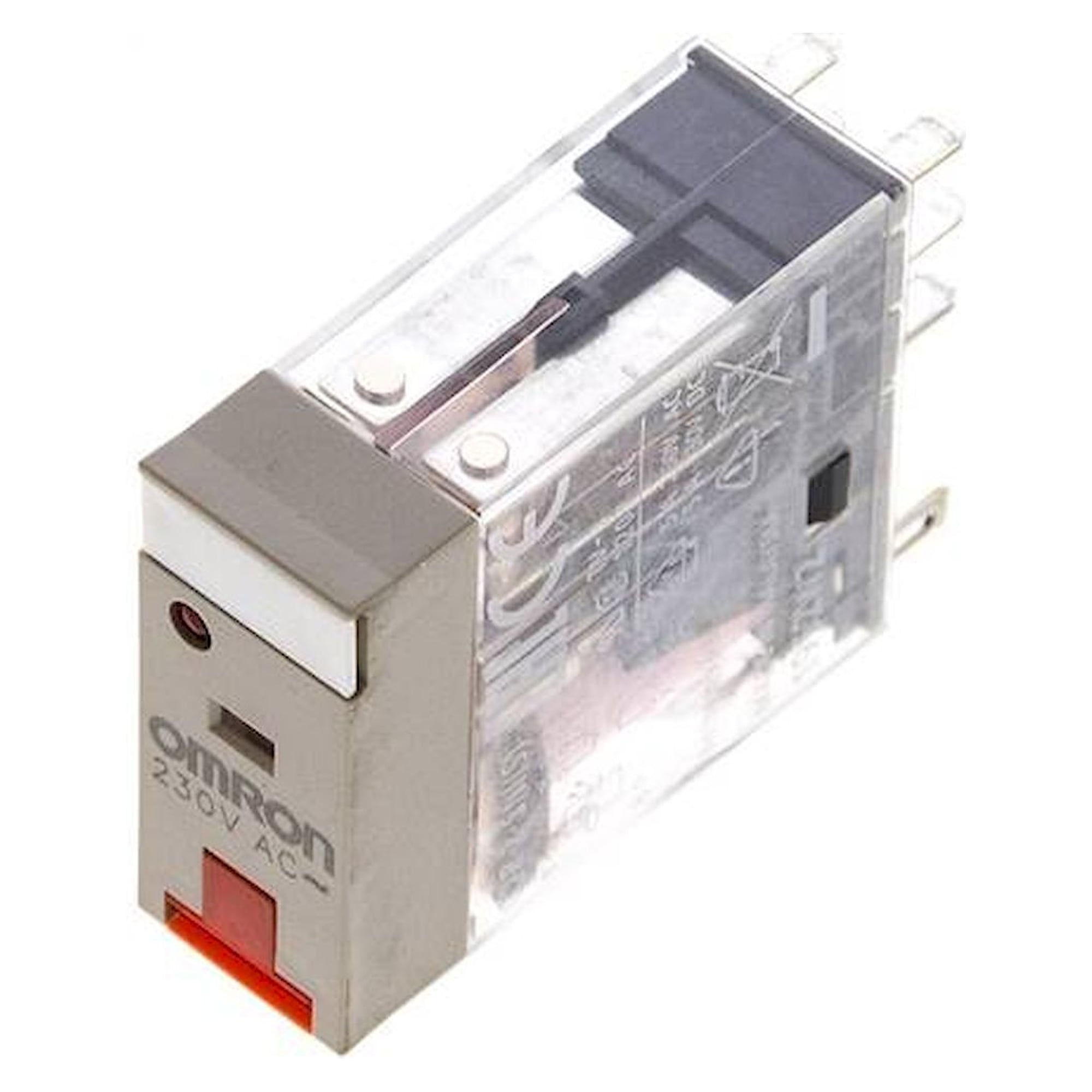

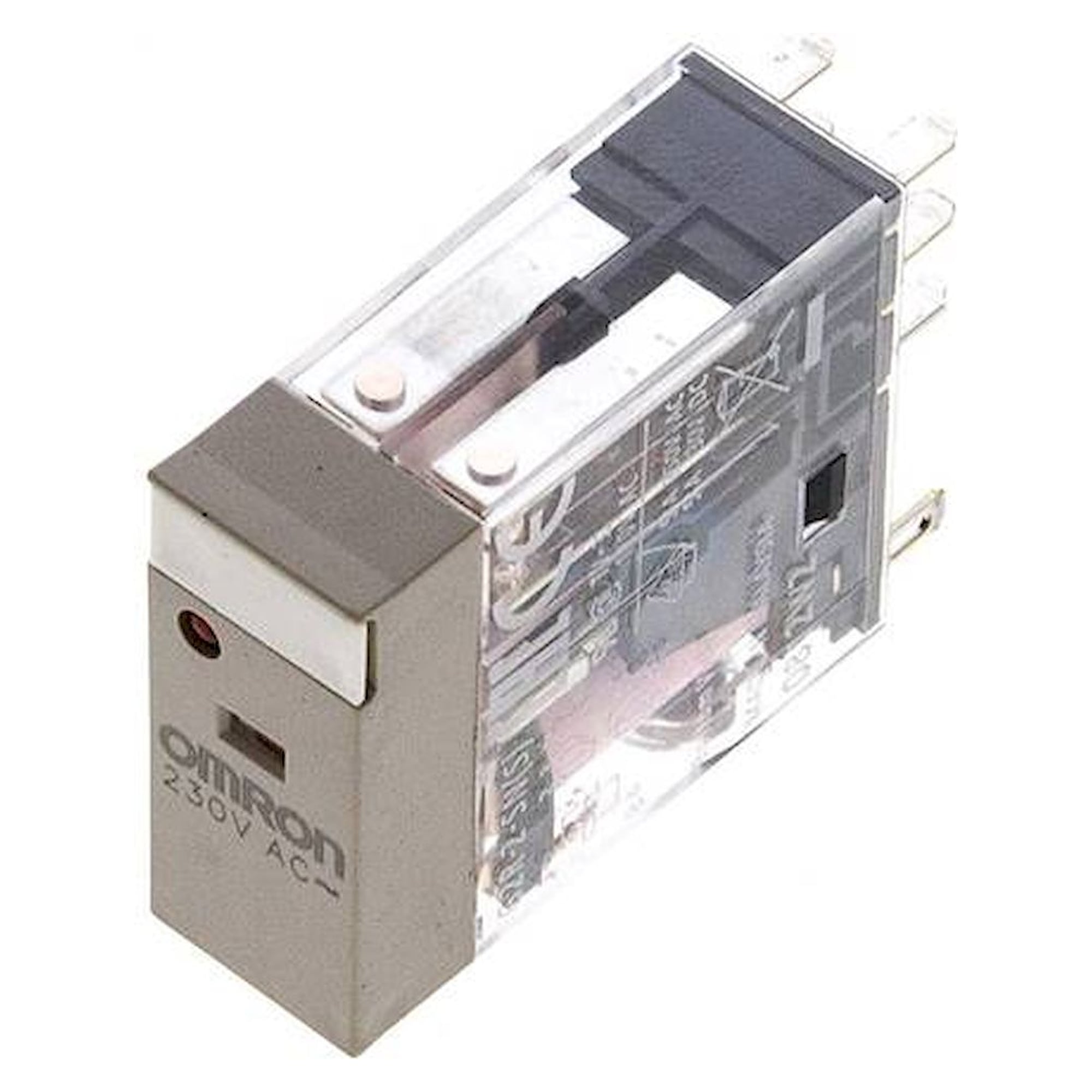

Pneumatic cylinder limit switches and relays provide precise position feedback and control signals for automated manufacturing systems, particularly in automotive assembly lines, packaging machinery, and material handling equipment. These components detect cylinder end positions through mechanical contact switches like the Omron D4B series safety position switches with adjustable roller levers, while relays such as the Omron G2R2SN230VAC with 2 changeover contacts control downstream pneumatic valves and actuators. Industries including food processing, pharmaceuticals, and general manufacturing rely on these sensing solutions to ensure synchronized motion control and safety interlocking in pneumatic automation circuits.

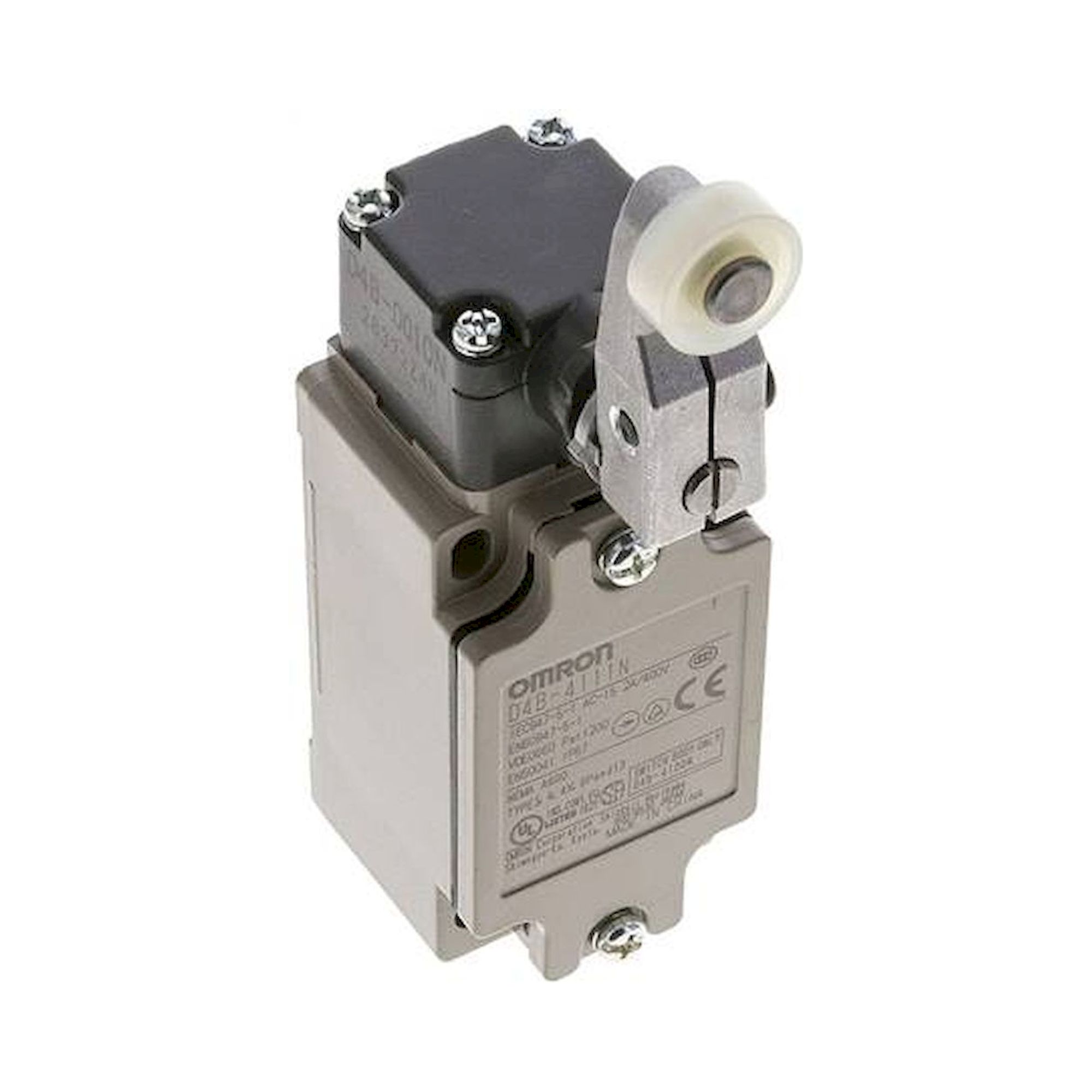

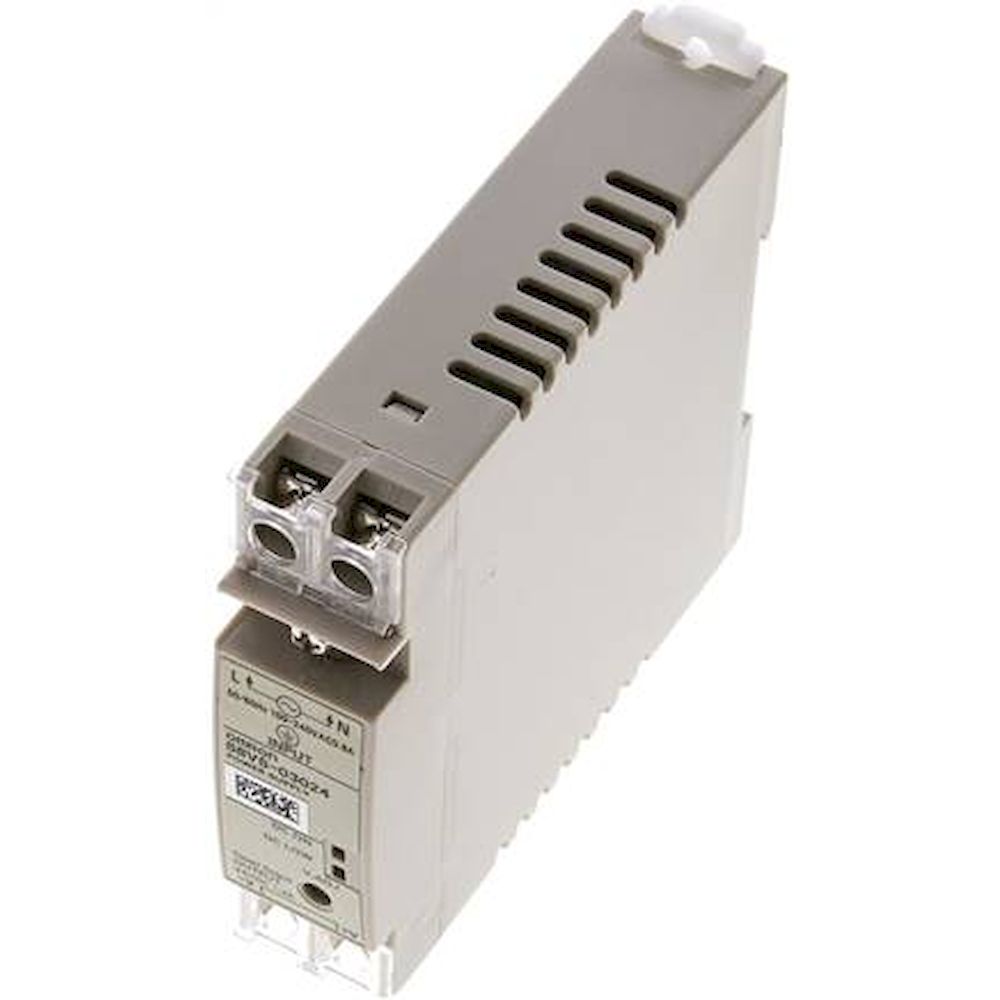

Critical selection parameters include contact configuration with options like changeover contacts found in Omron G2R series relays, actuator type such as roller levers or spring pins available in D4B and D4N safety switches, and electrical ratings matching your control voltage requirements. The Omron S8VS03024 switching power supply demonstrates typical 24V DC operation at 30W capacity for powering these control circuits. Material construction varies from plastic roller levers in D4B4111N switches for standard applications to stainless steel spring pins in D4N4180 models for harsh environments requiring corrosion resistance and extended mechanical life cycles.

Pneumatic cylinder limit switches must comply with EN ISO 13849 for safety-related control systems and IEC 61508 for functional safety in industrial automation applications. Safety position switches like the Omron D4B and D4N series typically carry CE marking indicating conformance with European machinery directive requirements and often achieve SIL 3 or PLe safety integrity levels for critical safety functions. Additional standards include IP67 ingress protection ratings for harsh industrial environments, UL recognition for North American installations, and specific ATEX certification when deployed in potentially explosive atmospheres around pneumatic systems handling flammable gases or vapors.

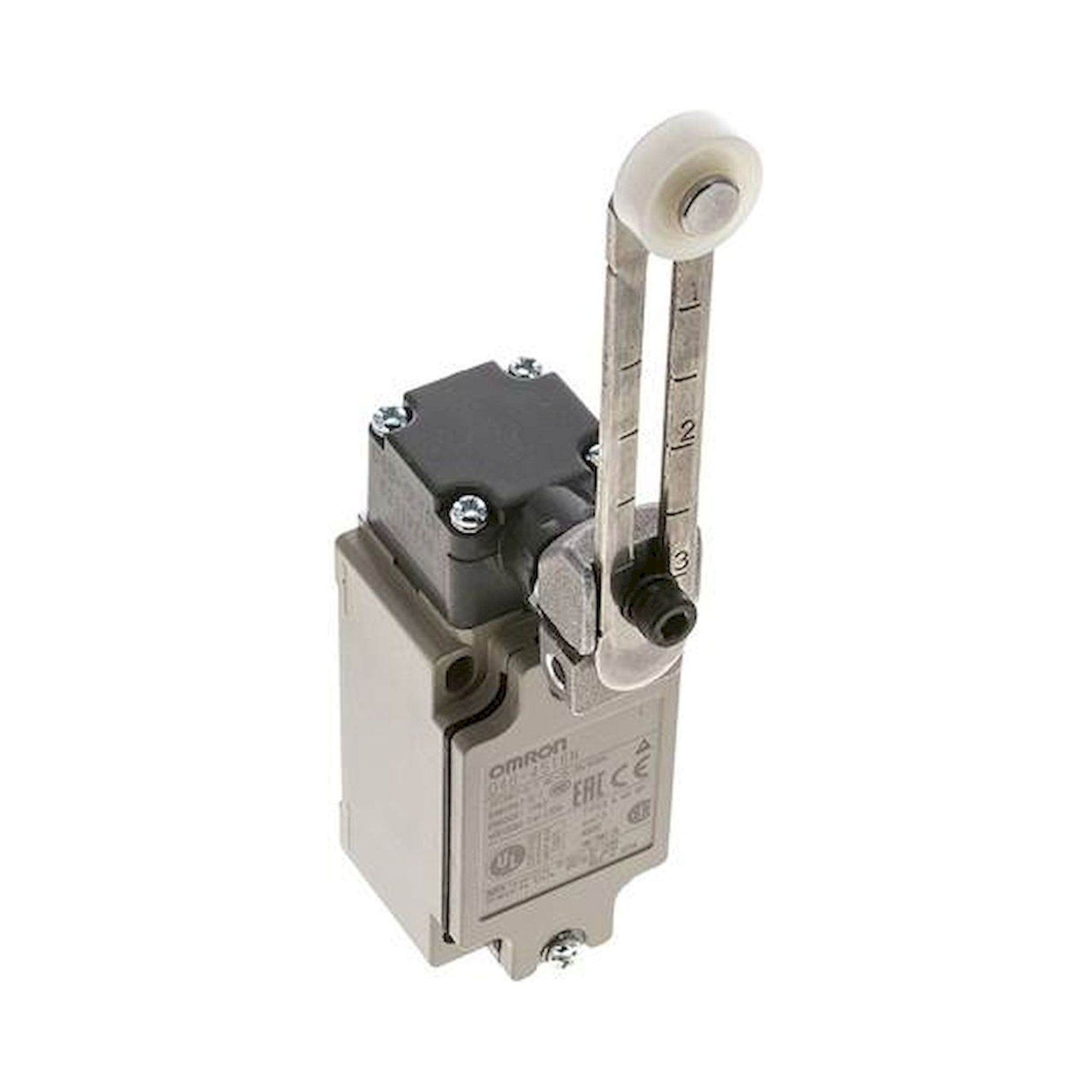

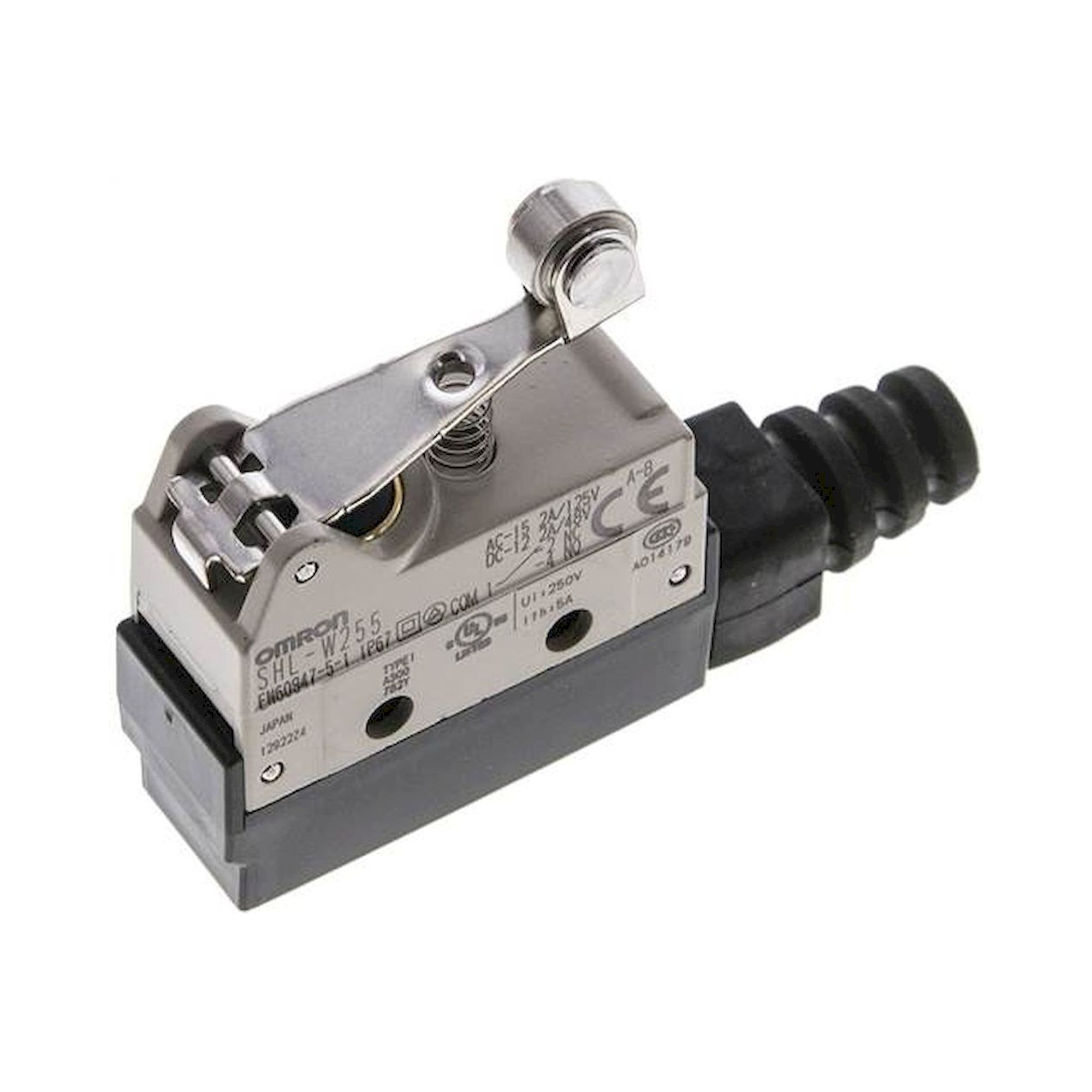

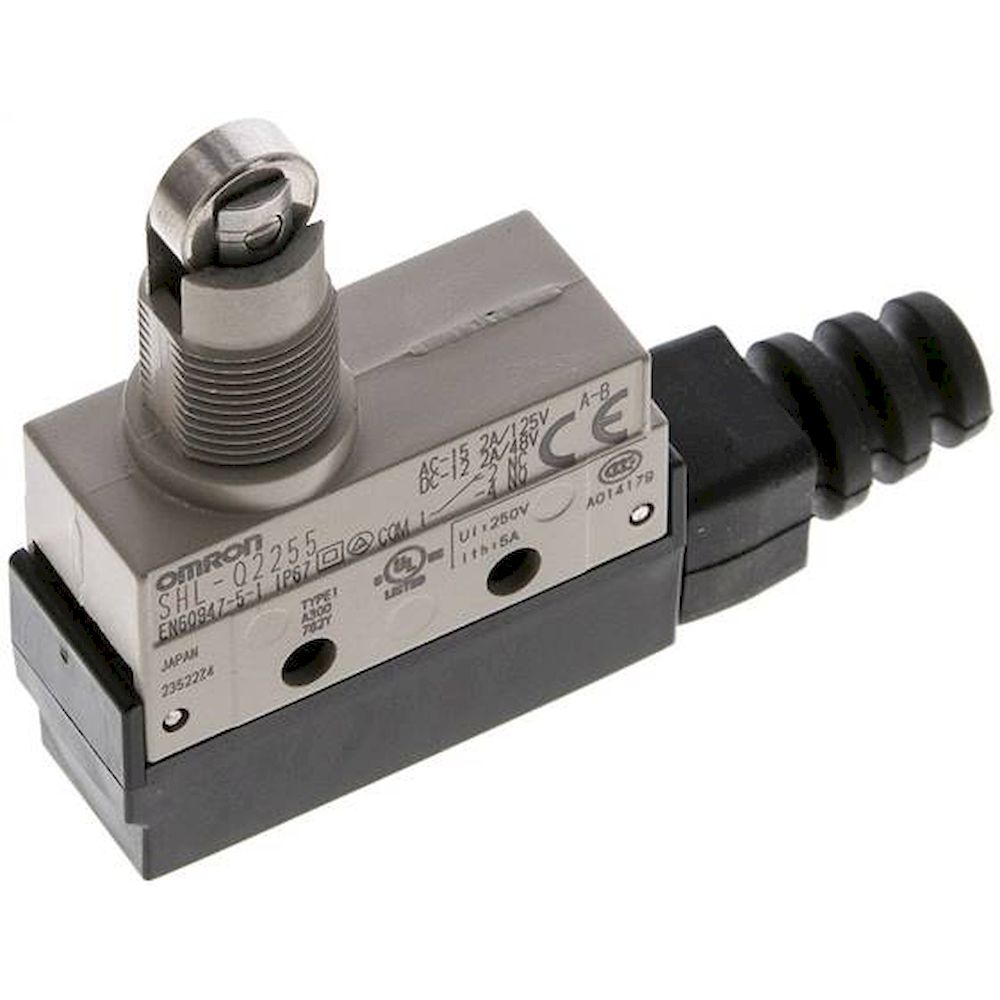

Safety position switches like the Omron D4B4516N with adjustable roller levers provide redundant contact systems and forced-guided contacts required for safety circuits, while sub-miniature switches such as the SHLQ2255 roller plunger model offer compact mounting solutions for standard position detection. Safety switches incorporate positive-opening contacts that guarantee reliable circuit interruption under fault conditions, whereas sub-miniature variants like the SHLW255 short roller lever prioritize space efficiency in confined pneumatic cylinder installations. The D4N series stainless steel spring pin switches bridge both categories by combining safety-rated performance with corrosion resistance for food-grade and pharmaceutical pneumatic systems.

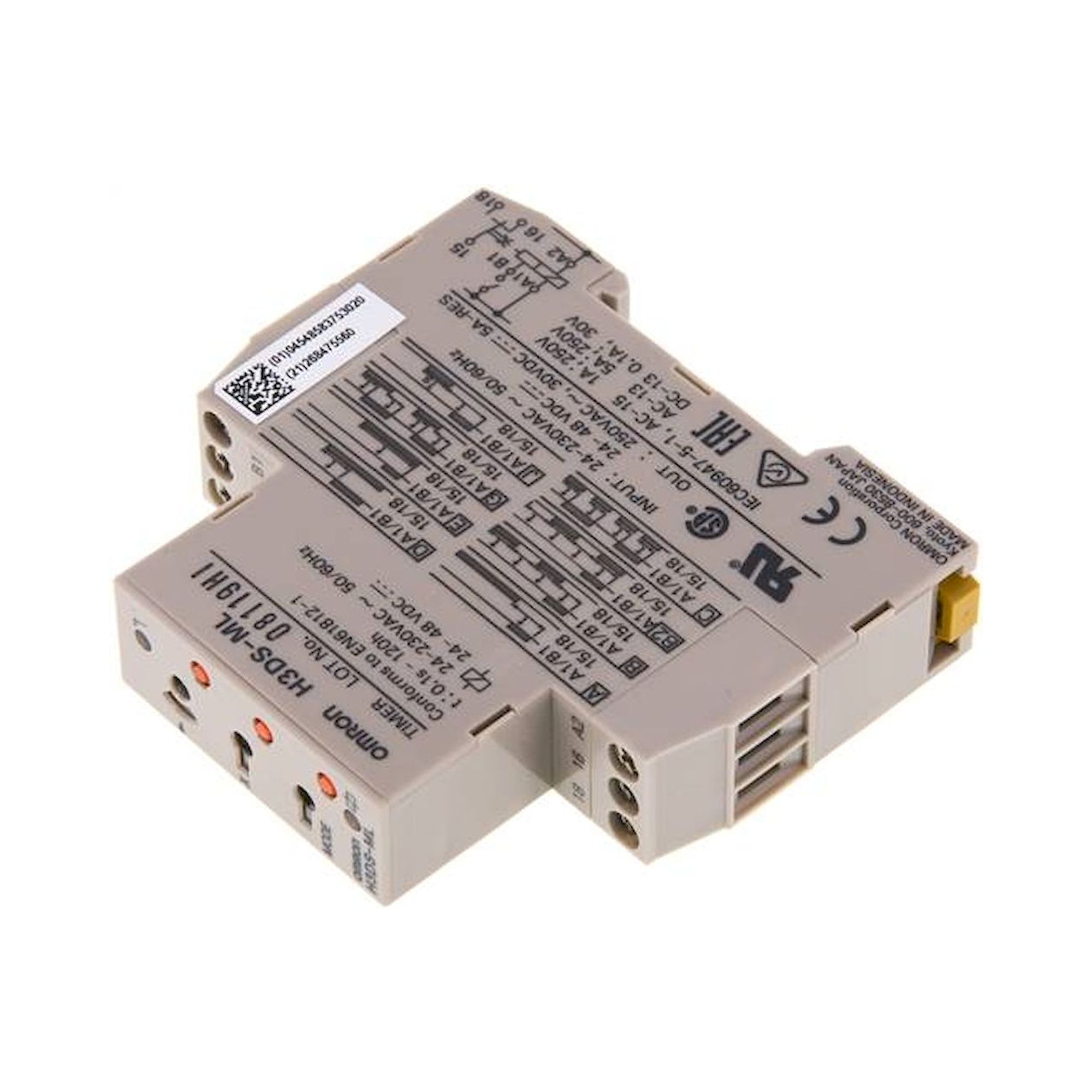

Limit switches mount directly to pneumatic cylinder tie rods or mounting brackets using standard M12 or M18 threaded connections, with mechanical actuators positioned to engage cylinder pistons or magnetic piston bands during stroke completion. Electrical connections typically utilize M12 or M8 quick-disconnect connectors for field wiring to PLC input modules or relay control panels operating at 24V DC or 230V AC as seen in the Omron G2R2SN230VAC relay specification. DIN rail mounting options like the Omron H3DSML multi-function time relay enable centralized control panel integration, while the S8VS03024 DIN rail power supply provides isolated 24V DC power distribution for multiple switch circuits in complex pneumatic automation systems.

Industrial pneumatic limit switches typically operate across ambient temperature ranges of -25°C to +70°C for standard applications, with specialized versions extending to -40°C to +85°C for extreme environment installations. These switches withstand pneumatic system pressures up to 16 bar (232 psi) when properly sealed and achieve IP67 ingress protection ratings against water and dust contamination common in manufacturing environments. Safety position switches like the Omron D4B series maintain contact reliability through 10 million mechanical operations under normal loading conditions, while sub-miniature switches such as the SHLQ2255 provide 5 million operation cycles with reduced physical dimensions for space-constrained pneumatic cylinder installations.

Pneumatic limit switches require monthly visual inspection for mechanical wear on roller levers and actuator components, with particular attention to spring pin alignment in models like the Omron D4N4180 stainless steel variants. Contact resistance testing should be performed annually using standard multimeter measurements to verify electrical continuity remains within manufacturer specifications, typically below 50 milliohms for new contacts. Preventive replacement intervals range from 2-5 years depending on duty cycle, with safety position switches in critical applications requiring more frequent validation testing per EN ISO 13849 requirements, while time relays such as the Omron H3DSML benefit from periodic calibration verification to maintain precise timing accuracy in pneumatic sequence control applications.
