Compact cylinder LCDQ
Cylinder

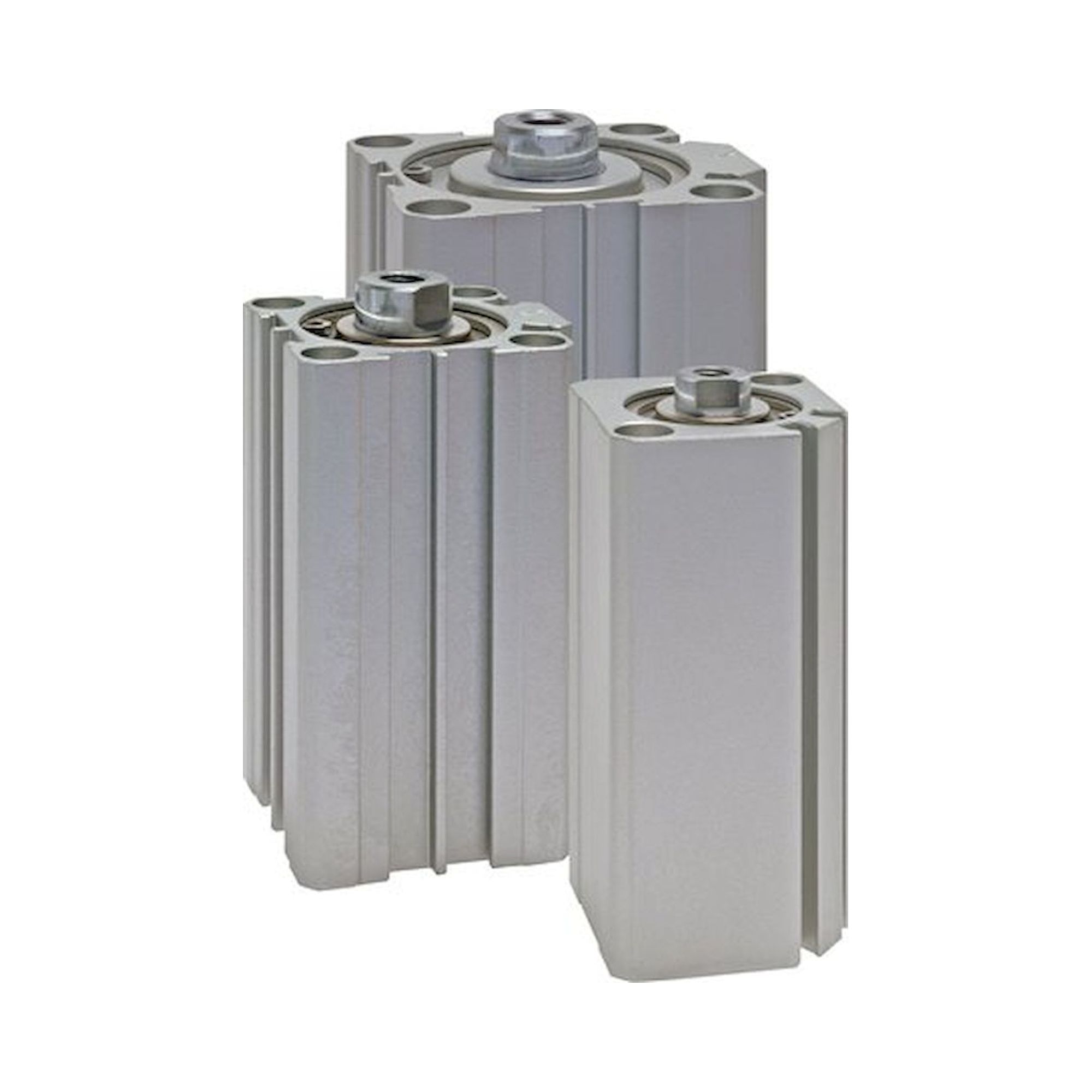

Compact cylinders of the LCDQ series are double-acting pneumatic cylinders in a flat-body design with bore diameters from 12 to 63 mm and strokes from 5 to 90 mm. The square aluminium housing allows direct flange mounting on multiple faces and significantly reduces the installation footprint compared to round-body cylinder designs. Typical variants include LCDQ 12/25, LCDQ 25/45 and LCDQ 63/75, where the first figure is the bore in mm and the second is the stroke in mm.
Bore 12-63 mm - double-acting, wide force range coverage
Strokes 5-90 mm - very short to medium strokes in a single body size
Flat aluminium housing - multi-face mounting on different surfaces
Compact overall depth - space-saving in fixtures and assembly automation
| Bore (mm) | Strokes (mm) |
|---|---|
| 12 | 25 |
| 16 | 5 |
| 20 | 5 |
| 25 | 45, 70, 90 |
| 32 | 5 |
| 40 | 5, 45, 75, 80, 90 |
| 50 | 10 |
| 63 | 5, 15, 20, 70, 75 |
Typical applications: Clamping in fixtures with limited space, workpiece handling in assembly systems, positioning and pressing in special-purpose machines, and as a compact drive in lever and toggle mechanisms.
