Paint Cupla
Quick couplings

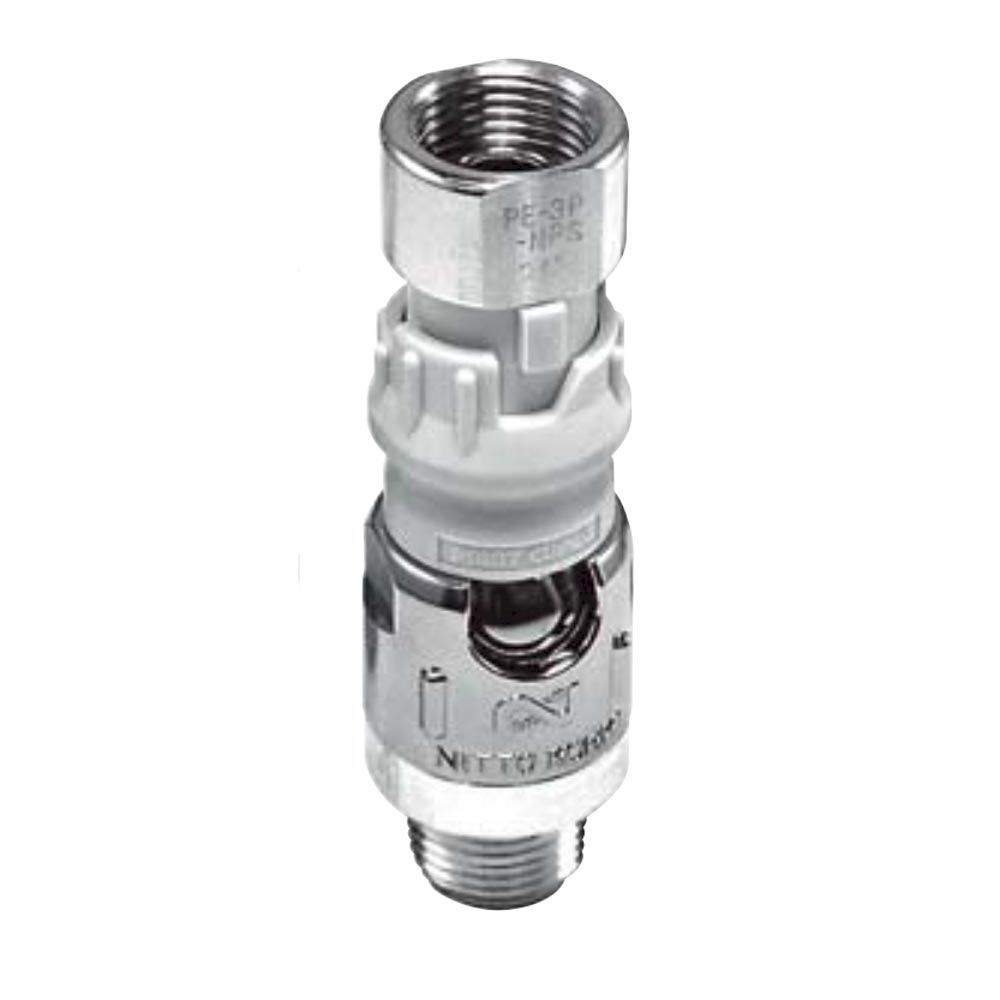

The Nitto Kohki Paint Cupla is a quick coupling developed specifically for the media and material requirements of painting and coating systems. The range comprises four items in two material combinations: plugs (PE-3P-G and PE-3P-NPS) in stainless steel with no internal seal, and sockets (PE-3S-G and PE-3S-NPS) in aluminium with PFA (perfluoroalkoxy polymer) seals. PFA is chemically near-inert against paints, solvents and aggressive coating media, qualifying this coupling for spray guns, paint feed lines and coating spray systems.
| Part number | Type | Body material | Seal | Thread |
|---|---|---|---|---|
| PE-3P-G | Plug | Stainless steel (SUS) | - | G (metric) |
| PE-3P-NPS | Plug | Stainless steel (SUS) | - | NPS (US) |
| PE-3S-G | Socket | Aluminium (AL) | PFA | G (metric) |
| PE-3S-NPS | Socket | Aluminium (AL) | PFA | NPS (US) |
Typical applications: Spray guns and paint feed lines in industrial painting systems, solvent-based coating lines, powder coating equipment, automotive painting booths, and connections in paint and lacquer lines where standard NBR seals are attacked by solvents.
Technical data from the manufacturer catalogue
| Series | PAINT CUPLA |
|---|---|
| Body material | Socket : Aluminum alloy, Plug : Stainless steel |
| Seal material | Fluoro-resin (PFA) |
| Max working pressure | 1.0 MPa {10 kgf/cm2} |
| Working temperature | Fluoro-resin (PFA): 0 °C to +50 °C |
| Valve structure | One-way shut-off |
| Applicable fluids | Solvent based paint |
| Vacuum service | Not suitable for vacuum application in either connected or disconnected condition. |
| Size range | 3/8 inch, 3/8NPS |
| Catalogue page | C01en-b, 153 |
Operating principle
- Unique swing connection system enables easy connection and disconnection of paint spray gun and paint hose even by gloved hands.
- Full-open gate valve mechanism prevents paint precipitate buildup.
- Adoption of special resin seal that has resistance against solvents made it possible to feature superior durability, long stable capability, and easy cleaning of paint spray gun after the job.
- Connection and disconnection can be made even if paint sticks to the socket sleeve.
- Small and lightweight design (80 g per set) reduces the weight to be held by hand of operators.
- Built-in sleeve lock mechanism prevents accidental disconnection of CUPLA, ensuring safe operation.
- Wide variety of end configurations (standard thread: G 3/8) are available in response to various paint spray guns.
All models of the series
PE-3P - Female thread
| Model | Coupling part | Application | Stainless steel (g) | L | øD | T | øB | øH(WAF) |
|---|---|---|---|---|---|---|---|---|
| PE-3P-G | Plug | G 3/8 | 31 | (58) | 24 | G 3/8 | 4.5 | 19 |
| PE-3P-NPS | Plug | 3/8 NPS | 31 | (58) | 24 | 3/8 NPS | 4.5 | 19 |
PE-3S - Male thread
| Model | Coupling part | Application | Aluminium (g) | L | øD | T | øH(WAF) |
|---|---|---|---|---|---|---|---|
| PE-3S-G | Socket | G 3/8 | 48 | (47) | 27 | G 3/8 | 23 |
| PE-3S-NPS | Socket | 3/8 NPS | 48 | (47) | 27 | 3/8 NPS | 23 |
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
| Series | Max working pressure | Size range | Valve structure | Applicable fluids |
|---|---|---|---|---|
| PAINT CUPLA | 10 bar | 3/8 inch, 3/8NPS | One-way shut-off | Solvent based paint |
| COMPACT ZEROSPILL CUPLA | 10 bar | Thread 1/8 inch, 1/4 inch | Two-way shut-off (Spill Reduction) | Air, Water |
| CUPLA HOSE with FULL BLOW CUPLA | 10 bar | Hose size ø5 mm×ø8 mm, ø6.5 mm×ø10 mm, ø8.5 mm×ø12.5 mm | One-way shut-off | Air |
| FLOW MONITOR | 10 bar | Rc 3/8 and Rc 1/2 | - | Water |
| ANTI-VIBRATION PLUG HOSE | 15 bar | R 1/4 (SHA-3-2R), R 3/8 (SHA-3-3R) | One-way shut-off | Air |
| HI CUPLA BL | 15 bar | 1/4 inch, 3/8 inch, 1/2 inch (thread and hose barb); SN type for urethane hose: for 6.5 x 10 mm, 8 x 12 mm and 8.5 x 12.5 mm hose | One-way shut-off | Air, Water |
| FLATFACE CUPLA F35 | 350 bar | Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch | Two-way shut-off (Spill Reduction) | Hydraulic oil |
| FLATFACE CUPLA FF | 350 bar | 3/8 inch, 1/2 inch, 3/4 inch, 1 inch (thread) | Two-way shut-off (Spill Reduction) | Hydraulic oil |
Choose PAINT CUPLA where a solvent based paint line has to be connected and separated at the spray gun, since the fluoro-resin (PFA) seal and the full-open gate valve mechanism are specified for that fluid. Its working pressure is 1.0 MPa {10 kgf/cm2}, so a line that has to hold the 1.5 MPa {15 kgf/cm2} of peer series such as HI CUPLA BL, NUT CUPLA, LOCK CUPLA 200 or ROTARY LINE CUPLA calls for one of those instead. The shut-off is one-way, so where both halves have to close on disconnection COMPACT ZEROSPILL CUPLA with its two-way shut-off is the closer match.
Body and seal materials
| Body material |
|---|
| Socket : Aluminum alloy |
| Plug : Stainless steel |
| Seal material | Mark | Working temperature | Remarks |
|---|---|---|---|
| Fluoro-resin (PFA) | - | 0 °C to +50 °C | - |
Further catalogue data
| Note | Value |
|---|---|
| Pressure units printed | MPa 1.0 / kgf/cm2 10 / bar 10 / PSI 145 |
| Tightening Torque Range | 15 {153} Nm {kgf.cm} |
| Flow Direction | Fluid must run from socket to plug. |
| Connection | Align the key on plug cover to the slot on sleeve, then while pulling the socket sleeve insert the plug to the hilt. While keeping the plug inserted into the socket, tilt the plug so as to align the plug with the socket. Lock can be made by turning the sleeve. The sleeve of the plug shoots back and fully slides over the narrow part of the socket body. |
| Disconnection | Disconnect in the reverse order of connection. |
| WAF | WAF stands for width across flats. |
| Mass per set | 80 g per set |
| Flow rate | Flow Rate - Pressure Loss Characteristics chart is given for PE-3S-G x PE-3P-G / PE-3S-NPS x PE-3P-NPS over 1 to 100 L/min and 0.01 {0.1} to 1.0 {10} MPa {kgf/cm2}. [Test conditions] - Fluid : Water - Temperature : 23 deg C +/-5 deg C |
Interchangeability and size groups
Sockets and plugs can be connected regardless of end configurations.
Safety and application notes
- Before use, please be sure to read "Safety Guide" described at the end of this book and "Instruction Sheet" that comes with the products.
All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 153. The complete catalogue is available for download on this page.
