Twist Plug
Quick couplings

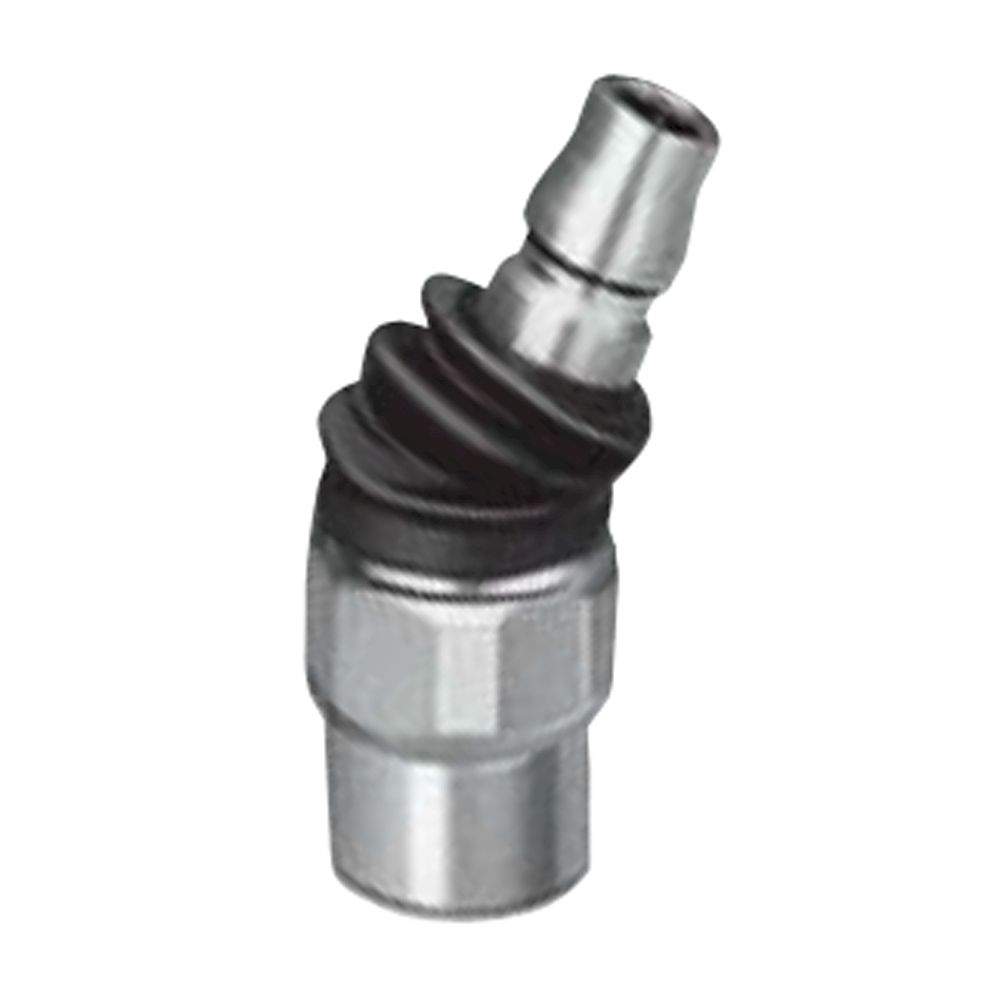

The Nitto Kohki Twist Plug is a quick-coupling plug in steel with NBR seal that locks and secures by a 90-degree twist. The range includes four types: TS-10PM, TS-20PM, TS-30PM, and TS-20PFF in nominal sizes 10, 20, and 30. The PM variants use metric threads; the PFF variant uses a flange connection. The twist-lock mechanism prevents accidental disconnection in vibration-intensive environments.
| Type | Nominal size | Port | Material | Seal |
|---|---|---|---|---|
| TS-10PM | 10 | Metric (PM) | Steel | NBR |
| TS-20PM | 20 | Metric (PM) | Steel | NBR |
| TS-30PM | 30 | Metric (PM) | Steel | NBR |
| TS-20PFF | 20 | Flange (PFF) | Steel | NBR |
Typical applications: Compressed-air connections on vibration-loaded machines and vehicles, pneumatic line ports on rotating or oscillating equipment components, factory automation with frequent line changes, and any application requiring a vibration-proof push-lock connection without tools.
Technical data from the manufacturer catalogue
| Series | TWIST PLUG |
|---|---|
| Body material | Steel (Nickel plated) |
| Seal material | NBR (Nitrile rubber) |
| Max working pressure | 1.0 MPa {10 kgf/cm2, 10 bar, 145 PSI} |
| Working temperature | Nitrile rubber (NBR): -20 °C to +60 °C |
| Valve structure | One-way shut-off |
| Applicable fluids | Air |
| Vacuum service | Not suitable for vacuum application in either connected or disconnected condition. |
| Size range | Thread 1/8 inch, 1/4 inch, 3/8 inch |
| Catalogue page | C01en-b, 64 |
Operating principle
- A plug with a free twisting neck for hose connections to pneumatic tools and devices.
- Free angle control provides comfortable job positions, even in narrow spaces or with overhead works.
- The flexible part is reinforced with self-lubricating plastics to give smooth bending action and excellent durability.
- Dust protector over the flexible part prevents dirt and swarf from entering.
- Eliminates hose twisting, kinking, or bending. Greatly improves working efficiency.
All models of the series
PM - Male thread
| Model | Coupling part | Application | Steel (g) | øB |
|---|---|---|---|---|
| TS-10PM | Plug | - | 59 | - |
| TS-20PM | Plug | - | 59 | - |
| TS-30PM | Plug | - | - | 10 |
PFF - Female thread
| Model | Coupling part | Application | Steel (g) | L | øB |
|---|---|---|---|---|---|
| TS-20PFF | Plug | G 1/4 | 77 | (59) | 8 |
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
| Series | Max working pressure | Size range | Valve structure | Applicable fluids |
|---|---|---|---|---|
| TWIST PLUG | 10 bar | Thread 1/8 inch, 1/4 inch, 3/8 inch | One-way shut-off | Air |
| COMPACT ZEROSPILL CUPLA | 10 bar | Thread 1/8 inch, 1/4 inch | Two-way shut-off (Spill Reduction) | Air, Water |
| CUPLA HOSE with FULL BLOW CUPLA | 10 bar | Hose size ø5 mm×ø8 mm, ø6.5 mm×ø10 mm, ø8.5 mm×ø12.5 mm | One-way shut-off | Air |
| FLOW MONITOR | 10 bar | Rc 3/8 and Rc 1/2 | - | Water |
| ANTI-VIBRATION PLUG HOSE | 15 bar | R 1/4 (SHA-3-2R), R 3/8 (SHA-3-3R) | One-way shut-off | Air |
| HI CUPLA BL | 15 bar | 1/4 inch, 3/8 inch, 1/2 inch (thread and hose barb); SN type for urethane hose: for 6.5 x 10 mm, 8 x 12 mm and 8.5 x 12.5 mm hose | One-way shut-off | Air, Water |
| FLATFACE CUPLA F35 | 350 bar | Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch | Two-way shut-off (Spill Reduction) | Hydraulic oil |
| FLATFACE CUPLA FF | 350 bar | 3/8 inch, 1/2 inch, 3/4 inch, 1 inch (thread) | Two-way shut-off (Spill Reduction) | Hydraulic oil |
TWIST PLUG is specified when hose twisting or kinking at a pneumatic tool has to be eliminated and the socket already in place belongs to the HI CUPLA or NUT CUPLA series. Its air rating is 1.0 MPa {10 kgf/cm2}, so lines run at 1.5 MPa {15 kgf/cm2} call for one of the sibling series rated at that pressure, such as HI CUPLA BL, NUT CUPLA, LOCK CUPLA 200, ROTARY LINE CUPLA or ROTARY PLUG. Like those, TWIST PLUG is one-way shut-off; where both sides of the line have to close, COMPACT ZEROSPILL CUPLA with two-way shut-off at 1.0 MPa {10 kgf/cm2} is the alternative.
Body and seal materials
| Body material |
|---|
| Steel (Nickel plated) |
| Seal material | Mark | Working temperature | Remarks |
|---|---|---|---|
| Nitrile rubber | NBR | -20 °C to +60 °C | Standard material |
Further catalogue data
| Note | Value |
|---|---|
| Maximum tightening torque 3/8 inch | 22 Nm |
| Minimum cross-sectional area (mm2) - TS-10PM | 12.5 |
| Bending angle | 35 deg |
| Flow direction | Fluid flow can be bi-directional when socket and plug are connected. |
| PM type plug dimensions from the drawing (mm) | ø25.5, ø7, Hex.24 (WAF), 20 |
| TS-20PFF dimensions from the drawing (mm) | ø25.5, ø8, ø7, Hex.24 (WAF), 20, (59), 9, thread G 1/4, bending angle 35 deg |
| Flow rate | Pressure - Flow Characteristics graph on page 65, flow rate in m3/min (ANR) against pressure in MPa {kgf/cm2}, tested with air. Curves are given for SM type sockets combined with TS-PFF and TS-PM plugs, each in a straight state (S) and in a bending state (B). The model numbers in the legend were not legible in the source text. |
Interchangeability and size groups
Interchangeable with sockets of HI CUPLA models. Interchangeable with each models of NUT CUPLA series and HI CUPLA series, except certain models. Please see the page given on the catalogue page for "HI CUPLA Series Interchangeability". The model numbers and the page number printed in these sentences were not legible in the source text of the catalogue page.
Safety and application notes
- Not suitable for vacuum application in either connected or disconnected condition.
- Before use, please be sure to read "Safety Guide" described at the end of this book and "Instruction Sheet" that comes with the products.
All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 64. The complete catalogue is available for download on this page.
