Mini Cupla Super
Quick couplings

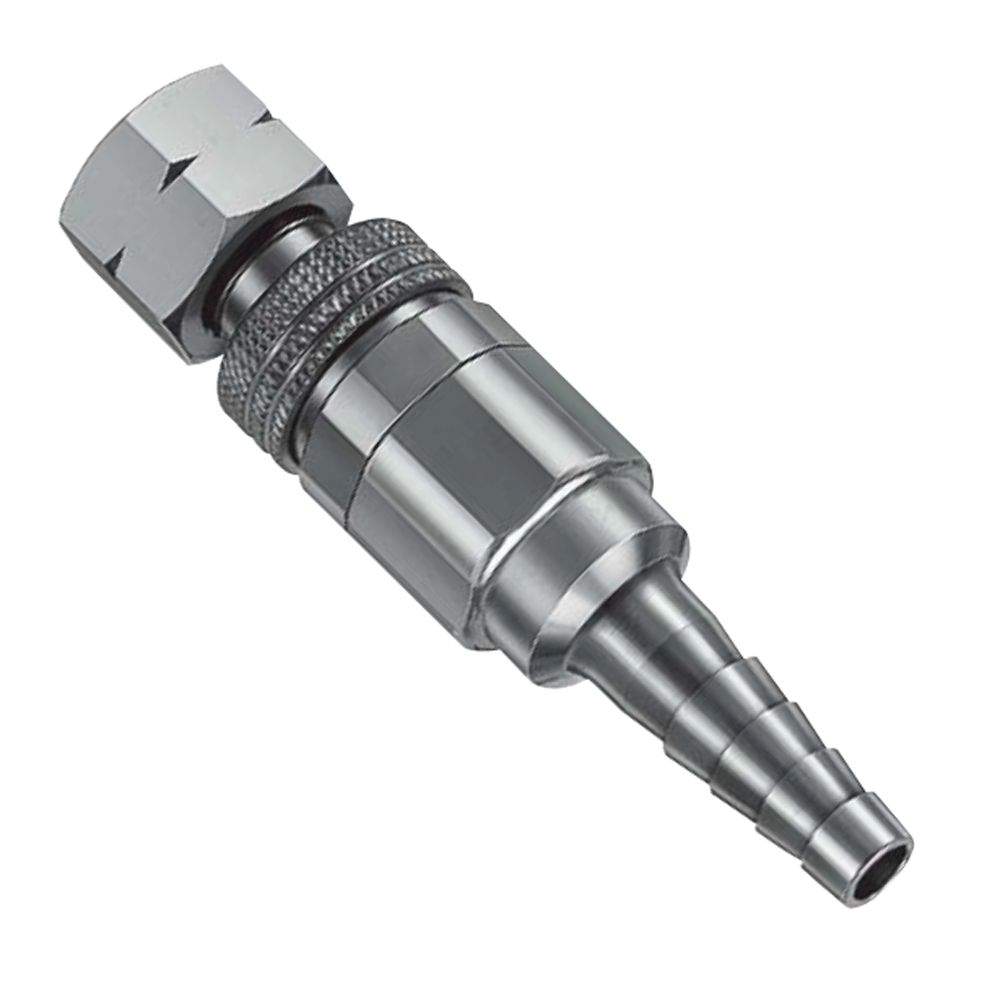

The Nitto Kohki Mini Cupla Super is a compact quick-release coupling for pneumatic applications, available in steel (plug types S2xP/S3xP) and brass (socket types S2xS/S3xS) with NBR seals. Nominal sizes S22 and S33 cover two bore diameter ranges; connections are available as G external thread (H), G internal thread (F), nipple (N), and metric (M). The Mini Cupla Super is the most compact series in the Nitto Kohki programme for standard air applications and disconnects without residual pressure.
| Type | Role | Connection | Material | Seal |
|---|---|---|---|---|
| S22PH / S33PH | Plug | G external | Steel | - |
| S225PH / S335PH | Plug | G external (short) | Steel | - |
| S22PF / S33PF | Plug | G internal | Steel | - |
| S22PN / S33PN | Plug | Nipple | Steel | - |
| S22SH / S33SH | Socket | G external | Brass | NBR |
| S22SF / S33SF | Socket | G internal | Brass | NBR |
| S22SM / S33SM | Socket | Metric | Brass | NBR |
| S22SN / S33SN | Socket | Nipple | Brass | NBR |
Typical applications: Miniature pneumatics in electronics manufacturing and laboratory automation, hose connections on pneumatic instruments and measuring equipment, compact control valve blocks, and applications where low weight and the smallest possible build size are required.
Technical data from the manufacturer catalogue
| Series | MINI CUPLA SUPER |
|---|---|
| Body material | Socket : Brass (Chrome plated), Plug : Steel (Chrome plated) |
| Seal material | Nitrile rubber (NBR) |
| Max working pressure | 0.7 MPa {7 kgf/cm2, 7 bar, 102 PSI} |
| Working temperature | Nitrile rubber (NBR): -20 °C to +80 °C |
| Valve structure | One-way shut-off |
| Applicable fluids | Oxygen, Fuel Gas |
| Vacuum service | Not suitable for vacuum application in either connected or disconnected condition. |
| Size range | Thread 1/4 inch, 3/8 inch, M16; Hose barb 1/4 inch, 5/16 inch, 3/8 inch / 5 mm ID |
| Catalogue page | C01en-b, 71 |
Operating principle
- From cylinders to torches, all piping connections associated with welding and cutting equipment are push-to-connect operations.
- Plated body for better corrosion resistance.
- Heat-treated plugs for better durability.
- Oxygen and fuel gas CUPLA have different configuration sizes with sleeves in different appearances, silver colored plating for oxygen and copper colored plating for fuel gas, to prevent accidental interconnection.
- Smaller diameter design enables wider range of applications.
- Various types of end configurations have been standardized to comply with a wide range of welding and cutting equipment applications. Sockets themselves or plugs themselves are interchangeable with MINI CUPLA's counterparts.
- Push-to-connect operation (built-in automatic shut-off valve in socket).
- Heat-treated steel plugs for increased durability.
All models of the series
PH - Hose barb
| Model | Coupling part | Application | Unspecified (g) | L | H | A | C | øB | øJ |
|---|---|---|---|---|---|---|---|---|---|
| S22PH | Plug | 1/4 inch, 5/16 inch hose | 17 | 58 | 11 | 30 | 23.5 | 4.5 | 9.5 |
| S225PH | Plug | 5 mm ID hose | 12 | 49 | 11 | 21 | 23.5 | 3.1 | 6.2 |
| S33PH | Plug | 5/16 inch, 3/8 inch hose | 22 | 59.5 | 14 | 30 | 25.5 | 6 | 11 |
| S335PH | Plug | 5 mm ID hose | 15 | 50.5 | 14 | 21 | 25.5 | 3.1 | 6.2 |
SH - Hose barb
| Model | Coupling part | Application | Unspecified (g) | L | øD | A | øB | øJ | ød |
|---|---|---|---|---|---|---|---|---|---|
| S22SH | Socket | 1/4 inch, 5/16 inch hose | 50 | (64.5) | 20 | 30 | 4.5 | 9.5 | (19.5) |
| S225SH | Socket | 5 mm ID hose | 54 | (62.5) | 20 | 21 | 3.1 | 6.2 | (19.5) |
| S33SH | Socket | 5/16 inch, 3/8 inch hose | 73 | (68) | 22 | 30 | 6 | 11 | (22) |
| S335SH | Socket | 5 mm ID hose | 65 | (63) | 22 | 21 | 3.1 | 6.2 | (22) |
PF - Female thread for torch connection
| Model | Coupling part | Application | Unspecified (g) | L | C | T | øB | øH(WAF) |
|---|---|---|---|---|---|---|---|---|
| S22PF | Plug | For oxygen torch side | 35 | (43) | 23.5 | M16x1.5 | 5 | Hex.19 |
| S33PF | Plug | For fuel gas torch side | 32 | (44.5) | 25.5 | M16x1.5 left-hand thread | 7.5 | Hex.19 |
SF - Female thread for cylinder connection
| Model | Coupling part | Application | Unspecified (g) | L | T | øB | øH(WAF) | ød |
|---|---|---|---|---|---|---|---|---|
| S22SF | Socket | For oxygen torch side | 74 | (52.5) | M16x1.5 | 4.5 | Hex.19 | (19.5) |
| S33SF | Socket | For fuel gas torch side | 97 | (57.5) | M16x1.5 left-hand thread | 6 | Hex.19 | (22) |
PN - Nut type for small diameter hose
| Model | Coupling part | Application | Unspecified (g) | L | øD | C | øB | øH1(WAF) | øH2(WAF) |
|---|---|---|---|---|---|---|---|---|---|
| S22PN | Plug | 5 mm ID hose | 54 | (53.5) | 20.5 | 23.5 | 4.5 | Hex.17 | Hex.19 |
| S33PN | Plug | 5 mm ID hose | 57 | (54.5) | 20.5 | 25.5 | 4.5 | Hex.17 | Hex.19 |
SM - Male thread
| Model | Coupling part | Application | Unspecified (g) | L | øD | T | øB | øH(WAF) | ød |
|---|---|---|---|---|---|---|---|---|---|
| S22SM | Socket | Rc 1/4 | 58 | (48.5) | 20 | R 1/4 | 4.5 | Hex.18 | (19.5) |
| S33SM | Socket | Rc 3/8 | 85 | (52) | 23 | R 3/8 | 6 | Hex.21 | (22) |
SN - Nut type for small diameter hose
| Model | Coupling part | Application | Unspecified (g) | L | øD | øB | øH1(WAF) | øH2(WAF) | ød |
|---|---|---|---|---|---|---|---|---|---|
| S22SN | Socket | 5 mm ID hose | 74 | (52) | 20.5 | 4.5 | Hex.18 | Hex.19 | (19.5) |
| S33SN | Socket | 5 mm ID hose | 91 | (57) | 20.5 | 4.5 | Hex.21 | Hex.19 | (22) |
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
| Series | Max working pressure | Size range | Valve structure | Applicable fluids |
|---|---|---|---|---|
| MINI CUPLA SUPER | 7 bar | Thread 1/4 inch, 3/8 inch, M16; Hose barb 1/4 inch, 5/16 inch, 3/8 inch / 5 mm ID | One-way shut-off | Oxygen, Fuel Gas |
| COMPACT ZEROSPILL CUPLA | 10 bar | Thread 1/8 inch, 1/4 inch | Two-way shut-off (Spill Reduction) | Air, Water |
| CUPLA HOSE with FULL BLOW CUPLA | 10 bar | Hose size ø5 mm×ø8 mm, ø6.5 mm×ø10 mm, ø8.5 mm×ø12.5 mm | One-way shut-off | Air |
| FLOW MONITOR | 10 bar | Rc 3/8 and Rc 1/2 | - | Water |
| ANTI-VIBRATION PLUG HOSE | 15 bar | R 1/4 (SHA-3-2R), R 3/8 (SHA-3-3R) | One-way shut-off | Air |
| HI CUPLA BL | 15 bar | 1/4 inch, 3/8 inch, 1/2 inch (thread and hose barb); SN type for urethane hose: for 6.5 x 10 mm, 8 x 12 mm and 8.5 x 12.5 mm hose | One-way shut-off | Air, Water |
| FLATFACE CUPLA F35 | 350 bar | Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch | Two-way shut-off (Spill Reduction) | Hydraulic oil |
| FLATFACE CUPLA FF | 350 bar | 3/8 inch, 1/2 inch, 3/4 inch, 1 inch (thread) | Two-way shut-off (Spill Reduction) | Hydraulic oil |
Pick MINI CUPLA SUPER when the line carries oxygen or fuel gas on welding and cutting equipment and the two media must not be joined by accident, which the separate S22 and S33 sizes with their differently plated sleeves prevent. Its working pressure of 0.7 MPa {7 kgf/cm2} is below that of the one-way shut-off siblings HI CUPLA BL, NUT CUPLA, LOCK CUPLA 200, HI CUPLA Two Way Type, ROTARY LINE CUPLA, ROTARY FULL BLOW LINE CUPLA and ROTARY PLUG at 1.5 MPa {15 kgf/cm2} and of PURGE LINE CUPLA at 1.0 MPa {10 kgf/cm2}, so those remain the choice for higher line pressures. Where the concern is spill on disconnection rather than keeping two media apart, the two-way shut-off COMPACT ZEROSPILL CUPLA at 1.0 MPa {10 kgf/cm2} applies instead.
Body and seal materials
| Body material |
|---|
| Socket : Brass (Chrome plated) |
| Plug : Steel (Chrome plated) |
| Seal material | Mark | Working temperature | Remarks |
|---|---|---|---|
| Nitrile rubber | NBR | -20 °C to +80 °C | Standard material |
Further catalogue data
| Note | Value |
|---|---|
| Working pressure | 0.7 MPa / 7 kgf/cm2 / 7 bar / 102 PSI |
| Flow direction | Fluid must run from socket to plug. |
| Maximum tightening torque, Nm {kgf.cm} | S22PF, S22SF, S33PF, S33SF 12 {122}; S22SM 9 {92}; S33SM 11 {112} |
| Minimum cross-sectional area (mm2), for oxygen, socket S22SH | S22PH 15.9, S225PH 7.5, S22PF 15.9, S22PN 15.9 |
| Minimum cross-sectional area (mm2), for oxygen, socket S225SH | S22PH 7.5, S225PH 7.5, S22PF 7.5, S22PN 7.5 |
| Minimum cross-sectional area (mm2), for oxygen, socket S22SF | S22PH 15.9, S225PH 7.5, S22PF 15.9, S22PN 15.9 |
| Minimum cross-sectional area (mm2), for oxygen, socket S22SM | S22PH 15.9, S225PH 7.5, S22PF 15.9, S22PN 15.9 |
| Minimum cross-sectional area (mm2), for oxygen, socket S22SN | S22PH 15.9, S225PH 7.5, S22PF 15.9, S22PN 15.9 |
| Minimum cross-sectional area (mm2), for fuel gas, socket S33SH | S33PH 28.2, S335PH 7.5, S33PF 28.2, S33PN 15.9 |
| Minimum cross-sectional area (mm2), for fuel gas, socket S335SH | S33PH 7.5, S335PH 7.5, S33PF 7.5, S33PN 7.5 |
| Minimum cross-sectional area (mm2), for fuel gas, socket S33SF | S33PH 28.2, S335PH 7.5, S33PF 28.2, S33PN 15.9 |
| Minimum cross-sectional area (mm2), for fuel gas, socket S33SM | S33PH 28.2, S335PH 7.5, S33PF 28.2, S33PN 15.9 |
| Minimum cross-sectional area (mm2), for fuel gas, socket S33SN | S33PH 15.9, S335PH 7.5, S33PF 15.9, S33PN 15.9 |
| Suggested combination - male thread | SM x PH |
| Suggested combination - for regulator | SF x PH |
| Suggested combination - for extension hose | SH x PH |
| Suggested combination - for torch | SH x PF |
| Combination guidance | Select the combination in accordance with your own application. |
| WAF | WAF stands for width across flats. |
| Flow rate | Pressure - Flow Characteristics charts on page 72 (test conditions - Fluid : Air). For Oxygen: flow rate in m3/min (ANR) from 0 to 0.8 against pressure 0 to 0.7 MPa {0 to 7 kgf/cm2}, plotted for (1) S22SF x S22PH and (2) S22SF x S22PHB. For Fuel Gas: flow rate in m3/min (ANR) from 0 to 0.35 against pressure 0 to 0.08 MPa {0 to 0.8 kgf/cm2}, plotted for (1) S33SF x S33PH and (2) S33SF x S33PHB. Numerical values are not printed in the page text. |
Interchangeability and size groups
To prevent accidental connection, CUPLA for oxygen are not interchangeable with CUPLA for fuel gas. However, plugs and sockets for oxygen are interchangeable regardless of end configurations and plugs and sockets for fuel gas are interchangeable regardless of end configurations. Can be connected with MINI CUPLA series.
Safety and application notes
- To prevent accidental connection, CUPLA for oxygen are not interchangeable with CUPLA for fuel gas.
- Fluid must run from socket to plug.
- Not suitable for vacuum application in either connected or disconnected condition.
- The operable temperature range depends on the operating conditions.
- Before use, please be sure to read 'Safety Guide' described at the end of this book and 'Instruction Sheet' that comes with the products.
All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 71. The complete catalogue is available for download on this page.
