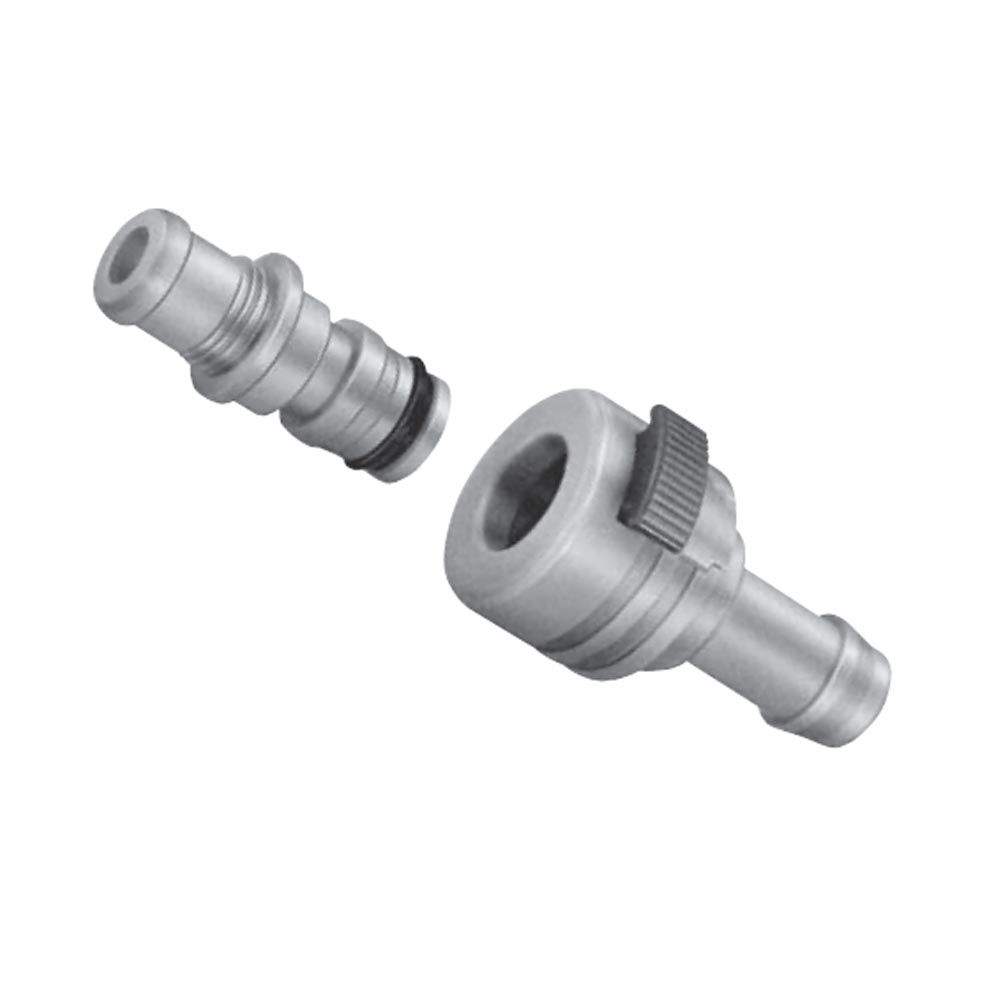

Plastic Cupla BC Type

Quick couplings

The Nitto Kohki Plastic Cupla BC Type is a plastic-bodied quick coupling for low-pressure pneumatic applications where corrosion resistance, light weight or electrical insulation are required. The range consists of four items in sizes BC-02 and BC-03, available as plug (PH) and socket (SH) with NBR seals. The plastic body makes these couplings suitable for environments involving aggressive media or corrosive substances.

⚙ Plastic housing - corrosion-resistant, lightweight, electrically insulating

✓ NBR seal - suitable for compressed air and general pneumatic media

↕ Sizes BC-02 and BC-03 - plug (PH) and socket (SH) per nominal size

✦ Compact design - low weight, suited to portable equipment and hand tools

Criterion	Option
Nominal size	BC-02, BC-03
Connector type	PH (plug), SH (socket)
Body material	Plastic
Seal	NBR
Key advantage vs. steel	Corrosion resistance, weight saving, electrical isolation

Typical applications: Pneumatic tools requiring corrosion protection, food and pharmaceutical applications where electrical insulation is specified, laboratory use, and portable equipment where weight and chemical resistance are priorities.

Technical data from the manufacturer catalogue

Series	PLASTIC CUPLA BC Type Valveless
Body material	Plastic
Seal material	NBR (Nitrile rubber)
Max working pressure	0.07 MPa {0.7 kgf/cm2}
Working temperature	NBR (Nitrile rubber): -20 to +50 deg C
Valve structure	Straight through
Applicable fluids	Air
Size range	1/4 inch, 3/8 inch hose
Catalogue page	C01en-b, 161

Operating principle

No valve, therefore the lowest pressure drop. The line must be depressurised before disconnecting.

Connecting sequence of a ball locking quick connect coupling.

To connect, just push the plug into the socket.
Plastic makes this ideal for use in environment prone to rusting.
Compact and light weight for easy handling.
Valveless construction gives more stable flow.

All models of the series

PH - Hose barb

Model	Coupling part	Application	Plastic (g)	L	A	C	øoB	øoD	øoT
BC-2PH	Plug	1/4 inch hose	1.8	41	17	19	4	14	8.5
BC-3PH	Plug	3/8 inch hose	2	34	13	19	6	15	10.9

SH - Hose barb

Model	Coupling part	Application	Plastic (g)	L	H	A	øoB	øoD	øoT
BC-2SH	Socket	1/4 inch hose	5.6	38	(26.5)	17	4	23	8.5
BC-3SH	Socket	3/8 inch hose	6	41	(26.5)	20	6	23	12

Dimensions in millimetres. Values in brackets apply in the connected condition.

Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore

Series comparison

Series	Max working pressure	Size range	Valve structure	Applicable fluids
PLASTIC CUPLA BC Type Valveless	0.7 bar	1/4 inch, 3/8 inch hose	Straight through	Air
COMPACT ZEROSPILL CUPLA	10 bar	Thread 1/8 inch, 1/4 inch	Two-way shut-off (Spill Reduction)	Air, Water
CUPLA HOSE with FULL BLOW CUPLA	10 bar	Hose size ø5 mm×ø8 mm, ø6.5 mm×ø10 mm, ø8.5 mm×ø12.5 mm	One-way shut-off	Air
FLOW MONITOR	10 bar	Rc 3/8 and Rc 1/2	-	Water
ANTI-VIBRATION PLUG HOSE	15 bar	R 1/4 (SHA-3-2R), R 3/8 (SHA-3-3R)	One-way shut-off	Air
HI CUPLA BL	15 bar	1/4 inch, 3/8 inch, 1/2 inch (thread and hose barb); SN type for urethane hose: for 6.5 x 10 mm, 8 x 12 mm and 8.5 x 12.5 mm hose	One-way shut-off	Air, Water
FLATFACE CUPLA F35	350 bar	Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch	Two-way shut-off (Spill Reduction)	Hydraulic oil
FLATFACE CUPLA FF	350 bar	3/8 inch, 1/2 inch, 3/4 inch, 1 inch (thread)	Two-way shut-off (Spill Reduction)	Hydraulic oil

PLASTIC CUPLA BC Type applies only to air lines up to 0.07 MPa {0.7 kgf/cm2}; every sibling series in this category is rated 1.0 to 1.5 MPa {10 to 15 kgf/cm2} and is required above that limit. It is the choice where an all-plastic coupling is wanted in an environment prone to rusting and where a straight through, valveless flow path is acceptable. If the line has to close on disconnection, use a one-way shut-off series such as HI CUPLA BL, NUT CUPLA or LOCK CUPLA 200, or COMPACT ZEROSPILL CUPLA with its two-way shut-off.

Body and seal materials

Body material
Plastic

Seal material	Mark	Working temperature	Remarks
NBR (Nitrile rubber)	-	-20 to +50 deg C	-

Further catalogue data

Note	Value
Working pressure (MPa)	0.07
Working pressure (kgf/cm2)	0.7
Working pressure (bar)	0.7
Working pressure (PSI)	10.2
Seal material NBR remarks	Standard material
WAF	WAF stands for width across flats.

Safety and application notes

Before use, please be sure to read the Safety Guide described at the end of this book and the Instruction Sheet that comes with the products.

All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 161. The complete catalogue is available for download on this page.
