T39 series
Soldering and Desoldering Tips
The Hakko T39 series is the most comprehensive Hakko tip range in the catalogue, covering 67 variants from ultra-fine to wide-area tips. Geometries include pencil-point shapes B (0.2, 0.5, 0.7 mm), bevel-cut BC formats 1020 to 3545 with BCF, BCM and BCR (V-groove) variants, extended pencil forms BLL and BS, and the fine base form BL at 0.2 mm. V-groove BCR tips range from 1.2 mm to 5.2 mm, providing a particularly wide selection for cable connections and trace soldering.
The T39 series is compatible with Hakko stations and combines active tip technology with a broad geometry programme for fine pad pitches, SMD arrays and wiring connections.
| Shape group | Geometry | Dimensions | Application |
|---|---|---|---|
| B02, B05, B07 | Pencil point | 0.2 / 0.5 / 0.7 mm | Fine SMD, 0402 |
| BC1020 to BC3545 | Active bevel-cut | 10-35 mm / 20-45 mm | Pad arrays, SMD |
| BCF1020 to BCF3545 | Bevel-cut | 10-35 mm | Pad arrays |

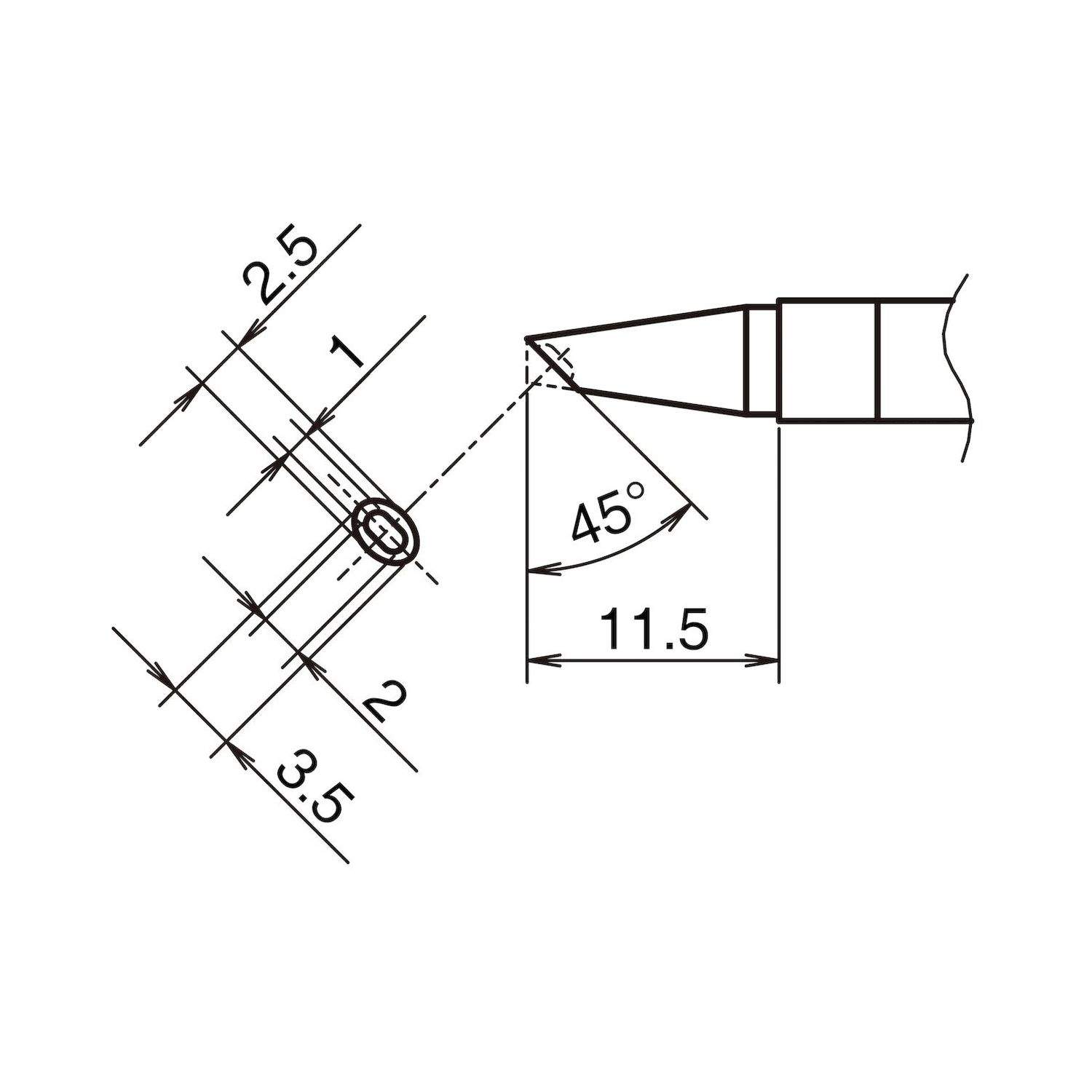

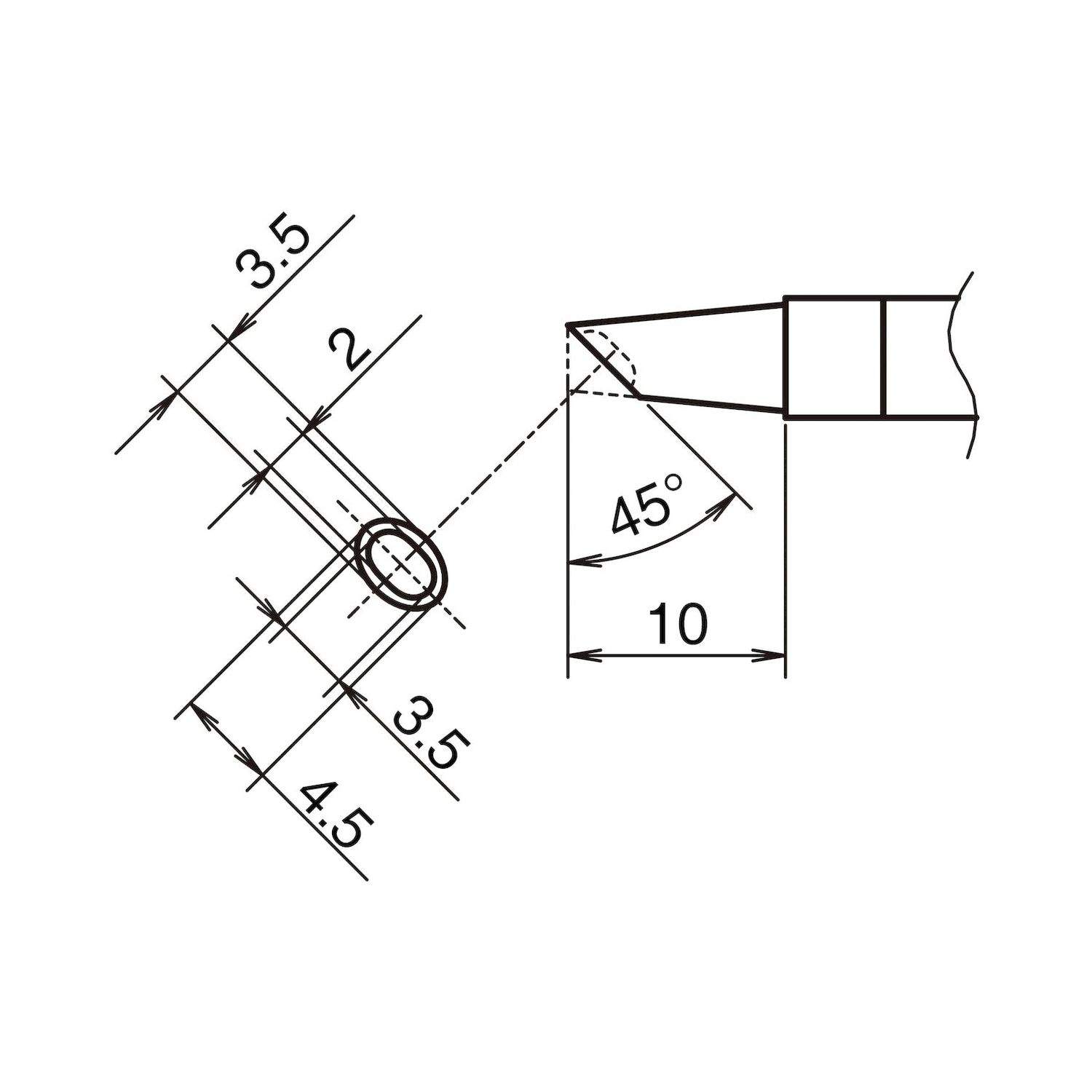

| BCM2535, BCM3545 | Modified bevel-cut | 25-35 mm | SOP, contacts |

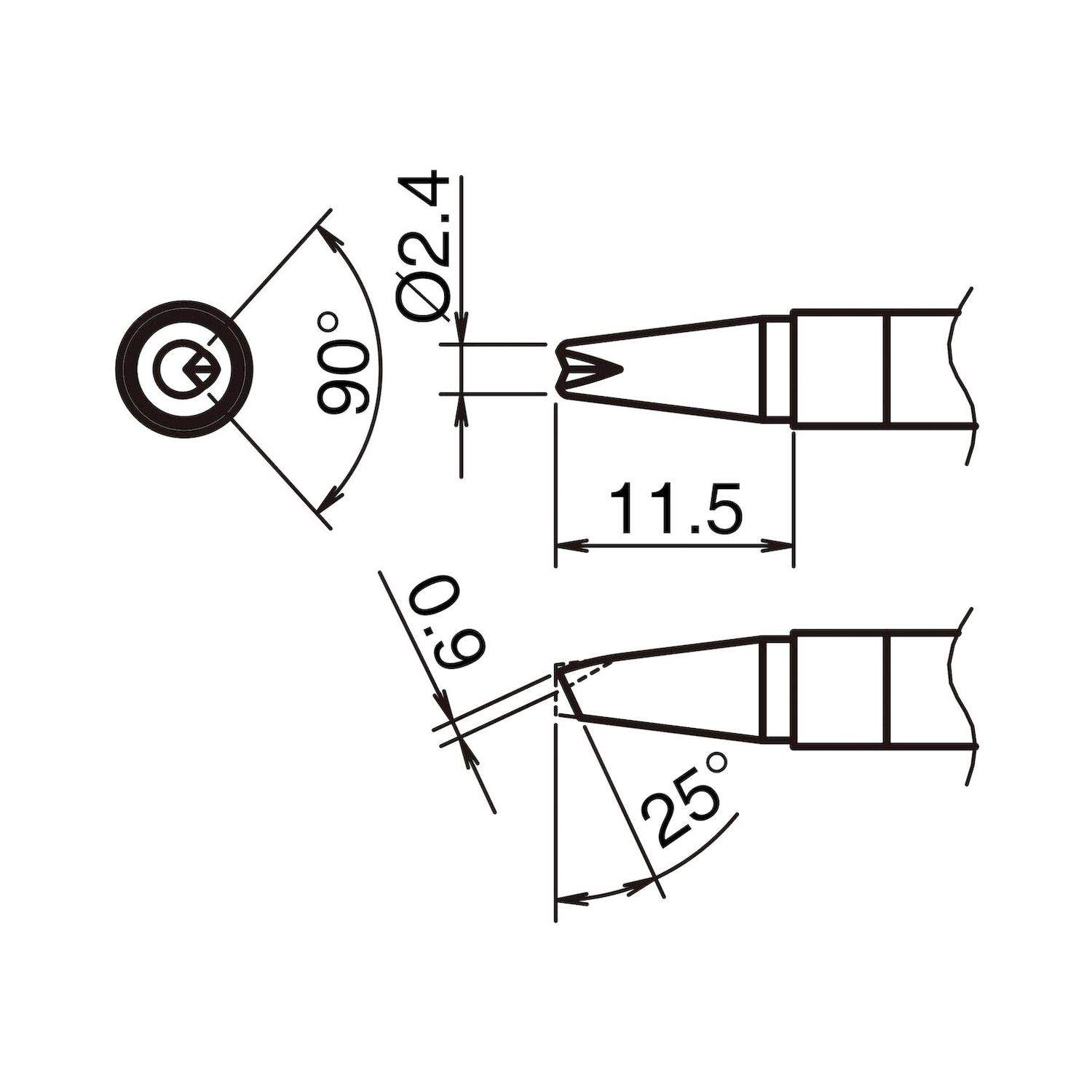

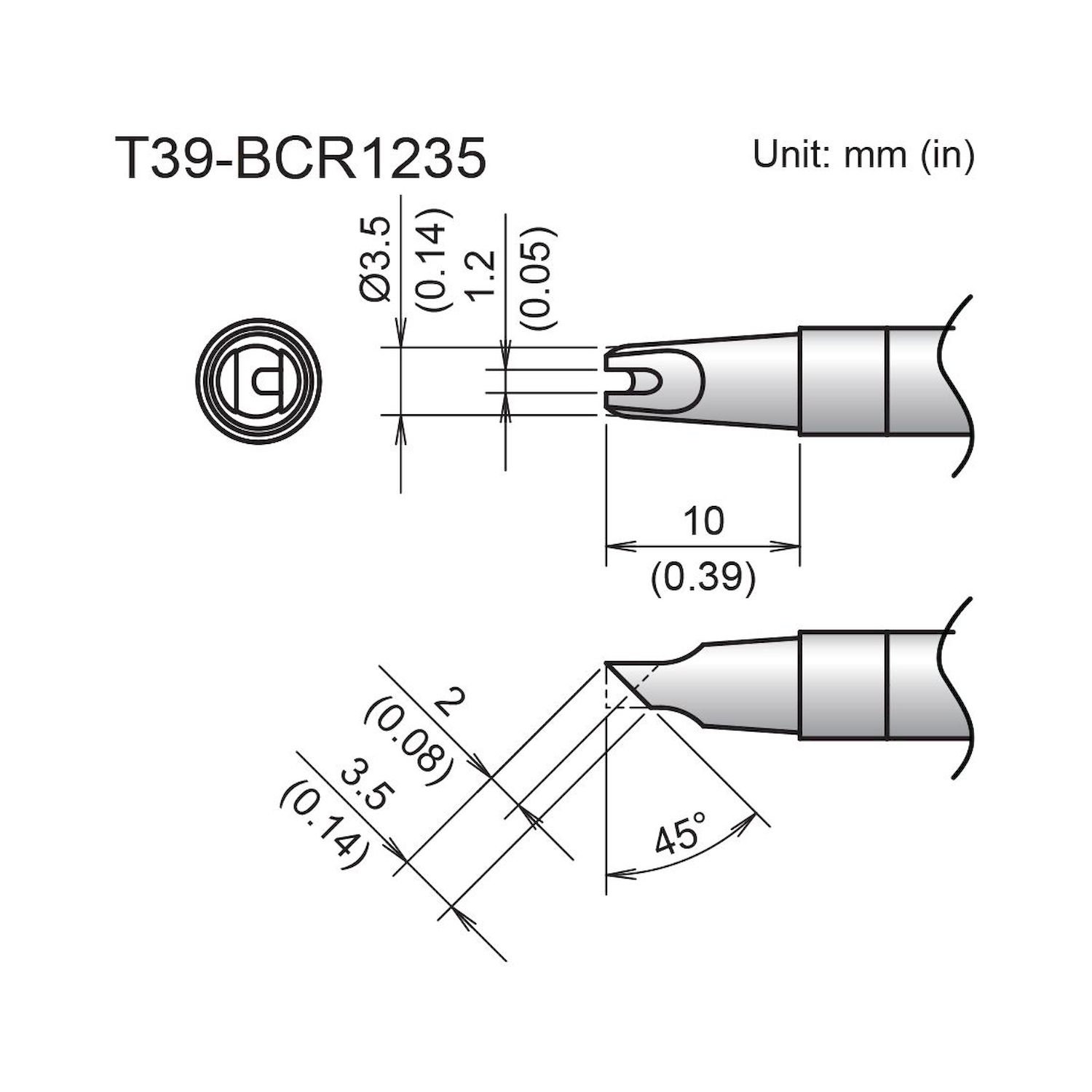

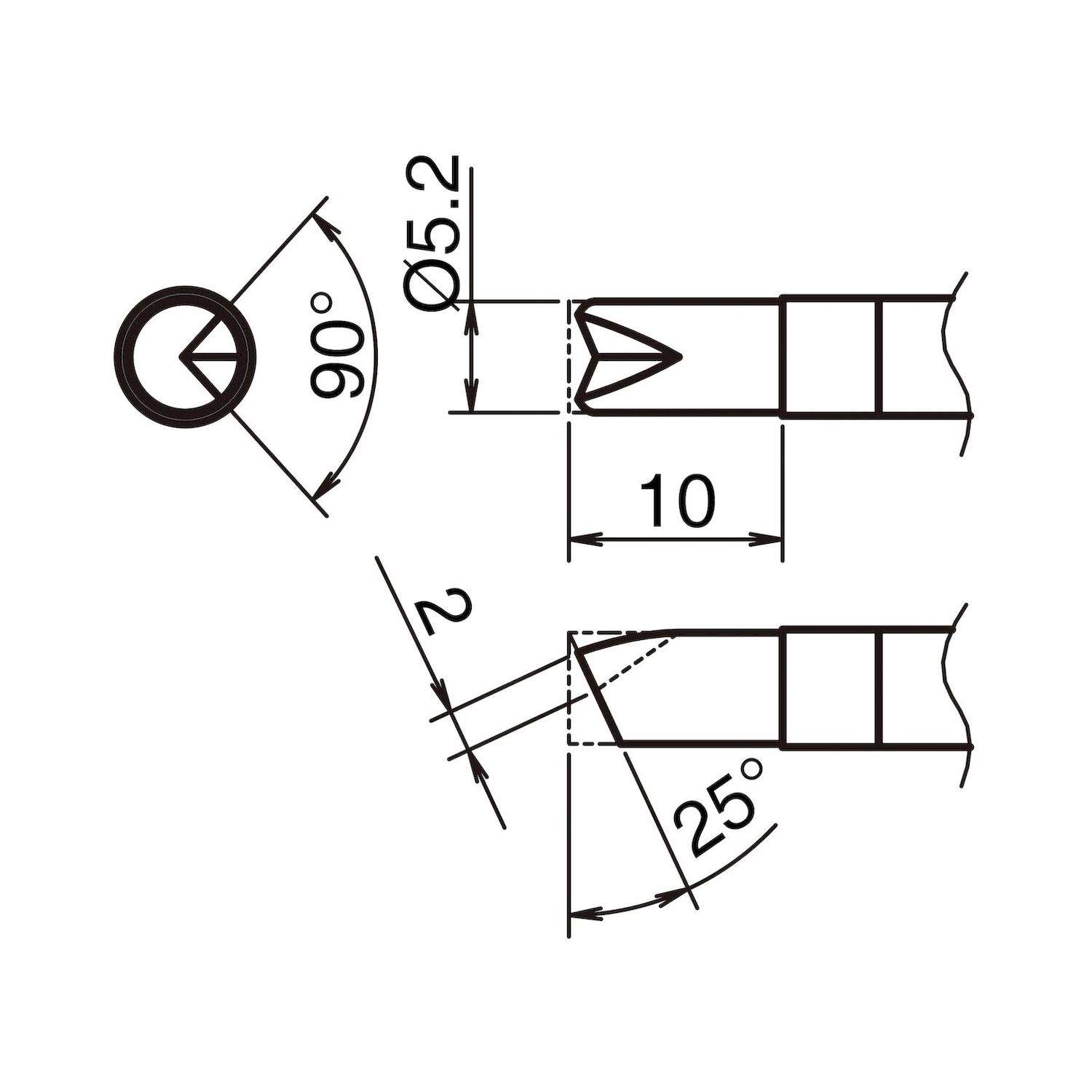

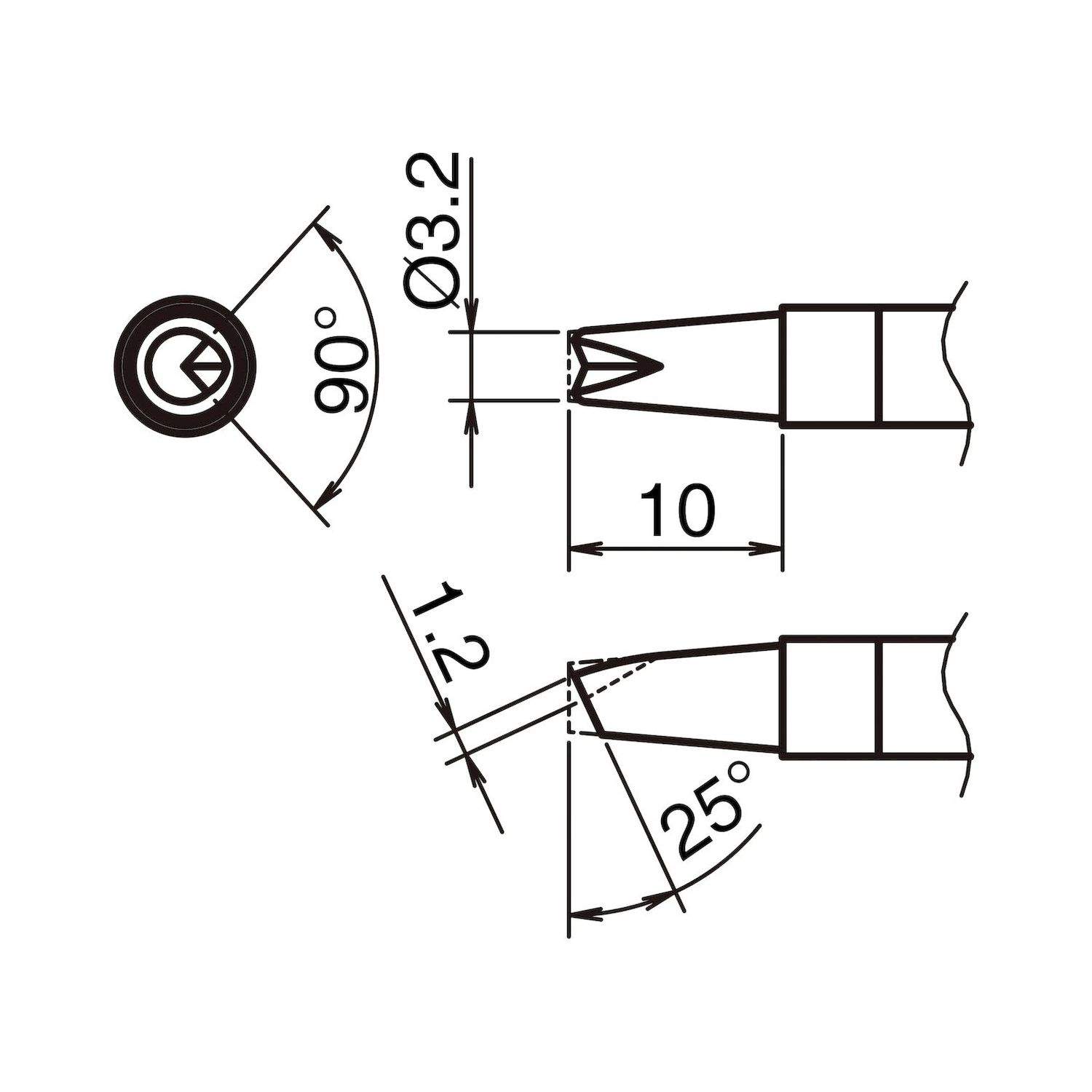

| BCR12 to BCR52 | V-groove | 1.2 / 1.6 / 2.4 / 3.2 / 4 / 5.2 mm | Cable, traces |
| BL02, BLL02, BS02, BS03 | Ultra-fine / extended | 0.2 / 0.3 mm | Tightest SMD |
Typical applications: Precision hand soldering on small SMD components (0402, 0201) using B and BL shapes, pad array rework with BC bevel-cut tips, cable assembly and trace connections with BCR V-groove tips, SMD rework in electronics production, and IC lead repair using BLL ultra-fine tips.
