T22 Series
Soldering and Desoldering Tips
The Hakko T22 Series comprises composite soldering tips for the FX-838 and compatible Hakko stations. The range offers chisel profiles in 2BC, 3C, 5C, 6C, as well as BL, 2BL, and chisel tips in 0.8, 1.2, 1.6, 2.4, and 3.2 mm. Broader heat delivery is served by D profiles in 4.5 and 5.2 mm. Fine work is enabled by the J02 (0.2 mm contour) and JD08 (0.8 mm quick-reach). The K knife profile rounds out the range for bevel and drag soldering.
Composite construction - integrated heating core for uniform temperature distribution
BC chisel 2BC to 6C - T22-BC2, T22-C3, T22-C5, T22-C6 for multi-pad connections and traces

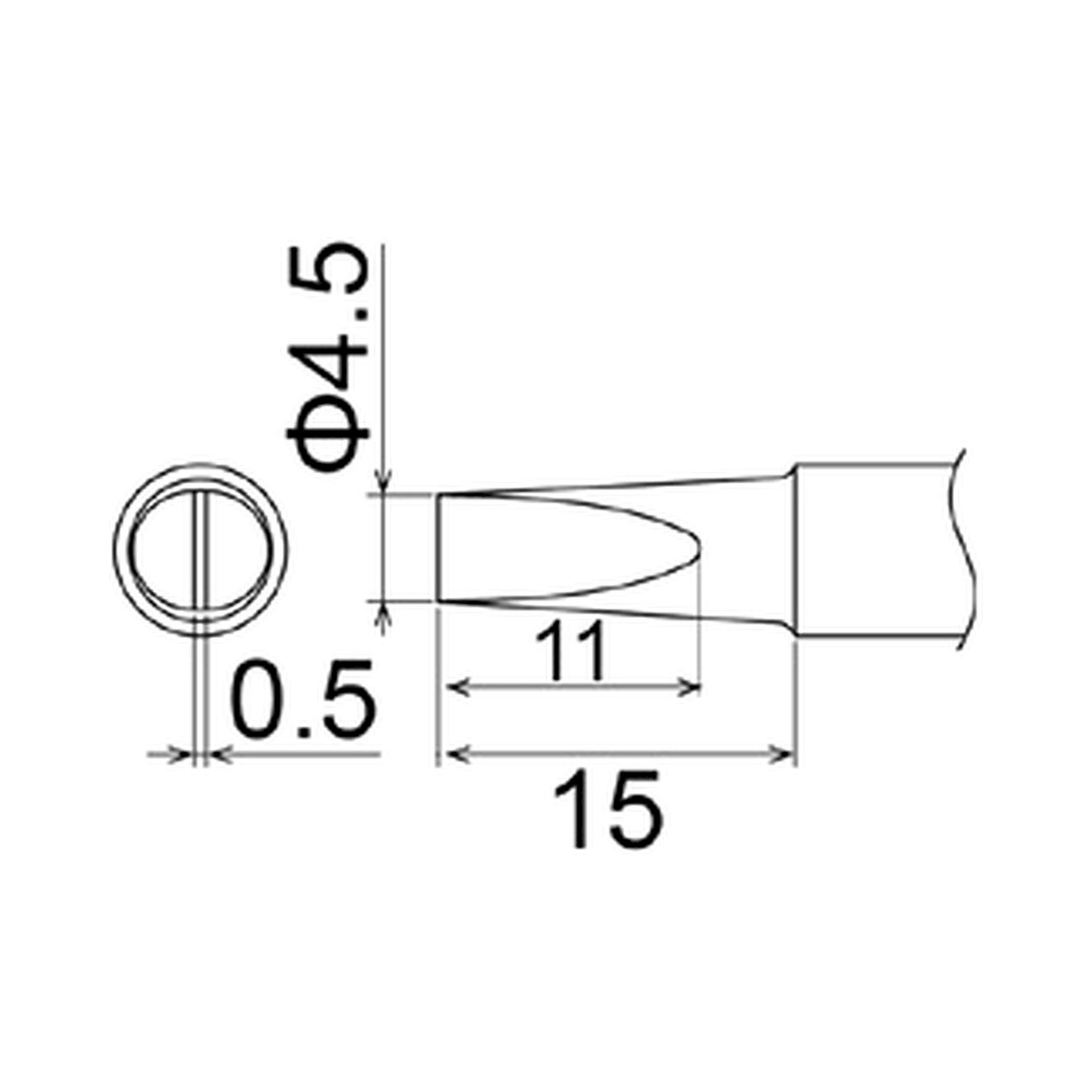

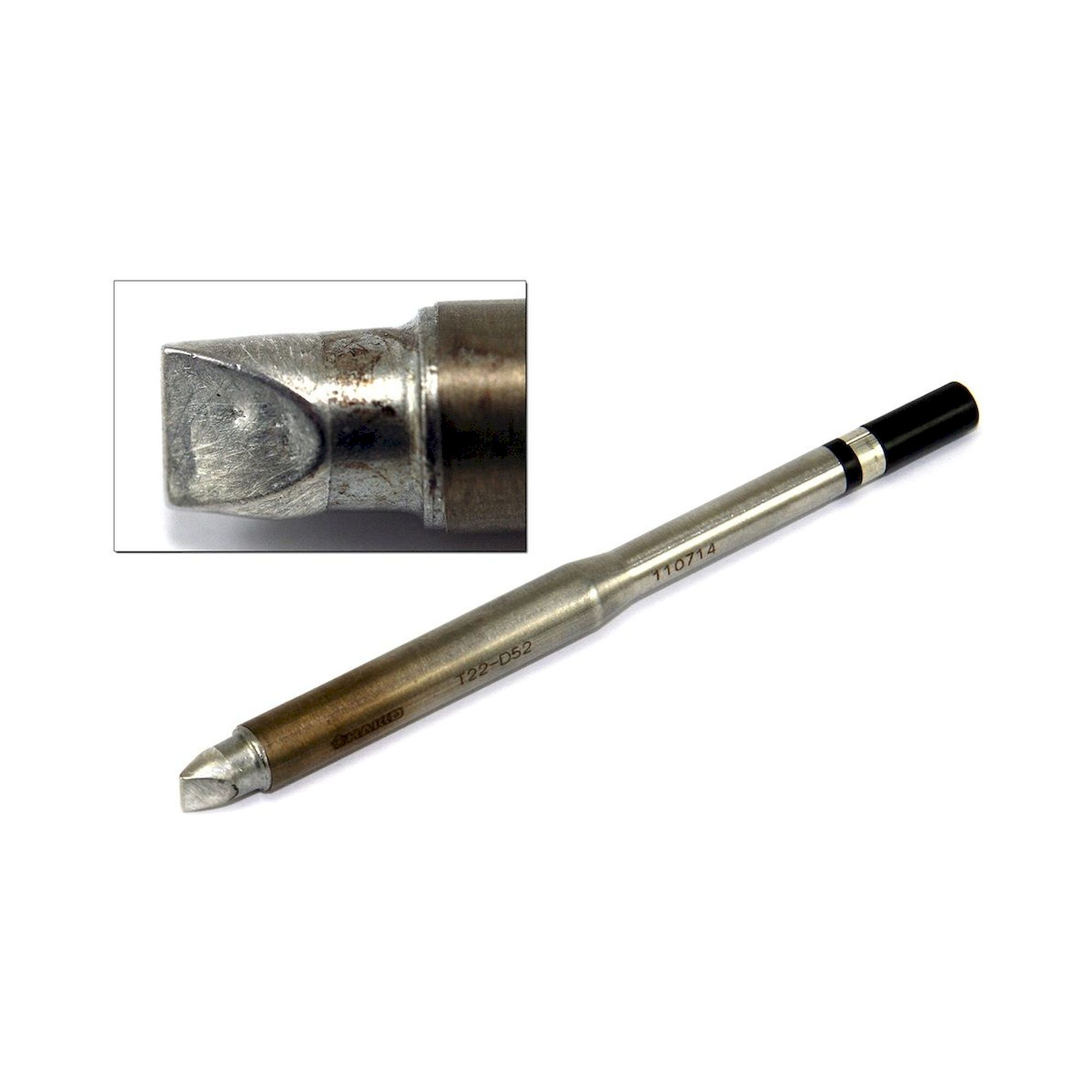

Chisel widths 0.8-5.2 mm - D08, D12, D16, D24, D32, D45, D52 covering a broad THT/SMD spectrum

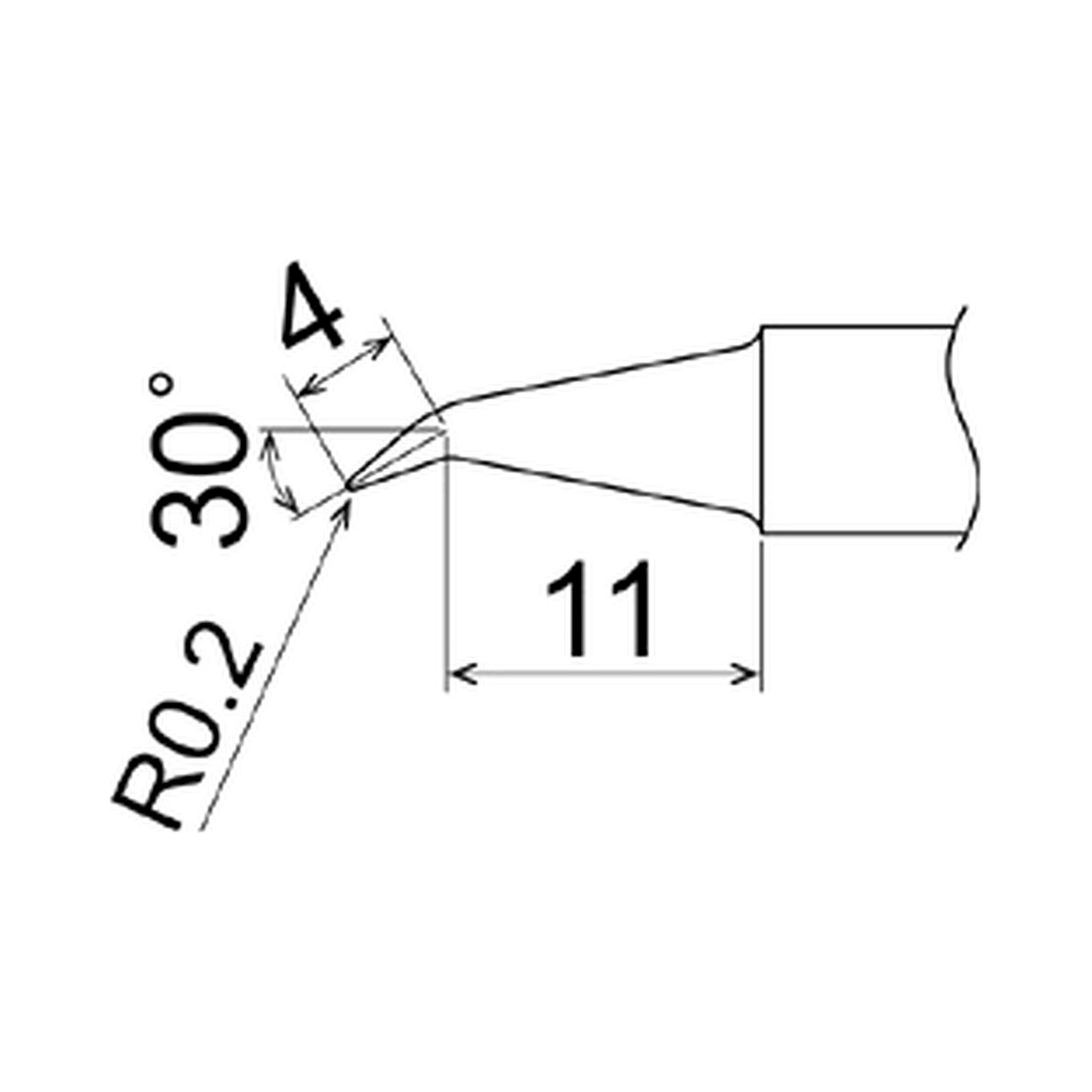

Fine tips J02 and JD08 - for micro-SMD and reflow touch-up with minimal heat input
Knife profile K - T22-K for drag soldering on densely populated QFP/SOP components
| Model | Profile | Application |
|---|---|---|

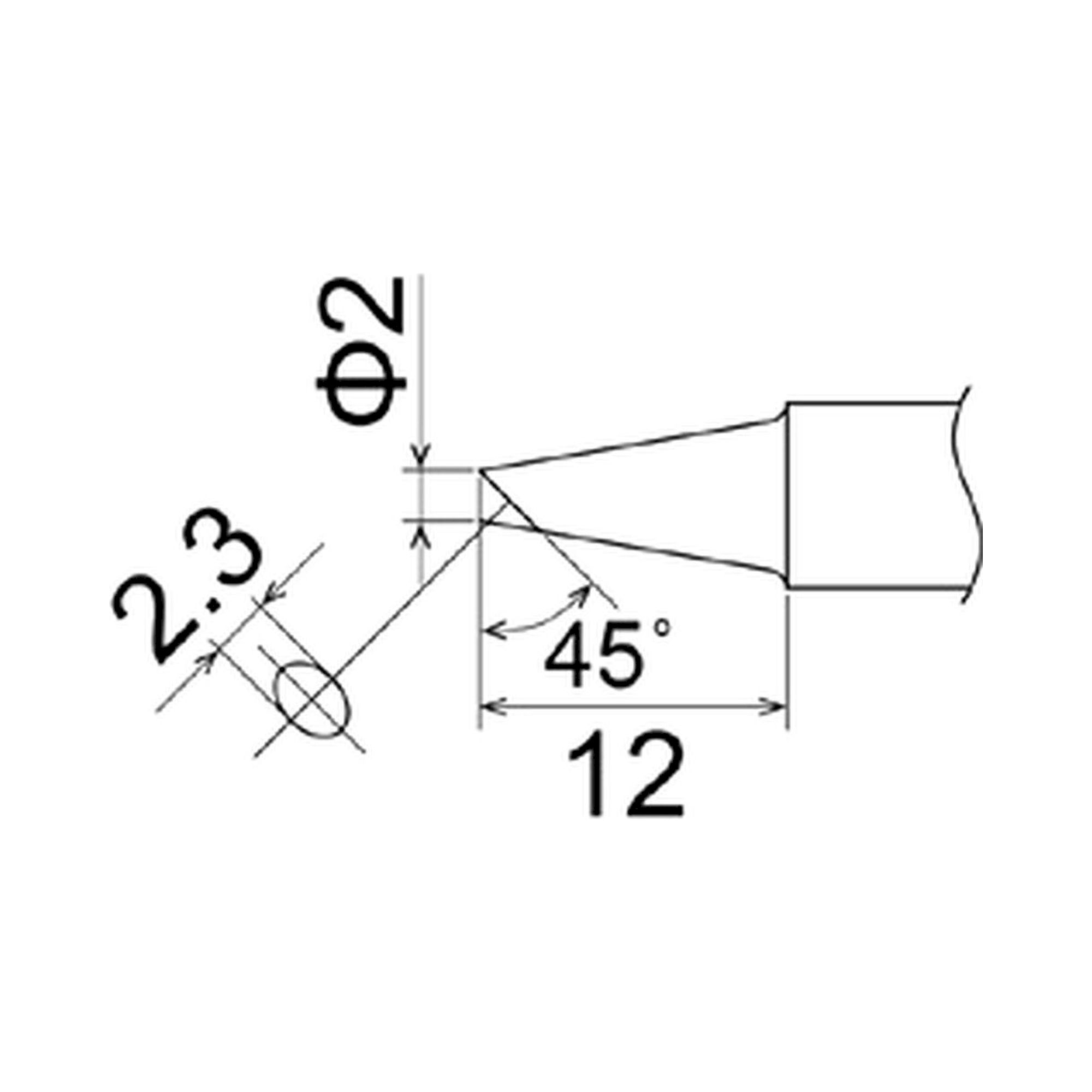

| T22-BC2 | 2BC chisel | Connector rows, broad soldering |

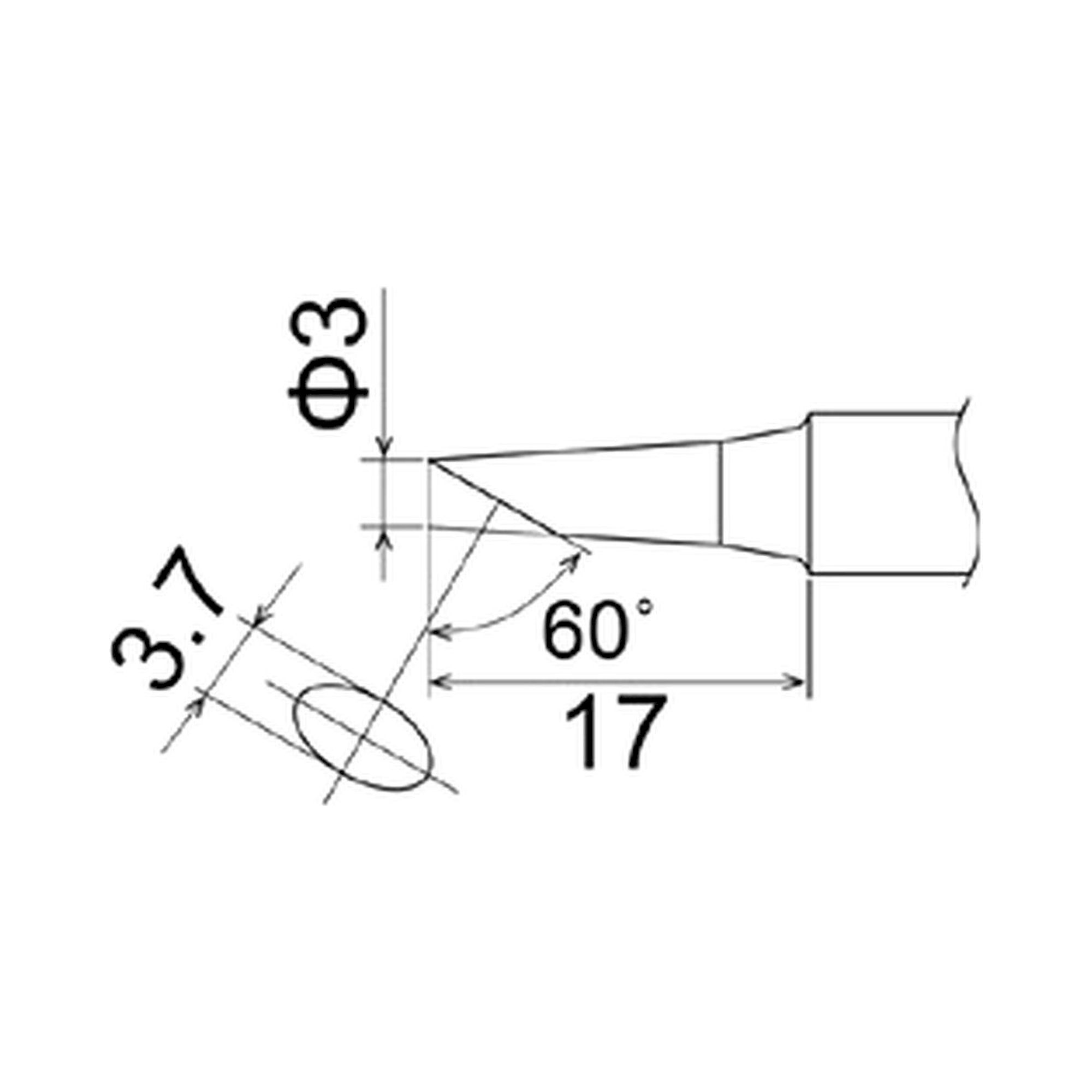

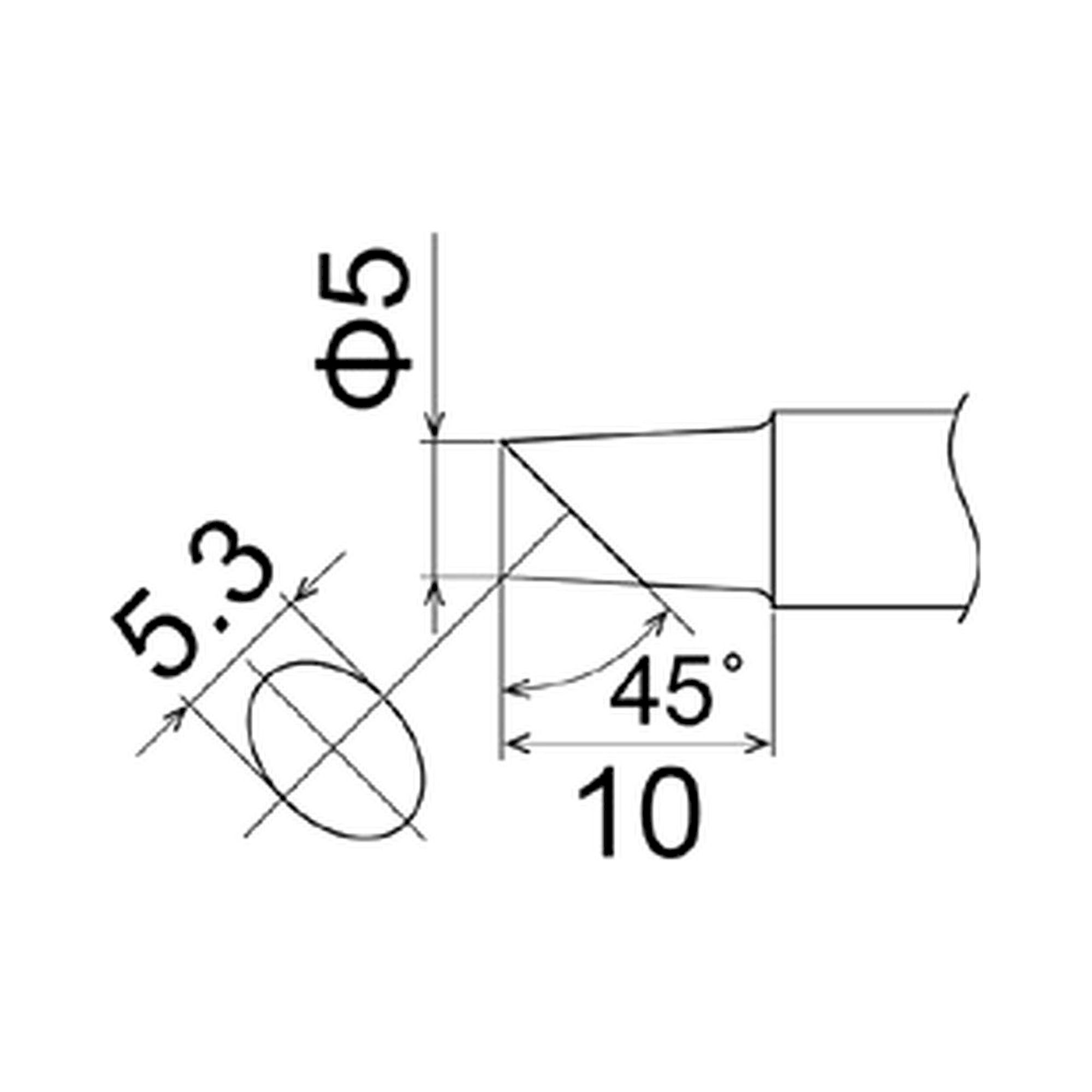

| T22-C3, C5, C6 | 3C/5C/6C chisel | Multi-track soldering |

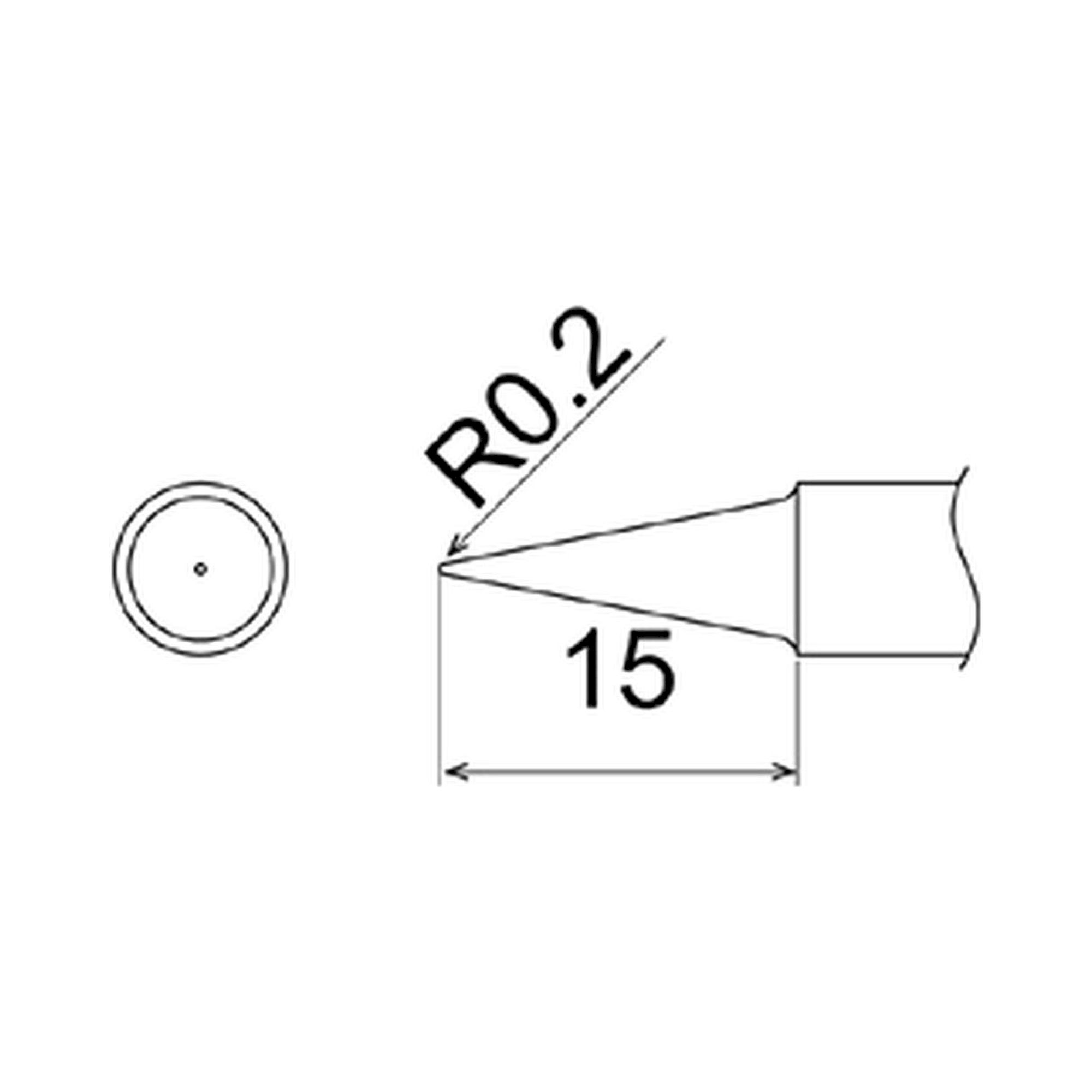

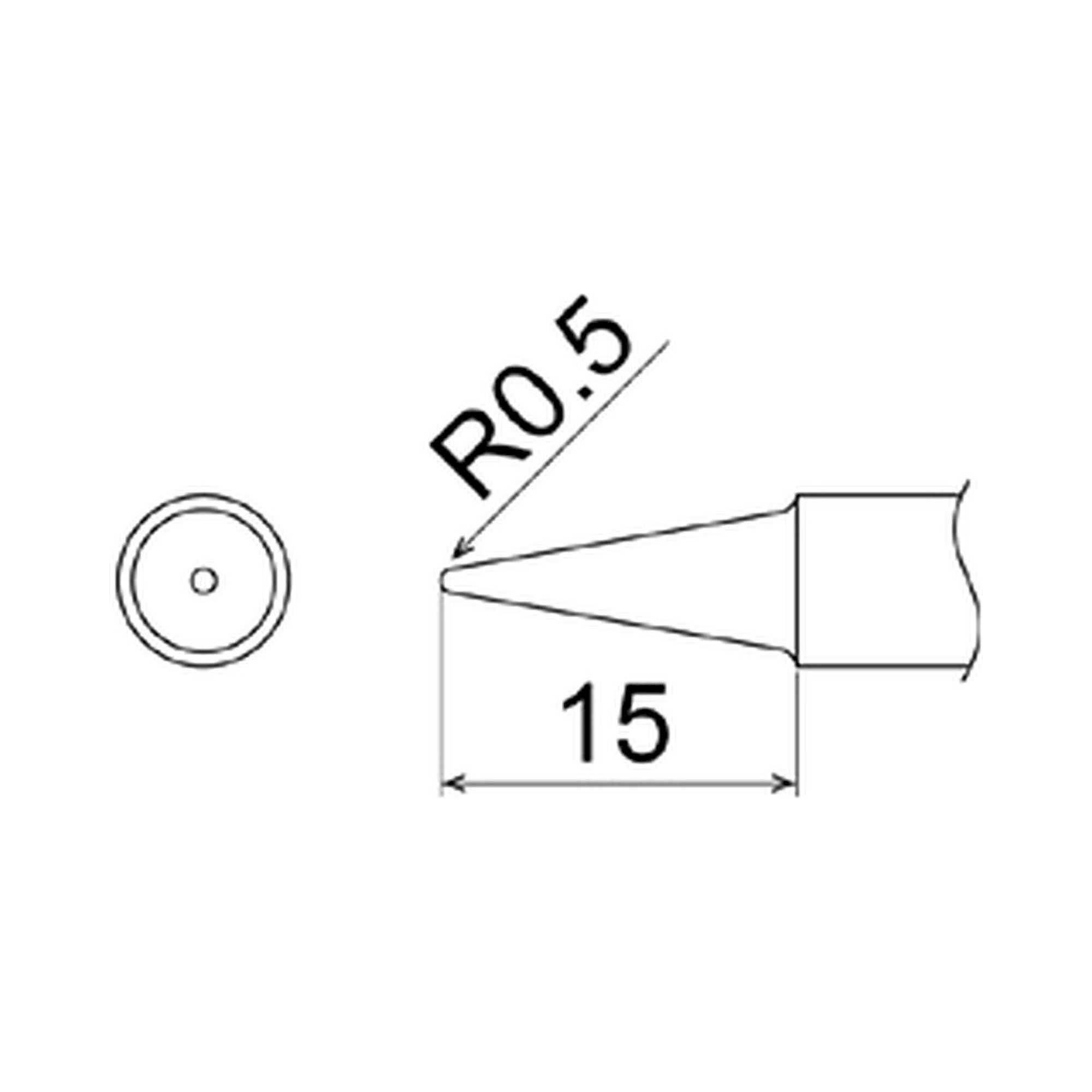

| T22-BL, 2BL | Flat chisel | Drag soldering SOP/SOIC |

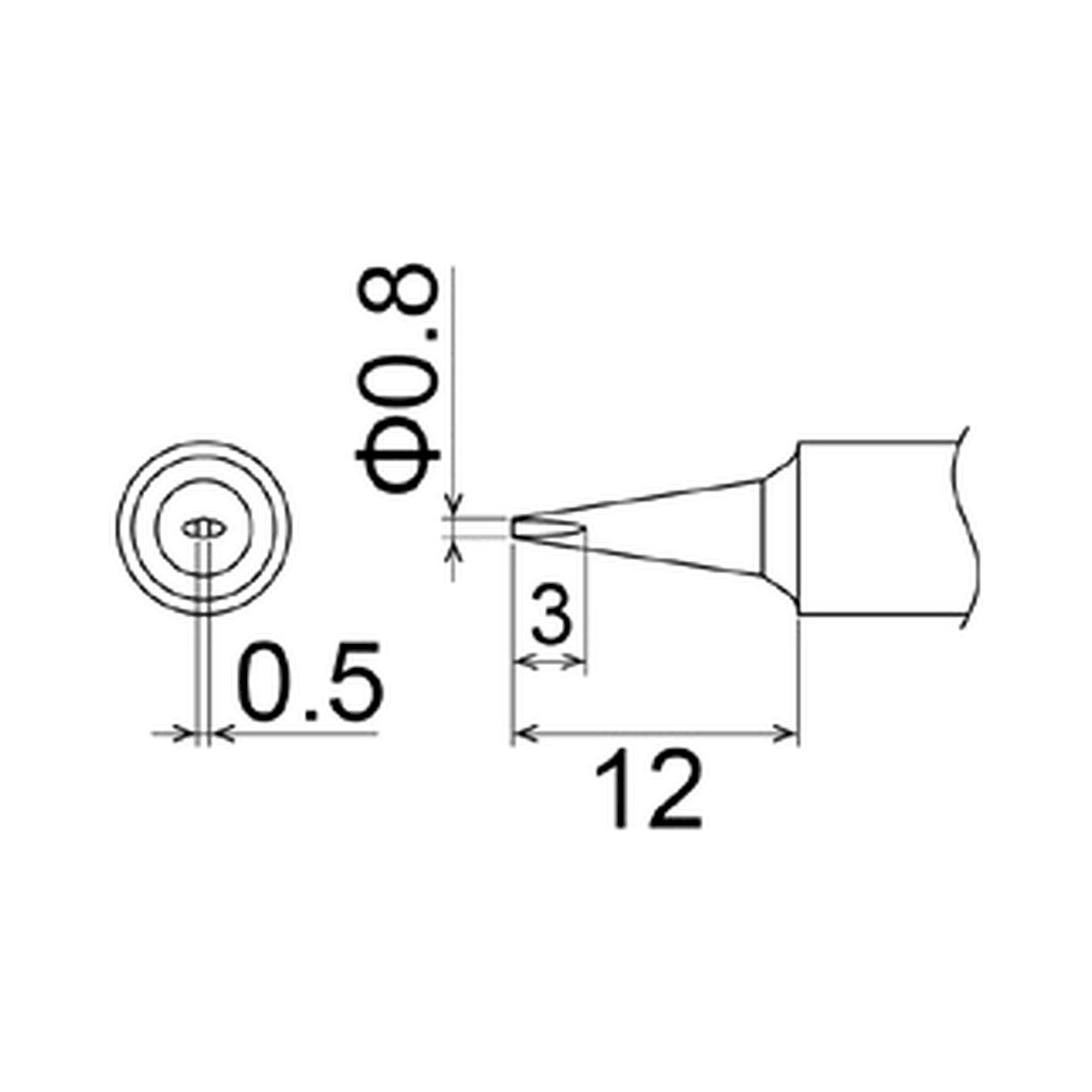

| T22-D08 | Chisel 0.8 mm | Fine-pitch SMD |

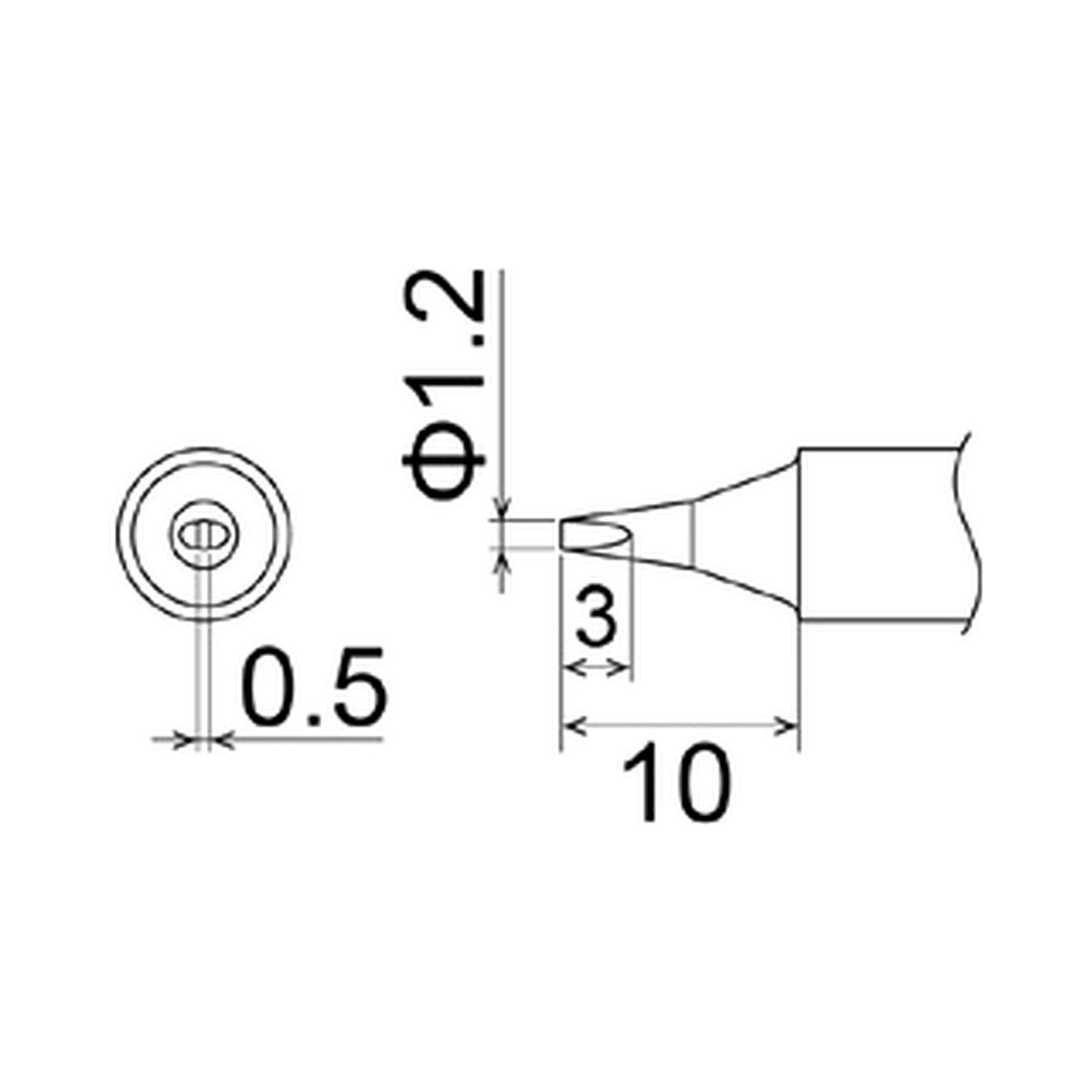

| T22-D12, D16 | Chisel 1.2/1.6 mm | Standard SMD/THT |

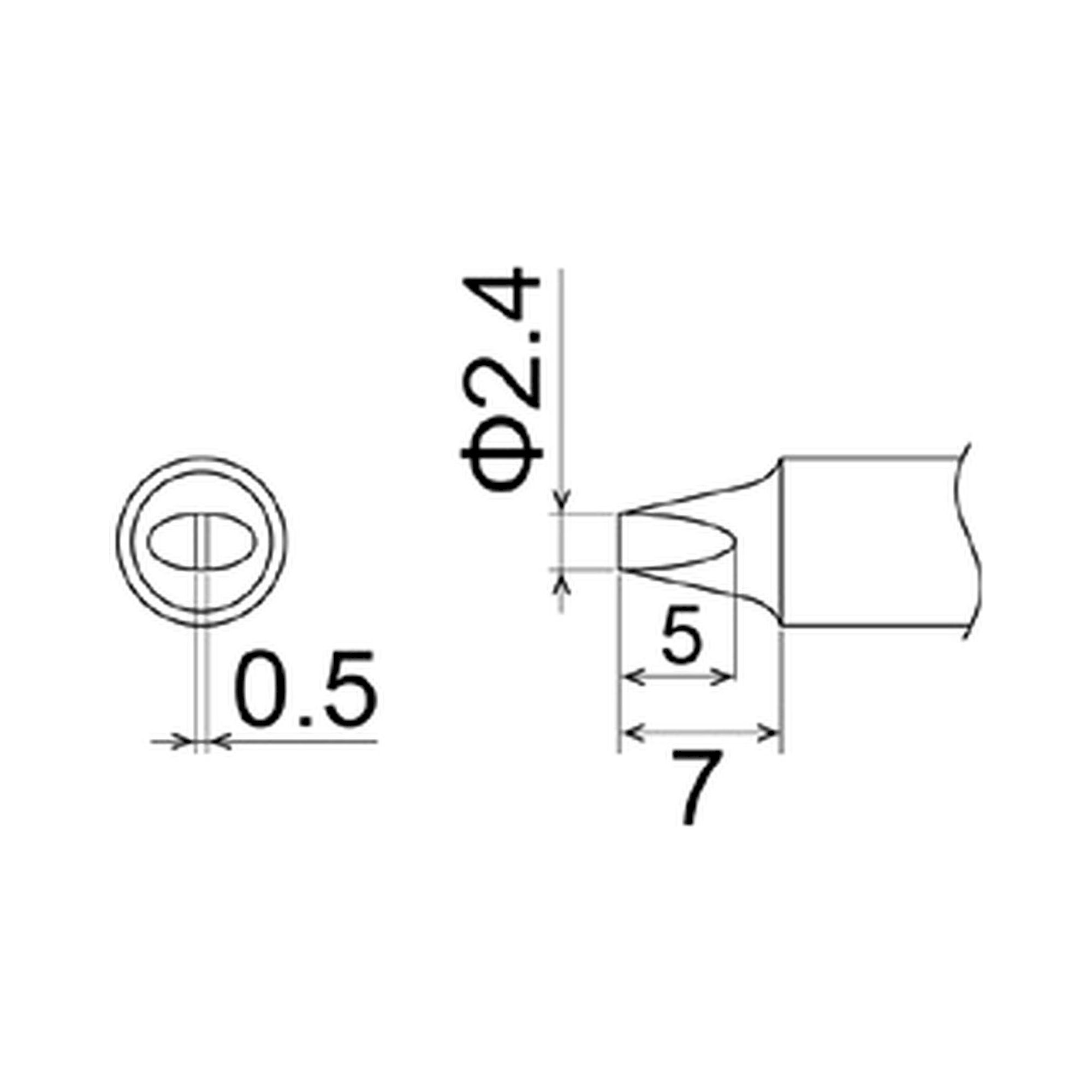

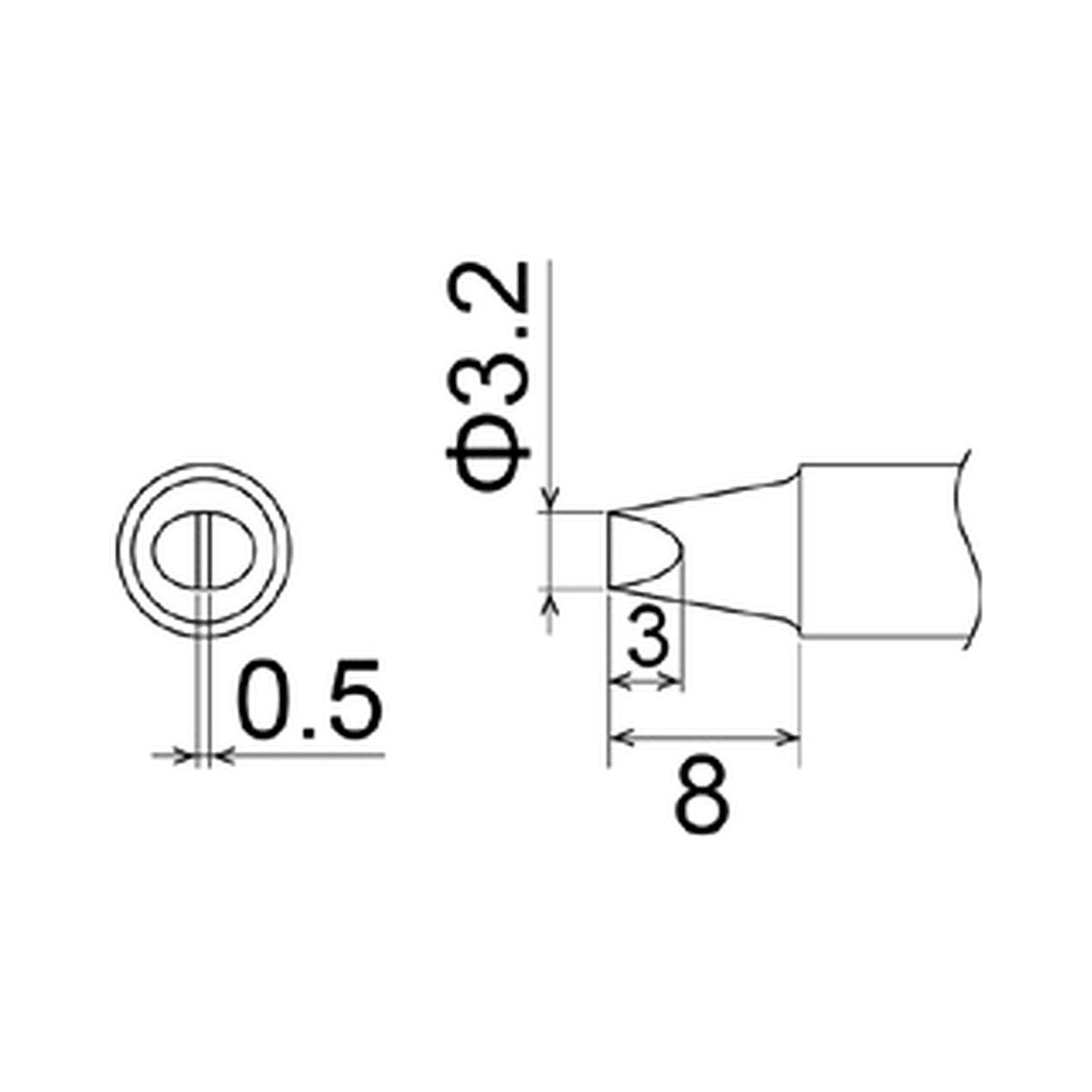

| T22-D24, D32 | Chisel 2.4/3.2 mm | THT and larger connectors |
| T22-D45, D52 | Chisel 4.5/5.2 mm | Large pads, power connectors |
| T22-J02 | 0.2 mm conical | Micro-SMD, rework |
| T22-JD08 | JD 0.8 mm | Fast single-pad soldering |

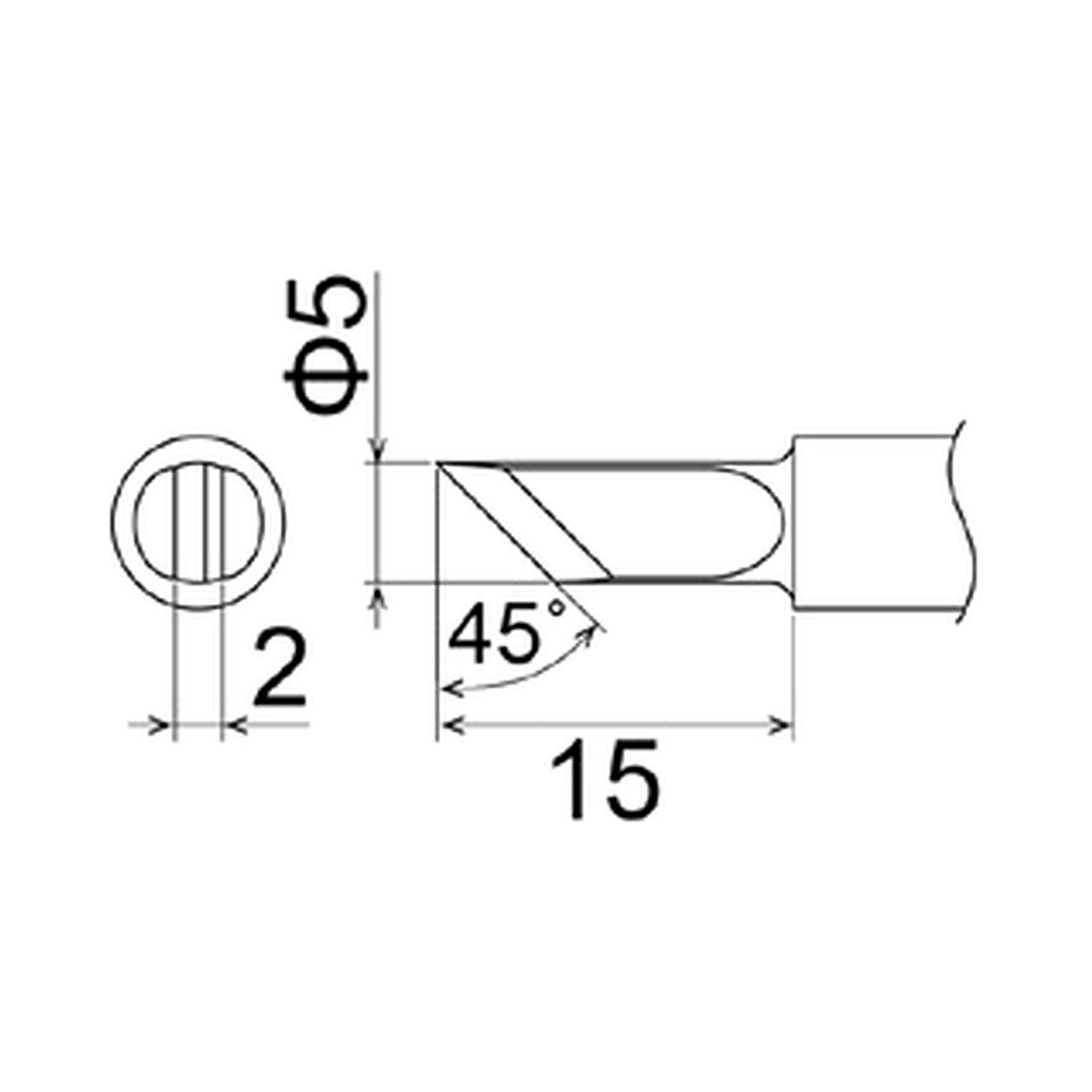

| T22-K | Knife profile | Drag soldering QFP/SOP |
Typical applications: Hand soldering on SMD and THT assemblies with the FX-838 station, drag soldering on QFP/SOP with BL/2BL and K profiles, micro-rework with J02 and JD08, and series production with automatic thermal management through the Hakko composite heating system.
