Soldering tips CT6

CT6 Weller soldering tips are precision-engineered chisel-form soldering iron tips designed for professional electronics manufacturing, PCB assembly, and precision repair applications. These tips operate at controlled temperatures of 370°C and 425°C with precise width dimensions ranging from 3.2mm to 7mm, making them suitable for component-level soldering in telecommunications equipment, automotive electronics, and industrial control systems. The CT6 series features MAGNASTAT temperature control technology that maintains consistent thermal performance during extended production runs, ensuring reliable joint formation in high-volume manufacturing environments.

CT6 Weller tip selection depends on three critical parameters: operating temperature rating, tip width, and thermal mass requirements for your specific application. The C-series tips like 4CT6C7-1 operate at 370°C with 3.2mm width for delicate SMD work, while D-series tips such as 4CT6D8-1 provide 425°C temperature with 5mm width for larger thermal mass connections. E-series variants like 4CT6E8-1 deliver maximum 425°C performance with 7mm width for heavy-duty applications requiring substantial heat transfer. Temperature selection follows IPC-J-STD-001 guidelines where 370°C suits lead-free SAC305 alloys and 425°C handles high-temperature applications with silver-bearing solders.

CT6 Weller soldering tips comply with IPC-J-STD-001 Class 3 requirements for high-reliability electronic assemblies and meet RoHS directive 2011/65/EU for lead-free manufacturing processes. The tips are manufactured to ISO 9001 quality standards ensuring consistent thermal performance and dimensional accuracy across production batches. MAGNASTAT temperature control technology incorporated in CT6 tips provides ±6°C temperature stability per IEC 61191 surface mount assembly standards. ESD-safe variants feature integrated electrostatic discharge protection meeting IEC 61340-5-1 requirements for sensitive component handling in Class 1 EPA environments.

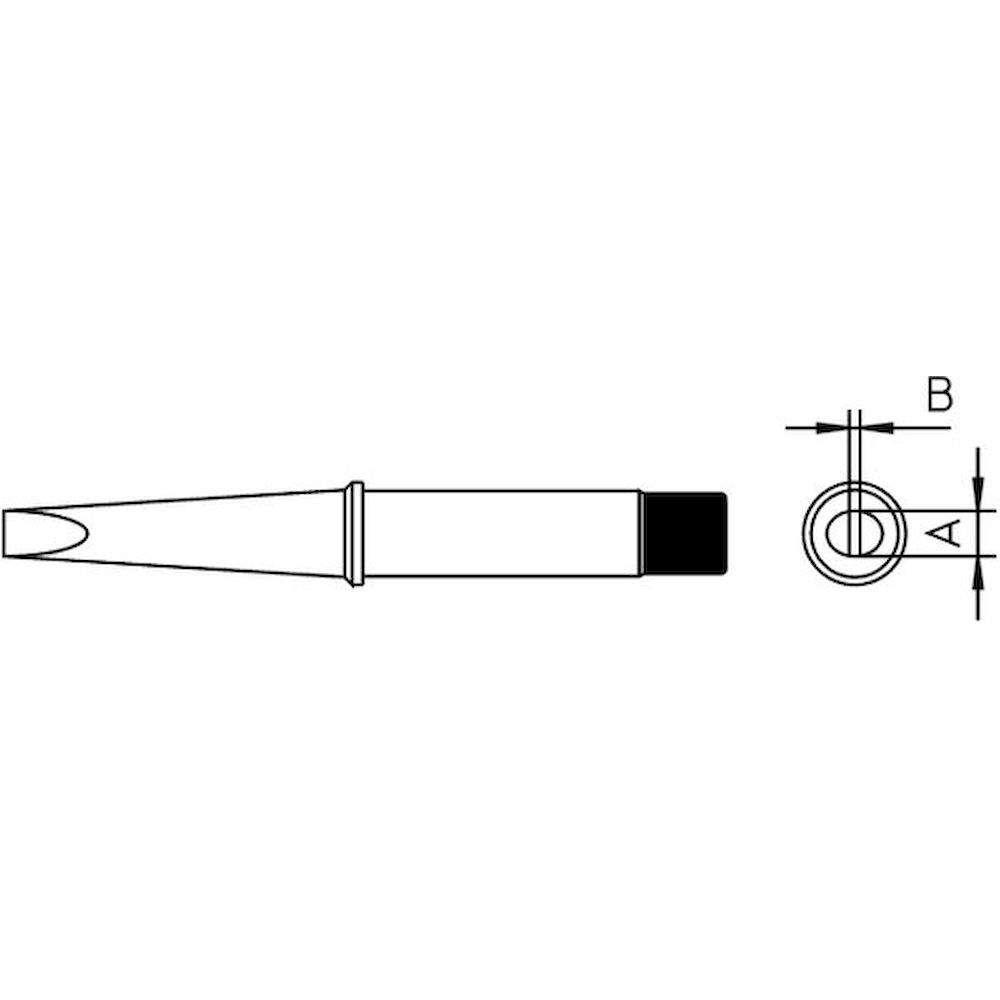

CT6 tip variants differ primarily in operating temperature and chisel width specifications optimized for distinct soldering applications. C-series tips (C7 at 370°C, C8 at 425°C) feature 3.2mm width for precision work on 0603 and 0805 SMD components, while D-series variants (D7 at 370°C, D8 at 425°C) provide 5mm width for standard through-hole and larger SMD applications. E-series tips (E7 at 370°C, E8 at 425°C) deliver maximum 7mm chisel width for high thermal mass connections including ground planes and large connector assemblies. The numerical suffix indicates temperature rating where 7-series operates at 370°C for standard applications and 8-series provides 425°C for challenging thermal environments.

CT6 Weller soldering tips require compatible MAGNASTAT W101H soldering stations with proprietary CT6 tip holder assemblies that ensure proper thermal coupling and temperature sensing. Installation involves inserting the tip into the heated barrel assembly with quarter-turn locking mechanism, allowing thermal equilibrium within 30 seconds of insertion. The tips feature integrated temperature sensor elements that communicate directly with MAGNASTAT control circuitry, providing closed-loop temperature regulation with ±6°C accuracy. System compatibility extends to Weller's digital soldering stations supporting CT6 interface protocol, enabling programmable temperature profiles and real-time thermal monitoring for process documentation per ISO 13485 medical device manufacturing requirements.

CT6 Weller soldering tips operate safely within temperature ranges of 370°C to 425°C with integrated thermal protection preventing overheating beyond 450°C maximum threshold. The tips feature IP20 ingress protection suitable for standard electronics manufacturing environments and comply with EN 60335-2-45 safety standards for handheld heating tools. ESD-safe variants provide electrostatic discharge protection with resistance values below 10^12 ohms per IEC 61340-5-1, ensuring safe handling of CMOS and other static-sensitive components. Thermal shock resistance testing per DIN EN 60068-2-14 confirms reliable performance through 10,000+ heating cycles from ambient to operating temperature without degradation of thermal transfer characteristics.

CT6 Weller soldering tips require cleaning every 4-8 hours of continuous operation using brass wool or approved tip cleaning compounds to maintain optimal heat transfer and prevent oxide buildup. Service life typically ranges from 200-500 operating hours depending on temperature settings, solder alloy composition, and cleaning frequency, with tips showing wear indicators when thermal response time exceeds 15 seconds to reach set temperature. Monthly inspection should verify tip geometry remains within ±0.1mm of original dimensions and thermal coupling integrity through resistance measurement below 2 ohms between tip and sensor elements. Replacement becomes necessary when temperature recovery time exceeds 20 seconds after thermal load application or when visible pitting and erosion affect soldering precision per IPC-A-610 Class 3 acceptance criteria.
