What are Weller NT soldering tips and what are their primary industrial applications?

Weller NT soldering tips are precision copper-core soldering iron tips designed for high-temperature electronic assembly and repair applications in electronics manufacturing, telecommunications equipment servicing, and printed circuit board rework. These tips feature superior thermal conductivity for efficient heat transfer and are engineered with chisel geometries ranging from 1.6mm to 4.0mm widths to accommodate fine-pitch surface mount components and through-hole soldering. Electronics technicians, repair specialists, and production line operators use NT series tips for applications requiring precise temperature control and minimal thermal stress on sensitive semiconductor components.

What are the key technical selection criteria for Weller NT soldering tips?

Weller NT soldering tip selection depends on three critical parameters: tip width ranging from 1.6mm to 4.0mm for component size compatibility, tip thickness from 0.4mm to 0.8mm for thermal mass requirements, and tip length from 7.4mm to 9.5mm for access clearance. The NTD variant offers maximum thermal capacity with 4.0mm width and 0.8mm thickness for high-power joints, while NT6 and NTA provide 1.6mm width with 0.4mm thickness for precision work on fine-pitch components. Tip geometry selection must match the joint size and thermal requirements, with bent configurations like NTAX offering 30-degree angles for improved access in confined spaces.

What international standards and certifications apply to Weller NT soldering tips?

Weller NT soldering tips comply with IEC 60335-2-45 safety requirements for hand-held motor-operated electric tools and IPC-7711/7721 standards for electronic assembly and rework procedures. The tips meet RoHS directive compliance under EN 50581 for restricted substance content and are manufactured according to ISO 9001 quality management systems. Temperature accuracy and thermal performance characteristics align with IPC-2221 generic standard for printed board design, ensuring consistent soldering results across various electronic assembly applications. These certifications guarantee compatibility with regulated electronics manufacturing environments and traceability requirements in aerospace and medical device production.

What are the differences between the main Weller NT soldering tip variants available?

The Weller NT series offers distinct variants optimized for specific soldering applications: NTD features maximum thermal mass with 4.0mm width and 0.8mm thickness for heavy-duty joints and ground plane connections, while NT6 and NTA both provide 1.6mm width with 0.4mm thickness but differ in length at 7.4mm versus 9.5mm respectively for varying access requirements. The NTAX variant incorporates a 30-degree bend angle with 1.6mm width for improved maneuverability around tall components and in confined PCB areas. All variants maintain chisel-shaped geometry for optimal heat transfer and joint formation, with tip selection primarily driven by component size, thermal requirements, and physical access constraints.

What are the installation requirements and system compatibility for Weller NT soldering tips?

Weller NT soldering tips require compatible Weller soldering stations with NT-series tip holders and operate at temperatures between 150°C and 450°C depending on application requirements. Installation involves simple push-fit connection into the heating element assembly without tools, with proper seating indicated by secure mechanical retention and optimal thermal contact. The tips are compatible with Weller temperature-controlled stations featuring closed-loop feedback systems and require initial tinning with 60/40 or lead-free solder alloys before first use. Proper installation ensures thermal coupling efficiency exceeding 85% and prevents tip oxidation during extended operating periods in electronics assembly environments.

What are the safety ratings and operating parameters for Weller NT soldering tips?

Weller NT soldering tips operate safely at maximum temperatures up to 450°C with thermal shock resistance meeting IEC 60068-2-14 test procedures and maintain structural integrity under rapid temperature cycling between ambient and working temperatures. The copper-iron construction provides oxidation resistance during continuous operation and features protective plating that maintains solderability after 500+ thermal cycles. Operating voltage compatibility ranges from 12V to 24V DC depending on the host soldering station, with tip-to-ground resistance below 2 ohms for ESD-safe operation in accordance with IEC 61340-5-1 standards. Thermal recovery time typically reaches working temperature within 30 seconds from ambient conditions.

What maintenance schedule and service life expectations apply to Weller NT soldering tips?

Weller NT soldering tips require daily cleaning with damp sponge or brass wool during use and weekly tip tinning with fresh solder to prevent oxidation and maintain optimal heat transfer characteristics. Service life typically ranges from 200 to 500 operating hours depending on temperature settings, solder alloy compatibility, and cleaning frequency, with tip replacement indicated by reduced thermal performance or visible erosion exceeding 10% of original dimensions. Monthly inspection should verify tip geometry integrity and plating condition, while quarterly calibration of the host soldering station ensures consistent temperature accuracy within ±5°C. Proper maintenance extends tip life by 40% compared to neglected tips and maintains soldering quality throughout the service interval.

Soldering tips NT

Weller Soldering tips

Add to Wish List Add to Compare

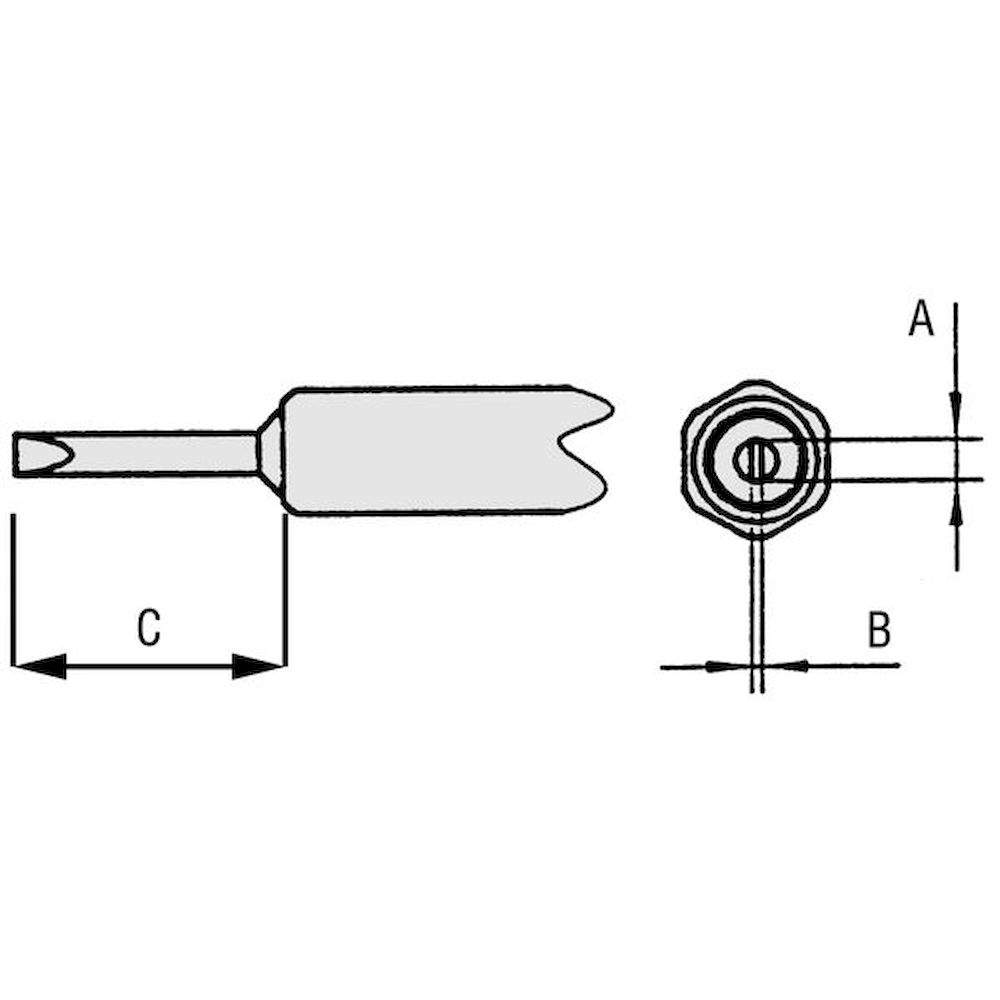

Weller NTD. Waver soldering tip NT-D Chisel shape, width 4.0 mm, thickness 0.8 mm, length 8.6 mm
€16.35
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Weller NT6. Waver soldering tip Chisel shape, width 1.6 mm, thickness 0.4 mm, length 7.4 mm
€15.76
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

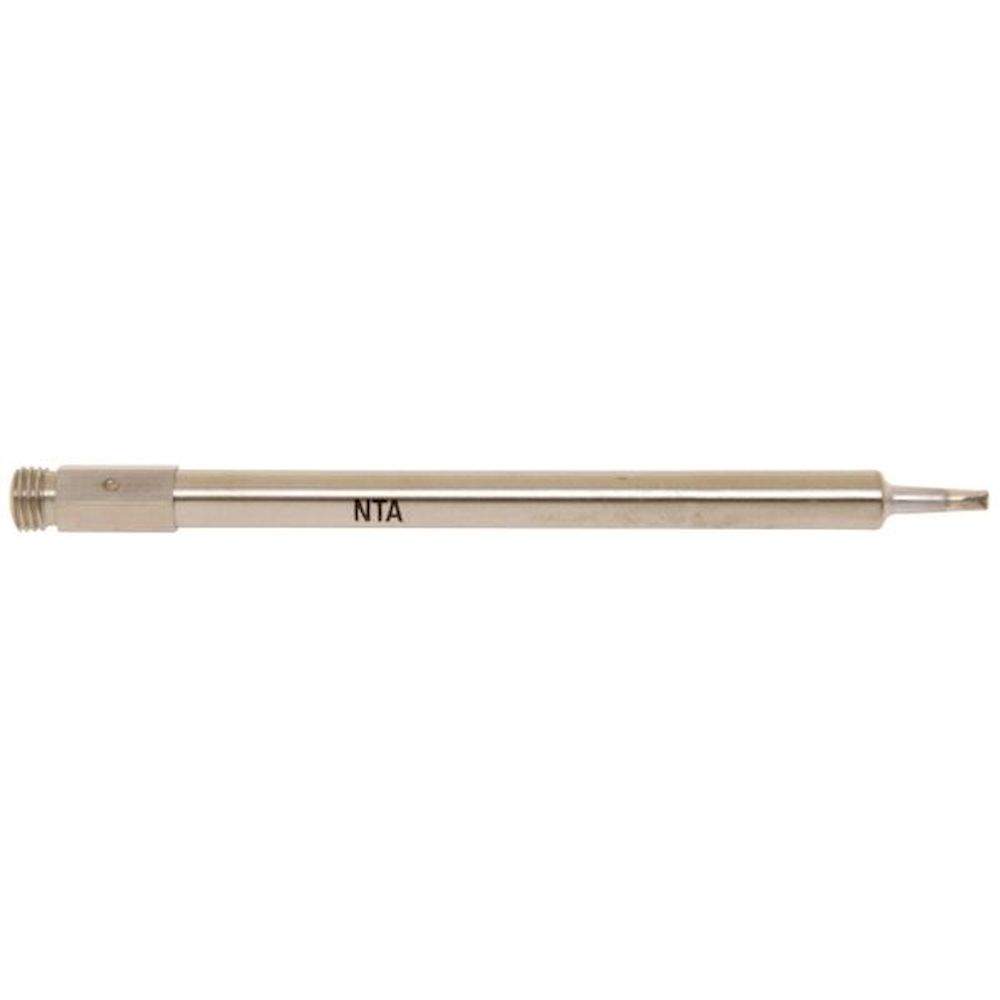

Weller NTA. Waver soldering tip NT-A Chisel shape, width 1.6 mm, thickness 0.4 mm, length 9.5 mm
€15.76
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

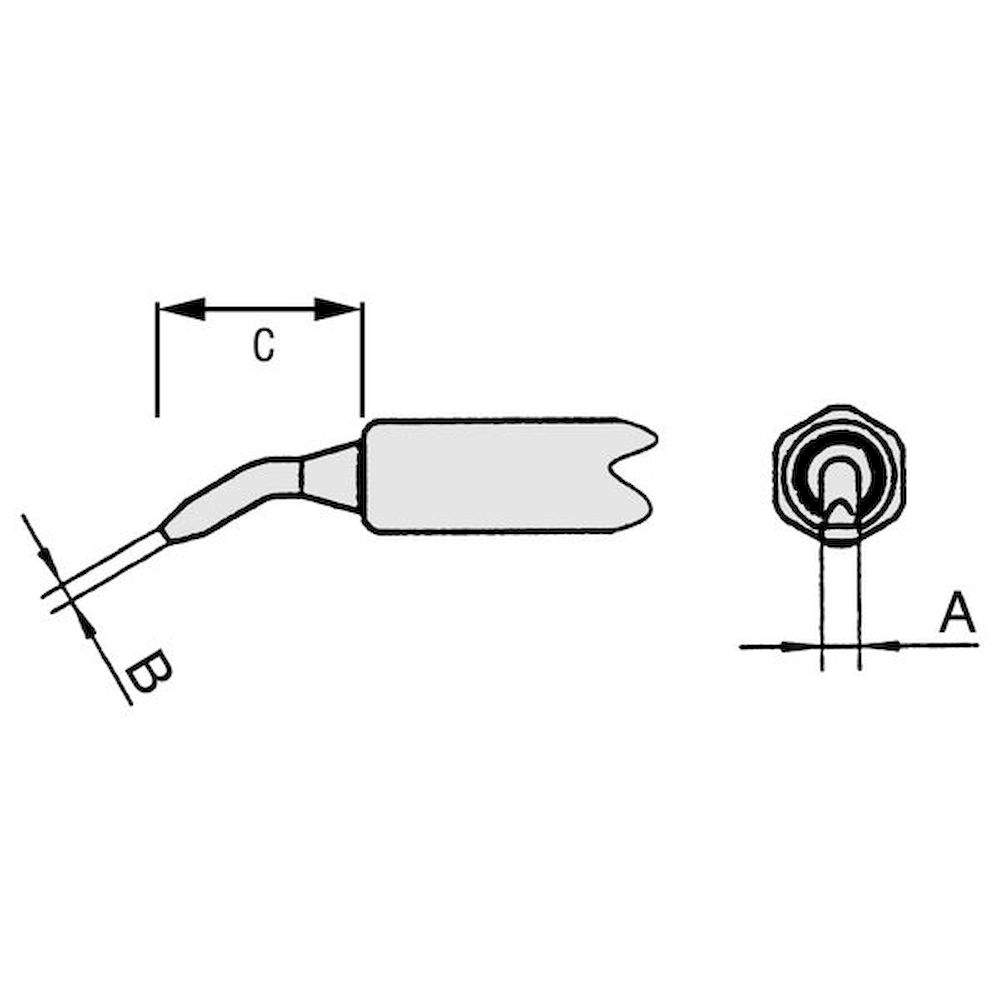

Weller NTAX. Waver soldering tip NT-AX, chisel shape bent 30°, 1, 6x0, 8 mm
€10.15
Excl. 19% VAT , excl. Shipping Cost

Weller NT soldering tips are precision-engineered for the Weller WTP 90 and compatible pencil-style stations, delivering tip temperatures stable to within ±2 °C across a working range of 50-450 °C. The iron-clad, chrome-nickel-coated copper core ensures thermal recovery times under 5 seconds at full load, while the bonded tip construction meets IEC 60900 creepage requirements for safe low-voltage soldering work.

esd.equipment stocks the complete NT tip series - conical, chisel, bevel, and micro geometries - as direct authorized Weller distributor, compliant with DIN EN 61340-5-1 ESD safety requirements for EPA-compatible tooling. All 4 available tip variants ship from warehouse stock with full RoHS and WEEE documentation.

Key technical advantages - NT Weller Soldering Tips at a glance

⚡ 50-450 °C working range - compatible with Weller WTP 90 pencil station

↕ ±2 °C temperature stability - precision thermocouple tip control

🛠 <5 s thermal recovery - copper core with iron-clad coating

⚙ 4 tip geometries - conical, chisel, bevel, and micro profiles

🛡 ESD-safe construction - DIN EN 61340-5-1 / IEC 61340-5-1 compliant

✓ RoHS & WEEE certified - lead-free solder compatible, authorized Weller stock

Typical application areas: Electronics assembly and rework (IPC-A-610, IPC J-STD-001), ESD-protected workstation soldering in EPA environments (IEC 61340-5-1, DIN EN 61340-5-2), precision SMT touch-up and through-hole soldering, medical device PCB assembly (ISO 13485), automotive electronics production (IATF 16949, VDA 6.3), laboratory and R&D prototyping requiring repeatable tip-temperature accuracy.

✓

Authorized Weller Distributor Genuine NT tips - direct factory sourcing, full manufacturer warranty

📦

In-Stock & Ready to Ship All 4 NT tip variants available from warehouse stock for same-day dispatch

🛡

ESD-Safe & Norm-Compliant IEC 61340-5-1, DIN EN 61340-5-2, RoHS, WEEE - documentation included
