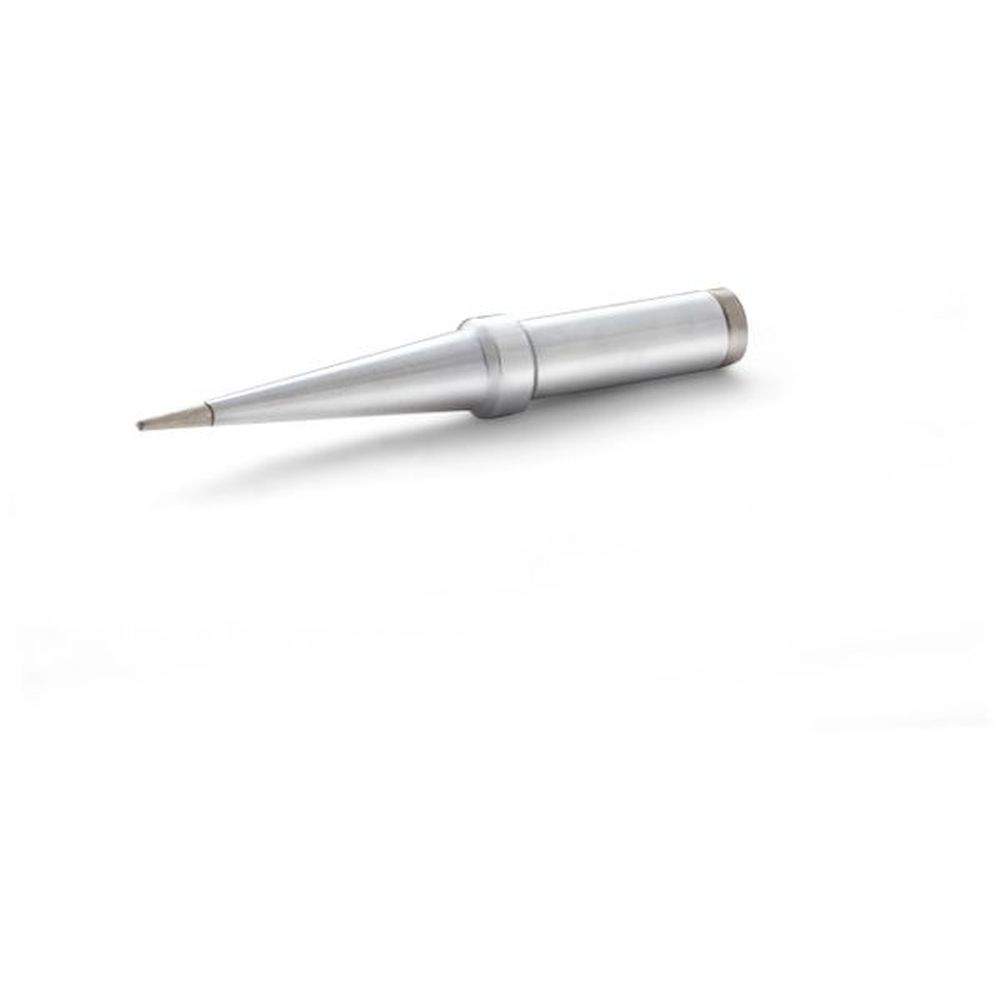

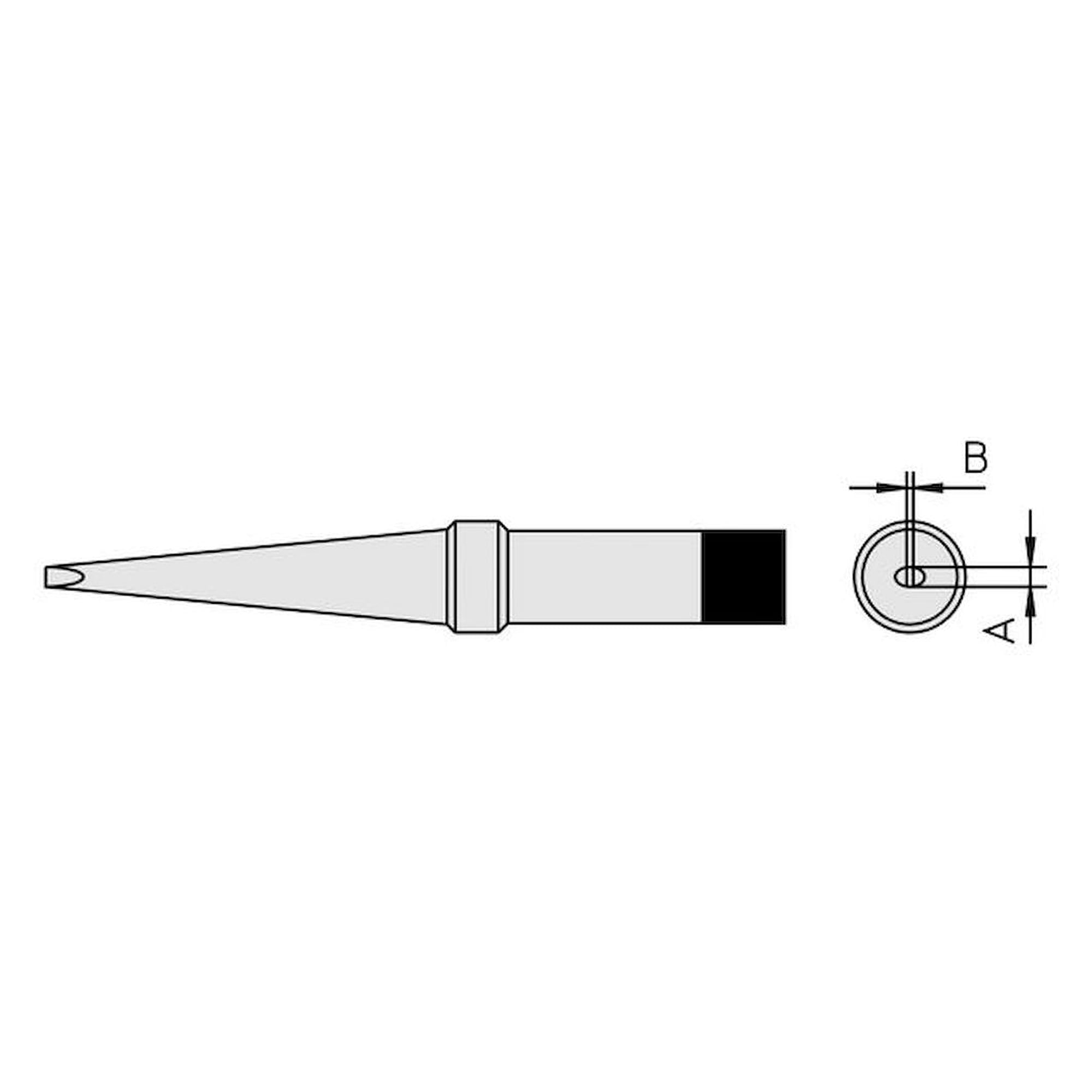

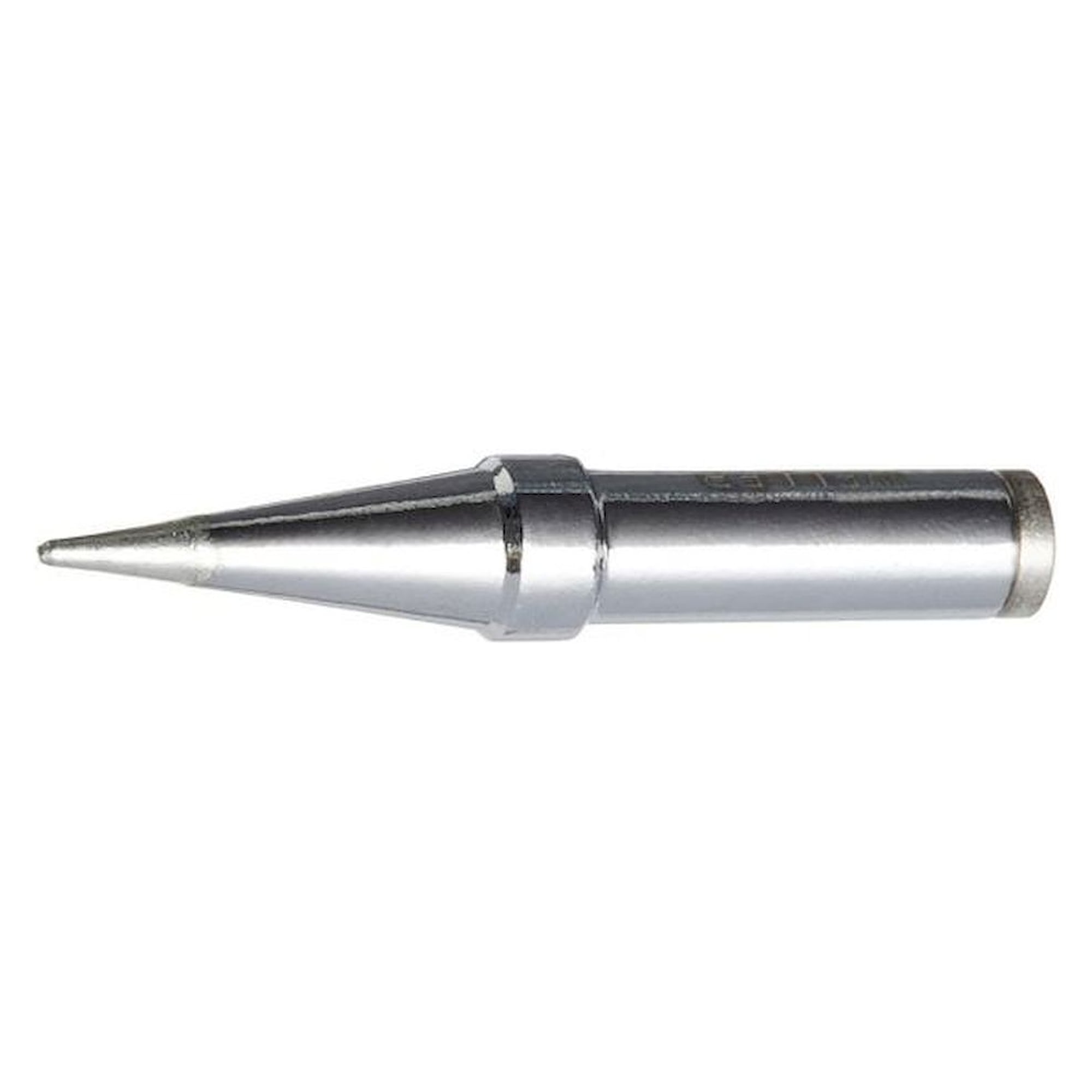

Weller PT soldering tips are the universal series for PT-compatible Weller soldering irons and, with 48 items, offer one of the widest shape selections in the Weller range. Chisel forms (PT-A to PT-E) run from 1.6x0.7 mm to 5.6x1.2 mm; bevelled round forms (PT-AA, PT-BB, PT-CC, PT-DD, PT-F) from 1.2 mm to 5 mm diameter; plus round tips (PT-CS). Each shape group is available in three temperature grades: type 7 (370 °C), type 8 (425 °C), and type 9 (480 °C). The 480 °C variants (PT-AA9, PT-B9, PT-C9, PT-D9, PT-E9) are designed for lead-free high-temperature processes and high-thermal-mass joints.
| Shape group | Shape | Width | Temperatures |
|---|---|---|---|

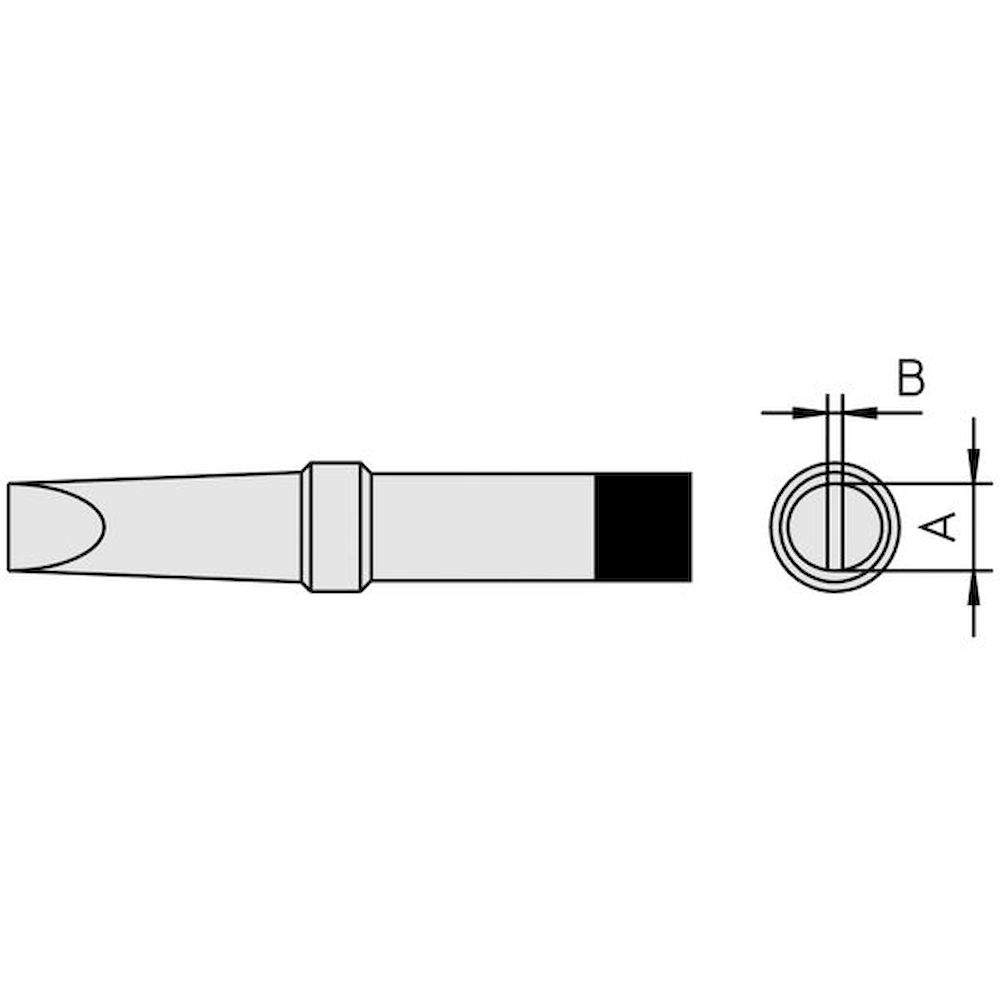

| PT-A / PT-R | Chisel | 1.6 x 0.7 mm | 370 / 425 °C |
| PT-AA | Round bevelled | 1.6 mm | 370 / 425 / 480 °C |
| PT-B | Chisel | 2.4 x 0.8 mm | 370 / 425 / 480 °C |
| PT-BB | Round bevelled | 2.4 mm | 370 / 425 °C |
| PT-C | Chisel | 3.2 x 0.8 mm | 370 / 425 / 480 °C |

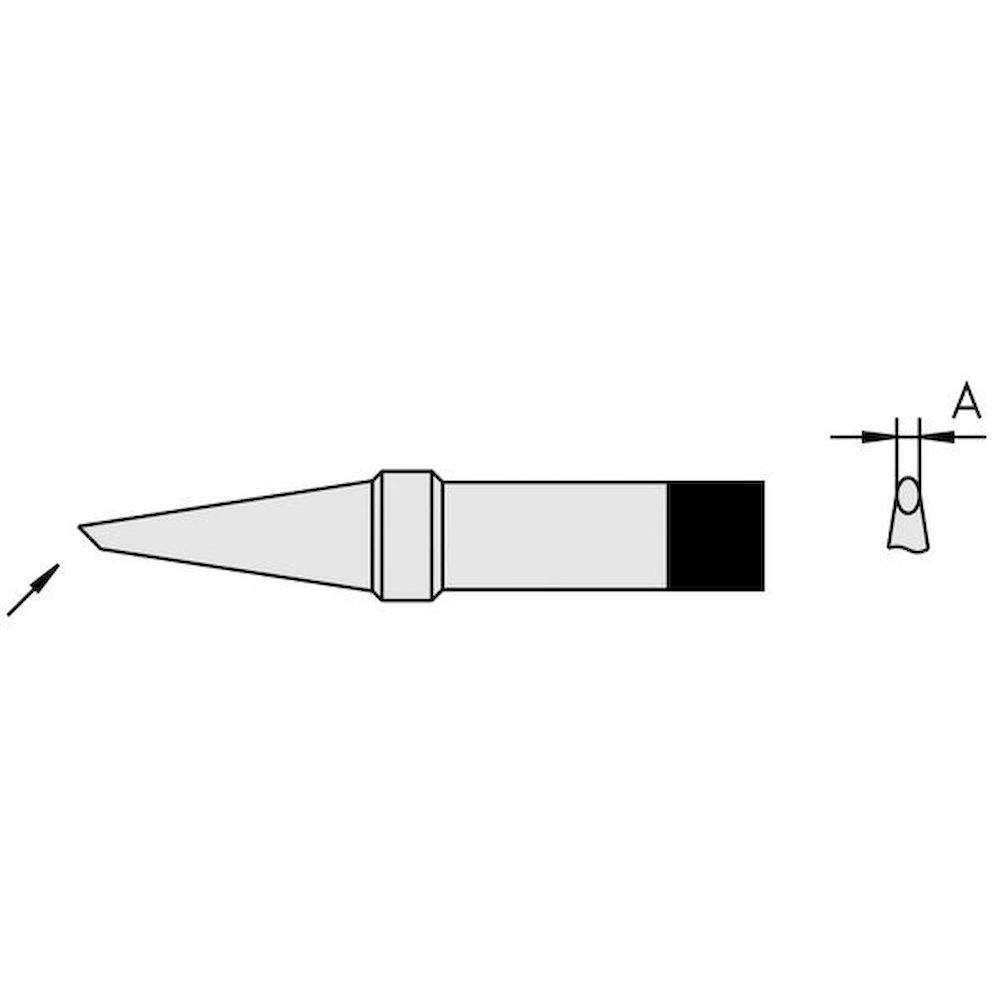

| PT-CC | Round bevelled | 3.2 mm | 370 / 425 / 480 °C |
| PT-CS | Round | 3.2 mm | 370 °C |
| PT-D | Chisel | 4.6 x 0.8 mm | 370 / 425 / 480 °C |
| PT-DD | Round bevelled | 5 mm | 370 / 425 °C |
| PT-E | Chisel | 5.6 x 1.2 mm | 425 / 480 °C |
| PT-F | Round bevelled | 1.2 mm | 370 / 425 °C |
Typical applications: Manual SMD and THT soldering of all difficulty levels with PT-compatible Weller stations, high-temperature lead-free soldering at 480 °C (PT type 9) on thermally massive assemblies, rework and repair with temperature selection by solder alloy, and versatile deployment planning across the full 1.2 mm to 5.6 mm shape range.
