Soldering tips LT
Soldering tips

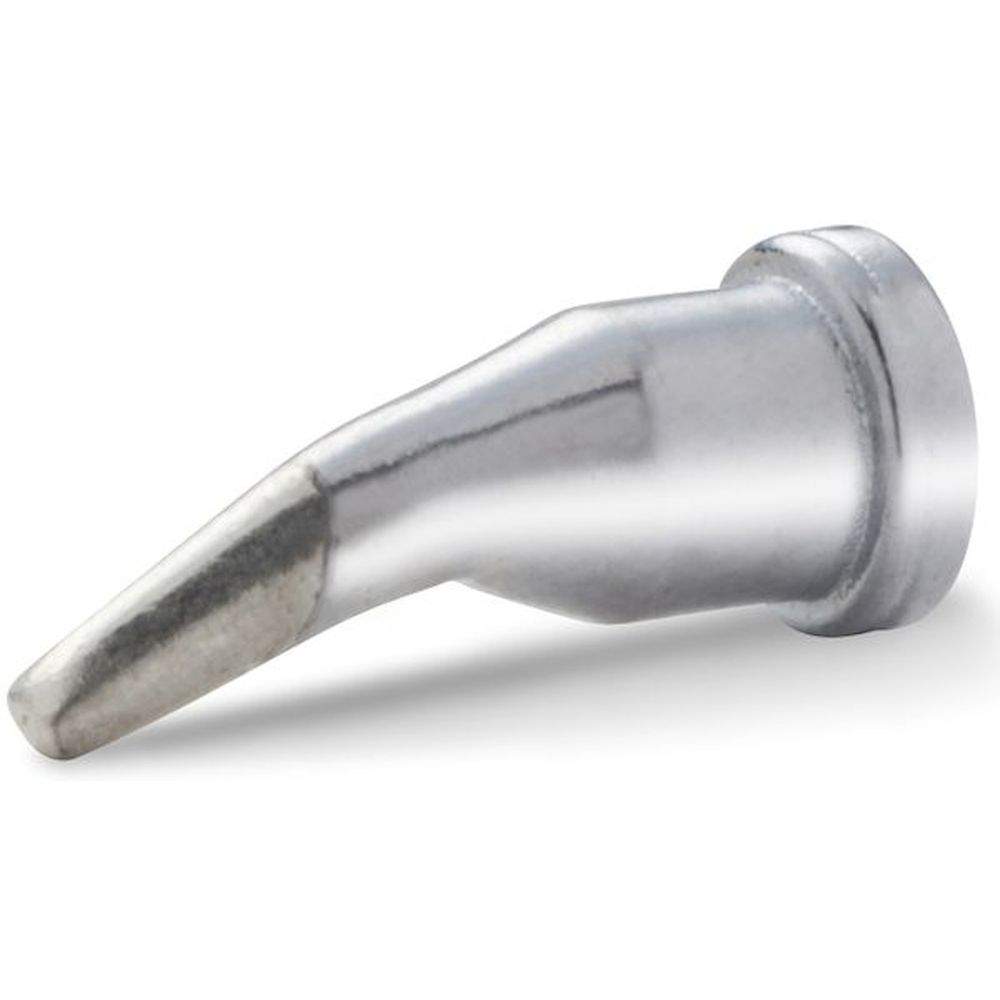

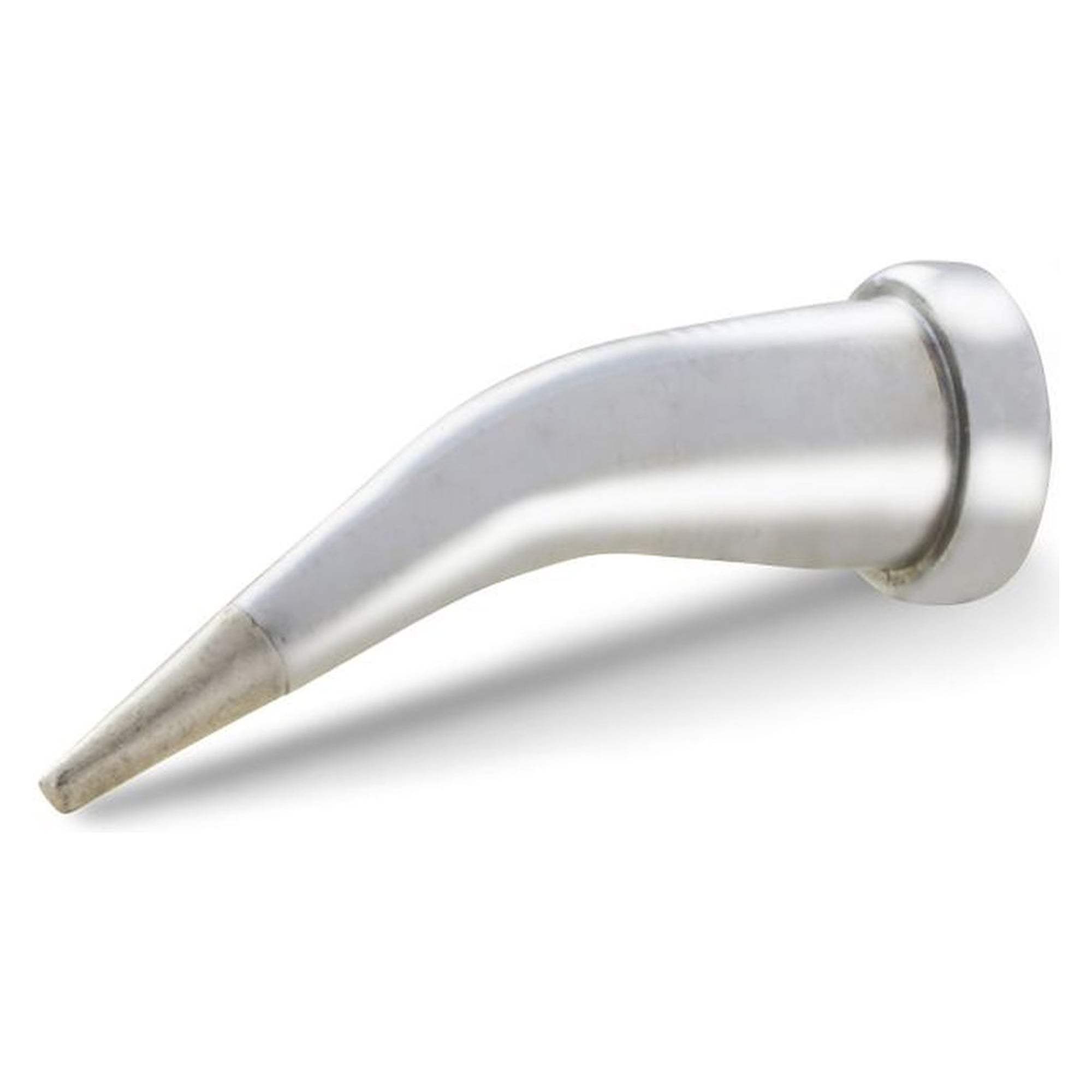

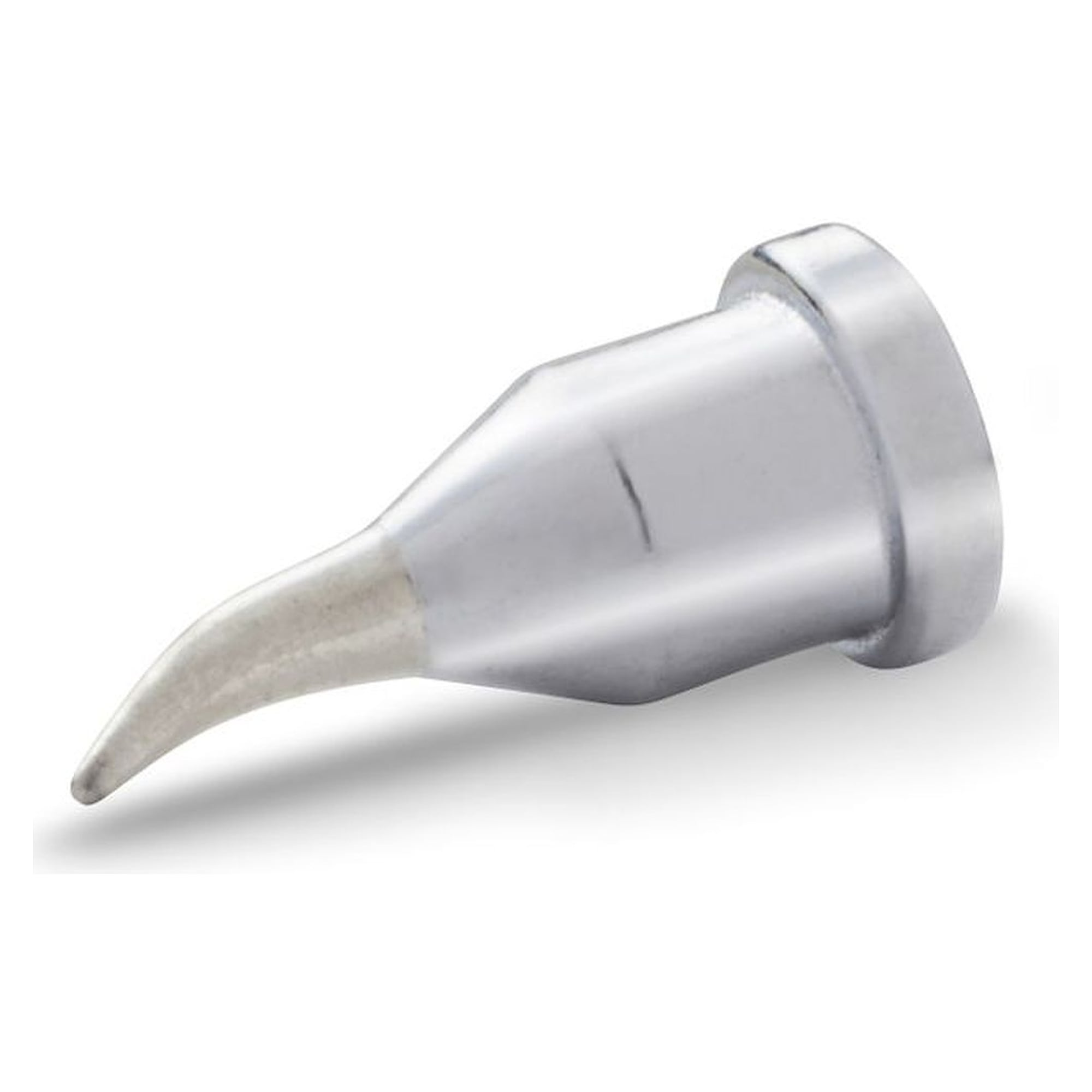

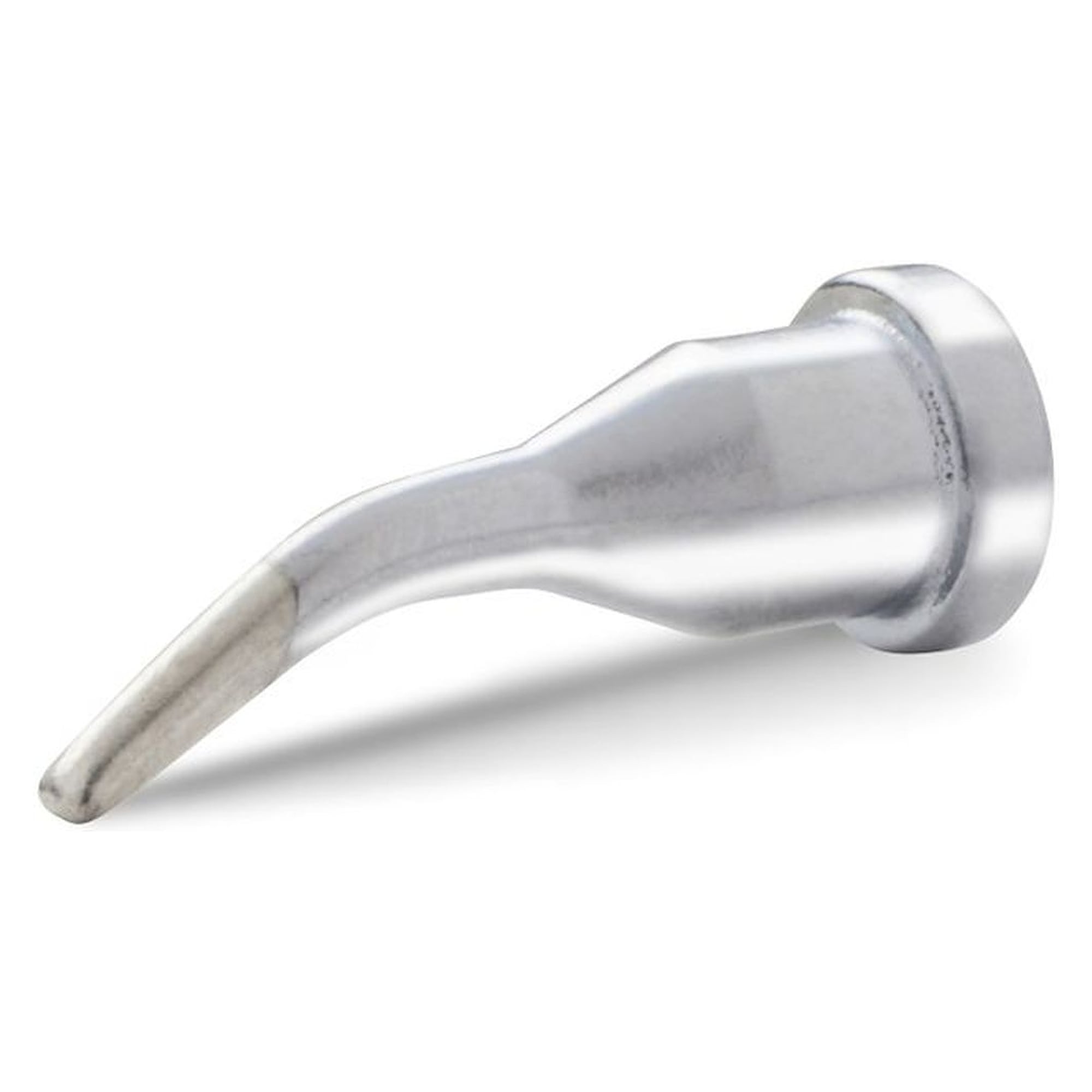

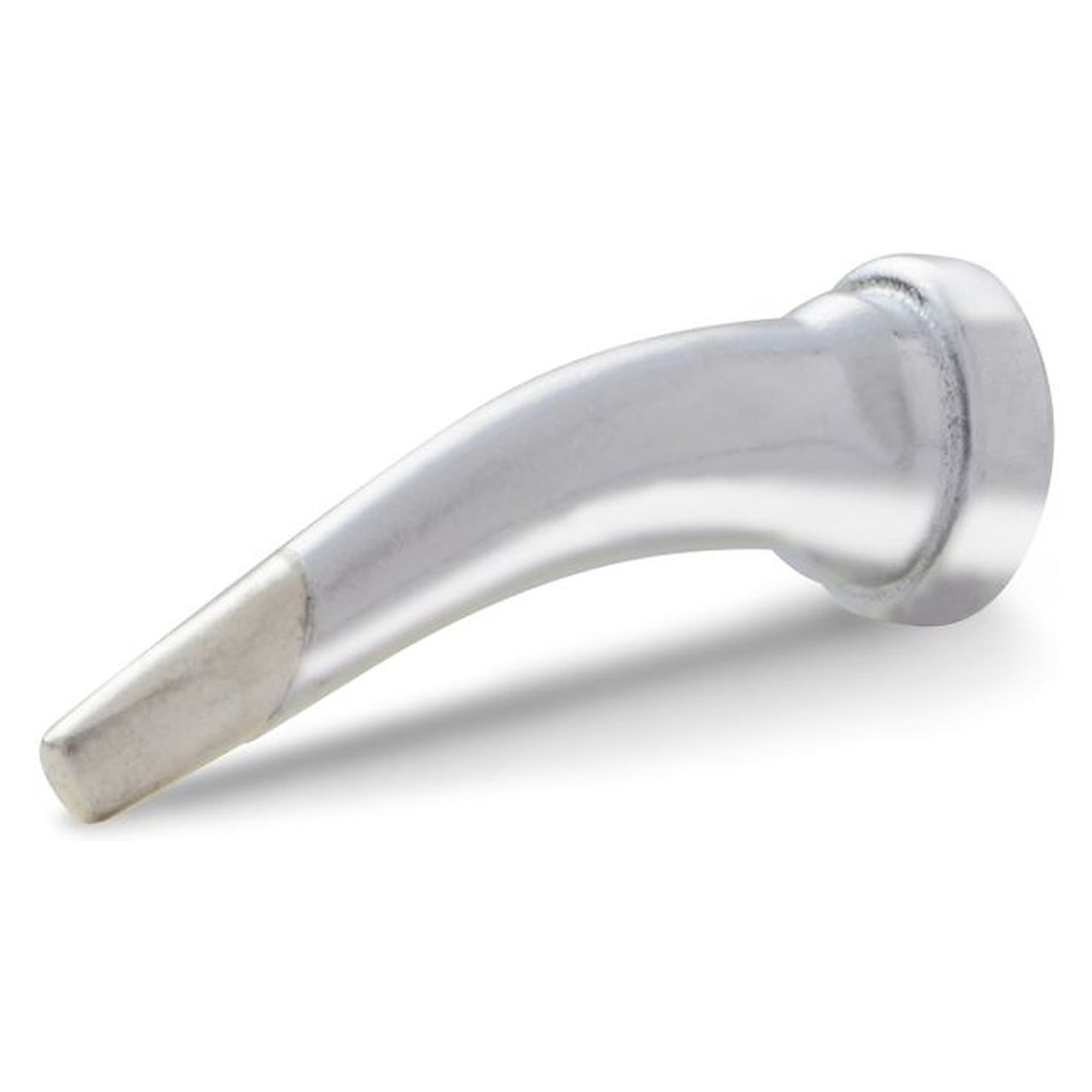

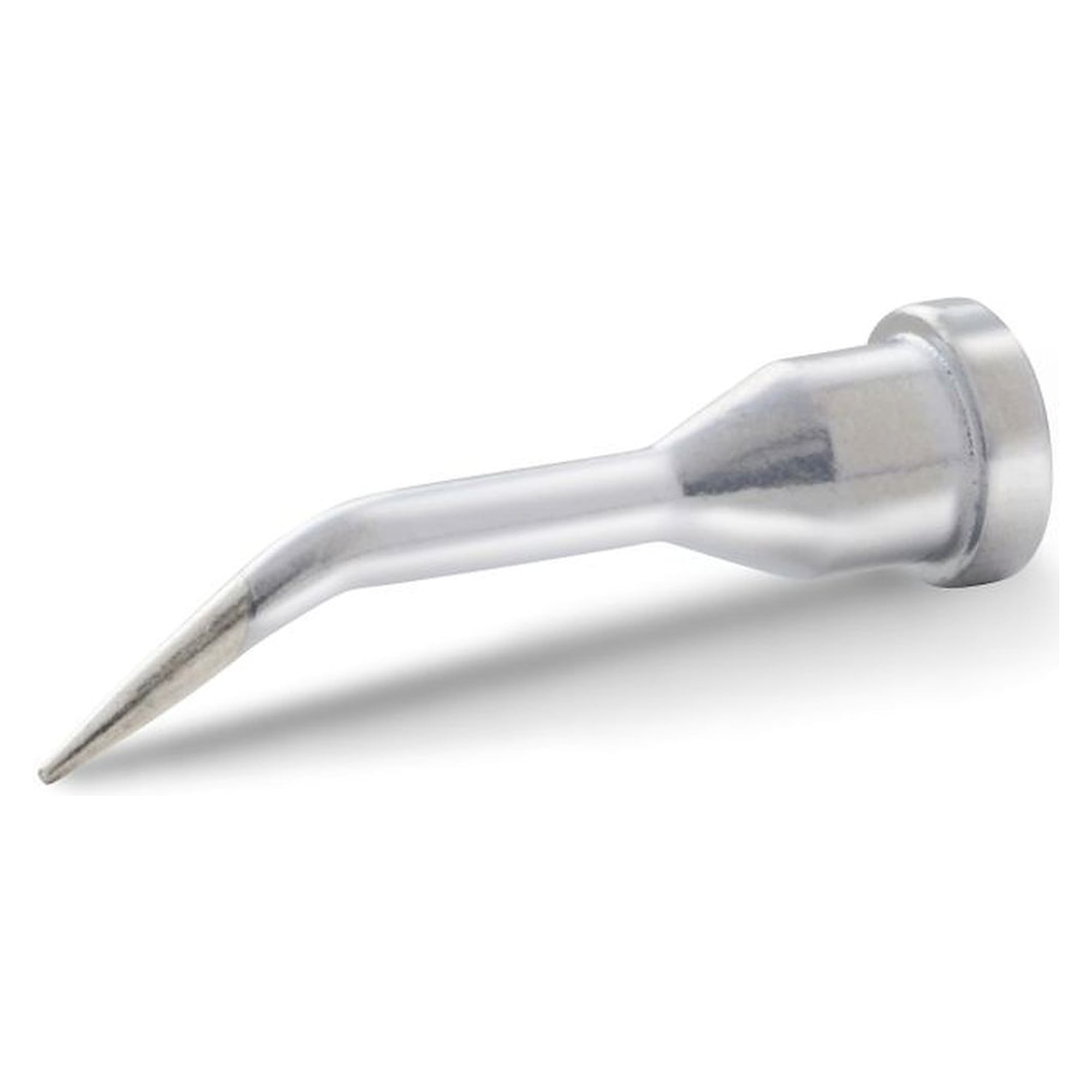

Weller LT soldering tips form the most comprehensive series in the Weller tip programme and, with 57 items, cover virtually every manual soldering task. Conical and slim cylindrical forms start at 0.2 mm diameter (LT-1, LT-1L, LT-1S); chisel tips run from 0.8x0.4 mm (LT-H) to 4.6x0.8 mm; HPB variants (LT A HPB, LT B HPB, LT H HPB) are intended for HPB special irons. Bent variants (LT-1X, LT-1LX, LT-4X, LT-ALX, LT-AX, LT-HX) provide access to hard-to-reach joints.

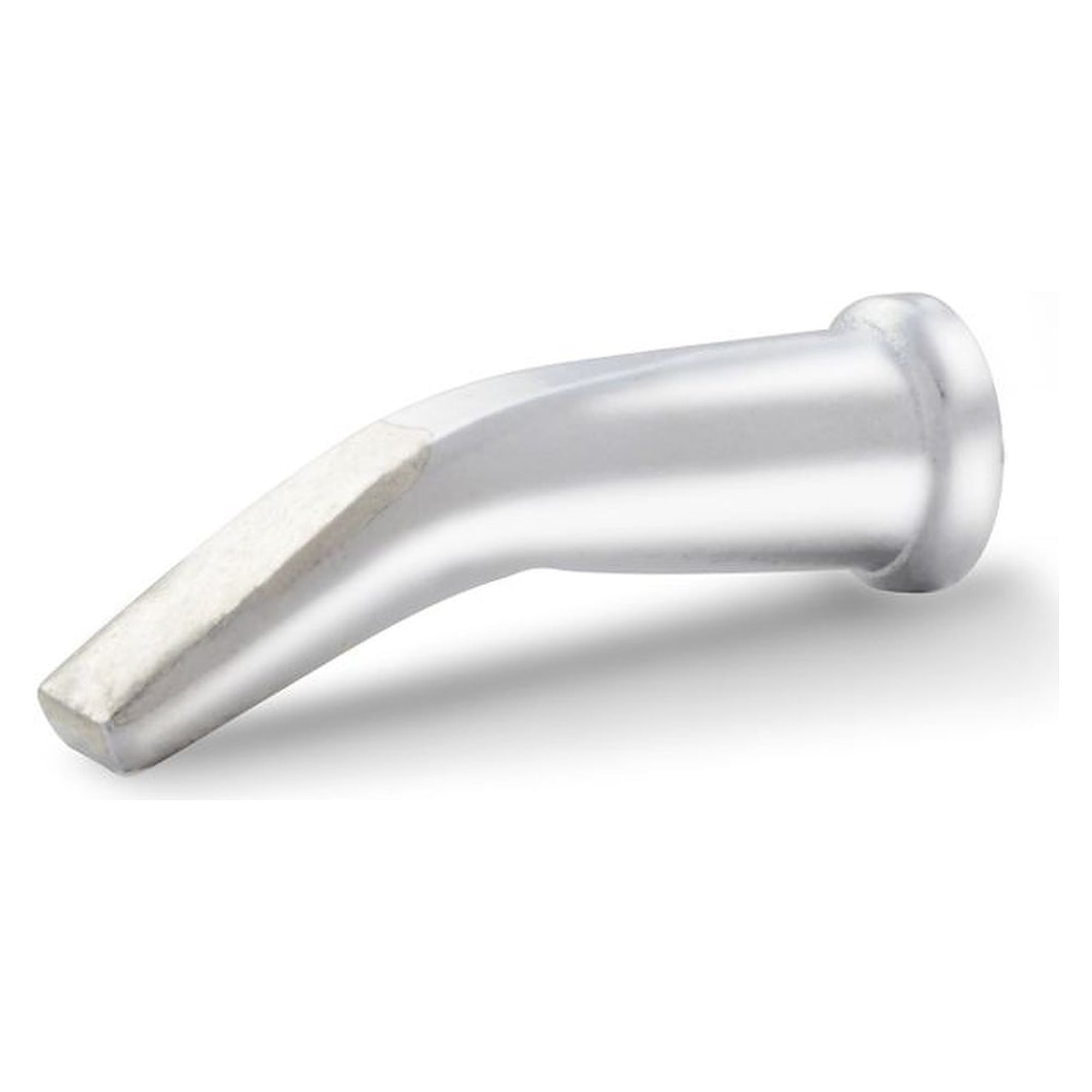

Long-shank tips (LT-L: 2x1 mm; LT-M: 3.2x1.2 mm; LT-K: 1.2x0.4 mm; LT-O: D 0.8 mm conical) and a round-bevelled form (LT-4, D: 1.2 mm) round out the range for precise rework. The LT series is compatible with all LT-capable Weller stations (WS81, WS51, WSD81, WSD51, and others).
| Model | Shape | Dimension |
|---|---|---|
| LT-1 / LT-1S | Round | D: 0.25 mm / 0.2 mm |

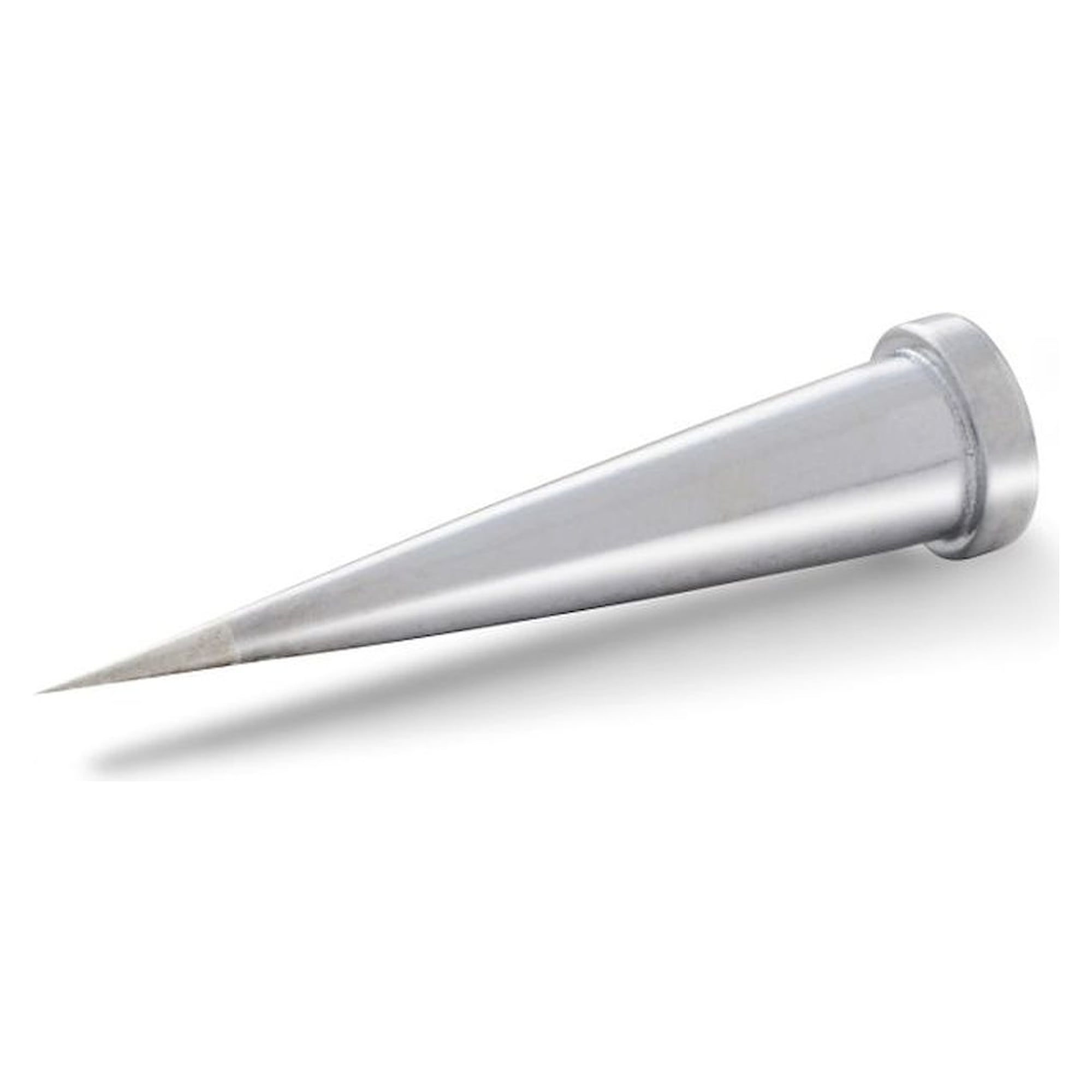

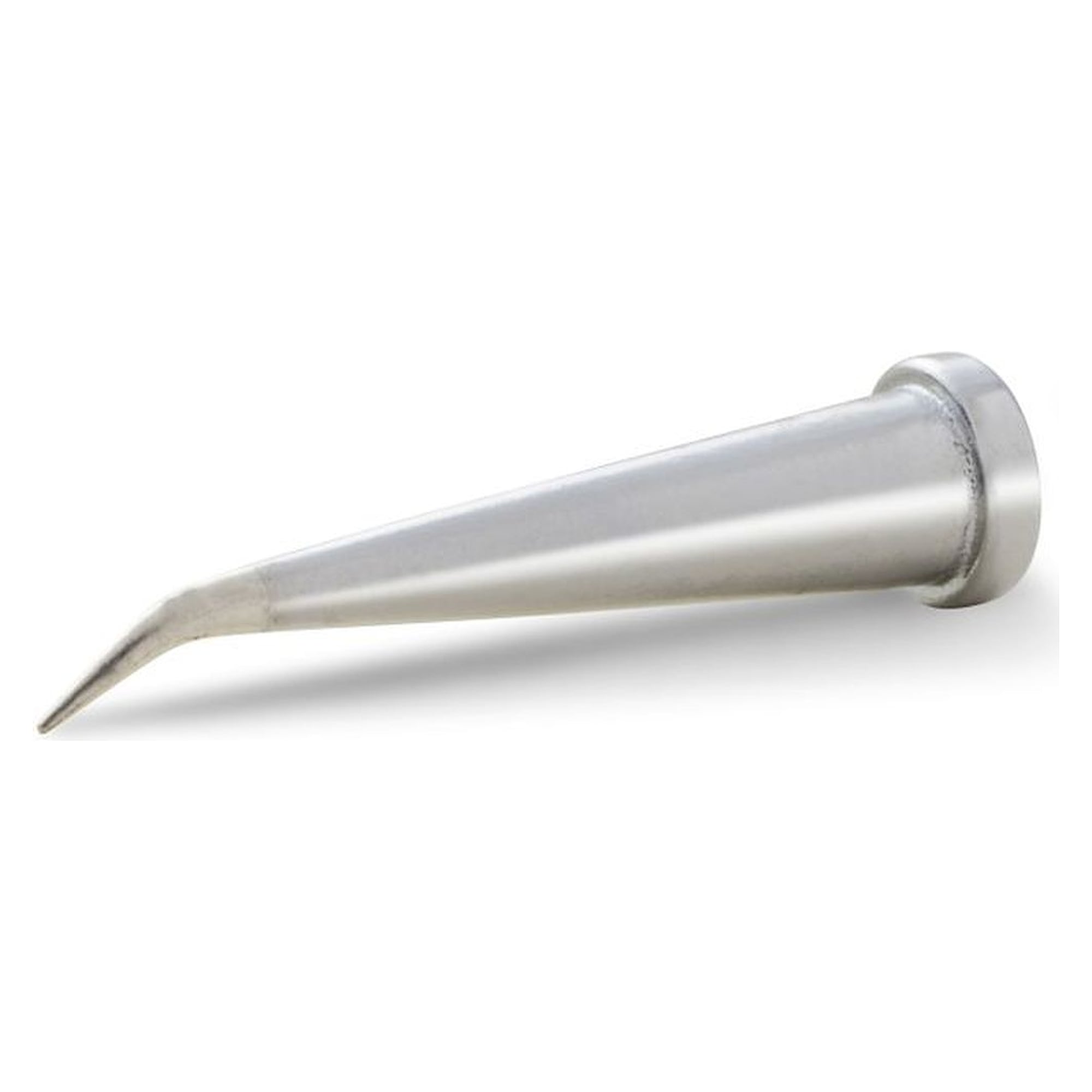

| LT-1L / LT-1LX | Conical (straight/bent 35°) | D: 0.2 mm |

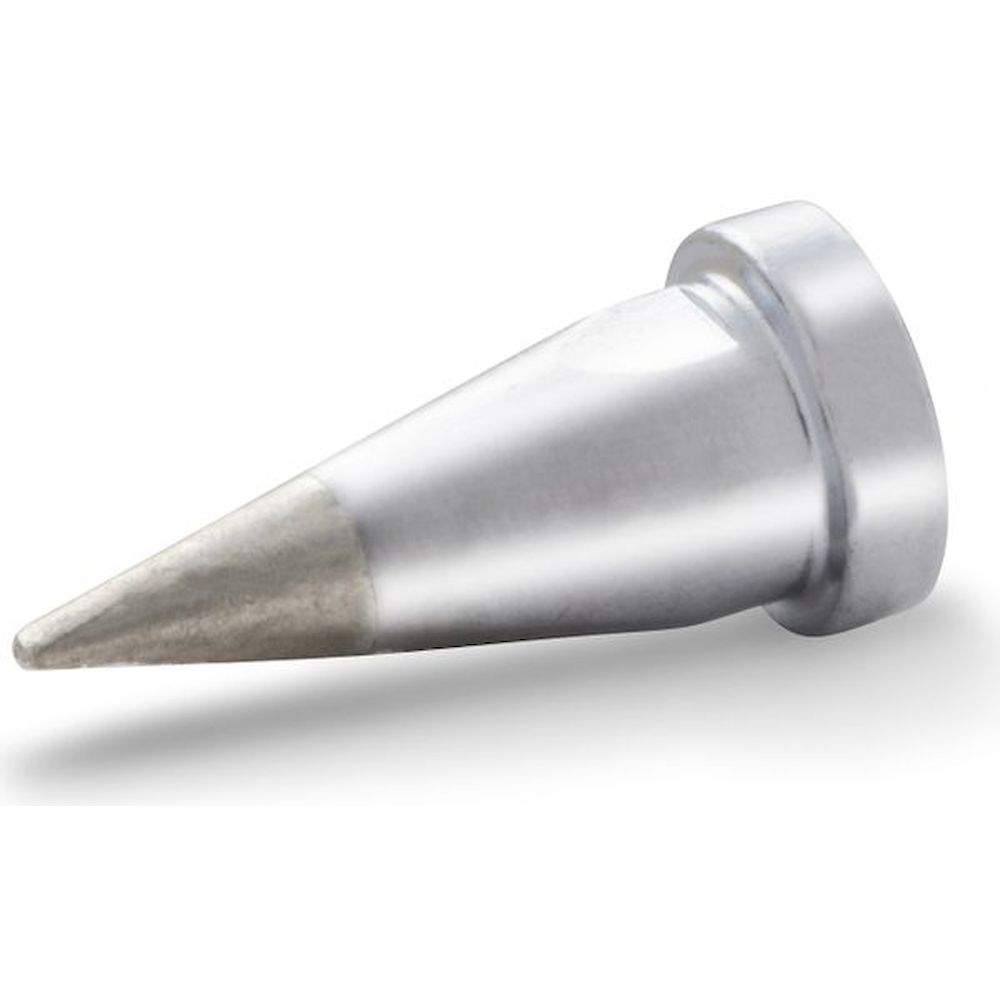

| LT-H / LT H HPB | Chisel | 0.8 x 0.4 mm |

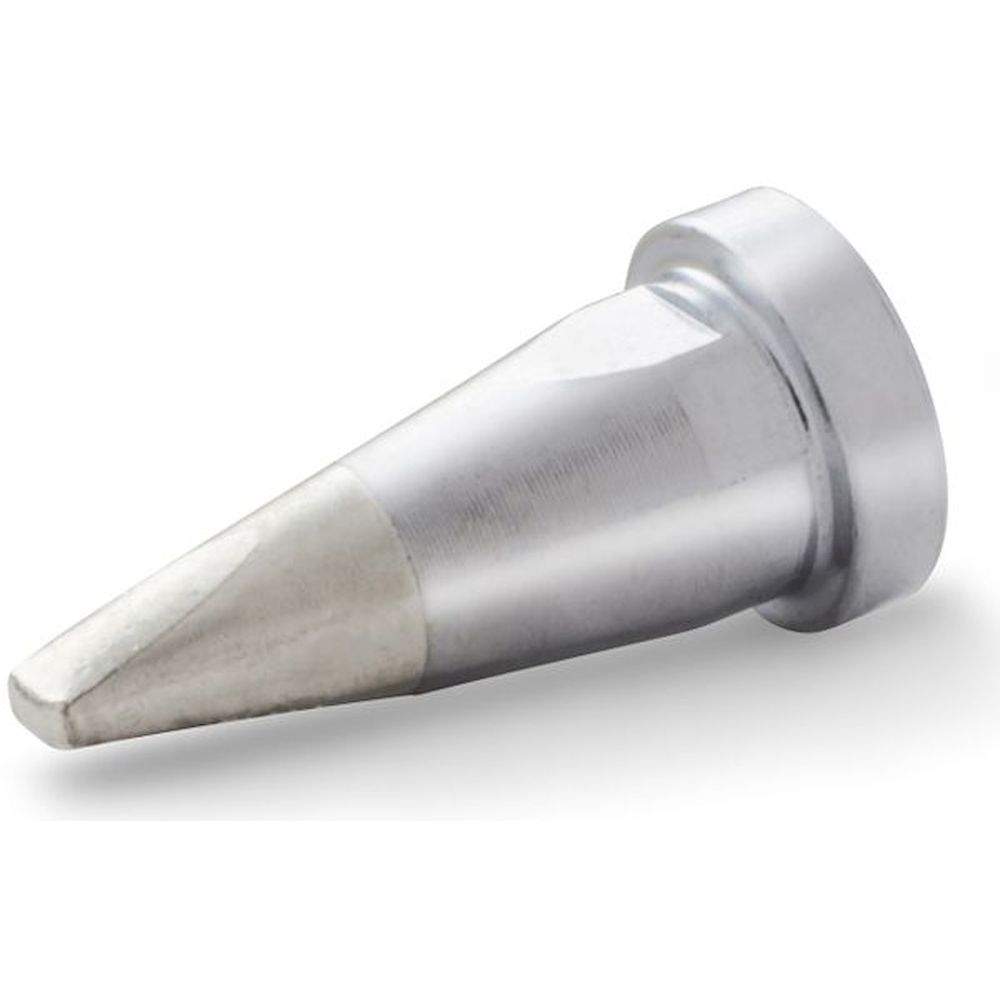

| LT-A / LT A HPB | Chisel | 1.6 x 0.7 mm |

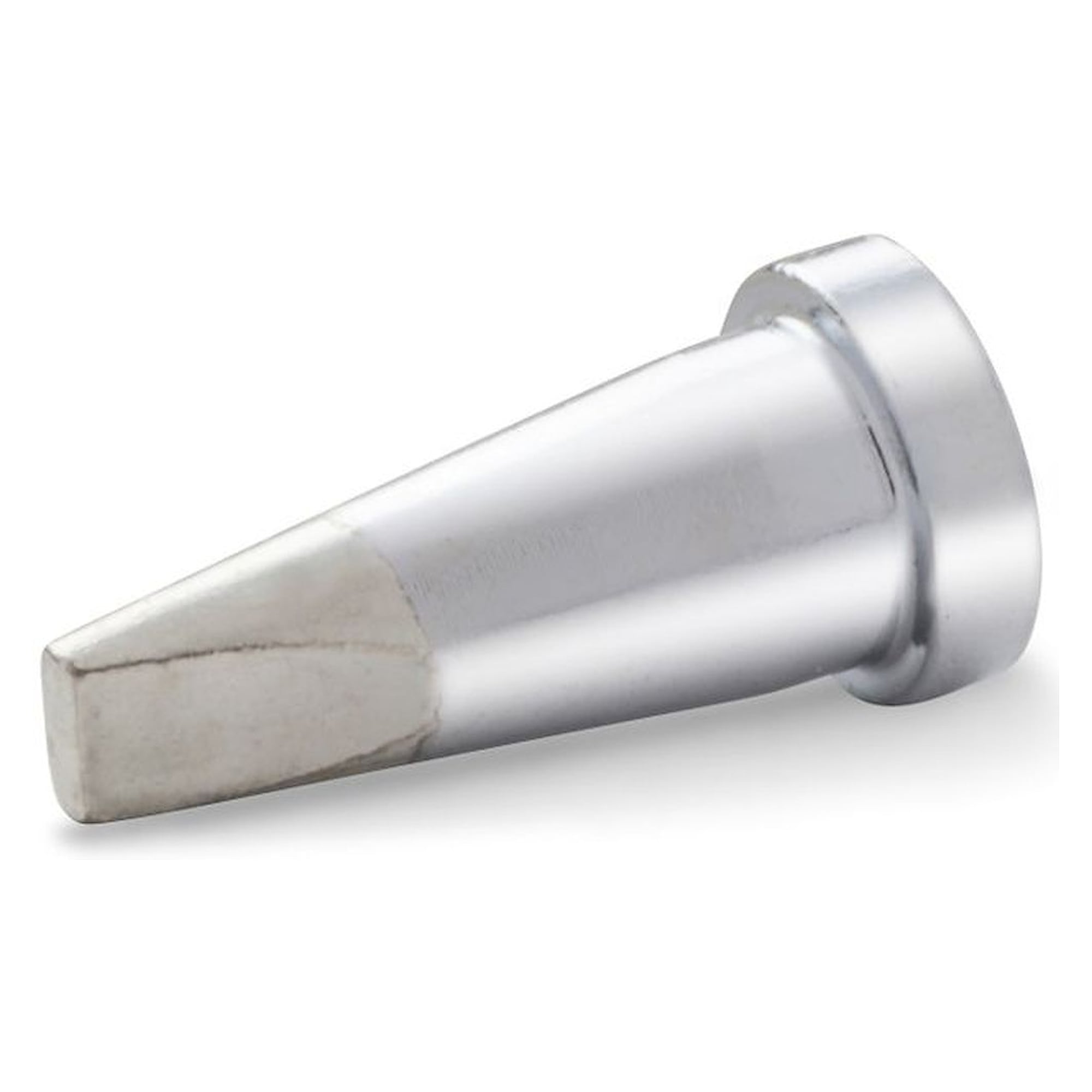

| LT-B / LT B HPB | Chisel | 2.4 x 0.8 mm |
| LT-C / LT-CS | Chisel / Round | 3.2 x 0.8 mm / D 3.2 mm |
| LT-D | Chisel | 4.6 x 0.8 mm |
| LT-4 | Round bevelled 45° | D: 1.2 mm |
| LT-K | Chisel long | 1.2 x 0.4 mm |
| LT-O / LT-SL | Conical long | D: 0.8 mm / D: 0.4 mm |
Typical applications: Manual SMD soldering on high-density boards (LT-1 to LT-A), THT assembly and repair (LT-B to LT-D), rework in confined areas with bent variants (LT-AX, LT-HX), prototype building and lab fine-work (LT-SL, LT-K), and series production on LT-compatible Weller stations.
